V-ZUG DF-SG5 User manual

Range hood
DF-SG5 / DF-SG6
DF-SG8 / DF-SG9
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
lease follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step by step instructions.
– Describes how the appliance reacts to the steps taken.
• Indicates a list.
Validity
The model number corresponds to the first 3 digits on the identification
plate.These operating instructions apply to the models:
Variations depending on the model are noted in the text.
© V ZUG Ltd, CH 6301 Zug, 2014
Denotes important safety precautions. Failure to observe said
precautions can result in injury or damage to the appliance or
fittings!
Denotes useful tips for the user.
Type Model no. Size system Type Model no. Size system
DF-SG5 359 55 DF-SG8 541 82.5
DF-SG6 360 60 DF-SG9 549 90

3
Contents
1 Safety precautions 4
1.1 Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Appliance description 8
2.1 Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.4 Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Use 11
4 Care and maintenance 13
4.1 Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2 Metal grease filter with integrated Long life activated charcoal filter . . . . 14
4.3 Replacing the halogen light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Trouble-shootin 17
5.1 What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6 Accessories and spare parts 18
7 Technical data 19
8 Disposal 20
9 Notes 21
10 Index 22
11 Repair service 23
12 Quick instructions 24

4
1 Safety precautions
In accordance with the requirements of IEC 60335 1:
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
1.1 Before using for the first time
• The appliance must be installed and connected up to the electricity supply
according to the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
• Dispose of the packaging material in accordance with local regulations.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. roper use of the appliance is
however essential to avoid damage and accidents. lease
therefore follow the precautions given in these operating
instructions.

1 Safety precautions
5
1.2 Correct use
• The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
• Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the Repair service section. Please contact our Customer Services if
necessary.
• Use original spare parts only.
• Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc
tions, together with the installation instructions, accompany the appliance.
In this way, the new owner can inform themselves about how to use the
appliance correctly and read the pertinent safety precautions.
1.3 Children in the home
• Packaging material e.g. plastic and polystyrene can be dangerous for
children. Danger of suffocation! Please keep packaging material away from
children.
• The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow
children to play with the appliance – there is a danger that children could
hurt themselves.

1 Safety precautions
6
1.4 Note on use
• If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
• If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
• If the mains cable of the appliance is damaged, it must be replaced by
Customer Services in order to avoid hazard.
• Caution: Accessible parts may become hot when used with cooking
appliances.
• Do not flambé food underneath the hood as the grease filters if laden with
grease could catch fire.
• If frying on the cooking surface, do not leave the frying appliance
unattended. The cooking oil in the frying appliance could overheat and
catch fire. Constantly monitor the temperature of the cooking oil, keeping
it below the temperature at which it can catch fire. Change the cooking oil
regularly – dirty oil catches fire more easily than clean oil.
• Clean the filters regularly. Failure to do so can increase the fire hazard due
to the build up of grease in the grease filter.
• Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
• Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve
optimal air extraction.
• Avoid a cross current of air, which could blow the cooking vapours over
the cooking area.

1 Safety precautions
7
• If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does
not apply to air recirculation appliances.
• If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal fired heating appliances), safe operation is only possible providing
a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the
location of the appliance. Risk of toxic fumes! An adequate flow of fresh air
must be guaranteed e.g. via non closable openings in doors or windows
and in combination with an air intake/exhaust air wall box or by other
technical means.
• When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
• When cleaning the appliance make sure no water gets inside the
appliance. Use a moderately damp cloth. Do not spray the inside or
outside of the appliance with water. Do not use a steam cleaner. If water
gets inside the appliance, it can cause damage.

8
2 Appliance description
The appliance is used to extract cooking fumes and smells from a cooking
area and is normally installed in an overhead unit. This particular model can
be used in the extraction mode or the recirculation mode.
2.1 Extraction model
The integrated fan extracts cooking fumes and smells from above the
cooking surface. The air is cleaned through the grease filter and then fed
through the exhaust air conduit to the outside.
2.2 Recirculation model
Using an activated charcoal filter in the appliance
After being filtered through the grease filters, the cooking fumes and smells
above the cooking surface are passed through an activated charcoal filter.
The cleaned air is then circulated through the grille – at the top of the appli
ance – and back into the room.
Using an air recycling cartridge (LRC)
The appliance extracts the cooking fumes and smells from above the cooking
surface through the grease filters, which remove the grease particles. The air
is then blown via a duct through the air recycling cassette. An activated
charcoal filter in the air recycling cassette removes the cooking fumes and
smells. The cleaned air is then circulated through the outlet grille back into
the room.
When the appliance is in use, ensure there is a sufficient supply of
fresh air to replace the air that is being extracted.
The activated charcoal filter is more effective at the lower power
levels.

2 Appliance description
9
2.3 Equipment
• Glass shield, extractable
• 2 extractor fans with 3 power levels
• 1 metal grease filter
• Illumination
• 1 activated charcoal filter (not supplied)
The extractor fan has 3 power levels: 1, 2 and 3
• 1 = low, 2 = medium, 3 = high capacity
• Levels 1 and 2 are suitable for longer periods of use.
• Level 3 (high) is used for short, intensive extraction of fumes, e.g. when
frying. It should then be switched back to level 1 or 2.

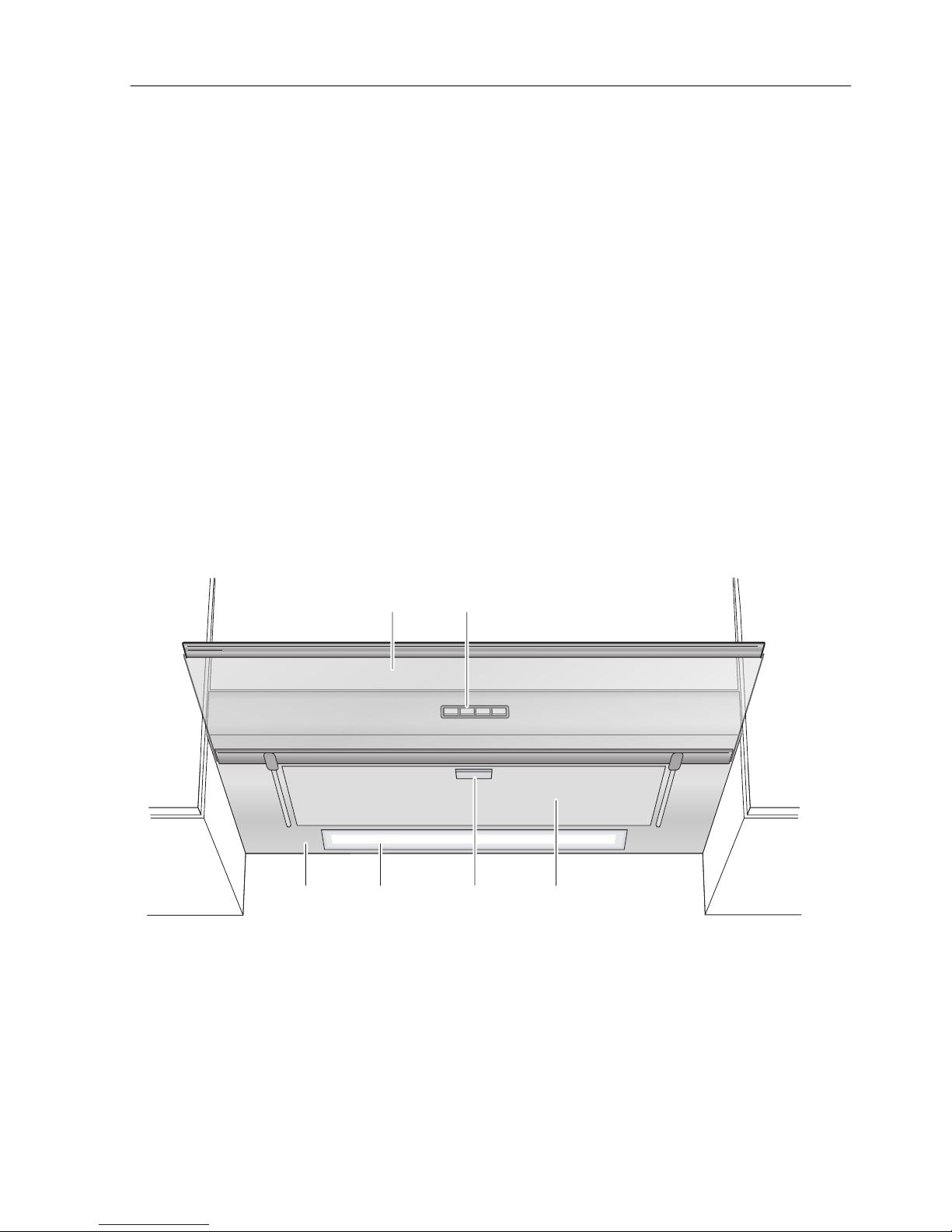

2.4 Construction
1Glass shield, extractable
2Operating elements
3Metal grease filter
4Grip flap
5Illumination
6Illumination cover
7Locking bar
21
345/67

2 Appliance description
10
2.5 Operating elements
Illumination ON–OFF
Extractor fan power level 1 ON, all power levels OFF
Extractor fan power level 2 ON–OFF
Extractor fan power level 3 ON–OFF
Depending on the model and features, the specification of your
appliance may differ from the standard specification described.

11
3 Use

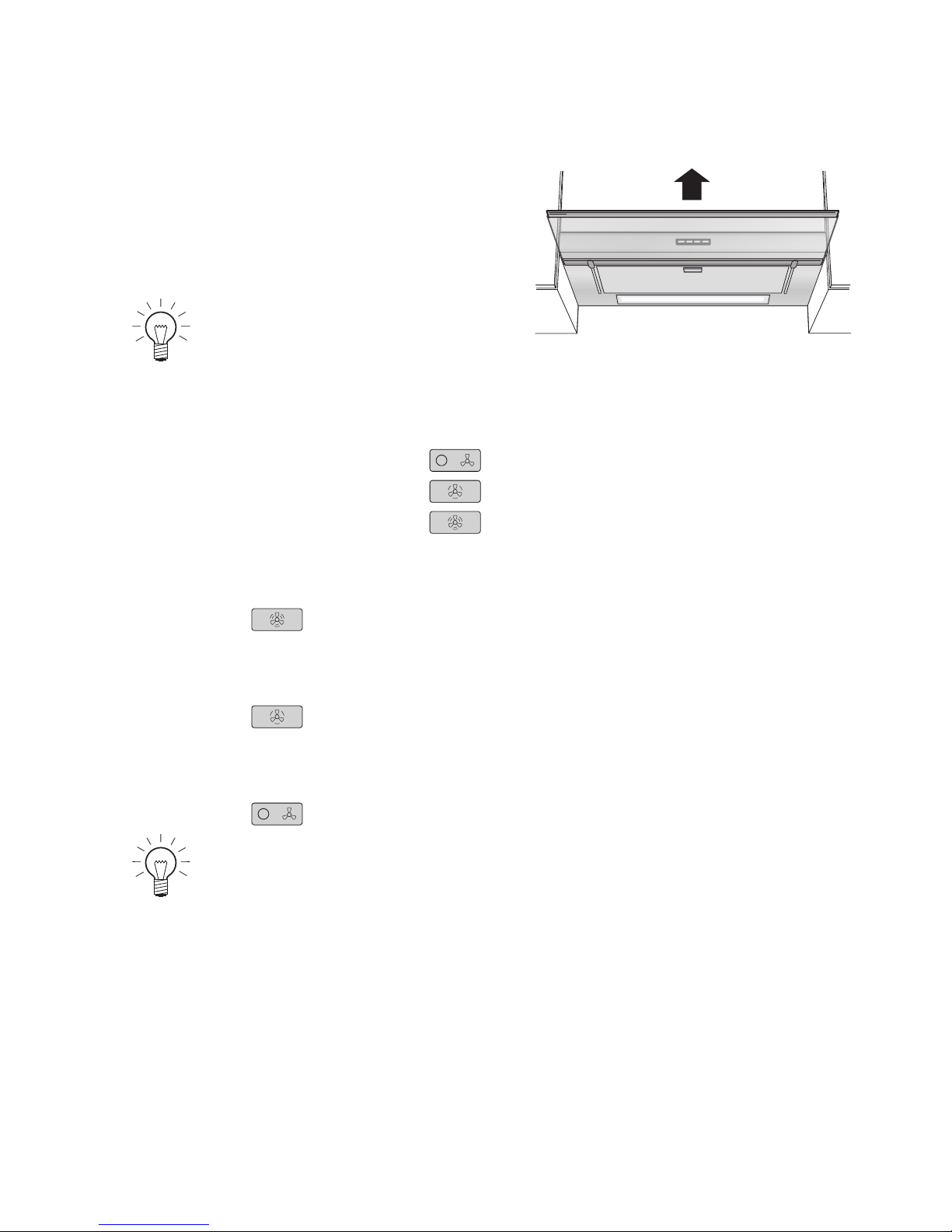

Switching on the appliance
APull out the glass shield.
The extraction fans can only be switched
on if the glass shield is slightly pulled out.
Switching the extractor fan on/off
APower level 1 ON: Press the button 1×.
APower level 2 ON: Press the button 1×.
APower level 3 ON: Press the button 1×.
Switching from power level 3 to power level 2:
APress the button 1×.
Switching from power level 2 to power level 1:
APress the button 1×.
Switching all power levels off:
APress the button 1×.
The appliance operates most
effectively when the glass shield
is completely pulled out.
We recommend switching the appliance on at power level 1 some 5
minutes before starting to cook. After finishing cooking, allow the
appliance to run for around another 15 minutes so that the cooking
fumes and smells can be extracted.

3 Use
12

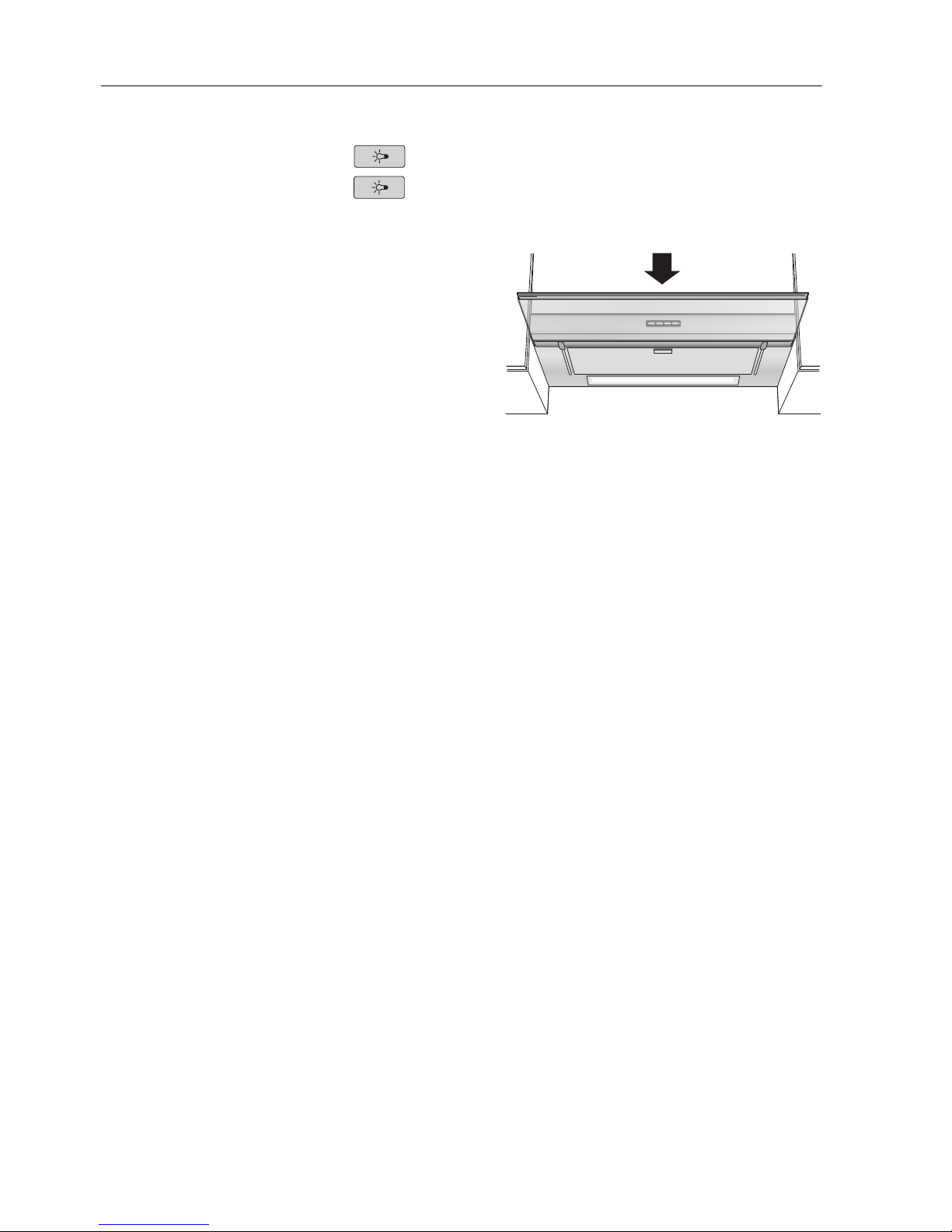

Switching the illumination on/off
ATo switch on: Press the button 1×.
ATo switch off: Press the button again.
Switching off the appliance
AFully insert the glass shield.
– This switches off the extraction fan
and the illumination even if both are
still switched on.
If the glass shield is pulled out slightly,
the extractor fan switches to the set power
level or the illumination switches on,
providing it was switched on when the
glass shield was fully inserted.

13
4 Care and maintenance
4.1 Cleaning the housing
Cleaning the outside/inside
AClean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up around the grease filter on the
inside.
AClean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Cleaning the illumination cover
If need be, the illumination cover can be removed for cleaning.
Take care that no water gets into the housing! If water gets into the
housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool etc. to
clean the appliance as they can damage the surface.
Remove screw fuse for appliance or switch off circuit breaker.

4 Care and maintenance
14
4.2 Metal grease filter with integrated Long-life activated
charcoal filter
The filters can be cleaned and reactivated (activated charcoal filters). They
must be cleaned at least once a month with normal use.
Cleaning the grease filter and the activated charcoal filter
The filters can be cleaned in the dishwasher at 65 °C (intensive programme).
The filters can otherwise be left to soak in the sink for an hour at 60 °C using
water and standard washing up liquid. Rinse well afterwards.
Drying/reactivate the activated charcoal filter
To reactivate the activated charcoal, the activated charcoal filter has to be
dried in the oven.
ASelect top/bottom heat or hot air at 100 °C and leave the activated
charcoal filter to dry on the wire shelf for at least 60 minutes.
The activated charcoal filters must be replaced after about 3 years
because their ability to absorb smells will be reduced. The dirty
activated charcoal filters can be disposed of in the household waste.
Cleaning may cause the grease filters to become discoloured.
However, this will not affect the functioning of the filters in any way.

4 Care and maintenance
15

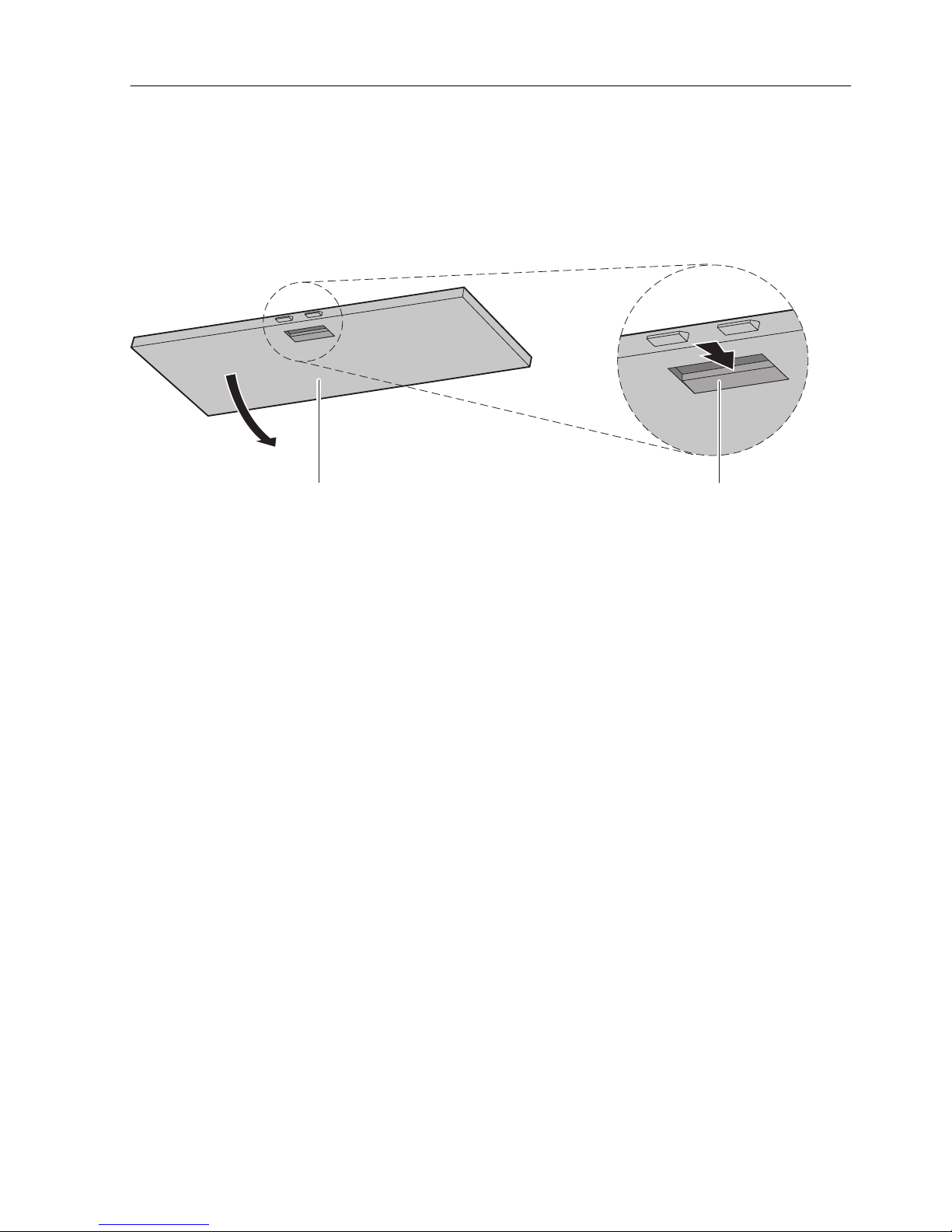

Removing the grease filter
APull out the glass shield completely.
APull the grip flap 2in the centre recess on the grease filter toward the back.
– The grease filter 1is unlocked and can be taken out toward the bottom.
ACleaning the grease filter.
Installing the grease filter
APull out the glass shield completely.
AGrasp the grease filter and make sure that the grip flap 2is facing down.
Insert fixed centring pins at the back in the retaining slots in the housing.
AEnsure that all centring pins are seated in the correct retaining slots. Only
then will the grip flap 2latch completely in place.
– The grease filter is correctly inserted if it lies flush with the housing.
21

4 Care and maintenance
16
4.3 Replacing the halogen light bulb
APull out the glass shield completely.
ARemove the grease filter.
AUnscrew the halogen light bulb from the fixture and replace it with a new
halogen light bulb of the same type (see designation on the light bulb hou
sing or on the identification plate).
AReinsert the grease filter.
ASlide in the glass shield, put back the screw fuse or switch on the circuit
breaker again.
Remove the appliance’s screw fuse or switch off the circuit
breaker.
Halogen light bulbs get hot during operation! Allow to cool down
first.

17
5 Trouble-shooting
5.1 What to do if …
… the illumination is not working
… the appliance does not ventilate sufficiently
ossible cause Solution
• The fuse or the circuit
breaker for electrical
installations in the home
is faulty.
AReplace the fuse.
AReset the circuit breaker.
• Interruption in the power
supply.
ACheck the mains supply.
• The halogen light bulb is
defective.
AReplace the halogen light bulb.
ossible cause Solution
• The metal grease filter is
dirty.
AClean the metal grease filter.
• The activated charcoal
filter (for recirculation
models) is spent.
AClean the long life activated charcoal filter
or replace it.

18

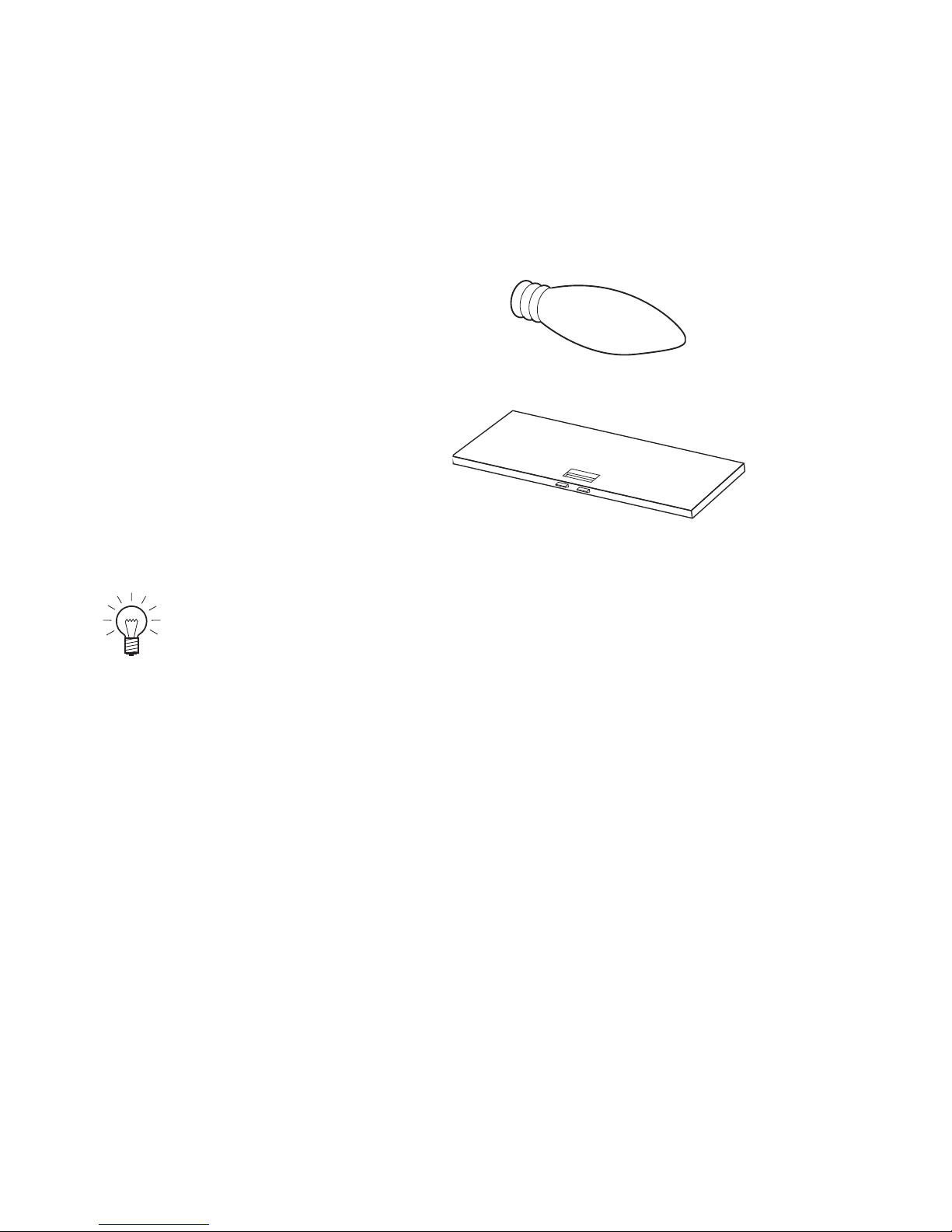

6 Accessories and spare parts
Please give model number of the appliance and exact description of the
accessory or spare part when ordering parts.
Halogen light bulb 230 V / 28 W
Metal grease filter
The halogen light bulb is also available from specialist retailers.

19
7 Technical data
Electrical connection
ASee identification plate.
ARemove the grease filter.
– The identification plate is located on the inside of the appliance.

20
8 Disposal
ackaging
• All packaging materials (cardboard, plastic film (PE) and polystyrene
(EPS)) are marked and should, if possible, be collected for recycling and
disposed of in an environmentally friendly way.
Disconnection
• Disconnect the appliance from the mains power supply. With a fixed
appliance, this is to be carried out by a qualified electrician!
Safety
• Disable the appliance to prevent accidents caused by improper use,
especially through children playing.
• Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with
the appliance.
Disposal
• The old appliance should not be discarded as worthless rubbish. If
disposed of correctly, the raw materials can be recovered for recycling.
• The symbol on the identification plate warns that the appliance may
not be disposed of in normal household waste.
• The appliance must be disposed of in accordance with local regulations
on waste disposal. For more information on the handling, disposal and
recycling of the product, please contact the local authorities, the local
recycling facilities for household waste or the retailer from whom you
purchased the appliance.
