V-ZUG DI-SMC12 User manual

Range hood
DI-SMC12
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the
appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first three digits on the identification
plate. These operating instructions apply to the model:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Type Model no.
DI-SMC12 016

3
Contents
Safety precautions 4
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 4
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Appliance description 8
Fitted with . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Use 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Care and maintenance 11
Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning the grease filters . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning the temperature sensor . . . . . . . . . . . . . . . . . . . . 13
Changing the halogen spot . . . . . . . . . . . . . . . . . . . . . . . . 14
Trouble-shooting 15
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

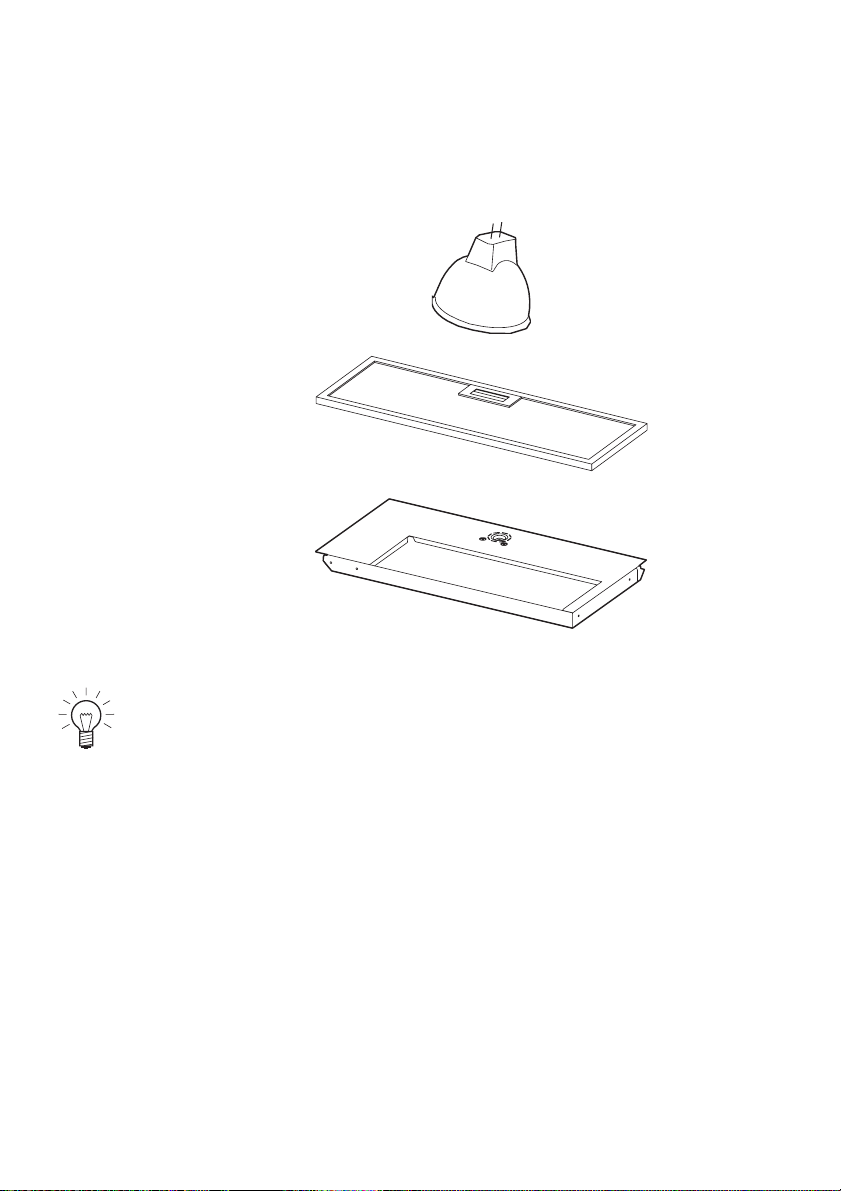

Accessories and spare parts 16
Technical data 17
Disposal 18
Notes 19
Index 22
Repair service 23

4
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected up to the electricity supply
according to the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.

… Safety precautions
5
Correct use
䡲The appliance should only be used together with a suitable comfort venti-
lation system from Zehnder Comfosystems. Other comfort ventilation appli-
ances or external blowers are not equipped with the necessary safety
features. Please follow the operating instructions and safety precautions
recommended by Zehnder Comfosystems.
䡲The appliance is designed for use in the home for extracting cooking va-
pours from above the cooking area
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrical parts, should only be carried out by the manufacturer, its Cus-
tomer Services or similarly qualified persons. Repairs if carried out incor-
rectly may cause serious injury, damage to the appliance and fittings, as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
'Repair service' section. Please contact Customer Services if necessary.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the instructions on installa-
tion. In this way, the new owner can inform themselves about how to use
the appliance correctly and read the pertinent safety precautions.
Children in the home
䡲Packaging material e.g. plastic and polystyrene can be dangerous for chil-
dren. Danger of suffocation! Please keep packaging material away from
children.
䡲The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognise the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children can hurt
themselves.

… Safety precautions
6
Note on use
䡲If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
䡲If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲Caution: Accessible parts may become hot when used with cooking
appliances.
䡲Do not flambé food underneath the hood as the grease filters, if laden with
grease, could catch fire.
䡲If frying on the cooking surface, do not leave the frying appliance unattend-
ed. The cooking oil in the frying appliance could overheat and catch fire.
Constantly monitor the temperature of the cooking oil, keeping it below the
temperature at which it can catch fire. Change the cooking oil regularly –
dirty oil catches fire easier than clean oil.
䡲Clean the filters regularly. Failure to do so, can increase the fire hazard due
to the build-up of grease in the grease filter.
䡲To avoid damage to the appliance or the kitchen fittings through the build-
up of heat, the individual cooking zones of the cooking surface should only
be operated with a full pan etc., on the top. Avoid open fires with oil, gas,
wood and coal fired cookers.
䡲Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction. Pay attention also to the information in the operating
instructions for your Comfort ventilation system.
䡲Avoid cross-currents of air which could blow the cooking fumes and vapour
over the cooking area.

… Safety precautions
7
䡲With the simultaneous operation of firing (e.g. wood, gas, oil or coal-fired
heating systems), safe operation is only possible providing a room nega-
tive pressure of 4 Pa (0.04 mbar) is not exceeded at the location of the ap-
pliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed. Pay attention also to the information in the operating instruc-
tions for your Comfort ventilation system.
䡲When carrying out maintenance work on the appliance, including replacing
light bulbs, cut off the electricity supply to the appliance (remove the screw
fuse from the holder or switch the circuit breaker off, or disconnect from
the mains supply).
䡲When cleaning the appliance make sure no water gets inside the appli-
ance. Use a moderately damp cloth. Do not spray the inside or outside of
the appliance with water. Do not use a steam cleaner. If water gets inside
the appliance, it can cause damage.

8
Appliance description
The appliance is designed for use in the home for extracting cooking vapours
from above the cooking area. The combi filters and metal grease filters clean
the extracted air. The grease particles in the cooking vapour are trapped very
efficiently in the combi filters and metal grease filters. The heater exchanger
in the comfort ventilation system transfers energy from the warm kitchen air
to the replacement air before being vented to the outside.
The appliance is solely for extracting air in combination with a comfort venti-
lation system.
Fitted with
䡲Illumination
䡲4 metal grease filters
䡲4combifilters

… Appliance description
9
Construction
1Illumination on/off
2Halogen spot
3Combi filter
4Metal grease filter
5Temperature sensor
The temperature sensor 5is only visible when the filter has been
removed.
1
3
4
2
5

10
Use
Operation
The appliance is operated via the comfort ventilation control system. Please
observe the operating instructions for the comfort ventilation system.
Illumination
Press the button to switch the illumination for on/off.
Depending on the model and features, the specification can differ
from the standard specification described.

11
Care and maintenance
Cleaning the housing
Cleaning the outside / inside
AClean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up around the combi filters on the
inside.
AClean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool etc. to clean
the appliance as they can damage the surface.

… Care and maintenance
12
Cleaning the grease filters
The grease filters should be cleaned at least once a month with normal use.
If properly cared for, the grease filters should provide unlimited years of
service.
AThe grease filters can be cleaned in a dishwasher.
ASelect an «intensive» – or «heavy soil» – wash programme with a warm
pre-wash.
If you do not have a dishwasher:
AClean the grease filters in the sink with hot water and detergent.
AThen soak the filters in hot water in the sink for about 2 hours and finally
clean with a washing-up brush.
Cleaning may cause the grease filters to become discoloured.
However, this will not affect the functioning of the filters in any way.

… Care and maintenance
13
Cleaning the temperature sensor
The temperature sensor is only
visible when the filter has been
removed.
AClean the temperature sensor
carefully with a soft cloth and a
little detergent.
Removing the metal grease filters and the combi filters
ALoosen the fastening screw 1in one
combi filter.
AWith the other hand, fold the combi
filter downwards.
ARemove the combi filter from its
fitting.
ARemove the other combi filter in the
same way.
AOn the metal grease filter push the
grip 2back.
ACarefully pull the metal grease filter
down and remove from the slot.
Take care not to damage the
grease filters. 2
1

… Care and maintenance
14
Installing the metal grease filters and the combi filters
AReplace the metal grease filters.
APush one combi filter into the fitting and fold upwards. Tighten the fastening
screw 1slightly.
AInstall the other combi filters in the same way.

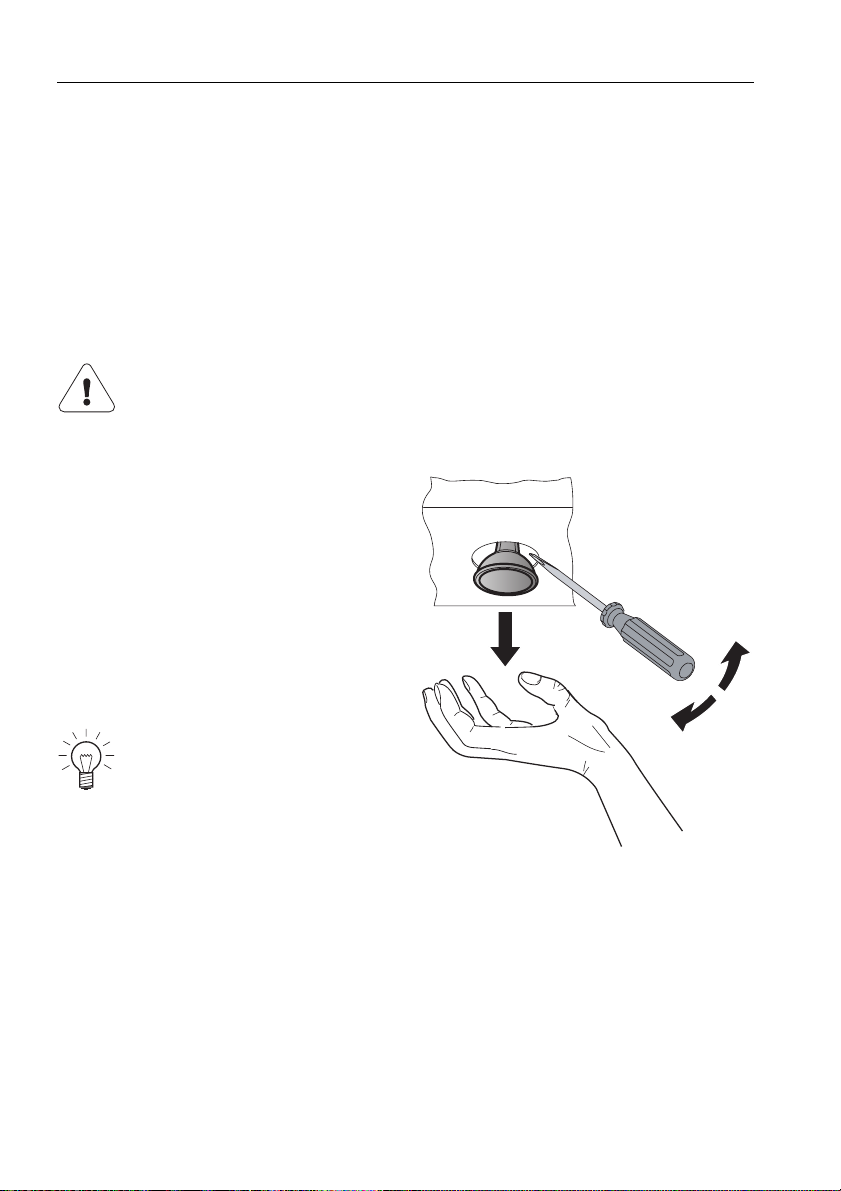

Changing the halogen spot
AUsing a small screw driver, from
below carefully lever the halogen
spot out of the socket and remove.
AReplace the defective halogen
spot with a halogen spot of the
same type (max. 20 watts).
AInsert the halogen spot into the
socket so that it sits flush with the
housing.
APut screw fuse back in or switch
circuit breaker back on again.
Remove screw fuse or switch off circuit breaker.
Halogen spots become hot during operation! Allow to cool down
first.
Ensure that the connection
pins of the halogen spot are
correctly positioned with the
light socket.

15
Trouble-shooting
What to do if …
… the illumination is not working
… the appliance is not extracting the cooking fumes and smells
satisfactorily
… the appliance is not working
Possible cause Solution
䡲Fuse or circuit breaker for
electrical installations in
the home is faulty.
AChange the fuse.
AReset the circuit breaker.
䡲Interruption in the power
supply.
ACheck the power supply.
䡲The halogen spot is faulty. AChange the halogen spot.
Possible cause Solution
䡲The grease filters are
dirty.
AClean the grease filters.
Possible cause Solution
䡲The comfort ventilation
system is switched off.
ASwitch the comfort ventilation system on.

16
Accessories and spare parts
Please give model number and exact description when ordering parts.
Halogen spot (12 V / 20 W)
Metal grease filter
Combi filter
Left
Right
The halogen spot is also available from specialized retailers.

17
Technical data
Electrical connection
ASee identification plate
ARemove metal grease filter.
– The identification plate is located on the inside of the appliance.

18
Disposal
Packaging
䡲All packaging materials (cardboard, plastic film (PE) and polystyrene
(EPS)) are marked and should, if possible, be collected for recycling and
disposed of in an environmentally friendly way.
Disconnection
䡲Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
䡲Disable the appliance to prevent accidents caused by improper use,
especially through children playing.
䡲Pull the plug out of the mains socket or have the appliance disconnected
from the mains by a qualified electrician. Then cut off the mains cable.
Disposal
䡲The old appliance should not be discarded as worthless rubbish. If
disposed of correctly, the raw materials can be recovered for recycling.
䡲The symbol on the identification plate warns that the appliance may
not be disposed of in normal household waste.
䡲The appliance must be disposed of in accordance with local regulations
on waste disposal. For more information on the handling, disposal and
recycling of the product, please contact the local authorities, the local
recycling facilities for household waste or the retailer from whom you
purchased the appliance.

19
Notes

… Notes
20
