V-ZUG DF-S5 User manual

Range Hood
DF-S5 / DF-S6
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the
appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the
appliance at the time these operating instructions went to press. The right to
make technical modifications for the purpose of the further development of
the appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first 3 digits on the identification plate.
These operating instructions apply to the models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said
precautions can result in injury or damage to the appliance or
fittings!
Denotes useful tips for the user.
Type Model no. Size system
DF-S5 364 55
DF-S6 596 60

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance description 9
Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Use 12
Switching appliance on . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching extractor fan on and off . . . . . . . . . . . . . . . . . . . 12
Switching the illumination on and off . . . . . . . . . . . . . . . . . 13
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . 13
Care and maintenance 14
Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the illumination cover . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the grease filters . . . . . . . . . . . . . . . . . . . . . . . . . 15
Replacing the standard activated charcoal filter . . . . . . . . . 18
Cleaning and replacing long-life activated charcoal filters . 19
Replacing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Trouble-shooting 21
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

… Contents
4
Accessories and spare parts 22
Technical data 23
Disposal 24
Index 25
Repair service 27
Quick instructions 28

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
䡲The appliance must be installed and connected up to the electricity supply
according to the separate installation instructions. The necessary work
should be carried out by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.

… Safety precautions
6
Correct use
䡲The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
䡲Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. Please contact our Customer Services if
necessary.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass
the appliance on to a third party, please ensure these operating instruc-
tions, together with the installation instructions, accompany the appliance.
In this way, the new owner can inform themselves about how to use the
appliance correctly and read the pertinent safety precautions.
Children in the home
䡲Packaging material e.g. plastic and polystyrene can be dangerous for chil-
dren. Danger of suffocation! Please keep packaging material away from
children.
䡲The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognise the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children could hurt
themselves.

… Safety precautions
7
Note on use
䡲If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
䡲If the appliance is not operating properly, disconnect it from the electricity
supply immediately.
䡲Do not flambé food underneath the hood as the grease filters if laden with
grease could catch fire.
䡲If frying on the cooking surface, do not leave the frying appliance unattend-
ed. The cooking oil in the frying appliance could overheat and catch fire.
Constantly monitor the temperature of the cooking oil, keeping it below the
temperature at which it can catch fire. Change the cooking oil regularly –
dirty oil catches fire more easily than clean oil.
䡲Clean the filters regularly. Failure to do so can increase the fire hazard due
to the build-up of grease in the grease filter.
䡲Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
䡲Ensure there is adequate ventilation when the extraction fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction.
䡲Avoid a cross-current of air, which could blow the cooking vapours over
the cooking area.

… Safety precautions
8
䡲If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does
not apply to air recirculation appliances.
䡲If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal-fired heating appliances), safe operation is only possible providing
a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the loca-
tion of the appliance. Risk of toxic fumes! An adequate flow of fresh air
must be guaranteed e.g. via non-closable openings in doors or windows
and in combination with an air-intake/exhaust-air wall box or by other tech-
nical means.
䡲When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance (remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply).
䡲When cleaning the appliance make sure no water gets inside the appli-
ance. Use a moderately damp cloth. Do not spray the inside or outside of
the appliance with water. Do not use a steam cleaner. If water gets inside
the appliance, it can cause damage.

9
Appliance description
The appliance is used to extract cooking fumes and smells from a cooking
area and is normally installed in an overhead unit. This particular model can
be used in the extraction mode or the recirculation mode.
Extraction model
The integrated fan extracts cooking fumes and smells from above the
cooking surface. The air is cleaned through the grease filters and then fed
through the exhaust air conduit to the outside.
Recirculation model
Using an activated charcoal filter in the appliance
After being filtered through the grease filters, the cooking fumes and smells
above the cooking surface are passed through an activated charcoal filter.
The cleaned air is then circulated through the grille – at the top of the
appliance – and back into the room.
Using an LRC1 air recycling cassette
The appliance extracts the cooking fumes and smells from above the cooking
surface through the grease filters, which remove the grease particles. The air
is then blown via a duct through the air recycling cassette. An activated
charcoal filter in the air recycling cassette removes the cooking fumes and
smells. The cleaned air is then circulated through the outlet grille back into
the room.
When the appliance is in use, ensure there is a sufficient supply of
fresh air to replace the air that is being extracted.
The activated charcoal filter is more effective at the lower power
levels.

… Appliance description
10
Features
䡲Flat pull-out deflector plate
䡲2extractorfans
䡲2 metal grease filters
䡲Cooking surface illumination
䡲1 activated charcoal filter (only with air recirculation, not supplied)
The extractor fan has 3 power levels:
䡲1 = low, 2 = medium, 3 = high capacity
䡲Levels 1 and 2 are suitable for longer periods of use.
䡲Level 3 (high) is used for short, intensive extraction of fumes, e.g. when fry-
ing. It should then be switched back to level 1 or 2.

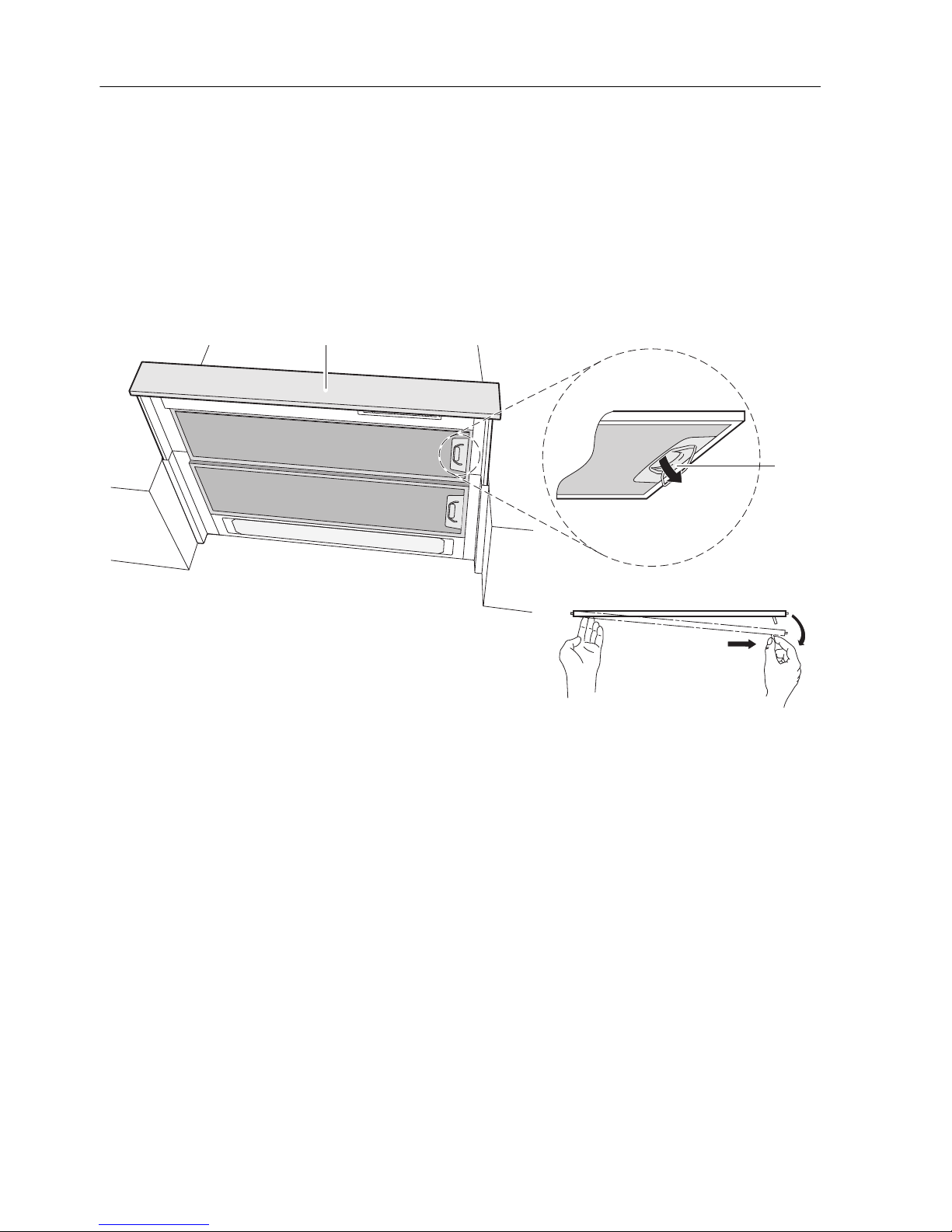

Construction
1Flat pull-out deflector plate 5Illumination
2Operating elements 6Illumination cover
3Metal grease filter 7Locking bar
4Handle
123
4
75/6

… Appliance description
11

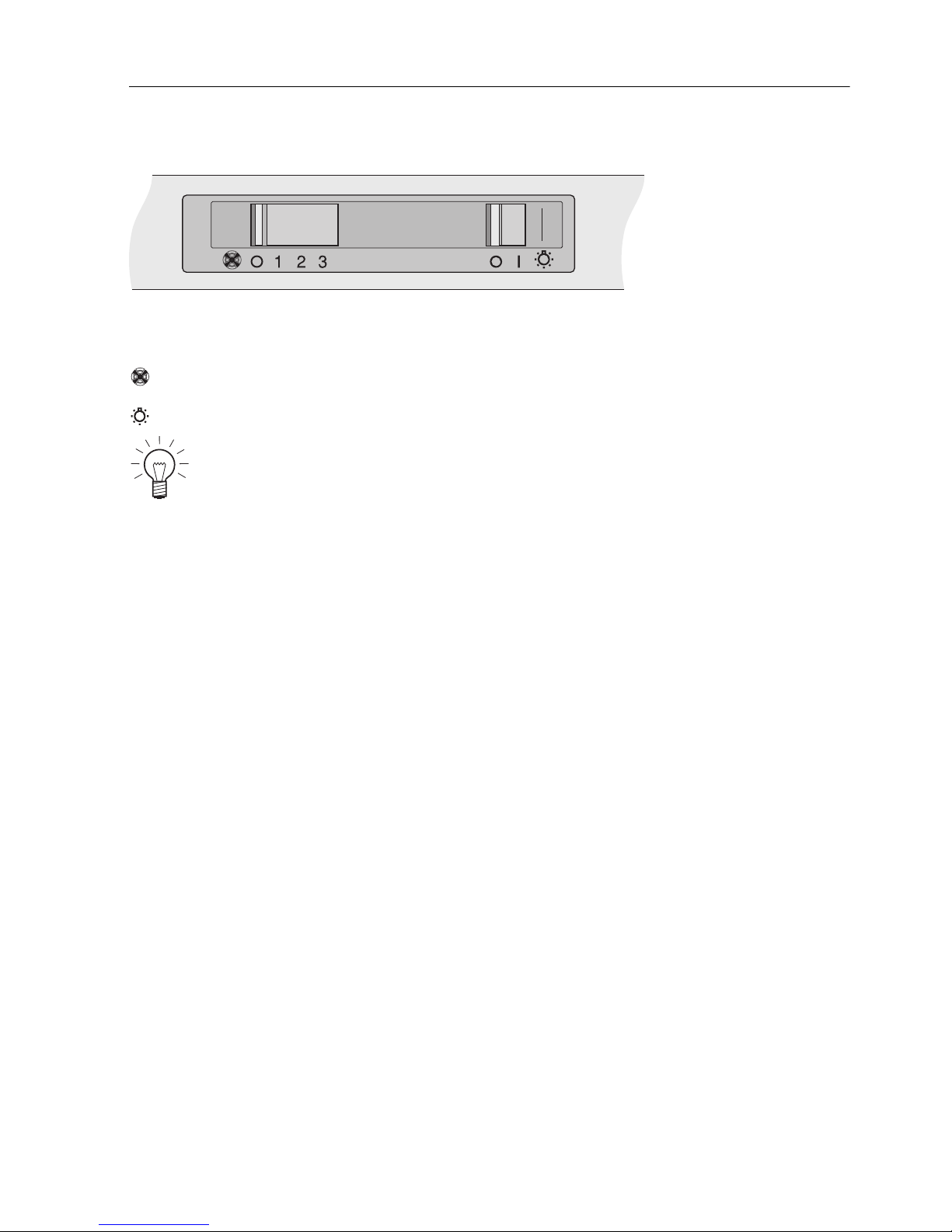

Operating elements
Slide switch
Extractor fan ON / OFF (3 levels)
Illumination ON / OFF
Depending on the model and design, the specification of your appli-
ance may differ from the standard specification herein.

12
Use
Switching appliance on
The illumination and the extractor fans
can only be switched on when the flat
pull-out deflector plate has been
pulled out.
APull out the flat pull-out deflector
plate.
Switching extractor fan on and off
ASlide the sliding switch to , or
. Only operate level for a short
time (a few minutes), then switch to
a lower level.
ATo switch off, set the sliding switch
to .
The appliance is most effective when the flat pull-out deflector plate is
completely pulled out.
We recommend switching on the appliance on level 5 minutes be-
fore you start cooking. Leave the appliance running for about
15 minutes after cooking so that the smells are extracted.

… Use
13

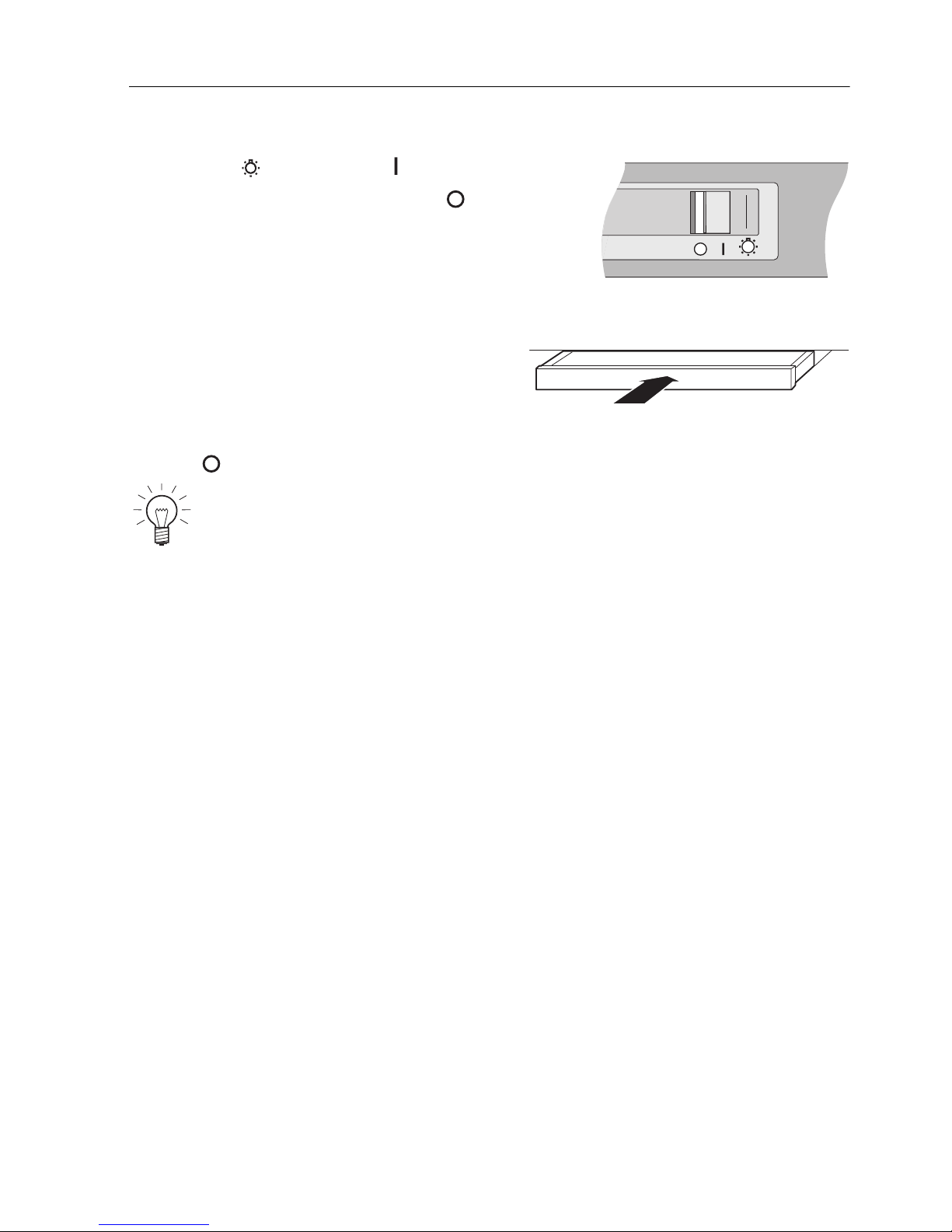

Switching the illumination on and off
ASlide the switch to the position.
ATo switch off, set the switch to .
Switching off the appliance
APush in the flat pull-out deflector
plate completely.
– This switches off the extractor
fans and the illumination, even
when the sliding switch is not set
to .
If the flat pull-out deflector plate is then pulled out a little, the extractor
fans switch on at the level set and the illumination comes on.

14
Care and maintenance
Cleaning the housing
Cleaning the outside / inside
AClean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up on the inside next to the grease
filters.
AClean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
Cleaning the illumination cover
If need be, the illumination cover 1can be removed for cleaning.
Open the illumination cover 1:
APush back both locking bars 2
and swing the illumination cover
down.
AClean the illumination cover in
soapy water.
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. as they
can damage the surface.
The sides are only placed on the glass!
12

… Care and maintenance
15
Cleaning the grease filters
The grease filters should be cleaned at least once a month with normal use.
If properly cared for, the grease filters should provide unlimited years of
service.
AThe grease filters can be cleaned in a dishwasher.
ASelect an «intensive» – or «heavy soil» – wash programme with a warm
pre-wash.
If you do not have a dishwasher:
AClean the grease filters in the sink with hot water and detergent.
AThen soak the filters in hot water in the sink for about 2 hours and finally
clean with a washing-up brush.
Cleaning may cause the grease filters to become discoloured.
However, this will not affect the functioning of the filters in any way.

… Care and maintenance
16
Removing the grease filters
APush in the flat pull-out deflector plate 1completely.
APull down the handle 2and pull towards the outside of the appliance.
– This releases the grease filter, allowing it to be be pulled downwards.
ARemove the upper grease filter in the same way.
AClean grease filters.
1
2

… Care and maintenance
17
Installing the grease filters
APush in the flat pull-out deflector plate 1completely.
ATake hold of the grease filter and insert fixed centring pins on one side
(either left or right) into the slots for the upper grease filter.
APull back the centring pins on the other side using the handle 2and slot in.
AInsert the lower grease filter in the same way.
All centring pins must sit correctly in the slots. Only then can the
handle 2be folded in. Press it lightly to do this. It must be flush with
the grease filter.

… Care and maintenance
18

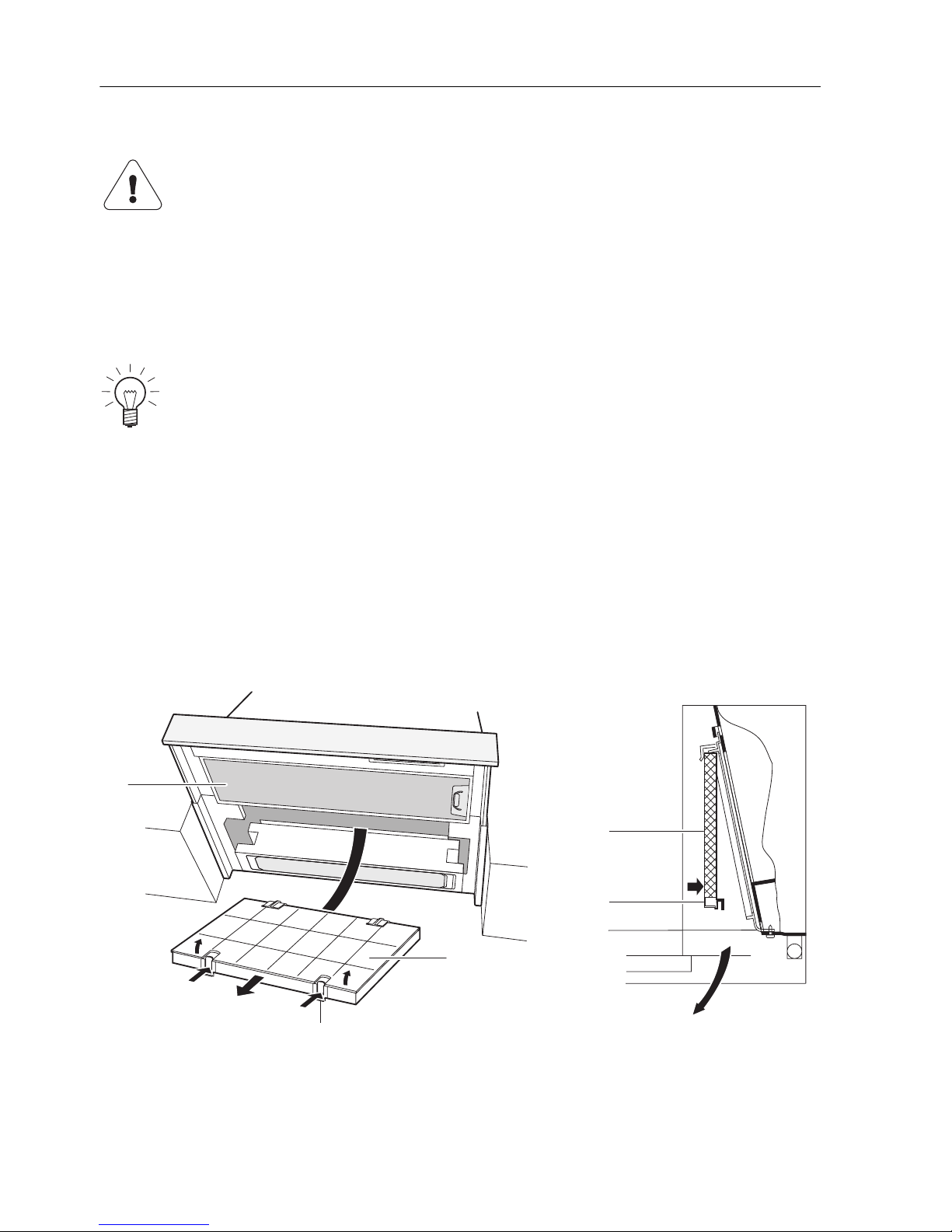

Replacing the standard activated charcoal filter
Standard activated charcoal filters are only used in the recirculation model.
The standard activated charcoal filter is to be replaced after an operating time
of 3 to 6 months. Standard activated filters cannot be washed or
regenerated.
ARemove metal grease filters 1.
APress the two red retaining slides 2on the standard activated charcoal
filter 3upwards. At the same time pull down the filter and remove from the
holder 4.
ASlide the new filter up under the clip and fix in the holder 4. To do this snap
the red retaining slides 2into place.
AReplace metal grease filters.
APut screw fuse back in or switch circuit breaker on again.
Remove screw fuse or switch off circuit breaker.
The dirty standard activated charcoal filter can be disposed of in the
domestic waste.
3
2
4
3
2
1

… Care and maintenance
19
Cleaning and replacing long-life activated charcoal filters
Long-life activated charcoal filters are only used in the recirculation model.
Unlike the standard activated charcoal filter, the long-life activated filter can
be cleaned and reactivated. With normal use of the appliance, the long-life
activated charcoal filter should be cleaned every month. The long-life activat-
ed charcoal filter can be washed in the dishwasher at 65 °C (intensive pro-
gramme). The long-life activated charcoal filter should be washed separately,
so that no food remains can become stuck to the filter. If you don’t have a
dishwasher, the long-life activated charcoal filter can also be soaked in the
sink for an hour at 60 °C using normal washing-up liquid. Then rinse well.
To reactivate the activated charcoal, the long-life activated charcoal filter must
be dried in the oven without its frame.
ASelect top and bottom heat or hot air at 100 °C and leave the long-life ac-
tivated charcoal filter to dry for 60 minutes on the wire shelf.
ARemove and clean the metal grease filters.
ARemove and reactivate the long-life activated charcoal filter or replace with
the new filter.
AReplace the metal grease filters.
APut screw fuse back in or switch circuit breaker on again.
Remove screw fuse or switch off circuit breaker.
After about three years the long-life activated charcoal filter must be
replaced because its ability to absorb smells will be reduced. The dirty
long-life activated charcoal filter can be disposed of along with the do-
mestic waste.

… Care and maintenance
20
Replacing the light bulb
Open the illumination cover 1:
APush back both locking slides 2and swing down the
illumination cover.
AUnscrew the light bulb from its socket and screw in the
new light bulb.
AClose the illumination cover 1.
APut back the screw fuse or switch on the circuit breaker
again.
Remove the appliance’s screw fuse or switch off the circuit
breaker.
Light bulbs get hot during operation! Allow to cool down first.
12
