Vacron VVG-CBN05A User manual

Full HD Car Camcorder
User Manual
2015 DEC V1.0
optional

Car Camcorder
User Manual
i
Safety Precautions
Please Take and review some testing videos initially to make sure
the images were recorded correctly.
Please note that manufacturer, its subsidiaries and affiliates, or its
distributors are not liable for consequential damages arising from
any malfunction of main device accessory, including malfunction
memory card that results in the failure of recording video or
recorded video ca not be read.
Before using the product, please ensure that you read the safety
precautions described below. Always ensure that the product is
used correctly.
• Please keep this device away from a children or baby.
• Use only recommended power sources.
• Do not apply multi cigarette lighter adapters-Applying such
devices will cause unstable power input. As a result, the vehicle
video recorder will shut down or cannot record video due to lost
power.
• Please always make sure all power connectors are fully secured.
• Do not attempt to disassemble, alter or apply heat to the
product.
• Avoid dropping or subjecting the product to severe impacts.
• To avoid the risk of injury, do not touch the interior of the
product if it has been dropped or otherwise damaged.

Car Camcorder
User Manual
ii
• Stop using the product immediately if it emits smoke, a strange
smell, or otherwise behaves abnormally.
• Do not use organic solvents such as alcohol, benzene, or thinner
to clean the product.
• Do not let the product come into contact with water (e.g. sea
water) or other liquid.
• Do not allow liquids or foreign objects to enter the Vehicle
Video Recorder.
• Do not allow dirt or metal objects (such as pins or keys) to
contact the terminals or plug.
• Avoid using, placing or storing the product in a humid or dusty
area.

Car Camcorder
User Manual
iii
Index
A. Feature Description .................................................................... 1
B. Specification ............................................................................... 2
C. Accessories ................................................................................. 3
D. Installation Instruction ............................................................... 4
E. Product Dimensions ................................................................... 7
F. SD Card ....................................................................................... 8
G. Remote Controller .................................................................... 10
H. Recording / Stop Recording .................................................... 11
I. OSD Menu Function ................................................................. 13
J. Playback Video Files ................................................................. 15
K. VACRON Viewer ....................................................................... 16

Car Camcorder
User Manual
1
A. Feature Description
Built-in megapixel Sony CMOS sensor.
Built-in supercapacitor offers extensional power supply
and ensures video is well stored of critical moment and
compact.
130° wide angle, six pieces of glass +IR with No Glare large
aperture lens.
Built-in synchronous single-channel microphone.
Recorded Video in SD card, max to 64GB.
Auto loop recording when memory card is inserted and
device is powered on.
Emergency recording button protect data in secured area
from being overwritten.
Built-in 3 Axis G-Sensor, file auto reserved when it is
triggered.
GPS logger, auto time calibration
Built in foldaway 3 “ LCD monitor (4:3), follow driver’s
seat to fix arbitrarily the viewing screen.
Built in photo sensors. According to the in car light and
adjust indicator brightness automatically that don’t affect
drivers in daytime and night
Support Full HD record and TV-out to car entertainment
cable.

Car Camcorder
User Manual
2
B. Specification
Item Description
Sensor Sony 1/2.9”CMOS sensor.
Resolution NTSC / 1920x1080 (2M) / 30 fps.
PAL / 1920x1080 (2M) / 25 fps.
View Angle 130° wide-angle.
Display LCD 3 inch 4:3 monitor.
Power Supply DC5V±5% / 1A power adaptor.
Built-in 1.5F supercapacitor to backup power.
Operating Tmp. -10ºC ~ +60ºC.
Storage Support 8GB class 10 SD card or above, up to
64GB.
Recording Start recording automatically when power up.
Prompt recording when power on delay 3
seconds after power shutdown.
Recording Data Date/Time/Video/Audio/G-Sensor/GPS data.
Storage Format *.ts file is playable on most players, exclusive
player available on product disc.
Use remote control to playback.
Audio Input Built-in microphone.
Time Setting Built-in calendar clock to adjust the time.
Time adjustment with synchronous GPS and

Car Camcorder
User Manual
3
time zone.
G-Sensor Built-in 3D G-sensor.
GPS Function Speed / Coordinate / Calibration
Google Map Driving Route
NOTE: 1. Version updating will not to be informed, please check the Website
Update information
2. SD Card. (optional)
C. Accessories
Standard
5V cigarette power adapter
Remote controller
Suction cup bracket
Bracket holder
Quick user manual
Product disc
Optional
4 pings, 3.5 inch headphone jack to RCA output cable
SD card

Car Camcorder
User Manual
4
D. Installation Instruction
1. To install the device on the windshield by “Suction Cups” or
“Stick-Holder” Type
Suction Cups Type Stick-Holder Type
2. The best position to install
the device on the windshield 3. To adjust the recording angle properly
4. Plug in DC5V Power Supply 5. Plug in the Cigarette Charger
Sticker Adhesive Spot

Car Camcorder
User Manual
5
6. VVR installation instruction
Cigarette adapter
Best location

Car Camcorder
User Manual
6
Caution
(1). This device should be installed in the area where the
Windshield will be able to be cleaned by windshield wiper.
(2). Formatting SD card on the PC before beginning to use.
(3). The GPS positioning speed will be influenced by solar film
of the front windshield, weather or other environment
factors.
(4). If any metal material has contained in the car window films
of front window, it could be led to GPS unable for
positioning.
(5). When install the machine please keep cable away the above
of product (GPS Patch). Please fix the cable with bracket and
from PC MINI USB left side of machine to ceiling will get
better GPS signal.
(6). Built in Mini USB to connect with PC. ( For engineering)

Car Camcorder
User Manual
7

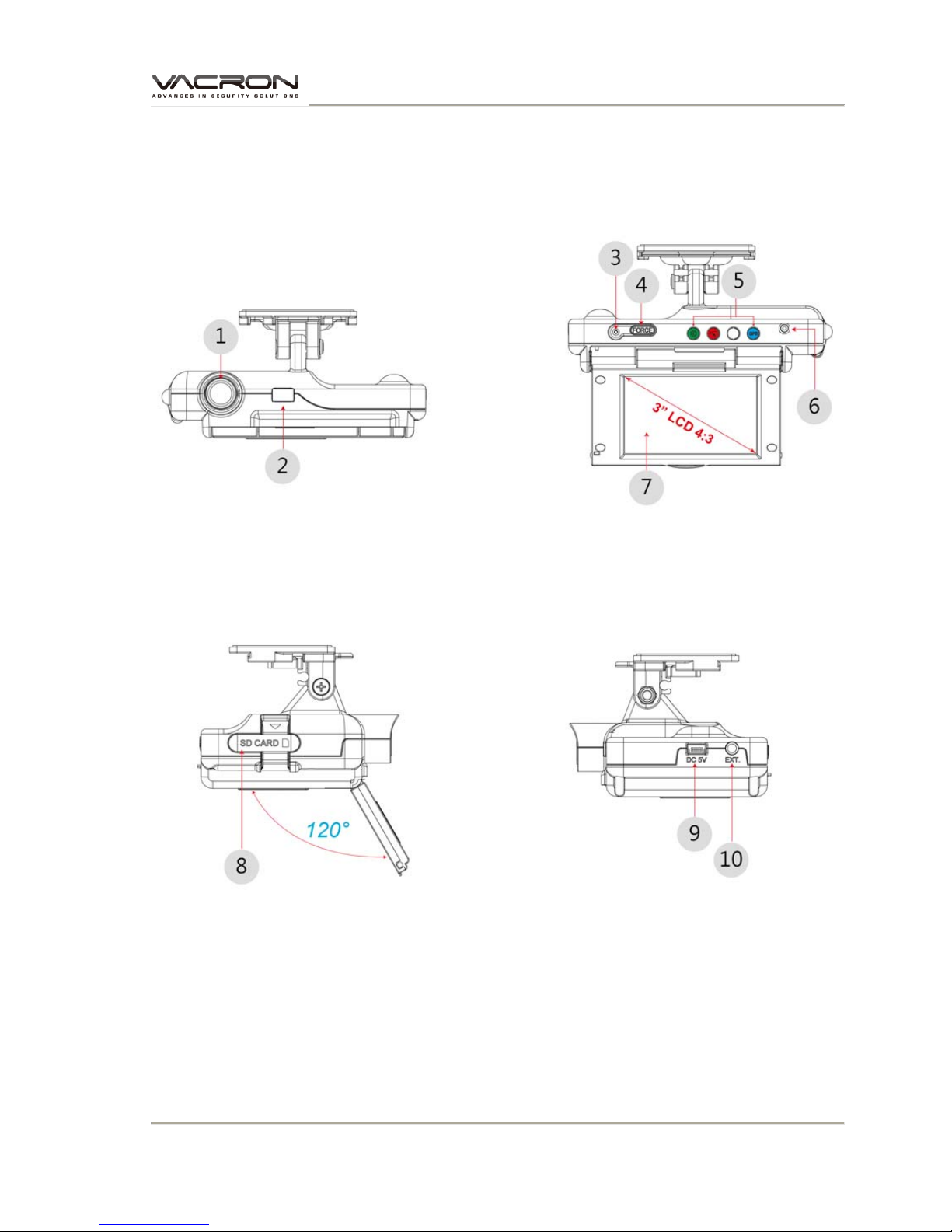

E. Product Dimensions
Light Indicator
 Green light：Power
 Red light：Recording
 Blue Light：GPS 3D positioning
1. Lens
2. Reserved for USB PC Link
3. Photo sensors
4. Force recording
5. Indicator
6. IR Receiver
7. Screen
8. SD card Slot
9. DC5V
10. AV OUT

Car Camcorder
User Manual
8
F. SD Card
1. “Format” SD card
While applying a brand new SD card, or use a SD card that was
take out from other devices, a formatting procedure is required.
Caution
(1). “Format” will clean all the data saved in SD card,
please backup the data before proceeding
“Format”.
(2). Before “Format” SD memory card, please ensure
that SD memory card is unlocked.
(3). If the card is unlocked but still cannot be formatted,
this might be caused by Windows security restrictions.
Please run the program as Administrator to prevent
from this problem.
2. SD Card Installation
Remark: Memory Card is optional

Car Camcorder
User Manual
9
Caution
(1). Recommend memory card class 10 or above 8GB SD Card.
(2). Since memory cards have the writing endurance situation, we
recommend to inspect the memory card and use pc for
playback regularly, to ensure that the memory card can read
and write
(3). Hot swap is not supported. Please power off device before
remove memory card. Removing Memory Card while recording
may lose or damage recorded data.
3. Record Time Estimation
The chart below is for reference only. The length of time
recorded can be varied due to variation in image size may be
different.
Capacity
Video Quality
8GB 16GB 32GB 64GB
High 90 Min 180 Min 360 Min 720 Min

Car Camcorder
User Manual
10
G. Remote Controller
How to check if the
remote controller is
workable?
√Check the mercury cell is installed in
correct direction. (Check the pole)
√ Check if the cell power is exhaust.
√ Check if the sensor is covered.
√Check if it nears by Fluorescent
Lamp.
Navigato
r
Sto
p
Enter
Menu
Emer
g
enc
y
REC
Pla
y
back
Stop Voice Recording
Screen Switch

Car Camcorder
User Manual
11
H. Recording / Stop Recording
1. Power On/Recording
When car power on, the device start up automatically. Please
wait for 20 Sec. to start recording.
2. Power Off / Stop recording
When the car power off, the device will stop to record video and
sound. You can take off the memory card and insert to
computer to view the video.
3. Indication
(1). Power indicator: Continuous green light means power on.
(2). Recording indicator: Red light Blinking when recording.
(Emergency recording blinking fast)
(3). GPS indicator: Blue light when GPS located ready.
Power
indicator
Recording indicator
GPS
indicator

Car Camcorder
User Manual
12
Caution
(1). The display of booting screen and live view are subject
to change without notice for software upgrade or re-version.
(2). Setting NTSC or PAL through OSD.
(3). Set time zone and timing on OSD. Star the device immediately
after you set time zone to make sure the video files will tally
with normal time.
(4). Force recording button has highest priority. Push Force
recording button will pop up recording window and activate
force recording immediately.
(5). CR1220 Battery for calendar can be replaced by users.
(6). Indicator bright separate for Day and Night modes.
Default mode is Night mode when power on.
(7). Built-in two USB power input. Please don’t input the
power at the same time to avoid burning one of the
power supplies.

Car Camcorder
User Manual
13

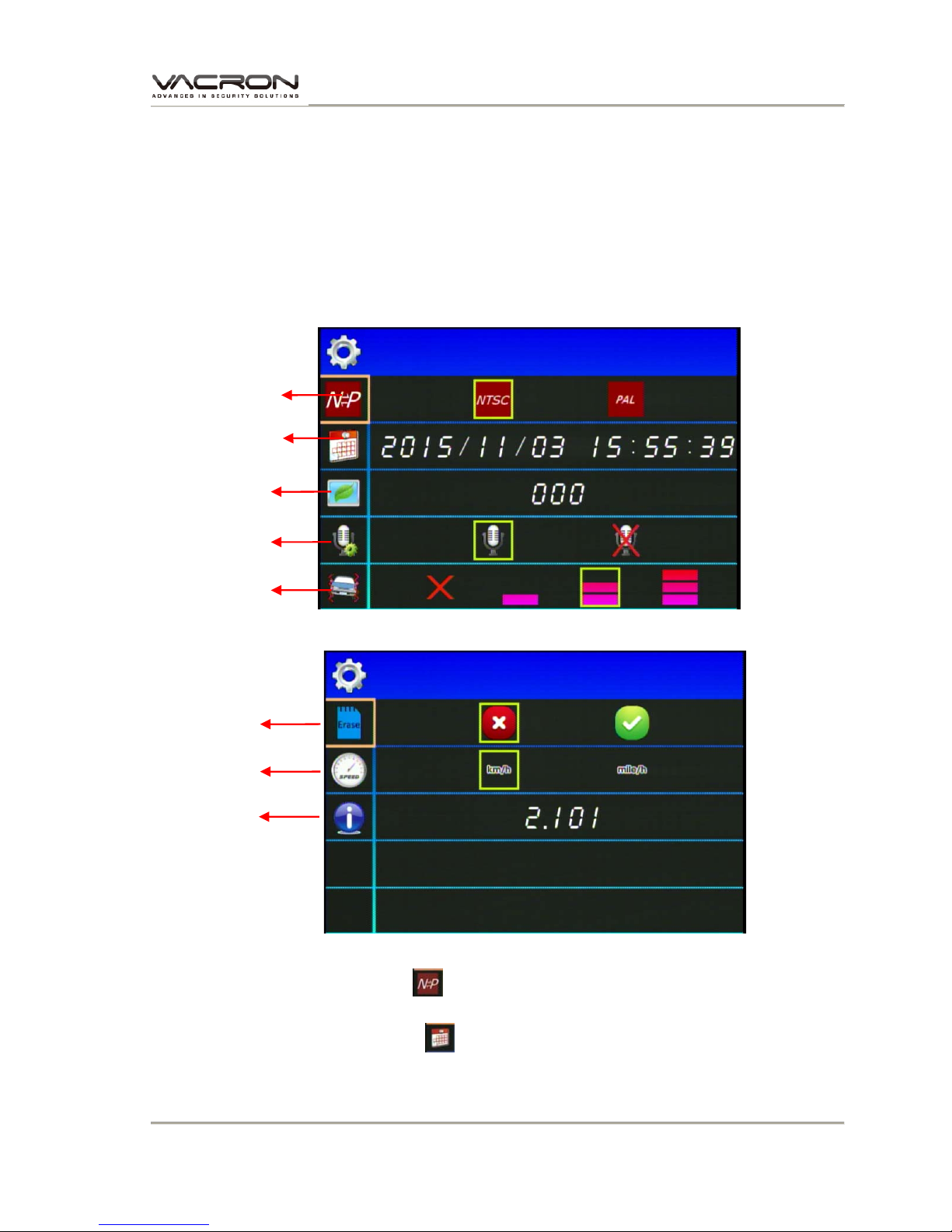

I. OSD Menu Function
In Live view screen press [Menu] will popup OSD operation
menu as follows:
1. Video Type :Click to choose NTSC /PAL.
2. Time setting: Click to adjust clock.
NTSC / PAL
Time Setting
G-Sensor
Firmware Version
Microphone
Speed Unit Switch
Format
Eco-saving monitor

Car Camcorder
User Manual
14
3. Monitor setting: click to set Eco-saving mode.
4. Microphone: Click to setup microphone on / off.
5. G-Sensor: Click to set the sensitivity of G-sensor. The
higher the sensitivity on behalf of gravity (G) the more
sensitive the sensor, the more likely trigger mandatory
photography; When emergency record is triggered, it will
keep emergency recording and keep the files without being
event video overwritten.
6. Format: Click to format SD card.
7. Speed Unit Switch: Click to switch [ km/h] / [mile/h].
8. Firmware Version: show firmware version.

Car Camcorder
User Manual
15
J. Playback Video Files
Playback the video files on PC via the storage card from the vehicle
recorder.
Suggest use exclusive player program or via video play software to
open .TS files. Such as KM、Baofeng、Windows build in Media
player… etc. Please install decoder if can’t play the files.
＊Please backup important files just in case of overwritten.
＊Please use exclusive player to read GPS data.

Car Camcorder
User Manual
16
K. VACRON Viewer
★ Reminder- DirectX 9.0 is required.
1. Playback Speed: Fast Forward 2X, 4X, 8X; Slow Forward 1/2X,
1/4X, 1/8X
2. Scroll Bar: playback display can be scrolled to wanted position.
Set the start and end point to identify the range, right click to
backup the video files.
Allow to move the user interface to left or right.
