A. Notice
Please test recording and play function to make sure the device is
running well. Attention, if the failure was due to device accessories
included memory card out of function to lead to any loss of video
recording function fail or unable to read the video type, our
company ,subsidiary bodies and agency all not responsible for
indemnification.
Before use the product, please sure you have read notifications
as below. And please sure the way you operating the product is
all correct.
•For your safety, you do not watch the video or operate this
product while driving. To install and configure this product,
please park the car to a safe place.
•Please do not uses the external (multiple plug) automobile
cigar lighter to prevent unstable voltage crashed the device
system.
•Please make sure automobile cigar lighter and the power head
must be fitted.
•Do not install the product it might cause interference place.
•Please avoid to use or place or storage the device in the damp
or full of dirt environment.
•Do not use this product placed in long-term direct sunlight, so
as not to reduce the life of the product. Without using the
product, please return the product storage at room
temperature, dry environment.
•If the machine fails during use, do not disassemble, repair,
please contact your local dealer.

User manual
2
•If the device is smoking, waft peculiar smell or any abnormal
issues, please stop to operate the device.
•Please do not let any liquid or object into the device.
•Please avoid the terminal or plug to contact any metal object
(ex. needle or key) or dirt.

User manual
3
B. Accessories
Before use, check the package offered by the following items.
If you find that items are not complete, please contact your
retailer to purchase.
※Memory cards are not include
1. Standard：
(a) 5V cigarette Power adapter
(b) 4 pings, 3.5 inch headphone jack to RCA output cable
(c) WiFi/Bluetooth USB Dongle(Install to device)
(d) Remote control
(e) Bracket holder
(f) Suction cup bracket
(g) Product CD
(h) Quick Guide
2. Optional：
(a) 8G Class10 above MicroSD（8GB/16GB/32BG/64GB）

User manual
4
C. Structure of Product

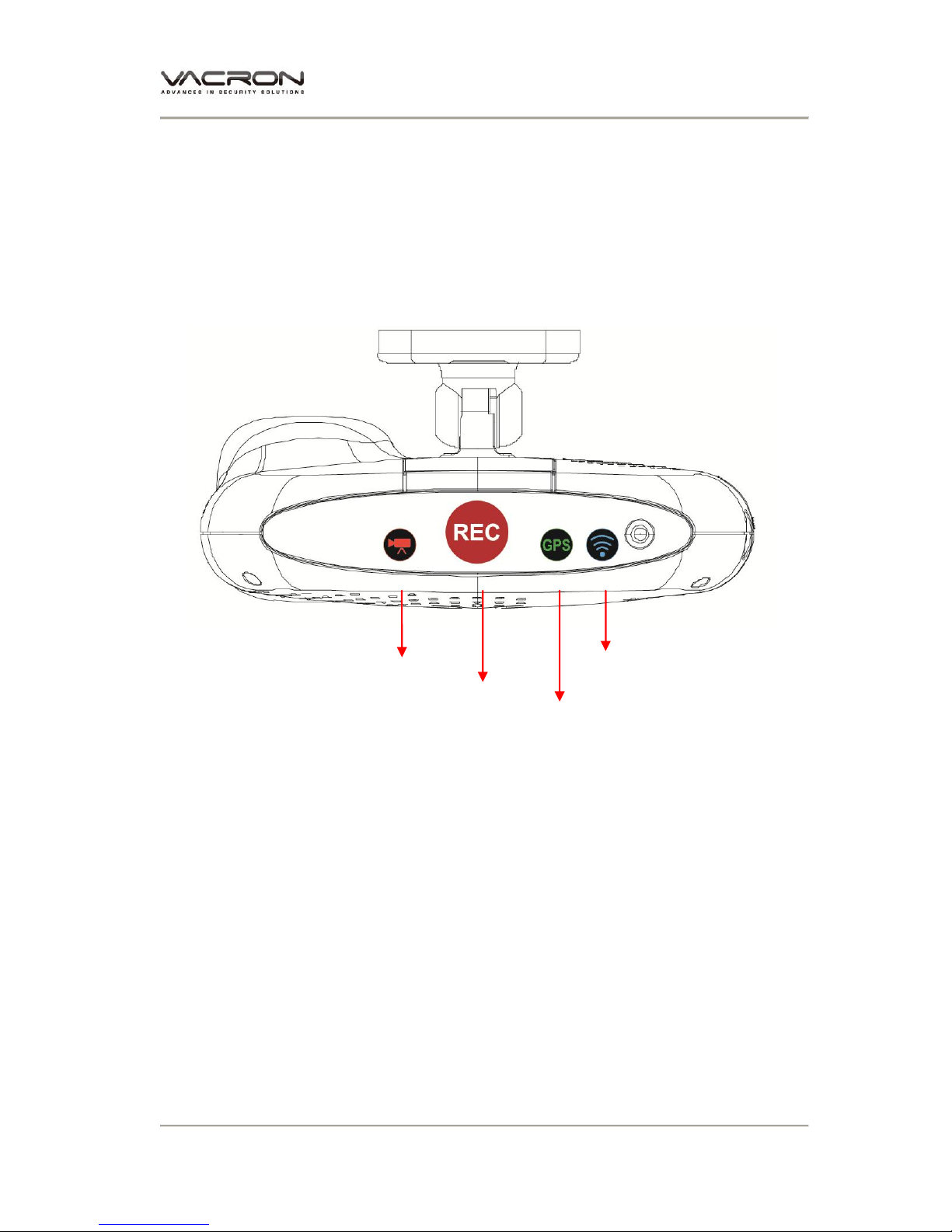

Recording Indicator
Force Recording Button
Power / GPS Indicator
Wifi/ Bluetooth Indicator
IR Remote Control Receiver
接收器
Forward Facing Lens

User manual
5
Power 5v
TV out
Wifi / Bluetooth USB dongle
Micro SD

User manual
6

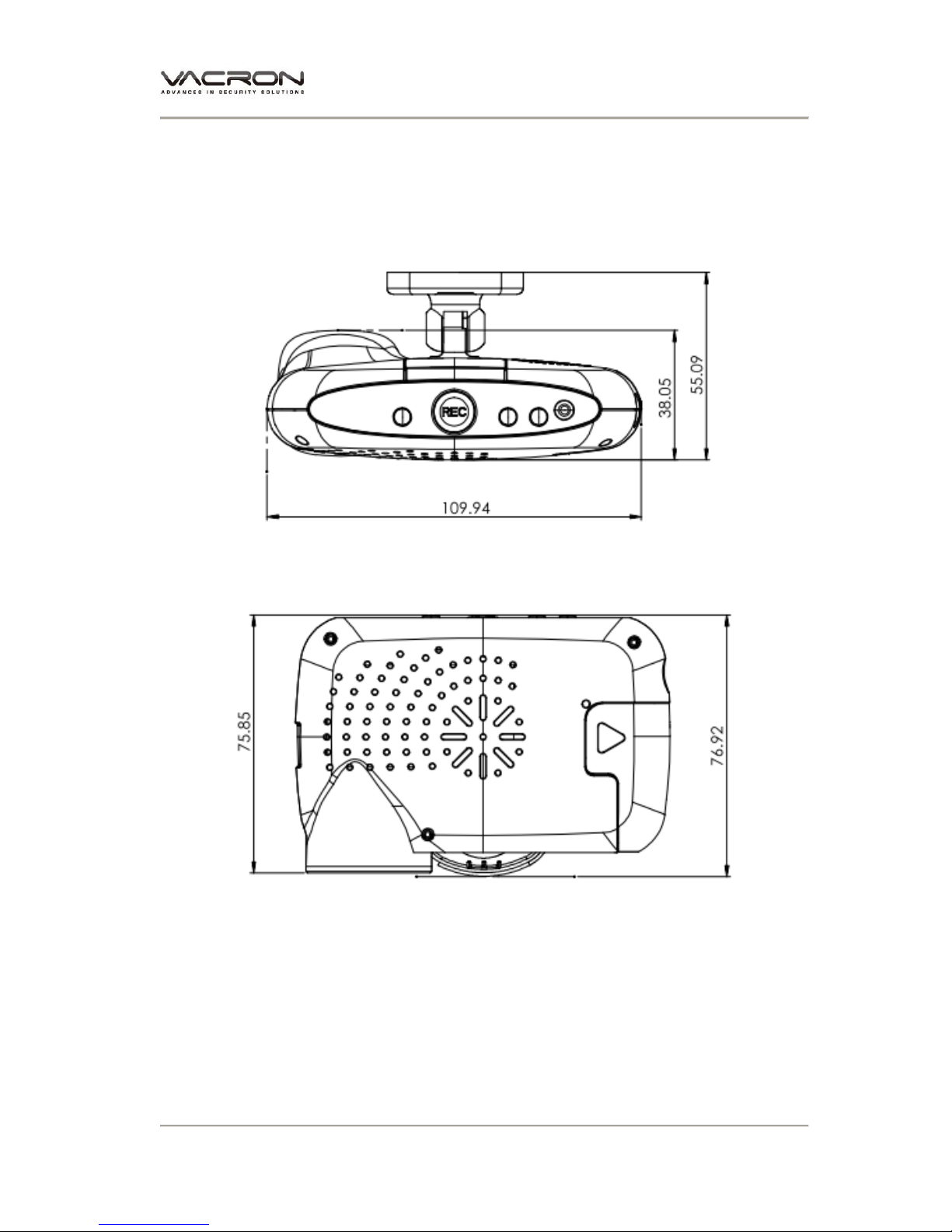

D. Dimension
Unit：mm

User manual
7
E. Recorder initial setting
Before using the recorder, please read this chapter and
operate in accordance with steps to make sure you use the
best driving recorder.
1. Memory card format
(1). When you use the Micro SD card for the first
time or just purchase a new card, please using
VACRON player to format SD Card first.
(2). You can find the VACRON player in CD, or visit
VACRON website to download it.

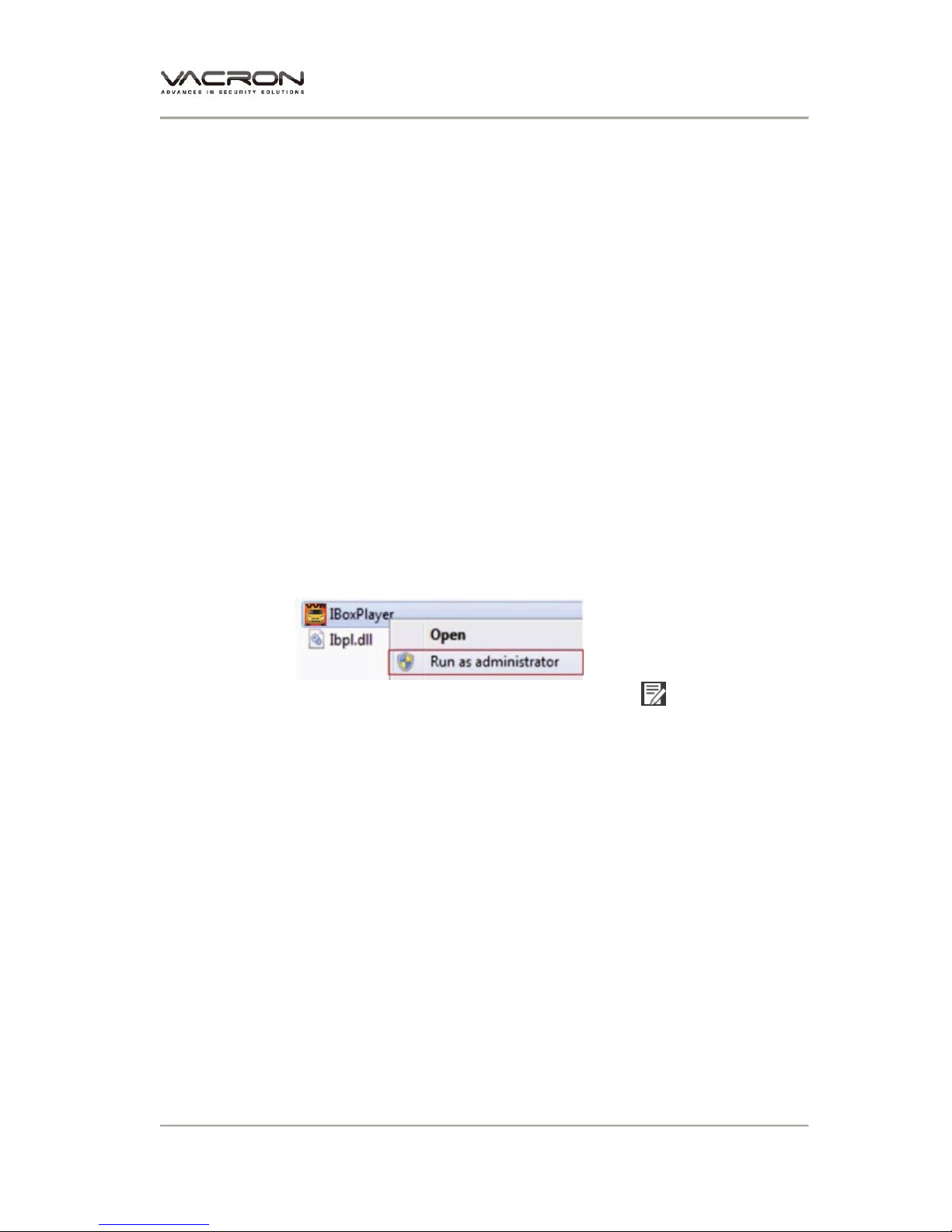

(3). Please run the program as Administrator to open this
VACRON player.
(4). Open player and click on「Toolbar」, to format
SD Card. Detailed steps, refer to < Formatting
Memory Card > section explains.

User manual
8

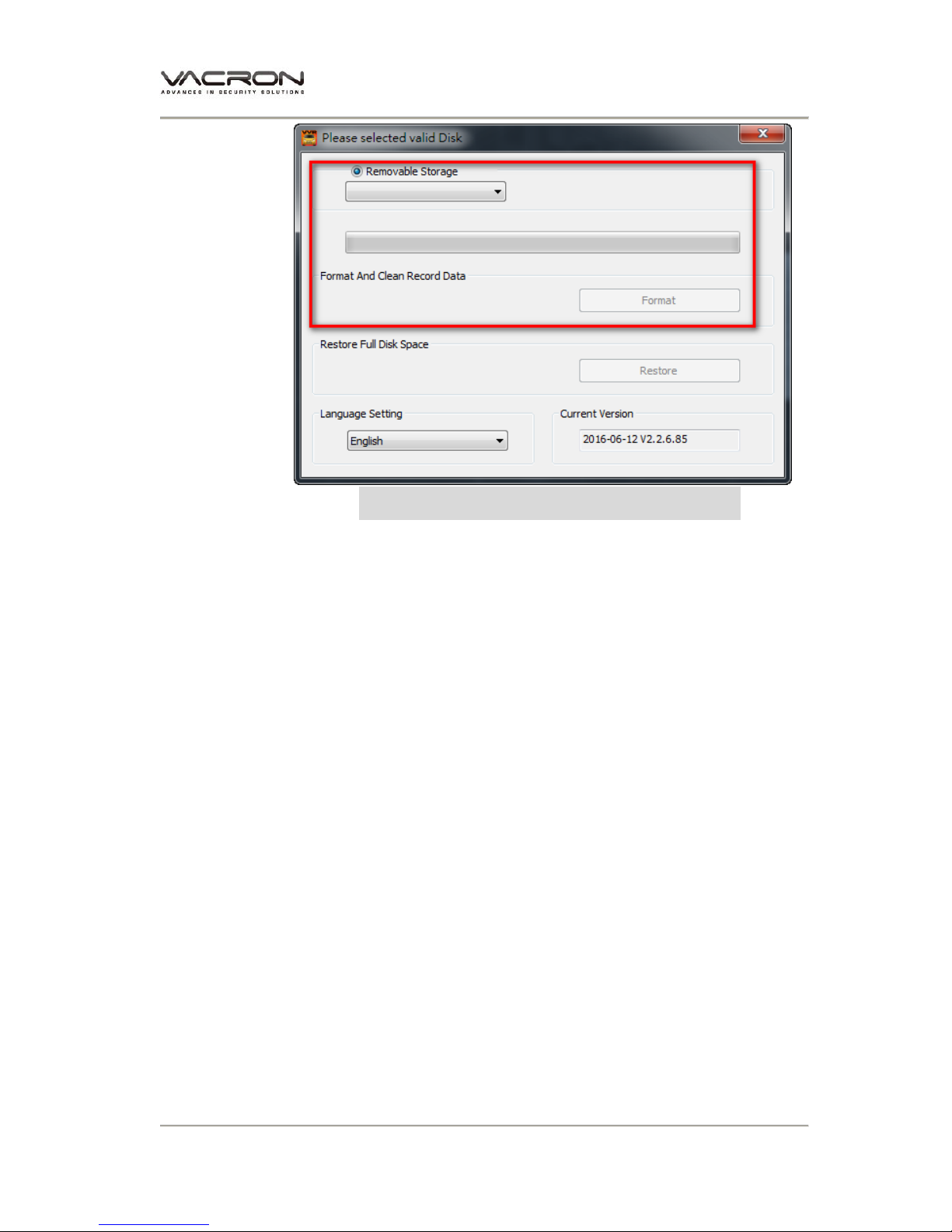

Memory Card format Operation screen

User manual
9
2. Memory card recording the initial value setting
(1). Open VACRON player and click on「Configuration」
, to initial setting data. Detailed settings, please
refer to <Memory card configuration> section
explains.

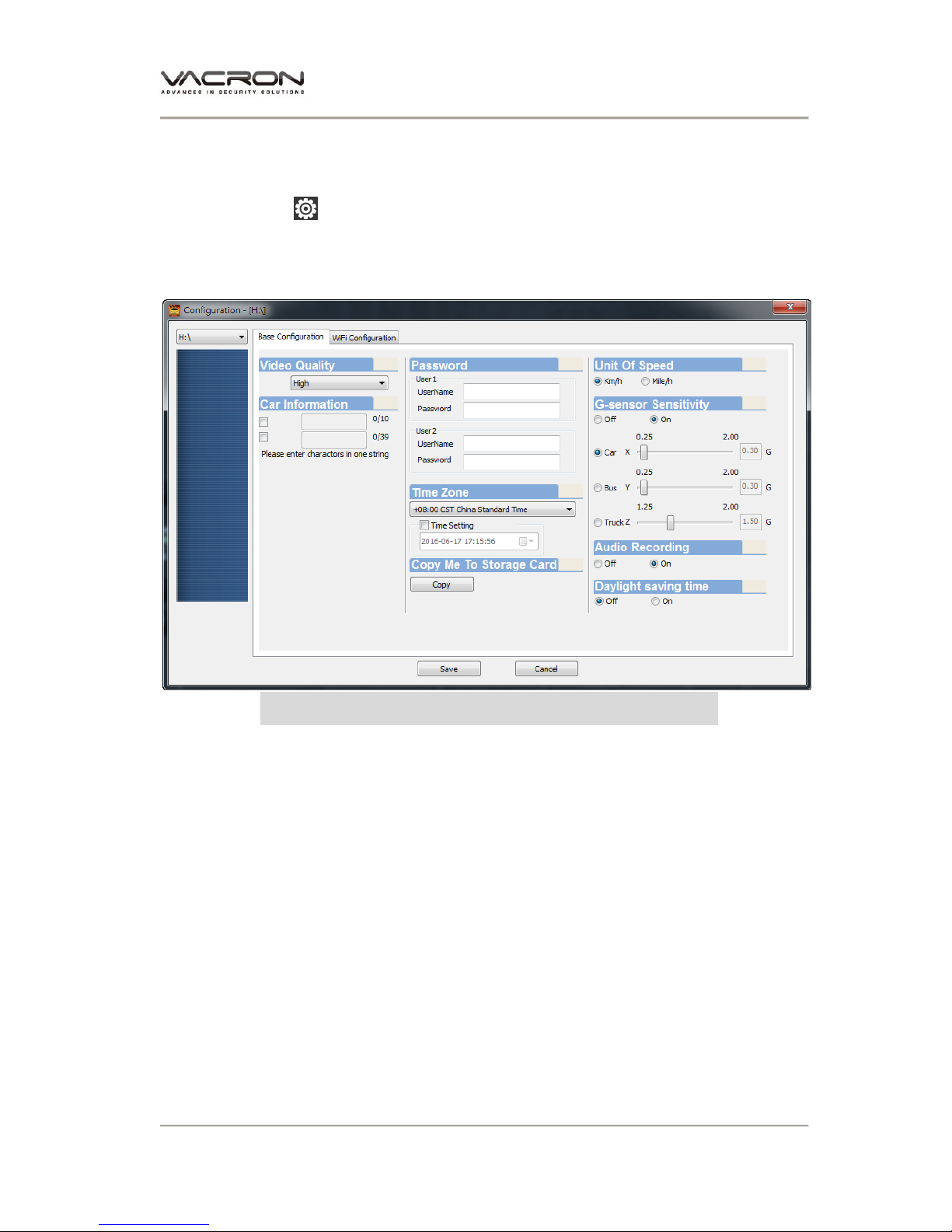

Memory card Configuration Operation screen
3. Memory Installation
Please note that the memory card before inserting the
memory card is inserted, refer to <Memory card
installation> section explains.
4. Recorder Installation
Please refer to <Cars installation guide steps> section
explains.

User manual
10
5. Recording
After recorder connect the power and start the car, it will
automatically turn on and start recording. Refer to the
<start and stop recording> section explains.

User manual
11
F. Installation Guide

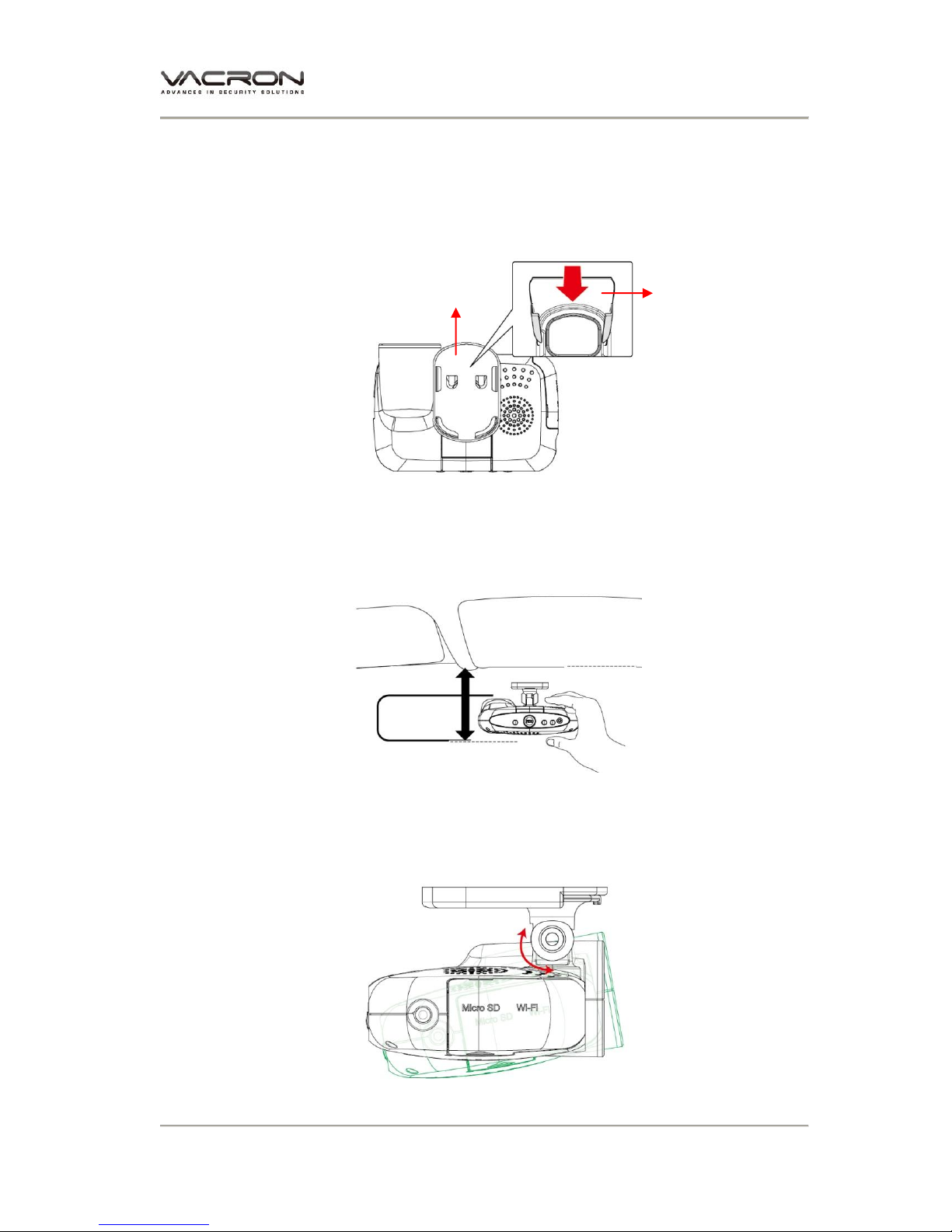

1. The "fixing bracket adhesive sticker" and host-to-latch link
2. Install the device in windshield position. around rearview mirror by
the front passenger seat
3. Adjust the viewing angle.
Adhesive paste
Fixing bracket Adhesive
sticker

User manual
12

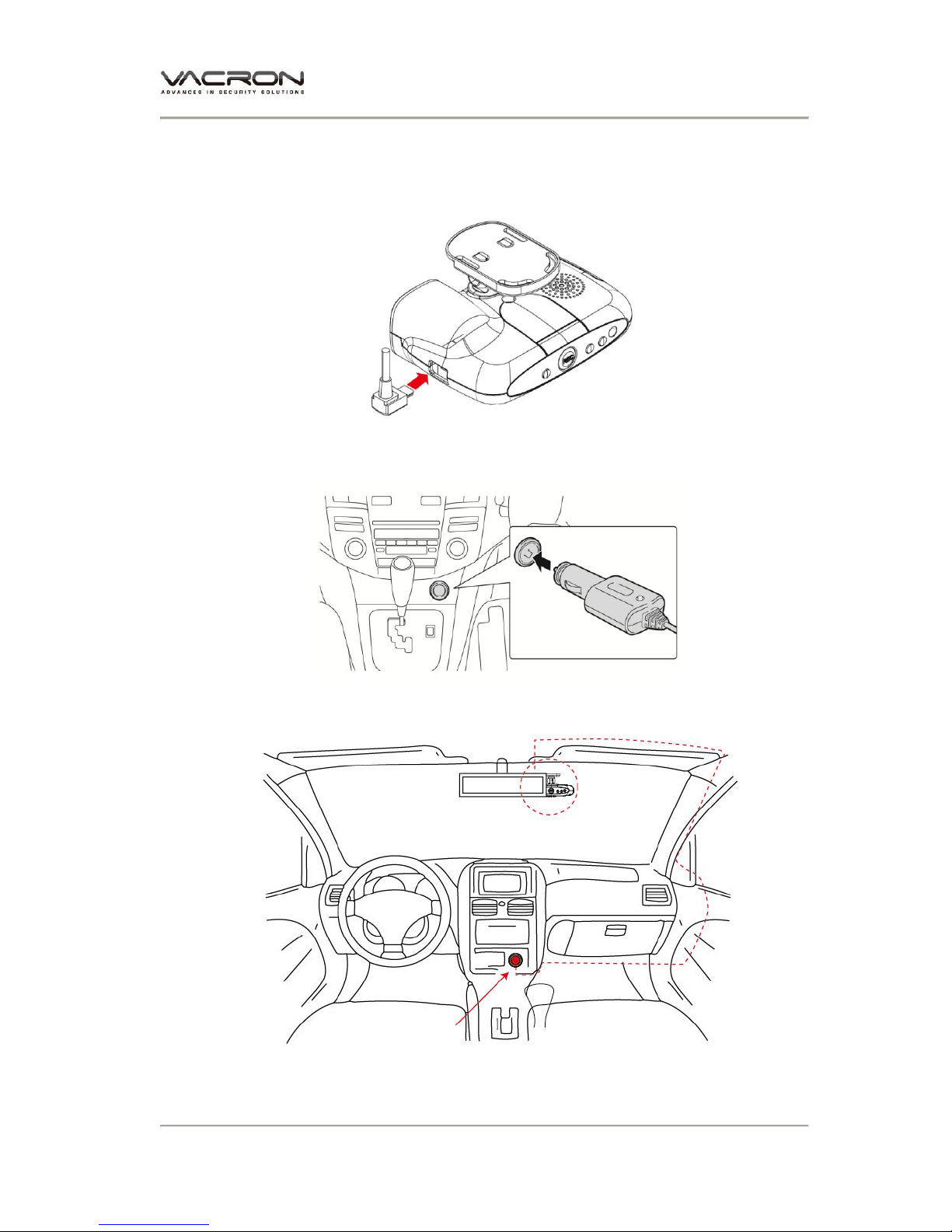

4. Plug the power cable to socket DC5V.
5. Plug in the cigarette adapter.
6. Recorder installation guide
Installation Complete!
Connect to cigarette adapter.

User manual
13
Notice
(a) Make sure that the front install your windshield is clean and dry.
And install on a flat glass, instead of having a place in radians.
(b) When using the car holder, please carefully choose the location.
Do not place the body in sight will hinder the drive position.
(c) When the machine is installed, it can be installed in the wiper to
clean the area.
(d) The initial use of a memory card recording, first in VACRON Player
configuration data to the memory card.
(e) The initial use of a memory card recording please set the
adjustment time, image files can display normal time.

User manual
14
G. Memory Card Install
1. Insert the memory card side flip cover is open; you can
install or remove the memory card.
2. When not using the memory card, insert the dust cover
closed, dust or other foreign matter can be isolated from
the memory card may cause anomalies generated.
3. Please recording before the memory card, using the
supplied software is set to play host video-related manner,
after the setup is complete, you can return the memory
card inserted in the host side, you can be recording.
4. Format the memory card / restore card, please refer to the
other section explains.
Side flip cover
Micro SD Card

User manual
15
Memory Card Precautions
(1). Class 10 memory card is recommended above SDHC Card
(need to use more than 8G)
(2). Failure to use a dedicated memory card playback software
format, then the machine will be forced to clear the entire
memory card information, then the machine in order to start
recording a preset value.
(3). Do not use MicroSD turn SD card video card, so as to avoid
vibration resulting in poor contact video adapter exception.
(4). The number of memory card reader and lifetime problem,
periodic inspection and the use of computers playing a
video, make sure that the memory card can read and write.
(5). Memory card because the manufacturers may change or
adjustment process, and the compatibility problem occurs,
the device cannot guarantee compatibility for all
commercially available memory card. Memory card
compatibility problems if the proposed replacement model
or brand.
(6). If no memory card first using a dedicated playback software
format, then the machine will be forced to clear the entire
memory card information, then the machine in order to start
recording a preset value. Unformatted specific models may
not allow videos.

User manual
16
(7). Whether the memory card 8G, 16G, 32G or 64G, after the unit
or format the player, to see the computer storage only 80MB,
the rest is dark file format, you must be able to see files via
player.
(8). At the time of impact and vibration and high, it may cause
the magnetic domain memory card physically damaged,
resulting in choppy playback or unable problem, we
recommend regular inspection and backup important
material.
(9). When an accident occurs, please remove the card and set the
write-state, to avoid information being altered or
overwritten. Class 10 above SDHC Card

User manual
17
H. Start / Stop Recording
1. Start/Recording:
Power on, and wait about 30 seconds later, the boot is
complete. Red light flashes from a presentation showing
the video.
Indicator:
●Video light (red): Red indicator of REC,
Stable flicker of red indicator: On recording
Fast flicker of red indicator: Force recording
●Green indicator of GPS positioning:
Flicker of green indicator: GPS 3D positioning
Steady of green indicator: GPS 3D positioning
accomplished.
●WiFi/Bluetooth (blue light): Solid blue light indicates
Connected WiFi/Bluetooth phone.
Recording Indicator
Force Recording Button
Power /GPS Indicator
WiFi/Bluetooth Indicator
