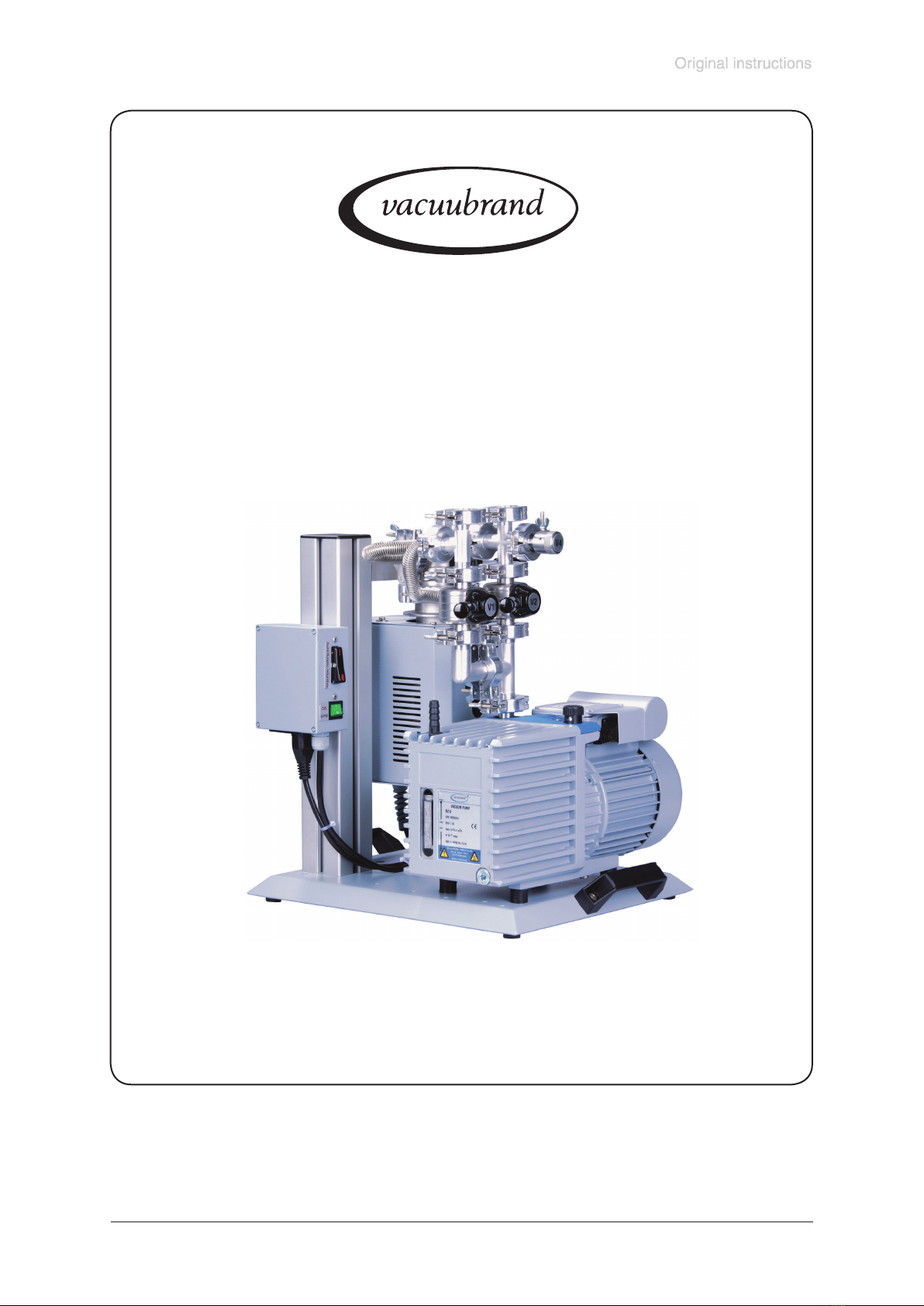

vacuubrand HP 40B2 User manual

page 1 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Technology for Vacuum Systems
Instructions for use
Vacuum pumping units
HP 40B2
HP 63B2

page 2 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Dear customer,
Your VACUUBRAND pumping unit is designed to provide you with many years of trouble-free service
with optimal performance. Our many years of practical experience allow us to provide a wealth of appli-
cation and safety information. Please read these instructions for use before the initial operation of your
pumping unit.
VACUUBRAND vacuum pumps combine our many years of experience in design, construction and
practical operation, with the latest developments in material and manufacturing technology.
Our quality maxim is the ”zero defect” principle:
Every vacuum pumping unit, before leaving our factory, is tested intensively, including an endurance run
of 24 hours. Any faults, even those which occur rarely, are identied and can be eliminated immediately.
After completion of the endurance run, every pumping unit is tested, and must achieve specications
before shipment.
We are committed to providing our customers only pumps that meet this high quality standard.
While our pumps cannot eliminate all of your work, we design, manufacture and test them to ensure that
they will be an effective and trouble-free tool to assist you in that work.
Yours,
VACUUBRAND GMBH + CO KG
After sales service:
Contact your local dealer or call [phone].
The document ”Safety information for vacuum equipment” is part of this
manual! Read the ”Safety information for vacuum equipment” and observe
the instructions contained therein!
Trademark index:
VACUU•LAN® (US-Reg.No 3,704,401), VACUU•BUS®, VACUU•CONTROL®, Peltronic®, VARIO®(US-
Reg.No 3,833,788), VACUUBRAND®(US-Reg.No 3,733,388) and also the shown company logos are
trademarks of VACUUBRAND GMBH + CO KG in Germany and/or other countries.

page 3 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Contents
Safety information!.....................................................................................................4
General information............................................................................................................................4
Intended use.......................................................................................................................................4
Setting up and installing the equipment .............................................................................................5
Ambient conditions .............................................................................................................................6
Operating conditions ..........................................................................................................................6
Safety during operation ......................................................................................................................7
Maintenance and repair......................................................................................................................8
Technical data...........................................................................................................10

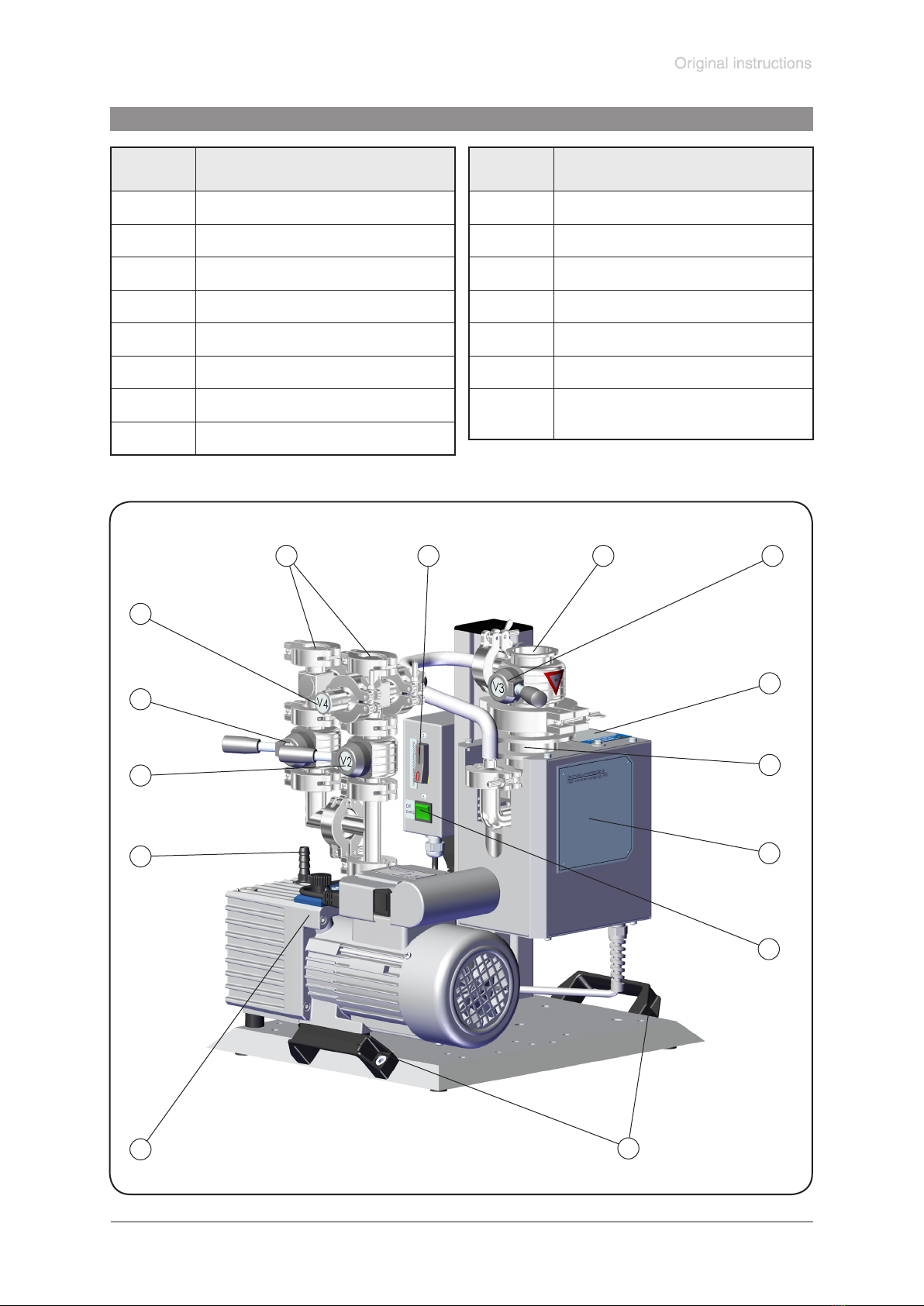

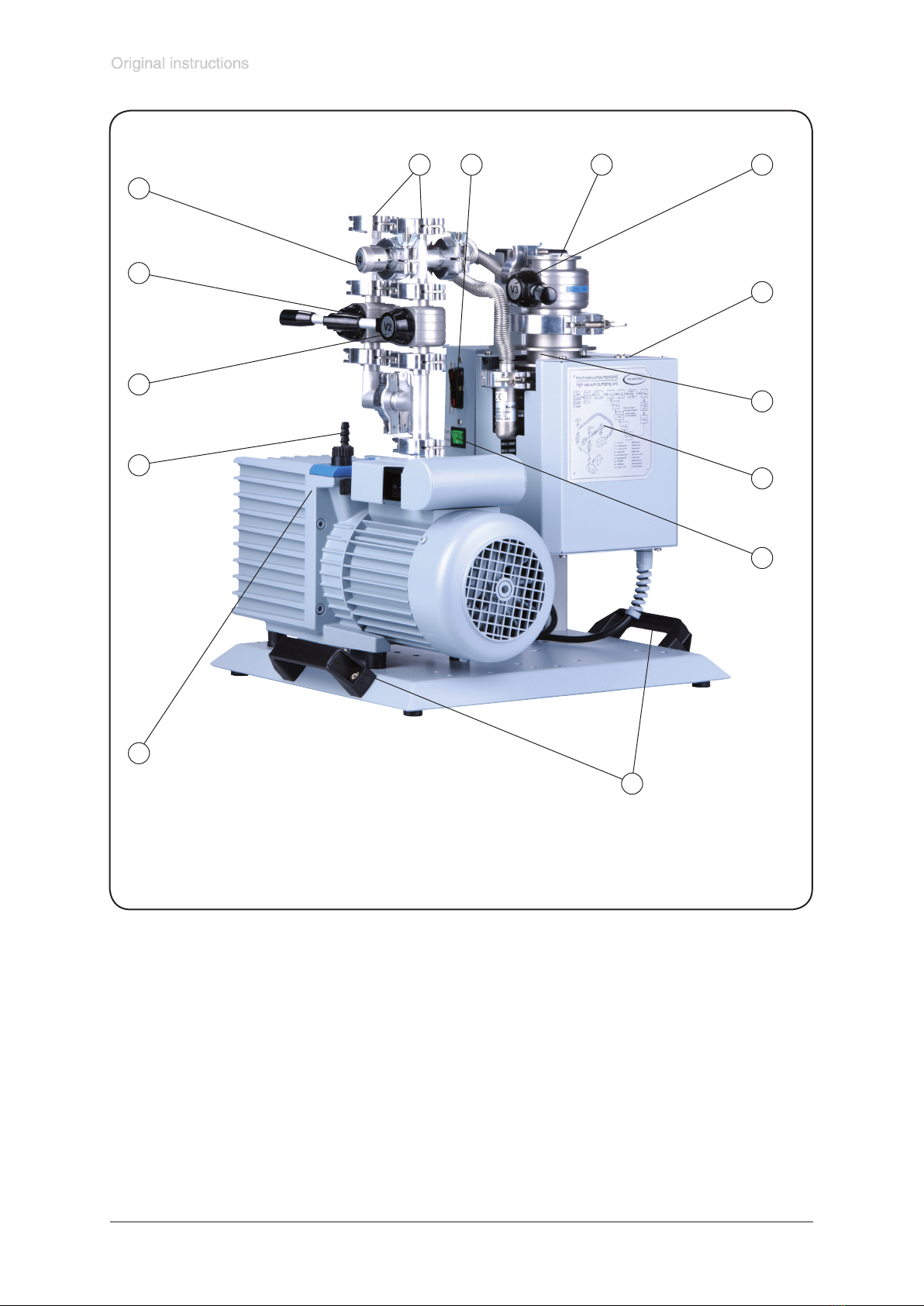

Pump parts ...................................................................................................................................... 11
Use and operation ....................................................................................................14
Setting up and installing ..................................................................................................................14
Getting started.................................................................................................................................14
During operation..............................................................................................................................15
Shutdown ........................................................................................................................................16
Accessories ..............................................................................................................16
Troubleshooting .......................................................................................................16
Maintenance..............................................................................................................16
Repair - Maintenance - Return - Calibration...........................................................17
EC Declaration of Conformity of the Machinery .......................................................19
➨DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
+WARNING indicates a hazardous situation which, if not avoided, could re-
sult in death or serious injury.
• CAUTION indicates a hazardous situation which, if not avoided, could re-
sult in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
Caution! Hot surface!
Disconnect equipment from AC power.
NOTICE

page 4 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Safety information!
General information
+ Read this manual carefully before installing or operating the equipment.
Observe the instructions contained in this manual.
+Read the manuals of the rotary vane pump and of the diffusion
pump before installing or operating the equipment. Observe
the instructions contained in those manuals.
+Do not use any damaged equipment.
• Use the handles when moving the pump.
Remove all packing material from the packing box. Remove the product from its
packing-box and retain all packaging until the equipment is inspected and tested.
Remove the protective caps from the inlet and outlet ports and retain for future use.
Inspect the equipment promptly and carefully.
If the equipment is damaged, notify the supplier and the carrier in writing within
three days. Retain all packing material for inspection. State the item number of the
product together with the order number and the supplier’s invoice number. Failure
to check and give notice of damage will void any and all warranty claims for those
deciencies.
Replace the protective caps, if the equipment is not used immediately. Store the
equipment in dry and non-corrosive conditions.
Intended use
+Do not use the pump or any system parts on humans or animals.
+Ensure that the individual components are only connected, combined and oper-
ated according to their design and as indicated in the instructions for use.
Use only original manufacturer’s spare parts and accessories. Otherwise the
safety and performance of the equipment, as well as the electromagnetic com-
patibility of the equipment might be reduced.
The CE mark may be voided if not using original manufacturer’s spare parts.
+Comply with all notes on correct vacuum and electrical connections; see section
“Use and operation“.
+The pumps are designed for ambient temperatures during operation between
+12°C and +40°C. Periodically check maximum temperatures if installing the
pump in a cabinet or a housing. Make sure ventilation is adequate to maintain
recommended operating temperature. Install an external automatic ventilation
system if necessary. If pumping hot process gases, make sure that the maximum
permitted gas inlet temperature is not exceeded. The maximum permitted gas
inlet temperature depends on several parameters like inlet pressure and ambient
temperature (see ”Technical Data”).
+ Particles and dust must not enter the pump.
+ Do not pump liquids.
Use the equipment only as intended, that is, for generation of vacuum in vessels
designed for that purpose. Any other use will automatically invalidate all warranty
and liability claims. Remain aware of safety and risks.
NOTICE
NOTICE

page 5 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Setting up and installing the equipment
➨Equipment must be connected only to a suitable electrical supply and a suit-
able ground point. As such, the plug must be plugged into an outlet that is proper-
ly grounded. Failure to connect the motor to ground may result in deadly electrical
shock.
The supply cable may be tted with a molded European IEC plug or a plug suit-
able for your local electrical supply. The cable contains wires color coded as fol-
lows: green or green and yellow: ground; blue or white: neutral; brown or black:
hot.
+Due to the high compression ratio, the pump may generate overpressure at the
outlet. Check pressure compatibility with system components (e.g., exhaust pipe-
line or exhaust valve) at the outlet.
+Do not permit any uncontrolled pressurizing. Make sure that the exhaust tub-
ing cannot become blocked to avoid a risk of bursting!
+Keep the electrical power cord away from heated surfaces.
• Provide a rm, level platform for the equipment. Check that the system which you
are going to evacuate is mechanically stable. Check that all ttings are secure.
Ensure a stable position of the pumping unit.
• Comply with maximum permissible pressures at inlet and outlet and with max-
imum permissible pressure differences between inlet and outlet. See section
“Technical data“. Do not operate the pump with overpressure at the inlet.
• Avoid overpressure of more than 1.2 bar absolute in the event that inert gas is
connected to the pump, to the gas ballast or to a venting valve.
• Note: Flexible elements will shrink when evacuated.
• Connect hoses gas tight at inlet and outlet of the pump.
• Ensure that no foreign objects can be drawn into the pump.
• Check the power source and the pump’s rating plate to be sure that the power
source and the equipment match in voltage, phase, and frequency.
• Use only oil of the recommended type. Other oils or operating uids may cause
damage of the pump or danger.
Use special oils for the rotary vane pump, if, e.g.,
- the pump operates in the vicinity of potential ignition sources.
- oxygen or other ammable gases account for a large proportion of the evacu-
ated gases.
• Under normal operation conditions, pump oils and lubricants are not toxic and
their use entails no danger. Certain hazards are, however, associated with some
of these products.
• Take adequate precautions when handling pump uids, lubricants, and solvents.
Use appropriate protective clothing, safety goggles and protective gloves to avoid
excessive contact with the skin and possible skin irritations (including dermatitis).
Do not inhale or swallow. Maintain adequate levels of hygiene and cleanliness.
Ensure that the pump location is well ventilated and that possible toxic effects of
certain vapors are avoided.
• Comply with all relevant statutory requirements and regulations concerning the
handling, storage and disposal of oil.
Attention! Do not allow oils to be poured into or enter the drainage system or
other bodies of water.
Spillage can cause accidents, use suitable means of removing spilled oil.

page 6 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Make sure ventilation is adequate to maintain recommended operating temperature.
Keep a minimum distance of 5 cm between the cooling fans and surrounding items
(e.g., housing, walls, etc.), or else install an external automatic ventilation system.
Check fans regularly for dust/dirt. Clean fan guard grills if necessary to avoid a re-
duction of ventilation.
Use only hoses at the inlet and outlet of the pump with an inner diameter at least as
large as the diameter of the pump’s tubing (to avoid overpressure at the outlet, and
reduction of pumping speed at the inlet).
Allow the equipment to equilibrate to ambient temperature if you bring it from cold
environment into a room prior to operation. Notice if there is water condensation on
cold surfaces.
The ON/OFF-switches are located at the terminal box. At rst, switch on the rotary
vane pump (backing pump), then switch on the diffusion pump. The diffusion pump
can be switched on only if the backing pump has been switched on.
Comply with all applicable and relevant safety requirements (regulations and
guidelines). Implement the required actions and adopt suitable safety mea-
sures.
Ambient conditions
• Adopt suitable measures in case of differences from recommended conditions,
e.g., using the equipment outdoors, installation in higher altitudes, conductive
pollution or external condensation on the pump.
• Do not operate this product near ames.
To the best of our knowledge the equipment is in compliance with the requirements
of the applicable EC-directives and harmonized standards (see ”Declaration of Con-
formity”) with regard to design, type and model. Directive EN 61010-1 gives in detail
the conditions under which the equipment can be operated safely (see also IP de-
gree of protection).
Operating conditions
➨These pumps are not approved for operation in potentially explosive atmos-
pheres. Do not operate the pumps in potentially explosive atmospheres.
➨These pumps are not approved for the pumping of potentially explosive
atmospheres. Do not pump potentially explosive atmospheres.
➨The pumps are not suitable to pump any of the substances listed below.
Do not pump:
- unstable substances
- substances which react explosively under impact (mechanical stress) without air
- substances which react explosively when being exposed to elevated tempera-
tures without air,
- substances subject to auto-ignition,
- substances which are inammable without air
- explosive substances.
➨ The pumps are not approved for operation below ground. Do not operate the
pump below ground.
NOTICE
NOTICE

page 7 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
• Do not pump substances which may form deposits inside the pump. The pumps
are not suitable for pumping substances which may form deposits inside the
pump. Deposits and condensate in the pump may lead to increased tempera-densate in the pump may lead to increased tempera-
tures even to the point of exceeding the maximum permitted temperatures. De-
posits may cause seizing of the pump unit.
• Check the inlet and outlet of the pump and its oil condition, if there is a danger of
forming deposits or corrosion inside the pump, e.g., in the pump unit. Inspect
the pump regularly and clean if necessary. In case, replace corroded parts or
change pump oil.
• Consider interactions and chemical reactions of the pumped media. Ensure
that the materials of the pump’s wetted parts are compatible with the pumped
substances, see section ”Technical data”.
When changing the substances pumped, we recommend purging the pump with
air or inert gas prior to changing the pumped media. Purging the pump will pump
out residues and it will reduce the possibility of reactions of the pumped sub-
stances with each other and with the pump’s materials or with the pump oil. If
necessary change oil before changing the pumped media.
Safety during operation
➨Adopt suitable measures to prevent the release of dangerous, toxic, explosive,
corrosive, noxious or polluting uids, vapors and gases. To prevent any emission
of such substances from the pump outlet, install an appropriate collecting and
disposal system and take protective action for pump and environment.
➨You must take suitable precautions to prevent any formation of explosive mix-
tures inside the pump, in the oil reservoir, or at the outlet of the pump. In such
circumstances, mechanically generated sparks, hot surfaces or static electricity
may ignite these mixtures. Use inert gas for gas ballast or venting, if necessary.
➨Drain appropriately or otherwise remove any potentially explosive mixtures at the
outlet of the pump, or dilute them to non-explosive concentrations.
➨Never operate this pump if it has a damaged cord or plug.
+Prevent any part of the human body from coming into contact with vacuum.
+If there is an exhaust isolation valve, make sure that you cannot operate the
equipment with the valve closed to avoid a risk of bursting!
+Always provide a free and pressureless exhaust outlet to avoid damage to the
pump and risk of bursting.
+Comply with applicable regulations when disposing of chemicals. Take into con-
sideration that chemicals may be contaminated. Take adequate precautions to
protect people from the effects of dangerous substances (chemicals, oil mist,
thermal decomposition products of uoroelastomers). Use appropriate protective
clothing and safety goggles.
+ Interruption of the pumping unit or of a pump (e.g., due to power failure), failure
of connected components or of parts of the supply, or change in parameters must
not be allowed to lead to dangerous conditions. In case of a leak in the manifold
or at the shaft seal, pumped substances might be released into the environment
or into the pump housing or motor.
Comply with all notes regarding proper use of the pumps, as well as operation
and maintenance guidance.

page 8 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
+The residual leak rate of the equipment might render possible an exchange of
gas, albeit extremely slight, between the environment and the vacuum system.
Adopt suitable measures to prevent contamination of the pumped substances or
the environment.
• Ensure that no parts of your clothing, hair or ngers can be caught or drawn in at
the inlet of the pump. Never insert ngers or drop any other object into the inlet or
outlet.
• Pumping at high inlet pressure may lead to overpressure at the gas ballast valve.
Pumped gases or condensate might be expelled if the valve is open. If an inert
gas supply is connected to the gas ballast, ensure that its inlet pipeline is not
contaminated.
• Pay attention to the safety symbol ”hot surfaces” on the equipment. Hot parts
may cause burns if touched. Adopt suitable measures to prevent any danger
arising from hot surfaces or electric sparks. During normal operation the diffusion
pump becomes very hot, especially the vacuum connection. Do not touch, risk of
burning! Avoid contacting or covering the pump with burnable material, or mate-
rial which may be damaged due to high temperature, e.g., electrical power cord.
Ensure that hot surfaces of the pump do not cause burns. Provide a suitable
contact guard if necessary.
Attention: If the maximum permissible inlet pressure or the backing pressure at
the diffusion pump are exceeded, pump uid might enter other parts of the vacuum
system.
Provide appropriate protective measures to allow for the possibility of failure and
malfunction. The protective measures must also allow for the requirements of the
respective application.
In case of overload, the motor of the rotary vane pump is shut down by a self-hold
thermal cutout in the winding.
Note: Only manual reset is possible. Switch off the pump and disconnect from the
power source. Identify and eliminate the cause of failure. Allow the pump to cool
down sufciently before restart.
In case of excess temperature the motor of the diffusion pump is shut down by a
safety switch.
• Attention: After cooling down, the heating of the diffusion pump restarts auto-
matically. Adopt suitable measures if a restart is a potential source of danger.
Maintenance and repair
In order to comply with laws (occupational, health and safety regulations, safety at
work law and regulations for environmental protection) vacuum pumps, components
and measuring instruments can only be returned when certain procedures (see sec-
tion ”Repair - Maintenance - Return - Calibration”) are followed.
➨Ensure that the pump cannot be operated accidentally. Never operate the pump
if covers or other parts of the pump are disassembled.
➨Switch off the pump. Disconnect the electrical power cord and wait two minutes
before starting maintenance to allow the capacitors to discharge.
➨Note: The pump may be contaminated with process chemicals, which have been
pumped during operation. Ensure that the pump is completely decontaminated
NOTICE

page 9 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
before maintenance commences.
+Take adequate precautions to protect people from the effects of dangerous sub-
stances if contamination has occurred. Use appropriate protective clothing, safe-
ty goggles and protective gloves.
+ Wear parts have to be replaced regularly.
+ Never operate a defective or damaged pump.
+Vent the pumping unit before starting maintenance. Isolate the pumping unit and
other components from the vacuum system. Allow sufcient cooling of the pump.
Drain condensate, if applicable.
Ensure that maintenance is done only by suitably trained and supervised techni-
cians. Ensure that the maintenance technician is familiar with the safety procedures,
which relate to the products processed by the pumping system.
NOTICE

page 10 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
+ See manuals of the rotary vane pump and of the diffusion pump as well.
* If the pumping unit is running with fresh oil (oil has been changed or topped up), a running time of up to two days might be
necessary to achieve the ultimate vacuum. This effect is due to the normal outgassing of the oil.
** Measurement according to EN ISO 2151:2004 and EN ISO 3744:1995 at 230V/50Hz and at ultimate vacuum with exhaust
tube at outlet.
Technical data
Type HP 40B2 /
RZ 2.5
HP 40B2 /
RZ 6 HP 63B2
Backing pump RZ 2.5 RZ 6
Recommended oil for backing pump VACUUBRAND B-oil
Diffusion pump AX 65
Recommended pump uid for
diffusion pump
diffusion pump oil for
VACUUBRAND oil diffusion pump
Pump uid capacity of diffusion pump ml 30
Maximum pumping speed l/s 22 37
Ultimate vacuum* mbar < 1 x 10-6
Maximum permissible inlet / outlet
pressure (absolute) bar 1.1
Maximum pressure difference
between inlet and outlet bar 1.1
Maximum permissible pressure
(absolute) at gas ballast valve bar 1.2
Maximum permissible temperature
of gaseous media
continuous operation: 40°C,
for short periods (less than 5 minutes): up to 80°C
Permissible ambient temperature
storage / operation °C -10 to +60 / +12 to +40
Permissible relative atmospheric
moisture during operation % 30 to 85 (no condensation)
Maximum permissible installation
altitude above mean sea level m 2000
Maximum permissible range of
supply voltage 230V~ ±10% 50/60Hz
Rated input current:
230 V~ 50/60 Hz A 2.7 / 2.2 3.2 / 3.2
Power draw
230 V~ 50/60 Hz VA 621 / 506 736 / 736
Degree of protection IEC 529 IP 10B
Inlet small ange KF DN 40 clamping ange
ISO-K DN 63
Outlet hose nozzle DN 10 mm
A-weighted emission sound pressure
level** (uncertainty KpA: 3 dB(A)) dB(A) 42 49
Dimensions L x W x H approx. mm 445 x 385 x 435 445 x 381 x 460
Weight approx. kg 25.4 30.9

page 11 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Pump parts
Position Component
1 Diffusion pump AX 65
2 Backing pump RZ 2.5
3 Backing pump RZ 6
4 ON/OFF switch diffusion pump
5 ON/OFF switch backing pump
6 Rating plate of pumping unit
7 Connection diagram
8 Handle
Position Component
9 Inlet
10 Outlet
11 Fore-vacuum valve V1
12 By-pass valve V2
13 High vacuum valve V3
14 Venting valve V4
15 Connection for vacuum gauge
KF DN 10
We reserve the right for technical modication without prior notice!
6
59
7
4
28
10
11
HP 40B2 / RZ 2.5
13
14
12
15
1

page 12 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
+ An oil mist lter for installation at the outlet of the rotary vane pump RZ 6 is separately packed.
Pay attention to the notes on assembling the oil mist lter in the assembly instructions „Acces-
sories for rotary vane pumps“.
6
59
7
4
3
8
10
11
HP 40B2 / RZ 6
13
14
12
15
1

page 13 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
HP 63B2
6
59
7
4
38
10
11
13
14
12
15
1

page 14 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Use and operation
Setting up and installing
+Make sure ventilation is adequate, especially if the pump is installed in an en-
closure, or if the ambient temperature is elevated. Provide external ventilation, if
necessary.
• Reduce the transmission of vibration. Prevent mechanical load due to rigid pipe-
lines. Insert elastic hoses or exible elements as couplings between the pump
and rigid pipes.
Note: Flexible elements will compress or atten when evacuated if not designed
for use under vacuum.
• Hose connections at the pump inlet must always be gas tight.
• If the pump is installed at an altitude of more than 2000 m above mean sea level,
check compatibility with applicable safety requirements, and adopt suitable mea-
sures. There is a risk of the motor overheating due to insufcient cooling.
Keep a minimum distance of 5 cm between cooling fans and surrounding items (e.g.,
housing, walls, etc.), or else install an external automatic ventilation system.
Use connecting hoses with large diameter and keep them as short as possible to
avoid ow losses. Locate the pump as closely as possible to the application.
Always install outlet tubing descending from the pump or provide other measures to
avoid backow of condensate towards the pump.
NOTICE
Proceed strictly according to the given order and comply with the given time
and pressure data.
Switching on the pumping unit
(pump and vacuum vessel at atmospheric pressure)
➨Open fore-vacuum valve (V1). Close by-pass valve (V2), high vacuum valve (V3),
and venting valve (V4).
➨ Switch on backing pump (rotary vane pump RZ 2.5 or RZ 6), switch on diffusion
pump.
+ The diffusion pump can be switched on only once the backing pump has been
switched on.
➨ Close fore-vacuum valve (V1) after the heating time (approx. 15 minutes) has
elapsed and the fore-vacuum (M1) is below 0.1 mbar.
➨ Open by-pass valve (V2).
➨ Close by-pass valve (V2) once the pressure inside the vacuum vessel is below
0.1 mbar.
➨ Open fore-vacuum valve (V1).
➨ Open high vacuum valve (V3).
+Note: If the fore-vacuum (M1) rises above 0.1 mbar, close the high vacuum valve
(V3) and pump down with the backing pump to a pressure below 0.1 mbar.
+If the thermal cutout of the rotary vane pump has tripped, it is imperative
that the high vacuum valve (V3) be closed and the diffusion pump switched
off!
NOTICE
Getting started

page 15 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016

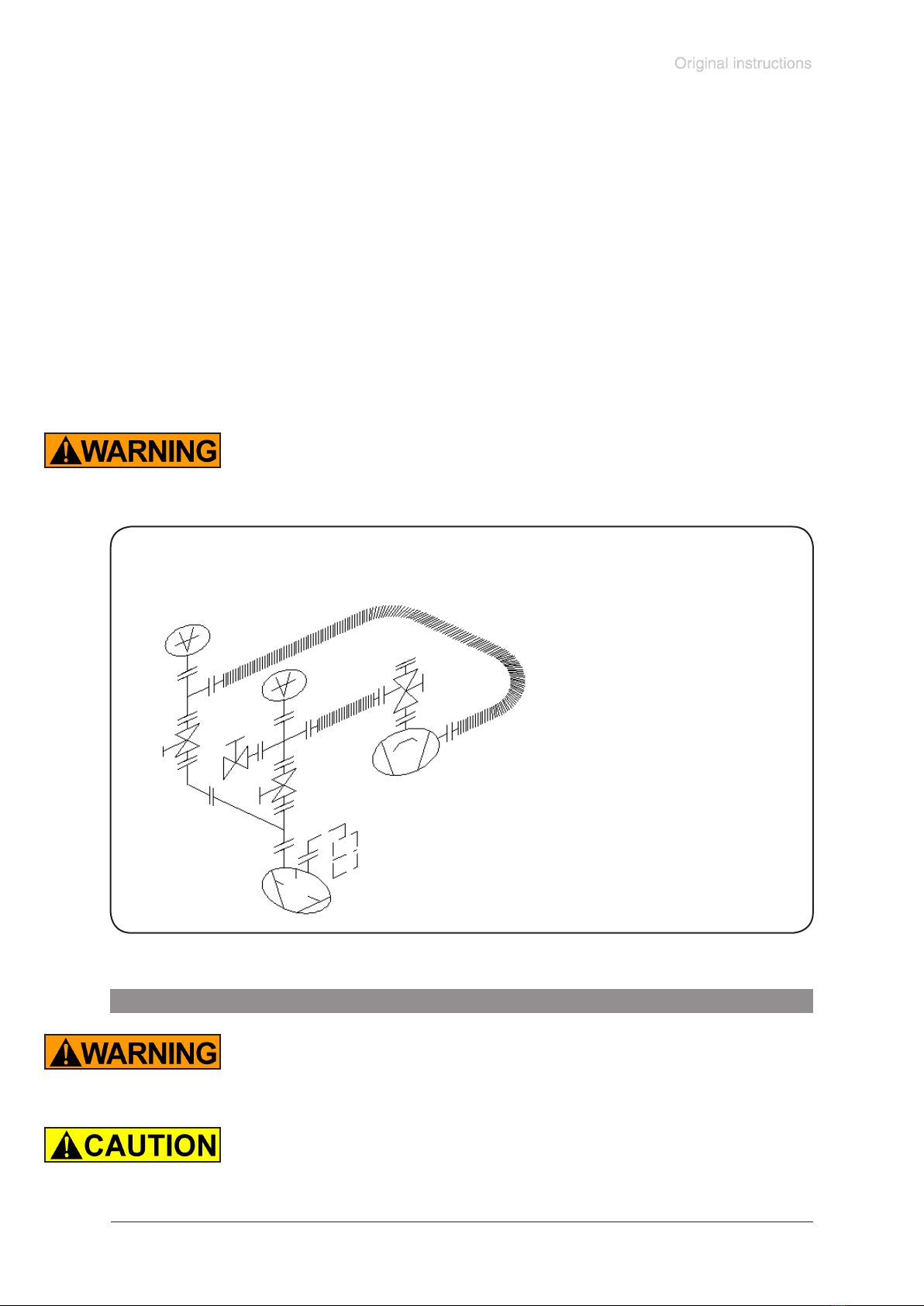

Vacuum connection diagram:
P1 Backing pump
P2 Diffusion pump
V1 Fore-vacuum valve
V2 By-pass valve
V3 High vacuum valve
V4 Venting valve
M1 Measuring point 1
M2 Measuring point 2
F0 Oil mist lter
V1
V2
V3
V4
M1
M2
F0
P1
P2
Venting the vacuum vessel
➨Close high vacuum valve (V3).
➨Close by-pass valve (V2) (if not closed).
➨Open venting valve (V4).
Pumping down again
➨Close venting valve (V4).
➨Close fore-vacuum valve (V1).
➨Open by-pass valve (V2).
➨ Close by-pass valve (V2) once the pressure inside the vacuum vessel is below
0.1 mbar.
➨ Open fore-vacuum valve (V1).
➨ Open high vacuum valve (V3).
+Note: If the fore-vacuum (M1) rises above 0.1 mbar, close the high vacuum valve
(V3) and pump down with the backing pump to a pressure below 0.1 mbar.
+If the thermal cutout of the rotary vane pump has tripped, it is imperative
that the high vacuum valve (V3) be closed and the diffusion pump switched
off!
During operation
+Maximum ambient temperature: 40 °C
Check the maximum temperatures, if installing the pump in a cabinet or a housing.
Make sure ventilation is adequate, especially if the ambient temperature is el-
evated.
• Check the oil level of the rotary vane pump and the pump uid level of the diffu-
sion pump every time before starting the pump, however at least once a week.
Check the oil and pump uid levels more frequently if high amounts of gas or
vapor are pumped.

page 16 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
• A power failure may cause accidental ventilation of the pumping unit, especially if
the gas ballast valve of the rotary vane pump is open. If this constitutes a poten-
tial source of danger, take appropriate safety measures.
Stopping the evacuation process and venting the vacuum vessel:
➨Close high vacuum valve (V3). In case open venting valve (V4) to vent the vacu-
um vessel.
➨Switch off diffusion pump.
➨Keep the backing pump running for another 30 to 45 minutes.
➨Close fore-vacuum valve (V1).
➨ Switch off backing pump.
+ Attention: Never switch off the backing pump together with the diffusion pump.
Proceeding in accordance with the instructions given above ensures that the diffu-
sion pump is kept under vacuum (no condensate build-up in the pump uid).
To avoid possible formation of condensate in the pump housing it is advisable to
keep the pump or the pumping system under vacuum even after shutdown.
Shutdown
Proceed strictly according to the given order and comply with the given time
data.
NOTICE
+See manuals of the rotary vane pump and of the diffusion pump.
+See manuals of the rotary vane pump and of the diffusion pump.
Notes on lling the pump uid into the diffusion pump:
It is also possible to ll the pump uid through the valve into the inlet ange of the diffusion pump.
➨ Open valve plate and ll in the pump uid between cold cap and pump housing (approx. 30 ml).
Troubleshooting
Maintenance
Accessories
Vacuum gauge DCP 3000 with gauge head VSP 3000 (Pirani).................................................683190
1*103- 1*10-3 mbar, 100-230 V 50-60 Hz
Gauge head MPT 200 Penning/Pirani, 1*103- 5*10-9 mbar........................................................683177

page 17 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Every employer (user) is held responsible for the health and safety of his employ-
ees. This also applies to service personnel performing repair, maintenance, return
or calibration.
The health and safety clearance form informs the contractor about any possible
contamination of the device and forms the basis for the risk assessment.
In case of devices which have been in contact with biological substances of
risk level 2 contact the VACUUBRAND service absolutely before dispatching
the device. These devices have to be completely disassembled and decon-
taminated by the user prior to shipment. Do not return devices which have
been in contact biological substances of risk level 3 or 4. These devices cannot
be checked, maintained or repaired. Also decontaminated devices must not returned
to VACUUBRAND due to a residual risk.
The same conditions apply to on-site work.
No repair, maintenance, return or calibration is possible unless the correctly
completed health and safety clearance form is returned. Devices sent are re-
jected if applicable. Send a completed copy of the health and safety clearance
form to us in advance. The declaration must arrive before the equipment. Enclose a
second completed copy with the product.
Remove all components from the device that are no original VACUUBRAND compo-
nents. VACUUBRAND will not be responsible for lost or damaged components that
are no original components.
Drain the device completely of uids and residues. Decontaminate the device.
Close all openings airtight especially if using substances hazardous to health.
To expedite repair and to reduce costs, please enclose a detailed description of the
problem and the product’s operating conditions with every product returned.
If you do not wish a repair on the basis of our quotation, the device may be returned
to you disassembled and at your expense.
In many cases, the components must be cleaned in the factory prior to repair.
For cleaning we use an environmentally friendly water based process. Unfortunately
the combined attack of elevated temperature, cleaning agent, ultrasonic treatment
and mechanical stress (from pressurised water) may result in damage to the paint.
Please mark in the health and safety clearance form if you wish a repaint at your
expense just in case such a damage should occur. We will also replace parts for cos-
metic reasons at your request and at your expense.
Before returning the device
Pack the device properly, if necessary, please order original packaging materials at
your costs.
Mark the package completely
Enclose the completed health and safety clearance form.
Notify the carrier of any possible contamination if required.
Scrapping and waste disposal
Dispose of the equipment and any components removed from it safely in accordance
with all local and national safety and environmental requirements. Particular care
must be taken with components and waste oil which have been contaminated with
dangerous substances from your processes. Do not incinerate uoroelastomer seals
and O-rings. You may authorize us to dispose of the equipment at your expense.
Otherwise we return the device at your expense.
Repair - Maintenance - Return - Calibration
IMPORTANT

page 18 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Health and safety clearance form
1. Device (Model): ..................................................................................................................................................
2. Serial no.: ...........................................................................................................................................................
3. Reason for return / malfunction: .........................................................................................................................
............................................................................................................................................................................
4. Has the device been used in a copper process step (e.g., semiconductor production): ☐yes ☐no
5. Substances (gases, liquids, solids, biological material, e. g. bacteria, viruses) in contact with the device /
which have been pumped:
............................................................................................................................................................................
............................................................................................................................................................................
............................................................................................................................................................................
............................................................................................................................................................................
6. Risk level of the used biological material: ☐ none ☐ 1☐ 2* ☐ 3** ☐ 4**
* Contact the VACUUBRAND service absolutely before dispatching the device.
** Devices which have been in contact with biological substances of risk level 3 or 4 cannot be checked, main-
tained or repaired. Also decontaminated devices must not returned to VACUUBRAND due to a residual risk.
7. Radioactive contamination: ☐yes ☐no
8. Prior to return to the factory the device has been decontaminated: ☐yes ☐no
 Descriptionofthedecontaminationmethodandthetest/vericationprocedure:
............................................................................................................................................................................
............................................................................................................................................................................
9. All parts of the device are free of hazardous, harmful substances: ☐yes ☐no
10.Protective measures required for service staff:
............................................................................................................................................................................
11. If the paint is damaged, we wish a repaint or a replacement of parts for reason of appearance
(repaint and replacement at customer’s expense): ☐yes ☐no
12.Legally binding declaration
We assure for the returned device that all substances, which have been in contact with the device are listed in
section 5 and that the information is complete and that we have not withheld any information. We declare that all
measures - where applicable - have been taken listed in section “Repair - Maintenance - Return - Calibration”.
By our signature below, we acknowledge that we accept liability for any damage caused by providing incom-
plete or incorrect information and that we shall indemnify VACUUBRAND from any claims as regards damages
from third parties. We are aware that as expressed in § 823 BGB (Public Law Code of Germany) we are directly
liable for injuries or damages suffered by third parties, particularly VACUUBRAND employees occupied with
handling/repairing the product. Shipping of the device must take place according to regulations.
Name: .................................................................. Signature: ...........................................................................
Job title: ................................................................... Company’s seal:
Date: ........................................................................
Release for repair grant by VACUUBRAND (date / signature):...................................................................................................................
Protective measures: ☐ Protective gloves, safety goggles ☐ Hood ☐ External cleaning
VACUUBRAND GMBH + CO KG
Alfred-Zippe-Straße 4
97877 Wertheim - Germany
T [phone] F [phone]
E-Mail: [email protected]
www.vacuubrand.com

page 19 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
EG-Konformitätserklärung für Maschinen
EC Declaration of Conformity of the Machinery
Déclaration CE de conformité des machines
Hersteller / Manufacturer / Fabricant:
VACUUBRAND GMBH + CO KG · Alfred-Zippe-Str. 4 · 97877 Wertheim · Germany
Hiermit erklärt der Hersteller, dass das Gerät konform ist mit den Bestimmungen der Richtlinien:
Hereby the manufacturer declares that the device is in conformity with the directives:
Par la présente, le fabricant déclare, que le dispositif est conforme aux directives:
2006/42/EG
2014/30/EU
2011/65/EU
Pumpstand / Pumping unit / Groupe de pompage:
Typ / Type / Type: HP 40B2 / HP 63B2
Artikelnummer / Order number / Numéro d‘article: 699029, 2612089 / 699037
Seriennummer / Serial number / Numéro de série: Siehe Typenschild / See rating plate / Voir plaque
signalétique
Angewandte harmonisierte Normen / Harmonized standards applied / Normes harmonisées utilisées:
DIN EN ISO 12100:2011, DIN EN 61010-1:2011, IEC 61010-1:2010 (Ed. 3), DIN EN 1012-2:2011, DIN
EN 61326-1:2013, DIN EN 50581:2013
Bevollmächtigter für die Zusammenstellung der technischen Unterlagen / Person authorised to compile
the technical le / Personne autorisée à constituer le dossier technique:
Dr. J. Dirscherl · VACUUBRAND GMBH + CO KG · Alfred-Zippe-Str. 4 · 97877 Wertheim · Germany
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Dr. F. Gitmans)
Geschäftsführer / Managing director / Gérant
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ort, Datum / place, date / lieu, date
Wertheim, 28.04.2016
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Dr. J. Dirscherl)
Technischer Leiter / Technical Director /
Directeur technique
ppa.
VACUUBRAND GMBH + CO KG
Alfred-Zippe-Str. 4 · 97877 Wertheim
T [phone] · F [phone]
[email protected]
www.vacuubrand.com

page 20 of 20
Documents are only to be used and distributed completely and unchanged. It is strictly the users´ responsibility to check carefully
the validity of this document with respect to his product. Manual-no.: 999069 / 28/04/2016
Disclaimer: Our technical literature is only intended to inform our customer. The validity of general em-
pirical values and results obtained under test conditions for specic applications depend on a number
of factors beyond our control. It is therefore strictly the users´ responsibility to very carefully check the
validity of application to their specic requirements. No claims arising from the information provided in
this literature will, consequently, be entertained.
VACUUBRAND GMBH + CO KG
-Technology for Vacuum Systems-
© 2016 VACUUBRAND GMBH + CO KG Printed in Germany
Alfred-Zippe-Str. 4 · 97877 Wertheim / Germany
T [phone] · F [phone]
[email protected] · www.vacuubrand.com
