VADO WG-095S-C User manual

Short frameless wall hung cistern
Keep for future reference
Installation Guide
WG-095S-C
WATERGAMES
Vado
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel [phone] fax [phone]
[e-mail]
www.vado.com
This instruction booklet covers these models:
WG-095S-C
Version 1, 1-12-22
where inspiration flows

2 3
Important - please read
VADO reserves the right to make technical improvements and enhance the appearance of
the products included in this instruction manual.
Please read these instructions carefully before starting installation and keep for
future reference.
Remove all packaging and check the product for missing parts or damage before starting
installation.
Any alterations made to this product and fittings may infringe water regulations and will
invalidate the guarantee.
The installation must comply with all Local/National Water Supply Authority Regulations/
Byelaws and Building and Plumbing Regulations.
To be installed in accordance with BS EN806.
We strongly recommend that you use a qualified and registered plumber.
General Care and Safety
Wall plugs supplied are ONLY suitable for solid stone/brick walls. They are not suitable
for use in aerated blocks or similar. If fixing to a stud wall, sufficient extra internal
reinforcements must be made to the wall. Screws must locate into suitably reinforced studs
and noggins.
Take care using power tools - The use of a residual current device (RCD) is recommended.
Beware of hidden cables or pipes when drilling.
This product can be dangerous if installed incorrectly. This product must be installed by a
qualified plumber or installer. It is the installer's responsibility to check that the fixings are
suitable for the installation in hand.
Cistern fittings are suitable for Water pressure: 0.2 - 10 bar. Do not add caustic chemical
substances (eg containing chlorine compounds or similar into the cistern. These can
damage the valve components and cause failure.
Before starting to enclose the frame, the system must be first tested for leaks before 2nd fix
commences. Using the help of a second person to hold the pan in place on the frame, turn
on the water supply and flush the pan to check for leaks.
When installed, the fitting must comply with the requirements of the Water Supply (Water
Fittings) Regulations 1999 and Scottish Byelaws 2004.
For further information, contact the Water Regulations department of your local water
supplier (see the WRAS website www.wras.co.uk for details) or the Water Regulations
Advisory Scheme by email ([e-mail]) or telephone: [phone].
Please take great care when installing this product not to damage its surface.
Please note if installing in an enclosed environment, access should be left for servicing and
maintenance. No costs relating to inadequate access can be accepted.
For instructions on how to side-mount the product, spares and
guarantee information please visit our website at
https://www.vado.com/sites/default/les/ush-cisterns-
install-instructions.pdf or by scanning the QR code:
Further information
Dimensions - toilet connection
Short frameless wall hung cistern
Keep for future reference
Installation Guide
WG-095A-S-C
WATERGAMES

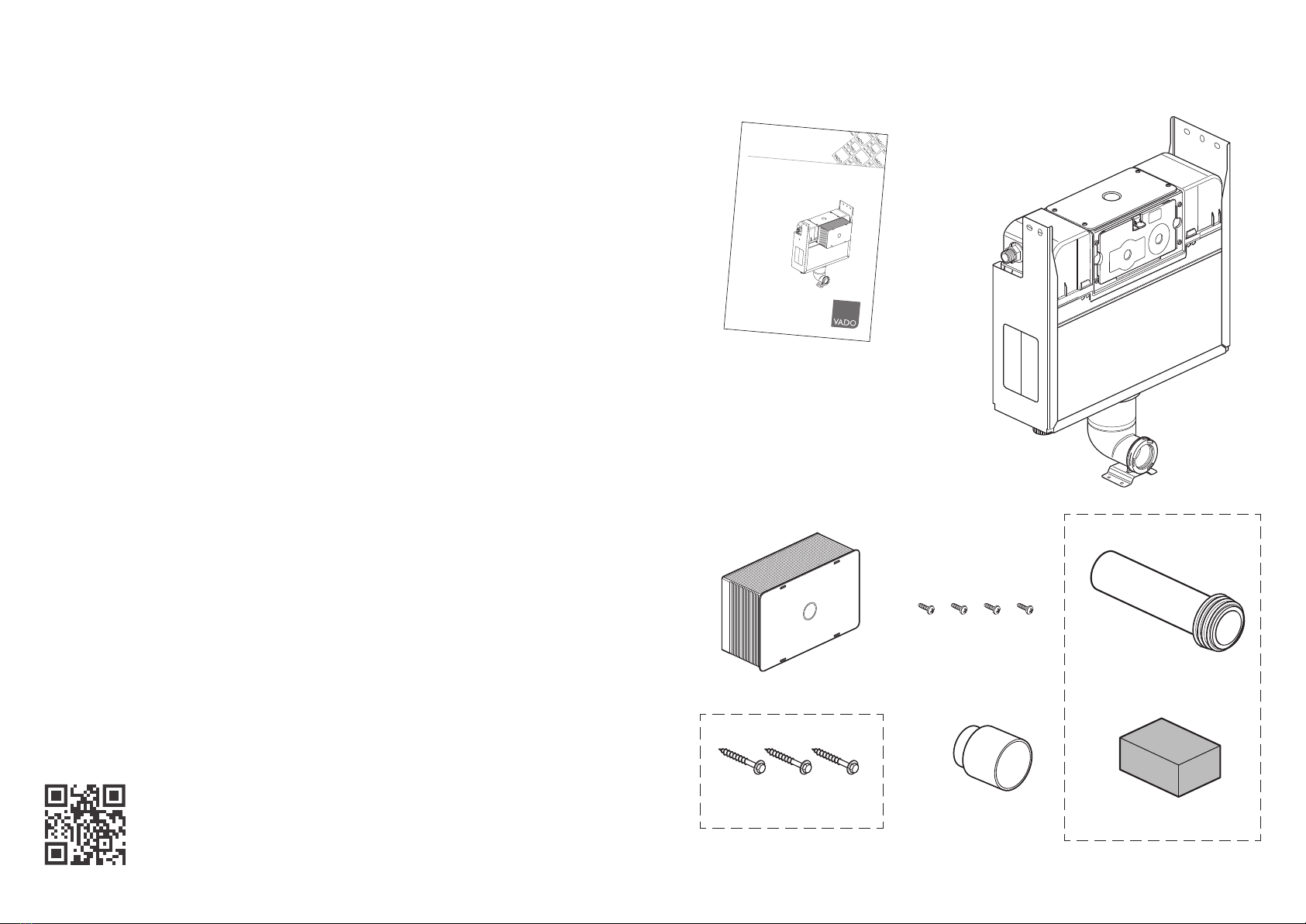

Installation guide &
User manual
Cistern
Install box
Coach screws x 3 Inlet mortar guard
Screws x 4
Fixing Kit
Toilet Connection Kit
Inlet pipe
Lubricating Sponge

45
InstallationInstallation
1
A
A + 450mm
450mm
2
A mm
150mm
420mm
Dimensions
0 - 45mm
527mm
371mm
156mm
499 -544mm
405mm
20mm
Min
90mm
Max
420mm
132mm
½"

6 7
Installation
3a
3b
5mm
5mm
Installation
3c
4

8 9
Installation
6
5
x 4
Installation
7 8
5mm
5mm
140 10mm
+
-
20mm - 90mm
9 10

10 11
Installation for top plate
1
3
2
4
Installation for top plate
7a
35mm
Min
85mm
Max
7b
5mm
5mm
5 6

12 13
Installation - toilet connection
1 2a
2c2b
Xmm
Xmm
Xmm
Ymm
Installation - toilet connection
2d
Xmm + + Ymm 5mm
3 4
45°

14
Flow Adjustment (6/3 Litres --->4/2.6 Litres)
1
4 5
6
2
7
3
12
2
3
15
Flow Adjustment (6/3 Litres --->4/2.6 Litres)
8 9
10
13
11
12
1
2
45°
1
2
3 5
10 3
11 5

16
Parts list:
Item Part Code Qty
1Faceplate bracket WG-095-02 1
2Short access install box WG-095-07 1
3Install box screw set WG-095-08 1
4Flush pipe WG-095-09 1
5Short flush bend pipe WG-095-11 1
6Twist 1/2 female x 1/2 female 167mm
anti-corrosion hose T-1/2X1/2-AC167K-TWT 1
7Short flush valve bracket 1 WG-095-13 1
8Short flush valve bracket 2 WG-095-15 1
9Short inlet connection with filter &
ball valve WG-095-17 1
10 Plate connecting rods WG-095-18 1
11 Short flush valve base WG-095-20 1
12 Short flush valve WG-095-22 1
13 Short Flush valve gasket WG-095-24 1
14 Short inlet bracket WG-095-27 1
15 Short inlet connection WG-095-28 1
16 Fill valve WG-095-36 1
17 Self- tapping screw WG-095-34 1
18 Manuals Installation Guide &
User Manual 1
17
Parts:
10
1
3
2
7
12
13
11
9614 15 16
517
5
4
8
