Vais Technology GSR-TY51 User manual

VAIS TECHNOLOGY
www.vaistech.com
-
-
•
Owner's Manual
Generation 2
Model GSR-TY51
{(<SiriusXllf >))
READY
(SiriusXM ConnectTuner and Subscripti on are required. Sold separately.)
TOYOTA
Interface Adapter
I I II II II IIII II 111111111111111
GSR - lYSl - MAN
Compatible with select Toyota models .
Refer to GSR - TYS 1 application guide for deta ils. •
r:t .
1:.1. .
Lt. WARNING: Ca n cer and Reproduct i ve Harm -www.P65Warnings.ca.gov.
Copyright (C) 2003-2019 VAIS Technol ogy
Published December 6, 2018

Before You Start
Installation 5
SiriusXM Source Selection 7
User Interface-Channels, Presets, Categories 9
Troubleshooting
11
Warranty

&wARNING
DO NOT DISASSEMBLE OR ALTER
Doing so may result in an accident , fire or electri c shock
Do not block the airbag
BeforeYou Start 3
Do not mount product or any added aud io and / or video equipment where it can obstruct the operation of any sa f ety
devices such as the airbag .
Distraction Warning
Do not let product or any added audio and/or video equipment distract you while you are driving .
BEFORE WIRING , DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY T ERMINAL
Before starting any installation work , you must wait 90 seconds after turning the ignition switch to the LOCK pos iti on and
disconnecting the negative(-) terminal from the battery. The supplemental restraint system (airbag) is equipped wi th a
backup power source . If installation work is started less 90 seconds after disconnection of the negative (-)battery terminal ,
the SRS may deploy . When the negative(-) terminal cable is disconnected from the battery the clock and audio systems
memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings .
When installation is complete , reset the clock and audio systems to their previous settings . Power tilt , power telescopic
steering column, front power seats, power mirrors , and power shoulder belt anchorage are equipped with a memory
function . Th e rear power seat is not equipped with a memory function. e and they can make a record of the memory
contents, rear power seat is not equipped with the memory function. When installation is complete , it is necessary to
readjust the features to their previous settings Never use a backup power supply (such as another battery) during
installation work to avoid losing these memory settings.
& CAUTION
DO NOT SPLICE INTO ELECTRICAL CABLES
Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capac i ty of
the wire and result in fire or electric shock .
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS
Cables or wiring that obstruct or get caught on places such as the steering wheel , shift lever , brake pedals , etc. can be
extremely hazardous .
DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST
Moisture or dust may result in product failure.
HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS
The wiring and installation of this product requires special techn i cal skills and experience .
USE ONLY SPECIFIED ACCESSORY PARTS
Use of other than specified parts may damage product internally .
Follow the operational and installation manuals.
YOU SHOU LD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR
TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE
INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING
INSTALLED . FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE
VEHICLE , WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY .
Check your local laws
Some States / Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operat i on of a
video screen within the sight of the Driver. If you have purchased such a product , you should use the product on lyin
locations where it is legal to do so, and if you do use the product, set up the screen so itis only visible to passengers .
TROUBLESHOOTING
Should this product fail to operate properly , please contact your Dealer or our Customer Service Department at
info@vaistech . com.
(l) IMPORTANT
This unit is an interface adapter for Toyota/Scion head unit to control the SiriusXM Tuner SXV300 (SOLD SEPARATELY) .
(J) About SiriusXM Satellite Radio Operation
The unit may refuse to change the channel if your reception is going ON and OFF.
Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily.
Due to bad reception in some areas, SiriusXM Satellite Radio may not work and / or not able to disp l ay text.

4 Before You
Start
Only SiriusXM®brings you more of what you love to listen to, all in one place. Getover 140
channels, including commercial--free music plus the best sports, news, talk, comedy and
entertainment. Welcome to the world of satellite radio.A SiriusXM Vehicle Tuner and Subscription
are required. For more information, visit www .siriusxm.com.
The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as
by looking on the label found on the SiriusXM Connect tuner and its packaging.
After installing your SiriusXM Connect Vehicle Tuner and antenna, power on your radio and select
SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you
cannot hear the preview channel, please check the installation instructions to make sure your
SiriusXM Connecttuner is properly installed.
After you can hearthe preview channel, tune to Channel Oto find the Radio ID of your tuner. In
addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its
packaging. You will need this number to activate your subscription. Write the numberdown for
reference.
Note: the SiriusXM Radio ID does not include the letters I, 0 , Sor F.
In the USA, you can activate online or by calling SiriusXM Listener care:
• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at 1-866-635-2349
For Canadian Subscriptions, please contact:
• Visitwww.siriusxm.ca/activatexm
• Call XM customer Care at 1-877-438-9677
As part of the activation process, the SiriusXM satellites will send an activation message to your
tuner. When your radio detects thatthe tuner has received the activation message, your radio will
display: "SUBSCR UPDATE. .. ""< please wait> ". Once subscribed, you can tune to channels in
your subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up
to an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the
activation message.
Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc.All
rights reserved.

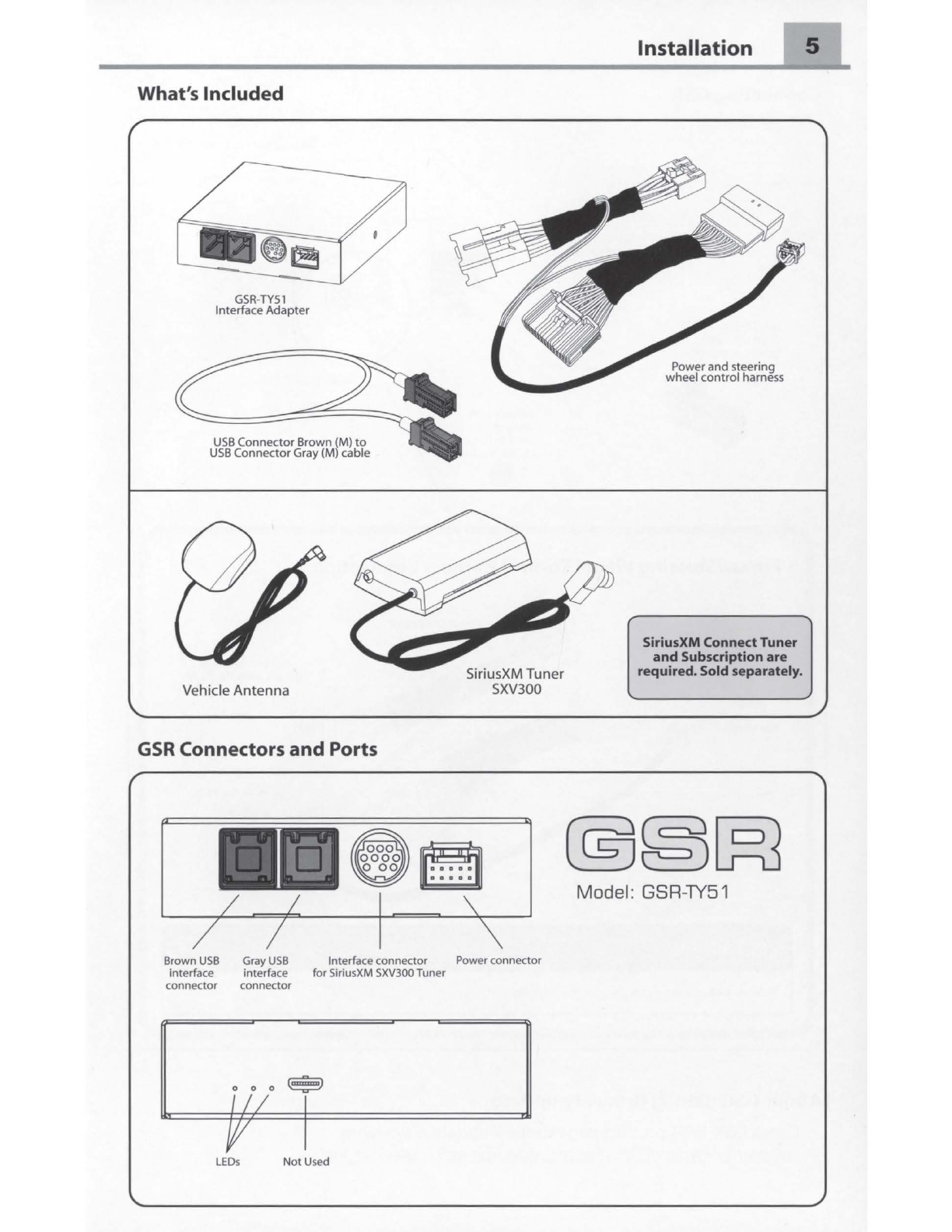

What's Included
GSR -TYSl
InterfaceAdapter
USB Connector Brown (M) to
USB ConnectorGray(M) cable
Vehicle Antenna
GSR Connectors and Ports
SiriusXMTuner
SXV300
Brown USB Gray USB Interfaceconnector Power connector
interface interface for SiriusXM SXV300 Tuner
connector connector
0 0 0
C..,·:""J
I//
J~
LEDs Not Used
Installation
Power and steering
wheel control harness
SiriusXM ConnectTuner
and Subscription are
required. Sold separately.
Model: GSR-1Y51
5

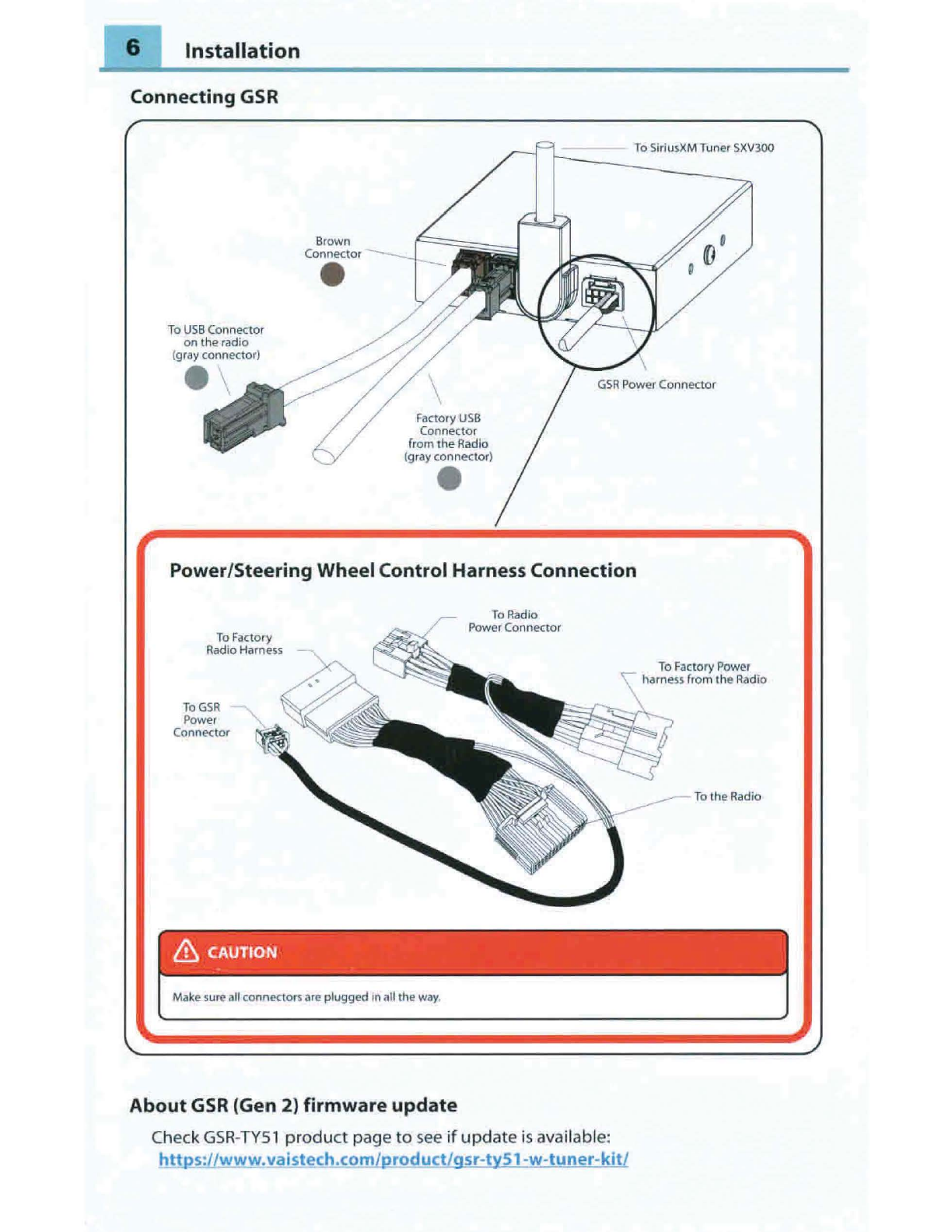

6 Installation
Connecting GSR
---- To SiriusXM Tuner SXV300
To USB Connector
on the radio
(gray connector )
. \
Brown
Connector --_
•
\
Factory USB
Connector
from the Radio
( gray connector)
•
Power/Steering Wheel Control Harness Connection
To Factory
Radio Harness
To Radio
~ PowerConneccor
ToGSR
Power
Connector
To Factory Power
\ harness from the Radio
Make sureall connectors are plugged In all the way,
About GSR (Gen 2) firmware update
Check GSR-TYS1 product page to see if update is availabl e:
http~www.vaistech.com/product/gsr-tyS 1-w-tuner-kit/
To the Radio

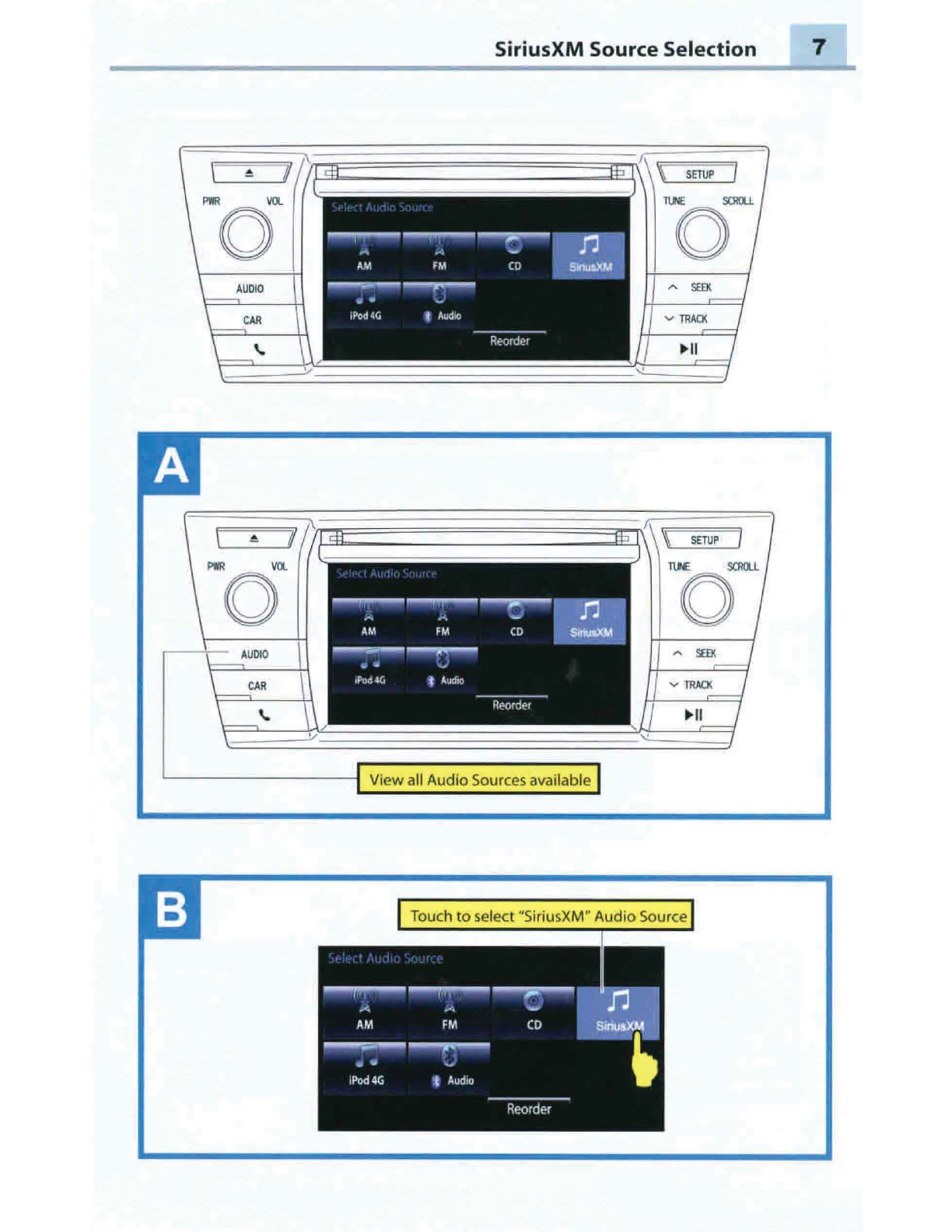

SiriusXM Source Selection 7
'--------- --1 View all Audio Sources available
Touch to select "SiriusXM" Audio Source

8 SiriusXM Source Selection
[I]
[I]
ill
Tuning Knob -switch to next available channel, depending on direction of rotation.
(Tuni ng knob may not be available while radiois loading channel list.)
"Track Seek+ff and "Track Seek -" switch to next availablechannel.
LongTouch on "Track Seek+" and 'Track Seek-" switch to next available Preset.
a Grand Connection
Jt G'"t 1: Now
:__ ~ __ __ [:J _• __ C_H_0_4_0_,_~_
0!1
,:t11d I.let.ii
Brt..,. .,t..1 x: '-"-J II ,, )cund
Touch to se l ect
All Channels
26
CHO25 Classic Rewind
27 CH026 Classic Vi nyl
28
CH027 Deep Tracks
29
CH028 The Spectrum
30
CH029 Jam On
-i

User Inte rface -Channel s, Presets, Categories 9
1 CH000 Radio ID ABCD1234
2 CH001 SiriusXM Preview
I Songs I
..
3 CH002 Hits 1
I
~
4 CH003 Venus
5 CH004 50s on 5
This list has all channels ~
Artists
1 CH025 Classic Rewind
,,
2 CH033 1stWave
k
Presets
~
3 CH002 Hits 1
Browse by Category 4 CH301 Road Trip Radio
System Information
...
1 Save as P1 - 'CH Name'
r l
' 1 CH025 Classic Rewind
My Presets -2 CH033 1stWave
~
Save Current Channel as Preset
~
3 CH002 Hits 1
Delete Preset 4 CH301 Road Trip Radio
Replace Preset 1 CH025 Classic Rewind
DeleteAll Presets
,__
2 CH033 1stWave
~
-3 CH002 Hits 1
4 CH301 Road Trip Radio
..
1 Delete
ALL · xx ·Presets
-

10

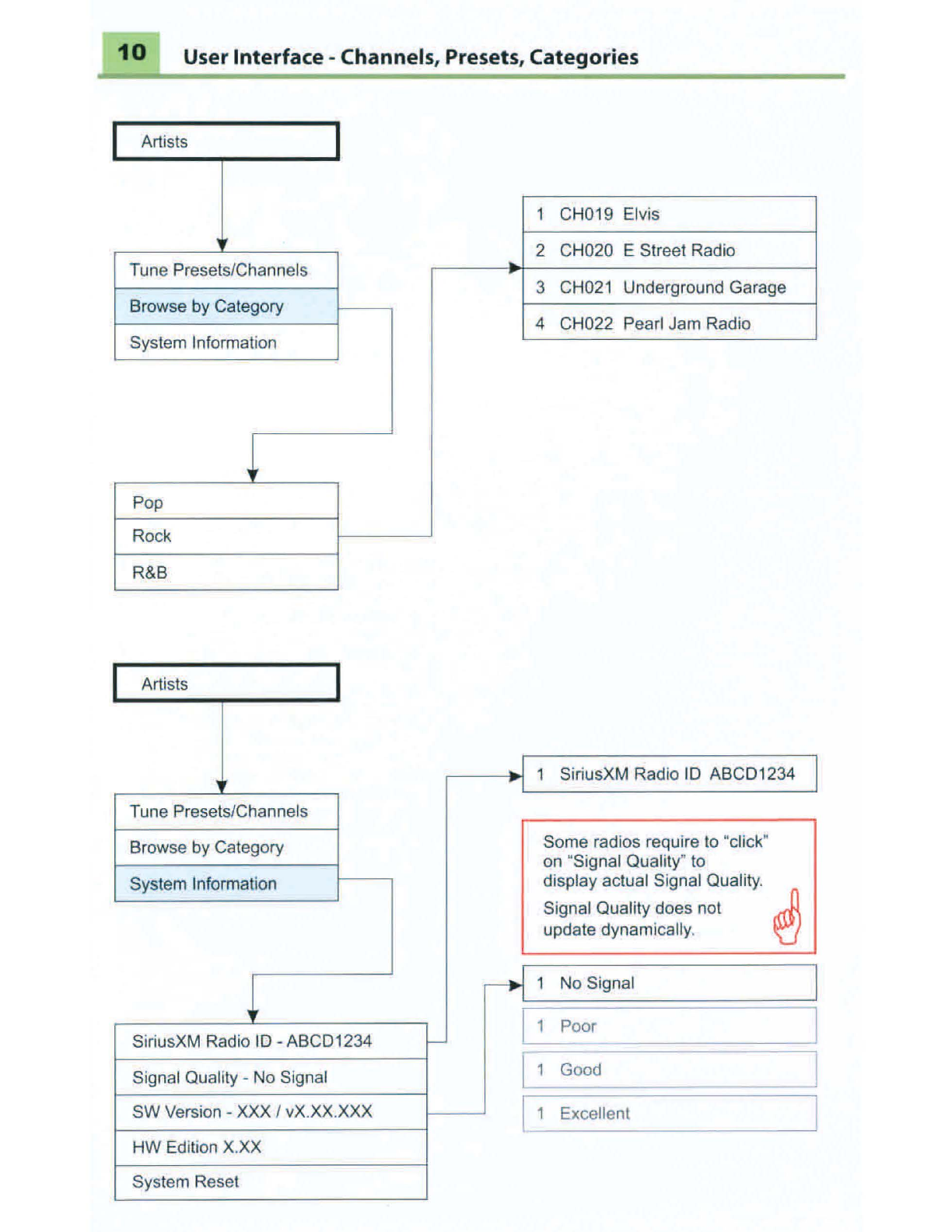

User Interface-Channels, Presets, Categories
Artists
1
CH0 19 Elvis
',
2 CH 020
E Street Radio
Tune Presets/Channels -
,,,.
3 CH021
Underground Ga rage
Brows e by Cat e gory
4 CH022 Pearl Jam Radio
System Information
1 •
Pop
Rock
R&B
Artists
-1 SiriusXM Radio ID
ABC D1234
1 ,
,,,.
Tune Presets/Channels
Br owse by Category
Some radios r equire to "click"
on "Signal Quality " to
System Information
display actual Signal Quality.
~
Signal Qua lity does not
update dynamica lly.
1
No Signal
I
1 • I1
Poor
Sir i usXM Radio ID - ABCD1234
-
Signal QuaHty - No Signal [, Good I
SW Version - XXX / vX. XX .XXX [ 1 Excellent I
HW Edltion X. XX
System Reset

Troubleshooting
System Messages
System Message Solution
"Data is being acquired from If the Tuning Knob is turned too fast, you may briefly see this message
iPod. Please wait..:' while the channel list is loading.
"Loading"then after30 Check the SXV300 Vehicle ConnectTunerconnection to the Add On
seconds "CheckTuner" Adapter Module .
If the message is displayed when the tuner is connected this indicates
a defectivetuner. Replace the SXV300Vehicle ConnectTuner.
"Check Antenna" Check the antenna connection to the SXV300Vehicle ConnectTuner.
If the message is displayed when the SiriusXM antenna is connected
this indicatesa defectiveSiriusXM antenna. Replace the antenna.
"No Signal" Make sure the SiriusXM antenna has a clear view of sky.
Check the antenna connection to the SXV300Vehicle ConnectTuner.
If the message is displayed when the SiriusXM antenna is connected
this indicates a defectiveSiriusXM antenna. Replace the antenna.
"CHXXX UNAVAIL''
The channel you are tuned to has become unavailable.Tune to a
differentchannel.
"UNSUB/UNAVAIL'' The presetchannel that you have tuned to has become unavailable.
Tune to a different channel.
"SUBSCR UPDATE .. :' SiriusXM
is updating the channel subscription.This maytake up to 15
"< please wait >" to 20 seconds to complete.Once completed the messages, "SUBSCR
UPDATED" and "< tune CH to close >" will be displayed.Tune to a
channel to dismiss the message.
Warranty
Warranty is available for download: https://www.vaistech.com/download/15244/
To request a paper warranty copy please contact us:
VAIS Technol ogy
Warranty Department
8811 AmericanWay
Unit 125
Englewood, CO 80112
720-733-2348
[e-mail]

-T E C H N O L O G Y
-
..
II II II IIII II II 111111111111 111
GSR-lY51-MAN
VAIS Technology, 8811 American Way, Englewood , CO 80112
www.vaistech.com Phone : 720 - 733 - 2348 sales @ vaistech.com
