Product overview
Vaisala CARBOCAPâCarbon Dioxide and Temperature Transmitter GMW87M is a wall-mount
transmitter designed to fulfill the needs for CO2measurements in demanding conditions (for
example, dusty or humid installation locations).
GMW87M can be accessed with the Modbus RTU protocol over an RS-485 interface. The
communication settings for the protocol are entered with DIP switches on the GMW87M
component board.
For information on measurement performance and technical specifications of the transmitter,
see Technical data (page 13).
Transmitter parts
6
7
8
5
3
2
1
4
Figure 1 GMW87M transmitter parts
1DIP switches for Modbus settings
2Screw terminals. The screw terminal block is detachable for easy installation.
3Transmitter cover with captive screws (4 pcs)
4GM10 carbon dioxide measurement module
5Mounting base
6Screw holes for mounting on top and bottom of mounting base (2 screws, Ø 3.5 mm)
7Alternative lead-through for wiring through the back
8Cable gland for leading wires inside the enclosure
3

In GMW87M, the component board is located on the cover of the enclosure. Wires are led into
the enclosure either through a cable gland on the bottom of the mounting base or a sealed
lead-through at the back. The enclosure is opened and closed with 4 screws.
Safety
The GMW87M transmitter delivered to you has been tested for safety and approved as shipped
from the factory. Note the following precautions:
Make sure that you prepare or connect only de-energized wires.WARNING!
Do not modify the unit or use it in ways not described in the
documentation. Improper modification or use may lead to safety hazards,
equipment damage, failure to perform according to specification, or decreased
equipment lifetime.
CAUTION!
Electrostatic Discharge (ESD) can cause immediate or latent
damage to electronic circuits. Avoid touching exposed component contacts
during installation and maintenance.
CAUTION!
Regulatory compliances
Vaisala GMW80 series transmitters are in conformity with the provisions of the following EU
directives:
• RoHS Directive
• EMC Directive
The conformity is declared with using the following standards:
• EN 50581: Technical documentation for the assessment of electrical and electronic
products with respect to the restriction of hazardous substances.
• EN 61326-1: Electrical equipment for measurement, control, and laboratory use – EMC
requirements – Immunity test requirements for equipment intended to be used in an
industrial electromagnetic environment.
• EN 55032: Information technology equipment – Radio disturbance characteristics – Limits
and methods of measurement.
4 M212445EN-A

Installation
The GMW87 transmitter is designed to be installed on a mounting box or directly to a wall
surface. For transmitter dimensions, see Figure 3 (page 6).
220
HFT
545
VS
SCREW TERMINAL WIRING
D
D
RS GND
4
2
1
3
Figure 2 Mounting GMW87M
1Cable gland for leading the input/output cable (Ø 4 ... 8 mm) inside the enclosure
2Alternative lead-through for wiring through the back (break seal and transfer cable gland
to the threads on this lead-through)
3Wiring instructions label
4Mounting screws (2 pcs, Ø 3.5 mm, head Ø ≤8 mm)
1. Open the transmitter cover (4 screws) and use 2 mounting screws (Ø 3.5 mm) to attach
the mounting base to the installation surface. Point the cable gland straight down.
2. Route the input/output cable through the cable gland.
If you use the alternative lead-through on the back of the transmitter, seal
the hole on the bottom of the transmitter after removing the cable gland.
3. For ease of installation, you can disconnect the screw terminal block by pulling it out from
the component board.
4. Attach wiring to the screw terminals as shown on the wiring instructions label. See also
Wiring (page 6).
5. If you disconnected the screw terminal block, plug it back in. Make sure it is positioned
correctly.
5

6. Push down gently on the GM10 module. The module should be straight and firmly
connected.
7. Tighten the cable gland and close the transmitter cover (4 screws).
Mounting bases are tailored to the individual transmitter at the
factory. If you attach several mounting bases before connecting the transmitters,
store the transmitters in their original shipping boxes, so that you can match the
serial number on the mounting base to the serial number on the shipping box.
CAUTION!
41
84
164
120
Ø 3.5
134
mm
Figure 3 GMW87M dimensions
Wiring
D
RS
GMW87M
18 ... 35 VDC
or 20 ... 30 VAC
Power supply
Controller
RSGND
D
GND
VS
VS
RS-485
RS-485
isolated
Leave the bottom terminal
in GMW87M unconnected
Figure 4 GMW87M wiring diagram
6 M212445EN-A

Modbus communication
The Modbus variant used in GMW87M is Modbus RTU. For a list of the Modbus registers
available in GMW87M, see Modbus registers (page 10).
You can use up to 8 transmitters on the same RS-485 line. You must configure each transmitter
on the line to have a dierent Modbus address.
Before taking the transmitter into use, check that the Modbus device address, bit
rate setting, and parity setting match the settings in your system.
The number of stop bits is not significant. The device supports automatically both
1 and 2 stop bits.
3
D
RS
D
GND
VS
VS
1
2
5
6
4
Figure 5 GMW87M component board with DIP switches and screw terminals
1DIP switches for setting the GMW87M Modbus device address
2DIP switches for selecting Modbus communication bit rate and parity (N/E)
3Screw terminal not used in GMW87M
4Switch for 120 Ω RS-485 bus termination. Switch RS-485 bus termination ON only on the
last device of the wiring if there is no separate terminator on the bus.
5RS-485 (Modbus) screw terminals
6Power supply input (18 … 35 VDC or 20 … 30 VAC) screw terminals
Make selections with the DIP switches by sliding the DIP switch to the right (ON). Keep the
other DIP switches on the left position (OFF).
7

Setting Modbus device address with DIP switches

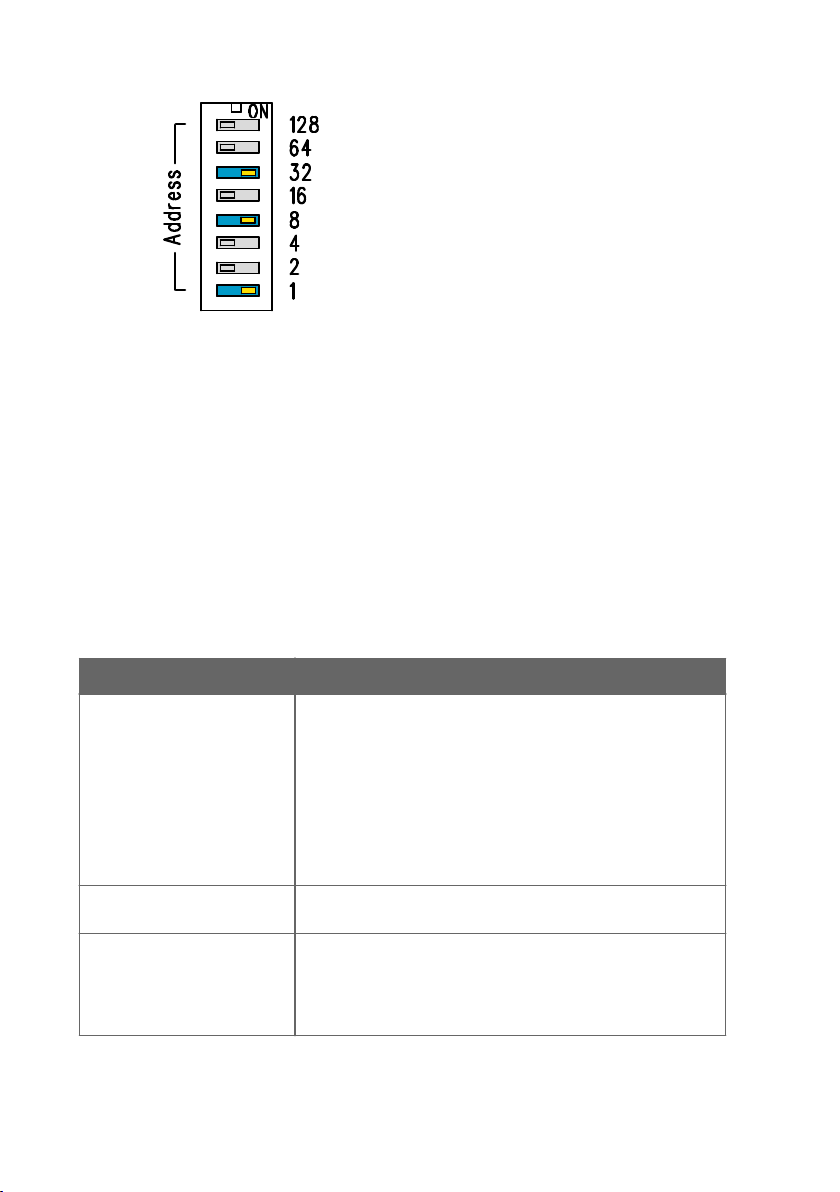

Figure 6 Modbus device address DIP switch
example
DIP
switches 32,
8, and 1 set
to ON
The Modbus device address
is encoded in eight bit
binary form, with each
numbered switch
representing a single bit.
This example shows
address 41 selected: DIP
switches 32, 8, and 1
(decimal: 41, binary:
00101001) are set to ON.
Modbus device address ranges
The Modbus device address range for the transmitter is 1 … 247. Up to 255 is possible, but non-
standard.
If no address is selected (0), the device is o-line and will not respond to any Modbus
requests.
Troubleshooting
If you experience problems with GMW87M, first see the following table concerning the behavior and
error indications of the transmitter.
Table 1 Troubleshooting table
Problem Solution
The device is not responding • Power-cycle the transmitter by disconnecting the screw
terminal block
• Check power supply voltage
• Check wiring, including RS-485 bus polarity
• Check that RS GND is connected between the transmitter and
the receiver
• Compare the DIP switch settings to your Modbus host settings
• Check that RS-485 termination is enabled only on the last
device of the wiring
• Alternatively, try operation without RS-485 termination at all
Unexpected value in Modbus
response
• Change register number and/or data encoding settings in your
Modbus host system
No measurement result and/or
non-zero status code returned
• Device is warming up, try again after 20 seconds
• Power-cycle the transmitter by disconnecting the screw
terminal block
• Check that the GM10 module is properly attached
• Contact Vaisala for a replacement GM10 module
If you cannot locate the source of the error and return the transmitter to operational state,
contact Vaisala technical support. See Technical support (page 15).
8 M212445EN-A

Modbus reference
Function codes
Table 2 Modbus function codes
Function code (decimal) Function code (hexadecimal) Name
03 03hex Read Holding Registers
43/14 2Bhex / 0Ehex Read Device Identification
Data encoding
In the data registers, the numeric values are available in one or two formats with separate
register addresses: 32-bit IEEE floating point format and/or 16-bit signed integer format.
32-bit floating point format
Registers using 32-bit float data format are encoded using the binary32 encoding defined in
IEEE 754. The format is also known as "single-precision floating point format".
The least significant 16 bits of a floating point number are placed at the Modbus register listed
in the table, while the most significant 16 bits are placed in the register with number/ address +
1, as specified in Open Modbus TCP Specification, Release 1.0. This is also known as "little-
endian" or "Modicon" word order.
Despite the specification, some Modbus masters may expect a "big-endian" word order (most
significant word first). In such case, you must select "word-swapped" floating point format in
your Modbus master for the Modbus registers of the device.
A complete 32-bit floating point or integer value should be read in a single
Modbus transaction.
Reading the measurement data registers with incorrect floating point format
setting may occasionally result in correct-looking values. It is highly
recommended to verify that you have configured the floating point format
correctly on your Modbus host system by reading a floating point value from a
test value register.
16-bit integer format
Table 3 Interpretation of 16-bit signed integer values
Value Description
0000hex … 7FFEhex Value in range 0 … 32766
9

Value Description
8002hex … FFFFhex Value in range -32766 … -1 (2’s complement)
8000hex Value is not available
The 16-bit integer value for measured temperature in Table 4 (page 10) is scaled to include
the necessary decimals.
Modbus registers
Registers are numbered in decimal, starting from 1. Register
addresses in actual Modbus messages (Modbus Protocol Data Unit (PDU)) are in
hexadecimal and start from zero. Subtract 1 from the register number presented
in this manual to get the address used in the Modbus message (for example,
register number 1 corresponds to address 0hex in the actual Modbus message).
CAUTION!
Accessing unavailable (temporarily missing) measurement data does not generate a Modbus
exception. “Unavailable” value (a quiet NaN for floating point data or 8000hex for integer data)
is returned instead. An exception is generated only for any access outside the applicable
register ranges.
Measurement data registers
Table 4 Modbus measurement data registers (read-only)
Register
number
Address Register description Data format Unit
1 0000hex Measured CO2value 32-bit float ppm
5 0004hex Measured temperature 32-bit float °C
257 0100hex Measured CO2value 16-bit integer ppm
259 0102hex Measured temperature (T * 10) 16-bit integer °C
Status registers
Table 5 Modbus status registers (read-only)
Register
number
Address Register description Data
format
Notes
513 0200hex Device status 16-bit
integer
0000hex: Status OK; if other values
are returned, see Troubleshooting
(page 8).
514 0201hex Error code 32-bit
integer
Used by Vaisala Technical Support
when solving device problems
10 M212445EN-A

Register
number
Address Register description Data
format
Notes
519 0206hex Temperature
measurement status
16-bit
integer
0000hex: Status OK
0004hex: Under range
0008hex: Over range
0080hex: Sensor failure
0100hex: Measurement not ready 1)
520 0207hex CO2measurement
status
1) Applicable to CO2measurement only.
Test value registers
Read the known test values from the test registers to verify the functionality of your Modbus
implementation.
Table 6 Modbus test registers (read-only)
Register
number
Register
address
Register description Data
format
Test value
7937 1F00hex Signed integer test 16-bit
integer
-12345
7938 1F01hex Floating point test 32-bit
float
-123.45
7940 1F03hex Text string test text Text string: "-123.45"
Device identification objects
Table 7 Device identification objects
Object ID Object ID
(hexadecimal)
Object name Example contents
0 00hex VendorName “Vaisala”
1 01hex ProductCode "GMW80"
2 02hex MajorMinorVersion Software version (for example, "1.4.0")
3 03hex VendorUrl “https://www.vaisala.com/”
4 04hex ProductName "Vaisala CARBOCAP(R) Carbon Dioxide
Transmitter GMW80"
128 80hex SerialNumber 1) Transmitter serial number, e.g.
"J1140501"
1) Vaisala-specific device information object.
11

Modbus communication example
Reading CO2concentration value
The device address used in the following example is 240 (F0hex). The values
returned by the device dier depending on the ambient conditions. Your device
might not return exactly the same values.
Request Response
Bytes on the line Description Bytes on the line Description
(silence for 3.5 bytes) Start of Modbus RTU
frame
(silence for 3.5 bytes) Start of Modbus RTU
frame
F0hex Transmitter address F0hex Transmitter address
03hex Function (Read
Holding Registers)
03hex Function (Read
Holding Registers)
00hex Register address 04hex Number of data bytes
00hex E6hex Value of first register
(least significant
word)
00hex Number of 16-bit
registers to read (2)
3Ahex
02hex 44hex Value of second
register (most
significant word)
D1hex Modbus RTU
checksum
17hex
2Ahex 7Ehex Modbus RTU
checksum
(silence for 3.5 bytes) End of Modbus RTU
frame
B7hex
(silence for 3.5 bytes) End of Modbus RTU
frame
Communication description
Register number 1 (1-based Modbus register number) = address 0000hex (0-based address used
in actual communication).
Data format Two 16-bit Modbus registers interpreted as IEEE 754 binary32 floating point
value, least significant word first.
Returned value 4417E63Ahex, which is binary32 representation of 607.6 (ppm CO2).
12 M212445EN-A

Technical data
Table 8 Measurement performance
Property Specification
Carbon dioxide
Measurement range 0 … 5000 ppm
Accuracy across temperature range
+20 … +30 °C (+68 ... +86 °F) ±(30 ppm +3 % of reading)
+10 … +20 °C (+50 ... +68 °F), +30 … +40 °C
(+86 ... +104 °F)
±(35 ppm +3.7 % of reading)
+0 … +10 °C (+32 ... +50 °F), +40 … +50 °C
(+104 ... +122 °F)
±(40 ppm +4.8 % of reading)
Stability in typical HVAC applications ±(15 ppm + 2 % of reading) over five years
Warm-up time 10 min for full specification
Response time (63 %) 7 min
Carbon dioxide sensor Vaisala CARBOCAPâGM10
Product lifetime > 15 years
Table 9 Operating environment
Property Specification
Operating temperature 0 … +50 °C (+32 … +122 °F)
Operating humidity 0 … 95 %RH
Dew point < 30 °C (+86 °F)
Storage temperature −40 … +70 °C (−40 … +158 °F)
EMC compliance EN61326-1, Industrial environment
Table 10 Inputs and outputs
Property Specification
Supply voltage 18 … 35 VDC
24 VAC ±20 % 50/60 Hz
Max. current consumption at 18 VDC 45 mA
Max. power consumption at 30 VAC 1 W
13

Property Specification
Digital output (RS-485) Isolated, supports Modbus RTU protocol
• Modbus RTU address range:
• 1 … 247 (up to 255 possible, non-standard)
• Bit rates:
• 4800, 9600, 19200, 38400, 57600, 76800,
115200
• Parity:
• None or Even
• Supports automatically both 1 and 2 stop bits
Table 11 Mechanical specifications
Property Specification
IP rating IP64
Housing material PC
Housing color White (RAL9003)
Output connector Screw terminal
Max. wire size 2.5 mm2(AWG 12)
Weight 160 g (5.64 oz)
14 M212445EN-A

Warranty
For standard warranty terms and conditions, see www.vaisala.com/warranty.
Please observe that any such warranty may not be valid in case of damage due to normal wear
and tear, exceptional operating conditions, negligent handling or installation, or unauthorized
modifications. Please see the applicable supply contract or Conditions of Sale for details of the
warranty for each product.
Technical support
Contact Vaisala technical support at [e-mail]. Provide at least the
following supporting information as applicable:
• Product name, model, and serial number
• Software/Firmware version
• Name and location of the installation site
• Name and contact information of a technical person who can provide further
information on the problem
For more information, see www.vaisala.com/support.
Recycling
Recycle all applicable material.
Follow the statutory regulations for disposing of the product and packaging.
15

www.vaisala.com
