Introduction to Indigo 500 Series
Transmitters
Vaisala Indigo 500 Series Transmitters are industrial-grade, robust transmitters that
accommodate 1 or 2 Vaisala Indigo compatible probes for humidity, temperature, dew point,
carbon dioxide, hydrogen peroxide, and moisture in oil measurements. The transmitters can
display measurements on the spot as well as transmit them to automation systems through
analog signals, relays, or Modbus TCP/IP protocol.
The Indigo 520 transmitter has 2 probe connections and a touchscreen display.
1
3
4
2
7
6
5
Figure 1 Indigo 520 transmitter parts
1Touchscreen display
2Transmitter base
3Transmitter cover
4Cable gland for Ethernet cable and optional analog output cable (M20×1.5 lead-through)
5Cable glands for probe connection cables (M16×1.5 lead-throughs)
6Cable gland for optional relay cable and power cable in the PELV and AC (mains) power
supply options (M20×1.5 lead-through)
7Hex screws for opening the cover
The power supply option and cable glands for the lead-throughs are selected when ordering
the transmitter. Unused lead-throughs are plugged.
Specifications
Table 1 Operating environment
Property Specification
Operating temperature −20 … +55 °C (−4 … +131 °F)
Storage temperature −40 … +70 °C (−40 … 158 °F)
Operating humidity 0 … 100 %RH
Maximum operating altitude 3000 m (9843 ft)
5
ENGLISH

Table 2 Inputs and outputs
Property Specification
Operating power
Protective extra low voltage (PELV) version 1) 15 … 35 VDC, 24 VAC ±20 %, max. current 2 A
Fuse size for power supply: 3 A
AC (mains) power version 1) 100 … 240 VAC 50/60 Hz, max. current 1 A
Fuse size for power supply: 10 A
Power over Ethernet version 1) 50 VDC, 600 mA PoE+, IEEE 802.3 at PD
Fuse size for power supply: 2 A
Analog outputs
Number of analog outputs 4, galvanically isolated from power supply
Selectable voltage output types 0 … 1 V, 0 … 5 V, 0 … 10 V, scalable
Selectable current output types 4 … 20 mA, 0 … 20 mA, scalable
External loads:
Current outputs RL< 500 Ω
0 … 1 V output RL> 2 kΩ
0 … 5 V and 0 … 10 V outputs RL> 10 kΩ
Max. wire size 2.5 mm2(14 AWG)
Accuracy of analog outputs at +20 °C ±0.05 % full scale
Temperature dependence ±0.005 % / °C full scale
Relay outputs
Number and type of relays 2 pcs, SPDT
Max. switching power, current, voltage 30 W, 1 A, 40 VDC / 28 VAC
Max. wire size in PELV version 2.5 mm2(14 AWG)
Max. wire size in AC (mains) version 1.5 mm2(16 AWG)
Ethernet interface
Supported standards 10BASE-T, 100BASE-TX
Connector 8P8C (RJ45)
Supported protocols Modbus TCP/IP (port 502), HTTPS (port 8443)
1) The power supply option is selected when ordering the transmitter.
Table 3 Compliance
Property Specification
Safety standard IEC/UL/EN 61010-1
6 M212290EN-B

Property Specification
EMC compliance EN 61326-1, Industrial Environment
FCC compliance FCC Part 15 Compliance Statement for Class B
Unintentional Radiators
Table 4 Mechanical specifications
Property Specification
Housing classification IP66, NEMA 4, IK08, DIN EN ISO 11997-1: Cycle B
Housing material AlSi10Mg (DIN 1725)
Display window material Chemically strengthened glass (IK08)
Weight 1.5 kg (3.3 lbs)
Dimensions (H×W×D) 142×182×67 mm (5.63×7.17×2.64 in)
Cable diameters for cable glands
M20×1.5 glands 5.0 … 8.0 mm (0.20 … 0.31 in)
M20×1.5 glands with split bushing 7 mm (0.28 in)
M16×1.5 glands 2.0 … 6.0 mm (0.08 … 0.24 in)
Do not modify the unit or use it in ways not described in the
documentation. Improper modification or use may lead to safety hazards,
equipment damage, failure to perform according to specification, or decreased
equipment lifetime.
CAUTION!
7
ENGLISH

Mounting
Choose the location of the transmitter so that the power outlet is accessible.
Besides the standard wall mounting, the transmitter has the following mounting options:
• Wall mounting with adapter plate
• DIN rail mounting
• Pole mounting
For more information on the mounting options, see Indigo 520 User Guide (M212287EN),
available at www.vaisala.com.
Standard wall mounting
• Hex key (4 mm), provided
• Crosshead screwdriver
• Drill with Ø 8 mm drill bit
• Screws (2 pcs), provided
• Washers (2 pcs), provided
• Wall plugs (2 pcs), provided

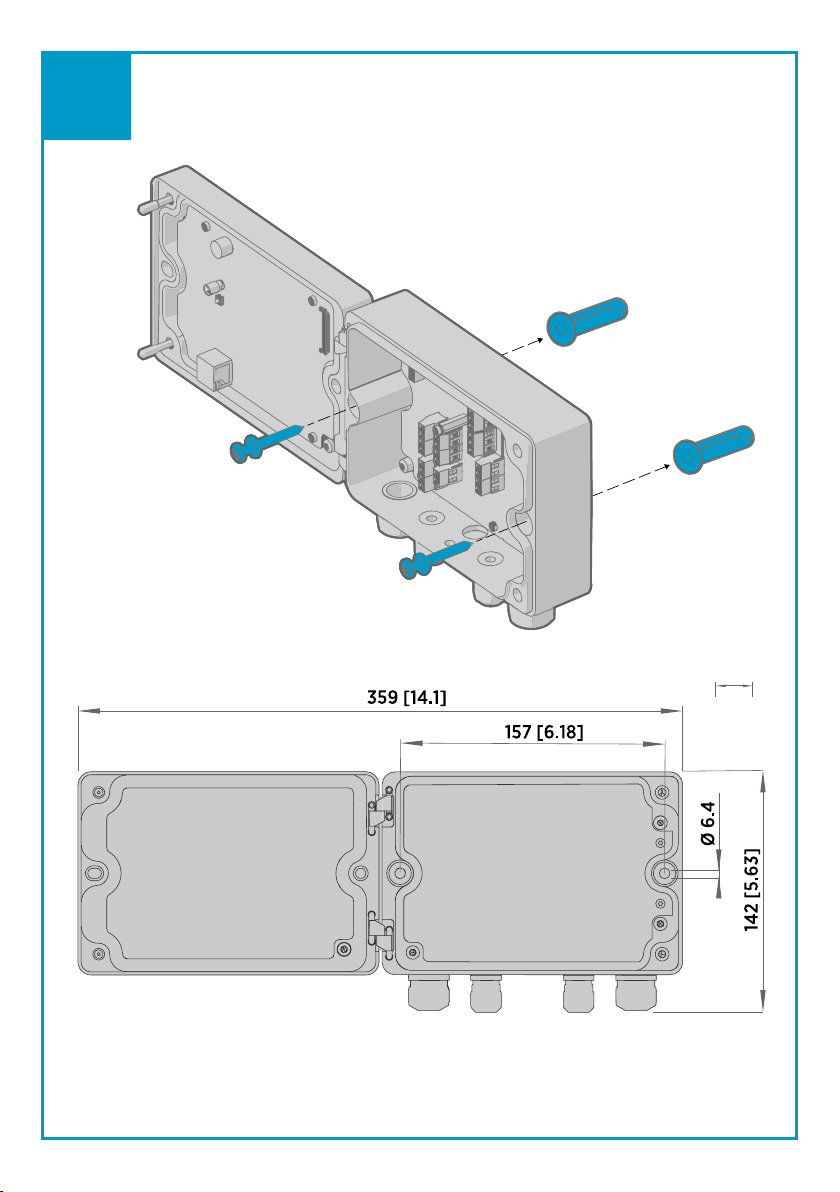

See images A and B at the beginning of this document.
1. Open the 2 hex screws on the cover of the transmitter using a 4-mm hex key.
2. Open the transmitter cover.
3. Hold the transmitter level against the installation surface and use a pen to mark the places
of the mounting holes. The mounting holes are 157 mm (6.18 in) apart.
4. Drill 55 mm (2.17 in) deep holes and insert wall plugs.
5. Mount the transmitter to a wall using 2 screws and a crosshead screwdriver. Place nylon
washers under the screws to protect the surface of the transmitter.
When you close the transmitter cover, tighten the hex screws to 4.5 Nm.
8 M212290EN-B

Wiring
Make sure that you prepare and connect only de-energized wires.WARNING!
• Hex key (4 mm) for opening the transmitter cover
• Open-ended spanners of sizes 17 mm, 19 mm, 22 mm and 24 mm
• Flat head screwdriver
• Cable glands as required by your application (available from Vaisala)
• Cables as required by your application (probe connection cables and power
cables are available from Vaisala)
Power supply terminals and lead-through − PELV
option
ANALOG OUTPUTS
RELAY 1RELAY 2
+
+
+
+
+
+
+
+
+
CH1
CH2
CH3
CH4
RS-485
PROBE
24 VOUT
ANALOG
INPUT
NO COM NC NO COM NC
12
M20×1.5
VS
+
Power supply input wiring is required only
for transmitters powered with protective
extra low voltage (PELV) or AC (mains)
power.
For the M20×1.5 cable gland ordered
together with the transmitter from Vaisala,
the cable diameter is 5.0 … 8.0 mm
(0.20 … 0.31 in). Tightening torque for the
cable gland is 8 Nm.
Table 5 PELV power supply input terminals
Terminal Function Notes
Power supply ground
VS+ Positive supply voltage 15 … 35 VDC or 24 VAC ±20 %
VS- Negative supply voltage
9
ENGLISH

Power supply terminals and lead-through − AC
(mains) power option
Only licensed experts may install electrical components. They
must adhere to local and state legislation and regulations.
WARNING!
Transmitters powered with AC (mains) power must be connected
only to a grounded (earthed) power supply (class I equipment).
WARNING!
Only licensed experts may connect the AC (mains) power
connection to the power supply. A readily accessible disconnect device must
be incorporated in the fixed wiring.
WARNING!
Make sure that you prepare and connect only de-energized wires.WARNING!
ANALOG OUTPUTS
RELAY 1RELAY 2
+
+
+
+
+
+
+
+
+
CH1
CH2
CH3
CH4
RS-485
PROBE
24 VOUT
ANALOG
INPUT
NO COM NC NO COM NC
12
M20×1.5
Power supply input wiring is required only
for transmitters powered with protective
extra low voltage (PELV) or AC (mains)
power.
For the M20×1.5 cable gland ordered
together with the transmitter from Vaisala,
the cable diameter is 5.0 … 8.0 mm
(0.20 … 0.31 in). Tightening torque for the
cable gland is 8 Nm.
Table 6 AC power supply input terminals
Terminal Function Notes
Power supply ground
L Line 100 … 240 VAC 50/60 Hz
N Neutral
10 M212290EN-B

Preparing AC (mains) power cable
• Cable stripping tool
Prepare the AC (mains) power cable for connection to the power supply input terminal:
mm
[in]
55 [2.17]
45 [1.77]
8 [0.31]
1
2
3

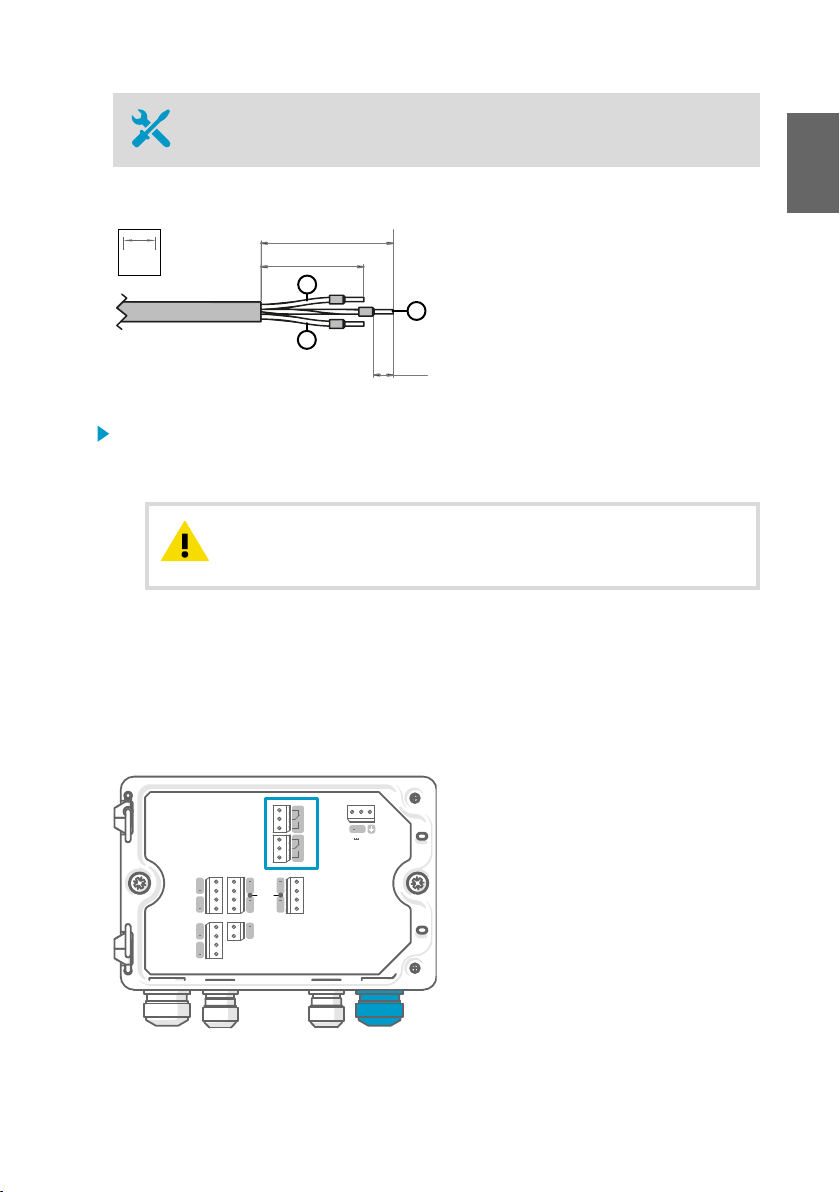

Figure 2 Example of stripped AC (mains)
power cable
1Line wire
2Grounding wire
3Neutral wire
1. Strip 55 mm (2.17 in) of the cable to expose the wires.
2. Cut o 10 mm (0.39 in) of the line and neutral wires. Leave the grounding wire 55 mm
(2.17 in) long.
Make sure that the grounding wire is longer than the line and
neutral wires. Under mechanical stress, the grounding wire must be the last
to disconnect from the protective ground terminal.
CAUTION!
3. Strip the ends of the individual wires to expose the conductors for a length of 8 mm
(0.32 in).
Relay output terminals and lead-through
Before connecting wires or cables, make sure that the transmitter is powered o.
ANALOG OUTPUTS
RELAY 1RELAY 2
+
+
+
+
+
+
+
+
+
CH1
CH2
CH3
CH4
RS-485
PROBE
24 VOUT
ANALOG
INPUT
NO COM NC NO COM NC
12
M20×1.5
VS
+
Relays are not available in transmitters that
are powered with Power over Ethernet.
Wire the relay connections as normally
open (NO) or normally closed (NC). Use
the touchscreen or web interface to
configure the relay activation parameters.
For the M20×1.5 cable gland ordered
together with the transmitter from Vaisala,
the cable diameter is 5.0 … 8.0 mm
(0.20 … 0.31 in). Tightening torque for the
cable gland is 8 Nm.
11
ENGLISH

Table 7 Output terminals for relay 1 and relay 2
Terminal Function Notes
COM Relay 1 or 2 common Terminals in PELV power supply version:
• Type: Screw terminals
• Max. wire size: 2.5 mm2(14 AWG)
Terminals in AC (mains) power supply
version:
• Type: Push-in spring connection
• Max. wire size: 1.5 mm2(16 AWG), solid
wires or ferrules recommended
NO Relay 1 or 2 normally open
NC Relay 1 or 2 normally closed
Analog output terminals and lead-through
Before connecting wires or cables, make sure that the transmitter is powered o.
ANALOG OUTPUTS
RELAY 1RELAY 2
+
+
+
+
+
+
+
+
+
CH1
CH2
CH3
CH4
RS-485
PROBE
24 VOUT
ANALOG
INPUT
NO COM NC NO COM NC
12
M20×1.5
VS
+
Analog outputs are not available in
transmitters that are powered with Power
over Ethernet.
Use the touchscreen or web interface to
change the output mode (for example,
0 … 5 V or 4 … 20 mA) and scaling of the
analog outputs.
For the M20×1.5 cable gland ordered
together with the transmitter from Vaisala,
the cable diameter is 5.0 … 8.0 mm
(0.20 … 0.31 in). Tightening torque for the
cable gland is 8 Nm.
For the M20×1.5 cable gland with split
bushing, the cable diameter is 7 mm
(0.28 in).
Table 8 Analog output terminals
Terminal Function Notes
CH1 + Analog output channel 1 + Max. wire size: 2.5 mm2(14 AWG)
CH1 - Analog output channel 1 -
CH2 + Analog output channel 2 +
CH2 - Analog output channel 2 -
CH3 + Analog output channel 3 +
CH3 - Analog output channel 3 -
CH4 + Analog output channel 4 +
CH4 - Analog output channel 4 -
12 M212290EN-B

Ethernet connector and lead-through
Before connecting wires or cables, make sure that the transmitter is powered o.
The 8P8C (RJ45) Ethernet connector is located on the inside of the transmitter cover. The
supported standards are 10BASE-T and 100BASE-TX.
ANALOG OUTPUTS
RELAY 1RELAY 2
+
+
+
+
+
+
+
+
+
CH1
CH2
CH3
CH4
RS-485
PROBE
24 VOUT
ANALOG
INPUT
NO COM NC NO COM NC
12
SERVICE PORT
PRESS TO ACTIVATE
WEB INTERFACE
ETHERNET
M20×1.5
VS
+
For the M20×1.5 cable gland with split bushing, the cable diameter is 7 mm (0.28 in).
When you insert the cable through the gland parts, also remove the split bushing
(3) inside the nylon seal (2) to make the cable fit through the seal. Then place the
bushing around the cable and push it back inside the seal. See the following
figure.
1
2
3
4
Figure 3 M20×1.5 cable gland with split
bushing
1Base of the cable gland
2Nylon seal
3Split bushing inside the seal
4Nut of the cable gland
Probe connection terminals and lead-throughs
Before connecting wires or cables, make sure that the transmitter is powered o.
13
ENGLISH

ANALOG OUTPUTS
RELAY 1RELAY 2
+
+
+
+
+
+
+
+
+
CH1
CH2
CH3
CH4
RS-485
PROBE
24 VOUT
ANALOG
INPUT
NO COM NC NO COM NC
12
VS
+
12
For the M16×1.5 cable glands ordered
together with the transmitter from Vaisala,
the cable diameter is 2.0 … 6.0 mm
(0.08 … 0.24 in). Tightening torque for the
cable gland is 6 Nm.
The recommended maximum length of the
probe cable is 30 m (98 ft).
1Probe 1 lead-through, M16×1.5
2Probe 2 lead-through, M16×1.5
Table 9 Connection terminals for probe 1 and probe 2
Terminal Function Wire color in Vaisala
cables
Notes
RS-485- RS-485- White Max. wire size: 2.5 mm2
(14 AWG)
RS-485+ RS-485+ Black
24 VOUT - Power GND and
RS-485 common
Blue
24 VOUT + Positive supply voltage to
probe
Brown
Verifying tightness of cable glands
To maintain enclosure tightness and provide strain relief to the cables, all cable glands must be
tightened. Unused cable glands must remain plugged.
1. Check every cable gland that is in use:
a. Pull on the cable to verify that the cable is securely held by the cable gland.
b. Tighten the cable gland if the cable moves.
2. Check that every unused cable gland is plugged and tightened.
14 M212290EN-B

Attaching probes
Attach only Vaisala Indigo compatible probes to the transmitter.CAUTION!
The IP classification of probes is valid only when the probes are
attached to the probe connection cable.
CAUTION!
If you want to configure the probe settings, such as purge interval, you must do
that before attaching the probe to the transmitter. To configure the probe, you
can use the free Vaisala Insight PC software. For more information, see your
probe's user guide and visit www.vaisala.com/insight.
When the probe connection cables have been wired to the transmitter, you can attach and
detach probes both when the transmitter power is on and when it is o. If the power is on
while you attach or detach a probe, the transmitter shows a notification about the probe. If
you have configured the transmitter to use outputs, the transmitter also notifies you of the
state of the outputs.
3 4
1
2
5
Figure 4 Attaching probes to transmitter using probe cable connector
1Probe connection cable, probe 1
2Probe connection cable, probe 2
3Probe to be connected as probe 2 (GMP252 example)
4Probe to be connected as probe 1 (HMP7 example)
5Probe cable connector (5-pin M12)
15
ENGLISH

Starting up transmitter using touchscreen
display
1. Remove the plastic protection cover on the touchscreen display.
2. Power up the transmitter.
Powering up takes some minutes.
After the power-up, the Measurements (Home) view opens, showing the 2 preferred
measurement parameters from each connected probe.
3. Select the configuration menu symbol at the upper right corner of the touchscreen.
4. The default language of the user interface is English. If you want to use another language,
select it in Transmitter > Language.
Your transmitter is now ready for operation. You can next go through these additional settings:
•Date and time
•Network
16 M212290EN-B

For information on configuring the home views and outputs on the touchscreen, see Indigo
520 User Guide (M212287EN), available at www.vaisala.com.
Configuring network connection on touchscreen
Before you start, find out from your local network administrator whether your transmitter uses
dynamic or static network settings.
• Dynamic network settings are automatically assigned by a DHCP server each time the
transmitter is powered up.
• Static network settings must be configured manually. Ask your local network
administrator for the settings.
Figure 5 Network settings on touchscreen
1. Make sure that the Ethernet cable is connected to the transmitter.
The Ethernet connector's LED lights up.
2. Select the configuration menu symbol at the upper right corner of the touchscreen.
3. Select Transmitter > Network.
4. Make sure that Network o/on is set on.
5. Select the setting type:
• Select DHCP if the transmitter is in a network that assigns network settings
automatically.
• Select Static IP to configure network settings manually.
17
ENGLISH

6. If you selected Static IP, fill in the rest of the fields with information provided by your local
network administrator:
IP address
The four part network ID of the transmitter.
Subnet mask
Used together with the IP address to determine which network the transmitter is a
part of.
Gateway
IP address of the server that enables the transmitter to access other networks.
DNS servers
Public computer server that translates the domain name of the transmitter into an IP
address.
7. Scroll to the end of the screen and select Apply to save your changes.
Setting date and time on touchscreen

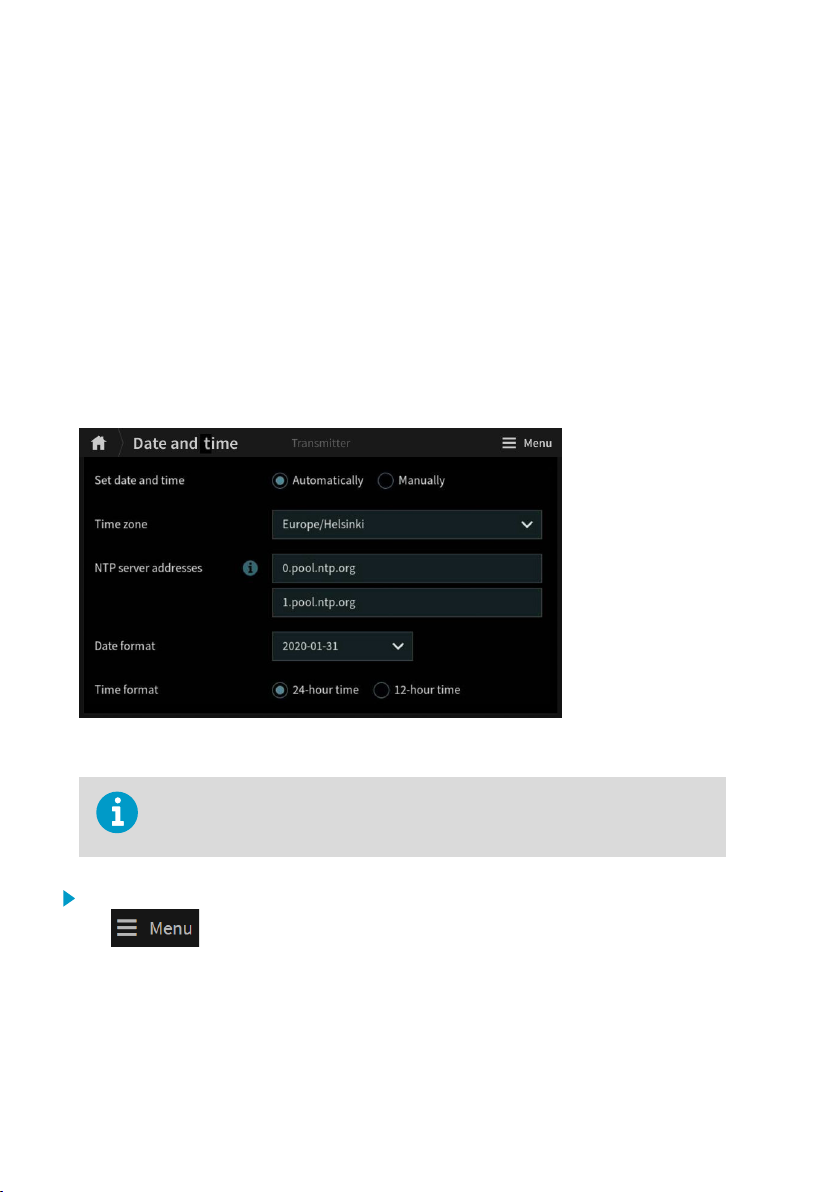

Figure 6 Date and time settings on touchscreen
The transmitter uses UTC (Coordinated Universal Time) internally. Time and time
stamps in the touchscreen are shown according to the time zone set in
Transmitter > Date and time.
1. Select the configuration menu symbol at the upper right corner of the touchscreen.
2. Select Transmitter > Date and time.
18 M212290EN-B
