1 Indigo 201 Quick Guide
1.1 Introduction to Indigo Transmitters
1.35
% | Carbon dioxide
WLAN is activated


Indigo 201
Figure 1 Indigo 201 With and Without Display, Wireless Interface Examples
Vaisala Indigo transmitters are a plug-and-play host device platform for Vaisala Indigo-
compatible probes. Indigo transmitters extend the feature set of connected probes with a
range of additional options for outputs, measurement viewing, status monitoring, and
configuration interface access.
Depending on the Indigo model, a display is available as an optional selection or as a
standard feature. In the non-display model, an LED indicator is used for notifications. The
configuration interface of Indigo transmitters is a browser-based wireless UI that requires a
mobile device or computer that supports wireless connectivity (IEEE 802.11 b/g/n WLAN).
1.1.1 Indigo 201 Basic Features and Options
• All Vaisala Indigo-compatible probes can be connected to all Indigo transmitter models
• Plug-and-play probe installation: when unconfigured, Indigo automatically adapts the
analog output configuration of the connected Indigo-compatible probe
• Wireless configuration interface: connect to the scalable browser-based UI of Indigo
201 to change probe and transmitter settings, view measurements and review probe
and transmitter status
• 3.5” TFT LCD color display or non-display model with LED indicator
• Power supply input 15 ... 30 VDC (24 VAC +/-10% 50/60Hz)
• 3 current (mA) or voltage (V) analog outputs
• 2 configurable relays
Chapter – Indigo 201 Quick Guide
5
ENGLISH

1.2 Input and Output Specification
Table 1 Inputs and Outputs
Property Specification
Analog outputs 3 voltage (V) or current (mA) outputs:
• 0 … 10 V / 0 … 5 V / 0 … 1 V / 1 … 5 V (min. load
1kΩ)
• 0 … 20 mA / 4 … 20 mA (max. load 500 Ω)
Accuracy of analog outputs at 20 °C ± 0.1 % full scale
Relays 2 configurable relays (VAC/VDC)
Device maximum specification (resistive load):
• Max. switching power 30 W / 37.5 VA
UL-rated maximum specification (resistive load):
• AC: max. 28 V / 0.5 A
• DC: max. 40 V / 0.24 A
• Up to 30 VDC:
• max. switching current 1 A
• max. switching power 30 W
Power supply input 1) 15 ... 30 VDC (24 VAC +/-10% 50/60Hz)
Maximum current Transmitter and connected probe max. 1 A
Power consumption Transmitter max. 3 W (+ connected probe, varies
depending on probe type)
Probe connector M12/5 connector for probe or probe cable connection
(Vaisala Indigo-compatible probes)
Cable feed throughs 2 options: rubber lead-through on the bottom of the
transmitter, and opening with a seal at the back of the
transmitter
Screw terminal wire size 0.2 ... 1.5 mm2
1) Using a power supply with overload protection is recommended for electrical safety.
Do not modify the unit or use it in ways not described in the documentation.
Improper modification may lead to safety hazards, equipment damage, failure to
perform according to specification, or decreased equipment lifetime.
CAUTION!
M211876EN-F
6

1.3 Indigo Transmitter Parts
2
3
4
5
7
6
1

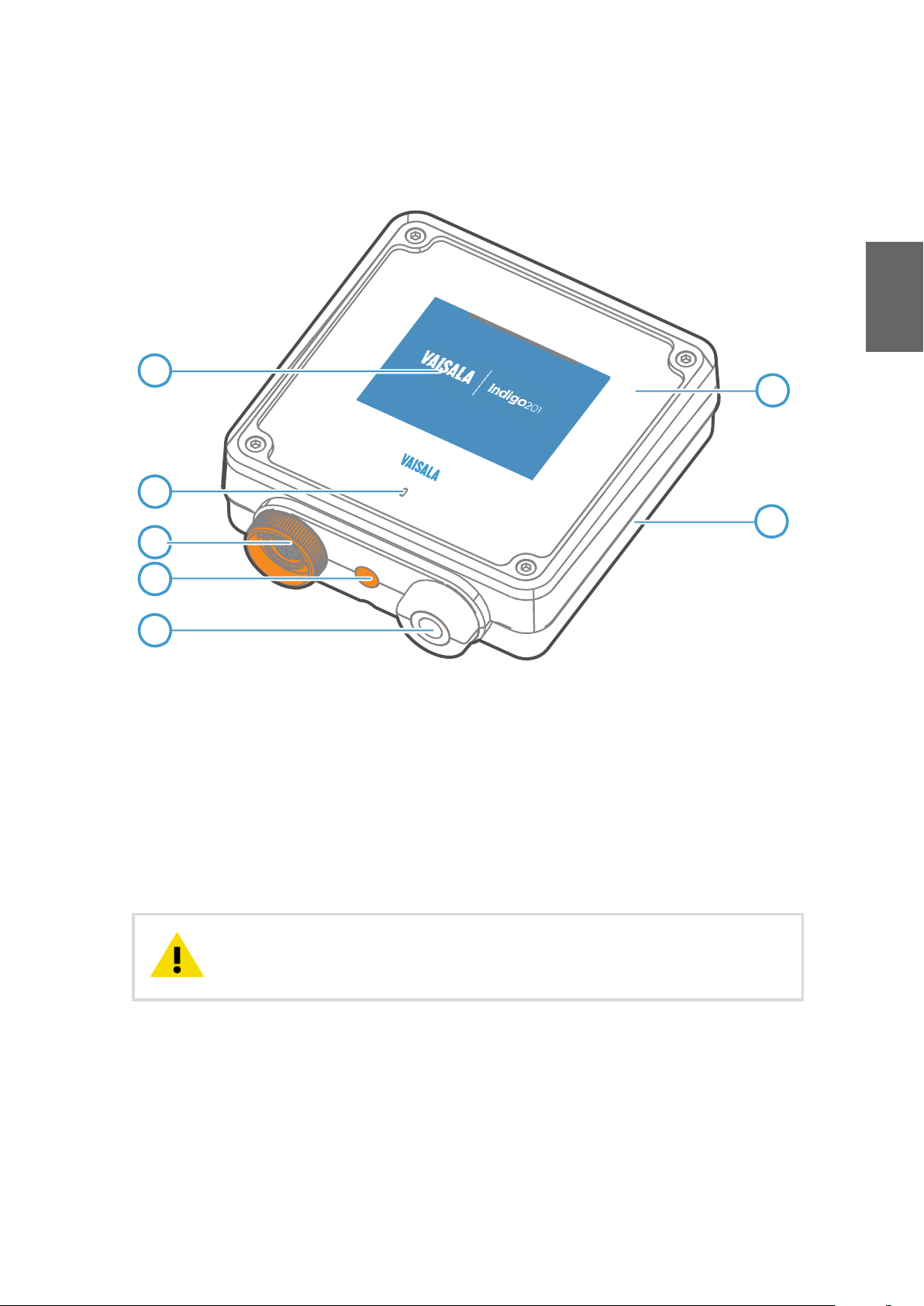

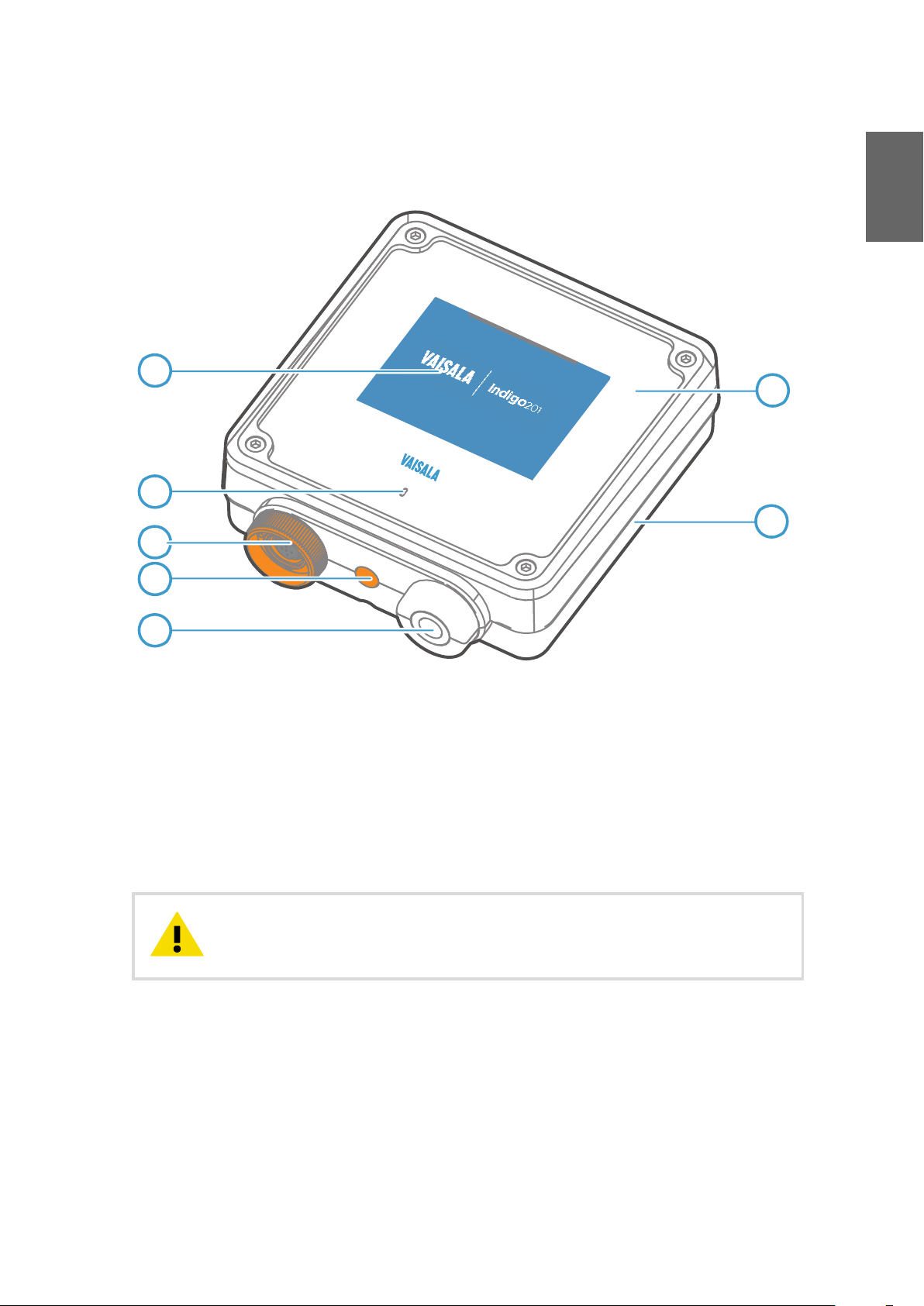

Figure 2 Indigo Transmitter Parts
1Display (optional)
2LED indicator (in non-display model)
3Probe and probe cable connector, locking wheel
4Wireless (WLAN) configuration interface activation button
5Rubber lead-through with strain relief for input/output cable
6Top cover of the transmitter: LED/display, circuit board and connector pins
7Transmitter base: input and output wiring (screw terminals), mounting base
Only use Vaisala Indigo-compatible probes with the transmitter. Attempting
to connect incompatible probes or probe cables can damage the equipment.
CAUTION!
Chapter – Indigo 201 Quick Guide
7
ENGLISH

1.4 Opening and Mounting
To avoid damaging the connector pins of the transmitter, pull the
transmitter cover o the base in a straight angle. Do not twist or bend.
CAUTION!

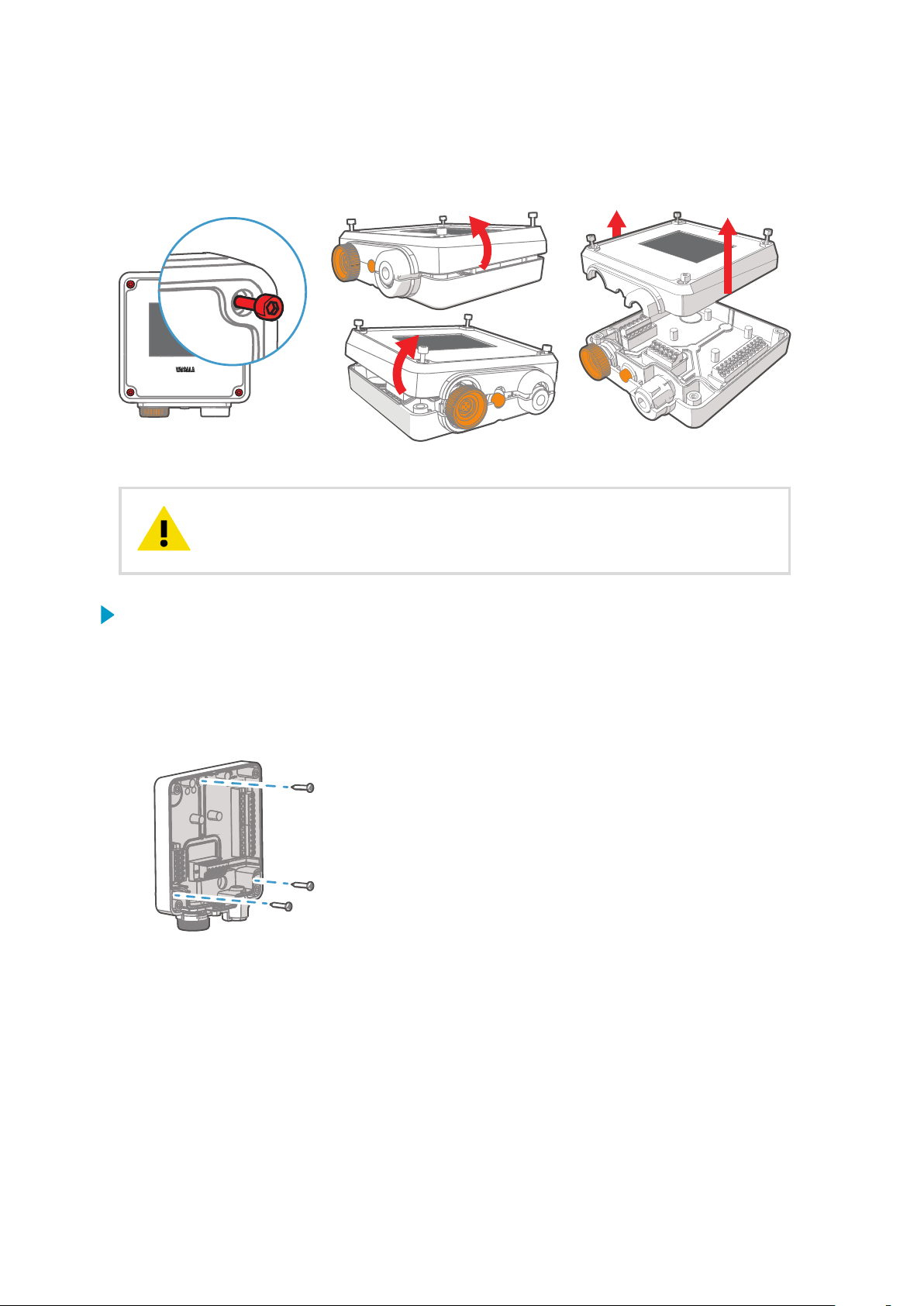

1. Loosen the 4 screws on the transmitter cover.
2. Carefully open the transmitter cover part of the way from both sides so it is easier to
pull the cover o the base.
3. Pull the transmitter cover o the base in a straight angle. Do not twist or bend.
4. Place the transmitter base on the installation surface and mount it with 3 screws. See
the screw positions in Figure 3 (page 9).
5. Lead the input/output cable inside the transmitter (see Wiring Options (page 10)). If
you are wiring through the lead-through on the bottom of the transmitter, test that the
strain relief works with your cable.
6. Connect the input/output cable's wiring to the screw terminals (see Indigo Transmitter
Base (page 9)) and reattach the cover when done.
M211876EN-F
8

1.5 Indigo Transmitter Base
1 2 4
5
6
3
INDIGO 201 ANALOG
OUTPUT TRANSMITTER
Serial No. SX12345678

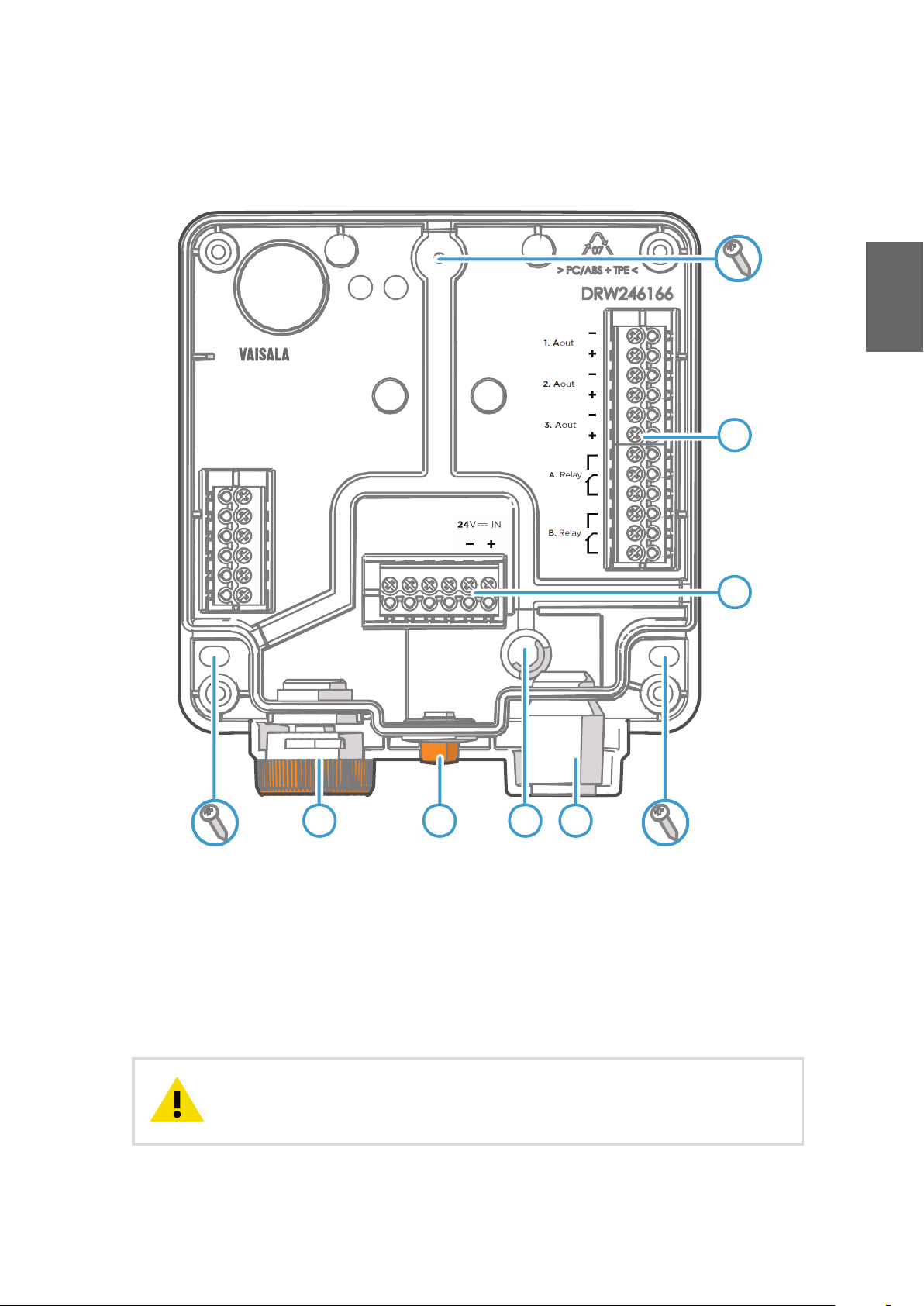

Figure 3 Indigo 201 Transmitter Base Main Parts and Screw Positions
1Probe and probe cable connector inside the locking wheel
2Wireless (WLAN) configuration interface activation button
3Wiring from the back: cut open the seal
4Rubber cable lead-through with strain relief
5Screw terminals for analog outputs 1-3 and relays A and B
6Screw terminals for 24 V power supply input
Do not energize the power supply before the wiring has been connected.CAUTION!
Chapter – Indigo 201 Quick Guide
9
ENGLISH

1.6 Wiring Options
You can wire an input/output cable either through the opening on the back of the
transmitter, or through the rubber lead-through on the bottom of the transmitter.
1
2
Ø 7 ... 8 mm
Figure 4 Indigo Wiring Options
1Wiring from the back: cut the seal open
2Wiring through the rubber lead-through on the bottom of the transmitter
1. To wire the input/output cable through the back of the transmitter:
a. Cut o as much of the seal as is needed to fit your cable through the opening.
b. Lead the cable through the opening and attach a strain relief as needed.
c. If you wire only through the back, plug or seal the lead-through on the bottom.
2. To wire the input/output cable through the rubber lead-through on the bottom:
a. Push the input/output cable through the lead-through.
b. The lead-through provides strain relief and holds the cable in place. Tightening is not
required.
The recommended cable diameter for wiring through the rubber lead-through is
7 ... 8 mm. If you use a dierent cable size, test that the strain relief works as
intended.
M211876EN-F
10

1.7 Attaching Probes and Cables
1
2
3

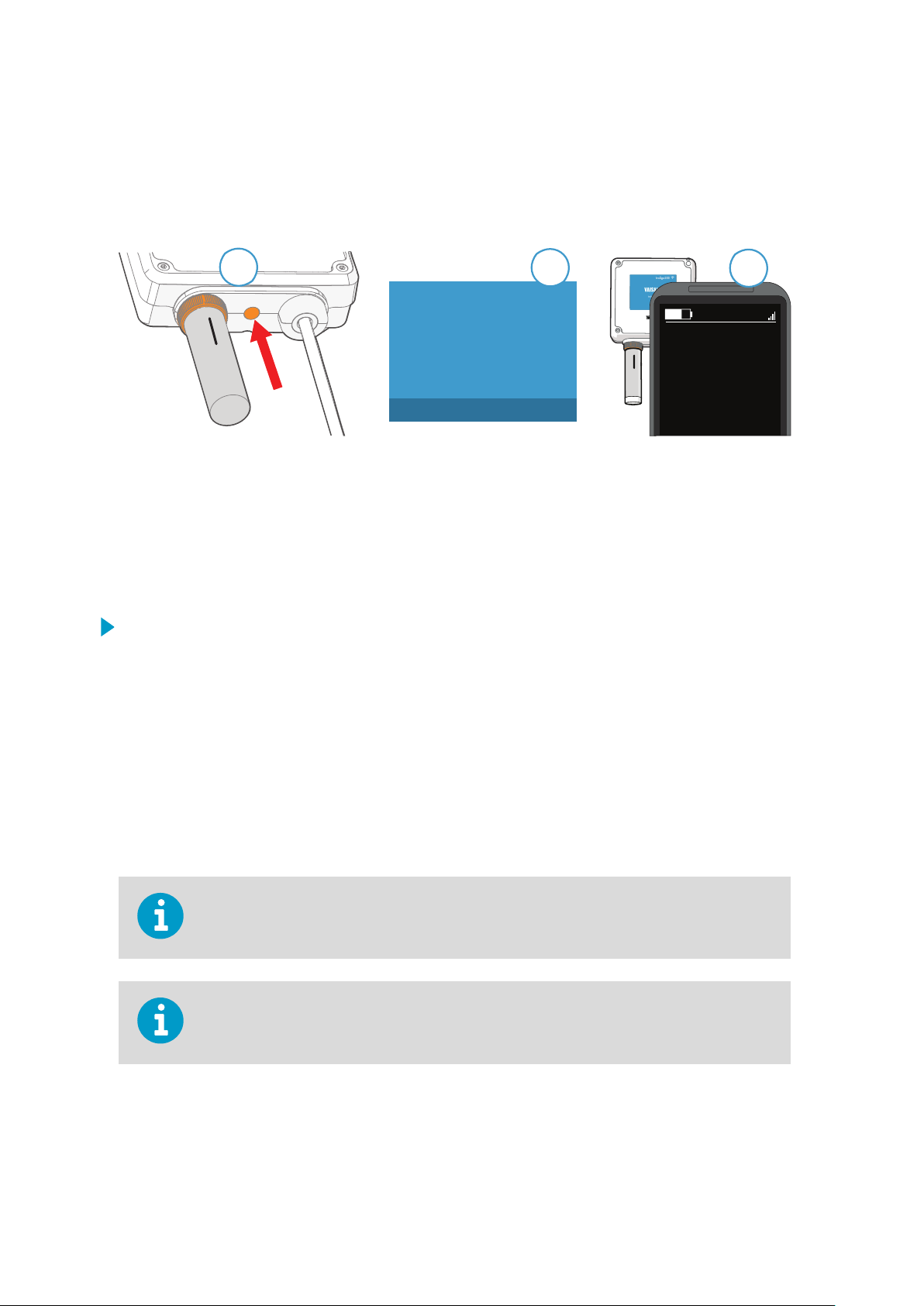

Figure 5 Attaching Probes and Cables to Indigo
1Insert probes into the probe connector with the orientation mark facing out.
2Probes are locked in place with the locking wheel. Never turn from the probe body.
3Connect probe cables in the same way as probes: insert the cable in the connector and
hold in place while turning the locking wheel. Note that certain probes can only be
connected with a cable: see your probe's documentation for connection instructions.
1. Insert the probe into the probe connector with the orientation mark on the probe body
facing out.
2. Hold the probe in the probe connector and lock it in place by turning the locking wheel
counterclockwise. Do not turn the probe body when attaching, only the locking wheel.
3. If no previous configuration exists (that is, this is the first time a probe is connected to
Indigo, and no configuration has been set manually), Indigo adapts the analog output
settings of the connected Vaisala Indigo-compatible probe automatically.
If a configuration that diers from the attached probe's configuration exists in the
transmitter, you must configure the new probe manually to enable analog output.
Chapter – Indigo 201 Quick Guide
11
ENGLISH

1.8 Connecting to Wireless Configuration
Interface
Select WLAN to connect to:
1. WLAN XYZ
3. WLAN ABC
2. Indigo_ID[xx]
13
500
ppm
WLAN on

Indigo 200
2

Carbon dioxide concentration
Figure 6 Enabling and Accessing Indigo's Wireless Configuration Interface
1Wireless connection activation button
2Wireless connection indicator (WLAN symbol) on the Indigo display
3Choose Indigo (Indigo_ID[xx]) from your wireless device's list of available connections
To connect to the wireless configuration interface:
1. Press the wireless connection activation button on the bottom of the transmitter.
2. When the wireless configuration interface becomes available, the Indigo display shows
a connection notification. In the Indigo models with an LED indicator, the LED blinks
green when the connection is active.
3. Open the wireless connection menu in your mobile device or computer and select
Indigo_ID[xx] (transmitter-specific SSID) from the list of available connections.
4. Depending on your device, the wireless configuration interface either launches
automatically in your browser after you connect to Indigo, or you may need to start
your browser application manually.
5. When you open the Indigo interface in your browser, you are prompted to log in.
Only one device can be connected to the wireless configuration interface at a time.
For more information and troubleshooting instructions on accessing Indigo 201 wireless
configuration interface, see Indigo 201 User Guide.
M211876EN-F
12

1.9 Logging in to Wireless Configuration
Interface
When you open Indigo's wireless configuration interface in your browser, you are prompted
to log in. There are 2 available user levels:
•User: view-only access available for all users. Does not require a password.
•Admin: password-protected access. To change settings, you must log in as admin.
Figure 7 Indigo Login View
To log in:
1. Enter the user name and password:
a. To log in as user (view-only access, no configuration rights), select User from the
User name dropdown. Leave the Password field empty.
b. To log in as admin (required for configuration), select Admin in the User name
dropdown and type the admin password (default: 12345) in the Password field.
2. Select Log in after entering the login credentials. The wireless configuration interface
opens in the Measurements view.
The user level (User or Admin) is shown in the upper right corner of all menu views.
Select the user/admin icon in the upper right corner to change the user level.
Chapter – Indigo 201 Quick Guide
13
ENGLISH

1.10 Wireless Interface Menus
Indigo transmitters are configured using a wireless browser-based configuration interface
(requires a mobile device or computer with IEEE 802.11 b/g/n WLAN wireless connectivity).
In addition to probe and transmitter configuration and calibration, you can also use the
wireless interface to view measurement data and status information.
1
2
3
4
5
Figure 8 Wireless Configuration Interface, Desktop Browser View
1Measurements: displays the measurement data of the connected probe
2Status: contains information about the status of Indigo and the connected probe (for
example, notifications and alarms)
3Calibration: calibrate and adjust probes using references. Available options (for
example, adjustment points) vary depending on the probe model.
4Settings: contains options for configuring the connection and display settings, outputs,
relays, probe-specific settings, and general device preferences
•General submenu: device information and general settings, wireless connection
and display settings
•Outputs submenu: configuration options for analog outputs 1-3
•Relays submenu: settings for controlling relays A and B
•Probe submenu: probe-specific settings such as environmental compensations
and filtering factor
5Main display area for menus and measurement information (desktop browser example)
You must be logged in as Admin to change settings with the wireless configuration
interface. Logging in as User gives view-only access.
M211876EN-F
14

1 Guía rápida Indigo 201
1.1 Introducción a Indigo
1.35
% | Carbon dioxide
WLAN is activated


Indigo 201
Figura 9 Indigo 201 con y sin pantalla, ejemplos de interfaz inalámbrica
Los transmisores Vaisala Indigo son una plataforma de dispositivo host de instalación
automática para sondas compatibles con Vaisala Indigo. Los transmisores Indigo amplían el
conjunto de características de las sondas conectadas con un rango de opciones adicionales
para salidas, visualización de mediciones, monitoreo del estado y acceso a la interfaz de
configuración.
Según el modelo Indigo, una pantalla está disponible como selección opcional o como
característica estándar. En el modelo sin pantalla, se usa un indicador LED para las
notificaciones. La interfaz de configuración de los transmisores Indigo es una interfaz de
usuario inalámbrica basada en navegador que requiere un dispositivo móvil o una
computadora que admita conectividad inalámbrica (IEEE 802.11 b/g/n WLAN).
1.1.1 Características y opciones básicas de Indigo 201
• Todas las sondas compatibles con Vaisala Indigo se pueden conectar a todos los
modelos de transmisor Indigo
• Instalación automática para sondas: cuando no está configurado, Indigo adapta
automáticamente la configuración de salida analógica de la sonda compatible con
Indigo conectada
• Interfaz de configuración inalámbrica: conéctese a la interfaz de usuario escalable
basada en navegador de Indigo 201 para cambiar la configuración de la sonda y el
transmisor, ver las mediciones y revisar el estado de la sonda y el transmisor
• Pantalla a color TFT LCD de 3.5 " o modelo sin pantalla con indicador LED
• Entrada del sistema de alimentación 15 a 30 VCC (24 VCA +/-10% 50/60Hz)
Capítulo – Guía rápida Indigo 201
15
ESPAÑOL

• 3 salidas analógicas de corriente (mA) o de voltaje (V)
• 2 relés configurables
1.2 Especificación de entrada y salida
Tabla 2 Entradas y salidas
Propiedad Especificación
Salidas analógicas 3 salidas de voltaje (V) o corriente (mA):
• 0 a 10 V/0 a 5 V/0 a 1 V/1 a 5 V (carga mínima 1 kΩ)
• 0 a 20 mA/4 a 20 mA (carga máxima 500 Ω)
Precisión de salidas analógicas a 20 °C ±0,1 % escala completa
Relés 2 relés configurables (VCA/VCC)
Especificación máxima del dispositivo (carga resisti-
va):
• Alimentación de conmutación máx. de 30 W/37,5
VA
Especificación máxima de UL (carga resistiva):
• CA: máximo 28 V/0,5 A
• CC: máximo 40 V/0,24 A
• Hasta 30 VCC:
• corriente de conmutación máx. de 1 A
• alimentación de conmutación máx. de 30 W
Entrada del suministro de energía 1) 15 ... 30 VCC (24 VCA +/-10% 50/60Hz)
Corriente máxima Transmisor y sonda conectados máx. de 1 A
Consumo de energía Transmisor máx. de 3 W (+ sonda conectada, varía se-
gún el tipo de sonda)
Conector de la sonda Conector M12/5 para la sonda o el cable de conexión
de la sonda (sondas compatibles con Vaisala Indigo)
Cable de alimentación directa 2 opciones: paso de goma en la parte inferior del
transmisor y apertura con un sello en la parte poste-
rior del transmisor
Tamaño del cable del terminal roscado 0.2 ... 1,5 mm2
1) Se recomienda el uso de un sistema de alimentación con protección de sobrecarga para la seguridad eléctrica.
No modifique la unidad y no la utilice de ninguna manera que no esté
descripta en la documentación. Una modificación inadecuada puede provocar peligros
de seguridad, dañar el equipo, impedir el funcionamiento de acuerdo con la
especificación o reducir la duración del equipo.
PRECAUCIÓN
M211876EN-F
16

1.3 Piezas del transmisor Indigo
2
3
4
5
7
6
1
Figura 10 Piezas del transmisor Indigo
1Pantalla (opcional)
2Indicador LED (en modelo sin pantalla)
3Conector del cable de sonda y sonda, rueda de bloqueo
4Botón de activación de la interfaz de configuración inalámbrica (WLAN)
5Conexión pasante de goma con pasamuros para cable de entrada/salida
6Cubierta superior del transmisor: LED/pantalla, placa de circuito y clavijas del conector
7Base del transmisor: cableado de entrada y salida (terminales de tornillo), base de
montaje
Solo use sondas compatibles con Vaisala Indigo con el transmisor.
Intentar conectar sondas o cables de sonda incompatibles puede dañar el equipo.
PRECAUCIÓN
Capítulo – Guía rápida Indigo 201
17
ESPAÑOL

1.4 Apertura y montaje
Para evitar dañar las clavijas del conector del transmisor, saque la
cubierta del transmisor de la base en ángulo recto. No la doble ni tuerza.
PRECAUCIÓN
1. Afloje los 4 tornillos en la cubierta del transmisor.
2. Abra con cuidado la pieza de la cubierta del transmisor de ambos lados para que sea
más fácil retirar la cubierta de la base.
3. Retire la cubierta del transmisor de la base en ángulo recto. No la doble ni tuerza.
4. Coloque la base del transmisor en la superficie de instalación y móntela con 3 tornillos.
Consulte las posiciones del tornillo en Figura 11 (página 19).
5. Pase el cable de entrada/salida dentro del transmisor (consulte Opciones de Cableado
(página 20)). Si está pasando cables a través del conductor en la parte inferior del
transmisor, compruebe que el pasamuros funciona con su cable.
6. Conecte el cableado del cable de entrada/salida a los terminales de tornillo (consulte
Base del transmisor de Indigo (página 19)) y vuelva a colocar la cubierta cuando haya
terminado.
M211876EN-F
18

1.5 Base del transmisor de Indigo
1 2 4
5
6
3
INDIGO 201 ANALOG
OUTPUT TRANSMITTER
Serial No. SX12345678
Figura 11 Piezas principales y posiciones de tornillos de la base del transmisor Indigo 201
1Conector del cable de sonda y sonda dentro de la rueda de bloqueo
2Botón de activación de la interfaz de configuración inalámbrica (WLAN)
3Cableado de la parte trasera: abrir el sellado
4Conexión pasante del cable de goma con pasamuros
5Terminales roscados para salidas analógicas 1 a 3 y relés A y B
6Terminales roscados para entrada de sistema alimentación de 24 V
No active el sistema de alimentación antes de que se haya conectado el
cableado.
PRECAUCIÓN
Capítulo – Guía rápida Indigo 201
19
ESPAÑOL

1.6 Opciones de Cableado
Puede pasar un cable de entrada/salida a través de la abertura en la parte posterior del
transmisor o a través de la conexión pasante de goma en la parte inferior del transmisor.
1
2
Ø 7 ... 8 mm
Figura 12 Opciones de cableado Indigo
1Cableado de la parte trasera: cortar el sellado abierto
2Pase el cable a través de la conexión pasante de goma en la parte inferior del transmisor
1. Para pasar el cable de entrada/salida a través de la parte posterior del transmisor:
a. Corte la parte del sellado que sea necesaria para colocar su cable a través de la
apertura.
b. Pase el cable por la apertura y coloque un pasamuros según sea necesario.
c. Si solo pasa cable a través de la parte posterior, enchufe o selle la conexión pasante
en la parte inferior.
2. Para pasar el cable de entrada/salida a través del paso de goma en la parte inferior:
a. Empuje el cable de entrada/salida a través de la conexión pasante.
b. La conexión pasante proporciona pasamuros y mantiene el cable en su lugar. No es
necesaria la fijación.
El diámetro de cable recomendado para el cableado a través de la conexión pasante
de goma es de 7 a 8 mm. Si usa un tamaño de cable diferente, compruebe que el
pasamuros funciona según lo previsto.
M211876EN-F
20
