Introduction to Indigo300 transmitter
This document is a quick guide for taking Vaisala Indigo300 Transmitter into use.
For the complete user instructions, see Indigo300 User Guide (M212849EN).
16.03.2022
Figure 1 Indigo300 connections overview
Vaisala Indigo300 Transmitter is a host device for displaying measurement values from Vaisala
Indigo-compatible probes and/or transmitting them to automation systems through analog
signals.

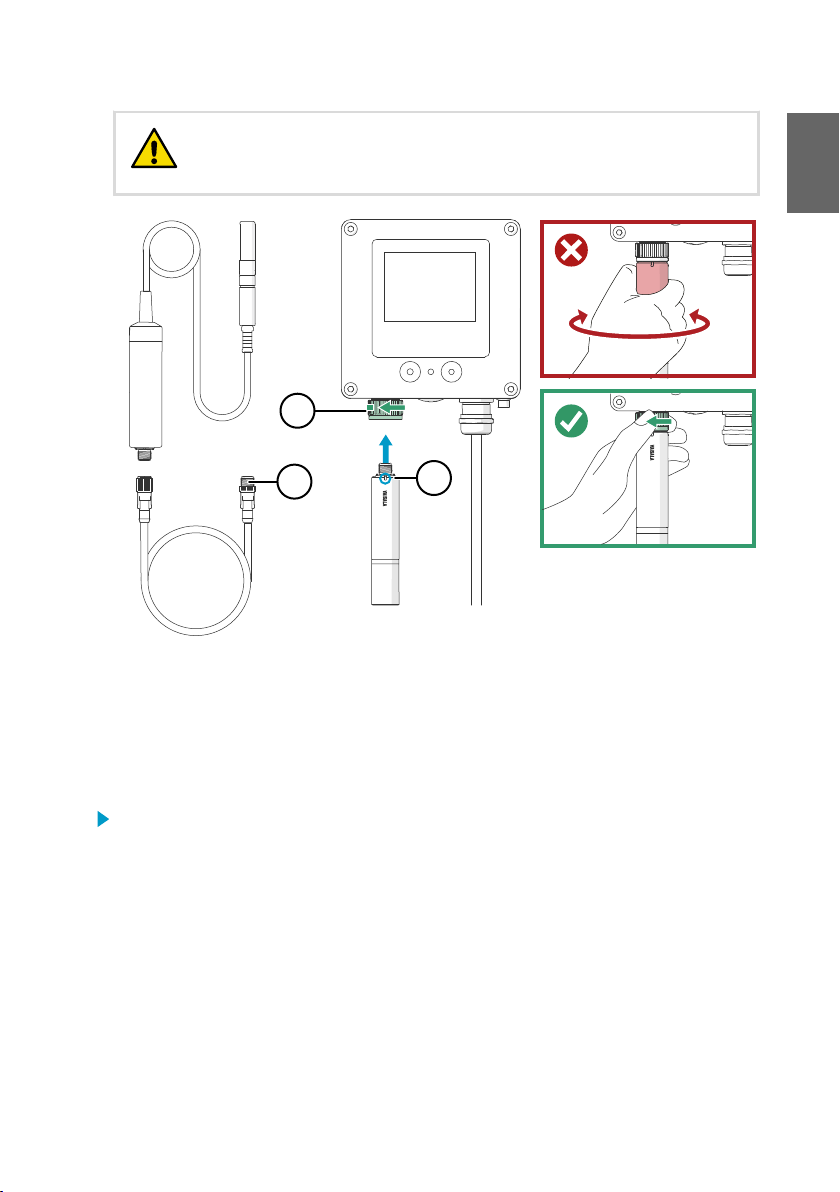

Probes can be connected to the transmitter tool-free using the locking wheel. You can connect
a probe to the locking wheel directly or by using a cable. Instead of the locking wheel, it is also
possible to use a cable gland with a fixed cable.

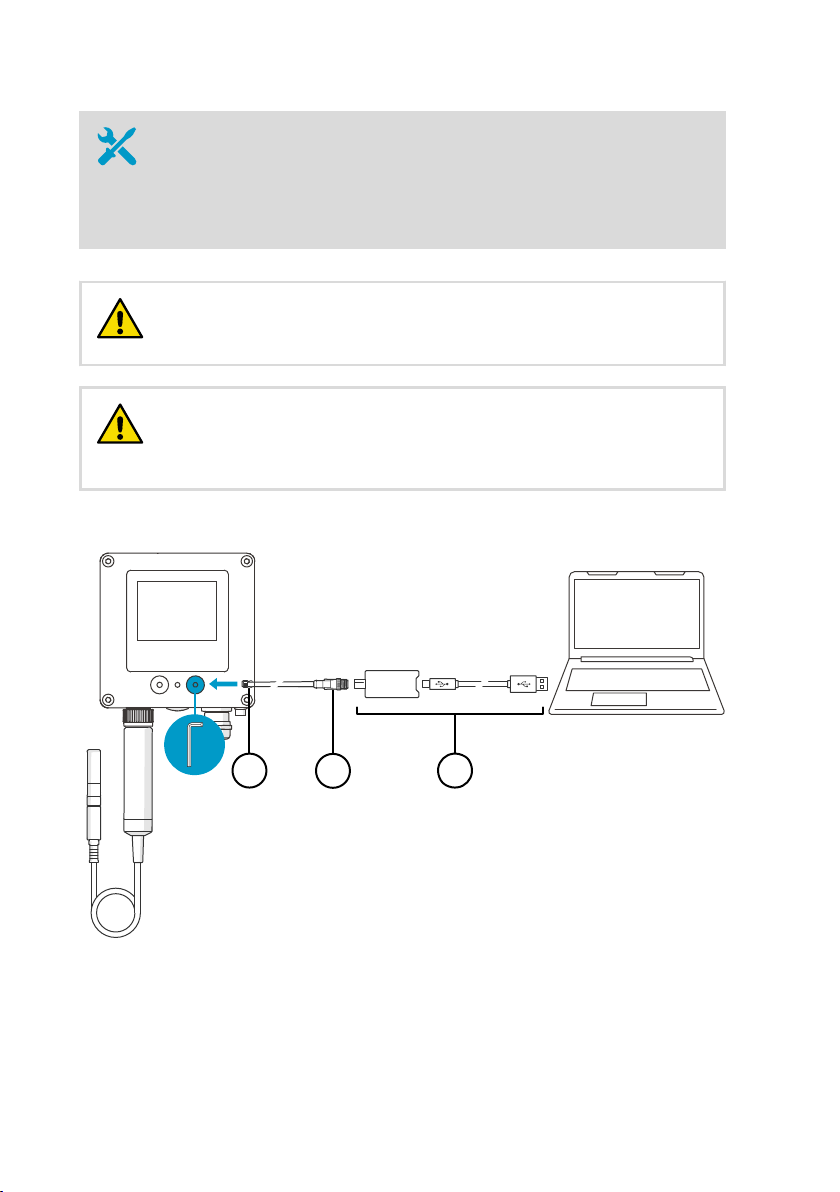

The service port on the front can be opened with a 4-mm Allen key for enabling access to the
free Vaisala Insight PC software or Indigo80 handheld indicator.
With Insight and Indigo80, you can configure both the transmitter and the probe connected to
it, as well as calibrate and adjust the probe without having to detach it from the transmitter.
5
ENGLISH

Transmitter parts
1
2
3
4
6
5
8
9
10
11
7
Figure 2 Indigo300 transmitter parts
1Display
2Push button for transmitter display navigation
3LED status indicator. Lights up when the display is turned o.
4Locking wheel with a connector for probe or probe cable. Alternatively, this lead-through
can be ordered with a fixed cable and M16×1.5 cable gland pre-installed.
5Lead-through for cables. Plugged, or equipped with a M16×1.5 cable gland or conduit
fitting NPT 1/2".
6Lead-through for cables. Plugged, or equipped with a M20×1.5 cable gland or conduit
fitting NPT 1/2".
7Grounding terminal
8Service port for connection to Insight PC software or Indigo80 handheld indicator
9Rubber lead-through for cables, at the backside
10 Transmitter base: mounting base and screw terminals for cables
11 Top cover: display and circuit board
The lead-through options (locking wheel, cable glands, conduit fittings, and plugs) are
selected when ordering the transmitter.
6 M212848EN-B

Specifications
Do not modify the unit or use it in ways not described in the
documentation. Improper modification or use may lead to safety hazards,
equipment damage, failure to perform according to specification, or decreased
equipment lifetime.
CAUTION!
If the equipment is used in a manner not specified by Vaisala, the
protection provided by the equipment may be impaired.
WARNING!
Table 1 Indigo300 operating environment
Property Description/Value
Operating temperature −20 … +60 °C (−4 …+140 °F)
Storage temperature −30 … +70 °C (−22 …+158 °F)
Operating humidity 0 … 100 %RH
Maximum operating altitude 5000 m (approx. 16 400 ft)
IP rating IP65: Dust-tight. Protected from powerful water
jets from any direction.
Note: Protect the device from direct sunlight.
Table 2 Indigo300 inputs and outputs
Property Description/Value
Power supply input 15 … 30 V DC 1)
24 V AC ±10 % 50/60 Hz
Fuse size for power supply 2.5 A
Transmitter service port connection • Connection to Insight with USB2 and cable
262195 2)
• Connection to Indigo80 with cable 262195
Analog outputs Current or voltage
Number of analog outputs 3
Selectable voltage output types 0 … 1 V, 0 … 5 V, 0 … 10 V, 1 … 5 V, scalable,
RL≥10 kΩ
Selectable current output types 4 … 20 mA, 0 … 20 mA, scalable, RL≤500 Ω
Accuracy of analog outputs at 20 °C (+68 °F) ±0.1 % full scale 3)
Temperature dependence ±0.005 % / °C full scale
Current consumption at 20 °C (+68 °F) (Uin 24 V DC)
7
ENGLISH

Property Description/Value
Minimum consumption with display o, no
analog outputs active, no probe connected 4)
13 mA
Minimum consumption with display on,
brightness normal mode
31 mA
Uout 0 … 1 V, 0 … 5 V, 0 … 10 V, 1 … 5 V Max. + 1.8 mA per connected channel
Iout 4 … 20 mA, 0 … 20 mA Max. + 12.3 mA per connected channel
1) When used with the HMP7 probe, the minimum required power supply input is 18 V DC.
2) Vaisala Insight software for Windows® available at http://www.vaisala.com/insight.
3) For the voltage outputs, small variation is possible around true zero.
4) For the current consumption of the connected probe, see the probe's user documentation.
8 M212848EN-B

Opening transmitter cover
• 4-mm Allen key, provided
To avoid damaging the connector pins of the transmitter, pull the
transmitter cover straight o the base. Do not twist or bend. Be careful not to
drop the cover when it comes o.
CAUTION!

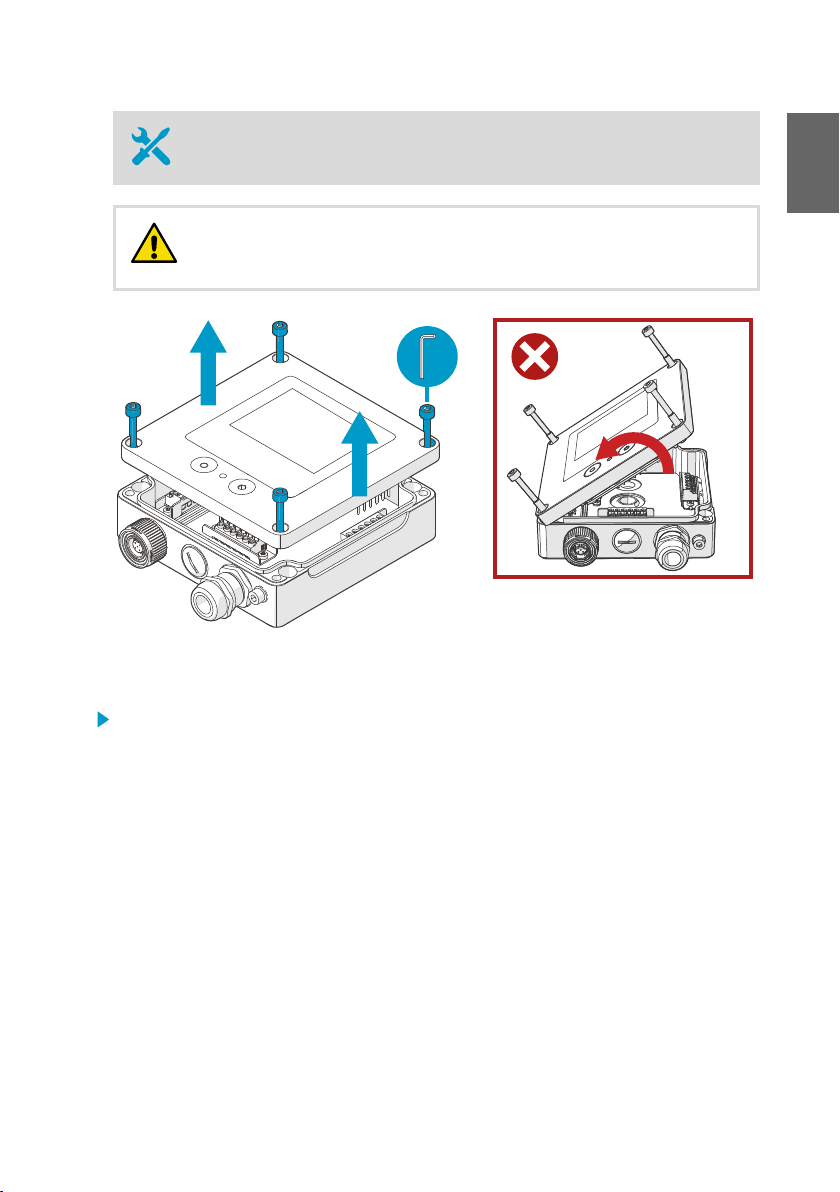

Figure 3 Opening transmitter cover
1. Loosen the screws on the transmitter cover.
2. Carefully open the transmitter cover part of the way from both sides, so that it is easier to
pull the cover o the base. The cover may be tight.
3. Pull the transmitter cover carefully straight o the base. Do not twist or bend. Be careful
not to drop the cover when it comes o.
4. When you reattach the transmitter cover, tighten the screws hand-tight using the 4-mm
Allen key (recommended tightening torque 3.6 Nm).
9
ENGLISH

Mounting
• 4-mm Allen key, provided
• At least 2 pcs Ø 4 … 5 mm screws and wall plugs. Select the screws and plugs
according to the properties of the installation surface.
• Drill with suitable drill bit
The figure below shows how to mount the transmitter through the transmitter body. For
information on mounting with an adapter plate or mounting to a DIN rail, see Indigo300 User
Guide (M212849EN).
Figure 4 Mounting through transmitter body
111 [4.37] 7 [0.28]
102 [4.02]
[0.22]
120 [4.72]
5.5
57 [2.24]
5...10
[0.20...0.39]
mm [in]
Figure 5 Transmitter body mounting dimensions
10 M212848EN-B

1. Open the transmitter cover.
2. Use a pen to mark the places of the mounting holes on the installation surface.
3. Drill the mounting holes and insert the wall plugs in the holes.
4. If you intend to wire the transmitter through the rubber lead-through at the back:
a. Remove the center of the rubber lead-through.
b. Lead the cables to the inside of the transmitter enclosure before mounting.
For more information on wiring from the back, see the wiring options.
5. Mount the transmitter base using at least one screw at the top and one at the bottom.
6. Connect the wiring to the applicable screw terminals.
7. Reattach the transmitter cover.
Tighten the screws hand-tight using the 4-mm Allen key (recommended tightening
torque 3.6 Nm).
More information
‣Wiring options (page 14)
11
ENGLISH

Wiring
• Cables as required by your application
• Crimping tool and wire ferrules
• Small crosshead screwdriver for the screw terminals
• Utility knife
• Suitable tools for tightening the cable glands, conduits and/or plugs required
by your application
Only licensed experts may install electrical components. They
must adhere to local and state legislation and regulations.
WARNING!
Make sure that you prepare and connect only de-energized wires.WARNING!
Safety requirements for power supply
Make sure that the power supply unit for the transmitter is an
isolated power source that fulfills the requirements of the one of the following:
• Limited-Energy Circuit (LEC) in accordance with IEC/EN/UL/CSA 61010-1
• Limited Power Source (LPS) in accordance with IEC/EN/UL/CSA 60950-1 or
IEC/EN/UL/CSA 62328-1, Annex Q
• Class 2 supply source that complies with the National Electrical Code (NEC),
NFPA 70, Clause 725.121 and Canadian Electrical Code (CEC), Part 1, C22.1.
CAUTION!
Make sure to use the power supply unit only in its specified
environmental conditions.
CAUTION!
If you are using a 24 V AC power supply for the transmitter, make sure to use
separate cables for the AC power and the analog outputs to ensure that the EMC
requirements are fulfilled.
12 M212848EN-B

Transmitter base
ANALOG
OUTPUTS
+
–
+
–
+
–
CH1
CH2
CH3
+
24V
DO NOT REMOVE
PROBE
+
–
+
–
RS-485
24 Vout
RS-485
24 Vout
–
9
1
10
57
6
38
2
4
Figure 6 Indigo300 transmitter base with screw terminals
1Rubber lead-through for wiring from the back
2Cable strain relief clip and its mounting holes. The clip can be installed horizontally or
vertically.
3Probe connection terminals. Delivered pre-wired.
4Locking wheel or M16×1.5 cable gland for probe connection
5Lead-through with plug, M16×1.5 cable gland or NPT1/2" conduit fitting
6Lead-through with plug, M20×1.5 cable gland or NPT1/2" conduit fitting
7Grounding terminal
8Power supply input terminals
9Analog output terminals
10 Enclosure breathing membrane. Do not remove or pierce.
Power supply input terminals
Table 3 Power supply input terminals
Terminal Function Notes
Power supply ground Can also be used for grounding the
transmitter. There is also an external
grounding terminal on the bottom of the
transmitter enclosure.
13
ENGLISH

Terminal Function Notes
24 V - Negative supply voltage 15 … 30 V DC 1) or 24 V AC ±10 %
50/60 Hz
24 V + Positive supply voltage
1) When used with the HMP7 probe, the minimum required power supply input is 18 V DC.
Analog output terminals
Table 4 Analog output terminals
Terminal Function Notes
CH - Analog output channel 1 - Max. wire size: 1.5 mm2(16 AWG), solid
wires or ferrules recommended
CH + Analog output channel 1 +
CH - Analog output channel 2 -
CH + Analog output channel 2 +
CH - Analog output channel 3 -
CH + Analog output channel 3 +
Wiring options
Do not energize the power supply before the wiring has been
connected.
CAUTION!
The transmitter wiring options include a lead-through at the backside and lead-throughs on
the bottom.
ANALOG
OUTPUTS
-
+
-
+
-
+
CH1
CH2
CH3
+
–
24V
8 Nm
6 Nm
1
2
3
PROBE
–
+
–
RS-485
24 Vout
RS-485
24 Vout
+

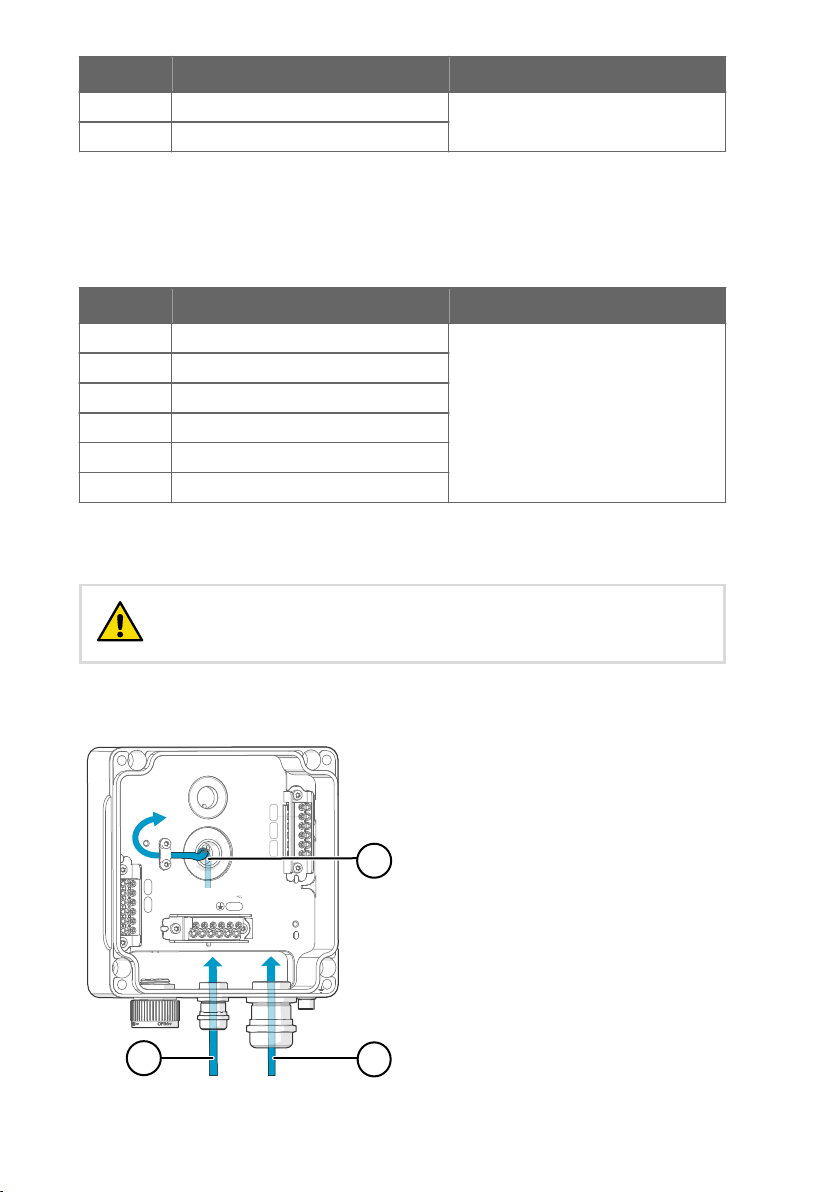

Figure 7 Indigo300 wiring options and
cable diameters
1Wiring from the back
• Cable diameter: 5 … 10 mm
(0.20 … 0.39 in)
2Wiring through a M20×1.5 gland or
conduit fitting NPT 1/2"
• Cable diameter for M20 gland:
7 … 13 mm (0.26 … 0.51 in)
3Wiring through a M16×1.5 gland or
conduit fitting NPT 1/2"
• Cable diameter for M16 gland:
2 … 6 mm (0.08 … 0.24 in)
14 M212848EN-B

If you are using a 24 V AC power supply for the transmitter, make sure to use
separate cables for the AC power and the analog outputs to ensure that the EMC
requirements are fulfilled.
Wiring from the back
1. Before connecting wires or cables, make sure that the transmitter is powered o.
2. Open the transmitter cover, if not already open.
3. Remove the center of the rubber lead-through to fit your cable through the opening. Use,
for example, a small screwdriver to thrust the small round center piece o.
4. Lead the cable through the opening.
To preserve the IP rating of the transmitter, the back of the
transmitter must rest flat on the installation surface. Make sure that you
route the cable so that it does not push the back of the transmitter o the
installation surface.
CAUTION!
5. Connect the wiring to the applicable screw terminals.
6. Fit the cable under the strain relief clip next to the rubber lead-through, as applicable. You
can also use the clip with a cable tie.
7. Reattach the transmitter cover.
Tighten the screws hand-tight using the 4-mm Allen key (recommended tightening
torque 3.6 Nm).
8. If you wire only through the back, plug or seal the unused lead-throughs on the bottom.
Wiring through bottom lead-throughs
1. Before connecting wires or cables, make sure that the transmitter is powered o.
2. Open the transmitter cover, if not already open.
3. Open the cable gland and insert a suitable length of the cable inside the transmitter
through the gland.
4. Connect the wiring to the applicable screw terminals.
5. Tighten the cable gland. Avoid overtightening.
• Tightening torque for M20 gland: 8 Nm
• Tightening torque for M16 gland: 6 Nm
6. Reattach the transmitter cover.
Tighten the screws hand-tight using the 4-mm Allen key (recommended tightening
torque 3.6 Nm).
7. Plug or seal the unused lead-throughs.
15
ENGLISH

Finalizing installation
After mounting and wiring the transmitter, do these final steps to have your transmitter ready
for use.
1. Verify the tightness of the cable glands. Pull on the cable to verify that the cable is
securely held by the cable gland.
2. To ensure that the transmitter operates as intended, Vaisala recommends grounding the
transmitter. Connect the grounding terminal on the bottom of the transmitter to the
grounding element of the installation site with a grounding wire.
3. Switch on the power supply input.
4. Connect the probe to the transmitter.
5. If you want your transmitter to get error log time stamps and calibration reminders for the
connected probe, connect the transmitter to the Insight PC software or the Indigo80
handheld indicator for automatic date and time setup.
Date and time setup is needed for calibration reminders and error log time
stamping to work.
16 M212848EN-B

Connecting probes
Only connect compatible measurement devices to the transmitter.
Attempting to connect incompatible devices or cables can damage the
equipment. Refer to transmitter specifications for compatibility information.
CAUTION!
OPEN >>
OPEN >>
1
23
Figure 8 Connecting probes to Indigo300 transmitter
1Probes are locked in place with the locking wheel. Never turn from the probe body.
2Connect probe cables in the same way as probes: insert the cable in the connector and
hold in place while turning the locking wheel.
3Insert probes into the probe connector with the orientation mark and/or the Vaisala logo
facing out.
1. Insert the probe into the probe connector with the orientation mark and/or the Vaisala
logo on the probe body facing out. Note the orientation of the cable connector pins when
inserting.
2. Hold the probe in the probe connector and lock it in place by turning the locking wheel
counterclockwise.
17
ENGLISH

Connecting to Insight PC software
• 4-mm Allen key, provided
• Computer with a Microsoft Windowsâoperating system (64-bit version) and
Vaisala Insight PC software installed
• Vaisala Indigo USB adapter (Vaisala item code USB2) and M12 - M8 service
cable (Vaisala item code 262195)
• Vaisala USB Device driver installed
Use only cables provided by Vaisala to connect devices to the
transmitter. Attempting to connect incompatible devices or cables can damage
the equipment.
CAUTION!
The service port connection is only intended for temporary use
during configuration, and must not be used for permanent installations. The IP
rating and EMC properties of the transmitter can be aected when the service
port is open.
CAUTION!
Upon connecting, the transmitter receives date and time settings from Insight.

1 3
2
OPEN >>
Figure 9 Connecting Indigo300 transmitter to Insight PC software
1M8 connector of the service cable
2M12 connector of the service cable
3USB adapter
18 M212848EN-B

1. Open the protective cover of the transmitter service port using the 4-mm Allen key.
2. Connect the M8 connector of the service cable to the service port.
3. Connect the USB adapter to the M12 connector of the M12 - M8 service cable (262195).
4. Connect the USB adapter to a free USB port on the PC.
5. Open the Insight software on your PC.
6. Wait for the Insight software to detect the transmitter.
If Insight cannot detect the transmitter, make sure that the Vaisala USB Device
driver has been installed. Download and install the driver software from http://
www.vaisala.com/insight.
For more information on using Insight with the transmitter, see Indigo300 User Guide
(M212849EN).
19
ENGLISH

Connecting to Indigo80 handheld
indicator
• 4-mm Allen key, provided
• M12 - M8 service cable (Vaisala item code 262195)
Use only cables provided by Vaisala to connect devices to the
transmitter. Attempting to connect incompatible devices or cables can damage
the equipment.
CAUTION!
The service port connection is only intended for temporary use
during configuration, and must not be used for permanent installations. The IP
rating and EMC properties of the transmitter can be aected when the service
port is open.
CAUTION!
Upon connecting, the transmitter receives date and time settings from Indigo80.
1
2 2
3
4
5
OPEN >>
Figure 10 Connecting Indigo300 transmitter to Indigo80 handheld indicator
1M8 connector of the service cable
2M12-5F ports on the bottom of Indigo80 for connecting compatible Vaisala devices.
Ports are labeled and .
3M12-5M cable connector
4M12-5F cable connector
5Probe (HMP7) connected to Indigo80, for example, for use as a calibration reference
20 M212848EN-B
