VALBERG 12S45 D DXAD701T User manual

ELECTRO DEPOT
1 route de Vendeville
59155 FACHES-THUMESNIL - FRANCE
EN
WARRANTY CONDITION
This product is guaranteed for a period of 2 years from the date of purchase* against
any failure resulting from a manufacturing or material defect. This warranty does not
cover defects or damage resulting from incorrect installation, improper use or abnormal
wear of the product.
*as shown on the sales receipt.
FR
CONDITION DE GARANTIE
Ce produit est garanti pour une période de 2 ans à partir de la date d’achat*, contre
toute défaillance résultant d’un vice de fabrication ou de matériau. Cette garantie ne
couvre pas les vices ou les dommages résultant d’une mauvaise installation, d’une
utilisation incorrecte ou de l’usure anormale du produit.
*sur présentation du ticket de caisse.
NL
GARANTIEVOORWAARDEN
Dit product wordt gegarandeerd voor een periode van 2 jaar vanaf de aankoopdatum*,
voor elke storing die het gevolg is van een fabricagefout of het materiaal. Gebreken of
schade door slechte installatie, onjuist gebruik of abnormale slijtage van het product
worden niet gedekt door deze garantie.
*op vertoon van kassabon.
ES
CONDICIONES DE GARANTÍA
El certificado de garantía de este producto tiene una duración de 2 años a partir de la
fecha de compra* que se limita a los defectos de fabricación y averías del material.
Se excluyen de la garantía deficiencias o daños originados por una mala instalación,
errores en la manipulación o por un uso inadecuado.
*previa presentación del comprobante de compra.

972655 - 12S45 D DXAD701T
INSTRUCTIONS FOR USE .....................02
CONSIGNES D'UTILISATION .....................40
GEBRUIKSAANWIJZINGEN .....................80
INSTRUCCIONES DE USO ...................120
02/2022-V4
Dishwasher
Lave-vaisselle
Vaatwasser
Lavavajillas

1
2
3
4
5
6
7
10
9
8
11
12
13

2FR
A
2
Thanks!
Thank you for choosing this VALBERG product.
Chosen, tested and recommended by ELECTRO DEPOT,
VALBERG branded products are easy to use, reliable,
and of an impeccable standard.
With every use of this appliance, you can be sure of
complete satisfaction.
Welcome to ELECTRO DEPOT.
Visit our website: www.electrodepot.fr
EN

3FR
Aperçu de l’appareil
A
3
Table of contents
AOverview of the
appliance
CUseful information
BUsing the appliance Installation
Before using the appliance
Loading your dishwasher
Programme table
The control panel
Cleaning and maintenance
Troubleshooting
Automatic fault warnings and what to do
Technical specifications
EN

4EN
Preview of the appliance
A
Technical specifications
1Worktop
2Upper basket with racks
3Upper spray arm
4Lower basket
5Lower spray arm
6Filters
7Rating plate
8Control panel
9Detergent and rinse-aid dispenser
10 Cutlery basket
11 Salt dispenser
12 Upper basket track latch
13 Mini Active Drying Unit: This system provides better drying performance for
your dishes.

5EN
Using the appliance
B
Installation
Machine positioning
• When positioning the machine, place it in an area where dishes can be easily loaded and
unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C.
• Read all warnings located on the packaging before removing the packaging and positioning
the machine.
• Place the machine close to a water tap and drain. Take into consideration that the connections
will not be altered once the machine is in position.
• Do not hold the machine by its door or panel.
• Leave an adequate distance around the machine to allow ease of movement when cleaning.
WARNING
Ensure the water inlet and outlet hoses are not squeezed
or trapped and that the machine does not stand on the
electrical cable while positioning.
• Adjust the feet so the machine is level and balanced. The machine should be placed on
flat ground otherwise it will be unstable and the door of the machine will not close properly.

6EN
Using the appliance
B

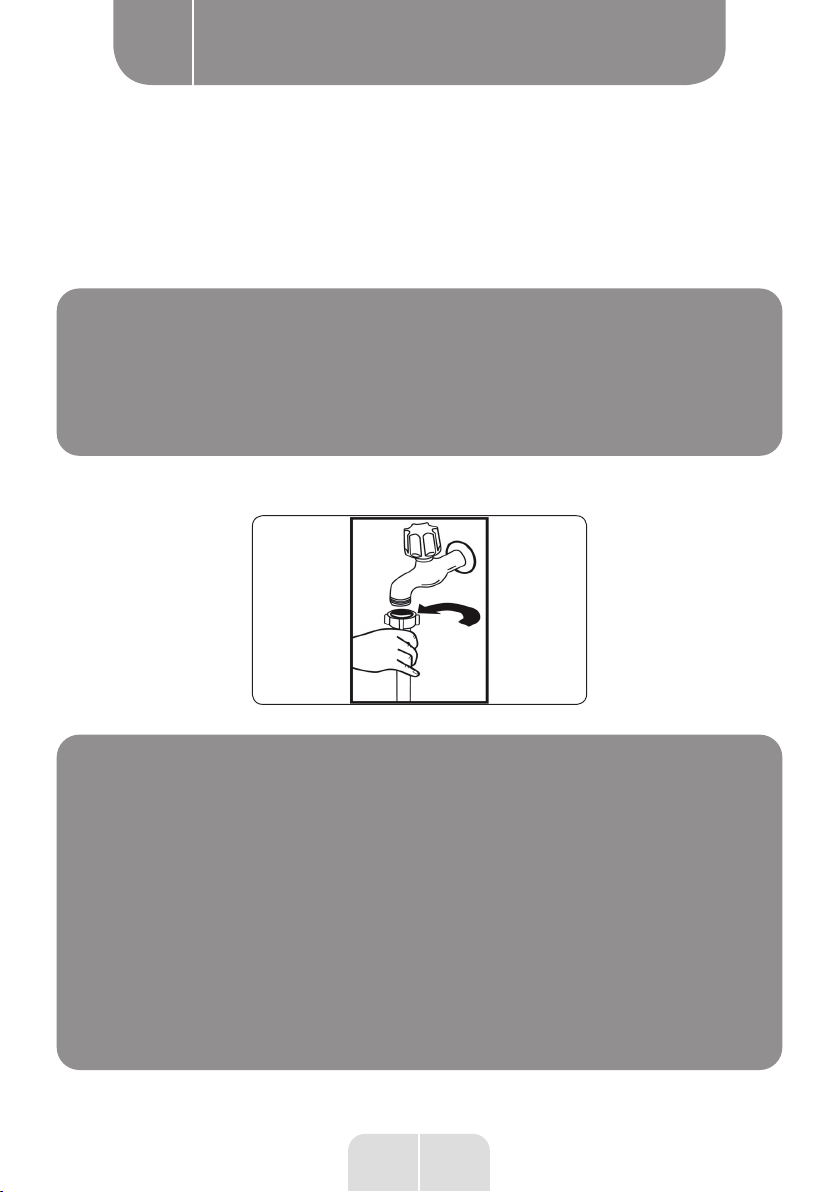

Water connection
We recommend fitting a filter to your water inlet supply in order to prevent damage to your
machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help
prevent yellowing and deposit formation after washing.
NOTE PRINTING ON THE WATER INLET HOSE!
If models are marked with 25°, the water temperature may
be max. 25 °C (cold water).
For all other models:
Cold water preferred; hot water max. temperature 60 °C.
Water inlet hose
WARNING
• Use the new water inlet hose supplied with your machine,
do not use an old machine’s hose.
• Run water through the new hose before connecting.
• Connect the hose directly to the water inlet tap. The
pressure supplied by the tap should be a minimum of
0.03MPa and a maximum of 1 MPa. If the pressure exceeds
1MPa, a pressure relief valve must be fitted between the
connection.

7EN
Using the appliance
B
WARNING
• After the connections are made, turn the tap on fully and
check for water leaks. Always turn off the water inlet tap
after a wash program has finished.
WARNING
An Aquastop water spout is available with some models.
Do not damage it or allow it to become kinked or twisted.
Drain Hose
max 110cm
min 50cm
min 4cm
Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This
connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is
placed.
IMPORTANT
Items will not wash properly if a drain hose longer than
4m is used.

8EN
Using the appliance
B
0.5 -
1.1m
Electrical connection
WARNING
Your machine is set to operate at 220-240 V. If the mains
voltage supply to your machine is 110 V, connect a
transformer of 110/220 V and 3000 W between the electrical
connection.
WARNING
Connect the product to a grounded outlet protected by a fuse
complying with the values in the «Technical Specifications»
table.
The earthed plug of the machine must be connected to an
earthed outlet supplied by suitable voltage and current.
In the absence of earthing installation, an authorised
electrician should carry out an earthing installation. In
the case of use without earthing installed, we will not be
responsible for any loss of use that may occur.
The plug on this appliance may incorporate 13A fuse
depending on the target country. (For Example UK, Saudi
Arabia)

9EN
Using the appliance
B
Fitting the machine undercounter
If you wish to fit your machine undercounter, there must be sufficient space to do so and the
wiring-plumbing must be suitable to do so 1. If the space under the countertop is suitable
for fitting your machine, remove the worktop as shown in the illustration 2.
WARNING
The countertop, which the machine will be placed under,
must be stable in order to prevent imbalance.
The top panel of the dishwasher must be removed to fit the
machine under the countertop.
To remove the top panel, remove the screws that hold it on,
located at the rear of the machine. Then, push the panel
1 cm from the front towards the rear and lift it. Adjust the
machine feet according to the slope of the floor 3.
Fit your machine by pushing it under the counter taking
care not to crush or bend the hoses 4.
WARNING
After removing the top panel of your dishwasher, the
machine should be placed in a space of the dimensions
shown in the figure below.

10 EN
Using the appliance
B
H
H1: min A
H2: min B1
H3: min B2
min. 820
min. 570
min. 600
598
570
1
2
3
4
A B
All Products B1 B2
Product’s Height
(±2 mm) 820 mm 830 mm 835 mm
A: If there is no felt on the top of the product; you should take into account this product’s height.
B1: If there is felt on the top of the product with 2nd basket; you should take into account this
product’s height.
B2: If there is felt on the top of the product with 3rd basket; you should take into account this
product’s height.

11 EN
Using the appliance
B
Before using the appliance
Preparing your dishwasher for first use
• Make sure the electricity and supply water specifications match the values indicated in the
installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
• Fill the rinse aid compartment.
Salt usage (IF AVAILABLE)
• For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise,
White lime residues will remain on the dishes and the interior equipment. This will negatively
affect your machine’s washing, drying and shining performance. When water flows through
the softener system, the ions forming the hardness are removed from the water and the water
reaches the softness required to obtain the best washing result. Depending on the level of
hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the
softener system. Therefore, the softener system has to be refreshed so that it operates with
the same performance also during the next wash. For this purpose, dishwasher salt is used.
• Machine can only be used by special dishwasher salt to soften the water. Do not use any
small grained or powdered type of salts which can easily soluble. Using any other type of salt
can damage your machine.

12 EN
Using the appliance
B

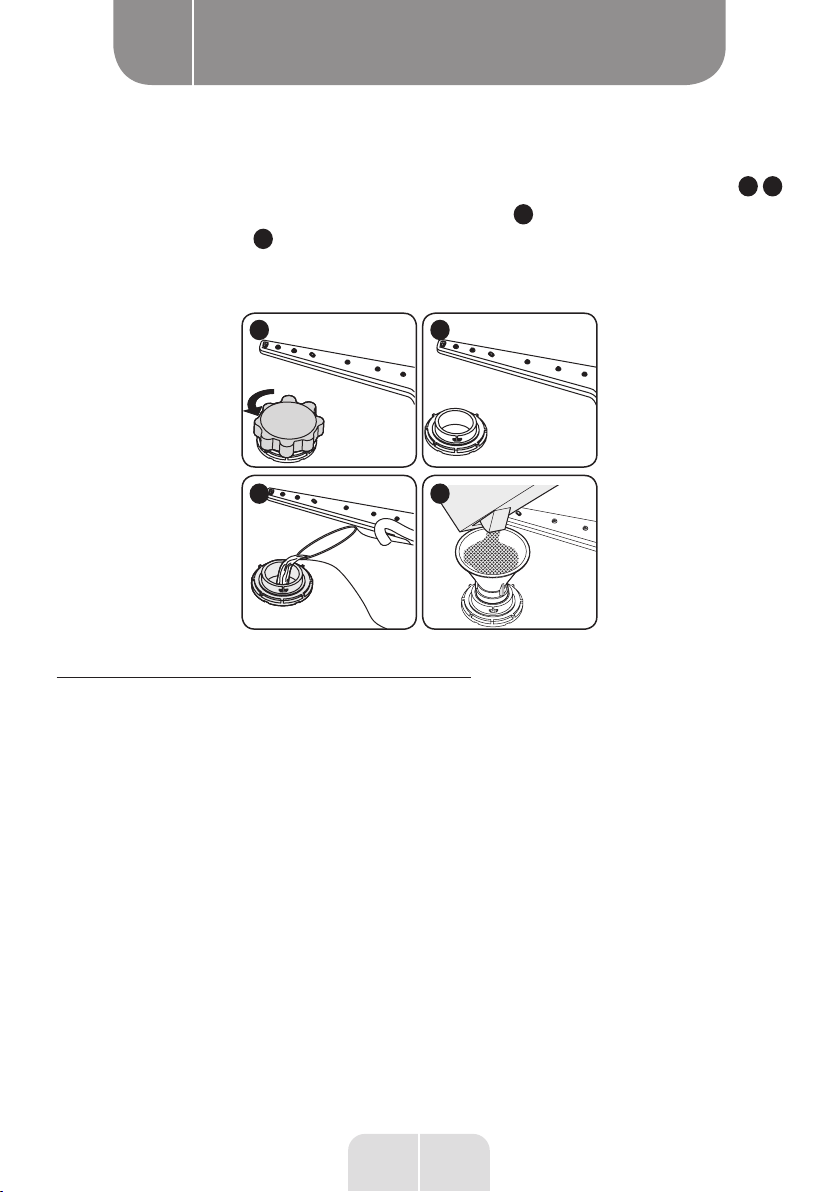

Fill the salt (IF AVAILABLE)
To add softener salt, open the salt compartment cap by turning it counter clockwise.
1 2
At first use, fill the compartment with 1 kg salt and water 3until it is almost overflowing. If
available, using a funnel 4will make filling easier. Replace the cap and close it. After every
20-30 Cycles add salt into your mach until it fills up (approx. 1 kg).
1 2
3 4
SALT
Only add water to the salt compartment on first use.
• Use softener salt specifically produced for use in dishwashers.
• When you start your dishwasher, the salt compartment is filled with water, therefore put the
softener salt in prior to starting your machine.
• If the softener salt has overflowed and you do not start the machine immediately, run a short
washing program to protect your machine against corrosion.

13 EN
Using the appliance
B
Test Strip
Run water
through the
tap (1min.)
Keep the
strip in the
water (1sec)
Shake the
strip. Wait (1min.)
Set the
hardness
level of your
machine.
1
munite 1
second 1
munite
1
2
3
4
5
6
NOTE
The level is set to 3 as default. If the water is well water or
has a hardness level above 90 dF, we recommend that you
use filter and refinement devices.
Water Hardness Table
Level German dH French dF British dE Indicator
1 0-5 0-9 0-6 L1 is seen on the display.
2 6-11 10-20 7-14 L2 is seen on the display.
3 12-17 21-30 15-21 L3 is seen on the display.
4 18-22 31-40 22-28 L4 is seen on the display.
5 23-31 41-55 29-39 L5 is seen on the display.
6 32-50 56-90 40-63 L1 is seen on the display.
Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the mains
water supply. To find out the hardness level of your tap water, contact your water company or
use the test strip (if available).

14 EN
Using the appliance
B
Setting
• Turn on the machine by pressing the On/Off button.
• Press the Program button for at least 3 seconds immediately after the machine is turned on.
• Release the Program button when “SL” is shown. Next, the last setting level is displayed.
• Press the program button to set the desired level. Each press of the program button increases
the level. Once level 6 has been reached, the next press returns the level to 1.
• The last selected water hardness level is stored in the memory by turning the machine off
with the On/Off button.
Detergent usage
• Only use detergents specifically designed for domestic dishwashers. Keep your detergents
in cool, dry places out of reach of children.
• Add the proper detergent for the selected program to ensure the best performance.
• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.
• Do not fill detergent into the detergent compartment more than required; otherwise you
can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion.
Continued use of too much detergent may cause machine damage.
• Using little detergent can result in poor cleaning and you can see whitish streaksin hard water.
• See the detergent manufacturer’s instructions for a further information.

15 EN
Using the appliance
B
Filling the detergent

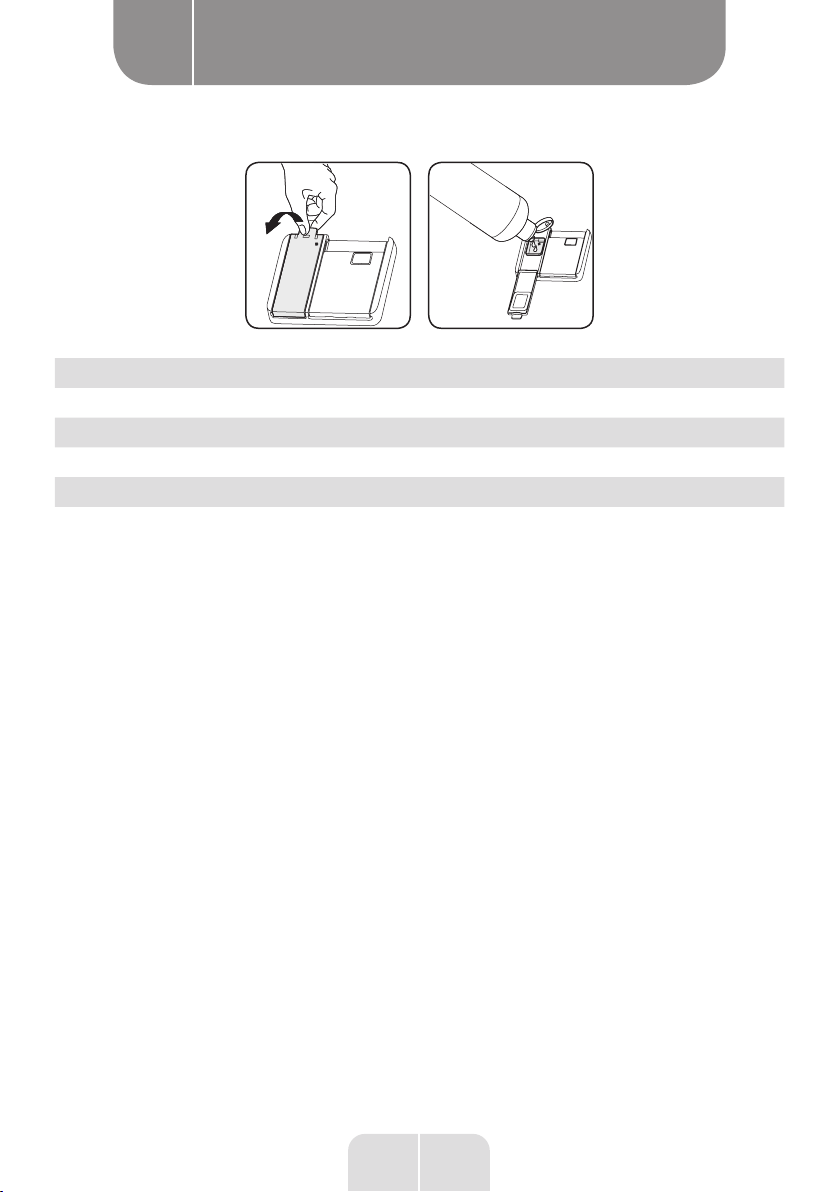

• Push the latch to open the dispenser and pour in the detergent.
• Close the lid and press it until it locks in place. The dispenser should be refilled just before
the start of each programme. If the dishes are heavily soiled, place additional detergent in
the pre-wash detergent chamber.
DETERGENT
Using combined detergents
• These products should be used according to the manufacturer’s instructions.
• Never put combined detergents into the interior section or the cutlery basket.
• Combined detergents contain not only the detergent but also rinse-aid, salt replacement
substances and additional components depending on the combination.
• We recommend you do not use combined detergents in short programmes. Please use
powder detergents instead. If you encounter problems when using combined detergents,
please contact the detergent manufacturer.
• When you stop using combined detergents, make sure that water hardness and rinse aid
settings are set to the correct level.

16 EN
Using the appliance
B
Rinse-aid usage
• The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for
stain-free utensils and clear glasses. The rinse aid is automatically released during the hot
rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and
dishes do not dry and washed clean.
• If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.
Filling the rinse-aid and setting
To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment
with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid
compartment and wipe up any spills.
In order to change the rinse aid level, follow the below steps before turning on the machine:
• Push the programme button and hold it down.
• Turn the machine on.
• Hold down the programme button until “rA” disappears from the display. Rinse aid setting
follows water hardness setting.
• The machine will display the last setting.
• Set the level by pushing the programme button.
• Switch off the machine to save the setting.
• The factory setting is “4”.
If the dishes are not drying properly or are spotted, increase the level. If blue stains form on
your dishes, decrease the level.

17 EN
Using the appliance
B
Level Brightener Dose Indicator
1 Rinse-aid not dispensed r1 is shown on the display.
2 1 dose is dispensed r2 is shown on the display.
3 2 doses are dispensed r3 is shown on the display.
4 3 doses are dispensed r4 is shown on the display.
5 4 doses are dispensed r5 is shown on the display.
