Table of contents
A
AOverview of the
appliance
CUseful information
BUsing the appliance Using your dishwasher
Installation instruction
Loading the baskets according to EN60436
Quick user guide
Using your dishwasher
Maintenance and cleaning
Troubleshooting tips
Error codes
Product overview
3 FR
Aperçu de l’appareil
A
3
Table of contents
EN

4EN
Preview of the appliance
A
Product overview
IMPORTANT
To get the best performance from your dishwasher, read
all operating instructions before using it for the first time.
1Top spray arm
2Inner pipe
3Lower spray arm
4Filter assembly
5Salt container
6Dispenser
7Cutlery basket
8Upper basket
ACutlery rack
BUpper spray arm
CCup rack
9Lower basket
NOTE
Pictures are only for reference, different models may be
different.

5EN
Using the appliance
B
Using your dishwasher
Before using your dishwasher
Inside Outside
1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket
4. Fill the detergent dispenser
LOADING THE SALT INTO THE SOFTENER
WARNING
If your model does not have any water softener, you may
skip this section. Always use salt intended for dishwasher
use.

the following:
WARNING
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for
dishwasher use, especially table salt, will damage the
water softener. In case of damages caused by the use
of unsuitable salt the manufacturer does not give any
warranty nor is liable for any damages caused.

6
EN
Using the appliance
B
WARNING
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which
may have been spilled, remaining on the bottom of the
machine for any period of time, which may cause corrosion.
Please follow the steps below for adding dishwasher salt:
1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (if supplied) into the hole and pour in about 1.5 kg of
dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small amount
of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will turn off after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should be
started (We suggest to use a short program). Otherwise the filter system, pump or other
important parts of the machine may be damaged by salty water. This is out of warranty.

7EN
Using the appliance
B
NOTE
The salt container must only be refilled when the salt
warning light in the control panel comes on. Depending
on how well the salt dissolves, the salt warning light may
still be on even though the salt container is filled.
If there is no salt warning light in the control panel (for
some models), you can estimate when to fill the salt into
the softener by the cycles that the dishwasher has run. If
salt has spilled, run a soak or quick program to remove it.

8
EN
Using the appliance
B
Basket Loading Tips

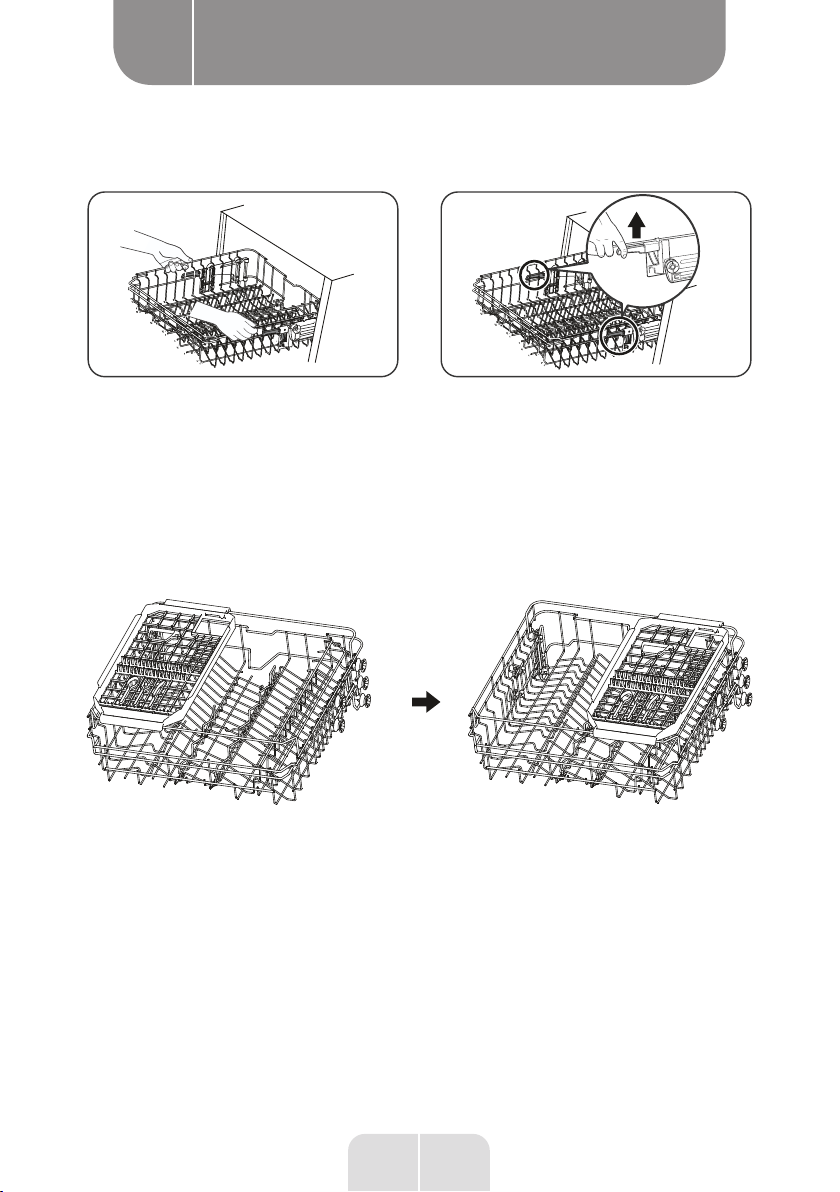

Adjusting the upper basket
The height of the upper basket can be easily adjusted to accommodate taller dishes in either
the upper or lower basket.
Type 1:
lower position
upper position
1. Pull out the upper basket.
3. Re-attach the upper basket to upper or
lower rollers.
2. Remove the upper basket.
4. Push in the upper basket.

9EN
Using the appliance
B
Type 2:
1. To raise the the upper basket, just lift
at the center of each side until the basket
locks into place in the upper position. It is
not necessary to lift the adjuster handle.
2. To lower the upper basket, lift the
adjust handles on each side to release
the basket and lower it to the lower
position.
Sliding cutlery rack
The cutlery rack can slide to the right or left at will.

10
EN
Using the appliance
B
10 EN
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards. You can
then lean the tall glasses against it. You can also remove it when it is not required for use.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter. They can be lowered
to make more room for large items.
raise upwards fold backwards

11 EN
Using the appliance
B
11 EN
Installation instructions
WARNING
Electrical Shock Hazard! Disconnect electrical power
before installing dishwasher. Failure to do so could result
in death or electrical shock.
ATTENTION
The installation of the pipes and electrical equipments
should be done by professionals.
ABOUT POWER CONNECTION
WARNING
For personal safety:
- Do not use an extension cord or an adapter plug with
this appliance.
- Do not, under any circumstances, cut or remove the
earthing connection from the power cord.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to
the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit
breaker recommended and provide separate circuit serving only this appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the rating
plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical
socket to which the appliance must be connected is not appropriate for the plug, replace the
socket, rather than using a adaptors or the like as they could cause overheating and burns.

12
EN
Using the appliance
B
12 EN
WARNING
Ensure that proper earthing exists before use
WATER SUPPLY AND DRAIN

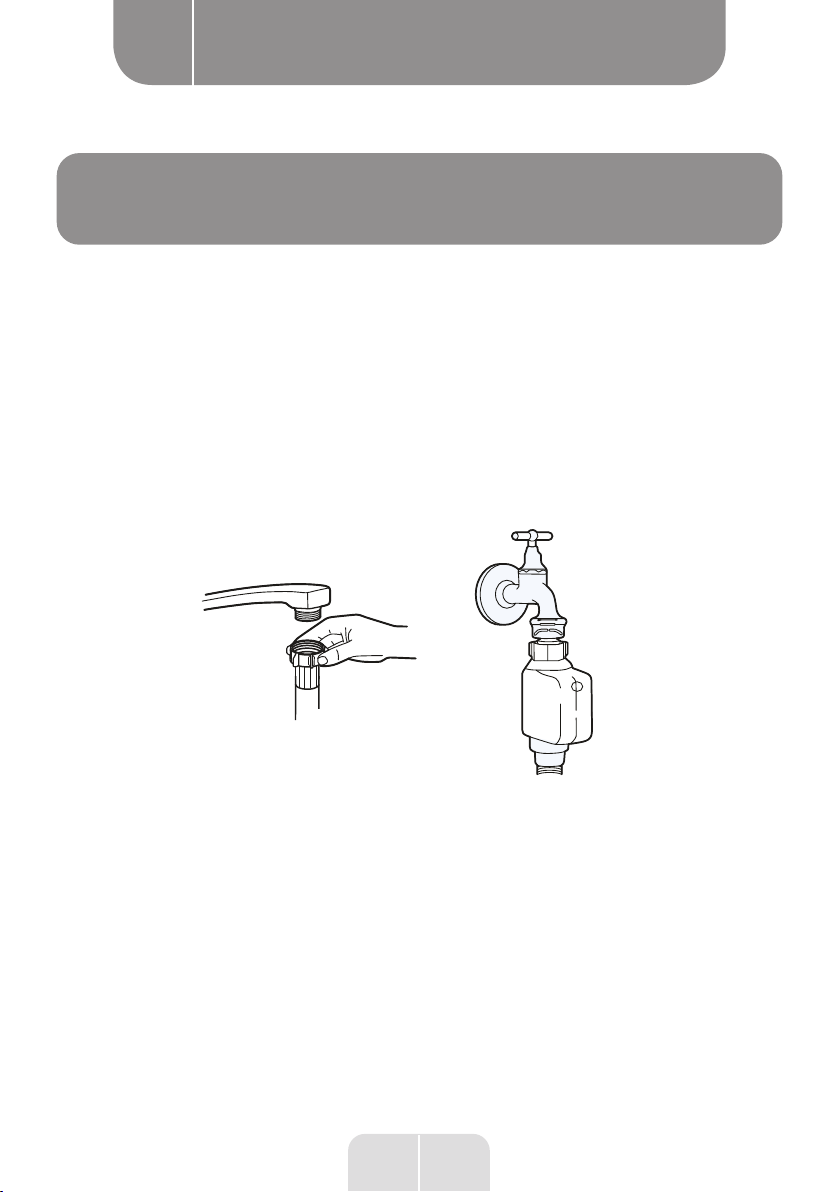

Cold water connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that
it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. This precaution is needed to avoid the risk
of the water inlet to be blocked and damage the appliance.
ordinary supply hose
safety supply hose
About the safety supply hose
The safety supply hose consists of the double walls. The system guarantees its intervention

between the supply hose itself and the outer corrugated hose is full of water.

13 EN
Using the appliance
B
13 EN
WARNING
A hose that attaches to a tap can burst if it is installed on
the same water line as the dishwasher. If your sink has
one, it is recommended that the hose be disconnected
and the hole plugged.
How to connect the safety supply hose
1.
Pull the safety supply hoses out from storage compartment located at rear of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
CONNECTION OF DRAIN HOSES
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into
the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less
than 1000 mm. The free end of the hose must not be immersed in water to avoid the back

NOTE
Please securely fix the drain hose in either position A or
position B

14
EN
Using the appliance
B
Back of dishwasher
40 mm
Counter
MAX 1000 mm
Drain hose
Mains cable
Water Inlet
Drain Pipe
Drain Pipe
How to drain excess water from hoses
If the connection to the drain pipe is positioned higher than 1000 mm, excess water may
remain in the drain hose. It will be necessary to drain excess water from the hose into a
bowl or suitable container that is held outside and lower than the sink.
Water outlet

Ensure that the water drain hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, make sure to use a similar drain hose. It must not be
longer than 4 meters, otherwise the cleaning effect of the dishwasher could be reduced.
Syphon connection
The waste connection must be at a height less than 1000 mm (maximum) from the bottom
of the dishwasher.

15 EN
Using the appliance
B
POSITIONING THE APPLIANCE
Position the appliance in the desired location. The back should rest against the wall behind
it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with
water supply and drain hoses that can be positioned either to the right or the left sides to
facilitate proper installation.

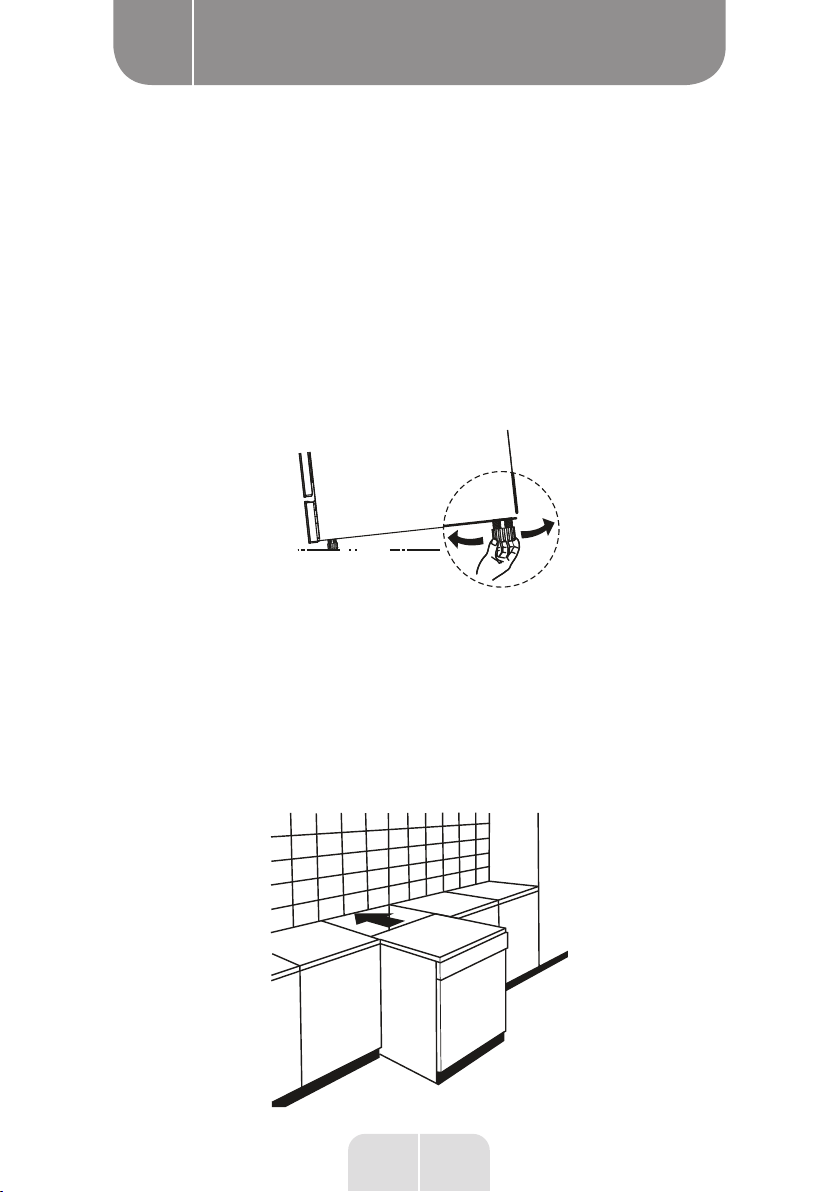

Levelling the appliance
Once the appliance is positioned for levelling, the height of the dishwasher may be altered
via adjustment of the screwing level of the feet. In any case, the appliance should not be
inclined more than 2°.
FREE STANDING INSTALLATION
Fitting between existing cabinets
The height of the dishwasher, 845 mm, has been designed in order to allow the machine

laminated top of the machine does not require any particular care since it is heatproof,
scratchproof and stainproof.

16
EN
Using the appliance
B
Underneath existing work top



unscrewing the screws under the rear edge of the top (a).
ATTENTION
After removing the work top, the screws must be screwed
again under the rear edge of the top (b).

17 EN
Using the appliance
B

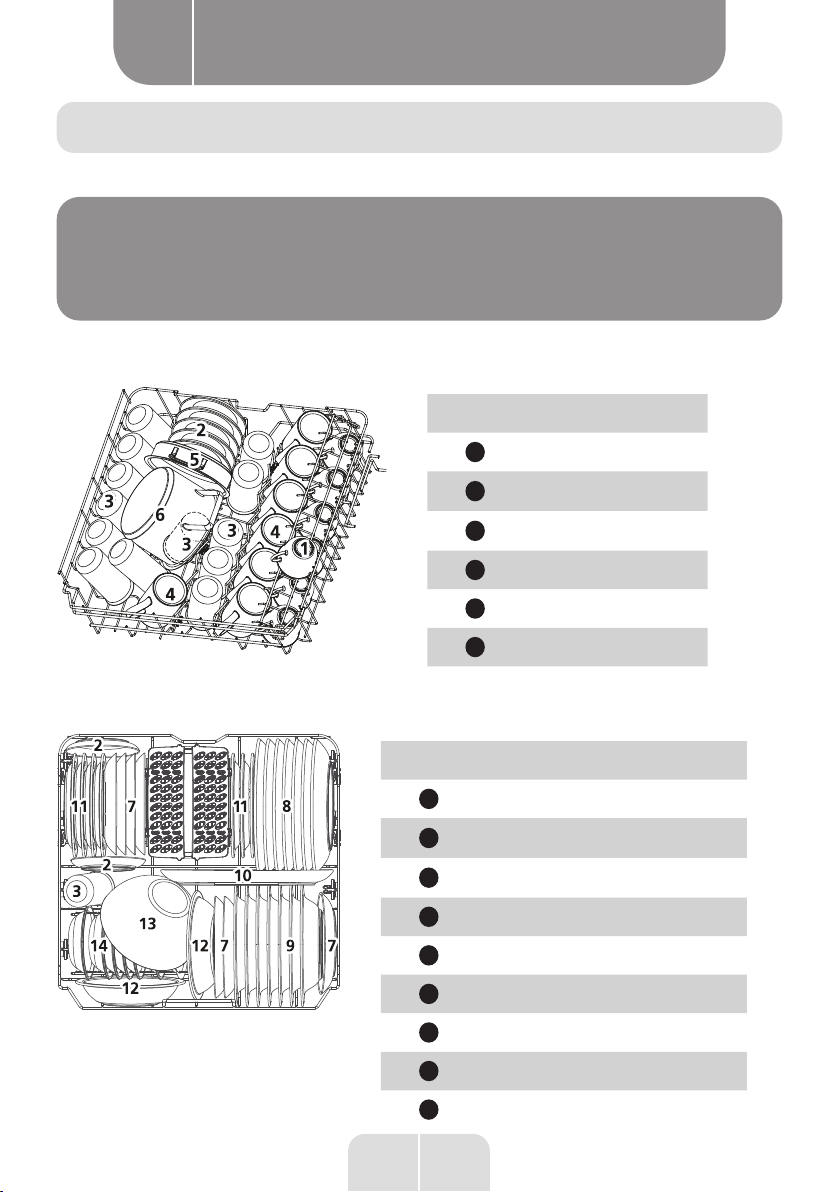

Loading the baskets according to EN60436
NOTE
Loading the dishwasher to its full capacity will contribute
to energy and water savings.
1.Upper basket:
Number Item
1Cups
2Mugs
3Oven pot
4Small pot
5Saucers
6Glasses
2.Lower basket:
Number Item
1Dessert plates
2Dinner plates
3Soup plates
4Oval platter
5Melamine dessert plates
6Melamine bowls
7Glass bowl
8Dessert bowls
9Cutlery basket

18
EN
Using the appliance
B
3.Cutlery rack:
4.Cutlery basket: IN
Number Item
1Soup spoons
2Forks
3Knives
4Teaspoons
5Dessert spoons
6Serving spoons
7Serving forks
8Gravy ladles
Information for comparability tests in
accordance with EN60436
Capacity: 14 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: Max
Softener setting: H3
