Valcom V-400 User manual

VSP-V-400
Issue 5
1947340
V-400
DYNAMIC DESK PAGING MICROPHONE
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate, and maintain
the V-400 Dynamic Desk Paging Microphone.
SPECIFICATIONS
Applications
•Valcom Paging Systems
Features
•Dynamic element
•Omnidirectional pickup pattern
•Cycolac housing with die cast base
•Push to Talk push bar with lock
•Heavy duty four conductor shielded cable
•Low impedance (balanced)
Dimensions/Weight
•9.40"H x 4.0"W x 6.0"D
(23.88cm H x 10.16cm W x 15.24cm D)
•1.4 lbs. (.64 kg)
Specifications
•Element Dynamic
•Pattern Omnidirectional
•Freq. Response 50 to 12K Hz
•Output Impedance Lo Z 400 OHMS
•Output Level Lo Z -58 dB
(0dB = 1 mw/10 microbars)
-152 dB EIA
INSTALLATION
Figure 1 (on reverse) depicts the V-400 connected to
the Valcom V-9939A microphone adapter.
TECHNICAL ASSISTANCE
When trouble is reported, verify the unit is turned on
and there are no broken connections leading to this
unit. Assistance in troubleshooting is available from
the factory. When calling, you should have a VOM
and a test set available and be calling from the job
site. Call [phone], and ask for a Technical
Support, or call [phone] for Valcom 24-hour
Automated Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the unit
clearly stating your company name, address, phone
number, contact person and the nature of the problem.
Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056

2947340
PW R M C HZ B S RING
PW R LZ1 SW GND M TIP
LZ2
V -400

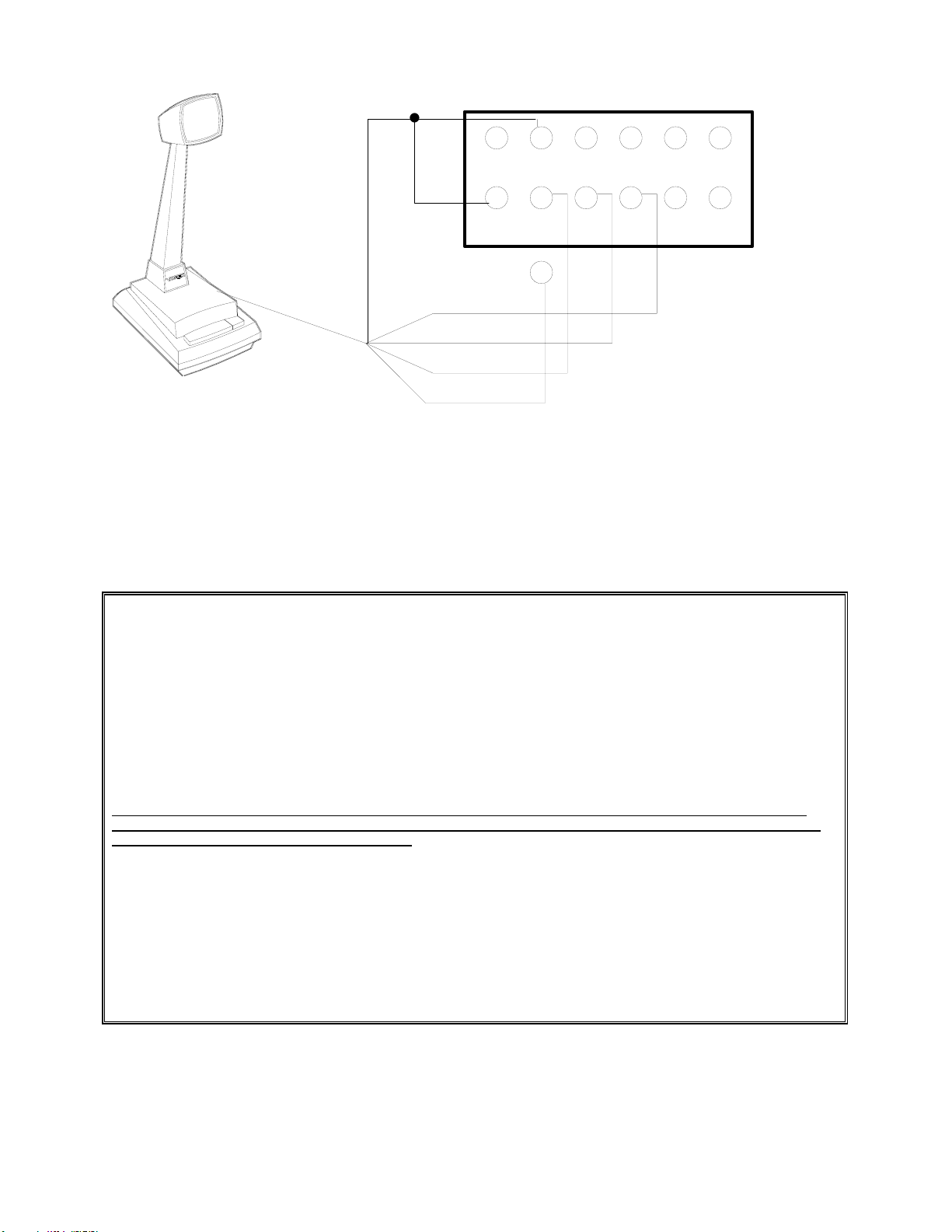

FIGURE 1 - CONNECTING ARRANGEM ENT
BLACK (-)
RED (+)
WHITE
GREEN
SHIELD
V -9939A TE R M IN A L LA Y O U T
Strap sh eld to pos tve pow er lead.
*
*
