Valeo SC600 Australien User manual

Rev. 21.11.2018
Id.No. DOK30605
BUS BODY ELECTRONICS
SC600 AUSTRALIEN
Operatinginstructions
-Busdriver

BUS BODY ELECTRONICS
1
Contents
Contents 1
List of Figures 2
List of Tables 2
1Introduction 3
1.1 Intended purpose 3
1.2 Symbols used 3
1.3 Description of the control panel 4
1.4 Description of the display 4
1.5 Modi overview 5
2Use 6
2.1 Activation/deactivation 6
2.1.1 Activation 6
2.1.2 Deactivation 6
2.2 Auto mode 6
2.2.1 Activation 6
2.2.2 Deactivation 7
2.3 Configuring the blowers manually 7
2.3.1 Activating the controller manually 7
2.3.2 Setting blower level 7
2.3.3 Deactivating the controller manually 8
2.4 Fresh air/recirculating air function 8
2.5 Setting the temperature 8
2.6 Errors 9
2.6.1 Error detection mode 9
2.6.2 Error overview 10

BUS BODY ELECTRONICS
2
List of Figures
Figure 1 - SC600 control panel..................................................................................4
Figure 2 - SC600 display.........................................................................................4
Figure 3 - SC600 mode overview...............................................................................5
Figure 4 - SC600 start display...................................................................................6
Figure 5 - SC600 deactivation...................................................................................6
Figure 6 - SC600 Auto mode activated ........................................................................6
Figure 7 - SC600 Auto mode activated, Cooling mode......................................................6
Figure 8 - SC600 Auto mode activated, Heating mode......................................................6
Figure 9 - SC600 Auto mode deactivated .....................................................................7
Figure 10 - SC600 setting the blower level manually........................................................7
Figure 11 - SC600 recirculating air function activated.......................................................8
Figure 12 - SC600 setting the temperature....................................................................8
Figure 13 - SC600 errors.........................................................................................9
Figure 14 - SC600 Error detection mode ......................................................................9
Figure 15 - SC600 normal operating display..................................................................9
List of Tables
Table 1 - Error code overview ................................................................................ 10

BUS BODY ELECTRONICS
3
1 Introduction
1.1 Intended purpose
The SC600 is a system intended to control the HVAC components (heating, ventilation, air-
conditioning) in buses, for example roof-top air-condition systems, heating devices, etc. It con-
sists of a control panel (control device as an interface between human and machine) that is
integrated into the dashboard.
This control panel allows the driver to control the roof-top air-conditioning system that has ven-
tilation, cooling and heating functions for the roof. Additionally, this control panel can also be
used to control the heating system on the floor.
The controller for the air-conditioning systems components can operate automatically. To do
so, the bus driver simply has to set the desired temperature.
These operating instructions apply to the following air conditioning system variants:
- Air-conditioning system with roof heating (AC & roof heating).
1.2 Symbols used
Note

BUS BODY ELECTRONICS
4
Figure 2 - SC600 display

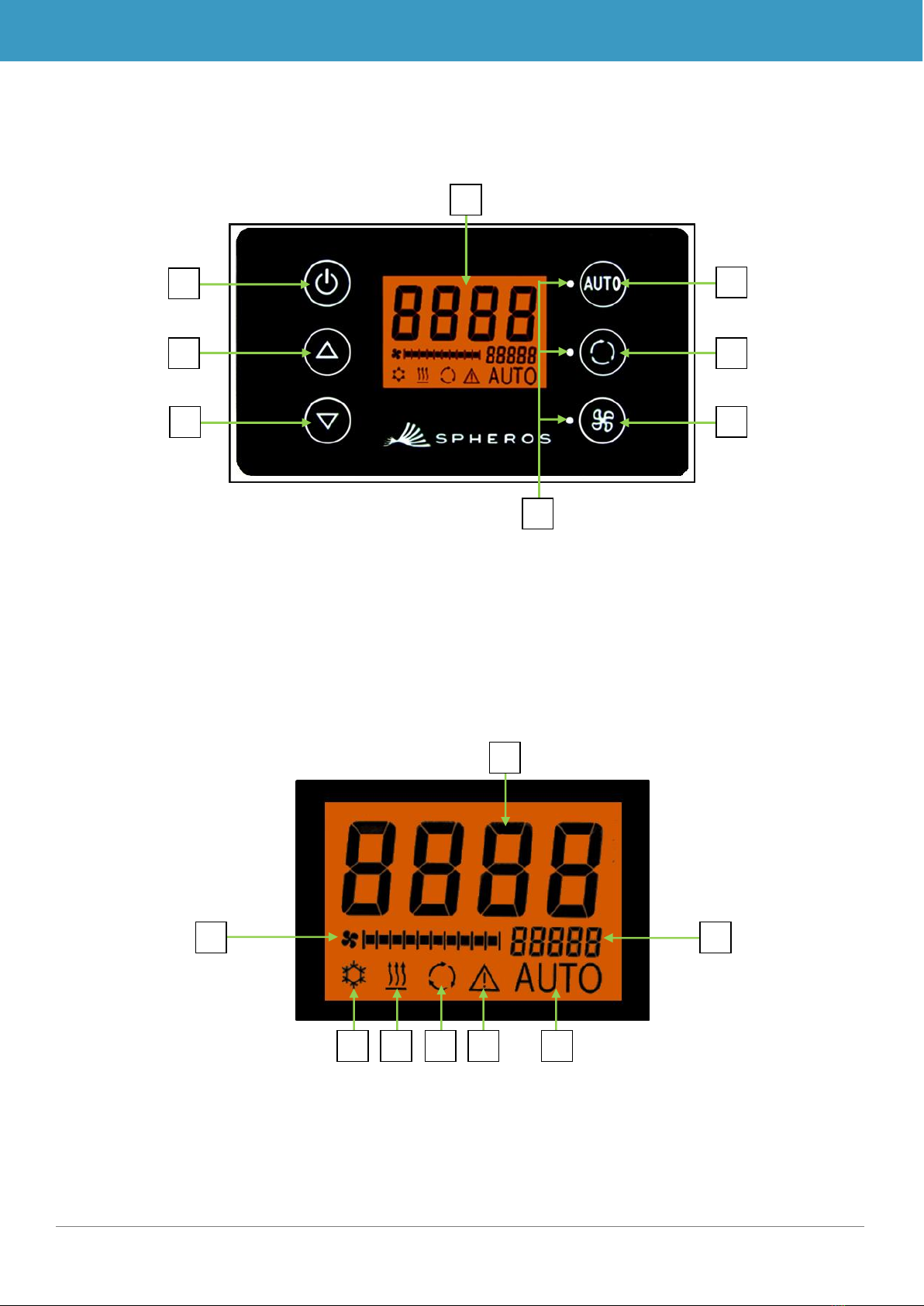

1.3 Description of the control panel
The control panel components are depicted and described in the following image.
1.4 Description of the display
1. Display
2. On/off button
3. UP button
4. DOWN button
5. Function status light
6. Blower button
7. Fresh air/recirculating air button
8. Auto button
A. Desired value display, room temperature
B. Blower level manual
C. Cooling mode
D. Heating mode
E. Recirculating air on
F. Error display
G. Auto mode active
H. External temp. display
1
2
3
4
6
7
8
5
Figure 1 - SC600 control panel
B
H
C
A
D
F
G
E

BUS BODY ELECTRONICS
5
1.5 Modi overview
The SC600 system includes 2 different modes –Operating mode and Error mode.
Figure 3 - SC600 mode overview
SC600
Operating mode:
Includes all of the
functions and infor-
mation summa-
rized under point 2
as well as Error
mode.
The normal operat-
ing display includes
all of the elements
provided here in
the example:
Error detection
mode:
Mode to display all
errors that occurred
and their probability
of occurrence.
For more infor-
mation, see points
2.6.1 and 2.6.2.
The error display in-
cludes all of the ele-
ments provided
here in the example:

BUS BODY ELECTRONICS
6
2 Use
2.1 Activation/deactivation
2.1.1 Activation
Press button
➔Sets the last configured temperature; Auto mode off
(Figure 4).
2.1.2 Deactivation
Press button
➔Display deactivated.
Press button for 2 seconds until OFF appears
➔System deactivated.
2.2 Auto mode
2.2.1 Activation
Press button if Auto mode is off
➔Mode is on - corresponding status light and function
symbol light up on the display (Figure 6).
Note
Auto mode can be turned on only if the motor has been
started.
Note
If Auto mode is on, the system automatically turns on Cool-
ing mode and Heating mode (if available) as needed
(Figures 7 and 8). The air-conditioning system and heater
are permanently set to dehumidify.
Figure 6 - SC600 Auto mode activated
Figure 7 - SC600 Auto mode activated,
Cooling mode
Figure 4 - SC600 start display
Figure 5 - SC600 deactivation
Figure 8 - SC600 Auto mode activated,
Heating mode

BUS BODY ELECTRONICS
7
2.2.2 Deactivation
Press button if Auto mode is on
➔Mode is off - corresponding status light and function
symbol are off (Figure 9).
2.3 Configuring the blowers manually
2.3.1 Activating the controller manually
Press button
➔Manual operation of the blower is activated - the
blower will continue running at the current speed.
➔The blower level can be manually set 3 seconds after
pressing the blower level button (the corresponding
status light blinks during this time).
2.3.2 Setting blower level
The blower can be set in level increments of 0 (blower speed = 0%) to 10 (blower speed =
100%).
Press button
➔Blower level +1 ( →).
Press button
➔Blower level -1 ( →).
Note
When Auto mode is deactivated, the air conditioning com-
pressor (after a run time of 90 seconds max.) and the heater
are turned off.
The blowers will continue to be controlledautomatically if the
blower level was not manually configured.
Note
Configurations can only be applied within thepermitted limits
(e.g. vehicle motor off →blow speed max. 25%).
If the blower is set below 20%, the cooling and heating func-
tions are deactivated.
Figure 9 - SC600 Auto mode
deactivated
Figure 10 - SC600 setting the blower
level manually

BUS BODY ELECTRONICS
8
Figure 12 - SC600 setting the
temperature
2.3.3 Deactivating the controller manually
Press button for 3 seconds
➔Manual controller deactivated.
Or:
Press button
➔Manual controller deactivated.
2.4 Fresh air/recirculating air function
Press button when fresh air valves are open
➔System activates recirculating air function for 10
minutes (corresponding function status light and dis-
play symbol light up).
➔After running for 10 minutes, the system turns off the
manual recirculating air function. The system then
controls the fresh air valves automatically.
➔Pressing the button again within 10 minutes will de-
activate the manual recirculating air function. The
system then controls the fresh air valves automati-
cally.
2.5 Setting the temperature
Press button
➔Desired temperature +1 °C.
Press button
➔Desired temperature -1 °C.
Note
If the manual recirculating air function is on, the correspond-
ing status light and the display symbol will light up (Figure
11).
Note
Temperature can be configured for 1°C intervals between 15
°C and 28 °C.
Figure 11 - SC600 recirculating air function
activated

BUS BODY ELECTRONICS
9
2.6 Errors
2.6.1 Error detection mode
2.6.1.1 Activation
Press and buttons at the same time for 2 seconds
➔Mode is on.
➔Error code (F001) and occurrence count (1 here) will
be displayed (Figure 14).
2.6.1.2 Error detection
➔Scroll through the error codes with or .
➔Reset the counter with (after resetting, the coun-
ter shower the value 1 if the error persists).
2.6.1.3 Ending
Press and buttons for 2 seconds
➔Normal operating display appears (Figure 15).
Note
If a system error occurs, the error symbol will appear on the
display (Figure 13).
Figure 13 - SC600 errors
Figure 15 - SC600 normal operating
display
Figure 14 - SC600 Error detection mode
