Valor 492CNA User manual

n~an~ronr
GAS FIREDVENTED ROOM HEATERS
r
WARNING: Htheinformation in this
manual is not followed exactly,
a
fire orexplosionmayresultcausing
personal injury or loss of life.
-Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
OpenWindows.
Do not try to light any
appliance.
Do not touch any electrical
switch; donotuseany phone
in your building.
Extinguish any open flame
Immediately call your gas
supplier from
a neighbor's
phone. Follow the gas
supplier's instructions.
If you cannot reach your gas
supplier, call the fire
department.
-Installation and service must be
performed by a qualified installer,
serviceagencyorthegassupplier.
INSTALLERS & OWNERS MANUAL
INSTALLER - PLEASE LEAVETHIS MANUALWITH THE OWNER
(Vous pourrezvous procurerunmanuelenlangueFran~aisechezvotre concessionaire) 600A287

CAUTlON
Duetohightemperatures,the roomheatershould Keep the area below the front apron and the
!
be locatedoutof traffic andawayfrom furniture rectangular slots down each side of
the case
and draperies. backcleartoprevent obstructionoftheairflow
-1
for combustion.
Children and adults should be alerted to the
hazardsofhighsurfacetemperaturesandshou:d Allventedroomheatersrequireasourceoffresh
stay awaytoavoid bumsor clothing ignition. airinordertoventproperly. Theventingsystem
shouldbechecked periodically.
Young children should be carefully supervised Recenttrends in home improvement and
new
when they are inthe same room as the room
tighterconstructiontechniqueshavecontributed
heater. to problems with venting. If you suspect that
e yourheateris not ventingproperly,donotoperate
Clothingorotherflammablematerialshouldnot and
seek expert advice.
be placedonor near the roomheater. Foraddedsafety, this heaterisequippedwith a
ventsensorwhichwillreacttoincorrectventing
Theglasswindow unit mustbe put backinplace byshingd&n the
gas supply.
priortooperatingtheheaterif it hasbeenremoved
for servicing or cleaning. Donotusethisheaterifany parthasbeenunder
water. Immediately call a qualified service
Thisroomheatershouldbeinstalledandrepaired technician to inspectthe heater andtoreplace
by a qualifiedservice person. any part of the control system and any gas
control which hasbeen under water.
The heatershouldbeinspectedbeforeuseand
at leastannuallybyaprofessionalsewiceperson. Ifanychanaesaremadetatheroomconstruction
Morefrequent cleaning may berequired dueto inthevicinityoftheheaterafterinstallation(e.g.
excessivelintfromcarpetting, beddingmaterial, additional mantle etc.), mn!te sure that such
-
etc. It isimperative that controlcompartments, changesconformtotheinstallationrequirements
burnersandcirculatingair passagewaysof the inthis manual.
heater bekept clean. When equipped
with the optional vent primer
Keep curtains, clothing, furniture and other (Part#300VP) or powervent kit(Part
#501 PVK),
flammablematerials at least36ins(900mm)from the heater must
be installed and electrically
thefront andtop oftheheater. grounded inaccordance with local codes or, in
theabsenceoflocalcodes,withthelatestedition
Keep the heater area well clear and free from oftheNationalElectricalCodeANSIINFPA70(in
combustible materials, gasoline and other
U.S.A.) or CSA C22-1 CanadianElectricalCode.
flammablevapors andliquids.
Neverattempttobumpaperoranyothermaterial
intheheater.
Note
-
On firstlightingyour newheater,theremaybeaslightodor andtheappearanceofasmallamountof vapor.
This isnormal
with any new gas appliance. Itis not harmfulandwill disappearwithin a shorttime.

INSTAUATION INSTRUCTIONS
1. GENERAL
This appliance is certified by the Canadian
/'.
Gas Association and the American Gas
Association for use with natural gas.
The installationmustconform with localcodes
or, in the absence of local codes,
with the
currentCANICGA1-B149 InstallationCodein
Canada or the current National Fuel
Gas
Code,ANSI2223.1in the U.S.A Onlyqualified
(licensed or trained) personnel should
installthe appliance.
The applianceratingplateisontheinnerface
ofthe back panel
at theleftside. There isalso
a label giving the serial number,on the,right
-
side of the outer case nearthe bottom.
Appliance data:-
The overall dimensions are shown in fig. 1.
Gross Weight: 62.71bs (28.4Kg)
Nett Weight: 56.31bs (25.5Kg)
Burner type: Aerated front & rear simplex
tubes with combined pilot
& cross lighting
burner.
Gas Connection:
A 3/6" N.P.T. elbowconnector isprovidedfor
r‘
connectiontotheapplianceinletpipelocated
atthe center back.
Orifice Data
For verification only. Do not attempt to drill or'
otherwise modifyappliance input.
Controlvalve:-
Four position fitted with flame supervision
device and integral piezo-electric igniter.
Pilot Unit:-
Right side of firebox. Combined Pilot jet,
thermocouplesensor
& Electrode.
1
OUTPUT
MAX
15000
12750
GAS
NATURAL
PROPANE
Mantles: For a mantle not more than 6" deep - Minimum clearance is 3' above extreme top surface of heater.
For mantle of greater depthadd 112" extra clearance for each extra 1' of mantie depth
Fig. 1 DIMENSIPNS 8 CLEARANCES
INPUT
MAX
20000
17000
MIN
7700
8750

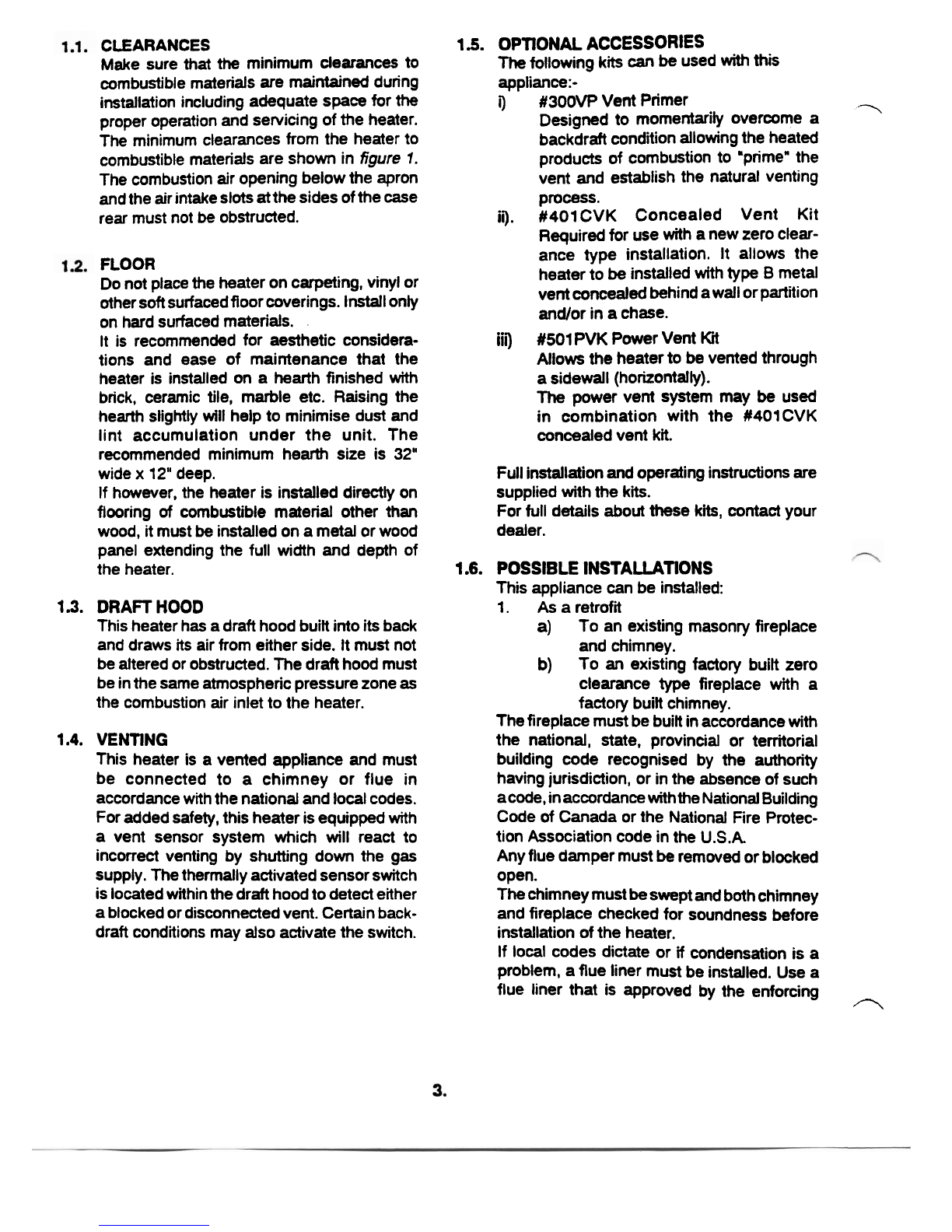

CLEARANCES
Make sure that the minimum clearances to
combustible materialsare maintainedduring
installationincluding adequate space for
the
proper operationand servicingof the heater.
The minimum clearances from the heater to
combustible materialsare shown in
figure 7.
The combustionair opening belowthe apron
andtheairintakeslots
at thesidesofthecase
rear must not
be obstructed.
FLOOR
Donotplacethe heateroncarpeting, vinyl or
othersoftsurfacedfloorcoverings.Installonly
on hardsurfacedmaterials.
It is recommended for aesthetic considera-
tions and ease of maintenance that the
heater is installed on a hearth finished
with
brick, ceramic tile, marble etc. Raising the
hearthslightly
will helpto minimise dust and
lint accumulation under the unit. The
recommended minimum hearth size is
32"
wide x 12"deep.
If however, the heater is installeddirectly on
flooring
of combustible material other than
wood, itmust
be installedona metalor wood
panel extending the full width and depth of
the heater.
1.3. DRAFT HOOD
Thisheaterhas adrafthoodbuiltintoitsback
anddraws its air from either side. Itmust not
bealteredor obstructed.Thedrafthoodmust
beinthesameatmosphericpressurezone
as
the combustion air inlettothe heater.
1.4. VENTING
This heater is a vented appliance and must
be connected to a chimney or flue in
accordancewiththenationalandlocalcodes.
Foraddedsafety, thisheaterisequippedwith
a vent sensor system which
will react to
incorrect venting by shutting down the gas
supply. Thethermallyactivatedsensorswitch
islocatedwithinthedrafthoodtodetecteither
ablockedor disconnectedvent. Certainback-
draft conditionsmay also activatethe switch.
1 b. OPTlONALACCESSORIES
The following kits can be used with this
appliance:-
i) #300VP Vent Primer -
Designed to momentarily overcome a
backdraftconditionallowingthe heated
products of combustion to 'prime" the
vent and establish the natural venting
process.
ii). #401CVK Concealed Vent Kit
Requiredfor usewith anewzeroclear-
ance type installation. It allows the
heaterto
be installedwithtype B metal
ventconcealedbehindawallorpartition
andlorina chase.
iii)
#SO1 PVK PowerVent Kit
Allows theheaterto beventedthrough
a sidewall(horizontally).
The power vent system may be used
in combination with the #401CVK
concealedvent kit.
Fullinstallation and operatinginstructionsare
suppliedwiththe
ki.
Forfull details about these kits, contact your
dealer.
1.6. POSSIBLEINSTALLATIONS
This appliance canbe installed:
1. As a retrofit
a) To an existing masonry fireplace
and chimney.
b) To an existing factory built zero
clearance type fireplace with a
factory builtchimney.
Thefireplacemustbebuiltinaccordance with
the national, state, provincial or territorial
building code recognised by the authority
havingjurisdiction, or inthe absenceof such
acode,inaccordancewith
the NationalBuilding
Code
of Canadaor the National Fire Protec-
tionAssociationcode inthe
U.S.A
Any fluedampermust be remwedorblocked
open.
Thechimneymust
be sweptandbothchimney
andfireplace checkedfor soundness before
installationof the heater.

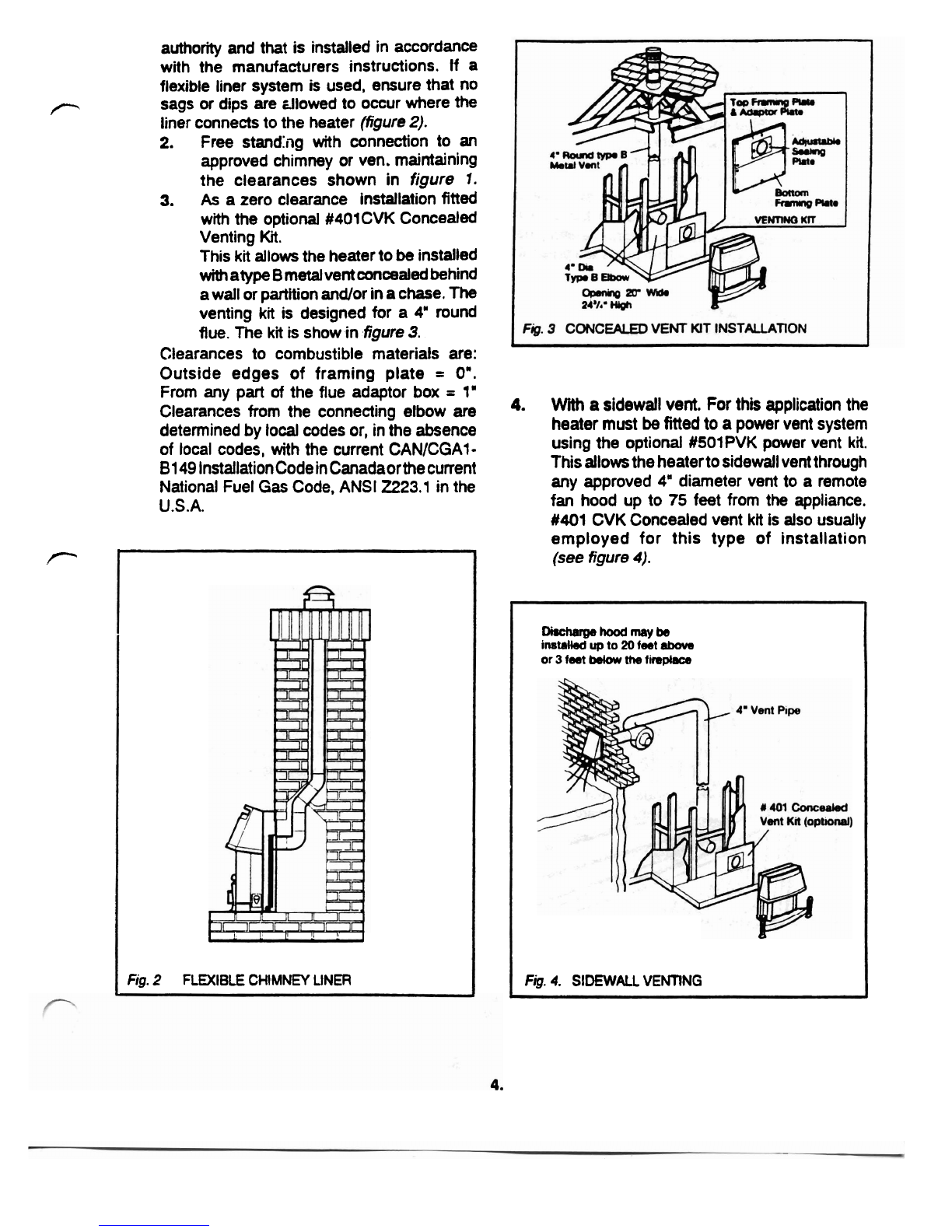

If local codes dictate or
if condensation isa
problem, a flue liner must beinstalled. Usea
flue liner that is approved by the enforcing
0

authority and that is installedin accordance
with the manufacturers instructions. If a
flexible liner system is used, ensure that no
P
sags or dips are zllowedto occur where the
linerconnectstothe heater (figure 2).
2. Free standhg with connection to an
approved chimney or ven. maintaining
the clearances shown in
figure I.
3. As a zero clearance installationfitted
with the optional #401CVKConcealed
Venting Kit.
This kit allowstheheaterto be installed
with atype B metalventconcealedbehind
a wallor partitionand/or in a chase. The
venting kit is designed for a 4" round
flue. The kit isshow in figure 3.
Clearances to combustible materials are:
Outside edges of framing plate
= 0".
I 1 1 I--.- 7
Fig. 2 FLEXIBLECHIMNEY LINER
Di=hwP-mcrybe
instnW up to 20 feet atwe
or 3 feet bdow the firsplace
Fig. 4. SIDEWALL VENTING
From any p& of the flue adaptor box = 1"
Clearances from the connecting elbow are
4.
With a sidewallvent. Forthis application the
determinedby localcodes or, inthe absence heatermust
be fittedto a powervent system
of local codes, with the current CANICGA1- using the optional #SOlPVK power vent
kit.
81 49 InstallationCodeinCanadaorthecurrent Thisallowstheheatertosidewallventthrough
NationalFuel Gas Code, ANSI 2223.1 inthe any approved
4' diameter vent to a remote
U.S.A.
fan hood up to 75 feet from the appliance.
#401 CVK Concealedvent ktt is also usually
P
employed for this type of installation
(see figure 4).

2. UNPACKING
The cartoncontains the following:-
1 Heaterassembly.
3 Ceramic logs.
1 Flue collar.
1 Packfixing screws.
2
Plastic caps forfoot screws.
1 Smoke matchtube.
Remove allthe itemscarefullyto prevent damage.
Some items may
be contained in the packaging
fitments
- Examinethe packaging carefully before
discarding.Checkthat ailtheitemsarepresentand
undamaged.
PREPARATION
Standthe heater upright.
Detachthewindowtrim unitbysliding
its side
channels upwards to clear the location
bracketsonthe window frame sides. Pullthe
bottomofthetrimunitforwardslightlyandthen
pulldown to clear the outer case hood
- see
figure
5,
Remove the window unit by detaching the
knurledscrews at the sides near thetop.
Lift
the window unit up to clear locations at the
bottomandplacecarefully aside (see fig. 6).
1 - Remove 2 Knurled Screws
2 - Lilt Window Clear of Locations
Fig. 6 WINDOW UNIT REM WAl
Removethecontrolknobbypullingclearfrom
the controlvalve spindle.
Detach the control bezel by removing the
knurledscrewbelowthecontrolknobopening
(see figure 1).
Removetheknurledscrewsatthecasesides
(see fig. 7).
/7
Pullthe bottom of the case forwards. Lift the
case upwardsto clear the top rear brackets
then lift forwards to clear. Place carefully
aside.
Fit the flue collar to the back of the heater
usingthe fourscrews provided.
4. CHECK IGNITIONSPARK
Thepilotelectrodeissituatedattherightside
of the firebox abovethe rear port
of the pilot
& cross lightingburner - See figure 7.
Check that there is an ignition spark at the
pilotport.

Fig. 7 PILOTIGNITION SYSTEM
A
Placethe controlbezeloverthe controlvalve
spindleandlocatethetwopegsintheholesin
the controlvalve bracket.The indicator mark
on the bezel will allow the rotation
of the
control knob at each setting to be checked
:-
while the outer case isdetached.
Fit the control knob over the control valve
spindle.
To initiatea spark depress the control knob.
While keeping
it depressed, turn to IGN
position.Thesparkshouldbeproducedwhile
turning.
If there is no spark producedduring several
attempts, check that the electrode lead is
properlyconnectedto the electrode and that
the spark gap is correct. Replace parts,
if
necessary,asdescribedintherelevantservic-
ingsectionsof this manual.
5. INSTALL THE FIRE
To prevent hearth damage, two plasticcaps
are includedinthe accessory pack.
Fit these
caps over the heads of the levellingscrews
inthe front feet.
Levelthe fire byslackeningthetwo lock nuts
and turning the levelling screws in the front
feetupordownas requiredwhiletheybearon
thehearth.Whenthefireislevelandsquareto
the wall, retightenthe lock nuts.
P
6. CONNECT THE GAS SUPPLY
To gain access to the appliance connection
point,thecenterpanelinthefireboxfloormust
be removed by unscrewingfour screws and
lifting
it clear (see figure 8).
. .
-
Rear Lip of Floor Panel
under rear of Firebox
r
Remove 4 Screws
Fig. 8 FIREBOXFLOOR PANELREMOVAL
Route the supply gas line to the heater
connectionpoint.
The appliance is supplied with a 318"NPT
elbowconnectorfor connectiontothesupply
Pipe.
Use only new black iron or steel pipes or
coppertubing
if acceptable-checklocalcodes.
Note: InU.S.A. coppertubingmust be internally
tinned for protection against sulfur
compounds.
Unions ingas lines should beof groundjoint
type.
The gas supplylinemustbesizedandinstalled
to provide a supply of gas sufficientto meet
themaximumdemandoftheappliancewithout
unduelossof pressure.
Sealantsusedmust
be resistanttothe action
of
all gas constituents including L.P. gas.
Sealants should
be applied lightly to male
threads to ensure excess sealant does not
enter gas lines.
The supply line should include a manual
shut-off valve andunioninthe linefor safety
andtoallowtheappliancetobedisconnected
for servicing.
Pressure :est the supply line.
The appliance
and its individual shutoff valve must
be
disconnectedfromthegassupplypipingsystem
during any pressure testing of that system
attestpressuresinexcessof 112psig(3.5kPa).

The appliance must be isolated from
the gas supply piping system
by dosing
its individualmanual shutoff vatve
duringany pressuretestingof the gas supply
piping system at test pressures equal to or
lessthan 112psig (3.5kPa).
All pipingandconnectionsmust be testedfor
leaks after installationor servicing.
All leaksmust
be correctedimmediately.
When testingfor leaks:-
(a)
Make sure that the appliance control
knob is atthe
OFF position.
(b) Open the manual shut-off valve.
(c) Test for leaks by applying a liquid
detergent or soap solutionto alljoints.
Bubbles forming indicate a gas leak.
NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKS.
(d) Correct
any leak detectedimmediately.
Refitthefireboxfloorpanelwhentesting
resultsare satisfactory.

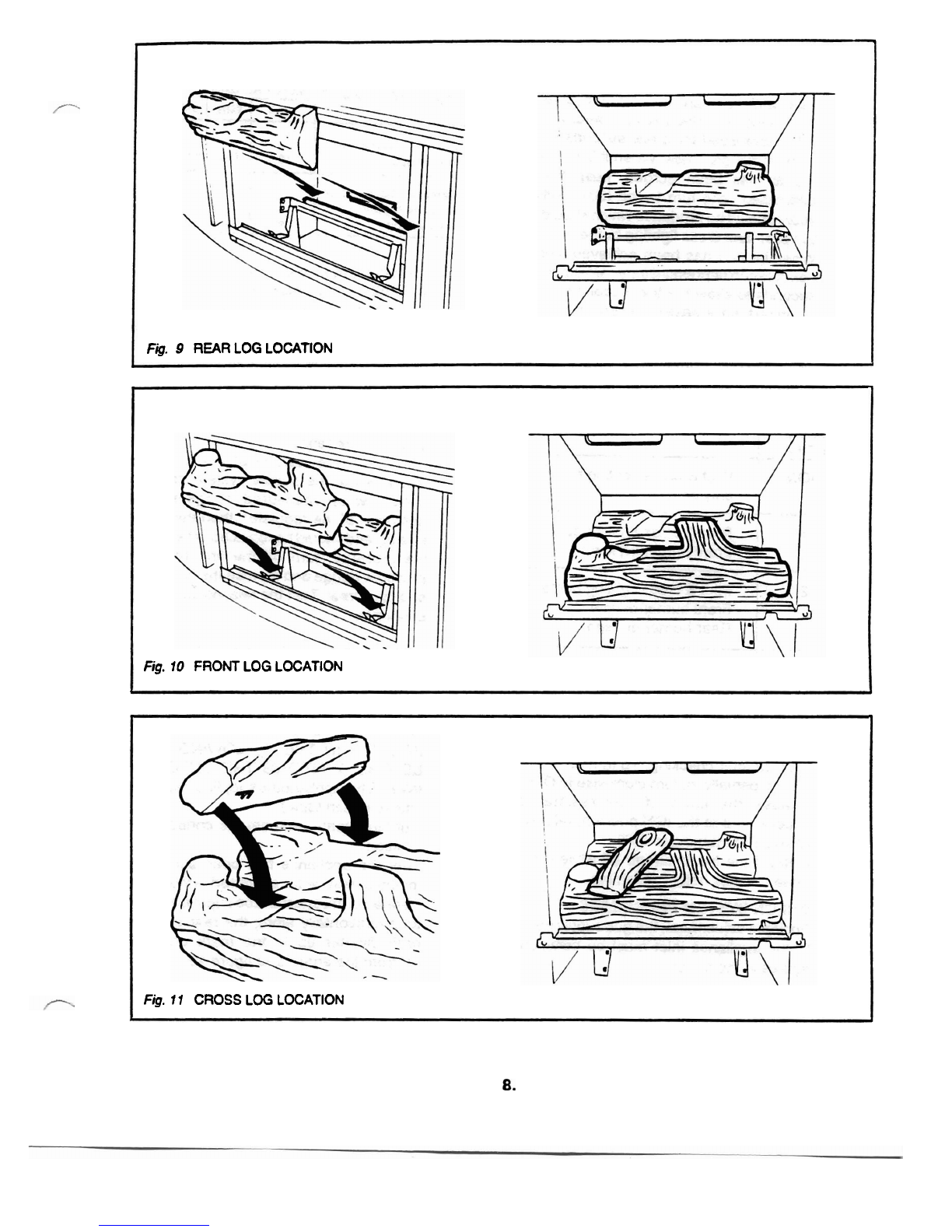

7. LOG INSTALLATION
7.1. Placethe rear log(thelogwithonly one short
stub) in the retaining cradle behind the rear
burner tube
with its back against the firebox
back wall
(fig. 9). The short stub should be at
the top right
of the log.Centerthe logso that
thegaptothefireboxwallsisthesameateach
side.
7.2. Place the front log on the retaining cradles
between the rear and front bumer tubes
(fig. 10). Center the logso that the gap to the
firebox walls isthesame at eachside.
7.3. Place the cross log in position (see fig. 11).
The front of this log is indicatedby the letter
"Fu embossedon its underside.Makesurethat
thefront
of the logisseatedinsidethe hollow
inthe front logand is not raisedinfront of
it.
7.4. Replace the window unit. Locate its bottom
edge inthe support channels at the firebox
sides. Refix the knurledscrews
at the sides
nearthe top.

Fig. 10 FROM LOG LOCATION
Fig. 9 REAR LOG LOCATION
Fig. 11 CROSS LOG LOCATION
I

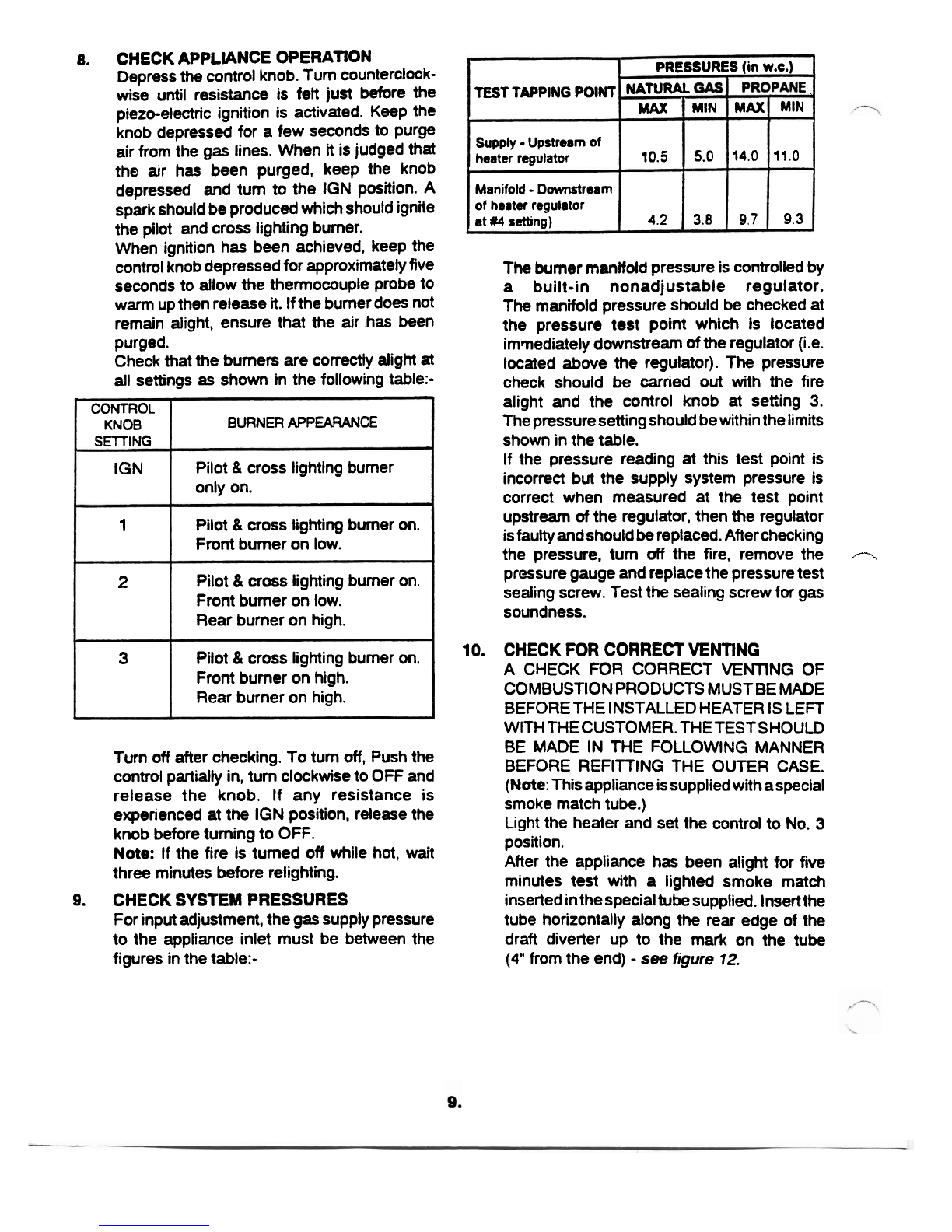

8. CHECK APPLIANCE OPERAWON
Depress the controlknob.Turncounterclock-
wise until resistance is felt just before the
piezo-electric ignition is activated. Keep the
knob depressed for a few seconds to purge
air from the gas lines. When it isjudged that
the air has been purged, keep the knob
depressed
and turn to the IGN position. A
sparkshouldbeproducedwhichshouldignite
the pilot andcross lightingburner.
When ignition has been achieved, keep the
controlknobdepressedfor approximatelyfive
seconds to allow the thermocoupleprobeto
warm upthenrelease
it. Ifthebumerdoesnot
remain alight, ensure that the air has been
purged.
Checkthatthe burnersare correctly alight
at
all settings as shown inthe following table:-
Turnoff after checking. To turn off, Pushthe
controlpartiallyin,turnclockwisetoOFFand
release the knob. If any resistance is
experiencedat the IGNposition, releasethe
knob beforeturningto OFF.
Note: If the fire is turned off while hot, wait
three minutesbefore relighting.
CONTROL
KNO6
SElTING
IGN
1
2
3
9. CHECK SYSTEM PRESSURES
Forinputadjustment,the gas supplypressure
to the appliance inlet must be between the
figures inthetable:-
BURNERAPPEARANCE
Pilot & cross lighting burner
only on.
Pilot
& crosslightingburner on.
Frontburneron low.
Pilot 8 crosslightingburner on.
Frontburneron low.
Rear burner on high.
Pilot & crosslightingburneron.
Frontburner on high.
Rear burneron high.
The burnermanifoldpressureiscontrolledby
a built-in nonadjustable regulator.
The manifoldpressureshould be checkedat
the pressure test point which is located
immediately downstream of theregulator(i.e.
located above the regulator). The pressure
check should
be carried out with the fire
alight and the control knob at setting
3.
Thepressuresettingshouldbewithinthelimits
shown inthetable.
If the pressure reading at this test point is
incorrect but the supply system pressure is
correct when measured at the test point
upstream of the regulator,thenthe regulator
is
faulty andshould be replaced.Afterchecking
the pressure. turn off the fire, remove the
-,
pressuregaugeandreplacethepressuretest
sealing screw. Testthe sealingscrewfor gas
soundness.
TEST TAPPING POINT
Supply - Upstreamof
heater regulator
Manifold - Downstream
of heater regulator
at #4 setting)
10. CHECK FOR CORRECT MNTlNG
A CHECK FOR CORRECT VENTlNG OF
COMBUSTIONPRODUCTSMUSTBEMADE
BEFORETHEINSTALLEDHEATERISLEFT
WITHTHECUSTOMER.THETESTSHOULD
BE MADE IN THE FOLLOWING MANNER
BEFORE REFllTlNG THE OUTER CASE.
(Note:Thisapplianceissuppliedwithaspecial
smoke matchtube.)
Lightthe heater and set the control to No.
3
position.
After the appliance
has been alight for five
minutes test with
a lighted smoke match
insertedinthespecialtubesupplied. Insertthe
tube horizontally along the rear edge of the
draft diverter up to the mark on the tube
(4" fromthe end) - see figure 12.
PRESSURES (in w.c.)
NATURAL MAX
14.0
9.7
MAX
10.5
4.2
,
MIN
11.0
9.3
MIN
5.0
3.8

I
PLACE A SMOKE MATCH IN
THE TUBE.
INSERT TUBE HORIZONTALLY
ALONG THE EDGE OF
THE DRAFT DNERTER
UP TO THE MARK 4' FROM
THE END OF THE TUBE
#
#/
//
Fig. 12 VENTING CHECK
The installation is satisfactory if smoke is
drawnintothe draft diverter.
If the vent is blocked or has strong reverse
flow, the thermally actuated switch mounted
inthe draft diverter openingwill automatically
shut off the gas supply within about five
minutes.
If the smoke is not drawn in, leavefor about
ten minutes andthentry again.
If the smoke is still not drawn into the draft
diverter,turntheheateroff andcheckcauseof
lack of draft. if necessary get expert advice.
11.
AERATION ADJUSTMENT (See Fig. 13)
Natural gas appliances have adjustable
shutters to control primary aeration on
both rear and front burner tubes.
Propane appliances have an adjustable
shutter on the front burner tube only.
The air holes are at the right side of the
tubes. The appliances are supplied set at
maximum aeration. For the majority of
installationsnoadjustmentwillbenecessary.
However, in a few instances, performance
may be improvedby reducingthe aeration
by sliding the shutters to the left or right.
Evaluatethe aerationonly after the heater
haswarmedup(approximately
15 minutes).
Decreasingaerationwillcausetheflamesto
appearmoreyellowororangerevealingless
glow In the logs. Too little aeration may
resultinblackcarbonforminganddropping
intothe firebox.
NATURAL
REAR
BURNER
PROPANE *-? ,
FRONT
BURNER '-s) \ 1- 1
( SHrnR
WITH SLOT) I I
I Fig. 13
FIT THE OUTER CASE
Detach the control knob and control bezel.
Refit the outer case. Make sure that the
flange at the top rear of the outer case
locates over the top corner brackets on tk
back panel.
Securethe case at the bottomsides withthc
knurledscrews previously removed.
Refitthecontrolbezelusingtheknurled
screw
Make sure that the two pegs on the beze
locate in the holes in the control valvt
bracket.
Fit the control knob over the control valvc
spindle. Pushfirmly on.

Make sure that the logs are not dislodged
when refittingthe case.
If necessary,adjustthe brassandironsatthe
casing front sides by slackening the screws
behindtheandirons andmovingtheandirons
until they rest on the hearth. Retighten the
screws.
Refitthewindowtrim.
MAKE FINAL CHECKS AND INSTRUCT
OWNER
Recheck the operation of the fire on all
control positions.
Instructtheownerhowtocorrectlyoperate
the ..
heaterandespeciallypoint outthefollowing;-
The heater has a pilot. To lightthe pilot, the
control knob must be depressed andturned
tothe IGNposition.
The pilotflame
can beviewedto check that it
is alight. Show the owner where to view the
pilot.Point outtheillustrationshowinghowto
viewthe pilot.
Explainthe full lighting and control position
sequence and howtoturn
off.
Advise that the fire can be lit with a long
matchor taper
if necessary.
Advise that the window will require cleaning
periodically both outside and inside as
describedinthe instructions. Explainhow to
removeandreplacethewindow unitandlogs
for cleaning etc. Stress that cleaning should
only be carried out when the heater is cold.
Advisethat thefire may give off a slight odor
while new. This isnormalandit
will disappear
after a short periodof use.
Advisethatthebright
metal fireboxinterior will
color with use and that this is quite normal.
Emphasise that if the glass panel is.broken
or damaged, the heater should beturned off
and not used untilthe window unit is refitted
with anauthorized replacement.

Fulllightinginstructions are givenonthe next
page.
Foryoursafetythisheaterisfitted with aFlame
SupervisionDevicewhichwillshut
off thegas
supply
if foranyreasonthepilotflamesgoout.
This device incorporatesa fixed probewhich
senses the heat from the pilot flame. If the
probe is coolthe devicewill prevent any gas
flow unless the control knob is held, down.
When
first turned on, the decorative flames
will appear predominantly blue. After
approximately
15 minutes these flames will
turnyellow.
After approximately
3 hours use at the high
controlsettingthefuel pieces
will showareas
of charcoal gray color
as would real burning
logs.
14.1. Lighting If ignition spark fails
Inthe unlikely event of failure of the ignition
spark, the heater can belitby a longburning
match
as follows:
Detach the window trim by sliding its side
channels upwards to clear the location
bracketsonthewindow
frame sides. Pullthe
bottomofthetrimforwardslightlyandthenpull
downtoclearthe outercasehood
- see figure
5 ininstallationsectionof this manual.
Lightthematchandinsertthroughtheopening
intheblack
bar nearthebottomrightcornerof
thewindow. Insertthespillsothat about
1" of
thematchisinsidetheblack
bar seefigure 14.
.
CONTROL
KNOB
SErnNG
IGN
1
2
3
,
1 " inside
Fig. 14 MATCHLlGHllNG
BURNER APPEARANCE
Pilotburner only on
Pilotburner on
Frontburneron low
Pilotburner on
Frontbumeronlow.
Rear burner on high.
Pilot burneron
Frontburner on high.
Rearburner on high.
Depressthecontrol knobandturntothe IGN
position. Keepit depressedwhile lightingthe
pilot and for a few seconds afterwards. The
pilotflamecan
be seenbylookingthroughthe
gap at the front right corner of the logs
-
see figure 15. Whenthe pilot is satisfactorily
alight, replacethe window trim.
-
Fig. 15 PILOT FLAME POSITION

= FOR YOUR SAFETY READ BEFORE LIGHTING-
[ WARNING: u you a not IOIW thew hstruc~mrexacuy, afire a exwonmy re nu^ a- popwI
damage, personalln(uy a lossof Ilfe.
I
A. lhls appllmce has a pllot which must
k hghlod by hnd. When UghUng tho pW, follow those
lnstrudlonnexactly.
8. BEFORE
UCHTWG rnwll all around the appllrncr arm for gu. Bo weto smoU nod to UH floor
becausewmogas b heavier thanair andw01 utlk on lha fbor.
WHAT TO DO IFYOU SUEU GAS.
Do ndtryto light any applknce.
Donottouch myelrctrlcswltch; donot wr anyphone h your bullding.
lmmodiately call your 91s nupplier from a mighbor'a phom. FoUow the gar supplier's
LnrtNcUom.
# youamot nrch your gas aupplhr, callthe fln doprrlmml.
C.
U.r only your hand to push Inor lurn the gu control knob. Wmc uu laoh. U UH knob vill not
push In or turn by hand, don? try to renalr It, call I quallfled 8ervtce technlclan. Force or
anrmptedrepalr nuyrenullInafire a explosion.
0. Do not we thir appllrnce
# any part has been under urwr. bnmedlrtoly all a qurllkd mke
technklrn to Inspect the applknce and to repkce any part of the control ryatem and any gas
controlwhlchhas beenunder water.
STOP1ReadtheuletyInlomullonabove on thislrbel.
I
Pilot Burner
Electrode
Cantrd W.
Thermocouple PII n~
I I
. .. ., .
I. Turn the controlknobchkwlse lo 'OFF'.
NOTE: Knobunnolbo turnedfrom 'ION' to'OFF' unlessbob
In pushedInpartlrlly. Do not force.
2. Wah live (5) mlnulestocltaroulanyg8r.Thensmell forgar, lncludingmarthefloor. #you wl gas.STOP1
Follow '0' inthe safety hfornutionabove on thlslabel. Ifyoudon?smeU 918, 90 to nexlstep.
3. Findthe pilot. It I. at therlghlrldeof the firebox.
4. PushInand turn tho controlknob tounterclockwlse muntllresktmce k frlJratklarr lha WiN'
poshion.
5.
KeeppushedInfor afew secondstoallow gas (low then, keepingknobdeprruod, turnto WN' to light
pilot.Holdknob
h lorafurther 5 secondsthenrelrau.The knobshould pop backup. PiloIrhouldremh
lit. Ifit goes out repeatsteps 1 through5.11 pilotdoor notlightat alldurlngafew attempts, ty lighting wlth
alongmatchas descrlbod below.
# knobdoor ndpop up whenrekarrd, stopandlmmodlately all your amlee tKhUn or g88
supplier.
U pilo1 lightsbut wz' notshy In after severaltrlrs, tunthe gar controlknob to VFF' ad a11
your sewketechnuunor gas supplier.
6. WhenpilotIs111. partultydepress theknobandulsdbur~rutllng(Iho knobahould k depresudsHghtly
when changing senlngs).
For rnrxlmumelliclency, turntosenlng 3 lorthe first 10 minutesto warmthechlmneyor Ow.
Do MI operalebetweenthe ultlngposillonr.
patchLkhtlnp;hhchthe wlndow Wm unlland Insertalongnulchtothe pUdwhlle the control knob b pushed h
and at tho 'IGN* wslbn wehstrwUonmanual.
I
1.
Prah h controlknobpaflblty adturnclockwlre 1- to'OFF'. Do no( foto.
DUE TO HIGH SURFACE TEMPERATURES, KEEP CHILDREN, CLOTHING AND NRNllURE AWAY.
KEEP BURNER AND CONTROL COMPARTMENT CLEAN. SEE INSTALLATlON AND OPERATING
INSTRUCTIONS.

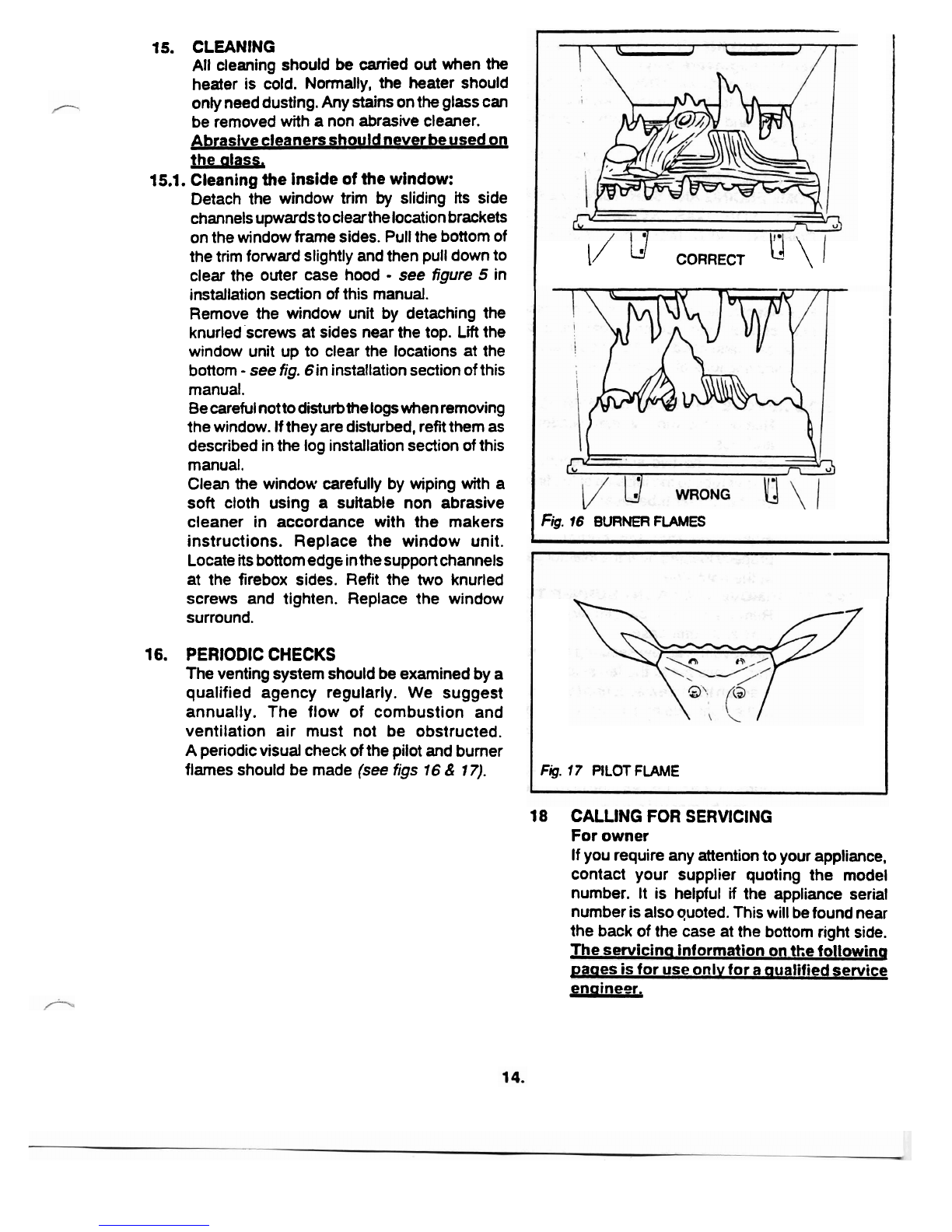

15. CLEANING
All cleaning should be carried out when the
heater is cold. Normally, the heater should
onlyneeddusting.Anystainsontheglasscan
be removedwith a nonabrasivecleaner.
Abrasivecleanersshouldneverbeusedon
the alass.
15.1. Cleaning the insideof the window:
Detach the window trim by sliding its side
channelsupwardstoclearthelocationbrackets
onthewindowframesides. Pullthe bottomof
thetrim forwardslightlyandthenpulldownto
clear the outer case hood
- see figure 5 in
installationsection
of this manual.
Remove the window unit by detaching the
knurledscrews at sides nearthe top.
Li the
window unit up to clear the locations at the
bottom
- see fig. 6ininstallationsectionof this
manual.
Becareful
nottodisturbthelogswhenremoving
thewindow. Iftheyaredisturbed,refrtthemas
describedinthe loginstallationsectionof this
manual.
Clean the window carefully by wiping with a
soft cloth using
a suitable non abrasive
cleaner in accordance with the makers
instructions. Replace the window unit.
Locateitsbottomedgeinthesupportchannels
at the firebox sides. Refit the two knurled
screws and tighten. Replace the window
surround.
16. PERIODICCHECKS
Theventingsystemshouldbeexaminedbya
qualified agency regularly. We suggest
annually. The flow of combustion and
ventilation air must not be obstructed.
A periodicvisualcheck ofthepilotandburner
flames should be made
(seefigs 16 & 17).
I/ ld CORRECT u \I
1 Rg. 16. BURNER FLAMES
Fig. 17 PILOT FLAME
18 CALLING FOR SERVICING
Forowner
Ifyourequireany attentiontoyour appliance,
contact your supplier quoting the model
number. It is helpful
if the appliance serial
numberisalsoquoted.Thiswill
be foundnear
the back of the case at the bottomright side.
Theservicinainformationonthefollowing
paaesisfor use
onlv for a aualifiedservice
engineer.

19. SERVICINGINFORMATlON - (For qualified
senrice engineers only).
The repair parts are shown on the separate
repair parts leaflet. Pleasealways quote Part
Number and description with requests for
spares.
TURN OFF THE GAS
AND MAKE SURE
THAT THE APPLIANCE IS COOL BEFORE
COMMENCINGANY SERVICING. ALWAYS
TEST FOR GAS SOUNDNESS AND
CORRECT VENTING OF COMBUSTION
PRODUCTS AFTER REFITTING THE
APPLIANCE.
Methodsof removalofthewindowtrim,window
unit, control knob. control .bezel-andouter-
case are described in the installation
and
cleaningsections of this manual.
19.1. TO REMOVETHE REAR BURNER TUBE
1.
Remove the window trim, window unit
and logs.
2.
Unscrew the two screws securing the
bumertubetotheleftsideofthefirebox.
Lift the burnertube clear.
3.
Refitinthereverseorder. Whenrefitting
make sure that the burner tube is
properlylocatedovertheinjectorcarrier
at the rightside.
19.2. TO REMOVE THE FRONT BURYER TUBE
1.
Removethe window trim, l~indowunit,
logs
and outer case.
2.
Removethe screw securingthefirebox
front cross rail
at the leftside.
3.
Slackenthescrewsecuringthecrossrail
atthe rightside andswingthe raildown
at the left side to give access to the
burnertube screws.
4. Unscrew the two screws securing the
burnertubetotheleftsideof thefirebox
Lift the burnertube clear.
5.
Refitinthereverseorder.Whenrefitting.
make sure that the burner tube is
properlylocatedoverthe injectorcarrier
at the rightside.
19.3. TO REMOVETHE ELECTRODE
1. Removethewindowtrimandoutercase.
2.
Though not essentialfor access to the
electrode, it is recommended that the
window unit and logs are removed so
that the electrode tip position can
be
checked when replaced.
3.
Remove the two screws securing the
electrode unit to the bulkhead panel
outsidetherightside
of thefirebox. Pull
the electrode with leadattached dear.
4. Disconnecttheleadfromthe electrode. ---
5.
Refitinthe reverseorder.
19.4.10 REMOVE THE PILOT & CROSS
LIGHTING BURNER
1.
Removethe window trim, window unit,
logsand outer case.
2.
Togainclear accesstothe pilotbumer
screw, detach the right hand front log
support by removingtwo screws
- see
figure 18.
3.
Removethepilot & crosslightingburner
by unscrewingthe two screws fixing it
to the bracket at the right side of the
firebox
- see figure 18.
4.
Refit inthe reverseorder.
Screws
Fig. 18 FIREBOX INTERNALFIXINGS
19.5 TO REMOVETHE PILOT JET
1.
Removethepilot & crosslightingbumer
- see section 19.4.
2.
Disconnectthe pilot pipe at thejet end
andspring clear of the carrier.
3.
Removethe pilotjet & carrier from the
bracket.
4.
Refit inthe reverseorder.

19.6. TOREMOMTHEPRESSUREREGULATOR
1. Remove the window trim, and outer
case.
2.
Removethe controlvalvesecuringnut.
3.
Remove the control valve bracket by
unscrewingonescrewattachingittothe
back panel
and two screws attaching
ittothe bulkheadpanel
- see figure 19
screws "A" & 'B".
rot Valve Bracket
Screw 'A'
Fig. 19 MANIFOLD VIEW
4. Slackenthe pipefromthe controlvalve
to the regulatoratthe valve end.
5. Disconnectthe pipesfrom each end of
the regulatorandspringthemfreefrom
the test tappingtee pieces.
6. Removethetworegulatorbracketscrews
and liftthe regulatorunitfree.
7.
Removethrbracketandtesttappingtee
pieces from the regulator and replace
parts
as necessary.
8.
Refitinthereverseorder.Whenreplacing
makesurethattheregulatorflowdirection
is correct. The regulator has a flow
direction arrow on its back face. Seal
with pipesealant.
9. Note that if fitting a new regulator, the
regulator fixing holes are unthreaded.
Tappingscrewsare used.
19.7. TO REMOVE THE CONTROL VALVE AND
IGNITION SPARK GENERATOR
1. Remove the window trim, and outer
case.
2. Disconnectthe electrodelead.
3. Removethe controlvalve securingnut.
4. Remove the control valve bracket -
see section 19.6.3.
5. Disconnectthe 4 pipesfromthe control
valve.
6. Disconnectthe thermocouple andvent
sensor wires from the intenuptorblock
at the bottom of the control valve
Disconnect the interruptor block.
7. Refit in the reverse order. Seal with
pipesealant.
19.8.TO REMOVE THE IGNITION SPARK
GENERATOR
1. Remove the control valve and spark
generator as
19.7 above.
2. Make sure that the valve is in the off
position.
3.
Remove the circlip holding the spark
generator to the valve. Remove the
generator.
4.
Refitinthereverseorder.Sealwithpipe
sealant.
19.9. TO REMOVE CONTROLS Ct PIPEWORK
MANIFOLD
1. Removethe window trim, window unit,
logs andouter case.
2. Disconnect the inlet pipe from the
pressure test "T" piece below the
regulator.
3. Remove the two screws securing the
bulkheadpaneltothefirebox rightfront
flange and front cross member
- see
figure 18.
4.
Removethe screwsecuringthe firebox
front cross rail at the leftside.
5. Remove the front burner tube - see
section 19.2.4.
6. Remove the rear burner tube - see
section 19.7.2.
7. Remove the two screws securing the
bulkheadpanel insidethe firebox right
side
- see figure 18.
8.
Removethe screwsecuringthe control
valve bracket to the appliance back
panel
- see figure 19 screw "An.
9.
Loosen the thermocouple at the
interruptorblockanddisconnectthevent
sensor wires.

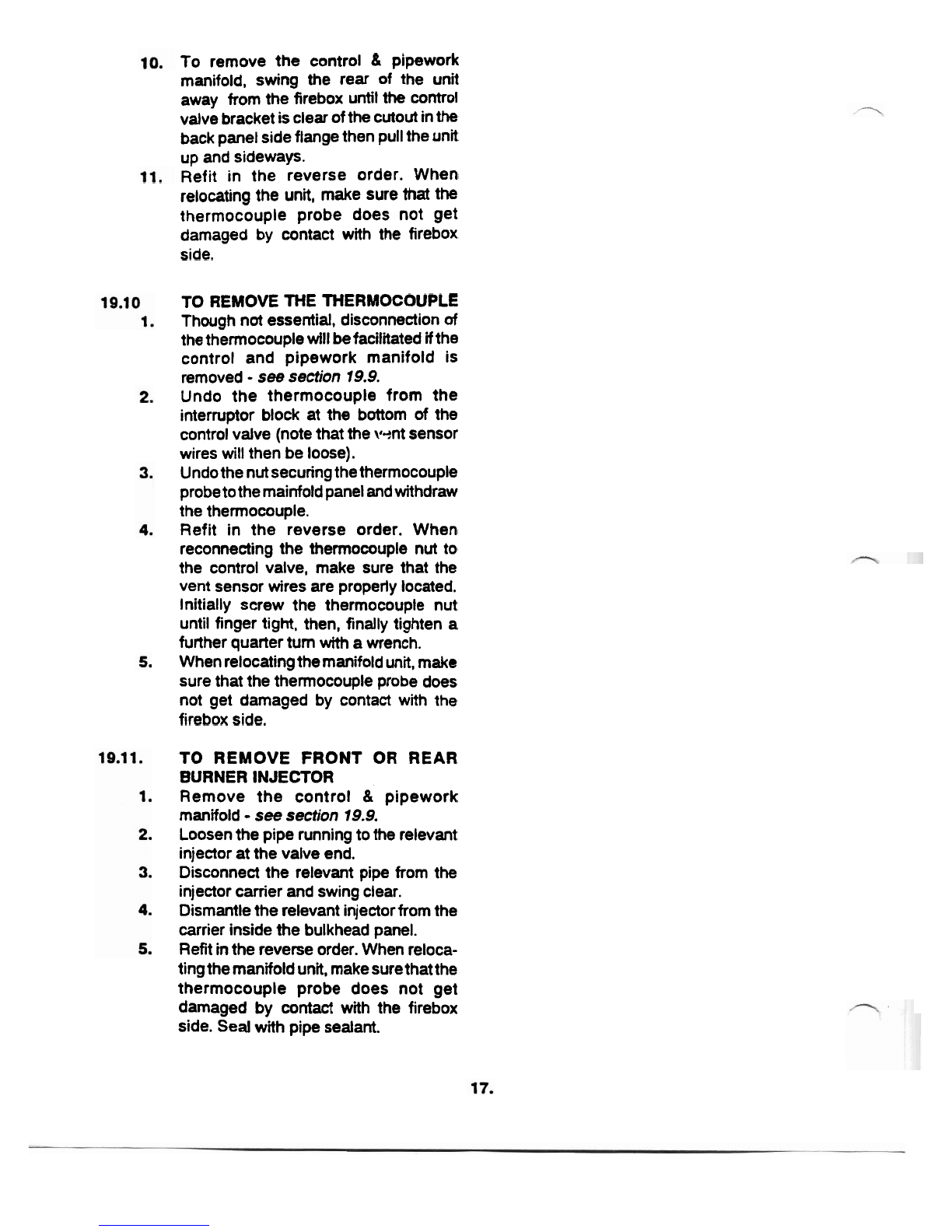

To remove the control & pipework
manifold, swing the rear of the unit
away from the firebox untilthe control
valvebracketisclearofthecutoutin
the
backpanelsideflangethenpulltheunit
up and sideways.
Refit
in the reverse order. When
relocatingthe unit, make sure
that the
thermocouple probe does not get
damaged by contact with the firebox
side.
TO REMOVE THE THERMOCOUPLE
Thoughnotessential, disconnection of
thethermocouplewillbefacilitated if the
control and pipework manifold is
removed
- see section 19.9.
Undo the thermocouple from the
interruptor block at the bottom
of the
controlvalve (notethatthevent sensor
wires willthenbeloose).
Undothenutsecuringthethermocouple
probetothemainfoldpanel
and withdraw
the thermocouple.
Refit in the reverse order. When
reconnecting the thermocouple nut to
the control valve, make sure that the
vent sensor wires are properly located.
Initially screw the thermocouple nut
until finger tight, then, finally tighten a
further quarterturn
with a wrench.
Whenrelocatingthemanifoldunit,make
surethat thethermocoupleprobe does
not get damaged by contact with the
firebox side.
TO REMOVE FRONT OR REAR
BURNER INJECTOR
Remove the control & pipework
manifold - see section 19.9.
Loosenthepiperunningtothe relevant
injectoratthevalve end.
Disconnectthe relevant pipe from the
injectorcarrierandswing clear.
Dismantletherelevantinjectorfromthe
carrier insidethe bulkheadpanel.
Refit
in the reverseorder. When reloca-
tingthemanifoldunit,makesurethatthe
thermocouple probe does not get
damaged by contact with the firebox
side. Seal
with pipesealant.

Manufactured by
VALOR HEATING
ERDINGTON . BIRMINGHAM ENGLAND
DistributedinWestern Canadaand the U.S.A by
MILESINDUSTRIES
829 Third Street West North Vancouver B.C. V7P 3K7
Ph. [phone] Fax [phone]
Distributedin EasternCanada by
VALTECH HEATING LTD
6660 Kennedy Road, Mississauga,Ontario, WT 2M9
Ph. [phone] Fax [phone]
.
Becauseow policy is one of constant development and irnprwement
details may vary slightly from those giveninthis publioation.
