Valor RetroFire RF24JDN User manual

4006514-09
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
Direct Vent Gas Fireplace
Insert
natural gas RF24JDN
propane gas RF24JDP
RetroFire
US Patent no. 8,166,965
Canadian Patent 2,717,779 Issued October 24 2017
US Patent 10,060,624 Issued August 28 2018
US Patent 10,935,246 Issued March 2 2021
RF24JDN-CL
(co-linear/natural gas)
RF24JDP-CL
(co-linear/propane gas)
RF24JDN-CA (co-axial/natural gas) RF24JDP-CA (co-axial/propane gas)
withwith
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Installation Manual
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Installer: Place model/serial number here.

2
Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
The information contained in this manual is believed to
be correct at the time of printing. Miles Industries Ltd.
reserves the right to change or modify any information
or specifications without notice. Miles Industries Ltd.
grants no warranty, implied or stated, for the
installation or maintenance of your heater, and
assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2022. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorfireplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter in
the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in this manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

3
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety ................................................. 4
Specifications..................................................... 6
Kits & Accessories.............................................. 8
Co-Linear with RA24CL..................................... 9
Overview ........................................................................9
Dimensions ..................................................................11
Typical Vent Installation ............................................12
Vent Termination ........................................................13
Co-Axial with RA24CA..................................... 14
Overview ......................................................................14
Dimensions ..................................................................16
Typical Vent Installation ............................................17
Vent Termination ........................................................18
Co-Axial + Co-Linear........................................ 18
Vent Terminal Location..............................................18
Preparation ...................................................... 19
Existing Fireplace Preparation..................................19
Before Installation ..................................................... 20
Installation ....................................................... 21
Window & Burner Removal...................................... 21
Install Vent Plate ........................................................ 22
Connect Venting—Co-Linear ................................... 23
Connect Venting—Co-Axial...................................... 24
Reassemble Appliance .............................................. 25
Connect Gas Supply................................................... 27
Install Fuel Bed........................................................... 28
Traditional Log Set MF28LSK....................................28
Driftwood Kit MF28DWK...........................................30
Refit & Check Window............................................... 32
Install Battery Holder................................................ 33
Pair Remote Control .................................................. 34
Check Burner Aeration ............................................. 35
Barrier Screen/Window Cover/Vent Shield ........... 36
Bottom Cover / Fret ................................................... 37
Install Handset Holder.............................................. 38
Wiring Diagram................................................ 39
Approved Venting Components .................... 40
Commonwealth of Massachusetts ............... 41
Appendix A – Lighting Instructions Plate..... 42
Appendix B – Remote Control Operation .... 43
Appendix C – Spare Parts ............................... 47

4
Fireplace Safety
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorfireplaces.com.
WARNING: Extremely Hot!
Heat and flammability
• Some parts of the fireplace are extremely hot, particu-
larly the glass window. Use the barrier screen provid-
ed or a gate to reduce the risk of severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from com-
bustible materials, gasoline, and other flammable
vapors and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace
heats. Although safe, it may reach temperatures in ex-
cess of 200ºF (93°C) depending on choice of optional
accessories. Do not touch!
• Be aware of hot hearth/floor surfaces! Any projections
directly around the fireplace can get very hot when
the fireplace heats. Although safe, they may reach
temperatures in excess of 200ºF (93°C) depending on
elevation of hearth. Be careful of touching these! Do
not put objects on the hearth or shelf. Temperature
of projection surfaces will be reduced when barrier
screens are installed.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the
heat produced by the fireplace. Avoid placing candles,
paintings, photos and other combustible objects
sensitive to heat or furniture within 36 inches (0.9m)
around the fireplace.
• Solid wood flooring in front of the fireplace (if allowed)
may shrink during the heating season due to heat.
• Due to high temperatures, the appliance should be
located out of traffic areas and away from furniture
and draperies.
• Clothing or other flammable material should not be
placed on or near the appliance.
Barrier Screen and Safety
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and must be installed for the protection of children
and other at-risk individuals.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children, and
other at-risk individuals out of the room and away
from hot surfaces.
• Any safety screen, guard, or barrier removed for ser-
vicing an appliance, must be replaced prior to operat-
ing the appliance.
Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
Fireplace Safety
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not strike or slam the glass front.
• Do not use abrasive cleaners on the glass front as-
sembly. Do not attempt to clean the glass when it is
hot.
Venting
• This unit must be used with a vent system as de-
scribed in this manual. No other vent system or com-
ponents may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obsta-
cles and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
WARNING
Do not operate appliance with the glass
front removed, cracked, or broken.
Replacement of the glass should be done
by a licensed or qualified service person.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most
energy conservation when used while attended. The
use of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• The appliance and its venting system should be
inspected before use and at least once a year by
a qualified service person.
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning might be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control com-
partments, burners, and circulating air passageways
of the appliance be kept clean.
• Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control that has been
under water.

6
Specifications
This appliance is shipped without a vent plate.
A vent plate is required for every installation.
Either RA24CL—Co-linear vent plate (3” x 3”)
or RA24CA—Co-axial vent plate (5” x 3”).
RA24CL
OR
RA24CA
RF24JDN
RF24JDP
with

7
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54 or the Natural Gas and
Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
* Tested to CGA – 2.17–91 Gas fired appliances for use at high
altitudes. In USA, installations may require deration over 2000’—
Check local codes.
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine RF24JDN uses natural gas.
Heater engine RF24JDP uses propane gas.
The supply pressure must be between the limits shown
in the Ratings section.
The supply connection is a 3/8” NPT female connector.
For detailed location, see Dimensions on page 11 or
page 16.
Gas Conversion Kits
The RF24JD is supplied as natural gas or propane gas
and is field convertible between fuels. See instructions
packaged with the conversion kits for further details.
Electrical
The RF24JD does not require an electrical power source
unless fitted with the optional 555CFK Circulating Fan
Kit, in which case a grounded power source is required.
Floor/Hearth
This appliance is approved for installation into existing
solid-fuel burning fireplaces only. Combustible material
such as plywood and so on may be used for leveling
and shimming beneath the unit. This appliance does
not require a hearth other than to support the weight
of certain fronts.
Non-Combustible Materials Specifications
Materials which will not ignite and burn. Such materials
are those consisting entirely of steel, iron, brick, tile,
concrete, slate, glass or plasters, or any combination
thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C shall be considered
non-combustible materials.
Combustible Materials Specifications
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can
ignite and burn, whether flame proofed or not, or
plastered or unplastered shall be considered
combustible materials.
Outdoor Conversion Kit
The RF24JD models are supplied standard for indoor
applications and may be adapted for installation in
specific “outdoor” applications protected from weather
as defined in the GV60CKO outdoor conversion kit
manual.
Model JDN-CA
JDN-CL
JDP-CA
JDP-CL
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 20,000 18,000
Input Minimum (Btu/h) 6,500 12,500
Manifold Pressure (in w.c.) 3.2” 9.5”
Minimum Supply Pressure (in
w.c.) 5” 11”
Maximum Supply Pressure (in
w.c.) 10” 14”
Main Burner Injector Marking 82-580 92-200
Pilot Injector Marking 35 27
Min. Rate Bypass Screw 125 125
Specifications

8
Kits & Accessories
WARNING
*Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.
Required Kits
Information accurate at the time of printing and subject
to change without notice.
Optional Accessories
4006519 Barrier Screen
Vent Plates (choose one)
RA24CA Co-Axial Vent Plate for 5” x 3” co-axial venting
RA24CL Co-Linear Vent Plate for 2 - 3” co-linear venting
Fuel Beds (choose one)
MF28DWK Driftwood Kit
MF28LSK Traditional Log Set
Venting
See approved venting components chart on page 40 in this
manual for co-axial and co-linear venting components.
Note: When using the RA24CA Co-Axial Vent Plate, use the
590FVK2—5” x 3” Co-Axial Flex Vent and Terminal Adapter/
Flashing
Decorative Cast Iron Frets
RA24FK Fret Kit, required for all frets
RA24CV Contemporary, Vintage Iron Finish
RA24TB Tradtional, Black Finish
1225VFB Ventana Fret, Black
Gas Conversion Kits
RA24JDNK Conversion to natural gas
RA24JDPK Conversion to propane gas
Other Accessories
555CFK*Circulating Fan Kit with 6’ c/w grounded cord set*
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
GV60CKO Outdoor Fireplace Conversion Kit
Hearth Gate
Hearth gates such as Cardinal’s VersaGates are
available at retail stores carrying safety products
for children.

9

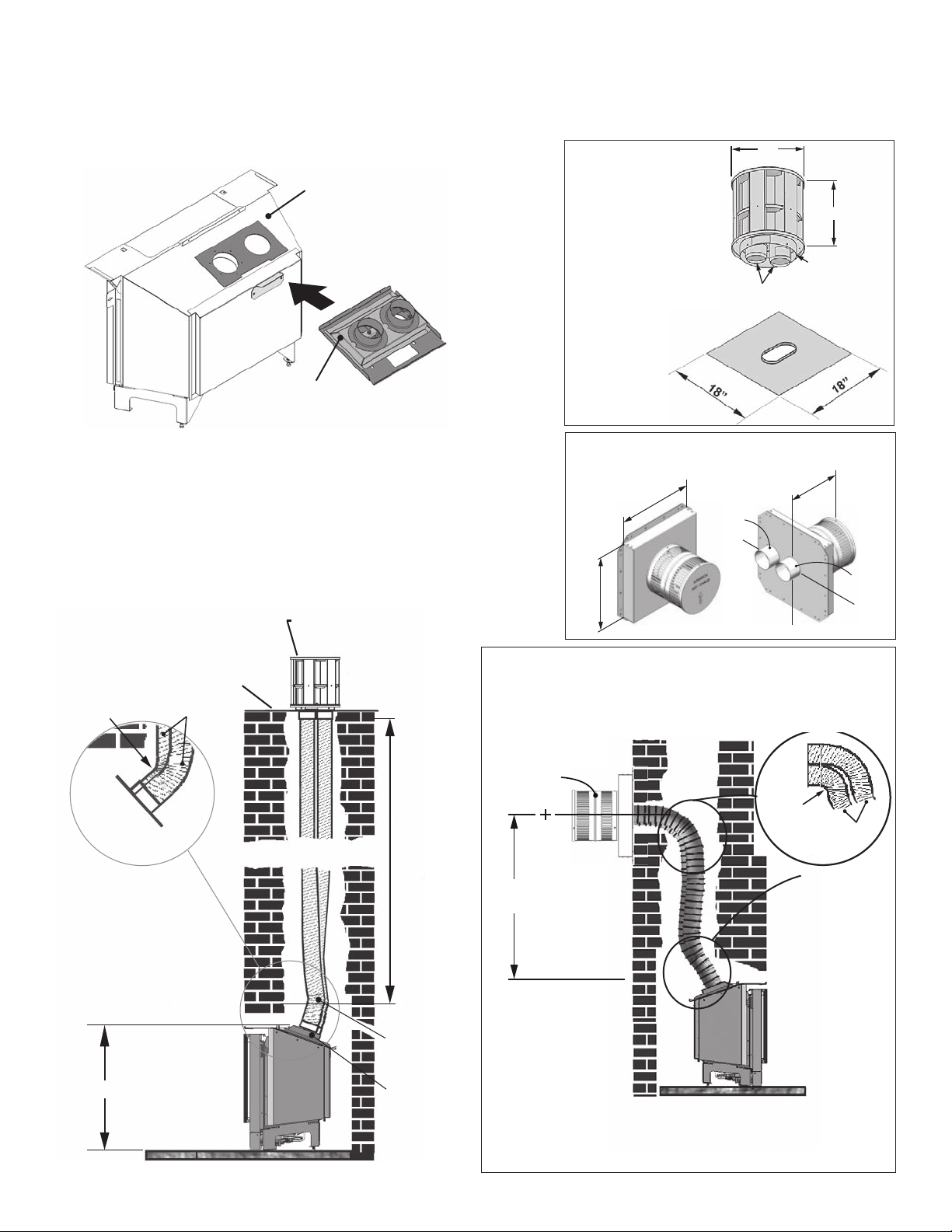

Co-Linear with RA24CL Overview
This appliance may ONLY be installed in an existing unaltered, functioning solid-fuel burning fireplace with a
working flue and constructed of non-combustible material.
This appliance may be installed in outdoor, weather protected environments as defined in the GV60CKO
Outdoor Conversion Kit instruction manual.
DO NOT install into combustible construction. This appliance is NOT APPROVED for installation with a zero
clearance kit.
WARNING
Some materials or items, although
safe, may discolor, shrink, warp,
crack, peel, and so on because of
the heat produced by the fireplace.
Avoid placing candles, paintings,
photos, and other items sensitive
to heat around the fireplace.
WARNING
HOT HEARTH / FLOOR! The hearth
or floor in front of the fireplace
may become very hot when the
fireplace heats. Do not use the
hearth as a seat or shelf. Solid
wood flooring in front of the
fireplace (if allowed) may shrink
during the heating season due to
heat.
RF24CL
Co-linear insert fireplace
Chimney
Terminal Cap
Flashing
2 x 3”
approved flex
chimney
liners running
full length
Existing
unaltered,
functioning
solid-fuel
burning
fireplace &
chimney
Barrier screen
(required, included)

10
Co-Linear with RA24CL Overview
Rear view
Flashing
2 x 3”
liners
19-1/8”
3” min.
bend radius
2 x 3”
liners
40’
max
8’
min
RA24CL
co-linear
vent plate
RF24JD
insert
engine
Approved co-linear
termination or approved
co-linear adapter
and approved
co-axial
termination
Co-linear installation into existing F/P
RF24JD with RA24CL—Co-Linear Vent Plate
RF24JDN/P appliance
supplied without vent plate
RA24CL (3” x 3”)
Co-Linear Vent Plate with
AutoFire (supplied separately)
Co-Linear Vent Plate RA24CL
Sidewall co-linear installation into existing F/P using 720SWK—(see
installation instructions supplied with 720SWK)
Min. 3’-0”
*Max. 5’-0”
*Between 3’ and 5’ fully open restrictors.
Beyond 5’-0”, the sidewall terminal may be
used but leave restrictors opened at mid-point
as supplied.
720SWK
Terminal
3”Liners
3” min.
Bend
Radius
RF24JD with RA24CL + 720SWK—Sidewall Kit
10”
10”
3” Inlet & Exhaust
Collars
7-5/8” dia.
collar
720SWK—Sidewall terminal—with RA24CL ONLY
Front Rear
12”
12”
8-1/2”
3”
intake
3”
exhaust
559CLT Roof terminal +
559FSK Flashing

11

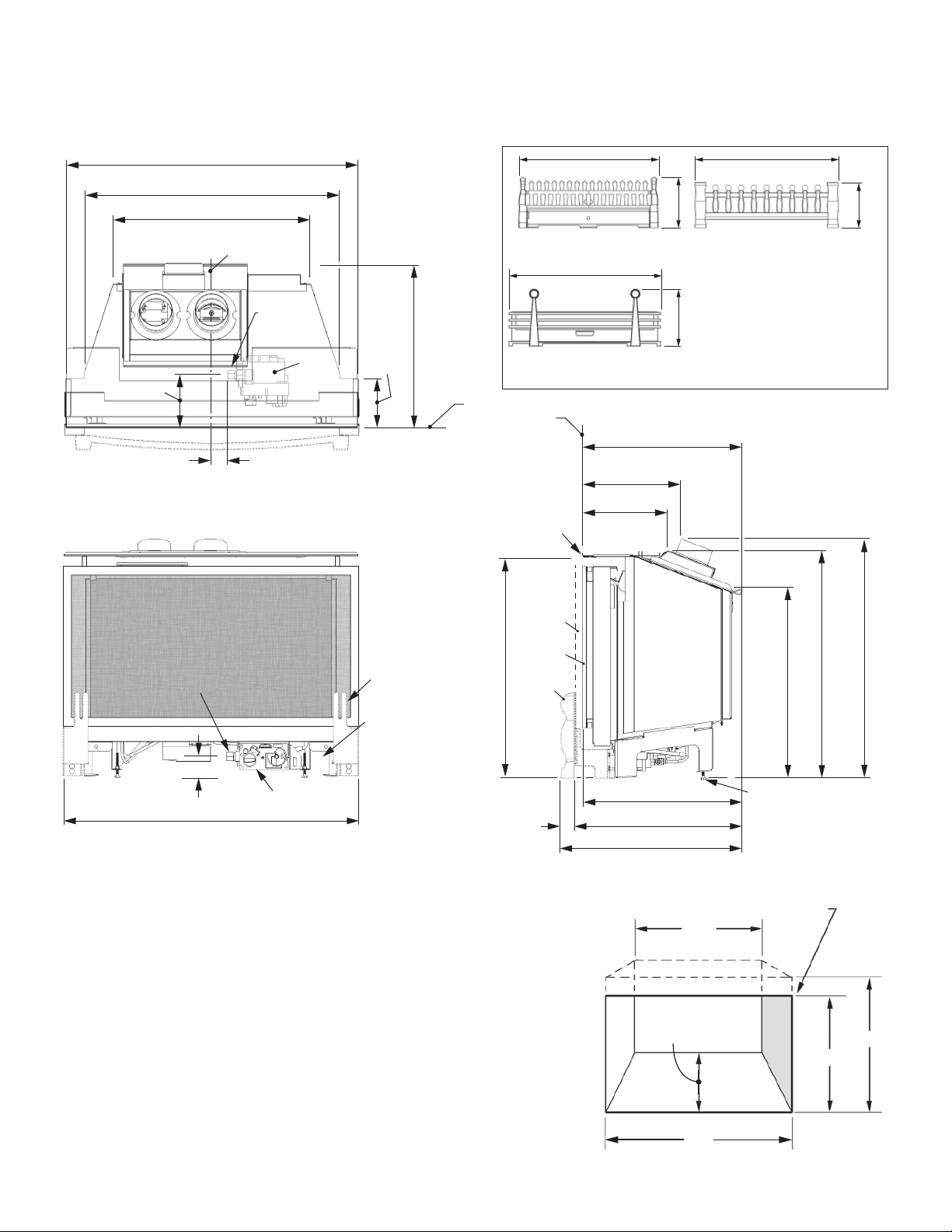

Co-Linear with RA24CL Dimensions
17-3/4”
23”
14”
26-1/2”
1-3/4”
1-1/8”
18-3/4”
15-7/8”
20-1/8”
19”
14” - to screen
14-5/8” - to brackets
15-3/4” - w/fret
14”
%DɞHH[WHQGVWRȋ
8-1/4”
7-1/2”
Gas Inlet
3/8” NPT
Female
Centerline
Gas Inlet
3/8” NPT Female
Control
Valve
Location
Optional Fret:
Mounting
Brackets
Optional Fan
6SHHG&RQWURO
Location
WKLVVLGHDWIURQW
Control Valve
Optional
Cast Fret
Maintain
a 3/4” gap
in front
of barrier
screen
Barrier
Screen
$GMXVWDEOH
Convection
%DɞH
Front Face of
Barrier Screen
Levelling
Feet
Top View
1-3/8”
4-1/2”
26”
:LQGRZ&RYHU%DUULHU6FUHHQ
4-3/16”
Minimum Cavity Dimensions
The diagram shows minimum dimensions required to install the RF24.
Cavities having a combination of all the minimum dimensions shown
possible, may prove to be difficult installations.
24-1/2”
8”
27”
10”
RA24TB Fret (Black) 1225VFB Ventana Fret (Black)
RA24CV Fret (Vintage Iron)
Optional Frets
24-3/8”
7-5/8”
18”
18”
20”
27”
Height to Smoke Curtain
Minimum Insert Cavity
14” without fret
15-3/4” with fret
IMPORTANT! A free space of 3/4 inch (19 mm) is required in front of the
barrier screen to allow the window to move and relieve during a hard
start. The use of the optional fret sets this space with the fret bracket
installed.
However, when the fret is not used and the bottom cover is used
instead, this space immediately in front of the barrier screen must be
added to the minimum depth as a safety precaution. It is very
important to ensure that the area immediately in front of the barrier
screen is kept clear at all times even when not using a fret.

12

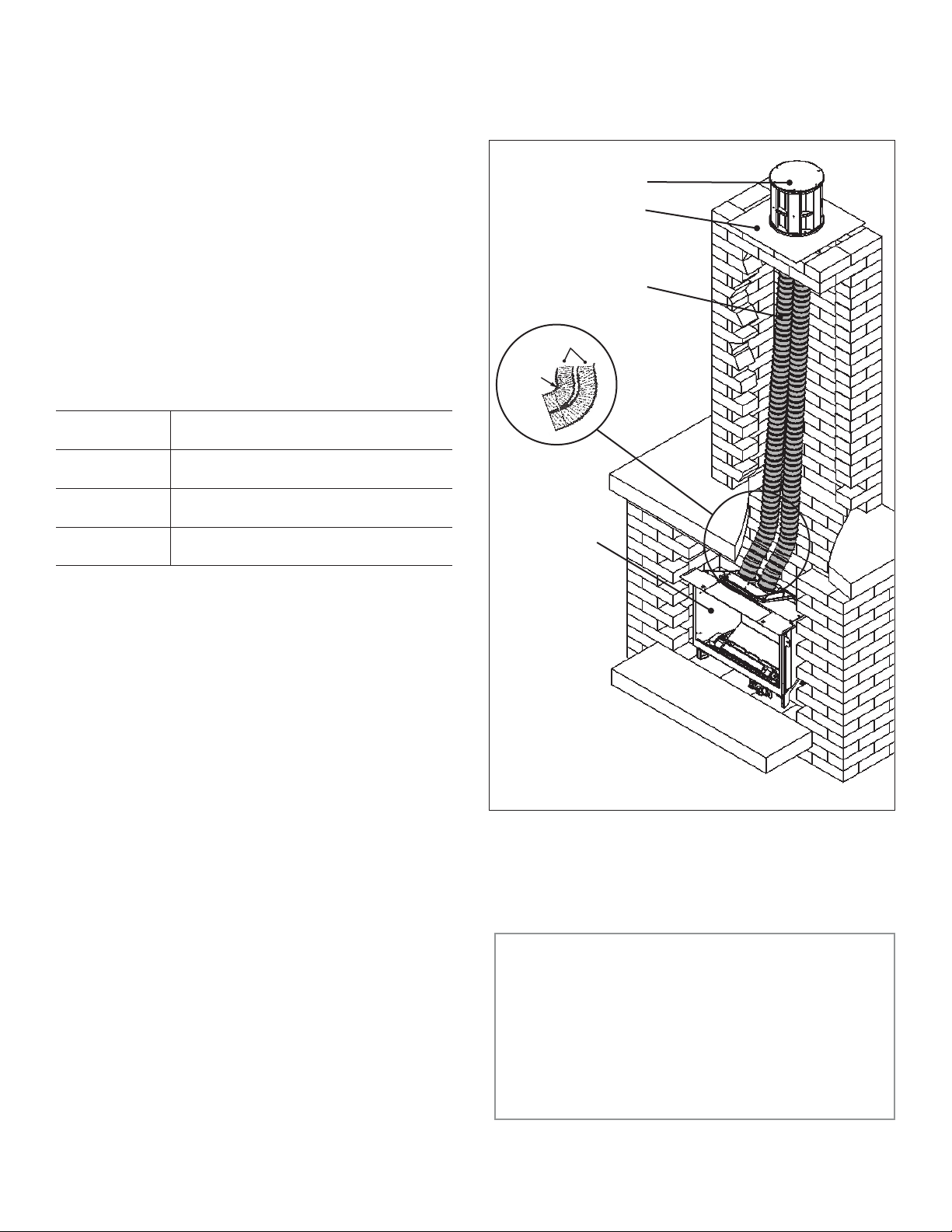

Co-Linear with RA24CL Typical Vent Installation
Typical Vent Installation
See Approved Venting Components on page 40 of this
manual.
Vent Location
The vent terminal must be located throught the roof.
This direct vent appliance is designed to operate when
an undisturbed airflow hits the outside vent terminal
from any direction.
Check local codes for allowable vertical vent
termination.
Venting Table
Maximum
vertical height 40 ft (measured to bottom of termination)
Minimum
vertical height 8 ft (measured to bottom of termination)
Maximum
horizontal run 4 ft (measured center to center of pipe)
Maximum
offset angle 45° (sweeping bend to allow for obstructions)
Venting Notes
Where possible, avoid splicing flex pipes.
Co-linear installations ONLY. If splices are required,
use an approved connector and seal joints with RTV
high temp sealant.
Four feet horizontal is permissible to allow for routing
around masonry projections. Do not bend flex pipe
over a 45 degrees radius.
• Co-linear venting may be converted to solid 4” x
6-5/8” co-axial venting at the top of the existing solid-
fuel burning chimney as necessary where the exist-
ing chimney has deteriorated and been removed.
The conversion must be done using approved com-
ponents (see page 40) and proper vent clearances
to combustibles must be maintained.
• Flex lilners may only be installed into solid-fule burn-
ing fireplaces and chimney systems (no combustible
constructions).
• The appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
Note
This appliance may also be vented using the optional
720SWK—Co-Linear Sidewall Kit as shown on page 10.
See installation instructions packaged with the kit.
Terminal Cap (co-linear)
Co-linear applications (using RA24CL Vent Plate)
Flashing
RF24J
2 x 3” flex liners—
see Venting Table
for length allowed
3”Liners
3” min.
Bend
Radius
NOTE
Co-linear or co-axial flexible aluminum venting
liners should be professionally inspected
periodically for corrosion and damage and
replaced when necessary. If the installation does
not allow for future inspection or replacement of
the flexible aluminum liners, then stainless steel
vent liners are recommended.

13
Vent Termination
Co-Linear—3” x 3” flex
Existing Square Chimneys
559CLT—Co-Linear Terminal and 559FSK—Square
Flashing Kit are recommended—see list of approved
venting accessories on page page 40 for alternate
venting components.
1. Cut flashing kit to size. Allow extra around perim-
eter for drip edge to be formed on site.
2. Seal flashing to top of chimney using sealent (not
supplied).
3. Fasten terminal to flashing using sheet metal
screws as shown.

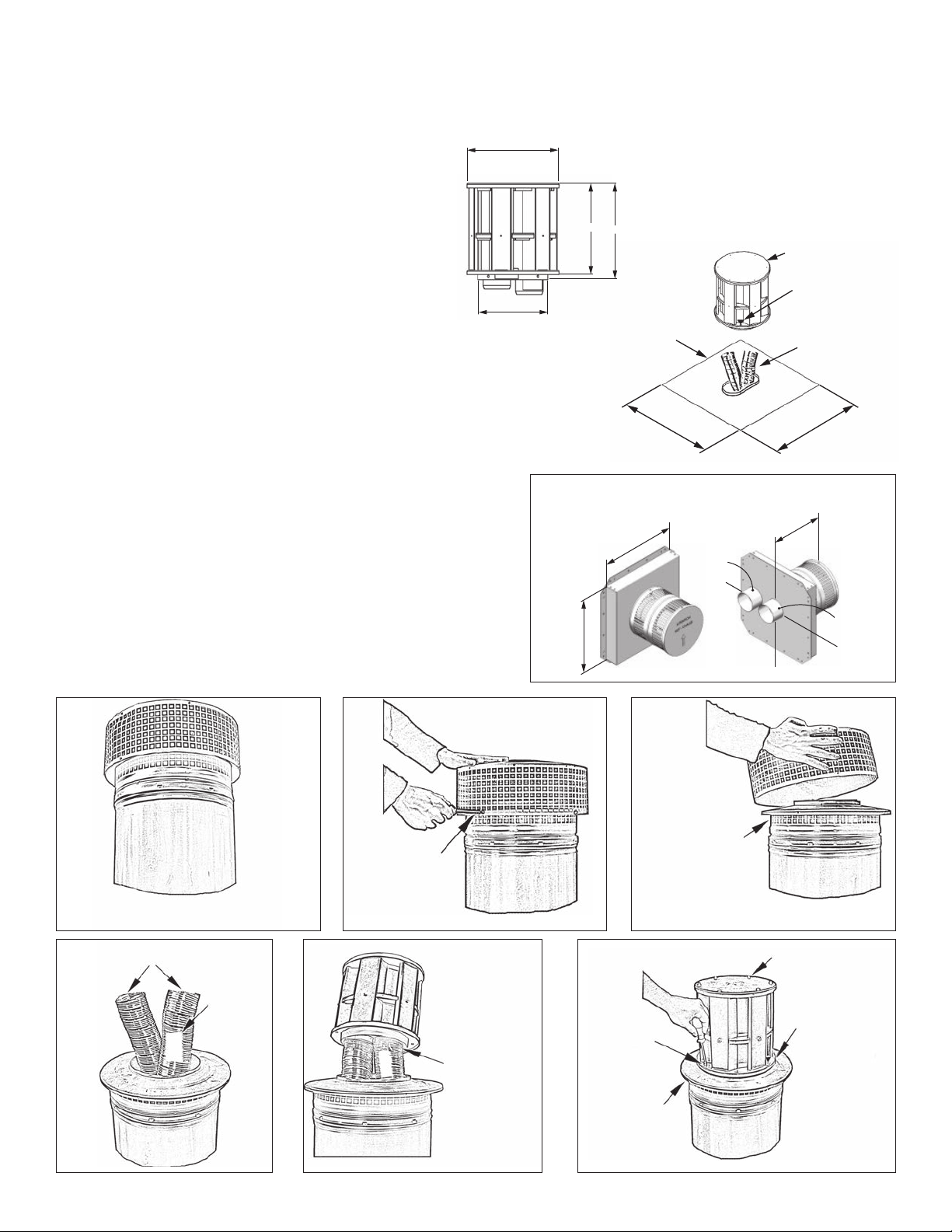

Existing Round Factory-Built Chimneys
The 559CLT terminal is designed to fit existing 7” or
8” diameter factory-built round chimneys without
requiring additional flashing. Ensure the installation
of the terminal seals offthe top of the chimney space
to avoid convective air loss. The diagrams below
show a typical terminal installation for an 8”
diameter air-cooled chimney system.
Sidewall Termination, ONLY with Valor 720SWK
See instructions provided with kit.
Co-Linear with RA24CL Vent Termination
559SFK Flashing
(cut to required
size and form
drip edge on site)
559CLT Terminal
Fasten to Flashing
with Sheet Metal
Screws (3 locations)
2 - 3”Flex Liners
18”
18”
Existing Air-Cooled Chimney
(Factory-Built Fireplaces)
Remove Top
Portion of
Terminal
Maintain Air-Cooled
Function of Existing
Chimney System
Install 2 - 3”dia.
Flex Liners
Identify
which
Liner is
Exhaust
EXH.
Connect Liners to
Corresponding
Collar on Terminal
using Sheet Metal
Screws (longer
collar is exhaust
collar)
EXH
7-5/8”dia.
10”dia.
10” 11”
559CLT
Fasten Terminal
to Flashing
(3 locations)
Ensure Flashing
Remains over
Air-Cooled
Openings
559CLT Termination
Ensure Exhaust
Portion of Chimney
is Sealed at Top
559CLT + 559FSK
720SWK—Sidewall terminal—with RA24-CL ONLY
Front Rear
12”
12”
8-1/2”
3”
intake
3”
exhaust

14

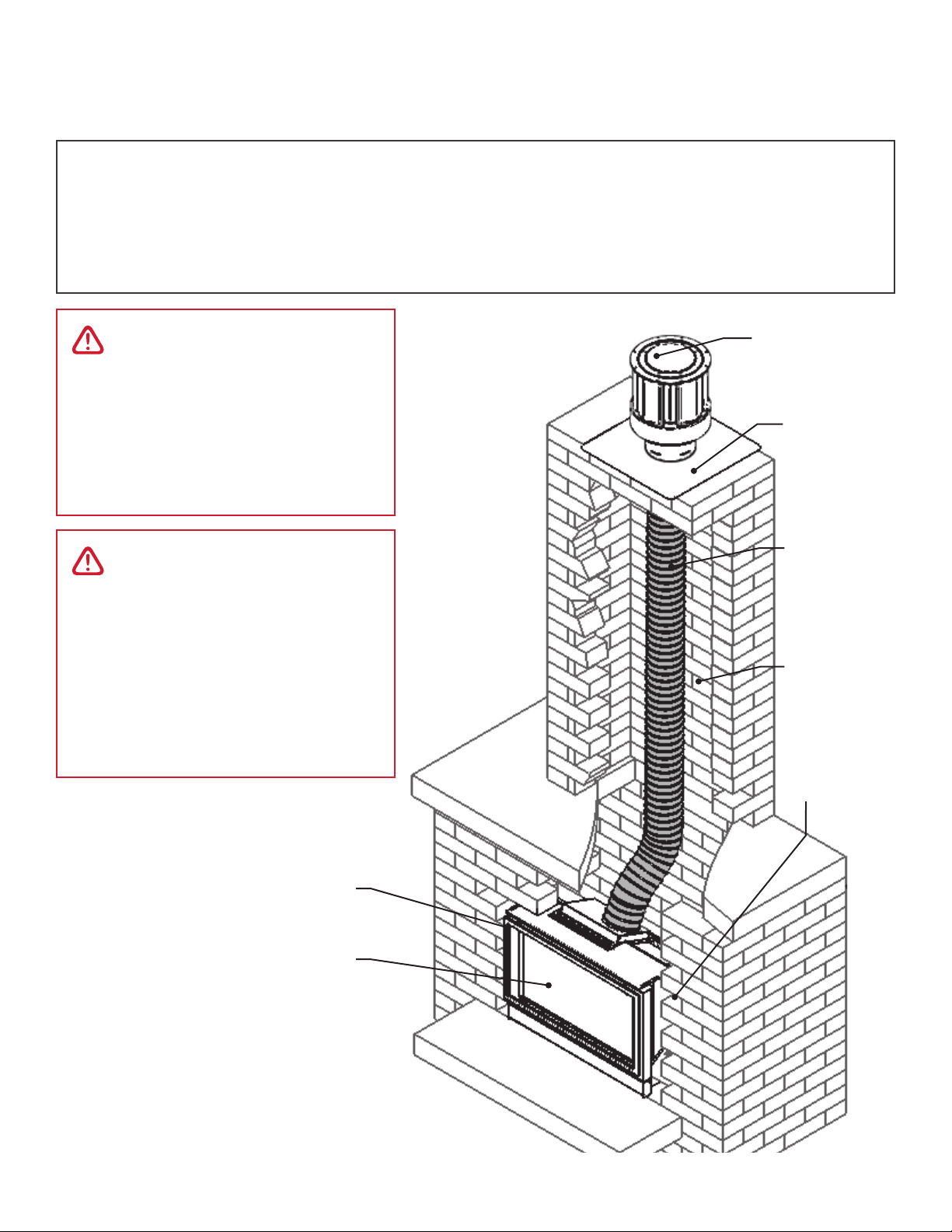

Co-Axial with RA24CA Overview
This appliance may ONLY be installed in an existing unaltered, functioning solid-fuel burning fireplace with a
working flue and constructed of non-combustible material.
This appliance may be installed in outdoor, weather protected environments as defined in the GV60CKO
Outdoor Conversion Kit instruction manual.
DO NOT install into combustible construction. This appliance is NOT APPROVED for installation with a zero
clearance kit.
WARNING
Some materials or items, although
safe, may discolor, shrink, warp,
crack, peel, and so on because of
the heat produced by the fireplace.
Avoid placing candles, paintings,
photos, and other items sensitive
to heat around the fireplace.
WARNING
HOT HEARTH / FLOOR! The hearth
or floor in front of the fireplace
may become very hot when the
fireplace heats. Do not use the
hearth as a seat or shelf. Solid
wood flooring in front of the
fireplace (if allowed) may shrink
during the heating season due to
heat.
RF24CA
co-axial insert fireplace
Approved Chimney
Terminal Cap
Terminal
Adapter and
Flashing from
590FVK2
5” x 3” co-
axial using
590FVK2 Flex
Vent Kit
Existing
unaltered,
functioning
solid-fuel
burning
fireplace &
chimney
Barrier screen
(required, included)

15
Co-Axial with RA24CA Overview
Rear view Approved 6-5/8 x 4
co-axial terminal
21-1/4”
5” min.
bend radius
5 x 3”
liners
590FVK2
5 x 3” co-axial
liner kit
RA24CA
co-axial
vent plate
RF24JD
insert
engine
40’
max
8’
min
Terminal adapter with
ashing supplied
with 590FVK2
Approved 6-5/8 x 4
co-axial terminal

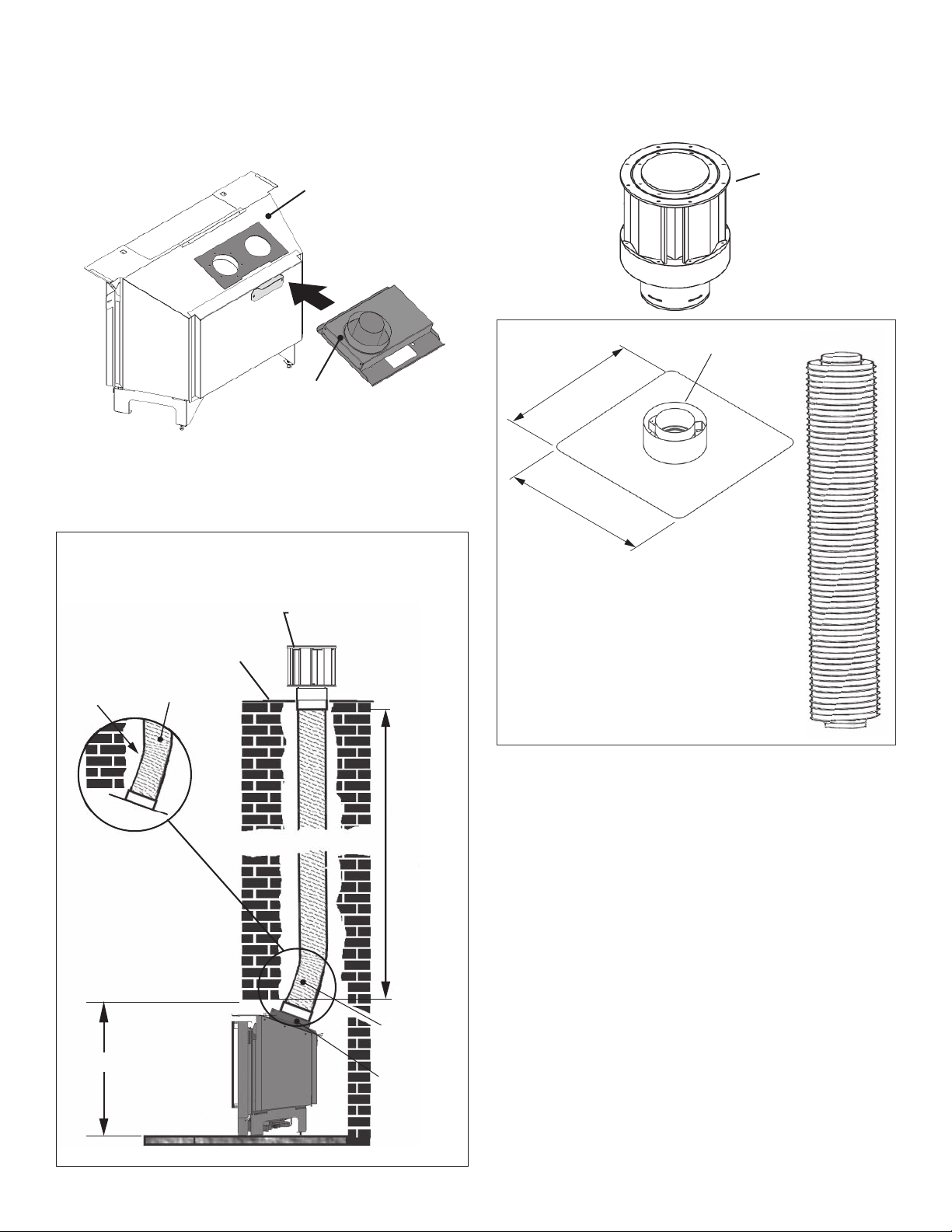

Co-linear installation into existing F/P
RF24JD with RA24CA—Co-axial Vent Plate
RF24JDN/P appliance
supplied without vent plate
RA24CA (5” x 3”)
Co-axial Vent Plate
(packed separately)
Co-axial Vent Plate
18”
18”
6-5/8” x 4” collars
Terminal
Adapter with
Flashing 3” Flex pipe in
5” Flex pipe
(shown compressed)
590FVK2—Flex Vent Kit

16
Co-Axial with RA24CA Dimensions
Gas Inlet
3/8” NPT
Female
Gas Inlet
3/8” NPT Female
Optional Fret:
Mounting
Brackets
Optional Fan
Speed Control
Location
(this side at front)
Control Valve
Optional
Cast Fret
Maintain
a 3/4” gap
in front of
barrier
screen
Barrier
Screen
Levelling
Feet
Top View
1-3/8”
1-3/4”
26”
Window Cover & Barrier Screen
18-3/4”
15-7/8” 21-1/4” 19-3/4”
14” - to screen
14-5/8” - to brackets
15-3/4” - w/fret
14”
%DɞHH[WHQGVWRȋ
7-1/4”
6-1/4”
1-1/8”
Adjustable
Convection
%DɞH
17-3/4”
23”
14”
26-1/2”
Centerline
Control
Valve
Location
Front Face of
Barrier Screen
4-3/16”
4-1/2”
24-1/2”
8”
27”
10”
RA24TB Fret (Black) 1225VFB Ventana Fret (Black)
RA24CV Fret (Vintage Iron)
Optional Frets
24-3/8”
7-5/8”
18”
18”
20”
27”
Height to Smoke Curtain
Minimum Insert Cavity
14” without fret
15-3/4” with fret
Minimum Cavity Dimensions
The diagram shows minimum dimensions required to install the RF24.
Cavities having a combination of all the minimum dimensions shown
possible, may prove to be difficult installations.
IMPORTANT! A free space of 3/4 inch (19 mm) is required in front of the
barrier screen to allow the window to move and relieve during a hard
start. The use of the optional fret sets this space with the fret bracket
installed.
However, when the fret is not used and the bottom cover is used
instead, this space immediately in front of the barrier screen must be
added to the minimum depth as a safety precaution. It is very
important to ensure that the area immediately in front of the barrier
screen is kept clear at all times even when not using a fret.

17

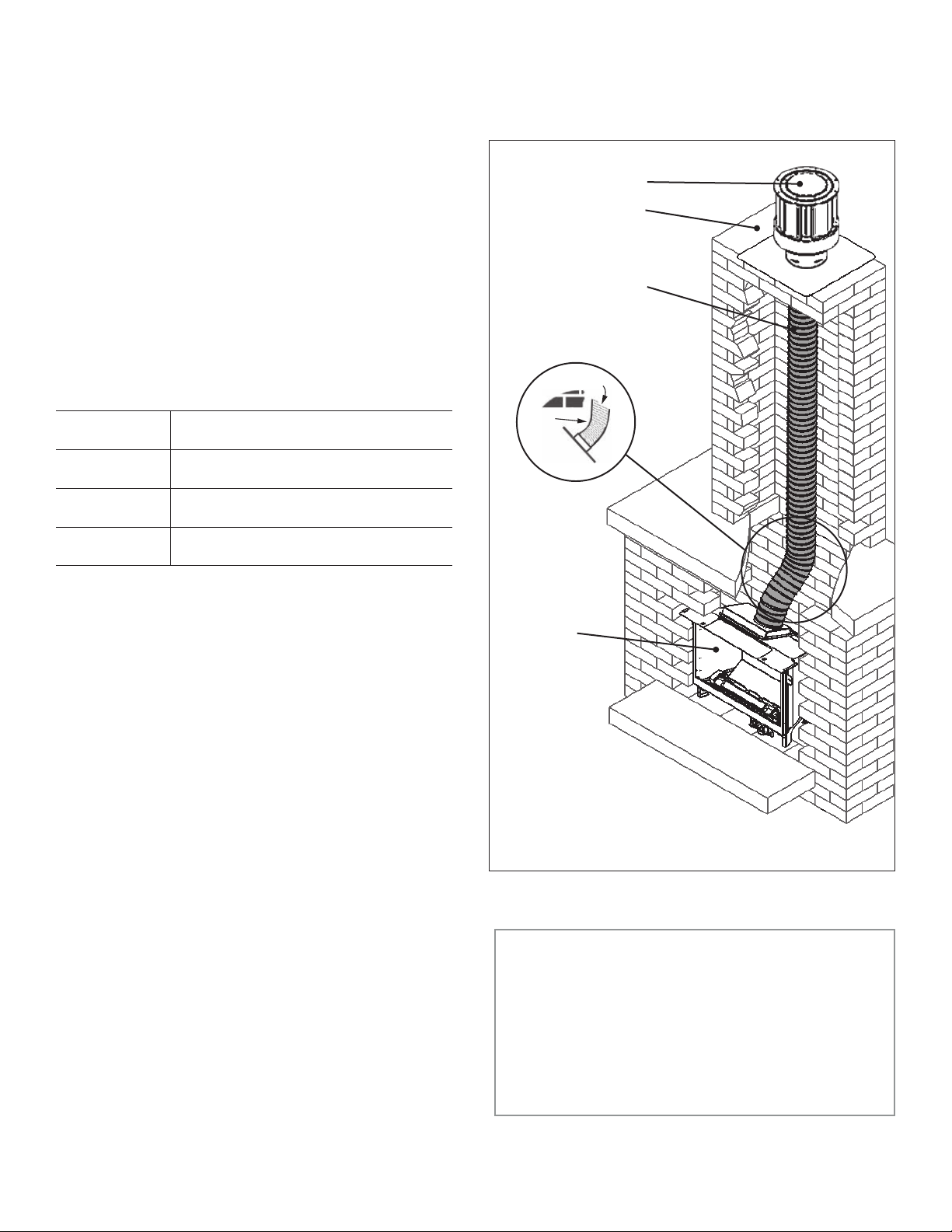

Co-Axial with RA24CA Typical Vent Installation
Typical Vent Installation
See Approved Venting Components on page 40 of this
manual.
Vent Location
The vent terminal must be located throught the roof.
This direct vent appliance is designed to operate when
an undisturbed airflow hits the outside vent terminal
from any direction.
Check local codes for allowable vertical vent
termination.
Venting Table
Maximum
vertical height 40 ft (measured to bottom of termination)
Minimum
vertical height 8 ft (measured to bottom of termination
Maximum
horizontal run 4 ft (measured center to center of pipe
Maximum
offset angle 45° (sweeping bend to allow for obstructions)
Venting Notes
Where possible, avoid splicing flex pipes.
Four feet horizontal is permissible to allow for routing
around masonry projections. Do not bend flex pipe
over a 45 degrees radius.
• Flex liners may only be installed into solid-fule burn-
ing fireplaces and chimney systems (no combustible
constructions).
• The appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
Terminal Cap (co-axial)
Co-axial applications (using RA24CA Vent Plate)
Terminal Adapter with
Flashing included in
590FVK2
RF24J
5 x 3” flex liners—
see Venting Table
for length allowed
5 x 3” Liners
5” min.
Bend
Radius
NOTE
Co-linear or co-axial flexible aluminum venting
liners should be professionally inspected
periodically for corrosion and damage and
replaced when necessary. If the installation does
not allow for future inspection or replacement of
the flexible aluminum liners, then stainless steel
vent liners are recommended.

18
Co-Axial with RA24CA Vent Termination
Vent Terminal Location
The venting system for this appliance is considered to
be a Special Venting System. The rule in the Installation
Code CAN/CGA-B149 requiring a minimum vent height
of 2 feet above any portion of a building within 10 feet
does not, therefore, apply.
Clearances for Vent Terminals (Co-Linear and
Co-Axial)
Overhang should not
extend beyond vent if
within 48” of
termination cap
Horizontal
overhang
Vertical
wall
Min. 24”
(unvented sot)
Min. 36”
(vented sot)
Termination
cap
Min.
18”
Storm
collar
Roof
ashing
‘H’
Roof Pitch Minimum ‘H’
(feet)
Flat to 7/12 1’
over 7/12 to 8/12 1.5’
over 8/12 to 9/12 2’
over 9/12 to 10/12 2.5’
over 10/12 to 11/12 3.25’
over 11/12 to 12/12 4’
over 12/12 to 14/12 5’
Co-Axial + Co-Linear Vent Terminal Location
Co-Axial—5” x 3” flex
Terminal Adapter with
Flashiing supplied
with 590FVK2
590FVK2
Approved 4” x 6-5/8”
co-axial terminal—
see list of approved
terminal in this manual
18”
18”

19
Preparation Existing Fireplace Preparation
Existing Fireplace Preparation
A few points must be considered before inserting the
RF24 into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the RF24 engine. Cutting away any
sheet metal parts of the existing fireplace to
accommodate the installation of the RF24 is prohibited.
Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the RF24 heater and vent liners. Any creosote
or soot residue remaining in the fireplace cavity
chimney or clean-out may cause odors or stains once
the RF24 insert is installed. Consult with chimney sweep
for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require the
damper to be removed in order to install the vent
liners. These dampers are usually bolted into place.
Dampers in masonry fireplaces must be fixed open and
may remain in place.
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a raised
curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the RF24 engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
Gas Line Routing
Plan the routing of the gas line before proceeding.
Utilize the existing hole for the gas line of the factory-
built fireplace.
If the fireplace has no access hole, carefully drill an
access hole of 1.5 inch (38 mm) or less through the
lower sides or bottom of the firebox. The access hole
must be plugged with non-combustible insulation after
the gas supply line has been installed.
See Dimensions section for detailed location of gas
inlet. Also, take into consideration whether or not a fan
or shut-offvalve will interfere when planning routing of
the gas line.
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the RF24 insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the RF24 is being installed.
Attach Warning Conversion Plate to Existing
Fireplace
(plate supplied loose with RF24 heater)
Attach the “This fireplace has been converted...” label to
the existing fireplace using screws or other mechanical
means and store any removed parts in back of the
existing fireplace for future use.

20
Installer - READ THIS FIRST!
1. YOU NEED TO KNOW FROM THE HOMEOWNER:
• What vent configuration will be installed;
• What is the required cavity size/hearth finish;
• Will a fret be used;
• Will there be any optional accessories.
2. Unpack the appliance, removing all items packed
inside and around it. Recycle the packaging.
3. Check that you have everything, using the Pack Con-
tent sheet. Also, check that you have:
• VENT PLATE
• Fuel bed (packed separately)
• Venting accessories
• Gas conversion kit (if necessary)
• Optional accessories (if used)
• Electrical accessories (if used)*
4. Carefully read the Installer’s Checklist included with
the fireplace for the installation sequence.
Caution
Only qualified, licensed, or trained personnel
should install this appliance.
Preparation Before Installation
WARNING
* Optional electrical accessories ARE NOT
ALLOWED when adapting appliance for
outdoor use.
