Valor FIA BR650 VA User manual

600B741/02
OWNER’S GUIDE
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
WHEN CONVERTED USING CONVERSION KIT NO.591149 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND
THE REPUBLIC OF IRELAND (IE) ONLY.
We trust that this guide gives sufficient details to enable the appliance to be operated and
maintained satisfactorily. However, if further information is required, our Valor
AdviceLine will be pleased to help.
Please telephone [phone] (Local call rates apply in the United Kingdom).
In the Republic of Ireland call 353 183 75114
This guide to be left with the owner
© Valor Heating
MODEL BR650 VA
(GC No. 32-032-39)
INSET LIVE FUEL
EFFECT GAS FIRE

OWNER’S GUIDE
Page 2
CUSTOMER CARE
Thank you for choosing Valor.
All Valor gas fires are designed to meet the most stringent quality, performance and safety
requirements to provide our customers with many years’ trouble-free service.
Your owner guide aims to improve your understanding and appreciation of your Valor gas
appliance by providing simple and informative instructions to ensure that you benefit from
the excellent performance and features it has to offer.
If you require further assistance or any advice about gas in general, our AdviceLine will be
pleased to help.
Please telephone [phone] (local call rates apply in the United Kingdom).
In the Republic of Ireland please telephone [phone]
LIST OF CONTENTS
SAFETY..................................................................................................................... 3
OPERATING YOUR FIRE..................................................................................... 5
CLEANING............................................................................................................... 7
REFITTING COALS ............................................................................................... 8
MAINTENANCE.................................................................................................... 10

OWNER’S GUIDE
Page 3
Graph 1 Combustible shelf clearances
SAFETY
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR
LOCAL TELEPHONE DIRECTORY
DO
•Have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
•Have the chimney swept prior to installation if it was previously used for solid fuel.
•Have the fire installed in accordance with the installation instructions
•Provide a minimum clearance as shown in graph 1 from the top surface of the hearth to
any shelf made of wood or other combustible material. Please bear this in mind if you
are making any alterations to the room.
•Always use a fireguard complying with BS6539 or BS6778 for the protection of young
children, the elderly or infirm.
•Wait three minutes before attempting to relight if the fire is switched off or the flames
are extinguished for any reason.

OWNER’S GUIDE
Page 4
DO
•Get advice about the suitability of any wall covering near your fire. Soft wall coverings
(e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by heat. They
may, therefore, scorch or become discoloured when close to a heating appliance.
Please bear this in mind whenever you are considering redecorating.
•Provide a minimum clearance of 100mm from the outside of the fire case to any corner
wall or other combustible surface which projects beyond the front of the appliance.
Please bear this in mind if ever you are altering the room.
DON’T
•Hang clothing, towels or any other fabrics over the fire.
•Throw paper or other materials onto your fire.
•Use the fire with damaged base coals.
•Put more loose coals on the fire than the number given in this guide or use any coals
other than those authorised for this fire. Incorrect combustion could result.
•Attempt to clean or service the fire until it has been switched off and allowed to cool.

OWNER’S GUIDE
Page 5
Figure 1
OPERATING YOUR FIRE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.
The Oxysafe flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will shut
down the appliance in the event of abnormal flue conditions. This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control knob
is kept depressed at the “Pilot/Ign” position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Lighting the pilot

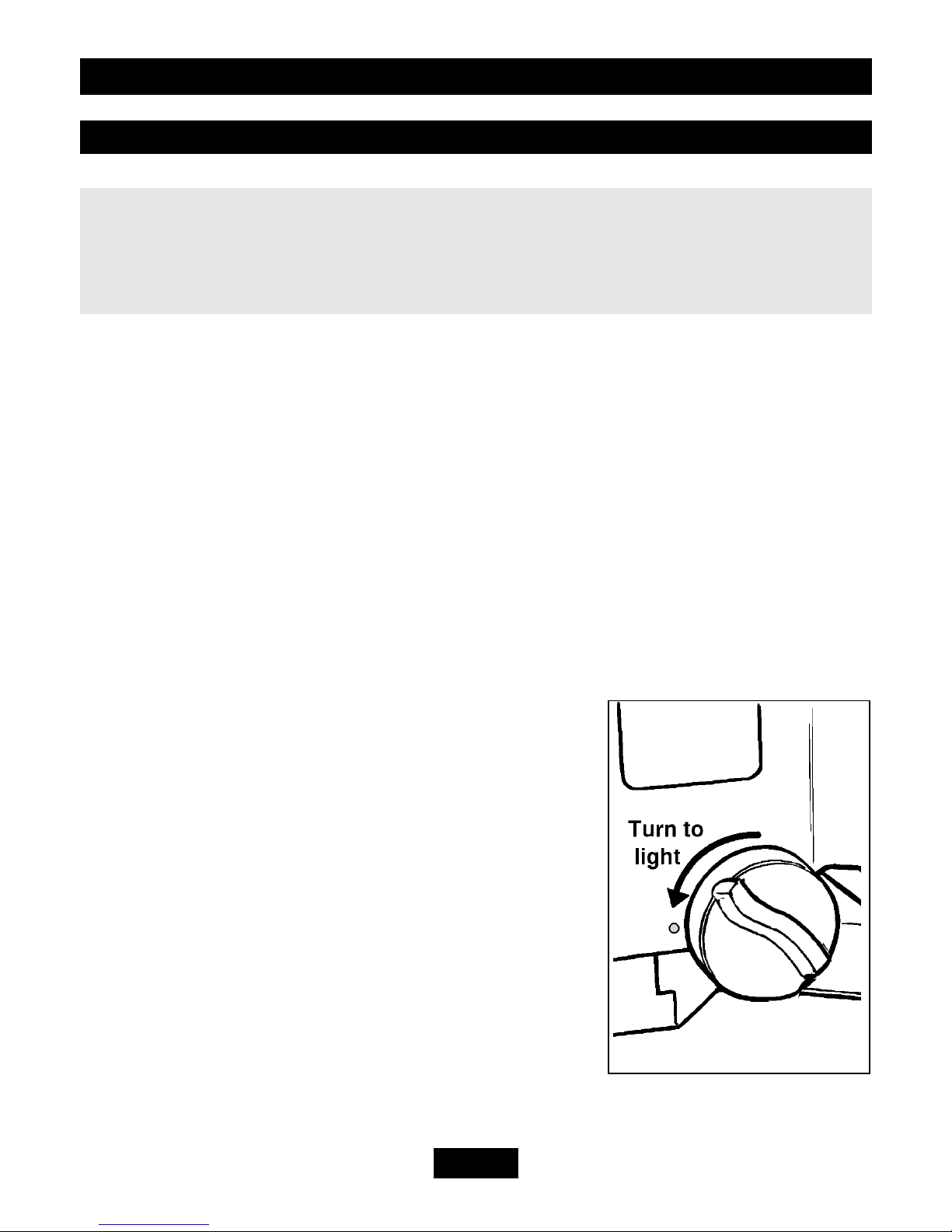

This fire is controlled by a 4-position gas tap mounted on
the front leg of the appliance. In addition to the “Off”
position there is a pilot light and 2 heat control settings.
See figure 1.
•Depress the control knob and turn anticlockwise
towards the “Pilot/Ign” position. A spark should be
generated at the pilot while turning. The spark should
ignite the pilot. The pilot flame can be seen below the
coal at the front left side.
•Keep the button at the “Pilot/Ign” position for a further
ten seconds. This will prevent the flame-sensing device
from shutting off the gas while its probe warms up.
•If the pilot does not ignite instantly, repeat procedure.
If after 10 seconds pilot ignition has not occurred, turn
the control knob back to the “Off” position, wait for 3
minutes and then repeat the ignition procedure.

OWNER’S GUIDE
Page 6
Lighting the Main Burner
•Once the pilot light is established, the main burner can be lit by depressing and
turning the control knob anticlockwise to the “High” position.
Selecting the Heat Setting
•In order to change from one setting to another depress the control knob slightly and
turn the knob to the required position. Any setting from “Low” to “High” may be
selected.
Note: The appliance will operate to its maximum potential if the flue is primed during the
first 20-30 minutes of operation. To do this, simply operate the appliance at its “High”
setting. This will also burn off any carbon deposits that may have formed during previous
operations. If operating the appliance for long periods it is beneficial to change between
settings. This will help to remove any carbon deposits that may form during operation.
Turning the fire back to Pilot Setting
•Depress the control knob and turn clockwise until the pilot setting is reached.
Turning the Appliance Off
•Make sure that the control knob is in the pilot position. Depress the control knob and
turn clockwise to the “Off” position.
•Wait at least three minutes before relighting.

OWNER’S GUIDE
Page 7
CLEANING
To maintain the high performance and quality finish of your Valor appliance, please
follow these guidelines:
•Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool. The fire will retain heat for some time before cleaning can begin.
•If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal Parts
•Clean the metal parts with a slightly damp cloth and then dry.
•Do not use abrasive cleaners as these will scratch the fire surface.
Ceramic Coals and Rear Wall
•Light coatings of soot will usually be burnt off during the normal operation of the fire.
•Should any soot accumulation become excessive, the fuel effect pieces and walls
should be removed from the fire for cleaning.
•This product uses fuel effect pieces, burner compartment rear wall and gaskets
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate
fibres. Excessive exposure to these materials may cause temporary irritation to eyes, skin
and respiratory tract. Consequently, it makes sense to take care when handling these
articles to ensure that the release of dust is kept to a minimum. To ensure that the release
of fibres from these RCF articles is kept to a minimum, during installation and servicing
we recommend that you use a HEPA filtered vacuum to remove any dust and soot
accumulated in and around the fire before and after working on the fire. When replacing
these articles we recommend that the replaced items are not broken up, but are sealed
within a heavy duty polythene bag, clearly labelled as RCF waste. This is not classified
as “hazardous waste” and may be disposed of at a tipping site licensed for the disposal of
industrial waste. Protective clothing is not required when handling these articles, but we
recommend you follow the normal hygiene rules of not smoking, eating or drinking in
the work area and always wash your hands before eating or drinking.
•Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the dust.
•We suggest that you remove the coals in the reverse order to that shown in the fuel
bed refitting instructions.
Burner
•The burner surface can be carefully cleaned to remove any loose particles after taking
off the coals. Make sure that no particles are pushed into the burner slots.
Note: Surface cracking of the burner is normal and no cause for concern.

OWNER’S GUIDE
Page 8
Figure 5 Front Base Coal
Position
Figure 4 Rear Base Coal Position
Figure 3 Burner Tray Trim
Figure 2 Ceramic Rear Wall
Position
REFITTING COALS
1.Fit the ceramic rear wall into the bracket at the back of the firebox .See figure 2.
2. Fit the burner tray trim over the front rim of the burner tray. Push the trim fully down.
See figure 3.
3. Place the rear base coal in the firebox. It should
rest on the ledges at the sides and back of the firebox and
its rear face should touch the rear ceramic wall. See
figure 4.
4. Place the front
base coal in the
firebox with its
bottom front locating
over the front rim of
the firebox. Pull the
coal forward so that
it locates
immediately behind
the front rim of the
firebox. See figure 5.
5. There are two
types of loose coals.
These are identified
with the letter “A” or
“B” on the underside
of the coal.
There are three “A”
coals and two “B”
coals.

OWNER’S GUIDE
Page 9
Figure 10
Figure 9
Figure 8
Figure 7
Figure 6

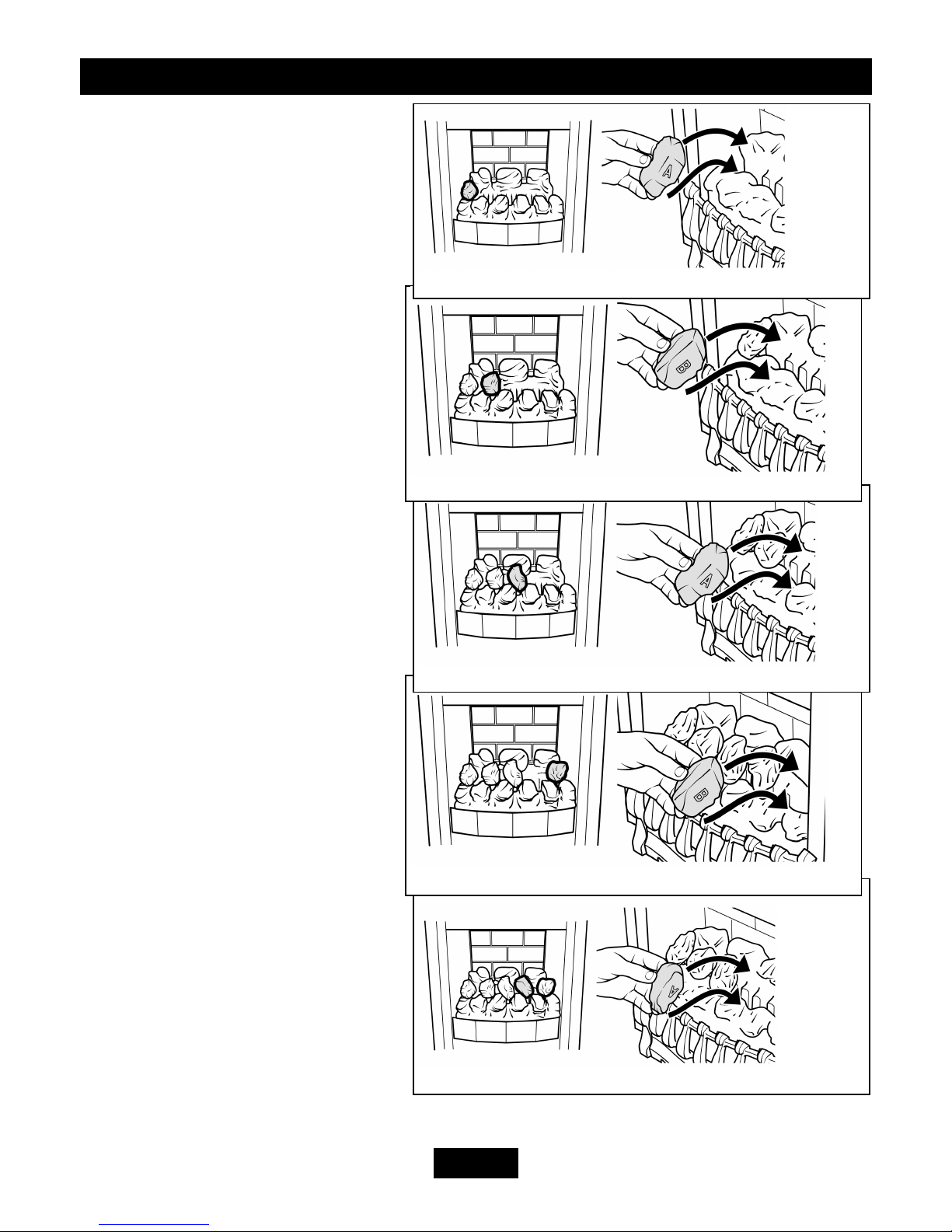

6. Place a type “A” coal between
the front and rear base coals with the
letter “A” upright and so that the coal
is against the left side of the firebox.
See figure 6.
7. Place a type “B” coal between
the front and rear base coals as shown
in figure 7. The letter “B” should be
upright.
8. Place a type “A” coal between
the front and rear base coals with the
letter “A” upright. The top of the coal
should rest against the centre coal of
the rear base coal as shown in figure
8.
9. Place the remaining type “B”
coal at the right side of the firebox
between the front and rear base coals.
The letter “B” should be upright. The
coal should touch the right side of the
firebox. See figure 9.
10. Place the remaining type “A”
coal between the front and rear base
coals. The letter “A” should be
upside down with its rear face
between the right and centre coals of
the rear base coal. Angle the coal so
that the gap between it and the type
“B” coal to its right is appreciably
larger than the gap between it and the
type “A” coal to its left but do not
have it touching the type “A” coal.
This will give the best flame effect.
See figure 10.

OWNER’S GUIDE
Page 10
MAINTENANCE
Regular maintenance
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept clear
of any form of obstruction. It is possible that deposits of mortar or soot could fall and
accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue and
pipework which is situated in a tenant’s premises checked for safety at least every twelve
months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing
•In the United Kingdom servicing can be carried out either by a Valor service engineer
or a CORGI registered installer.
•If you require your fire to be serviced, please contact Valor Service on 0121 386
6203 and quote the following details;
a) model name and number.
b) appliance serial no. (To be found on the plate close to the control knob.)
•If you wish to replace any of the owner replaceable parts listed below, please contact
Valor Sales on 0121 386 6260 for your nearest stockist of these parts. When ordering
please quote the part number shown below.
Owner Replaceable Parts
Description Part No
Ceramic rear wall 579139
Front base coal 579119
Rear base coal 579129
Pack of 5 loose coals 579149
•When fitting replacement parts, follow the instructions contained in this guide. It
is important that only Valor approved parts are used for maximum safety.
•In the United Kingdom, for general advice about gas and your gas fire call our
ADVICELINE 0345 626 341.
•In the Republic of Ireland call 353 183 75114 for all enquiries.
