Vanco HD4KTEST User manual
Handheld 4K
HDMI® Tester
Vanco Part Number:
HD4KTEST
Technical Support
www.vanco1.com 800-626-6445
2
1. Do not expose this unit to water, moisture,
or excessive humidity.
2. Do not install or place this unit in a built-in
cabinet, or other conned space without
adequate ventilation.
3. To prevent risk of electrical shock or re
hazard, due to overheating, do not obstruct
unit’s ventilation openings.
4. Do not install near any source of heat,
including other units that may produce heat.
5. Do not place unit near ames.
6. Only clean unit with a dry cloth.
7. Unplug unit during lightening storms, or
when not used for an extended period
of time. A surge protector is strongly
recommended.
8. Protect the power cord from being walked
on or pinched, particularly at the plugs.
9. Use unit only with accessories specied by
the manufacturer.
10. Refer all servicing to qualied personnel.
CAUTION
HDMI is a very complex technology requiring continuous authentication of the signal and the same
video resolution and audio settings on all electronic equipment in the system. When there are multiple
sources and displays, the video resolution and audio setting on all connected units must be adjusted
to correspond with that of the display having the lowest video and audio capability.
WARNING
DEAR CUSTOMER
Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions carefully before
connecting, operating or adjusting this product.
Please keep this manual for future reference.
This product is 100% inspected and tested in the United States
to verify HDMI performance parameters.
The Adopted Trademarks HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are
trademarks or registers trademarks of HDMI Licensing Administrator, Inc. in the United States and
other countries.
www.vanco1.com 800-626-6445 3
FEATURES
The Vanco HD4KTEST is a handheld HDMI tester to help troubleshoot issues with passive and
active HDMI installations in the eld. Connect the HDMI Output to a display to act as a signal
generator to ensure video signals and HDCP are passed, or connect a source to the HDMI Input
to emulate the signal coming out to the sink using the LED lights. A convenient way of testing all
components and cabling within an HDMI distribution system. The HD4KTEST is capable of 4K and
1080p resolutions, with 16 combinations to help replicate and resolve common issues in the eld.
Includes a durable and reusable carrying case, the HD4KTEST is a great tool to bring to any job
site resulting in less time troubleshooting issues out in the eld.
Handheld 4K HDMI® Tester
Part # HD4KTEST
• Convenient handheld 4K and 1080p tester for troubleshooting issues with passive and active HDMI
installations
• Acts as either the source or display to test cabling and components
• Capable of 16 different testing combinations to help identify and resolve common issues
• Test for HDCP 2.2 and 1.4 Compatibility
• Connect a source to act as a signal emulator or a display to act as a signal generator to test video and
HDCP signals
• Includes durable carrying case, allowing you to take the HD4KTEST to every job site
• Dimensions: 3.4” x .87” x .75” (95x22x19 mm)
PACKAGE CONTENTS
• (1) HD4KTEST Handheld Tester
• (1) Micro USB to USB A Cable for power
• (1) Carrying Case
• Product Manual
www.vanco1.com 800-626-6445
4
SPECIFICATIONS
Connections .............................................................. (1) HDMI Input, (1) HDMI Output
Video Output ............................................................. 4K@60Hz, 4:4:4; 4K@60Hz, 4:2:0; 4K@30Hz,
4:4:4; 1080p@60Hz
Video Input................................................................ Up to 4K@60hz, 4:4:4
Audio Output ............................................................. PCM/Stereo
Audio Input................................................................ PCM/Stereo
Dimension (W*H*D)................................................... 3.4” x .87” x .75” (95x22x19 mm)
Weight ..................................................................... 0.44 lbs (0.2kg)
Power....................................................................... 5V, 1A
www.vanco1.com 800-626-6445 5
PANEL DESCRIPTIONS
1. HDMI OUT (to test display/Signal Generator): Connect an HDMI display, the HD4KTEST unit will generate
a test HDMI signal which will be viewable on the display
2. HDMI IN (to test source/Display Emulator): Connect an HDMI source, the HD4KTEST will emulate the
source’s signal to detect signal status (5v, TMDS) as well as HDCP content (version)
3. SIG (Signal) LED:
a. When the HD4KTEST is used as a HDMI signal generator, the LED turns red when there is HDMI
signal output
b. When the HD4KTEST is used as a display emulator, the LED turns green when only 5V signals
is detected, or turns red when the 5V and TMDS signals are detected simultaneously, or off when
there is no input or HDMI signal is being sensed
4. HDCP LED:
a. When the HD4KTEST is used as a HDMI signal generator, the HDCP content can be selected by
using dip switches. The LED turns green when HDCP 2.2 is selected, or red when HDCP 1.4 is
selected, or off when no HDCP is present
b. When the HD4KTEST is used as a display emulator, the LED turns green when HDCP content of
the HDMI source is sending HDCP 2.2, red when it is HDCP 1.4, or off when no HDCP is present
5. POWER: Micro USB port for power, the HD4KTEST must be connected to power when it is used as a
signal generator
NOTE: When being used as a display emulator, external power is optional but can be helpful when diagnosing
cabling issues
6. DIP SWITCHES: When the HD4KTEST is used as a HDMI signal generator, switches 1 & 2 are used for
built-in audio/video EDID selection, and switches 3 & 4 are used for HDCP content selection
1
4
2
3
6
5
www.vanco1.com 800-626-6445
6

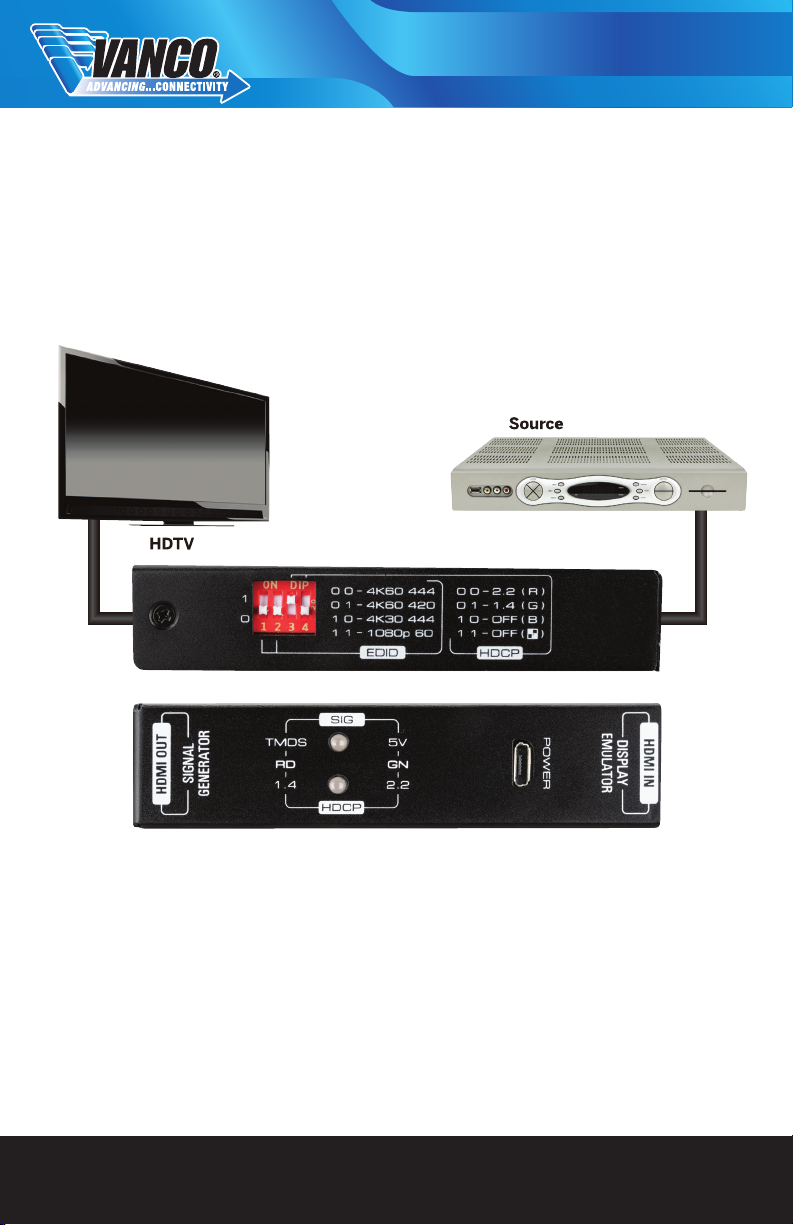

1. Connect the HDMI output of the HD4KTEST to an HDMI display
2. Adjust the dip switches on the HD4KTEST to the capabilities of the display or the resolution and settings
you wish to test (see Dip Switch Table Settings)
3. NOTE: The example above has all dip switches in the down or “0” position for 4K@60Hz, 4:4:4 and
HDCP 2.2
4. Connect the provided micro USB cable to the HD4KTEST for power
NOTE: Depending on the dip switch settings you are using, you will see a different color on the display if the
signal is passing correctly. If no color is shown on the display, the signal is not being passed to the display.
(see Dip Switch Table Settings)
CONNECT AND OPERATE
Signal Generator (to test a display and/or cabling):
The HD4KTEST will output different colors on an HDMI connected display to signify if the signal is
passing properly through the cabling and to the display. See the “Dip Switch Table” to identify what
the color of the video image on the display means.
HD4KTEST LEDs
Signal LED
Red Green Off
Signal Generator Signal n/a No Signal Detected
Display Emulator 5V and TMDS
Detected
5V Detected No Signal Detected
www.vanco1.com 800-626-6445 7
Display Emulator (to test a source and/or cabling):
1. Connect HDMI INPUT of the HD4KTEST to an HDMI source
2. Power on the source
3. Connect the provided micro-USB cable to the HD4KTEST for power (optional)
HD4KTEST LEDs
Signal LED
Red Green Off
Signal Generator Signal n/a No Signal Detected
Display Emulator 5V and TMDS
Detected
5V Detected No Signal Detected
HD4KTEST LEDs
HDCP LED
Red Green Off
Signal Generator 1.4 2.2 None
Display Emulator 1.4 2.2 None
www.vanco1.com 800-626-6445
8
Dipswitch Setting HDCP Color
0000
HDCP 2.2 Red
0100
1000
1100
0001
HDCP 1.4 Green
0101
1001
1101
0010
OFF Blue
0110
1010
1110
0011
OFF Checkered (Black and
White)
0111
1011
1111
1 = ON/UP
0 = OFF/DOWN
www.vanco1.com 800-626-6445 9
SAFETY AND NOTICE
The HD4KTEST has been tested for conformance to safety regulations and requirements, and has been
certied for international use. However, like all electronic equipment, the HD4KTEST should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk
of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit.
• Always unplug the power to the device before cleaning.
www.vanco1.com 800-626-6445
10
LIMITED WARRANTY
With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment
it manufactures or sells will be free from defects in materials and workmanship for a period of two years from
the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period,
Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become
the property of Vanco. This warranty does not apply to those products which have been damaged due to
accident, unauthorized alterations, improper repair, modications, inadequate maintenance and care, or use in
any manner for which the product was not originally intended.
Items integrated into Vanco products that are made by other manufacturers, notably computer hard
drives and liquid crystal display panels, are limited to the term of the warranty offered by the respective
manufacturers. Such specic warranties are available upon request to Vanco. A surge protector, power
conditioner unit, or an uninterruptible power supply must be installed in the electrical circuit to protect against
power surges.
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales
invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco
regarding warranty repair or replacement.
www.vanco1.com 800-626-6445 11
TECHNICAL SUPPORT
In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email
When calling, please have the Model Number, Serial Number (afxed to the bottom of the unit) and Invoice
available for reference during the call.
Please read this Instruction Manual prior to calling or installing this unit, since it will familiarize you with the
capabilities of this product and its proper installation.
All active electronic products are 100% inspected and tested to insure highest product quality and trouble-
free installation and operation. The testing process utilizes the types of high-denition sources and displays
typically installed for entertainment and home theater applications.
For additional information, such as helpful installation videos, glossary of terms, etc. please visit vanco1.com
LIABILITY STATEMENT
Every effort has been made to ensure that this product is free of defects. The manufacturer of this product
cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising
from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for
their requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be
reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording
or by any information storage or retrieval system without the written consent of the publisher.
Manufacturer reserves the right to revise any of its hardware and software following its policy to modify and/or
improve its products where necessary or desirable. This statement does not affect the legal rights of the user
in any way.
Vanco® International
506 Kingsland Drive
Batavia, Illinois 60510
call: 800.626.6445
fax: 630.879.9189
visit: www.vanco1.com
