©Vantage, 41380 / IS-0541-A / InFusion Equinox 40 LCD Keypad – MODEL: EQ40TB-TI page 1 of 6

INSTALLATION

VANTAGECONTROLS.COM VANTAGE INSTALL GUIDES

1061 South 800 East • Orem, Utah 84097 • Telephone 801 229 2800 • Fax 801 224 0355 Equinox 40 LCD Keypad – MODEL: EQ40TB-TI

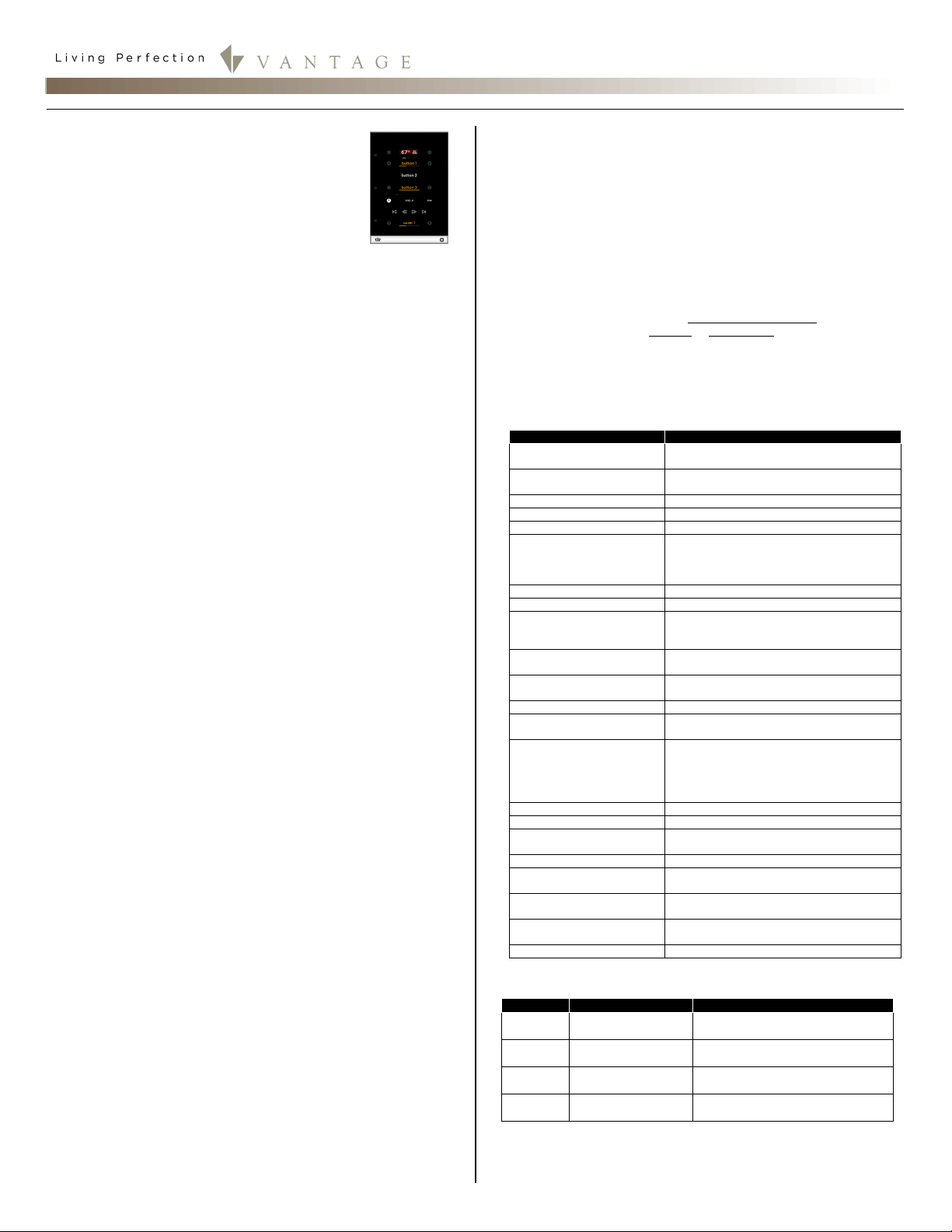

Overview

Vantage's Equinox 40 LCD Keypad has been

designed to be located in the same space as a

traditional keypad, installed in a single gang wall

box. Scalable designs from one, two, or three

pages allow a perfect fit in most areas. Each

keypad can be configured with three

independent mini-widgets, making this an

eloquent choice for areas where lighting, AV

control, climate control, etc., are wanted, without the added

cost of a fully functional touchscreen or the wall clutter of

multiple gang keypads. Equinox 40 introduces Vantage’s

commitment to a consistent user experience interface across

platforms using auto-programming mini-widgets. The interface

uses intuitive gestures; swipe left and right to change pages,

touch and release for normal button operation, or press and

hold for dim-cycle, volume controls, etc.

Features/Operations Overview

Fits US/European single-gang box or low voltage bracket.

Available in a “Black Glass” finish.

Power & communication over station bus.

Accepts Six-wire pigtail with all functionality.

Update firmware from Design Center. NOTE: Screen turns a

gradient green during a firmware update.

Built-in ambient light sensor for “Active,” AUTO mode

screen brightness.

Built-in proximity activation, senses movement under 6”,

sets screen to Active brightness.

oMay also activate tasks that do not use a HOLD

trigger.

oProximity trigger will not re-trigger for 30 seconds

after no keypad usage or when the plus/minus signs

disappear (see Steps moving from active to inactive,

page 4).

oRe-triggering may also be controlled through task

logic.

Up to three LCD pages available through Design Center

programming.

Each LCD page may have up to 5 scene buttons depending

on exclusion of AV mini-widget.

Raise/Lower graphical buttons via minus / plus (-/+) for

dimmable loads and volume control.

Text tracks status using two fixed colors for ON and OFF.

Dual operation mechanical button, bottom left and right;

oleft navigates to home screen or settings screens with

press and hold,

oright may be programmed from Design Center.

Self discovering widgets for fast setup & programming.

Five programmable event sounds through Design Center.

Headers; select one of the following as a page header:

oempty – displays nothing in the header;

otemperature (only select one);

Internal temperature

External temperature

Heat set point

Cool set point

othermostat (select one thermostat only);

Displays internal temperature

Displays current mode setpoint – setpoint is

adjustable via minus / plus (-/+) buttons

Displays current mode – blue graphic for Cool,

red graphic for Heat, blue and red graphic for

Auto, and gray graphic for Off

Displays the word “heat” or “cool” and the

current mode graphic becomes more vivid when

system is actively heating or cooling

otime – HH:MM format;

twelve hour clock only

oweather;

Displays current outdoor temperature and a

graphic of current conditions.

AV mode – selecting an AV zone replaces bottom two

scene buttons on all three pages with pre-designed

common AV interface controls.

Local settings (accessed by a press and hold of Home

button);

ovolume (touch interaction audio feedback)

minus / plus (-/+) touch interaction volume

off when dark checkbox

oSettings

Auto Mode option

Active & Inactive brightness settings

Advanced

Low trim – sets minimum brightness

percentage for auto mode,

Motion sense – sets proximity sensor’s

sensitivity.

Off When Dark option.

oStation information

Firmware, graphics, boot code & eprom versions

Serial number

use infusion settings,*(Design Center settings)

option.

*NOTE: to unselect use infusion settings change any

setting on the Sound or Brightness setup screens.

Possible Screen Combinations:

1) Header, Scenes, Audio, 2) Header, Scenes,

3) Scenes, Audio, 4) Scenes only.

Station Reset – simultaneously, press and hold both

mechanical buttons for one second.

Specifications

Description Specification

Dimensions, HWD

(at wall surface) 4.9” x 3.44” x 0.44”

124mm x 87mm x 11mm

Dimensions, HWD

(overall) 4.9” x 3.44” x 1.38”

124mm x 87mm x 35mm

Finished Weight 11.2 oz. or 317.5g

Power 24V/36V via Station Bus

Surge Suppression Yes

Maximum LCD Control

Points (CP) including +/-

buttons (with 3 pages)

Scenes only – 45 CP max.

Scenes & Header – 47 CP max.

Scenes & AV – 37 CP max.

Scenes, AV, & Header – 39 CP max

Maximum Gangs Single Gang Only

LCD Button Status Automatic (white = off, ochre = on)

Sound Option Independent volume for each sound:

1 – touch interaction

5 – programmable event sounds

Wiring Connections 2 Wire 600V pigtail (included)

6 wire aux. pigtail (order separate)

Power for Aux. External

Devices 15 mA @ 12V DC

Station Bus Polarity Auto-Switching

Station Wiring

configuration Daisy-chain/Star/Branch

Station Bus Specification

2C, 16AWG / 1.31mm2, twisted, non-

shielded, <30pF per foot. Separate a

minimum of 12" / 30.5cm from other

parallel communication and/or high

voltage runs.

Station Buss Power Draw 2.85W on IC-24 / 2.85W on IC-36

Addressing self addressing through software

Finish TRIM - Titanium

TOUCHSCREEN – Black Glass

Glass Surface Chemically Strengthened

Ambient Operating

Temperature 32-95°F -or- 0-35°C

Ambient Operating

Humidity 5-95% non-condensing

FreeRTOS™

Real-time scheduling provided by

FreeRTOS (www.freertos.org)

CE and RoHS Compliant Yes

Character / Font Support

Equinox can render the following Unicode Codepoints*

Range Typeface Unicode Codepages (blocks)

U+0000 -

U+00FF

Rendered in

Gotham Book Basic Latin, Latin-1 Supplement

U+0400 -

U+06FF

Rendered in Arial

Unicode MS

Cyrillic, Cyrillic Supplement,

Armenian, Hebrew, Arabic

U+2700 -

U+27FF

Rendered in Arial

Unicode MS Dingbats

U+3000 -

U+30FF

Rendered in Arial

Unicode MS

CJK Symbols and Punctuation,

Hiragana, Katakana

*NOTE: Proper computer/keyboard setup or copy/paste is

required to produce many international characters from the

above Unicode Codepoints.

I N S T A L L A T I O N

©Vantage, 41380 / IS-0541-A / InFusion Equinox 40 LCD Keypad – MODEL: EQ40TB-TI page 2 of 6

Station Bus*

Enclosure

Equinox

Keypad

Equinox

Keypad

Six Wire Pigtail

for sensors, dry

contacts, etc.

Equinox 40

keypad

pigtail

mounting

plate

Equinox 40

LCD keypad

station bus

Screws*

*Use flat-head screws provided

US – 6-32 x 0.75″or

Metric – M3.5 x 20mm

Set 1/16” hex

screw in

station bottom

Press here on front,

bottom, center

System Requirements

Equinox 40 is compatible with InFusion Design Center version

3.1 software or higher. For new projects it is recommended

that firmware and software be kept to the most current

release.

Installation

Installation of Vantage products should be performed or

supervised by a Certified Vantage Installer. The Vantage

Equinox 40 keypad installs into US/European style, single

gang, wall boxes or low-voltage brackets. Connect to station

bus. See Troubleshooting, Expectations and Tips page 5.

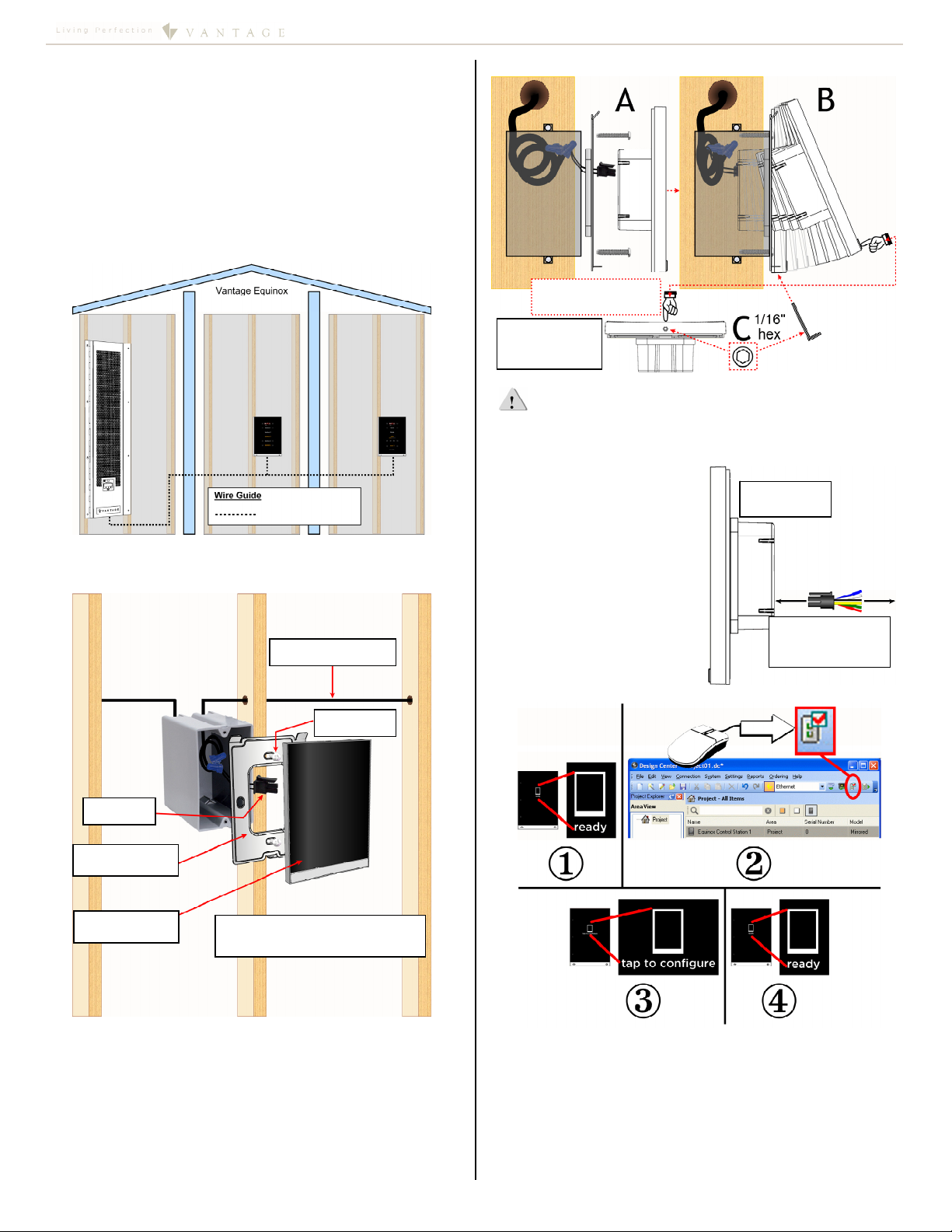

I. Installation Overview

*See Vantage Station Bus Specification – table, page 1.

Vantage Station Bus may be ordered separately.

Station Install Steps

1. Run station bus to boxes.

2. Install mounting plate with screws provided (see A in *Side

View Illustration). Do not bend mounting plate

3. Connect pigtail to station.

4. Install station by rotating (see B in *Side View Illustration)and

connecting the top first. Then press station in and hold on

bottom center while securing the hex screw with provided

allen wrench (see C in *Side View Illustration).

*Side View Illustration:

CAUTION: Do not over tighten the 1/16” hex screw in station

bottom. If screw will not go in, the mounting plate may need

slightly loosened and/or have a thin spacer inserted between

the wall and mounting plate. The wall must be repaired if

there is still a problem.

Auxiliary Connections

Auxiliary connections to the

station are wired to a six wire

pigtail, including motion

detectors, door contacts, light

sensors, etc. Each aux.

connection supplies a 15mA @

12V DC power source,

eliminating the need for an

external power supply. Aux.

powered devices using the

Black wire should not be earth

grounded unless isolated.

II. Configuration

1. Connect station bus and confirm it says ready.

2. Highlight station in Design Center; click Configure Stations.

3. Station displays tap to configure – tap station.

4. When configured station goes back to ready until

programmed.

-OR-

5. The station may also be configured by typing the serial

number in the project file, using this method the station will

automatically be configured when the system is

programmed.

I N S T A L L A T I O N

©Vantage, 41380 / IS-0541-A / InFusion Equinox 40 LCD Keypad – MODEL: EQ40TB-TI page 3 of 6

33%

100%

Headers

Page

Indicators

Custom Scene

Buttons

Controls

Mechanical

Buttons

spotsspots

Playlist Control &

Status Icons

selected source dashes: – swipe left or right

source icon – press / release

playlist | ellipsis – press / release

skipprevious | pause/play | skipnext

volume — | source name/zone power | volume +

volume level indicator

Tuner Radio Control &Icons

selected source dashes: – swipe left or right

tuner presets (see Tuner Operation Detail):

frequency: - press / release | band icon

seek previous | tune up/down | seek next

volume — | source name/zone power | volume +

volume level indicato

III. Design Overview

Keypad Areas:

1. Headers – top portion of keypad, may be set to:

Empty,

Temperature,

Thermostat,

Time,

Weather.

2. Page indicators 0, 2, or 3 dashes – beneath header:

In Design Center, setup the Equinox keypad with 1, 2, or 3

pages. Dashes are added for two and three page layouts.

oUse a left or right swipe gesture to navigate the

pages.

3. Scene Buttons – middle portion of keypad:

Button text uses a variable width font, allowing approx. 9 to

15 lower case characters & spaces that change color for

status. In Design Center, text turns red if too long.

oWhite = off and ochre = on.

Dimmable load tasks, in addition to text, also display a

horizontal load level indicator.

oExample:

Dimmable loads/tasks also display , –/+

(minus/plus) buttons that support press and hold for fading

or ramping and press and release for stepping down or up.

4. AV Zone – bottom portion of keypad:

When enabled, the AV Zone replaces the bottom two scene

buttons on all three pages. Using a mini-widget, common

AV controls are automatically programmed.

oAV controls are dynamic and self-changing

depending on the AV Zone’s source equipment and

the Driver Designer, driver used.

oVantage’s 850D-DA and DMM-4S-(T) are great

examples using this integration. (See AV Zone below)

5. Mechanical Buttons – bottom bar left/right buttons:

oPressing the home (mechanical) button on the

bottom left will return to page 1.

oPress and hold the home button for station setup.

oNote: The right button may have a task assigned to it.

IV. Equinox Headers and AV Zone Graphics Overview

Headers

Empty – may be left blank.

Temperature Header Widget

oSelect thermostat sensor or

setpoint property, (e.g., indoor

or outdoor temperature)

oDisplays sensor or setpoint

value.

Thermostat Header Widget:

oSelect one thermostat.

o, –/+ (minus/plus) buttons change the current

mode’s setpoint.

oThe text heat or cool appear under the setpoint when

the call for either is active.

Heat

Cool

Off

Auto

Time Header:

oDisplays current time in

hours and minutes.

Weather Header Widget:

oSelect Header Data Weather.

oCreate Weather Data in

Design Center’s

programming view. To create

a location, right click and select the Add Weather

icon.

oWeather Location formats may be typed in as:

(1) City, State, (2) City, Country, or (3) U.S. Zip Code.

oWeather Icons and Descriptions

Current Condition icons are updated

automatically from Vantage’s weather service

provider.

blizzard cloudy cold day drizzle dust freezing

drizzle

freezing

rain

hazy hot day mixed partly

cloudy

rain

showers

smoke snow snow

showers

sunny thunder-

storm

wind

AV Zone

May be left blank:

oAllows for two additional scene buttons at the

bottom of all three pages.

Select an AV Zone:

oIn Design Center, select a multi-room zone or filtered

zone; for example select Zone 1 from the 850D-DA

Amplifier. The sources available to that AV Zone and

the current source selected determine the controls

that will be available in the AV section of the keypad.

oVantage recommends naming sources with short

names using lower case letters. Equinox changes all

text to lower case characters in each source name.

Examples; dmm s1 or technics s2.

oSome AV Zone display icons are dynamic to include

appropriate information and/or interface controls

depending on the source selected.

Example: If the selected source is a DMM

playlist or an AM/FM tuner, the control buttons

and other metadata update automatically.

I N S T A L L A T I O N

©Vantage, 41380 / IS-0541-A / InFusion Equinox 40 LCD Keypad – MODEL: EQ40TB-TI page 4 of 6

after

30s / no

plus/minus or

load levels

after

another 30s,

(1 minute total) the

screen goes inactive or off

active

NOTE:

Play Sound Effects is

available through Design

Center programming. In

the Procedure Wizard,

Select Advanced | Stations

| Play Sound Effect. This

feature does not change

the Equinox interaction

sound when touching the

screen. Uses would be as

an alert triggered by a

motion sensor, etc.

Sound

(left)

touch interaction

configuration

creen

Brightness (below, left) –

(active / inactive)

configuration screen and advanced

dvanced Brightness (above, right)

Low trim – sets minimum brightness percentage

in auto mode,

Motion sense – proximity sensor’s sensitivity.

Tuner Operation Detail

Each Equinox 40 station, on a project, supports six,

independent, learnable presets for each tuner/band source

available to the assigned AV Zone. Follow steps in order.

1. Press/Release on

frequency to

select presets 1–6.

2. |< or >|, seek

3. << or >>, tune to

station

4. Press and hold

frequency to

learn to selected

preset.

5. Preset selection turns white when learned.

V. Equinox 40 Configuration Pages

Setup – To enter the settings screens, press and hold the Home

button for about 2 seconds (mechanical button, bottom left).

Press and hold again to select a different settings page or

press and release to exit.

oAV Source Icons and Descriptions

Icons are updated automatically from selected

source driver.

AirPlay Amazon Aupeo! GoogleMusic GrooveShark HDRadio

IHeartRadio InternetRadio2

InternetRadio LastFM MediaFly MOG

Napster Pandora PlayLists rdio Rhapsody SiriusXM

Slacker Spotify Stitcher StreamingMedia

TuneIn

Wolfgang’s Vault

VTuner XBoxMusic AM FM XM

Binding Methods, Substitutions, and Driver Implementation

Play

Interface

Standard

Binding Method

Substitute 1

Binding Method

Substitute 2

|< SkipPrevious Rewind ScanPrevious

|| Pause — —

> Play — —

>| SkipNext Forward ScanNext

Tuner

Interface

Standard

Binding Method

Substitute 1

Binding Method

Substitute 2

|< SeekDown ScanDown —

<< TuneDown — —

>> TuneUp — —

>| SeekUp ScanUp —

Channel

Interface

Standard

Binding Method

Substitute 1

Binding Method

Substitute 2

|< ScanDown CategoryPrevious

(Tuner Interface) —

<< Down — —

>> Up — —

>| ScanUp CategoryNext

(Tuner Interface) —

Zone Switching Implementation

Drivers utilizing switching for the Equinox 40 must support the AVZone2

model with implementation of the AVZone2, AVSource, Power and

Volume2 interfaces.

Media Server Implementation

Media server support must implement the data provider interface using

the Equinox 40 data model.

Setup Screen – displays three choices

Using Local Settings Using Design Center settings

(notice icon on right)

Press and hold the home button to select one of the following

three categories:

Sound Settings – touch interaction feedback

Adjustable volume level

off when dark check box

Brightness Settings

auto mode check box – auto sets active brightness to

ambient light

active – sets active brightness level

inactive – sets brightness to inactive level after 60

seconds of non-use

advanced (advanced brightness)

Low trim – sets minimum brightness percentage

for auto mode,

Motion sense – sets proximity sensor’s

sensitivity level.

off when dark – when checked turns LCD screen off, if

ambient light level is very low, when going to inactive

level.

Steps moving from active to inactive

after 30 seconds the minus/plus buttons and load

levels dissappear.

After another 30 seconds (1 minute total) the screen

dims to inactive level or off, if off when dark is

checked and ambient light is very low.

Information Settings

Station firmware version

G(xx), B(xx), & E(xx) – graphics, boot, and eprom

versions

Station serial number

use infusion settings check box*

*Note: To uncheck the use infusion settings check box, make

changes to the Sound or Brightness settings.

Configuration Screens:

I N S T A L L A T I O N

©Vantage, 41380 / IS-0541-A / InFusion Equinox 40 LCD Keypad – MODEL: EQ40TB-TI page 5 of 6

Close-Up of Back Label

Information (right)

Firmware*

graphics, boot code, an

eprom versions & use infusion settings

configuration screen.

NOTE: Firmware may be update

from Design Center. Screen turns a

radient green color during a

firmware update.

(Configuration Screens continued)

Troubleshooting, Expectations and Tips

1. Header Widget Area - Comfort/Weather/Clock/Blank

Provides relevant thermostat, weather or clock information

Thermostats Supported – Vantage CC-STAT and

Aprilaire 8870 or 8800, including internal and external

temperature sensors – thermostat in thermostat mode

only – no support for Humidistat.

Weather Supported – Current outside temperature and

conditions.

Tips/Troubleshoot -

Auto Mode – last known mode setpoint shown, +/-

buttons increment BOTH heat and cool modes at the

same time, unknown currently if it is heat or cool when

walked up to.

Weather – check gateway and DNS on controller

Time – may take up to one minute to synchronize with

system time if controller time is changed.

2. Middle Button Area – Scenes/Tasks

Provides standard button control and feedback for any scene

Supported Button Count – Max three per page with

audio; Max five per page without audio

Supported Page Count – Max three

Supported Scenes – All Vantage tasks for lighting,

shades, a/v, pool/spa, drivers, conditional logic, etc.

Tips/Troubleshoot -

+/- Buttons – Check conditional logic on tasks, confirm

power profile standard/dimmable (use of simple

conditional logic and dimmable loads).

Supported Cases –

1. Procedures and loads support adjust/dimmable.

2. All devices are same type (no mixed scenes).

3. Same objects in all branches of conditional logic.

4. Dimmable Loads required (for loads)

a. If all power profiles are relay, adjust/dim is

not supported

5. Make sure all objects support required methods

LED Status – Status using fixed colors for ON and OFF.

Character counts – not fixed width, based on characters

used. Turns red if too long.

No Capital letters – not allowed based on Industrial

Design guides.

Button allocation on Pages – only draws pages with

buttons assigned, Only draws buttons if text or task

assigned

3. Bottom AV Widget Area – Audio Zone/Sources

Provides single zone audio control for power, volume, source

selection, playlists, tuner presets and transport commands.

Supported Multi-room Systems – Vantage 450, 850, and

Nuvo Grand Concerto.

Sources Supported – Vantage DMM, Vantage IMS,

Autonomic Mirage MMS - playlists & Pandora, Mozaex

Solo (use DMM object renamed), Nuvo Music Port, Nuvo

T2, Nuvo iPod Dock, Russound ST2, Speakercraft STT2,

Elan DTNR, Onkyo T4555, Integra TUN 3.7, iPort FS/IW.

Tips/Troubleshoot -

Initially tuner presets are empty; the initial project file

does not have tuner presets.

Tuner presets are read back in from system every time

there is full program or firmware update once they exist.

Project file must be open for read back to work and

then saved.

Tuner presets are lost if keypad is deleted from Design

Center project.

Check to see if using supported drivers

Check source parameters for drivers assigned

Check AV zone or filtered AV zone selections

Check firmware on 450/850

Check to see if using unsupported drivers, IR (discrete

play/pause), interfaces implemented?

Check source parameters, check zone parameters

For unsupported systems use keypad/scene buttons

Please see http://dealer.vantagecontrols.com/ for latest

installation instruction.

Mounting Plate

Use flat-head screws provided to mount the Mounting Plate.

Pan-head screws will not allow the station to fit snugly to the

wall and may damage electronics. Do not bend mounting plate.

Use either type screw supplied:

2 Each – US:

US: VHC-01090–SCREW, 6-32 X .750” P-FH, ZINC

2 Each – Metric:

VHC-01089–SCREW, M3.5 X 20mm P-FH, ZINC

I N S T A L L A T I O N

©Vantage, 41380 / IS-0541-A / InFusion Equinox 40 LCD Keypad – MODEL: EQ40TB-TI page 6 of 6

Multi-View Line Drawing

Digital Distributed Audio Amplifier

Instruction Manual

850D-DA

Preface and Safety Instructions 850D-DA

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install following the

manufacturer’s instructions.

8. Do not install near any heat source such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding type plug. A grounding type plug has two

blades and a third grounding prong. Use the correct plug

supplied. If none of the provided plugs fit into the outlet,

consult a qualified electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the

manufacturer.

12. Unplug this apparatus during lightning storms or when

unused for long periods.

13. In rack installations leave 1u of rack space above and

below for proper ventilation. If stacking more than one

amplifier, the same 1u of space must be maintained

between each amplifier. If installed in a bookcase, ensure

adequate ventilation as described below and maintain 1u

clearance between units when stacked. Leave 8” (20cm)

of free space at the top (or top of stack) and sides and 4”

(10cm) at the rear. The rear edge of the shelf or board

above the apparatus should be set 4” (10cm) away from

the rear panel or wall, creating a flue-like gap for warm air

to escape. Good airflow is necessary to help ensure proper

operation. A proper installation plan will provide enough

free space around the unit and ensure air flows freely and

is able to escape from the amplifier surroundings. Failure

to do so may cause thermal shutdown of the unit, or

reduced life expectancy. Avoid stacking if possible.

14. Never expose the unit to moisture.

15. Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged,

liquid has been spilled or objects have fallen into the

apparatus. The apparatus has been exposed to rain or

moisture, does not operate normally, or has been

dropped.

16. Damage requiring service.

Unplug the apparatus from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

A) when the power supply cord or plug is damaged,

B) if liquid has been spilled, or objects have fallen into

the apparatus,

C) if the apparatus has been exposed to rain or water,

D) if the apparatus does not operate normally by

following the operating instructions. Adjust only

those controls covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician to

restore the apparatus to its normal operation,

E) if the apparatus has been dropped or damaged in

any way, and,

F) when the apparatus exhibits a distinct change in

performance, this shows a need for service.

17. Objects and/or Liquid Penetration.

Never push objects of any kind into the apparatus through

openings as they may touch dangerous voltage points or

short-out parts that could result in a fire or electric shock.

The apparatus should not be exposed to dripping or

splashing and no objects filled with liquids, such as vases,

should be placed on the apparatus.

Do not put candles or other burning objects on top of this

apparatus.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO

USER-SERVICEABLE PARTS INSIDE, REFE

SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence o

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

Preface and Safety Instructions 850D-DA

Precautions

1. AC Fuse

The AC fuse inside the unit is not user-serviceable. If the unit will not turn on, contact the dealer the unit was purchased from.

2. Care

Occasionally dust the unit all over with a soft, lint free cloth. For stubborn stains unplug the unit, use a soft cloth slightly

dampened (no dripping) with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean

cloth. Don't use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the

panel lettering.

To clean the touchscreen use a standard glass cleaner, but avoid products containing ammonia. Always spray the glass cleaner

on the cloth or towel and then clean the touchscreen using a light-touch circular motion. Avoid spraying glass cleaner directly

on the touchscreen. TIP: The Lock-out Mode can be used to avoid system navigation when cleaning the touchscreen.

3. Power

a. WARNING: BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME – READ THE FOLLOWING SECTION CAREFULLY.

b. AC outlet voltages vary from country to country. Make sure that the voltage in installation area meets the voltage

requirements printed on the unit’s rear panel (e.g. AC 85V~240VAC 280 watt continuous. 50 - 60HZ).

c. The power cord is used to disconnect this unit from the AC power source. As this unit does not have an AC power switch,

make sure the plug is accessible at all times in case power must be turned off quickly to the unit.

d. If unit is not used for an extended period, remove the power cord from the AC outlet.

4. Earth Ground

The unit is defined as Class1 in EN60065 (low voltage directive) and the power supply MUST BE EARTH GROUNDED. Connect

only to a mains socket outlet with protective earth, and only use the power cord supplied.

5. Never Touch this Unit With Wet Hands

Never handle this unit or its power cord with wet or damp hands. If water or any other liquid gets inside this unit, have it

checked by a Vantage dealer.

6. Handling Notes

a. If unit needs to be transported, use the original packaging.

b. Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

c. This unit’s top and rear panels may get warm after prolonged use. This is normal.

d. If unit is not used for a long time, it may not work properly the next time it is turned on. Please use it occasionally or remove

AC outlet.

7. Speaker Shorts

a. Under no circumstances should the speaker output terminals of the unit be short circuited, grounded or connected to

another output.

8. Direct Sun Light

a. Avoid installing the amplifier in positions where the front panel is exposed to direct sunlight - infrared radiation on the front

panel may cause IR control to become sluggish.

Declaration Of Conformity

We declare under our sole responsibility that this product, to which this declaration relates, is in conformity with the following

standards: EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3. Following the provisions of Low Voltage Directive

2006/95/EC and EMC Directive 2004/108/EC, the EC regulation 1275/2008 and its frame work Directive 2009/125/EC for Energy-

related Products (ErP).

Recycling

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance

with the local recycling regulations.

When discarding the unit, comply with local rules or regulations.

This product and the supplied accessories constitute the applicable product according to the WEEE directive.

Preface and Safety Instructions 850D-DA

iii

For U.S. models

FCC information for User

CAUTION:

User changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

For models having a power cord with a polarized plug:

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT FULLY INSERT.

Modèle pour les Candadien

REMARGUE: CET APPAPEIL NUMÈRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

Sur les modèles don’t la fiche est polarisée:

ATTENTION: POUR ÈVITTER LES CHOCS ÈLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE

CORRESPONDANTE DE LA PRISE ET POUSSER JUSQÚ AU FOND.

Vantage Controls, Vantage, InFusion, Design Center, 850D-DA Digital Distributed Audio Amplifier, TPT TouchScreens and all other art

work, brand and product names and designs are copyrighted, trademarks or registered trademarks of Vantage Controls Inc. All other

art work, brand and product names and designs are copyrighted, trademarks or registered trademarks of their respective companies.

Acknowledgments – FreeRTOS – uIP

The 850D-DA firmware is based in part on FreeRTOS.org™ V5.0.2 and the uIP TCP/IP stack. For more information on FreeRTOS.org™

please visit http://www.freertos.org. Source code for FreeRTOS.org™ can be downloaded from their official website. The following

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions

are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written

permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR "AS IS"' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN

NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR

PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,

STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

TUV Certifications

This product has been certified and conforms to UL60065 and certified to CAN/SSA, IEC 60065.

Preface and Safety Instructions 850D-DA

Vantage Controls is not responsible for improperly installed equipment or properly installed equipment that has been misused or

tampered with, relating to and including the 850D-DA. Education of proper use and setup of this equipment is the responsibility of

the installer and end-user. The information in this Installation Manual is provided to assist installers with proper installation practices

and assist end-users with proper operation. Do not tamper with finished setup. If setup changes are needed, consult your Vantage

dealer. This instruction is subject to change without notice.

Supplied Accessories and Update Information

Locate the following accessories:

Supplied Accessories

Standard US Plug

to IEC60320

C13 socket

U.K Plug

to IEC60320

C13 Socket

European Plug

Schuko to

IEC60320 C13

socket

Australasian Plug

to IEC60320

C13 Socket

850D-DA

Installation

Manual

Rack-Mount

Brackets

19 Rack

2U space

Important

Update

Information:

Please visit the Vantage dealer site periodically for 850D-

DA Firmware updates and Installation Manual updates.

Warranty Information

Please contact your Vantage installer/dealer for warranty information.

Disclaimer

Table of Contents

PREFACE

Important Safety Instructions................................................................................................................................................................................................................. i

Precautions..................................................................................................................................................................................................................................................... ii

Copyright Information..............................................................................................................................................................................................................................iii

Acknowledgments – FreeRTOS – uIP................................................................................................................................................................................................ iii

TUV Certifications ......................................................................................................................................................................................................................................iii

Supplied Accessories and Update Information ............................................................................................................................................................................iv

Warranty Information ...............................................................................................................................................................................................................................iv

Disclaimer ......................................................................................................................................................................................................................................................iv

SECTION 1 – Quick Install Overview ....................................................................................................................................................................................................1

Unpacking / Setup...................................................................................................................................................................................................................................1

Special Notes For Setup .......................................................................................................................................................................................................................1

SECTION 2 - Features................................................................................................................................................................................................................................2

Multi-Zone, Multi-Source, Switching..............................................................................................................................................................................................2

Onboard MediaPlayer Digital Streaming Source......................................................................................................................................................................2

Preamp Zones and Amplified Zones..............................................................................................................................................................................................2

Amplifier Power, Protection, and Clipping Indicators ...........................................................................................................................................................2

Thermal Control: Power Inputs and Zone Outputs.................................................................................................................................................................2

Ethernet Bus, USB, and IR Control..................................................................................................................................................................................................2

Real Time Clock Applications............................................................................................................................................................................................................2

Presets and Paging.................................................................................................................................................................................................................................3

Zone Linking..............................................................................................................................................................................................................................................3

72 Maximum Number of Zones.........................................................................................................................................................................................................3

Expansion Bus...........................................................................................................................................................................................................................................3

Zone ON Outputs - “Amp-On”..........................................................................................................................................................................................................3

Power Failure Restoration ..................................................................................................................................................................................................................3

Restore Defaults ......................................................................................................................................................................................................................................3

Setup Lockout ..........................................................................................................................................................................................................................................3

Firmware Upgradable ...........................................................................................................................................................................................................................3

Door Bell..................................................................................................................................................................................................................................................... 4

SECTION 3 – Front Panel Guide ...........................................................................................................................................................................................................5

Descriptions...............................................................................................................................................................................................................................................5

1. Front Panel...................................................................................................................................................................................................................................5

2. Infra-Red Receiver....................................................................................................................................................................................................................5

3. Power Indicator..........................................................................................................................................................................................................................5

4. Color TFT LCD & Resistive Touch Panel ........................................................................................................................................................................5

5. Chassis Feet.................................................................................................................................................................................................................................5

SECTION 4 – Rear Panel Guide .............................................................................................................................................................................................................6

Rear Panel Guide Details .....................................................................................................................................................................................................................6

1. AC Inlet ..........................................................................................................................................................................................................................................6

2. Speaker Terminals ....................................................................................................................................................................................................................6

3. Expansion Bus ............................................................................................................................................................................................................................6

4. Coax, Optical, and Analog Source Terminals ..............................................................................................................................................................6

5. USB For Programming............................................................................................................................................................................................................6

6. Ethernet Bus Port......................................................................................................................................................................................................................6

7. Line-Level / Preamplifier Zones Out ...............................................................................................................................................................................6

8. Config Button .............................................................................................................................................................................................................................6

9. Status LED Indicator................................................................................................................................................................................................................6

10. “AMP ON” and “PAGE” Control....................................................................................................................................................................................6

SECTION 5 – Installation Example .......................................................................................................................................................................................................7

Sources, distribution, and other connections:...........................................................................................................................................................................7

Subwoofer Installation Example: .....................................................................................................................................................................................................8

Control .....................................................................................................................................................................................................................................................9

Source Equipment ..............................................................................................................................................................................................................................9

Speakers..................................................................................................................................................................................................................................................9

Preamplifier Zone Outputs .............................................................................................................................................................................................................9

Linking Preamplified Z7 or Z8 With Amplified Zones Z1 – Z6.......................................................................................................................................9

SECTION 6 – Multiple Amplifiers Linked ........................................................................................................................................................................................10

Linked Example:.....................................................................................................................................................................................................................................10

Linked MediaPlayer Example:........................................................................................................................................................................................................... 11

SECTION 7 – Front Panel LCD Touchscreen Guide ................................................................................................................................................................... 12

Zone Settings Path ............................................................................................................................................................................................................................... 12

Home Page........................................................................................................................................................................................................................................... 12

Zones Page........................................................................................................................................................................................................................................... 12

Selected Zone Setup Page ........................................................................................................................................................................................................... 12

Zone Equalizer Page........................................................................................................................................................................................................................ 12

Zone Delay Page ............................................................................................................................................................................................................................... 12

Zone Levels Page.............................................................................................................................................................................................................................. 12

Edit Zone Name Page ..................................................................................................................................................................................................................... 12

Table of Contents

(SECTION 7 – Front Panel LCD Touchscreen Guide - continued)

System Settings Path .......................................................................................................................................................................................................................... 13

System Settings Page ..................................................................................................................................................................................................................... 13

Sources Page....................................................................................................................................................................................................................................... 13

Source Settings Page...................................................................................................................................................................................................................... 13

Media Player Page ............................................................................................................................................................................................................................ 13

Media Servers Page.......................................................................................................................................................................................................................... 13

Presets Page........................................................................................................................................................................................................................................ 13

Page 1 Setup Page ............................................................................................................................................................................................................................ 13

Page 2 Setup Page ........................................................................................................................................................................................................................... 13

Preset # Zone Selection Page..................................................................................................................................................................................................... 13

Setup Alarm Page (In Preset Setup Mode)...........................................................................................................................................................................14

Preset 1 Zone Setup (In Preset Setup Mode)....................................................................................................................................................................... 14

Selected Zone Setup (In Preset Setup Mode)..................................................................................................................................................................... 14

Selected Zone Equalizer (In Preset Setup Mode).............................................................................................................................................................. 14

Selected Zone Delay (In Preset Setup Mode) .....................................................................................................................................................................14

Selected Zone Levels (In Preset Setup Mode).................................................................................................................................................................... 14

Lock Out Page ....................................................................................................................................................................................................................................14

Linked Zones (In Preset Setup Mode).....................................................................................................................................................................................14

Clock Settings Page......................................................................................................................................................................................................................... 14

Internet/Timezone Page ................................................................................................................................................................................................................14

Device Information Page ............................................................................................................................................................................................................... 15

Restore Defaults Page .................................................................................................................................................................................................................... 15

SECTION 8 – Design Center Guide.................................................................................................................................................................................................... 16

850D-DA Setup and Controls From InFusion.......................................................................................................................................................................... 16

Design Center and the 850D-DA Overview.............................................................................................................................................................................. 16

Zone Editor With Common Controls, Audio Levels, etc. ............................................................................................................................................... 17

Preset Editor With Page 1 and 2 Setup................................................................................................................................................................................... 17

Steps to Setup a Preset or Page................................................................................................................................................................................................ 17

Source Editor With Live Source Control................................................................................................................................................................................ 18

Onboard MediaPlayer Source.......................................................................................................................................................................................................... 18

MediaPlayer Tips ............................................................................................................................................................................................................................... 18

Update Firmware from Design Center........................................................................................................................................................................................ 19

SECTION 9 – 850D-DA Specifications............................................................................................................................................................................................20

Amplifier Section..................................................................................................................................................................................................................................20

Interface ...................................................................................................................................................................................................................................................20

General ......................................................................................................................................................................................................................................................20

850D-DA Line Drawing ...................................................................................................................................................................................................................... 21

SECTION 10 – My 850D-DA Installation Notes ........................................................................................................................................................................... 22

SECTION 1 – Quick Install Overview 850D-DA

850D-DA Digital Distributed Audio Amplifier

Recommended Speaker Wire Gauges

Wire Distance From

Speaker to Amplifier

Gauge

(AWG)

Cross

Section

Less than 80 feet / 24m 16 1.31 mm2

80 to 200 feet / 24m to 61m 14 2.08 mm2

More than 200 feet / 61m 12 3.31 mm2

Use speaker wire pins for wire larger than 14AWG.

SECTION 1 – Quick Install Overview

Congratulations on purchasing Vantage's 850D-DA, Digital

Distributed Audio Amplifier. Please read this manual

thoroughly before making connections and plugging in the

unit. Follow the instructions in this manual to obtain optimum

performance and enjoyment from the new Vantage, 850D-DA

amplifier. Please retain this manual for future reference.

Unpacking / Setup

Check for damage:

oImmediately upon receiving the new 850D-DA Digital

Distributed Audio Amplifier, inspect the carton for

evidence of mishandling during shipment.*Then

carefully unpack the unit and inspect for damage.

Please save the shipping carton and all inner packing

materials in the event that the 850D-DA needs to be

shipped for service or moved to a new location.

*IMPORTANT: If the 850D-DA digital amplifier has been

damaged during shipping, please contact a

Vantage supplier immediately.

Read this entire Instruction Manual.

Verify that all accessories have been included, see, Preface

and Safety Instructions / Supplied Accessories.

Connect sources 1-8 using RCA Coax Digital Audio and/or

analog stereo. Connect sources 9-12 using Optical Digital or

RCA Coax Digital Audio. RCA Coax Digital connections are

RCA type SPDIF (S/PDIF-Sony/Phillips Digital Interface, aka

SPDIF) See SECTION 4 – Rear Panel Guide and SECTION 5 –

Installation Example.

NOTE: Sources 1-8 can accept two physical connections from

the same source when the source has both analog and digital

outputs. Depending on the media being played, the signal may

be encoded or un-encoded. The 850D-DA will automatically

select the correct source. If the signal sent is Encoded Digital

Audio, the amplifier automatically uses analog. If the signal is

un-Encoded the amplifier automatically uses the digital source.

Connect zones 1 – 6 to speakers via high quality speaker

audio cables (e.g., 16awg stereo audio cable or better).

oUse recommended wire size for distributed stereo

systems (use table above).

oWhen possible, keep LEFT and RIGHT speaker runs, in

that zone, the same length.

oAvoid crimping speaker wire (sharp 90bends should be

avoided)

oGenerally, in-wall speaker wire should be CL2R or CL3R

rated speaker wire. Check with local authorities for

distributed speaker wire rating requirements.

oSpeaker wire should be properly distanced from RFI

and/or EMI interference (e.g., keep at least 12" (305mm)

away from parallel high voltage house wiring).

In rare cases, if RFI and/or EMI interference is

unavoidable, the use of shielded speaker cable wire

may help, test first.

oDo not connect dual-coil speakers with shared left and

right channels for common. Speaker connections can

not be combined. In other words, the common/ground

speaker terminals from right channel and left channel

can not be paralleled/combined. In this amplifier,

speaker ground outputs are not common.

oZone 7 and Zone 8 are line-level outputs. Use high

quality shielded cable made for line level runs. Line level

wire run lengths are not published and must be tested

for noise and suitability. Vantage also recommends

using Stereo Audio Baluns for long, line-level runs.

Connect unit to the local network via the Ethernet port.

Connect Power cord to unit and then plug into an AC outlet

to apply power.

Connect / Configure unit to the InFusion System;

oVantage Controller using Ethernet;

Do not attempt to assign an IP address. A DHCP

address is assigned by the router or the 850D-DA

obtains an “AutoConf” IP address in a reserved range

the InFusion Controller can see.

Type the 850D-DA’s serial number in the Object

Editor inside of Design Center. The 850D-DA will

come on line when the InFusion controller is

programmed, or

Program the system and then click on Configure

Stations in Design Center. With the 850D-DA

highlighted in Design Center press the configuration

button which shows up on the touchscreen of the

amplifier or, press the Config. button on the back of

the 850D-DA (see page 5).

Special Notes For Setup

When replacing an 850D-DA amplifier in an existing

installation or adding as a new unit to an existing

installation, confirm that all firmware is the same on all

850D-DA, Digital Distributed Audio Amplifiers.

oFirmware is updated through Design Center software.

Use firmware that has been suggested for the version of

Design Center used on the current project.*To

determine which firmware is loaded, go to SECTION 7 –

Front Panel LCD Touchscreen Guide / Systems Settings

Page / Device Information Page. If updates are needed

or wanted, check the Vantage Dealer website for the

latest release of Design Center.

*NOTE: All firmware files, in each release of Design Center,

are the recommended versions at the time of

release. Some newer or older versions of firmware,

Driver Tools, Vantage InFusion Media etc. may or

may not be fully compatible. Vantage recommends

keeping all firmware versions as current as possible

and at the same time, use the firmware versions

recommended for the specific release of Design

Center used on each project. Please check the

Vantage Dealer Website for firmware updates,

http://dealer.vantagecontrols.com. Contact a

Vantage dealer for additional questions on

compatible firmware versions.

Each 850D-DA ships with 8 zones, 12 sources and 1

MediaPlayer (streaming network / NAS) source already

setup by default. When the 850D-DA is configured,

programmed and on line with the InFusion System, Design

Center automatically addresses the audio zones 1 through 8,

whether a single or multiple units configuration is used.

oWhen adding multiple 850D-DA units in Design Center,

the zone names are identical for each additional unit

added (i.e., Zone 1, Zone 2, Zone3, etc. is assigned for

each 850D-DA added). From Design Center, rename

the new zones, to help identify them properly when

programming. Design Center is able to differentiate

each zone due to unique VID numbers and parent ID,

but unique names will make selecting the correct zone

more intuitive to the programmer and client.

The 850D-DA has an onboard digital MediaPlayer source for

streaming local NAS (Network Attached Storage) music on

the local network via its Ethernet connection.

SECTION 2 – Features 850D-DA

850D-DA Digital Distributed Audio Amplifier

SECTION 2 - Features

Multi-Zone, Multi-Source, Switching

The 850D-DA amplifier has six separate amplifiers and two

separate preamplifiers, providing 8 zones of independent yet

integrated control.

There are 12, buffered, input/output sources plus one

streaming source comprised of the following.

Sources 1 - 8 are either Analog Stereo (RCA), or Coax

(SPDIF) Digital Audio, or both.1

Sources 9 - 12 are either Coax (SPDIF) or Optical Digital

Audio.

Two contact inputs for door bells, etc., may be

programmed to internal decoded streams (virtual inputs)

by setting up page 1 and/or page 2 parameters. Up to four

door bell sound files may stored and each file may be up

to 480 KB in standard WAV format.

1NOTE: Sources 1-8 can accept two physical connections from

the same source when the source has both analog and digital

outputs. Depending on the media being played, the signal may

be encoded or un-encoded. The 850D-DA will automatically

select the correct source. If the signal sent is Encoded Digital

Audio, the amplifier automatically uses analog. If the signal is

un-Encoded the amplifier automatically uses the digital source.

Onboard MediaPlayer Digital Streaming Source

Vantage’s 850D-DA has an onboard digital media source, via

the local Ethernet connection, adding the ability to stream

most network based audio files. Please note, the onboard

MediaPlayer supports audio files with 1 or 2 channels and a

sample rate of ≤48kHz.

On Source Unit 1, the MediaPlayer Source has the ability to be

linked and buffering through multiple 850D-DA units playing,

synchronized, across each unit’s zones assigned to source 12.

Please see Section 6 and Section 8 for additional detail.

TIPS:

The MediaPlayer (streaming network) source via the

Ethernet connection is a streamed source comprised of

sound files which are not compressed or changed in

quality by streaming over the local network.

This source uses a network storage device or similar

connected music source to play media files, AKA, NAS

storage devices.

Supported File Types: Ogg Vorbis, MP3, MP1/MP2, MPEG4,

HE-AAC v2, WAV and FLAC.

oThe onboard MediaPlayer supports audio files with 1

or 2 channels and a sample rate of ≤48kHz.

Organize music files on the NAS device into folders. When

organizing the songs for each folder of music on the NAS

drive, think of each folder as a Playlist or Genres. This will

allow a better interface, allowing the user to select a UNC

knowing what music/type will be streamed. See Section 7 |

MediaPlayer Page for UNC setup.

Streaming supports Previous, Next, Pause, Stop, and Play.

If Stop is selected instead of Pause, the next time Play is

pressed the playing list starts over.

Preamp Zones and Amplified Zones

Each output zone supports, independent bass, treble,

loudness, balance, volume, maximum volume, and mute

control. Each output has a delay feature; range is from 0ms to

315ms. These settings are accessed through Design Center

programming or through the front panel program. The

maximum volume setting is useful for protecting connected

speakers. It may be applied to both amplifier and preamplifier

outputs.

Amplifier Power, Protection, and Clipping Indicators

Each zone supports 50Watts per channel at 8 ohms and is

capable of being driven into 6 or 4 ohm loads. The amplifiers

are protected against short-term output shorts. The front panel

zone indicators will momentarily turn red when the zone

amplifiers are over-driven into clipping. The amplifiers have

programmed algorithms that prevent hard clipping when the

zone amplifiers are over driven.

Thermal Control: Power Inputs and Zone Outputs

This unit has built-in thermal protection for low voltage, high

voltage, and two progressive levels for zone outputs.

Description of zone output protection levels:

LEVEL 1 - The amplifier volume is reduced 20dB.

LEVEL 2 - All internal amplifiers are shutdown until the

temperature reduces below the first level.

Care should be taken to ensure adequate ventilation - see

"Important safety instructions" at the beginning of this

Instruction Manual.

Ethernet Bus, USB, and IR Control

The 850D-DA amplifier may be controlled and monitored from

InFusion Design Center, touchscreens, mobile interfaces, the

unit’s front panel touchscreen, and the USB*on rear panel. IR

control is also possible but does not provide system status

feedback.

* The USB connection is for diagnostic purposes

and is not used with a Vantage InFusion System.

In multi amplifier installations - where the amplifiers are

interconnected via SPDIF - each of the 850D-DA amplifiers

require a connection to the local network in the stack of

amplifiers.

In standalone installations, an 850D-DA amplifier may receive

IR directly from the receiver on the front panel of any amplifier

and pass the information to other 850D-DA units in a stack if

the units are connected via the expansion bus. There are zone

specific IR commands and also a set of global IR commands.

Zone Specific

IR Commands:

ON, OFF, Standby (toggling),

Mute, Amp Volume Up, Amp Volume Down,

Pre Volume Up, Pre Volume Down,

Source Selects

Global IR

Commands:

PRESET 1 – PRESET 6,

Alarm Enable, Alarm OFF, & 5 minute Sleep

Real Time Clock Applications

Using the InFusion Controller’s internal real time clock or

astronomical clock, the amplifier may be setup to function as

an alarm clock. Alarm clock programming possibilities are

potentially limitless in Design Center software. The InFusion

System clock continues to operate up to 2.5 years un-powered

(dependent on the InFusion Controller battery’s condition).

The 850D-DA amplifier is also equipped with a real time clock.

The InFusion controller periodically sends time information to

the amplifier keeping the amplifier’s time synchronized with

the InFusion System. The amplifier may be set up to function

as an alarm clock via the front panel and from Design Center.

For example, at 6:30am in the morning, five days a week, the

master bedroom zone could be made to turn on using

programmed parameters (e.g., select tuner, specific volume

level, etc.). Multiple Alarms are feasible (max. of 14). The Clock

can be set to automatically compensate for daylight saving.

The clock continues to operate, typically > 48 hours, without

power - more than enough to keep the time current during

extended power outages.

SECTION 2 – Features 850D-DA

850D-DA Digital Distributed Audio Amplifier

Presets and Paging

There are fourteen amplifier presets and two Page presets..

NOTE: To properly setup Presets from Design Center, the

amplifier must be connected and configured to the system.

1. 14 Program Presets.

a) Page 1 and 2 use 1 of 4 uploaded sound files, however

Page 2 must be assigned to one of the other 14

Presets.

i. Page 1: Select 1 of 4 sound files to automatically

play when triggered by a contact, typically a Door

Bell or from a programmed task, time control, etc.

ii. Page 2: Select 1 of 4 sound files to automatically

play when triggered by a contact and must be

assigned to one of the 14 Presets. Page 2 may also

be triggered from a programmed task, time control,

etc.

b) All Presets may be tied to internal programmed alarms

or InFusion programmed alarms for specific time of

day execution.

i. Please note that output zones have a Do Not

Disturb feature that may be toggled, allowing or

preventing a programmed alarm in that zone.

ii. Alarms support Time (including daylight savings)

and individual Day of Week setup.

c) Presets can be named through Design Center software

2. Preset Feedback reports to the InFusion Controller

through the Ethernet Bus

Zone Linking

Zone linking is part of the Zone Settings menus and ties all

selected zones together. A zone may be setup to link with any

combination of zones or all zones. The zone that is being

actively edited determines the source of the other linked

zones. Linked zones can also link volume and/or standby,

however the volume and standby may be left independent of

the zone link. This is useful for closely coupled audio areas

where it is advantageous to have different volume control but

the same source, or the same volume with separate standby

control, and etc. Zone linking from Design Center’s Procedure

Wizard (tasks) allows source, selected zones, volume and

standby in any combination. Zone linking is not possible from

Design Center’s Live Source Control; see Section 8 for

information about Live Source Control.

72 Maximum Number of Zones

The system may be expanded up to 72 zones (nine units) of

possible control. Through Design Center and the InFusion

system each zone on the 850D-DA amplifier, is different or

independent, even when they have the same name. However,

in a standalone installation, multiple amplifiers connected via

the expansion bus, share the same zone names causing the

zones to mimic each other and act as a single zone unless

renamed through the front panel user interface. To reiterate,

when using an Infusion Controller, the zones may have the

same name, but the zone’s address is assigned by the Infusion

Controller and duplicate zone IDs are not allowed.

Expansion Bus

On the InFusion System, multiple 850D-DA amplifiers may be

linked or distributed throughout the project as separate,

independent, units. In a linked configuration, the source

equipment’s audio outputs must be plugged into the first

amplifier where they are buffered and sent to the next

amplifier. The maximum number of linked units is nine. When

linked, each unit is connected to the next using a standard

Ethernet patch cable to and from the Expansion Bus ports to

enable communication among multiple amplifiers. Linked or

separate, Vantage requires that each unit be connected to

the local network via a standard Ethernet connection.

Conversely, the Expansion Bus is not used on the 850D-DA if

the units are independent and each unit must have its own

audio source equipment.

Zone ON Outputs - “Amp-On”

Each zone has connections for AMP-ON status: 12VDC OUT on

the rear panel connector: (1, 2, 3, 4, 5, 6, 7, 8). These outputs

activate a secondary AMP (e.g., the Vantage 7+7 Watt

Amplifier Series, part number AX-07S). The OV terminal is the

common (shared) terminal for the 8 AMP-ON terminals. Please

note that the AMP ON outputs are protected against shorts.

Power Failure Restoration

After an AC power outage the 850D-DA amplifier restores its

settings to the pre-interrupted state. All internal settings are

stored in non-volatile memory, except the clock that runs for

at least 48 hours on stored power. When power is restored the

unit will always reset its internal clock to the InFusion

Controller’s time.

Restore Defaults

The 850D-DA amplifier may be readily set to the default

settings. Factory defaults resets the zone allocations back to

1 - 8, clears all zone and source names, presets, zone links,

maximum volume limits, bass, treble and loudness settings. See

SECTION 7, Front Panel LCD Touchscreen Guide.

Setup Lockout

Locks access to the System Setup menus where critical

installation adjustments can be made. A press and hold for

about 5 seconds on the Lock icon will unlock the setup.

Firmware Upgradable

The 850D-DA’s firmware may be updated via Design Center

over the Ethernet Bus connection. Please check the Vantage

Dealer site for firmware updates. Typically the latest release of

Design Center will have the latest 850D-DA firmware. See

SECTION 1 / Special Notes For Setup.

SECTION 2 – Features 850D-DA

850D-DA Digital Distributed Audio Amplifier

Ω

, 5W

Door Bell

Button

RESISTOR 12VDC, 600mA

Power Supply

Door Bell

Up to four door bell sound files may be stored directly on the

850D-DA. Each sound file may be up to 480 KB in standard

WAV format. Upload door bell sound files to the 850D-DA via

Design Center software. The sound files may be played back

by Page 1 or Page 2 programming.

It is also possible, through Design Center programming, to play

any source file through any of the 850D-DA amplifier zones as

a result of either page 1 or page 2 contact closure triggers. Use

this method for door bell sounds as an alternative to copying

the page sound files directly to the 850D-DA’s own page file as

the source (e.g., play a sound file from Vantage’s DMM).

Page 1 and 2 require an outside 12-24V AC/DC power supply.

The contact closure must have an external power source, (i.e. a

12 – 24V AC/DC powered door bell). When the Page Call is

released the amplifier zones return to their previous states.

PG1 is always assigned to the Page 1 Preset.

PG2 may be assigned to any one of the 15 available Presets.

For page 1 and 2 contact wiring, see Doorbell Wiring Example

below using a 12VDC, 600mA power supply with a 30Ω,

5Watt Resistor.

Doorbell Wiring Example*

The contacts, Page 1 and Page 2, require a 12VDC power

supply. The example below illustrates, in a very simplistic way,

how Page 1 could be wired to a lighted doorbell to enable

auto-paging. This example bypasses the doorbell’s built-in

chimes. The P1 screw terminal connects to the 12VDC power

supply and the doorbell button. The Cscrew terminal connects

to the doorbell button and the 30Ω, 5Watt Resistor. The

other end of the resistor connects to the negative or common

side of the 12VDC power supply, as illustrated.

* NOTE: This example assumes new construction and requires

the door bell button, but does not require the traditional

doorbell chime and AC power supply. If an existing door bell

system is in place, the electromagnetic relay of the chime

replaces the 30Ωresistor and the AC transformer replaces the

12VDC, 600mA power supply.

Page 1 Wiring Example

A second doorbell can be attached to P2 following the same

procedure.

SECTION 3 – Front Panel Guide 850D-DA

850D-DA Digital Distributed Audio Amplifier

SECTION 3 – Front Panel Guide

Descriptions

1. Front Panel

Solid aluminum front panel using Vantage’s custom design.

This design is used in the Vantage 1080HD video switcher,

DMM-4S multi-zone audio distributor and the IRX II units

making it a perfect match in a rack or stack system.

2. Infra-Red Receiver

Receiver for front panel IR control - Used only for amplifier

control, not IR pass through.

3. Power Indicator

The power indicator glows blue whenever AC power is

applied.

4. Color TFT LCD & Resistive Touch Panel

LCD Touch Panel display for menu guided control and

programming. The display is dimmed to "Off" after 15

minutes of inactivity.

5. Chassis Feet

High*enough to provide unrestricted airflow through the

chassis for convection cooling when placed on an unheated,

solid surface. The 850D-DA amplifier fits in a standard 19

rack 2U space. See Important Safety Instructions for proper

ventilation at the beginning of this document.

*NOTE: Do not place amplifiers on top of each other in linked

configurations, unless 1U of space is provided between each

850D-DA amplifier. Do not place the 850D-DA amplifier on top of

another, third-party amplifier.

SECTION 4 – Rear Panel Guide 850D-DA

850D-DA Digital Distributed Audio Amplifier

SECTION 4 – Rear Panel Guide

Rear Panel Guide

Rear Panel Guide Details

1. AC Inlet

IEC socket.

2. Speaker Terminals

Plug in terminal clamp connectors accept up to 2.5mm2

/ 14awg speaker wires. For larger wire use speaker wire

pins. See SECTION 1 - Quick Install Overview, speaker

connections.

3. Expansion Bus

Used when linking multiple amplifiers requiring

communicate with each other and sharing audio

sources.

Not used if multiple amplifiers are to remain

independent.

4. Coax, Optical, and Analog Source Terminals

Coax digital (SPDIF) outputs for sources 1 through 12

are for expansion to further amplifier zones in a stack.

All SPDIF coax channels are buffered to keep additional

zones synchronized. Always connect the coax SPDIF

Output to the coax (SPDIF) Input in a stack. Follow this

rule even if sources are connected via the analog or

optical inputs. The 850D-DA converts all connected

audio to digital format for additional units.

Coax digital (SPDIF) inputs for sources 1 through 12.1

1NOTE: Sources 1-8 can accept two physical connections from

the same source when the source has both analog and

SPDIF outputs as in many Blu-ray players. Depending on

the media being played, the signal may be analog or

digital. The 850D-DA will automatically use SPDIF

instead of analog when the audio signal is digital.

5. USB For Programming

USB mini B socket for standalone programming,

firmware updates, and trouble-shooting. No end user

applications supported.

6. Ethernet Bus Port

Allows communication between the 850D-DA and the

InFusion Controller via the Vantage Ethernet Bus.

Connect to a standard network switch or router. All IP

settings are managed and auto detected by the

InFusion system and usually does not need to be

modified. Do not attempt to assign an IP address.

7. Line-Level / Preamplifier Zones Out

Pre-amp / line level, L&R analog audio outputs for Zone

7 and Zone 8. Use high quality shielded cable for line

level runs.

8. Config Button

Used to configure the 850D-DA amplifier, when using

the configure stations button in Design Center.

9. Status LED Indicator

This red LED has various flash/pause intervals indicating

configuration and connection status. The serial number

of the 850D-DA may also be typed directly into Design

Center and when the system is programmed the 850D-

DA should be on line within ten minutes.

Blink patterns:

Steady blink = Configured.

Triple Blink = Connected to network but not

configured in Design Center.

Five Blink = Configuration Mode, press the Vantage

configure button to configure. The

850D-DA must be selected in Design

Center before pressing the configure

10. “AMP ON” and “PAGE” Control

AMP-ON 1 - 8 terminals, output 12VDC when the zone is

ON. This may be used to trigger secondary amplifiers

not controlled by the InFusion System. Note, that OV is

the shared common for AMP-ON 1 - 8 terminals.

Page 1 and 2 from a 12 - 24V AC/DC powered doorbell.

Connect the doorbells 12-24V AC/DC to the P1 or P2

terminal and the doorbells common to the Cterminal.

Continue the P1 or P2 and C wires to the doorbell.

Button. Closure between P1 or P2 and C invokes a

preset enabling paging or doorbell function. See Door

Bell example on page 4 for additional information.

Table of contents

Other Vantage Hearth Keypad manuals

Vantage Hearth

Vantage Hearth Equinox EQ40TB-TI-II User manual

Vantage Hearth

Vantage Hearth KS1 Series User manual

Vantage Hearth

Vantage Hearth Equinox 41 EQ41TB-TI User manual

Popular Keypad manuals by other brands

Carlon

Carlon HS4317D Instruction guide

Universal Remote Control

Universal Remote Control Total Control TKP-7000 owner's manual

Elite Suite

Elite Suite ELT-KLED installation manual

Magellan

Magellan MG32I User quick reference guide

Blink Marine

Blink Marine PKP2500SI manual

Russound

Russound DAN instruction manual

Manhattan

Manhattan 178846 instructions

Targus

Targus Numeric Keypad with 2 USB ports user guide

Bosch

Bosch D202A Series Technical specifications

Cooper

Cooper Scantronic 524 installation guide

Crestron

Crestron AirMedia ZUMMESH-KP10AMBATT quick start guide

GE NX-148E - Security NetworX LCD Keypad user manual

Satel

Satel INT-TSG Quick installation guide

Pakton

Pakton JVA PTE0240 manual

SECO-LARM

SECO-LARM ENFORCER SK-4131-SPSQ manual

Eldes

Eldes EKB3 installation guide

Channel Vision

Channel Vision A0127W user guide

Radio Shack

Radio Shack 49-484 owner's manual

Vantage Hearth EQ40TB-TI User manual

Popular Keypad manuals by other brands
