Vantron VT-TABLET-5081-N User manual

VT-TABLET-5081-N
All Rights Reserved
VT-TABLET-5081-N User’s Manual
Chengdu Vantron Technology, Ltd.

VT-TABLET-5081-N
Contents
REVISION HISTORY .......................................................................................................................................................... 3
1FOREWORD............................................................................................................................................................. 4
1.1 COPYRIGHT NOTICE.............................................................................................................................................................. 4
1.2 NOTES............................................................................................................................................................................... 4
1.3 STATEMENT ........................................................................................................................................................................ 5
1.4 DISCLAIMER ....................................................................................................................................................................... 5
1.5 LIMITATION OF LIABILITY/NON-WARRANTY ............................................................................................................................... 5
1.6 SAFETY INSTRUCTIONS .......................................................................................................................................................... 5
1.7 PRECAUTIONS ..................................................................................................................................................................... 6
1.8 SAFETY INSTRUCTIONS FOR POWER CABLES AND ACCESSORIES ..................................................................................................... 7
2OVERVIEW .............................................................................................................................................................. 8
2.1 INTRODUCTION ................................................................................................................................................................... 8
3VT-TABLET-5081-N HARDWARE INSTRUCTIONS ....................................................................................................... 9
3.1 PRODUCT APPEARANCE ........................................................................................................................................................ 9
3.2 SPECIFICATIONS................................................................................................................................................................. 10
3.3 INTERFACE INSTRUCTIONS.................................................................................................................................................... 11
3.4 DIMENSION...................................................................................................................................................................... 12
3.5 BUTTONS......................................................................................................................................................................... 12
3.6 LED................................................................................................................................................................................ 12
3.7 INTERFACE DESCRIPTION ..................................................................................................................................................... 13
3.7.1 Internal MIC in Interface ......................................................................................................................................... 13
3.7.2 USB OTG (USB type C) ............................................................................................................................................. 13

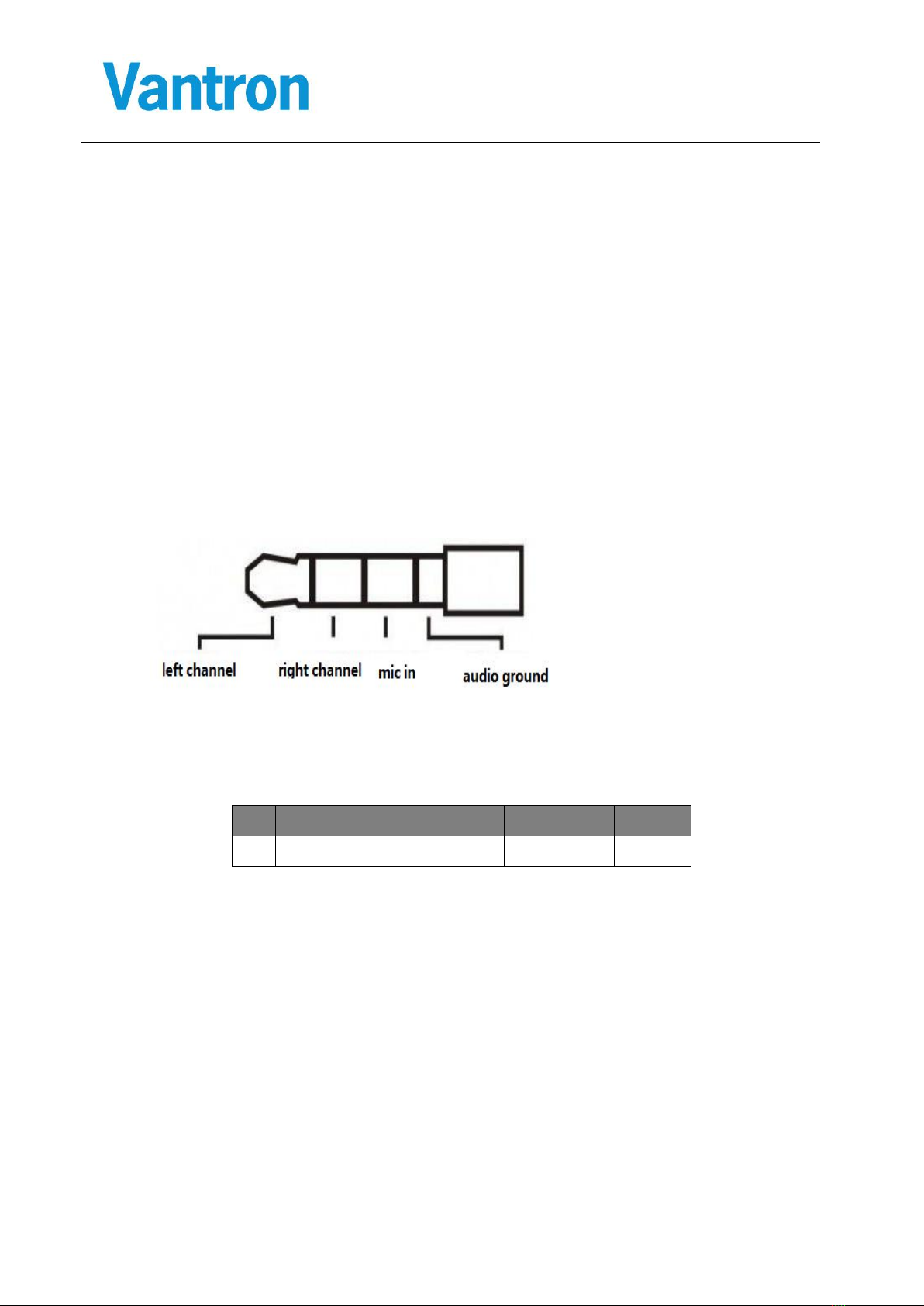

3.7.3 3.5mm Headphone Jack with external MIC in......................................................................................................... 13
3.8 PACKING LIST .................................................................................................................................................................... 13
4SOFTWARE INSTRUCTIONS.................................................................................................................................... 14
4.1 BRIEF INTRODUCTION ......................................................................................................................................................... 14
5TIPS....................................................................................................................................................................... 15

VT-TABLET-5081-N
3/ 17
Revision History
No.
Version
Description
Date
1
V1.0
First release
2018/07/05
2
V1.1
Change description
2018/07/27
3
V1.2
Revise
2018/10/25
4
V1.3
Revise for FCC certification
2018/12/26

VT-TABLET-5081-N
4/ 17
1Foreword
1.1 Copyright Notice
While all information contained herein have been carefully checked to
assure its accuracy in technical details and printing, Vantron assumes no
responsibility resulting from any error or features of this manual, or from
improper uses of this manual or the software. Please contact our technical
department for relevant operation solutions if there is any problem that cannot
be solved according to this manual.
Vantron reserves all rights of this manual, including the right to change the
content, form, product features, and specifications contained herein at any time
without prior notice. The latest version of this manual is at
www.vantrontech.com.cn. Please contact Vantron for further information:
Vantron Technology（Vantron）
E-mail: [e-mail]
The trademarks and registered trademarks in this manual are properties of
their respective owners. No part of this manual may be copied, reproduced,
translated or sold. No changes or other purposes are permitted without the prior
written consent of Vantron.
Vantron reserves the right of all publicly-released copies of this manual.
1.2 Notes
Applicable notes are listed in the following table:
Sign
Notice Type
Description
Notice
Important information and regulations
Caution
Caution for latent damage to system or harm to
personnel

VT-TABLET-5081-N
5/ 17
1.3 Statement
It is recommended to read and comply with this manual before operating
VT-Tablet which provides important guidance and helps decreasing the danger
of injury, electric shock, fire, or any damage to the device.
1.4 Disclaimer
Vantron assumes no legal liability of accidents resulting from failure of
conforming to the safety instructions.
1.5 Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of Vantron
caused by failure of conforming to this manual or the safety instructions on
device label, Vantron assumes neither warranty nor legal liability even if the
device is still under warranty.
1.6 Safety Instructions
Keep and comply with all operation instructions, warnings, and
information.
Pay attention to warnings on this device.
Read the following precautions so as to decrease the danger of injury,
electric shock, fire, or any damage to the device.

VT-TABLET-5081-N
6/ 17
1.7 Precautions
Pay attention to the product labels/safety instructions printed on silk
screens.
Do not try repairing this product unless declared in this manual.
Keep away from heat source, such as heater, heat dissipater, or engine
casing.
Do not insert other items into the slot (if any) of this device.
Keep the ventilation slot ventilated for cooling.
System fault may arise if other items are inserted into this device.
Installation: ensure correct installation according to instructions from the
manufacturer with recommended installation tools.
Ensure ventilation and smoothness according to relevant ventilation
standard.

VT-TABLET-5081-N
7/ 17
1.8 Safety Instructions for Power Cables and Accessories
Proper power source only
Start only with power source that satisfies voltage label and the voltage
necessary according to this manual. Please contact technical support personnel
of Vantron for any uncertainty about the requirements of necessary power
source.
Use tested power source
This product still contains a button lithium battery as a real-time clock
after its external power source is removed and therefore should not be
short-circuited during transportation or placed under high temperature.
Place cables properly:
Do not place cables at any place with extrusion danger.
Cleaning Instructions
Please power off before cleaning the device.
Do not use spray detergent.
Clean with a damp cloth.
Do not try cleaning exposed electronic components unless with a dust
collector.
Support for special fault: Power off and contact technical support
personnel of Vantron in case of the following faults:
⚫The device is damaged.
⚫The temperature is excessively high.
⚫Fault is still not solved after the operation according to the manual.

VT-TABLET-5081-N
8/ 17
2Overview
2.1 Introduction
Thank you for choosing Vantron. It is our commitment to provide our
valued customers with the embedded devices equipped with the state-of-the-art
technology and the best product services.
Tablet enables the interaction between operators/users and applications,
connects industrial control products such as wireless, transducer, battery inside,
storage, etc. Tablet adopts a display for displaying and input units such as touch
screen, keyboard, audio, kind of sensors etc. for writing working parameters or
inputting operation commands. As a digital device for realizing information
interaction between human and machine, Tablet is composed of hardware and
software. Based on its ample function interfaces and powerful user operational
interface, it is very suitable for control units such as medical device, intelligent
transportation, industrial field, etc..
Vantron’s VT-Tablet products are based on the most advanced ARM and
NXP processors and have low-power consumption and high integration. The
products are designed for applications such as industrials, medicals, and
transportations etc.

VT-TABLET-5081-N
9/ 17
3VT-TABLET-5081-N Hardware Instructions
3.1 Product Appearance
Front View

VT-TABLET-5081-N
10/ 17
3.2 Specifications
CPU
Processor
RK3288, ARM Coretex-A17, Quad-Core CPU, up to 1.4GHz
Memory
RAM
2GB LPDDR3(Optional 4GB)
Flash
16GB EMMC Flash
Display
LCD
8" TFT LCD
Resolution
1280x800, 16:10, 24bit Color
Contrast
900:1
Brightness
250 cd/m2(Auto brightness by Light sensor)
View Angle
85U/85D, 85L/85R
Touch Screen
Cap-touch, multi-point,2.0mm thickness for ruggedized usage.
Interfaces
Camera
2M Pixels Camera
USB
1xUSB2.0 OTG, (Type-C, Secured)
Audio
3.5mm Headphone jack with MIC input,
2 x 0.8W speaker
1 x MIC at Upper Side
Wireless
1 x dual band WiFi 802.11 a/b/g/n/ac, 1 x Bluetooth 4.2,
1 x FM Radio
Sensors
FP Sensor, Light sensor, 3-axis accelerometer, Magnetometer,
Gyro, Proximity, Hall Sensor
RTC
Supported
Software
OS
Android 6.0
Applications
Provide SDK
Power
DC Input 5V DC power supply. (Suggest 5V/3.0A)
Battery 3.8V,6.2Ah Li-Battery, up to 6 hours
Consumption 4~7W
Mechanical
Dimensions
Small than 235×153 ×21mm
Weight
0.68Kg (Panel)
Installation
Rubber outside at edge for drop protection
Environment
Condition
Temperature
Operating: -20℃~ +50℃,
Storage: -20℃~ +50℃, Suggest:25℃(±5℃)
Humidity
10-85%RH (Non-Condensation), operating and storage
Accessories
Optional 220VAC to 5V/3.0A Power adapter.
Optional Identified Charger Station ( Charge after matched with
Tablet)
