Vari Lite VL6500 WASH User manual

VL6500 WASH
QUICK START GUIDE

2
QUICK START GUIDE
WWW.VARI-LITE.COM
INTRODUCTION
ABOUT THIS MANUAL
This manual provides necessary information regarding safety, installation, operation and routine maintenance
for the VL6500 WASH. Familiarizing yourself with this information will help you to get the most out of your
product.
WARNING: It is important to read ALL accompanying safety and installation instructions to avoid damage to
the product and potential injury to yourself or others.
This manual covers the following model(s):
• VL6500 WASH, 22.9708.4001
NOTES
• For complete product description, features, and specifications, refer to the product datasheet
• For power requirements, refer to “Current vs. Voltage” on page 16.
ADDITIONAL RESOURCES
For additional resources and documentation, please visit our website at www.vari-lite.com and follow the Sup-
port link.
COMPONENTS
REPLACEMENT ITEMS / ACCESSORIES
The following optional and/or replacement items can be ordered directly from your Authorized Vari-Lite Dealer.
When ordering, please order by the Vari-Lite part number.
VARI-LITE PART NO. ACCESSORY
PCT1BE AC Input Cable, Neutrik® powerCON® True1 with Bare End (no connector), 1 Meter
PC1GTL208 AC Input Cable, Neutrik® powerCON® True1 with Twist Lock (Male), 250V, 1 Meter
PCT1GP AC Input Cable, Neutrik® powerCON® True1 with Stage Pin (Male), 1 Meter
PEGASUS Luminaire Programming Software
22.9620.0194 Safety Cable Assembly
25.9661.0057 DMX Termination Connector Assembly
55.6840.0001 Truss Hook, Mega-Clamp, Round and Square
55.6841.0001 Truss Hook, Mega-Claw for 2” Round Tube
71.9708.1500 1500W Philips MSR Gold Fast-Fit*
*For approved lamp types, see the latest version of Vari-Lite technical notice TN-248 in the product downloads
section on the Vari-Lite web site, www.vari-lite.com.
Neutrik® powerCON
TRUE1 AC Input Connector
1500W MSR Gold
FastFit Lamp
Warranty Card
Product
Registration
Product
Support Sheet
Truss Hook Brackets
(truss hooks sold separately)

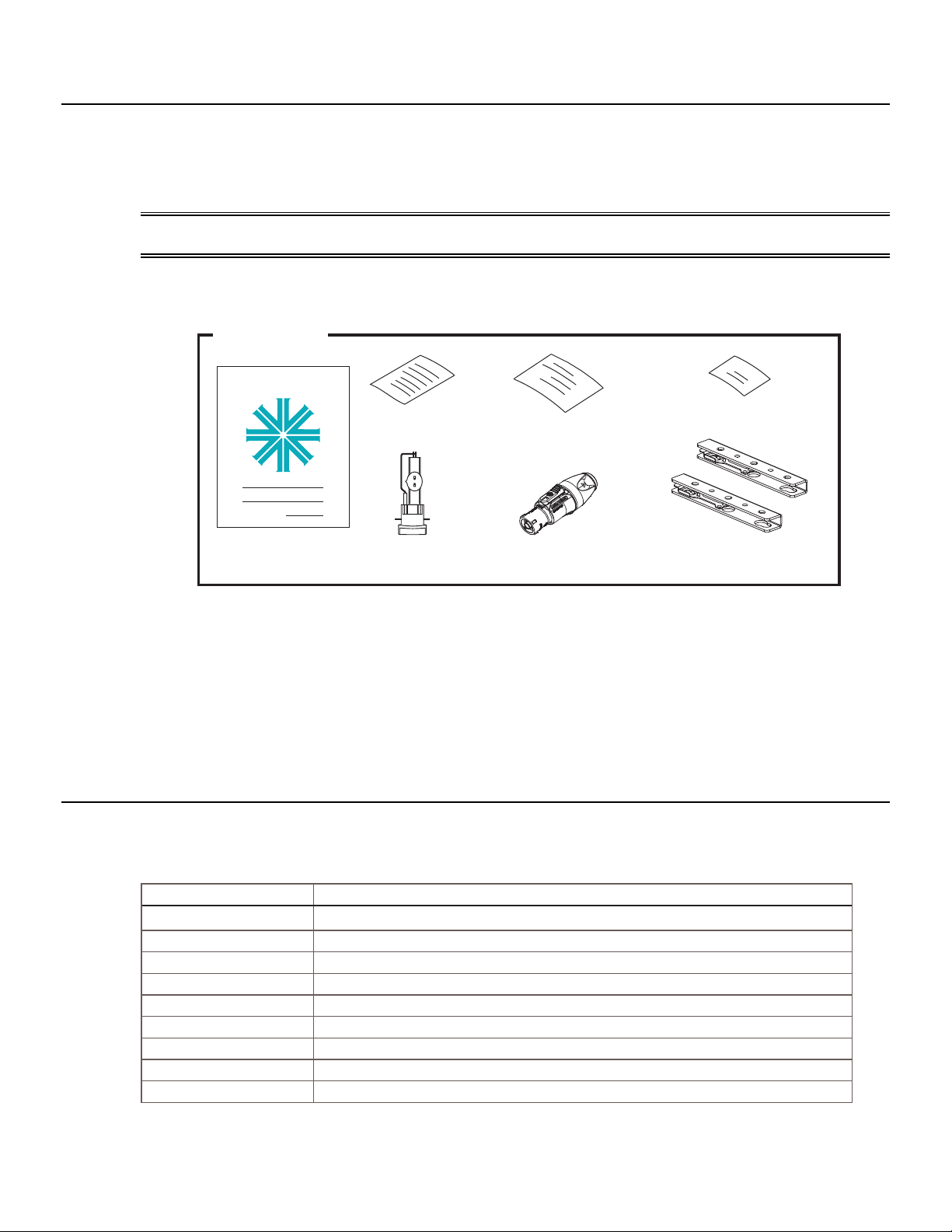

INCLUDED ITEMS
Quick Start Guide

3
QUICK START GUIDE
WWW.VARI-LITE.COM
POWER AND DATA
POWER
The luminaire requires standard AC power distribution from 200-240 VAC, 50/60 Hz. Current required depends
on the AC supply voltage and product model. Refer to “Current vs. Voltage” on page 16 for all models covered in
this manual.
NOTE: The mating Neutrik® powerCON® True1 connector is supplied, however, you will need to purchase or
construct a cable appropriate for your application. Available power input cables is found in “Replacement Items/
Accessories” on page 9.
FIGURE 1. POWER CONNECTOR
Depending on the application, the luminaire’s AC input cable may require a dierent connector. If required,
install a new connector meeting your requirements using the following wire color code reference:
WIRE* CONNECTION
green / yellow AC ground
blue AC neutral
brown AC line
* International (Harmonized) Standard
WARNING: DO NOT connect to three-phase service in countries with 240 volt power.
For single-phase power at 208–240 V RMS:
CONNECTION PIN
AC neutral X
AC line Y
Ground (earth) G
For three-phase power at 208 V RMS:
CONNECTION PIN
Phase 1 X
Phase 2 Y
Ground (earth) G
WARNING: It is not recommended to power any Vari-Lite luminaire from a dimmer - even in ‘NONDIM’ mode.
Dimmer and non-dim modules are not suitable sources of power because their output modifies the AC wave
form. This may work for a short time, but will eventually result in power problems, luminaire mis-operation and/
or failure and may void the luminaire’s warranty.
CURRENT VS. VOLTAGE
TABLE 1 provides the luminaire’s current draw at specific voltages. Total Luminaire Current is calculated with the
lamp on and all motors sequencing.
AC Power Input
Neutrik® powerCON® True1
AC Input Connector
X
Y
G
X
Y
G

4
QUICK START GUIDE
WWW.VARI-LITE.COM
CHANNEL REQUIREMENTS
DMX512 CHANNELS
16-Bit Mode (default) 16
**DMX terminator required for last fixture on DMX line.
Data In Termination**
Data Thru
AC In AC In
AC In
Data Thru
DESCRIPTION MENU DISPLAY
23 Channels
WARNING: It is the responsibility of the user to adequately protect supply source with a correct size and
type circuit breaker and not overload circuits. AVERTISSEMENT: Il est de la responsibilité de l’utilisateur de
protéger adéquatement la source d’alimentation avec une taille correcte et le disjoncteur de type et surchargez
pas les circuits.*
TABLE 1. CURRENT VS. VOLTAGE (1500W LAMP*)
AC VOLTAGE
@60HZ
TOTAL LUMINAIRE CURRENT
(MOTOR + LAMP CURRENT
200V 10.5A
210V 10.1A
220V 9.7A
230V 9.3A
240V 8.9A
NOTE: *1500W Philips MSR Gold FastFit lamp (rated for 1200-1600W operation) running at 1500W.
WARNING: It is not recommended to power any Vari-Lite luminaire from a dimmer - even in ‘NONDIM’
mode. Dimmer and non-dim modules are not suitable sources of power because their output modifies the AC
wave form. This may work for a short time, but will eventually result in power problems, luminaire mis-operation
and/or failure and may void the luminaire’s warranty.
CONNECTING DATA AND POWER
A maximum of 32 luminaires may be connected in any one DMX data link.
NOTE: This maximum limit applies to the luminaire “daisy chain” only. Your system or console may require
fewer luminaires on a single data link path. Consult your console documentation for more information.
To connect power and data:
Step 1. Connect data cable from console to first luminaire in chain at DATA IN connector.
Step 2. If required, connect additional data cables from DATA THRU connectors to DATA IN connectors of
remaining luminaires in link.
Step 3. At last luminaire in link, install male termination connector at DATA THRU connector. (Luminaires and
other devices on the same DMX chain may not function properly without termination.)
FIGURE 2. DATA LINK
Step 4. Connect AC Input Cable connector to power input source.
Step 5. Dress AC input and data cables and secure them so that they will not interfere with luminaire head
and yoke movement.

5
QUICK START GUIDE
WWW.VARI-LITE.COM
MENU OPERATION
LCD DISPLAY AND MENU SYSTEM
The VL6500 WASH’s LCD Display and Menu System provides local control for accessing the following fixture’s
settings:
• Address – to set the DMX address
• Configure – various parameter settings, set luminaire ID
• DMX – change the map, view incoming DMX, invert pan/tilt
• Fixture – fixture status, recalibrate, reboot, software version, view fixtures hours, service, etc.
• Manual – manual control of parameters
• Test – test functions of parameters
The menu system is controlled at the Menu Display available at the enclosure input panel. If there are multiple
luminaires in a system, any settings or changes would need to be made at each LCD Menu as desired.
MENU CONTROLS
The menu system is controlled by an OK (Enter), ESC (Escape), and four Arrow (▲▼◄►) buttons. These but-
tons function are shown in FIGURE 3.
FIGURE 3. MENU CONTROL
LCD DISPLAY AND MENU SYSTEM OPERATION
The LCD Display Menu system consists of several categories. Use the Menu Buttons to access and make changes
to the menu items. When the desired menu item is reached, press the desired Menu Button to display the menu
options and to navigate and configure the menu options as required.
To navigate and access menu settings/selections:
Step 1. Make sure unit is powered and turned on.
Step 2. Press [ESC] to access menu categories.
Step 3. Use four Arrow (....) buttons to navigate through the various options and settings.
Step 4. Once menu item is reached, press [OK] to access the menu item parameters.
Step 5. Make changes to parameters as desired.
Step 6. Press OK [Enter] button to accept changes.
DMX ADDRESS
To set, edit, and save a DMX address:
Step 1. Press [ESC].
Step 2. Press [Up] / [Down] arrows until Address appears. Press [OK].
Step 3. Use [Left] and [Right] arrow buttons to scroll through all digits.
Step 4. Once at desired digit, use [Up] and [Down] arrows to change highlighted digit.
OK (Enter) Button
To Select or Change a
Setting or Data Value
ESC (Escape)
Used to Access Main Menu Parameters,
Exit, or Return to Previous Menu Item
Arrow Keys (Up/Down/Left/Right)
Menu Navigation / Data Selection
ESC OK
LCD Menu Proximity Sensor
Automatically enables the menu
display (turn on the backlight)
as you reach for the front panel.
OFF
LAMP
NO
ERRORS
NO
SHDN
001
ADDR
VL6000B Luminaire
LCD Display
Displays all Data and
Luminaire Settings

6
QUICK START GUIDE
WWW.VARI-LITE.COM
Step 5. Once digit is set, use [Left] and [Right] arrow buttons to set other digits in DMX address.
Step 6. Once all digits are set in DMX address, press [OK] to set.
Step 7. DMX address will display and is saved.
LCD MENU BATTERY OPERATION
The LCD menu system utilizes a battery powered system for operation when the luminaire is not connected to
power. The primary purpose of this mode is to allow basic setup and configuration of the luminaire.
To enable the battery operation of the menu system:
Step 1. Press and hold [ESC] and [OK] for two seconds.
Step 2. Once enabled, the menu will function as normal with only the following sub-menu sections active:
• Address
• Configure
• Setup
• DMX
• Fixture
NOTE: Any commands that require full power (calibrate, lamp strike, etc.) will be ignored while the menu sys-
tem is in battery operation mode.
Step 3. To exit battery mode, press and hold [ESC] and [OK] for two seconds. Note, luminaire will automati-
cally exit this mode after one minute of inactivity.
STATUS BAR
The Status Bar is present at all times and displays luminaire operational information of the luminaire. The Status
Bar contains the following information:
• LAMP – indicates current lamp state - ON or OFF.
• SHDN – indicates shutdown time in hours NO indicates NO shutdown time.
• ERRORS – Displays a number indicating the total amount of current errors. When errors are present,
messages will appear in Red text. When no errors are present, NO will display.
• ADDR – Displays the current DMX address for the fixture. NOTE, when the fixture does not detect a DMX
input signal, the DMX address text will display in Red text.
LCD MENU PROXIMITY SENSOR
The LCD menu system uses a proximity sensor to automatically enable the menu display (turn on the backlight)
as you reach for the front panel. If the display is o, it will turn on when your hand is within a few inches of the
display. Note, when the luminaire is not connected to power and the LCD menu is operating on battery, this
proximity sensor is disabled.
QUICK REFERENCE DMX MAP
DMX
CHANNEL PARAMETER DMX CHANNEL PARAMETER
1 Intensity 12 Color wheel 2
2, 3 Pan 13 Color wheel 2 control
4, 5 Tilt 14 Color wheels macro / presets
6 Cyan 15 Color wheels transition control
7 Yellow 16 Dichro*fusion
8 Magenta 17 Strobe speed
9 CTO 18 Strobe control
10 Color wheel 1 19 Programmers channel
11 Color wheel 1 control

7
QUICK START GUIDE
WWW.VARI-LITE.COM
IMPORTANT INFORMATION
WARNINGS AND NOTICES
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
• For indoor, dry locations use only. Do not use outdoors.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tamper-
ing by unauthorized personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Not for residential use. Do not use this equipment for other than intended use.
• Refer service to qualified personnel.
SAVE THESE INSTRUCTIONS.
WARNING: You must have access to a main circuit breaker or other power disconnect device before installing
any wiring. Be sure that power is disconnected by removing fuses or turning the main circuit breaker o before
installation. Installing the device with power on may expose you to dangerous voltages and damage the device.
A qualified electrician must perform this installation.
WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to use proper
cable can result in damage to equipment or danger to personnel.
WARNING: This equipment is intended for installation in accordance with the National Electric Code® and
local regulations. It is also intended for installation in indoor applications only. Before any electrical work is
performed, disconnect power at the circuit breaker or remove the fuse to avoid shock or damage to the control.
It is recommended that a qualified electrician perform this installation.
CUSTOMER SERVICE
If you have any questions regarding this product, please contact Customer Service at [phone] or via
e-mail at entertainment.service@signify.
LIMITED 2-YEAR WARRANTY
Vari-Lite oers a two-year limited warranty on its control products against defects in materials or workmanship
from the date of delivery. A copy of Vari-Lite two-year limited warranty containing specific terms and conditions
can be obtained from the Vari-Lite website at www.vari-lite.com or by contacting your local Vari-Lite oce.
2000851

AMERICAS
10911 Petal Street
Dallas, TX 75235
Tel: [phone]
Fax: [phone]
ASIA
Unit C, 14/F, Roxy Industry Centre
41-49 Kwai Cheong Road
Kwai Chung, Kwai Tsing
Hong Kong
Tel: [phone]
Fax: [phone]
Room 1201, Freetown Tower D
E 3rd Ring Rd S, 58
Chaoyang Qu
Beijing Shi, China
Tel: [phone]
Fax: [phone]
B-1-27, Dataran Cascades, No. 13A
Jalan PJU 5/1
Kota Damansara PJU 5
47810 Petaling Jaya
Selangor, Malaysia
Tel: [phone]
Fax: [phone]
EUROPE
Rondweg Zuid 85
Winterswijk 7102 JD
Netherlands
Tel: [phone]
Fax: [phone]
24 Sovereign Park
Coronation Road
Park Royal, London
NW10 7QP
United Kingdom
Tel: [phone]
OCEANIA
14H Vega Place
Rosedale
Auckland 0632
New Zealand
Tel: [phone]
VL6500 WASH Quick Start Guide
Document no.:
Version date: June 6 2019
© 2019 Signify Holding. All rights reserved.
All trademarks are owned by Signify Holding or their respective owners. The information pro-
vided herein is subject to change, without notice. Signify does not give any representation or
warranty as to the accuracy or completeness of the information included herein and shall not
be liable for any action in reliance thereon. The information presented in this document is not
intended as any commercial oer and does not form part of any quotation or contract, unless
otherwise agreed by Signify. Data subject to change.
