Vauconsant A62508 User manual

USER MANUAL
Rue Charles Hermite
Z.I des Sables – BP 59
54110 Dombasle-sur- eurthe
France
Tel: + 33 (0)3 83 45 82 82
Fax: [phone]
www.vauconsant.com
Public limited company with executive
and supervisory board capitalised at €1,000,000
Chèques Postaux account: 2145 J Nancy
NAF 28.93.Z
RCS (French business registration n°) Nancy B 757.804.042
EU VAT number: FR 52 757 804 042
E
EX XI IG GE EN NC CE E – – A AI IR R B BA AI IN N- -M MA AR RI IE E & & H HE EA AT T C CU UP PB BO OA AR RD D
W
WI IT TH H
H
HE EA AT TI IN NG G D DI IS SP PL LA AY Y O OP PT TI IO ON N
A62508
(2GN)
930 x 820 x 900 (+430) mm
A62513 (3GN) 1380 x 820 x 900 (+430) mm
A62515 (4GN) 1580 x 820 x 900 (+430) mm
A62519 (5GN) 1930 x 820 x 900 (+430) mm
A62522 (6GN) 2280 x 820 x 900 (+430) mm
Exigence School range
E62513TI (3GN) 1380 x 820 x 900 (+430) mm
E62515TI (4GN) 1580 x 820 x 900 (+430) mm

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 2 -
anual to be read and kept
Contents
Introduction ………………………………………………………… 3
Installation / Controls ……………………………………………... 4
Commissioning / Use ……………………………………………... 7
Cleaning / Diagnostic …………………………………………….. 8
Maintenance ……………………………………………………….. 9
Electric diagrams …………………………………………………. 11
Spare parts ………………………………………………………… 16
Technical support / Warranty …………………………..………... 17

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 3 -
Introduction
Performance of the unit
The air bain-marie is designed to keep food warm at a temperature above 63°C, according to hygiene
requirements, for 120 minutes, using GN1/1 150 mm deep gastronorme trays.
The temperature of the food provided should be between 70°C and 80°C.
To ensure the smooth operation of the unit, it is necessary to set up each gastronorme tray with its lid.
The ventilated heat cupboard is recommended to store plates.
These units comply with applicable EC norms and should be installed and used following the
instructions in this manual to ensure good performance and to be covered by the warranty.

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 4 -
Installation / Controls
• Installation
o Before connecting to the mains, you must check that the existing voltage is suitable for the
one mentioned on the unit's identity plaque.
Connect to the mains on the cabling fuse holder or connect the plug to the mains in the
case of a mobile unit.
The line should be protected by a differential circuit breaker on the general electricity panel.
oInstallation of a breath shield (heating display option)
1. Dismantle the upper glass brackets with a six-sided spanner Ø 2.5
2. Stick the black non-slip adhesive patches in the specified markings on the part of the bracket in
contact with the breath shield.
3. Install the glass, the non-domed end should be positioned 120 km from the edge of the beam.
4. Tighten the upper brackets.
Upper glass brackets

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 5 -
• Overhang adjustment
The unit’s overhangs should be positioned as shown below.
The unit should be level.
• Assembly / dismantling of facing
ounting with
spanner (rack supply )
Step 1
Step 2

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 6 -
• Controls
The controls are placed on a removable panel to the right of the unit.
oA mechanical thermostat with orange on-off light for the bain-marie well.
oA mechanical thermostat with orange on-off light for the ventilated heat cupboard.
oA switch with orange light for the heating display option.
Commissioning / Use
• Commissioning
Preheatin of the well one hour before use, and the heat cupboard 30 minutes before use.
The heating display should be switched on at the start of service.
• Use
Bain-marie well
Turn the thermostat button to the right, set it to the maximum position. This position maintains the
temperature of food above °63°C which is the minimum temperature defined by the hygiene
department.
This temperature is maintained for 120 minutes, using GN1/1 gastronorme trays, 150 deep.
To maintain this temperature, it is necessary to bring food at a temperature between
+70°C and +80°C. Each gastronorme tray should also be fitted with a lid.
The temperature of the well may be set from 30 to 110 °C.
Heat cupboard
Turn the thermostat button to the right, set it to the maximum position. The temperature can be set
from 30°C to 85°C. The heat cupboard is recommended to store plates. It works with doors closed.
Heating display (option)
Press the switch
Position 0: Off
Position 1: On.

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 7 -
Cleaning
Always take care to switch off the appliance with energy doser, thermostat and switch before
cleaning. This unit is not impermeable to water. Do not use a high pressure water jet to clean it
inside or out.
Every day
•Metal surfaces
Stainless steel should be cleaned with soapy warm water or a special product for high quality
metal surfaces. Never use abrasive sponges or etching agents to avoid scratching the surface.
•glass (breath shield)
All glass displays must be cleaned using a high quality glass cleaning product and clean cloth.
Never use abrasive sponges or etching agents to avoid scratching the surface.
Diagnostic
Symptoms Possible causes Remedies
No electricity supply Check the general circuit breaker
Burnt fuse Check the fuse in the electric cabling
Light off, no
heat Faulty supply Check the supply cable
Cable disconnected or cut Check and test the electric input on the heating elements
Light on, no
heat Defective heating element Replace the heating element
Burnt fuse Check and replace fuse 2A
Defective ventilator Test and replace the ventilator
Bain-marie well
No ventilation
Faulty supply Check the ventilator's supply cable
No electricity supply Check the general circuit breaker
Burnt fuse Check the fuse in the electric cabling
Light off, no
heating or
ventilation Faulty supply Check the supply cable
Defective heating element Replace the heating element if necessary
Cable disconnected or cut Check and test the electric input on the heating elements
Light on, no
heat Defective safety thermostat
Check and test the electric inlet on the safety thermostat.
Ventilator blocked or
defective Clean or replace the ventilator
Ventilated heat cuboard
Light on, no
ventilation Cable disconnected or cut Check and test the electric input on the ventilator
Halogen bulb burnt Replace the bulb with one of equivalent power
A halogen
lamp does not
come on Supply of this defective
halogen Check supply of halogen
No electricity supply Check the general circuit breaker
Burnt fuse Check the fuse in the electric cabling
Faulty supply Check the supply cable to the heating display
Halogen lighting:
None of the
halogen lights
come on Defective switch Check the switch, replace it if necessary
NB
• Bulbs should be replaced with bulbs of equivalent power. (see the Spare Parts section)
•Fuses should be replaced by gG fuses of the same caliber.

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 8 -

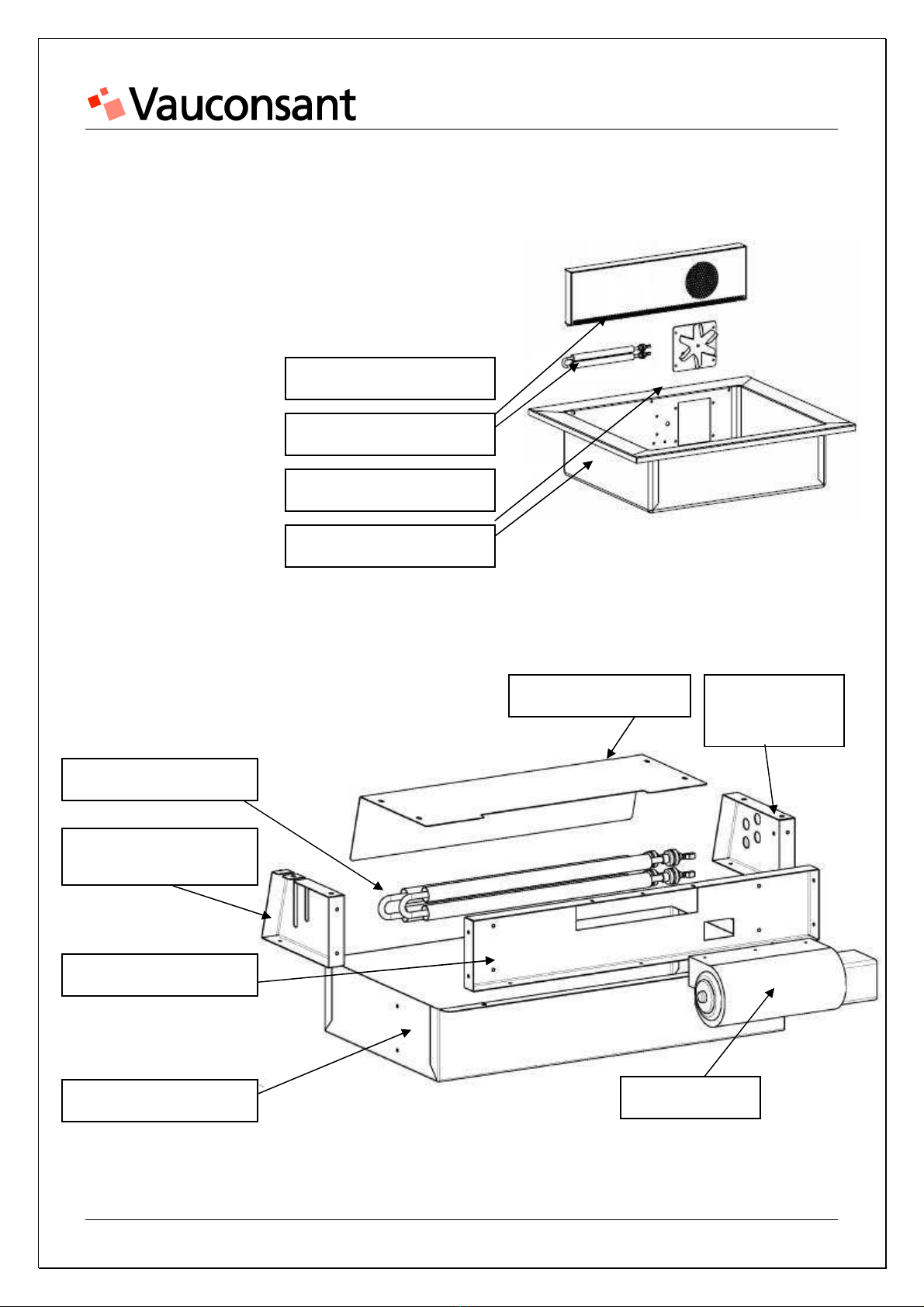

Maintenance
Always remember to switch off the appliance by opening the fuse holder before any
maintenance operations.
•Bain-marie well
Lift the well from the unit. The heating
elements are accessible by dismantling the
ventilation duct inside the well by pulling it
upwards.
•Ventilated heat cupboard
The heating module is placed on the heat cupboard’s ceiling. To dismantle it, remove the 4
mounting screws fixing it to the ceiling. The ventilator is fixed by 3 screws, the heating elements are
fixed by 2 nuts, use a Ø19 flat spanner to remove them.
Ventilation deflector
Heating
elements fixing
sheet
Heating elements sheet
support
Ventilator support
Casing
Heating elements
Ventilator
Well
Blowing conduct
Ventilator
Heating elements

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 9 -
•Halogen lighting
Halogen connections are located above
the halogen support. To access, remove the 2
mounting screws linking it to the beam.
•Electric cabling
Electric cabling is fixed behind the built-in control panel. To access this, remove the 4 screws
holding the panel.
The installer should check electric connections when commissioning the unit then once a year.
Any maintenance operation should be done by an electrician.
Beam
Halogen support
Reflector

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 10 -
Electric diagrams

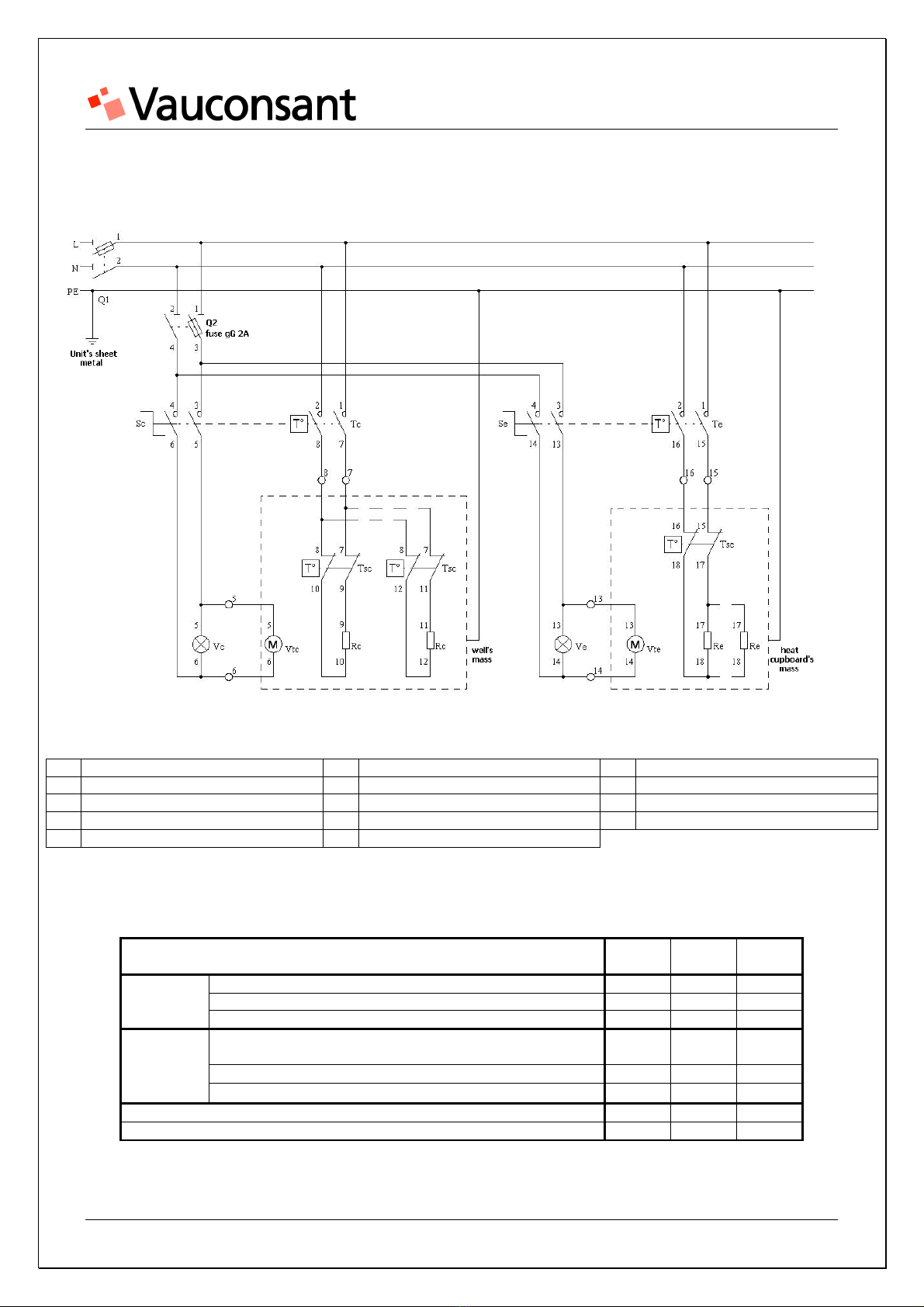

Single-phase without heating display
Caption
Q1 ain fuse holder Se Heat cupboard’s thermostat on/off Vc Well heating light
Q2 Ventilator fuse holder(s) Tc Well’s thermostat Ve Heat cupboard light
Rc Well's heating element Te Heat cupboard thermostat Vtc Well ventilator
Re Heat cupboard Tsc Well safety thermostat Vte Heat cupboard thermostat
Sc Well’s thermostat on/off Tse Heat cupboard safety thermostat
Features
Unit reference A62508 A62513
E62513TI
A62515
E62515TI
300 mm heating elements number 1 2 2
Unit pressure of the well’s heating element (W) 500 500 500
Well
Pulsed air
bain-marie Well's total power (W) 532 1032 1032
Number of heating heating elements in the 750 W 415 mm
heat cupboard
1 2 2
Number of 35 W ventilators in the heat cupboard 1 1 1
Ventilated
heat
cupboard Heat cupboard’s total power (W) 785 1535 1535
Unit's total power (W) 1 317 2 567 2 567
Calibre of gG (A) type fuse(s) 8 12 12

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 11 -
Three-phase without heating display
Caption
Q1 ain fuse holder Se Heat cupboard’s thermostat on/off Vc Well heating light
Q2 Ventilator fuse holder(s) Tc Well’s thermostat Ve Heat cupboard heating light
Rc Well's heating element Te Heat cupboard thermostat Vtc Well ventilator
Re Heat cupboard heating element Tsc Well safety thermostat Vte Heat cupboard thermostat
Sc Well’s thermostat on/off Tse Heat cupboard safety thermostat
Features
Unit reference A62519 A62522
415 mm heating elements number 2 2
Unit pressure of the well’s heating element (W) 750 750
Well
Pulsed air
bain-marie Well's total power (W) 1 532 1 532
Number of heating elements in the 750 W 415 mm heat
cupboard
4 4
Number of 35 W ventilators in the heat cupboard 2 2
Ventilated
heat
cupboard Heat cupboard’s total power (W) 3 070 3 070
Unit's total power (W) 4 602 4 602
Calibre of gG (A) type fuse(s) 8 8

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 12 -

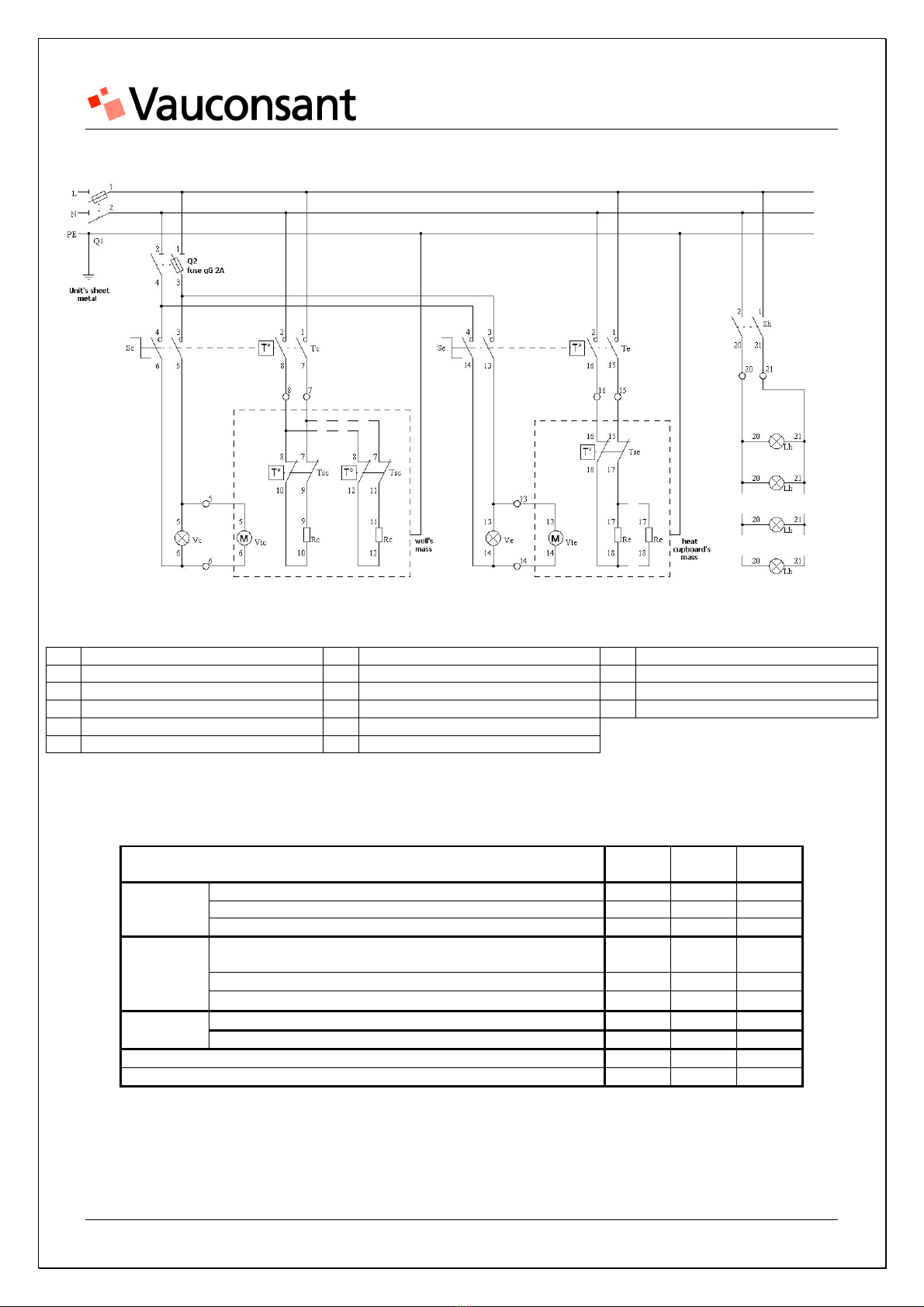

Single-phase with heating display
Caption
Lh Halogen lamp Se Heat cupboard’s thermostat on/off Vc Well heating light
Q1 ain fuse holder Sh Halogen lighting on/off Ve Heat cupboard heating light
Q2 Ventilator fuse holder(s) Tc Well’s thermostat Vtc Well ventilator
Rc Well's heating element Te Heat cupboard thermostat Vte Heat cupboard thermostat
Re Heat cupboard heating element Tsc Well safety thermostat
Sc Well’s thermostat on/off Tse Heat cupboard safety thermostat
Features
Unit reference A62508 A62513
E62513TI
A62515
E62515TI
300 mm heating elements number 1 2 2
Unit pressure of the well’s heating element (W) 500 500 500
Well
Pulsed air
bain-marie Well's total power (W) 532 1032 1032
Number of heating elements in the 750 W 415 mm heat
cupboard
1 2 2
Number of 35 W ventilators in the heat cupboard 1 1 1
Ventilated
heat
cupboard Heat cupboard’s total power (W) 785 1535 1535
Number of halogen lamps, 200W 2 3 4
Halogen rack
Halogen heating rack’s total power (W) 400 600 800
Unit's total power (W) 1 717 3 167 3 367
Calibre of gG (A) type fuse(s) 8 16 16

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 13 -

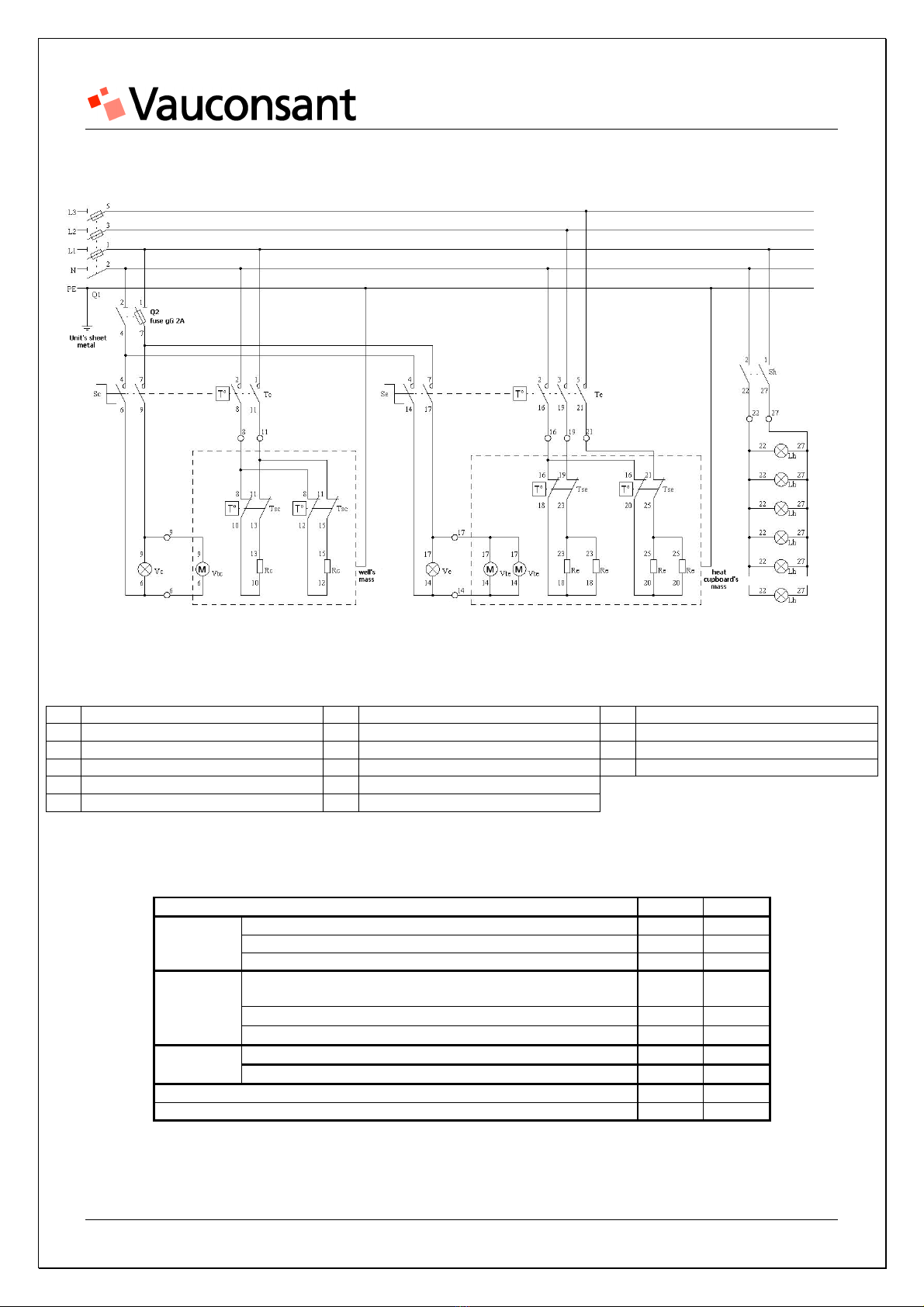

Three-phase with heating display
Caption
Lh Halogen lamp Se Heat cupboard’s thermostat on/off Vc Well heating light
Q1 ain fuse holder Sh Halogen lighting on/off Ve Heat cupboard heating light
Q2 Ventilator fuse holder(s) Tc Well’s thermostat Vtc Well ventilator
Rc Well's heating element Te Heat cupboard thermostat Vte Heat cupboard thermostat
Re Heat cupboard heating element Tsc Well safety thermostat
Sc Well’s thermostat on/off Tse Heat cupboard safety thermostat
Features
Unit reference A62519 A62522
415 mm heating elements number 2 2
Unit pressure of the well’s heating element (W) 750 750
Well
Pulsed air
bain-marie Well's total power (W) 1 532 1 532
Number of heating elements in the 750 W 415 mm heat
cupboard
4 4
Number of 35 W ventilators in the heat cupboard 2 2
Ventilated
heat
cupboard Heat cupboard’s total power (W) 3 070 3 070
Number of halogen lamps, 200W 5 6
Halogen rack
Halogen heating rack’s total power (W) 1 000 1 200
Unit's total power (W) 5 602 5 802
Calibre of gG (A) type fuse(s) 12 12

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 14 -
Spare parts
Unit capacity
Code Name 2GN 3GN 4GN 5GN 6GN
Accessories
03.0742 Upper domed glass, 647 mm long X
03.0743 Upper domed glass, 992mm long X
03.0750 Upper domed glass, 1,297mm long X
03.0755 Upper domed glass, 1,647mm long X
03.0760 Upper domed glass, 1,997mm long X
02.1110 Latch for swing door X
02.1950 Lower guide for suspended sliding door X X X X
02.4005 Roller for suspended sliding door X X X X
50.0472 Join for swing door X
Ventilated heat cupboard
06.0706 Stainless steel armoured heating element with wings, 415 long,
750 W X X X X X
06.3390 35 W tangential ventilator X X X X X
Well’s thermostat
06.0702 Stainless steel armoured heating element with wings, 300 mm,
500 W X X X
06.0706 Stainless steel armoured heating element with wings, 415mm,
750 W X X
06.3505 Hot air helical ventilator X X X X X
Electric equipment
06.1070 Black PVC button, 43 mm X X X X X
06.1188 Safety thermostat X X X X X
06.1505 Energy doser X X X X X
06.1600 Orange light X X X X X
06.1200 Three-pole thermostat, 30 to 85°C for the heat cupboard X X X X X
06.1202 Three-pole thermostat, 30 to 110°C for the well X X X X X
06.1225 Switch for thermostat X X X X X
Halogen heating lighting
06.0617 Aluminium reflector on halogen lighting X X X X X
06.0622 Halogen lamp, 200 W X X X X X
06.0625 Halogen protective glass + mounting clips X X X X X
06.1005 Orange switch light X X X X X

USER MANUAL
Vauconsant SA, all rights reserved A625xx -rev0-ENG, 14/10/2010 - 15 -
Technical support
[email protected]
Spare Parts Department: [phone]
Hotline: [phone]
Fax: [phone]
Warranty
The appliance's warranty applies as of the shipment date from our factory in Dombasle Sur eurthe
(France) for a period of 12 months. It does not cover breakage of the glass.
To benefit from the warranty, the buyer should order by fax or email, specifying the warranty
application with appliance reference found on the identification plaque. On reception of the appliance, the
buyer should return and pay shipment for the defective appliance, within fifteen working days. Any appliance
not returned shall be invoiced. Any appliance bought from another supplier may not benefit from a credit as
covered by the warranty.
Transport and labour costs are to be paid by the buyer.
The buyer is invited to make any reservations to customers for appliances stored without
commissioning on delivery, particularly for refrigerated and electrical equipment.
The warranty does not extend to wear caused by defects or poor maintenance of equipment or damage
caused by knocks or improper use.
Any warranty also excludes incidents caused by fortuitous events or force majeure, unidentified causes
or causes by the buyer's actions of any form whatsoever: improper location, faults linked to use (operation,
maintenance not in accordance with this manual, unqualified staff, etc.), modification of the equipment,
repair conducted outside the terms of this manual, spare parts, etc.
Liability
Vauconsant's liability is strictly limited to the obligations defined above and it is formally agreed that
Vauconsant shall not be required to pay compensation.
Under no circumstances shall Vauconsant be required to pay compensation for any immaterial or
indirect damage such as: loss of business, loss of profit, loss of an opportunity, commercial prejudice,
shortfall.
In any case, Vauconsant's civil liability, for all causes, with the exception of corporal damage and fraud
or serious misdemeanour, may not exceed the sum of the contract.
The buyer and its insurers shall not take legal action against Vauconsant and its insurance companies
above and beyond the limits and exclusions set out above.
