Vauconsant A63513 User manual

USER MANUAL
Rue Charles Hermite
Z.I des Sables – BP 59
54110 Dombasle-sur- eurthe
France
Tel: + 33 (0)3 83 45 82 82
Fax: +33 (0)3 83 45 82 93
www.vauconsant.com
Public limited company with executive
and supervisory board capitalised at €1,000,000
Chèques Postaux account: 2145 J Nancy
NAF 28.93.Z
RCS (French business registration n°) Nancy B 757.804.042
EU VAT number: FR 52 757 804 042
E
EX
XI
IG
GE
EN
NC
CE
E
–
–
S
ST
TA
AT
TI
IC
C
C
CO
OL
LD
D
R
RE
EF
FR
RI
IG
GE
ER
RA
AT
TI
IO
ON
N
U
UN
NI
IT
T
O
ON
N
S
ST
TO
OR
RA
AG
GE
E
U
UN
NI
IT
T
A63513 (3GN) :
1385 x 820 x 900 mm
A63515 (4GN) : 1580 x 820 x 900 mm
A6351 (4GN) : 1580 x 820 x 900 mm
A63519 (5GN) : 1930 x 820 x 900 mm
A63524 (6GN) : 2280 x 820 x 900 mm
A63525 ( GN) : 2605 x 820 x 900 mm
Child version:
E63513PI1D (3GN) : 1385 x 820 x 50+430mm
E63515PI1D (4GN) : 1580 x 820 x 50+430mm
E63519PI1D (5GN) : 1930 x 820 x 50+430mm
E63513PI1G (3GN) : 1385 x 820 x 50+430mm
E63515PI1G (4GN) : 1580 x 820 x 50+430mm
E63519PI1G (5GN) : 1930 x 820 x 50+430mm

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 2 -
anual to be read and kept
Contents
Introduction …………………………………………………………
3
Installation ………………………………………………………….
4
Commissioning / Use …………………………………………….
..
6
Cleaning ………………..…………………………………………
..
7
Diagnostic ………………………………………………………
…..
8
Maintenance ………………………………………………………..
9
Thermostat instructions / settings ........................................
......
10
Electric and refrigeration diagrams ………………………..........
.
13
Spare parts / Technical support ………………………………...
..
15
Warranty ……………………………………………………………
.
17

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 3 -
Introduction
Performance of the unit
The "static cold" refrigerated unit on storage unit is designed to keep food at a temperature lower than
8°C at core in a room temperature of 25°C for a maximum 60 minutes.
Ventilated refrigeration is designed to work around the clock.
The temperature of the food provided should be between 0°C and 3°C.
These units comply with applicable EC norms and should be installed and used following the
instructions in this manual to ensure good performance and to be covered by the warranty.

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 4 -

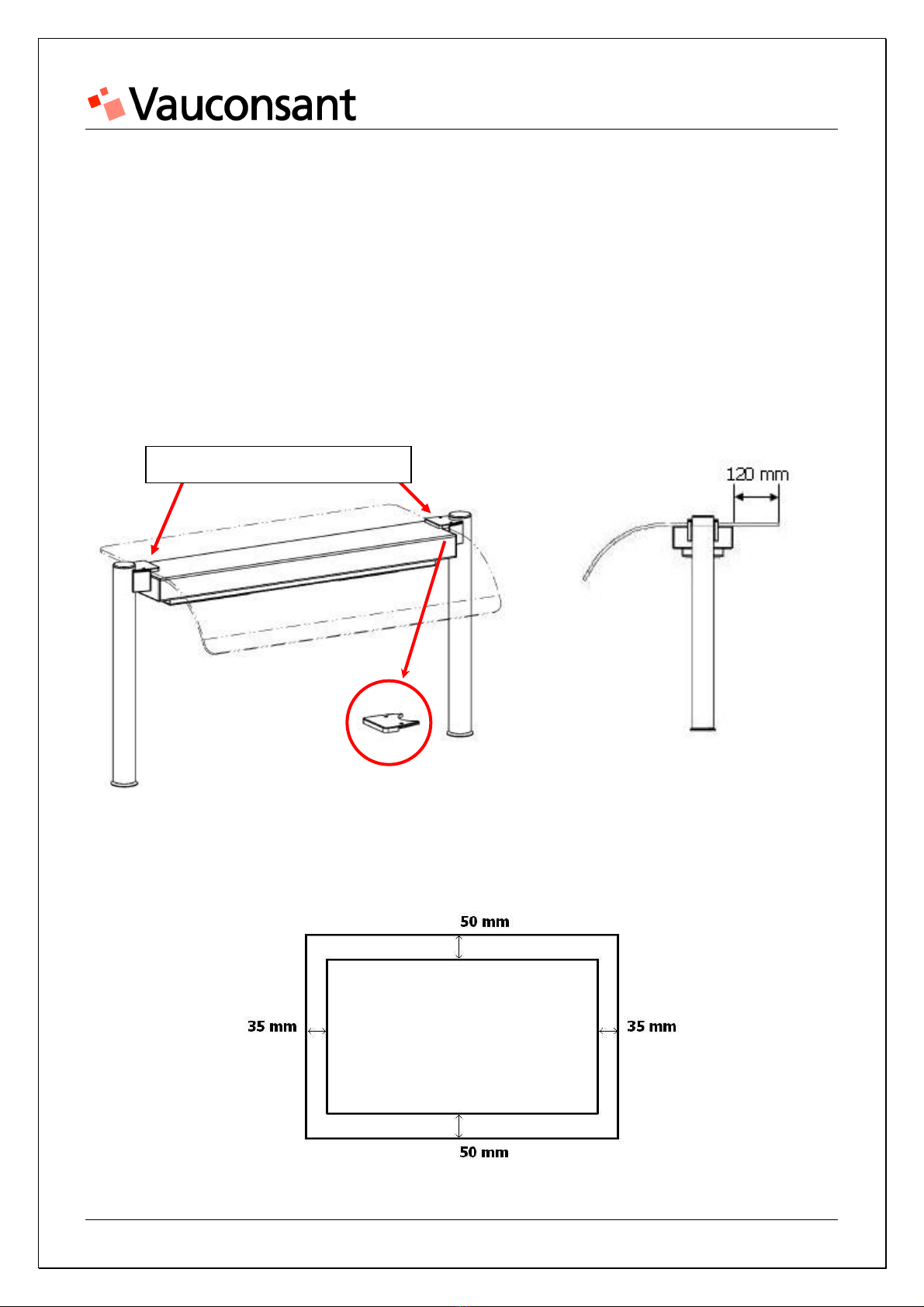

Installation
•
Installation:
oInstallation of a breath shield (option)
1. Dismantle the upper glass brackets with a six-sided spanner Ø 2.5
2. Stick the black non-slip adhesive patches in the specified markings on the part of the bracket in
contact with the breath shield.
3.
Install the glass, the non-domed end should be positioned 120 km from the edge of the beam. In
the case of the "salad bar" option, centre the glass.
4. Tighten the upper brackets.
•
Overhang adjustment
The unit’s overhangs should be positioned as shown below.
The unit should be level.
*
Upper glass brackets

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 5 -
•
Assembly / dismantling of facing
•Option with condensation generator not supplied
The connection should be done by a professional refrigerating technician.
ounting with
spanner (rack supply
)
Step 1
Step 2

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 6 -
Commissioning / Use
•
Commissioning:
Switch the well on two hours before filling it.
•
Use:
Well
Press the thermostat button.
Once the thermostat is on, the generator starts a minute afterwards (safety time) to supply the
display.
The thermostat is set in the factory after tests.
When the temperature required is reached, the generator stops automatically.
Press the thermostat button to stop regulation of the unit.
Storage unit
The ventilated storage unit starts natural defrosting every 6 hours for 30 minutes.
Lighting option
Press the thermostat button to switch lighting on and off.
Setting of the thermostat
See section "User instructions for the XW40L thermostat"
Automatic defrosting
This function is built into the thermostat, it is set in the factory.
See section "User instructions for the XW40L thermostat"

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 7 -
Cleaning
Always take care to switch off the appliance with thermostat before cleaning. This unit is not
impermeable to water. Do not use a high pressure water jet to clean it inside or out.
Every day:
•Metal surfaces:
Stainless steel should be cleaned with soapy warm water or a special product for high quality
metal surfaces. Never use abrasive sponges or etching agentsto avoid scratching the surface.
•Glass (breath shield):
Clean using a high quality glass cleaning product and clean cloth. Never use abrasive sponges or
etching agentsto avoid scratching the surface.
Diagnostic
Symptoms Possible causes Remedies
No electricity supply Switch on the thermostat
Thermostat off Check the general circuit breaker
Check the fuse in the switch cabinet
The generator
does not start
Faulty supply Check tightening of the lugs and wires on all the internal
and external cabling of the switch cabinet
Thermostat
displays P1 Faulty probe Replace the probe
Incorrect settings Check settings of the thermostat.
Thermostat
switched on No
Cold CO P light
off DEF light on Defrosting time. To delete it, switch the thermostat off and
back on again.
Incorrect settings Check settings of the thermostat. Thermostat
switched off No
Cold CO P light
on
Faulty connections Check the generator's connections
NB
Fuses should be replaced by the same type and same caliber fuses.
If you have not solved your problem, contact a professional refrigerating technician.

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 8 -
Maintenance
Always remember to switch off the appliance by opening the fuse holder before any
maintenance operations.
•Features:
Power
Reference Capacity Refrigeration Electric
A63513 & E63513PI1D & E63513PI1G 3GN 396 W 400 W
A63515 & E63515PI1D & E63515PI1G 4GN 396 W 400 W
A63517 4GN 665 W 100 W
A63519 & E63519PI1D & E63519PI1G 5GN 665 W 600 W
A63524 6GN 800 W 100 W
A63525 7GN 800 W 750 W
Evaporation
well option +
300 W
•Procedure
Every 4 months, check that the condenser is not clogged and clean it properly.
Every year, check that the condenser's ventilator works properly.
The installer should check electric connections when commissioning the unit then once a year.
Any maintenance operations should be done by a professional.

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 9 -
User instructions for the XW40L thermostat
1. Warning
o
Important: disconnect electrical connections before any intervention.
oThe appliance should not be opened.
oIn the event of a breakdown, send the appliance to , with a detailed description of
the problem observed.
2. General description
The XW 40L is a regulator with microprocessor aimed at medium or low temperature refrigeration applications. It
has 3 relay outputs to control the compressor, light and ventilator and 1 NTC or PTC probe input to control
temperature.
Regulation is obtained by the temperature measured by an atmospheric probe with positive differential with respect
to the set point: when the temperature increases and reaches the set point plus the differential, then the
compressor starts. It stops when the temperature reaches the set point again.

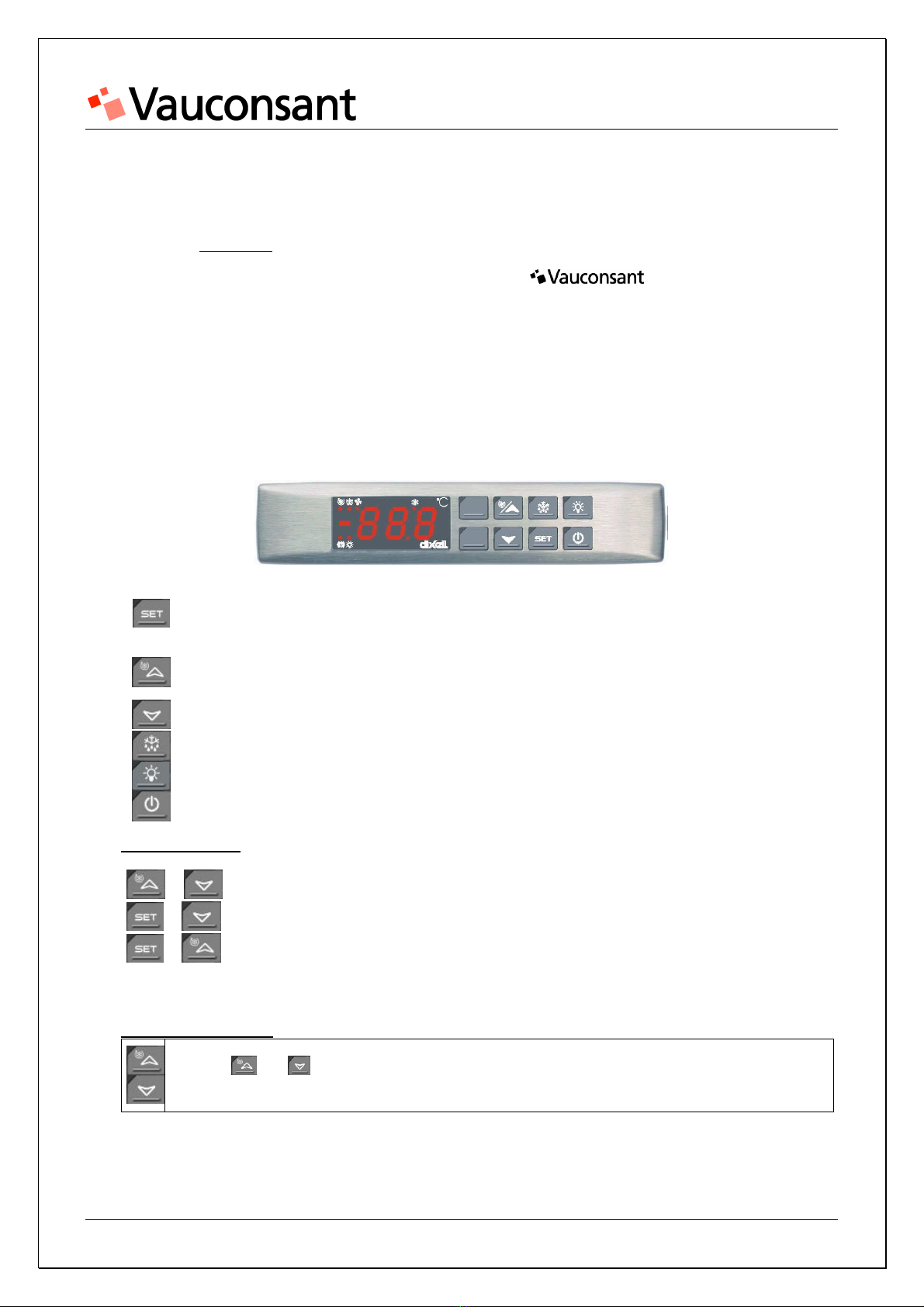

3. Keyboard
FF
F
C
V
To display and modify the set point. In the programming mode, used to select a setting or confirm an
operation.
By pressing this key for 3 seconds when the maximum or minimum temperature is displayed, it will be
erased.
To display the maximum temperature recorded. In programming mode, is used to browse through the
list of settings or increase the displayed value. By pressing this key for 3 seconds, the rapid refrigeration
cycle starts.
To display the minimum temperature recorded. In programming mode, used to browse through the list
of settings or reduce the displayed value.
By keeping it pressed down for 3 seconds, defrosting starts.
Starts or switches off lighting
Switches the appliance on or off.
COMBINED KEYS
+ To lock or unlock the keyboard.
+ To enter programming mode.
+ To leave programming mode.
a. Lock and unlock the keyboard
LOCK THE KEYBOARD
Press the and keys simultaneously for more than 3 seconds. The "POF" message is displayed and
the keyboard is locked. It is then only possible to see the set point, minimum and maximum temperatures
and activate or de-activate the lights and regulator.

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 10 -
UNLOCK THE KEYBOARD
Press the and keys at the same time for more than 3 seconds. The "POn" message is displayed
and the keyboard is unlocked.
b. Meaning of the LEDs
The function of each LED is described in the following table:
LED MODE FUNCTION
ON Compressor on.
Flashing Programming phase (flashes with )
Anti-short cycle on
ON Ventilator on
Flashing Programming phase (flashes with )
ON Defrosting on
Flashing Drainage in progress
ON Rapid refrigeration cycle on
ON Signals an alarm
In "Pr2" indicates the settings also present in "Pr1"
ON The light is on
c. Display the minimum temperature
Press and release this key.
The "Lo" message is displayed followed by the minimum temperature recorded.
By pressing this key again or waiting 5 seconds, the normal display returns.
d. Display the maximum temperature
Press and release this key.
The "Hi" message is displayed followed by the maximum temperature recorded.
By pressing this key again or waiting 5 seconds, the normal display returns.
e. Reset minimum and maximum temperatures
To reset the recorded temperature, when the maximum or minimum temperature is displayed, press on the SET
key until the "rST" code starts to flash.
N.B.: After an installation, reset the recorded temperature.
f. Display and modify the set point
Press the SET key and release it immediately: the set point value is displayed.
The SET LED flashes.
To change the value, press or within 10 seconds.
To store the new set point value, press the SET key again or wait 10 seconds.
g. Start manual defrosting
Press the DEF key more than 2 seconds and manual defrosting starts.
h. Enter the Pr1 programming mode
To enter "Pr1" (settings accessible to the user):
Enter the programming mode by pressing simultaneously on the SET and DOWN keys for a few
seconds ( and flash).
The regulator displays the 1st setting in "Pr1".

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 11 -
i. Enter the Pr2 programming mode
To access settings present in "Pr2" (accessible to technicians), please contact , who will give you
the secret code to access these settings.
4. Alarm signals
Message
Cause Outputs
"P1" Atmospheric probe fault ON alarm output
Compressor output depending on "COn" and "COF" settings
"HA" High temperature alarm ON alarm output
Other outputs unchanged
"LA" Low temperature alarm ON alarm output
Other outputs unchanged
"EE" emory breakdown or fault ON alarm output
Other outputs unchanged
The alarm message is displayed until the alarm condition is re-established. All alarm messages are displayed
alternately with the atmospheric temperature except for "P1" which flashes. To reset the "EE" alarm and start
normal operation again, press on any key. The "rSt" message will be displayed for 3 seconds.
a. The EE alarm
The regulator includes an internal memory checking system. The "EE" alarm flashes when an internal memory fault
has been detected. In this case, the alarm output is activated.
b. Reestablishment of alarms
"P1" probe alarms (probe defect), "P2": they stop automatically 10 seconds after the probe has resumed normal
operation. Check the connections before putting back the probe.
"HA" and "LA" temperature alarms: they stop automatically when the regulator's temperature returns to normal
values or when defrosting starts.
5. Settings programmed in the factory
Setting Name Value
Set Set point -8
Hy Differential 1
AC Anti-short cycle time 1
rES Resolution dE
IdF Interval between defrosting cycles 7
dF ( aximum) defrosting time 0
ALU High temperature alarm 8
ALL inimum temperature alarm 2
ot Atmospheric probe calibration 0
Adr Serial address (not used) 1
P2r Access to the list of protected settings (read only)

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 12 -
Generator option supplied
Electric diagram
Refrigeration diagram

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 13 -
Generator option not supplied
Electric diagram
Refrigeration diagram
Caption
B Ballast Rd Defrosting heating element
C Compressor S Coil
Ca Capillary Sf Starter
Cd Condenser St Temperature probe
D Reducing valve T XW40L thermostat
Dh Dehydrator Tf Fluorescent tube
Kd Defrosting contactor Va Schraeder 1/4 connection
Q Fuse holder Vc Condenser ventilator
Rb Evaporation well heating element

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 14 -
Spare parts
Code Name 3GN 4GN 5GN 6GN GN
Accessories
03.0743 Upper domed glass, 992mm long X
03.0750 Upper domed glass, 1,297mm long X
03.0755 Upper domed glass, 1,647mm long X
03.0760 Upper domed glass, 1,997mm long X
03.0765 Upper domed glass, 2,297mm long X
03.0788 Upper domed glass, 992mm long domed on two sides X
03.0795 Upper domed glass, 1,297mm long domed on two sides X
03.0800 Upper domed glass, 1,647mm long domed on two sides X
03.0802 Upper domed glass, 1,997mm long domed on two sides X
03.0805 Upper domed glass, 2,297mm long domed on two sides X
03.3066 GN2/1 door join for the storage unit
Electric equipment
12.2000 Evaporation well 300W X X X X X
12.0273 Dixell XW40L thermostat X X X X X
Compressor generator
12.2408 Storage unit transversal evaporator X X X X X
12.2506 [CHILD] Storage unit transversal evaporator X X X X X
12.2752 AEZ 3430 ZH condensation generator X X
12.2755 AEZ 3450 ZH condensation generator X
12.2783 CAE 9460 Z H condensation generator X
Fluorescent tube lighting
06.4780 590mm 18W power fluorescent tube X
06.4784 970mm 36W power fluorescent tube X X
06.4786 1,200mm 36W power fluorescent tube X
06.4788 1,500mm 58W power fluorescent tube X
06.4810 Ballast for 18 W tube X
06.4812 Ballast for 36W tube X X X
06.4813 Ballast for 58W tube X
06.4820 Water resistant sheath for 590mm tube X
06.4828_B
Water resistant sheath for 970mm tube X X
06.4822 Water resistant sheath for 1,200mm tube X
06.4826 Water resistant sheath for 1,500mm tube X
Technical support
Spare Parts Department: +33 (0)3 83 45 82 78
Hotline: +33 (0)3 83 45 44 48
Fax: +33 (0)3 83 45 82 75

USER MANUAL
Vauconsant SA, all rights reserved A635xx -rev0-ENG, 22/10/2010 - 15 -
Warranty
The appliance's warranty applies as of the shipment date from our factory in Dombasle Sur eurthe
(France) for a period of 12 months. It does not cover breakage of the glass.
To benefit from the warranty, the buyer should order by fax or email, specifying the warranty
application with appliance reference found on the identification plaque. On reception of the appliance, the
buyer should return and pay shipment for the defective appliance, within fifteen working days. Any appliance
not returned shall be invoiced. Any appliance bought from another supplier may not benefit from a credit as
covered by the warranty.
Transport and labour costs are to be paid by the buyer.
The buyer is invited to make any reservations to customers for appliances stored without
commissioning on delivery, particularly for refrigerated and electrical equipment.
The warranty does not extend to wear caused by defects or poor maintenance of equipment or damage
caused by knocks or improper use.
Any warranty also excludes incidents caused by fortuitous events or force majeure, unidentified causes
or causes by the buyer's actions of any form whatsoever: improper location, faults linked to use (operation,
maintenance not in accordance with this manual, unqualified staff, etc.), modification of the equipment,
repair conducted outside the terms of this manual, spare parts, etc.
Liability
Vauconsant's liability is strictly limited to the obligations defined above and it is formally agreed that
Vauconsant shall not be required to pay compensation.
Under no circumstances shall Vauconsant be required to pay compensation for any immaterial or
indirect damage such as: loss of business, loss of profit, loss of an opportunity, commercial prejudice,
shortfall.
In any case, Vauconsant's civil liability, for all causes, with the exception of corporal damage and fraud
or serious misdemeanour, may not exceed the sum of the contract.
The buyer and its insurers shall not take legal action against Vauconsant and its insurance companies
above and beyond the limits and exclusions set out above.
This manual suits for next models
11
Table of contents
Other Vauconsant Commercial Food Equipment manuals

Vauconsant
Vauconsant A62608 User manual

Vauconsant
Vauconsant EXIGENCE User manual

Vauconsant
Vauconsant EXIGENCE A62408 User manual

Vauconsant
Vauconsant MINI TROPIC User manual

Vauconsant
Vauconsant EXIGENCE A62608VCP User manual

Vauconsant
Vauconsant A62508 User manual

Vauconsant
Vauconsant A62208 User manual
Popular Commercial Food Equipment manuals by other brands

Royal Catering
Royal Catering RCCC-238-W user manual

Unified Brands
Unified Brands INTEK XS Series user manual

Duke
Duke RFHU-22 Installation and operation manual

APW Wyott
APW Wyott BS-1 Installation and operating instructions

Prince Castle
Prince Castle DHB-P1 operating instructions

Picard
Picard LP - 200 Series Operation, maintenance and parts manual
