Vaxcel T0371 Instruction manual

181010
Lock Nut (E)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
1. Thread two headless screws (D) through the cross bar (A), and then secure them with four lock nuts (E).
Adjust the length of the headless screws (D) if necessary.
Note: Make sure that the headless screws are lined up horizontally to make the fixture level.
Note: With silicone caulking compound, caulk completely around where the back plate meets with the
wall surface to prevent water from seeping into outlet box.
2. Attach the cross bar (A) to the outlet box by using two mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (F) as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar (A) with the green
grounding screw (C), and then connect it to the house grounding wire with the wire connector (F).
Carefully put the wires back into the outlet box.
4. Attach the fixture to the cross bar (A) by inserting headless screws (D) into holes on back plate, and then
secure it with two rubber pads (H) and two ball nuts (G).
Green Grounding Screw (C)
Outlet Box
Wire Connector (F)
Headless Screw (D)
Cross Bar (A)
Lock Nut
(E)
House Grounding Wire
Fixture Grounding Wire
Fixture Wire

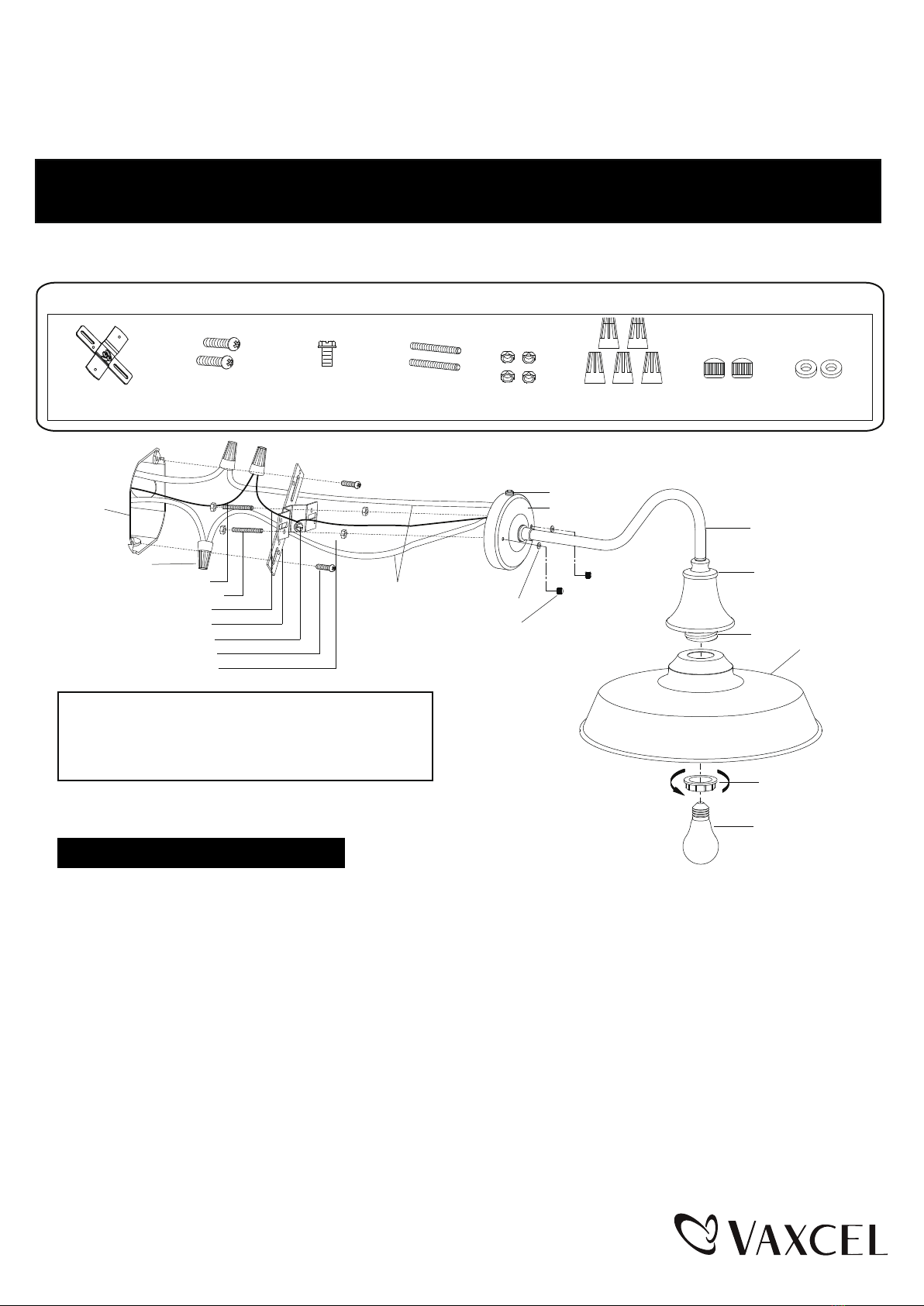

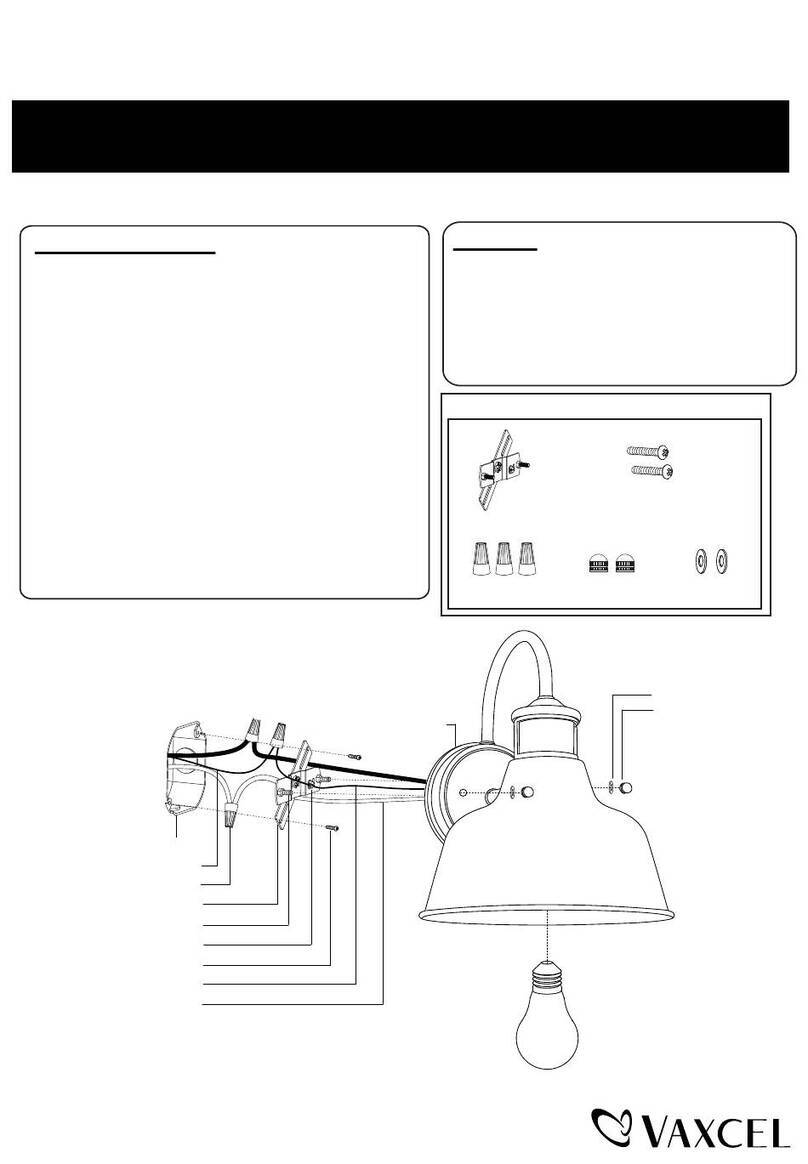

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
T0368 T0371 T0483 T0487
Mounting Screw (B) Wire Connector (F) Ball Nut (G) Rubber Pad (H)
Cross Bar (A)
Bulb Type A Max.60W
(not included)
Fixture
Hardware Package (included):
Green Grounding
Screw (C)
Turn off the power at fuse or circuit box.
Installation Steps
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
Mounting Screw (B)
Headless
Screw (D)
Holder
Socket
Shade
Socket Ring
Photocell
Back Plate
Ball Nut(G)
Rubber Pad(H)

181010
5. Attach the shade to the socket, and then secure it with the socket ring.
6. Install a bulb (not included). Check relamping label at socket area or packaging for maximum allowed wattage.
Turn on the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
A: 12"
B: 11.5"
C: 18"
The following parts are available for re-order if damaged or missing.
Spare Parts List:
1. Turn off the power at the fuse or circuit box before starting installation.
2. Loosen the wire connectors connected with the wires from photocell. (See Fig.1)
Note: Do not move the photocell to prevent water from seeping into the outlet box.
3. Take a white pigtail and black pigtail and make wire connections using wire connectors (F): (See Fig.2)
a. The black wire from the fixture to one end of the black pigtail.
b. The white wire from the fixture to one end of the white pigtail.
c. The other end of the black pigtail to the black wire from the power source.
d. The other end of the white pigtail to the white wire from the power source.
Put all wires back into the back plate of the fixture.
Photocell
White Wires From Photocell
Wire
Connector
Wires From Fixture
Wires From Fixture
Wires From
Main Power
Wire Connector (F)
White Pigtail
Pigtail
Red Wires From Photocell
Black Wires From Photocell
Operation the Unit Without Photocell
Fig.1Fig.2
Mounting Screw (B)
Rubber Pad (H)
Cross Bar (A) Green Grounding
Screw (C)
Lock Nut (E)
Wire Connector (F) Ball Nut (G)
Headless Screw (D)
A
B
C
Assembly Kit
5786MM (1 SET) for T0368
5787MM (1 SET) for T0371
5987MM (1 SET) for T0483
5988MM (1 SET) for T0487
