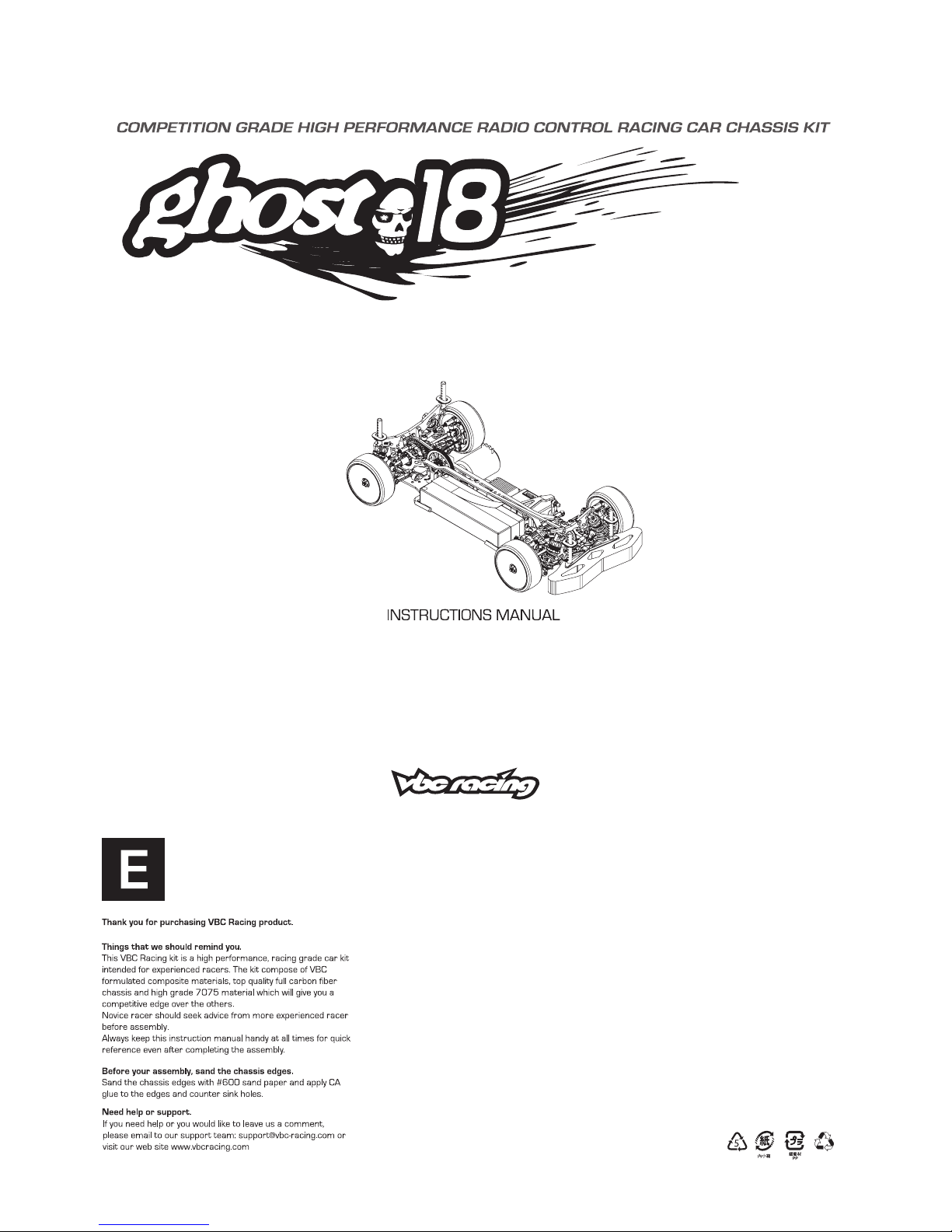

Vbc racing Ghost 18 User manual

1/10 4WD ELECTRIC COMPETITION TOURING CAR KIT

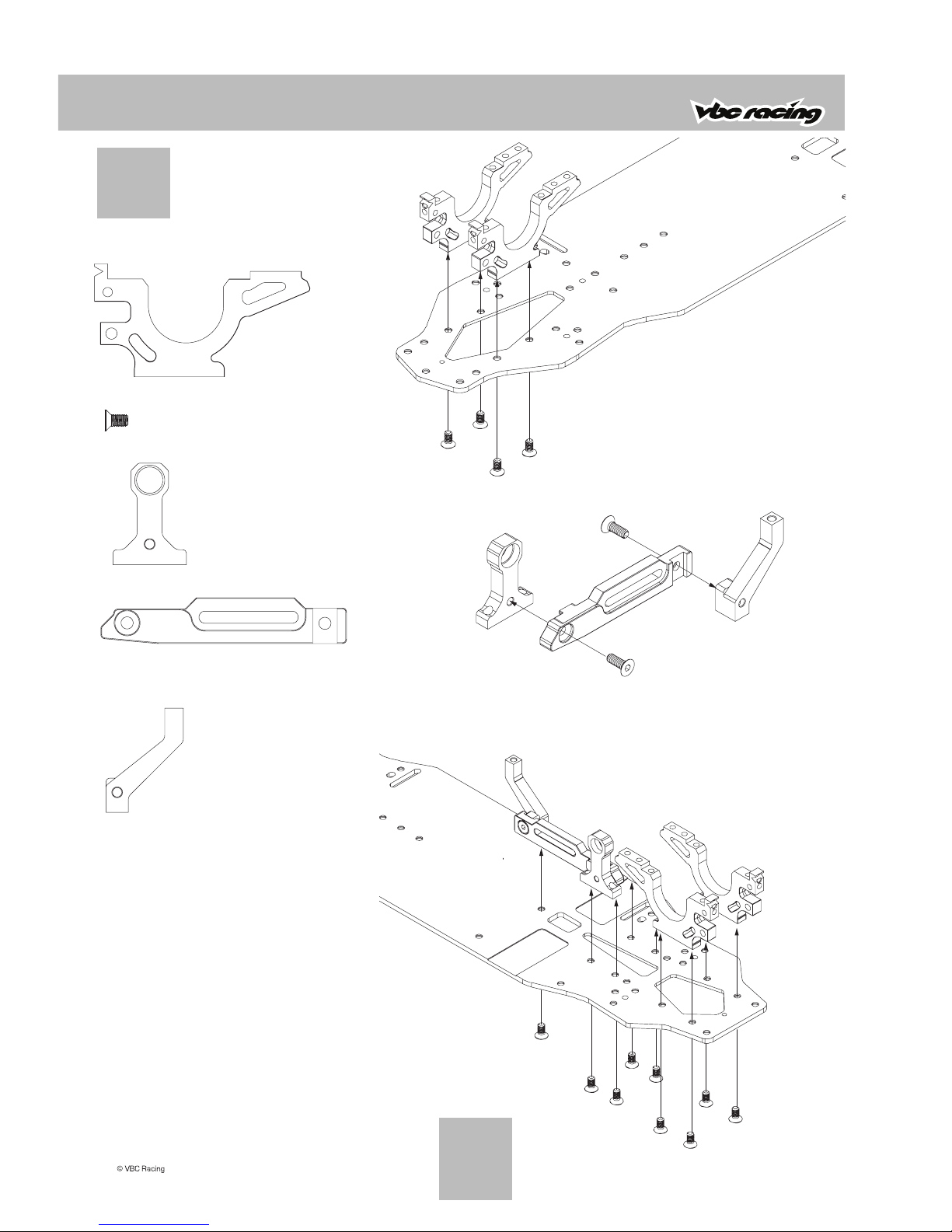

ALU7075 Motor Mount Support B-02-P41678 x 1

Motor Mount Support

M3x6 Flathead C-02-SC-F0306 x 15

M3x6 Flathead

ALU7075 Center Pulley Mount B-02-P41679 x 1

Center Pulley Mount

ALU7075 Lower Bulkhead B-02-P41676 x 4

Lower Bulkhead

ALU7075 Motor Mount B-02-P41677 x 1

Motor Mount

Ghost18

Front Lower Bulkhead Assembly

BAG MARKED

STEP1

Ghost18

BAG MARKED

STEP2

Front Lower Bulkhead Assembly

Bulkhead Belt Adjuster 927000477 x 2

C-02-BB-1510-P 10x15x4 Bearing x 2

M3x12 Flathead C-02-SC-F0312 x 2

M3x12 Flathead

Spool Drive Cup

Diff Holder

10x15x4 Bearing

M3x6 Roundhead

Front Spool 38T

Pulley Guide

Spool Shaft

Optional: 7075 Aluminum Spool Shaft B-02-VBC-0094 (not included)

Diff Holder

Spool Drive Cup

M3x12 Flathead

M3x6 Roundhead C-02-SC-R0306 x 3

Front Spool Outdrive A-03-VBC-0055 x 2

Spool Drive Shaft A-03-VBC-0049 x 1

Pulley Belt Guide A-03-VBC-0022 x 1

Front Spool 38T A-03-VBC-0021 x 1

Apply CA and note the position

Ghost18

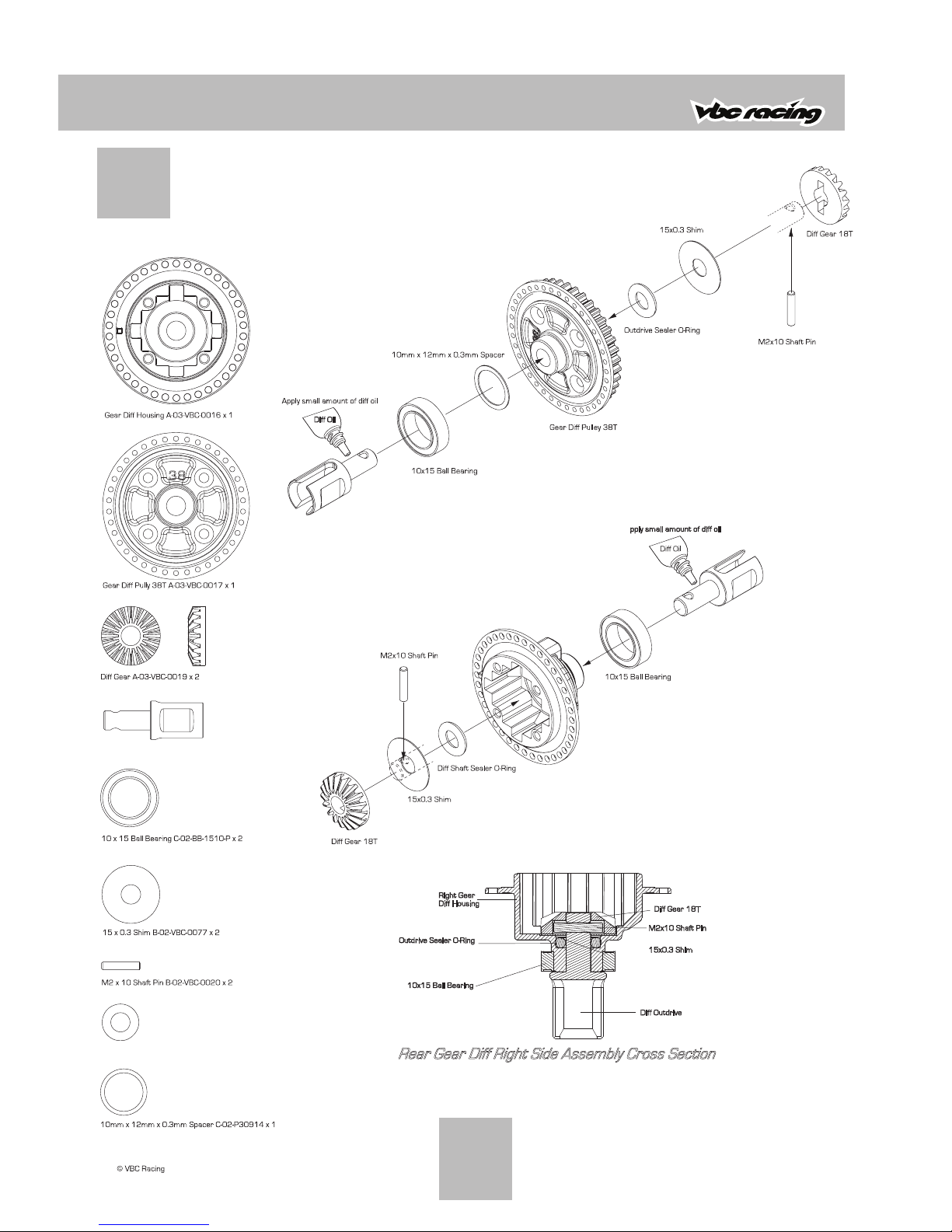

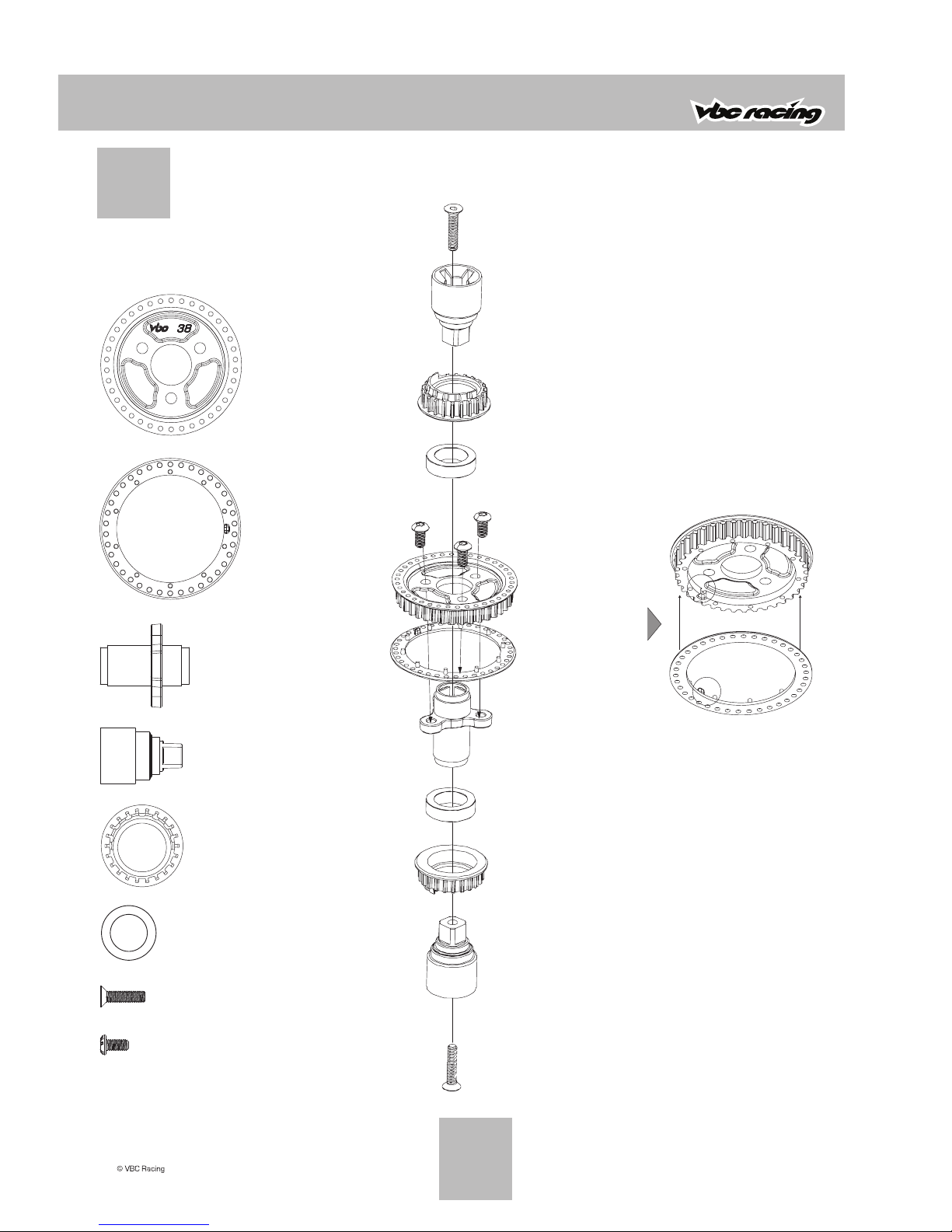

Rear Gear Diff Assembly

Rear Gear Diff Left Side

Rear Gear Diff Right Side

BAG MARKED

STEP3

Rear Gear Diff Right Side Assembly Cross Section

Diff Gear 18T

Diff Outdrive

Right Gear

Diff Housing

Outdrive Sealer O-Ring

10x15 Ball Bearing

M2x10 Shaft Pin

15x0.3 Shim

Diff Oil

Apply small amount of diff oil

Hardened Gear Differential Hub C-02-P41681 x 2

Hardened Gear Differential Hub

Gear Diff Housing

Hardened Gear Differential Hub

Diff Shaft Sealer O-Ring B-03-VBC-0006 x 2

Ghost18

BAG MARKED

STEP3

Bulkhead Belt Adjuster 927000477 x 2

Bulkhead Belt Adjuster

Ghost18

BAG MARKED

STEP4

Install Front Drivetrain

Steering System Assembly

ALU7075 Steering Slider B02G40309 x 1

ALU7075 Steering Slider

Steering Post B02P40363 x 2

Steering Post

Steering Slider Mount B02G40308 x 1

Steering Slider Mount

5x9 Ball Bearings C-02-BB-0905-B x 2

5x9 Ball Bearings

ALU7075 Ball Connector B-02-VBC-5020 x 3

ALU7075 Ball Connector

M3x6 Roundhead C-02-SC-R0306 x 2

M3x6 Roundhead

M2x6 Roundhead C-02-SC-R0206 x 2

M3x8 set screw C-02-SC-SS-0308 x 1

M3x8 set screw

M3x10 set screw C-02-SC-SS-310 x 2

M3x10 set screw

Front Belt Type SS A-03-VBC-0048-512

M2x6 Roundhead

M3x6 Roundhead

Ghost18

BAG MARKED

STEP4

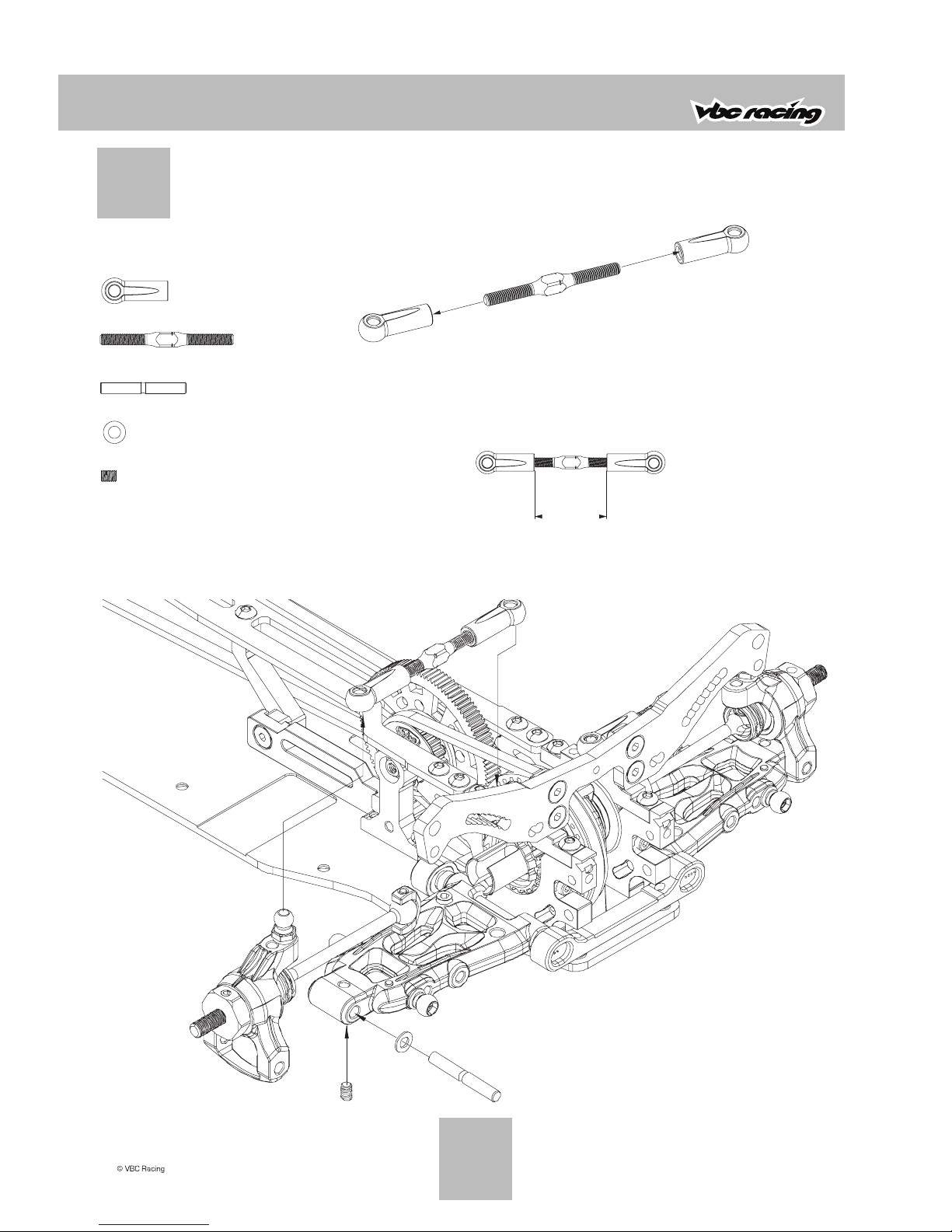

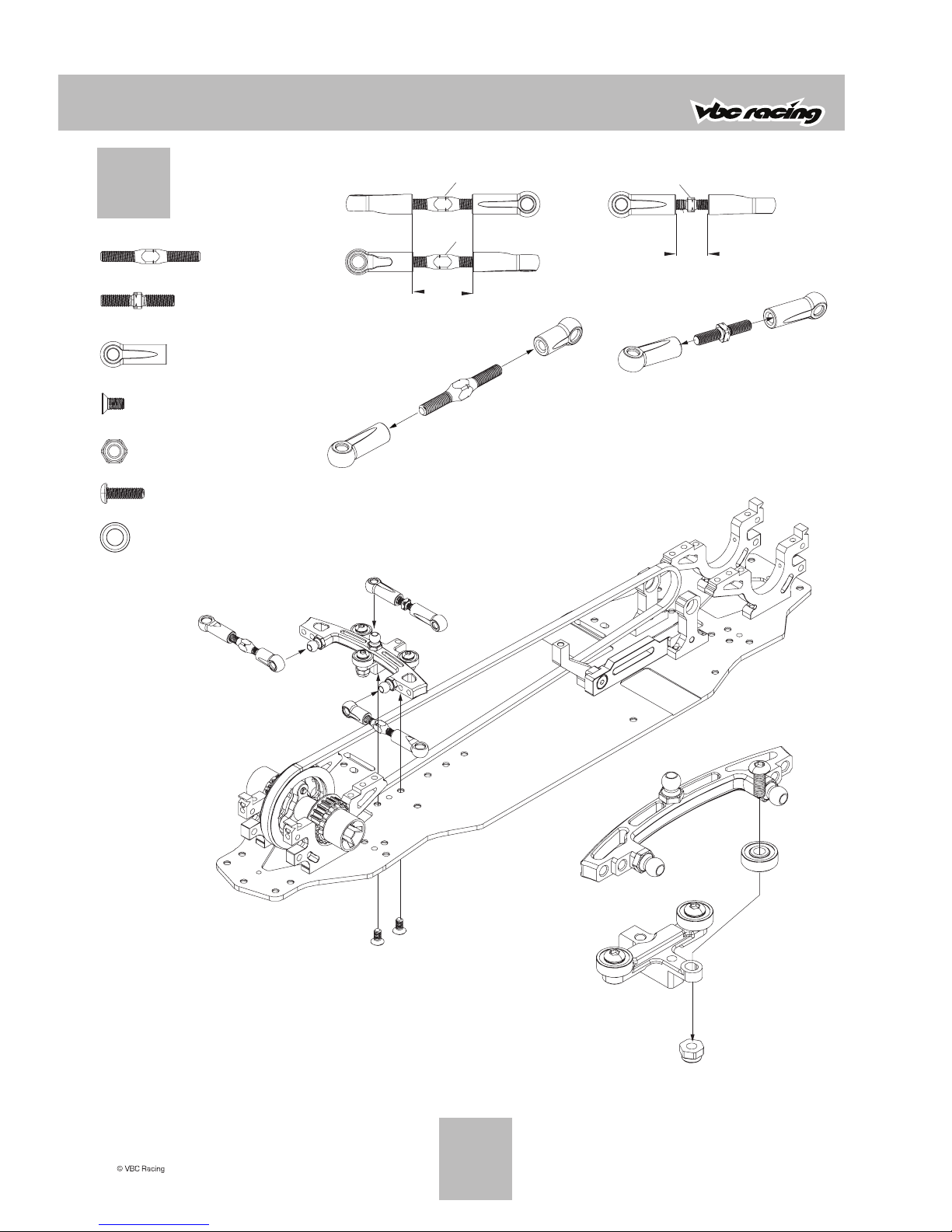

Steering System Assembly

28mm ALU7075 Turnbuckle B02P30512 x 2

28mm ALU7075 Turnbuckle

16.80mm

9.00mm

M3x18mm Turnbuckle B-02-VBC-0038 x 1

M3x18mm Turnbuckle

Composite Ball Link A-03-VBC-5016 x 6

Composite Ball Link

M3X6 Flathead screw C-02-SC-F0306 x 2

M3 locknut C-02-SC-NN03 x 1

M3 locknut

M3X6 Flathead screw

Make 2 steering link tie-rods, follow the connector cups directions as

the above diagram. The connector cups edge to edge shall be 29.40mm.

Please use a caliper to measure the exact measurement

Make 1 servo link tie-rod, follow the connector cups directions as

the above diagram. The connector cups edge to edge shall be 7.50mm.

Please use a caliper to measure the exact measurement

Right Thread Right Thread

Right Thread

M3x10 Roundhead Screw C-02-SC-R0310 x 1

M3x10 Roundhead

5x9 Ball Bearings C-02-BB-0905-B x 1

5x9 Ball Bearings

BAG MARKED

STEP5

Upper Deck Assembly

5x8x2.5 bearing C-02-BB-D0805 x 2

5x8x2.5 bearing

ALU7075 Center Pulley Drive Shaft B-02-P41683 x 1 Center Pulley Drive Shaft

M3X4 Roundhead Screw C-02-SC-R0304 x 3

M3X4 Roundhead

Center Pulley Spacer A-03-VBC-0060 x 1

Composite Spur Gear Spacer

20T Center Pulley A-03-VBC-0003 x 2

Kawada 64p 110T

M2x12 Pin B-02-VBC-0020 x 2

M3x6 set screw C-02-SC-SS-0306 x 2

M3x6 set screw

M5x11 E-Clip B-02-VBC-0085 x 2

M5x11 E-Clip

Kawada SuperEX 64P Spur Gear 110T x 1

Ghost18

20T Center Pulley

M3X4 Roundhead

BAG MARKED

STEP5

Upper Deck

Ghost18

M3x6 Roundhead Screw C-02-SC-R0306 x 8

M3x6 Roundhead

M3X6 Flathead screw x 2

Rear Belt Type R B-03-VBC-0013-177 x 1

M3X6 Flathead Screw

M3x6 Roundhead

M3x6 Roundhead M3x6 Roundhead

M3x6 Roundhead

BAG MARKED

STEP5

Upper Bulkhead Assembly

Install Rear Drivetrain

Ghost18

ALU7075 Suspension Mount C B-02-P41685 x 1

Suspension Mount

M3X6 Flathead Screw C-02-SC-F0306 x 2

BH M3x8 C-02-SC-R0308 x 4

M3x8 Roundhead

M3x8 Roundhead C-02-SC-R0308 x 2

M3x8 Roundhead

M3X8 Flathead Screw C-02-SC-F0308 x 4

M3X6 Flathead Screw

M3X8 Flathead Screw

Suspension Mount Composite Insert 1 A03G30311 x 2

Suspension Mount Composite Insert

4.7mm Ball Nut B-02-VBC-5020 x 4

4.7mm Ball Nut

ALU7075 Suspension Mount B B-02-P41682 x 2

ALU7075 Suspension Mount

M2X6 Roundhead C-02-SC-R-0206 x 2 M2X6 Roundhead

Rear Shock Tower A01P31652 x 1

M3x10 set screw C-02-SC-SS-310 x 2

M3x10 set screw

Rear Shock Tower

M3x8 Roundhead

MAKE TWO

M2X6 Roundhead

BAG MARKED

STEP5

Upper Bulkhead Assembly

Install Front Bulkhead

Ghost18

Suspension Mount

M3X6 Flathead Screw C-02-SC-F0306 x 2

M3X6 Flathead Screw

M3x8 Roundhead Screw C-02-SC-R0308 x 4

M3x8 Roundhead

M3X8 Roundhead Screw C-02-SC-R0308 x 2

BH M3X12

M3X8 Flathead Screw C-02-SC-F0308 x 4

M3X8 Flathead Screw

Suspension Mount Composite Insert 1 A03G30311 x 2

Suspension Mount Composite Insert

T2 7075 Spacer

4.7mm Ball Nut B-02-VBC-5020 x 4

ZT 4.7mm thin ball nut

ALU7075 Suspension Mount B B-02-P41684 x 2

ALU7075 Suspension Mount B

Front Shock Tower A01P31653 x 1

A01P31653

A01P31652

ALU7075 Suspension Mount B B-02-P41684 x 1

ALU7075 Suspension Mount

Tighten screw to lock the Belt Tension Adjuster Ring position

Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial

Loosen

Neutral

Tighten

BAG MARKED

STEP5

Rear Suspension Arm Assembly

Ghost18

Rear Suspension Arm A-03-P30896 x 2

Suspension Arm Spacer T2 Composite A-03-VBC-0052 x 2

Suspension Arm Spacer T1 Composite A-03-VBC-0051 x 4

Suspension Arm Pin B-02-VBC-0029 x 2

Ball Connector B-02-VBC-0045 x 2

Arm Pin Pivot Ball B-02-VBC-0035 x 4

M4x10 Set Screw C-02-SC-SS-0410 x 2

M3x10 Set Screw C-02-SC-SS-0310 x 4

ALU7075 Suspension Mount A B-02-P41686 x 1

ALU7075 Suspension Mount

Suspension Mount Composite Insert 4 A03P30948 x 2

Suspension Mount Composite Insert

M3x6 Flat Head Screw C-02-SC-F0306 x 2

M3x6 Flat Head Screw

1.8mm

Bottom

Top

Left Right

Front

Make sure the black markings are in the same direction on the left and right suspension arms

Insert M4x10 Set Screw from the top of the suspension arm for

adjusting down stop. Initial setting is 1.8mm measuring

from the bottom part of the arm for both sides.

Grease

Rear Suspension Arm

M4x10 Set Screw

Suspension Arm Pin

Arm Pin Pivot Ball

Ball Connector

M3x10 Set Screw

Arm Pin Pivot Ball

Suspension Arm Spacer T2

Suspension Arm Spacer T1

Rear Suspension Arm top view

4.7mm Ball Nut

M3x10 Set Screw

4.7mm Ball Nut

Soft Hard

V2 Rear Suspension Arm

A-03-VBC-3028

V3 Rear Suspension Arm

A-03-P30268

Rear Suspension Arm

A-03-VBC-0062

OptionalOptional

Original Setup

5 2 1.75 1.5 1.25 0.5 0.25 0

4.7mm Ball Nut B-02-VBC-5020 x 2

BAG MARKED

STEP5

Rear Suspension Arm Assembly Part2

Ghost18

Rear Suspension Upright A-03-P31327 x 2

Delrin Shaft End Shoe A-03-G31180 x 2

7075-T6 Rear Inner Axle (49mm) B-02-VBC-0104 x 2

4.5mm Wheel Hubs B-02-G31348 x 2

4.5mm Wheel Hubs

Wheel Axle B-02-VBC-0025 x 2

Axle Joint B-02-VBC-0026 x 2

Axle Lock Spring B-02-VBC-0027 x 2

5x10mm Ball Bearings x 4

M2x12 Shaft Pin B-02-VBC-3035 x 2

M2x10 Shaft Pin B-02-VBC-0020 x 4

M2x10 Shaft Pin

M3x10 Set Screw C-02-SC-SS-0310 x 2

M3x2 Set Screw C-02-SC-SS-0302 x 4

M3x2 Set Screw

Grease

Thead Lock

After assembling the drive shaft, make sure the joints are free swinging.

Align the Shaft End Shoe to the Inner Axle Pin

hole first and slide the 12mm Shaft Pin to the

pin hole before securing the pin with M3x2 Set Screw

Align the Shaft End Shoe to the Inner Axle Pin

hole first and slide the 12mm Shaft Pin to the

pin hole before securing the pin with M3x2 Set Screw

Rear Suspension Upright

Shaft End Shoe

M2x12 Shaft Pin

7075-T6 Rear Inner Axle

Wheel Axle

Axle Joint

Axle Lock Spring

M2x10 Shaft Pin

5x10mm Ball Bearings

M3x2 Set Screw

M3x10 Set Screw

4.7mm Ball Nut

ZT 4.7mm thin ball nut

Axle Lock Spring

Wheel Axle

Make sure the Axle Lock Spring is place correctly onto the Wheel Axle

Joint cross section

4.7mm Ball Nut B-02-VBC-5020 x 2

7075-T6 Rear Inner Axle

BAG MARKED

STEP5

Rear Suspension Arm Assembly Part 3

Ghost18

36mm ALU7075 Turnbuckle B02P40323 x 2

M3x23 Upright Pin B-02-VBC-0032 x 2

M3x23 Upright Pin

Composite Ball Link

36mm ALU7075 Turnbuckle

MAKE TWO

21mm

3x0.5mm spacer C02P30951 x 2

3x0.5mm spacer

M3x4 Set Screw C-02-SC-SS-0304 x 2

M3x4 Set Screw

Composite Ball Link A-03-VBC-5016 x 4

Make sure the turnbuckle caps move freely after snapped to the ball connector

BAG MARKED

STEP5

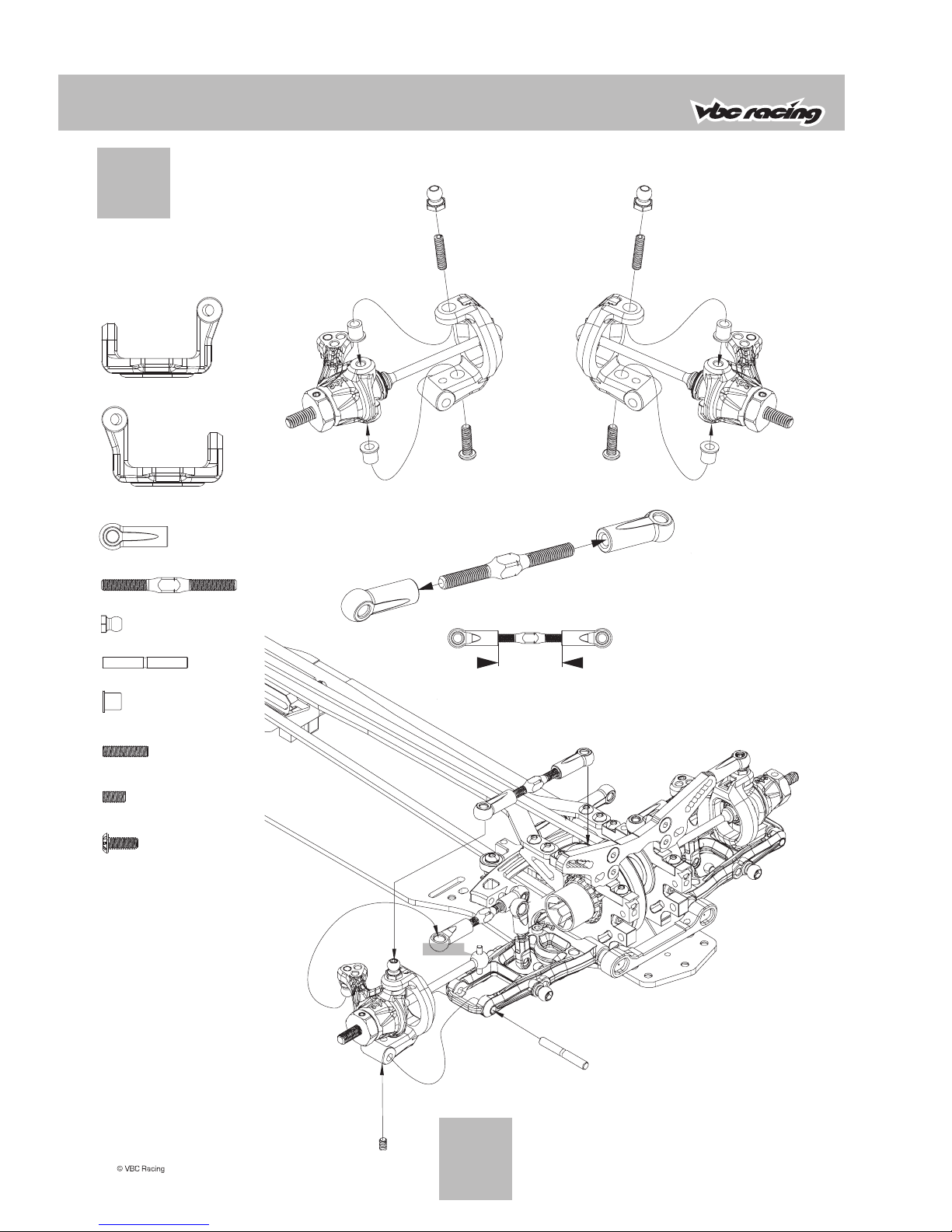

Front Suspension Assembly Part 1

Ghost18

Front Suspension Arm A-03-P30899 x 2

Turnbuckle Cup Open Type S A-03-VBC-0040 x 2

Suspension Arm Spacer T2 A-03-VBC-0052 x 2

Suspension Arm Spacer T2

Suspension Arm Spacer T1 A-03-VBC-0051 x 4

Suspension Arm Spacer T1

Suspension Arm Pin B-02-VBC-0029 x 2

Suspension Arm Pin

Ball Connector B-02-VBC-0045 x 2

Ball Connector

Arm Pin Pivot Ball B-02-VBC-0035 x 4

Arm Pin Pivot Ball

M4x10 Set Screw C-02-SC-SS-0410 x 2

M4x10 Set Screw

M3x10 Set Screw C-02-SC-SS-0310 x 4

M3x10 Set Screw

Left Right

Front

Make sure the black markings are in the same direction on the left and right suspension arms

Insert M4x10 Set Screw from the top of the suspension arm for

adjusting down stop. Initial setting is 1.8mm measuring

from the bottom part of the arm for both sides. Make 2 sets

Front Suspension Arms top view

Grease

1.8mm

3mm

Soft Hard

V3 Front Suspension Arm

A03P30267

Front Suspension Arm (Soft)

A-03-VBC-0061 A-03-VBC-3027

Composite Ball Link S A-03-VBC-5021 x 2 M3x10 Set Screw

Composite Ball Link S Turnbuckle Cup Open Type S

BAG MARKED

STEP5

Front Suspension Assembly Part 2

Ghost18

M3X6 flat head screw C-02-SC-F0306 x 2

ALU7075 Suspension Mount B-02-P41686 x 1

ALU7075 Suspension Mount

M3X6 flat head screw

0.75

0.5

0.25

-0.25

-0.5

-0.75

-1

-1.25

Suspension Mount Composite Insert 4 A03P30948 x 2

Suspension Mount Composite Insert

BAG MARKED

STEP5

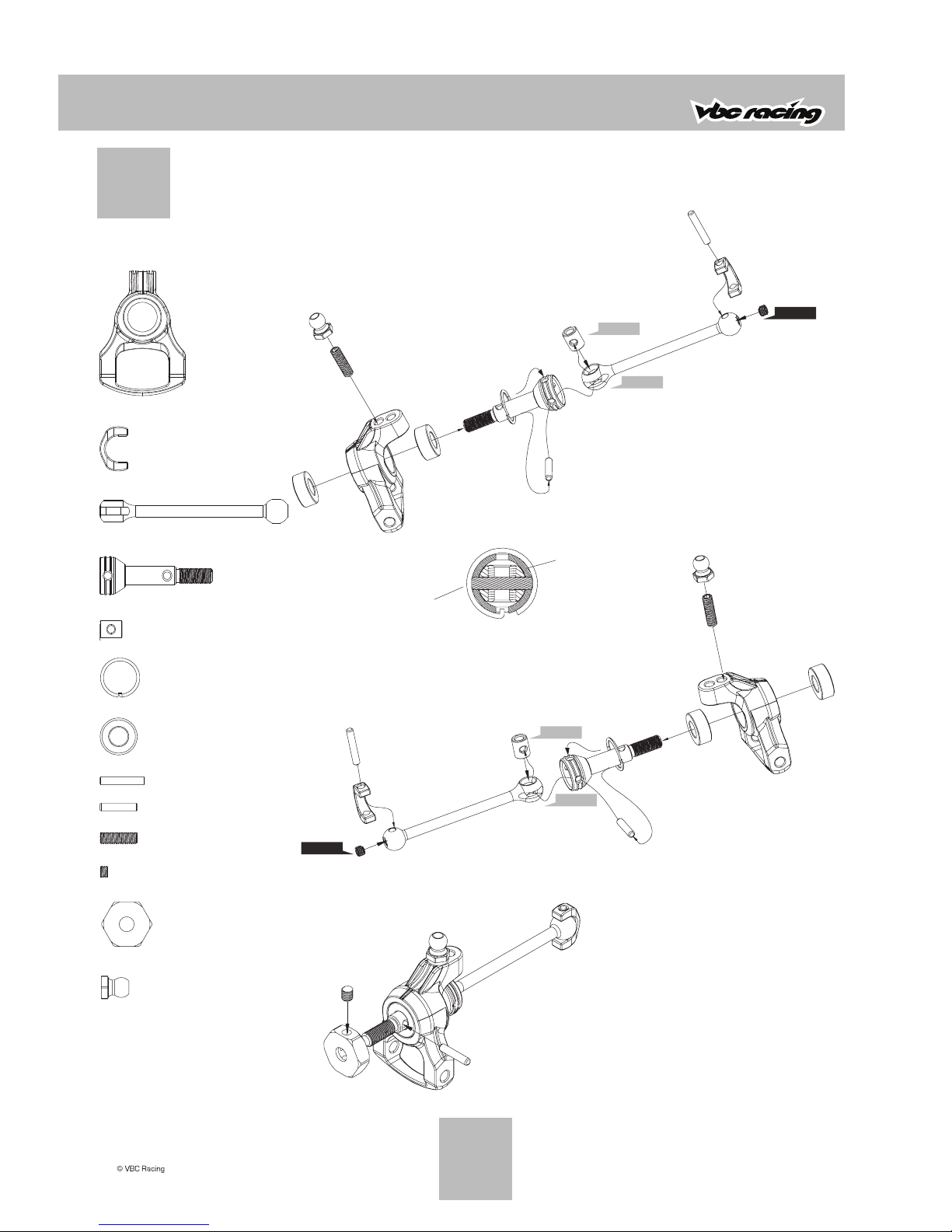

Front Suspension Assembly Part3

Ghost18

Grease

Steering Block V3 A-03-P30269 x 2

Axle Lock Spring B-02-VBC-0027 x 4

Axle Lock Spring

M3x2 Set Screw C-02-SC-SS-0302 x 2

M3x2 Set Screw

M3x3 Set Screw

4.5mm Wheel Hubs B-02-G31348 x 2

4.5mm Wheel Hubs

5x10x3 mm Ball Bearing c-2-BB-1053B x 2

5x10x3 mm Ball Bearing

M2x10 Shaft Pin B-02-VBC-0020 x 6

M2x10 Shaft Pin

M2x12 Shaft Pin B-02-VBC-3035 x 2

M2x12 Shaft Pin

M3x3 Set Screw C-02-SC-SS-0303 x 2

4.7mm Ball Nut B-02-VBC-5020 x 2

4.7mmBall Nut

4.7mm thin ball nut

5x10x4 Ball Bearing C-02-BB-1005-B x 2

5x10x4 Ball Bearing

Double Joint Axle Shaft C02P30944 x 2

Double Joint Axle Shaft

Double Joint Bone for Xray, VBC 41.3mm C02P30939 x 2

Double Joint Bone for Xray, VBC 41.3mm

Double Joint Case C02P30942 x 2

Double Joint Case

Double Joint Inner C02P30940 x 4

Double Joint Inner

Grease

Thead Lock

Axle Lock Spring

Wheel Axle

Make sure the Axle Lock Spring is place correctly onto the Wheel Axle

Joint cross section

Shaft Pin

M3x10 Set Screw C-02-SC-SS-0310 x 2

M3x10 Set Screw

BAG MARKED

STEP5

Front Suspension Assembly Part4

Ghost18

36mm ALU7075 Turnbuckle B02P40323 x 2

36mm ALU7075 Turnbuckle

Composite Ball Link A-03-VBC-5016 x 4 Composite Ball Link

22mm

Composite Ball Link

4.7mm Ball Nut B-02-VBC-5020 x 2

4.7mm Ball Nut 4.7mm Ball Nut

Right C-Hub A-03-P30900 x 1

Left C-Hub A-03-P30901 x 1

M3x12 Set Screw C-02-SC-SS-0312 x 2

M3x12 Set Screw M3x12 Set Screw

M3x4 Set Screw C-02-SC-SS-0304 x 2

M3x4 Set Screw

3x23 Upright Pin B-02-VBC-0032 x 2

3x23 Upright Pin

M3x9 Roundhead Screw C-02-SC-R0309 x 2

M3x9 Round Head Screw M3x9 Round Head Screw

Steering Swivel Tube B-02-VBC-0033 x 4

Steering Swivel Tube

Grease

Please note the 'L'(Left) and 'R'(Right) markings on C-Hubs

Right Left

Make Two

BAG MARKED

STEP6

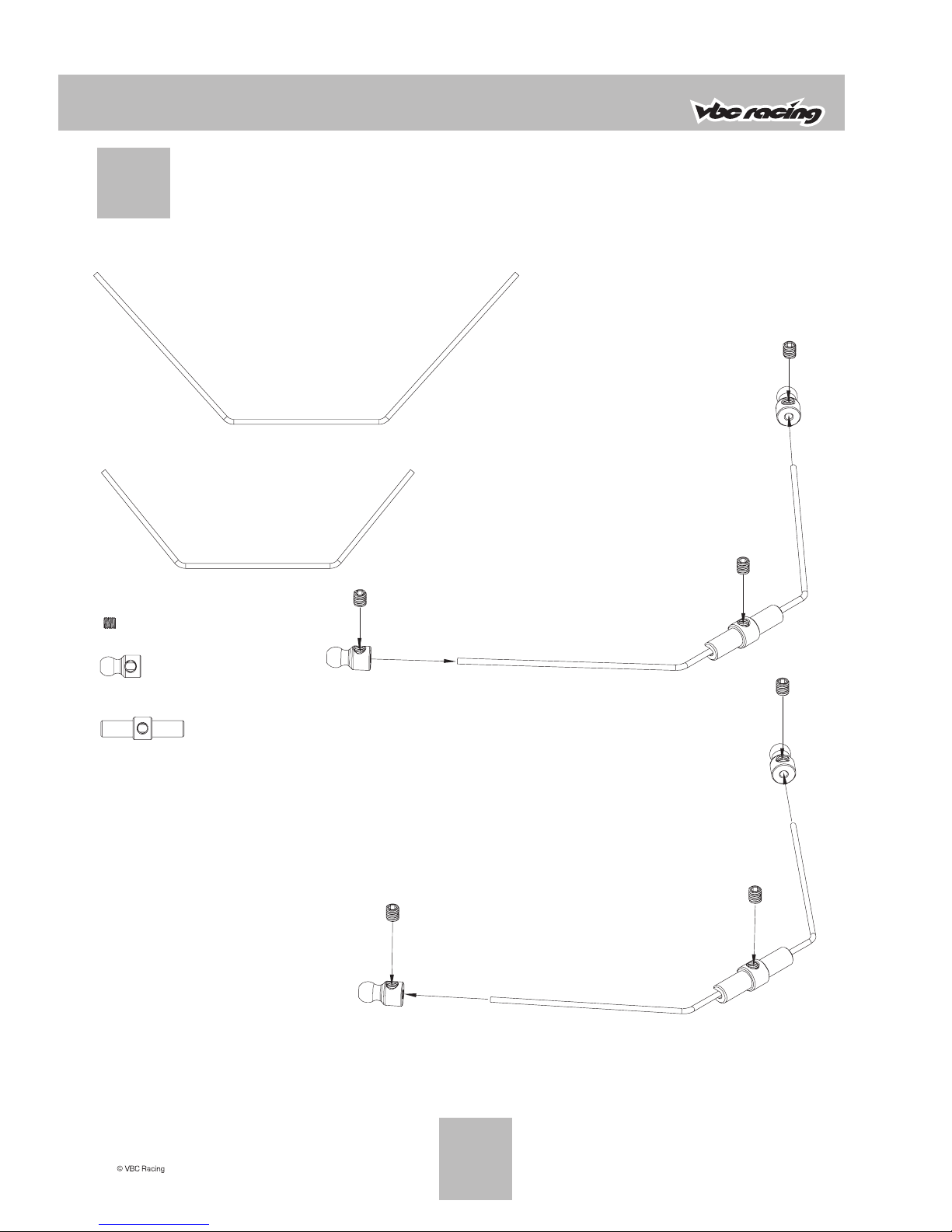

Front and Rear Stabilizers

Ghost18

4.7mm Stabilizer Connector B-02-P41687 x 4

4.7mm Stabilizer Connector

M3x3 set C-02-SC-SS-0303 x 6

M3x3 set

Front Stabilizer 1.3 C02P30248 x 1

Front Stabilizer 1.3

Rear Stabilizer 1.3 C02P30249 x 1

Rear Stabilizer 1.3

ALU 7075 Stabilizer Strut B-02-P41689 x 2

ALU 7075 Stabilizer Strut

BAG MARKED

STEP7

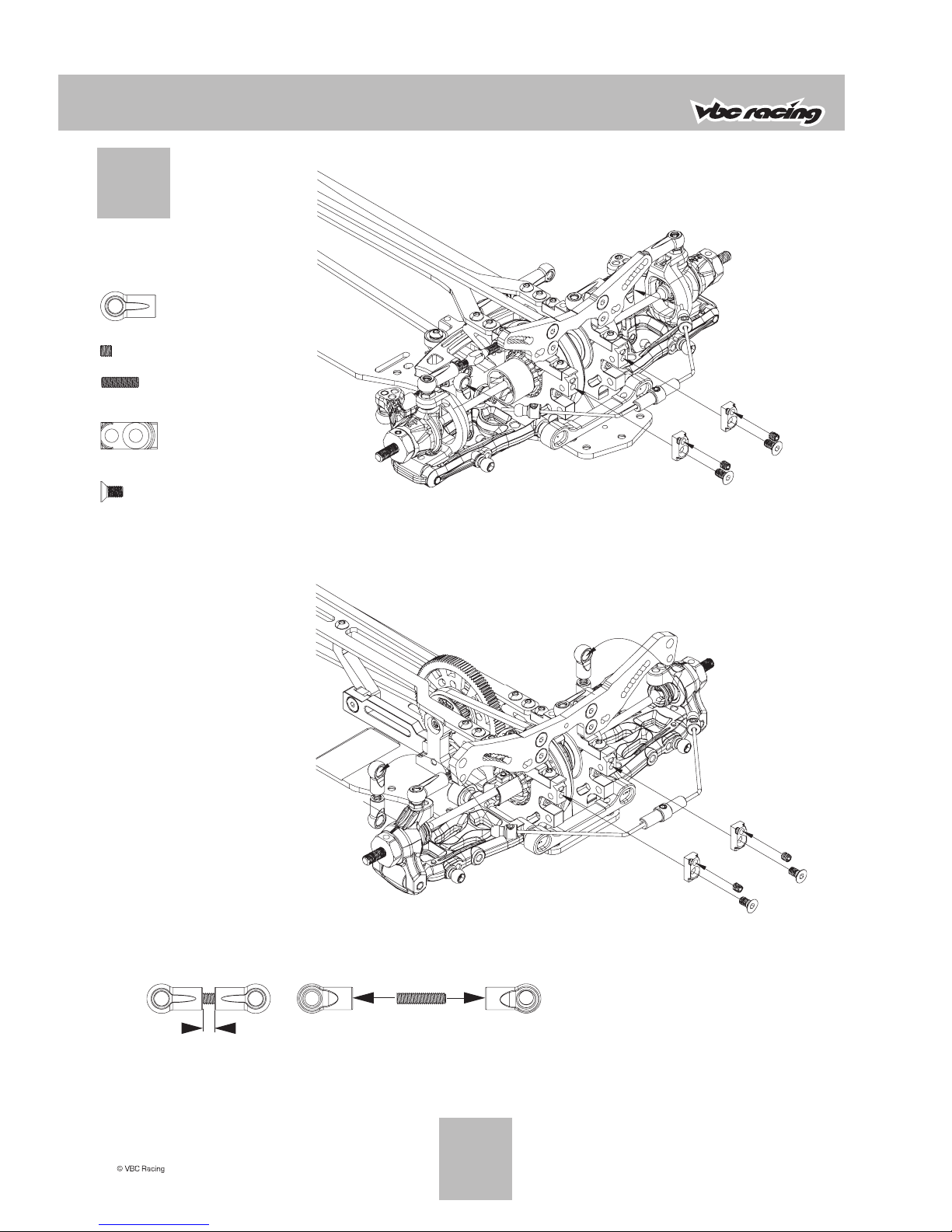

Install Front and Rear Stabilizers

Ghost18

Composite Ball Link S A-03-VBC-5021 x 4

M3x3 set C-02-SC-SS-0303 x 4

M3X6 Flathead Screw C-02-SC-F0306 x 4

M3X6 Flathead Screw

M3x10 set screw C-02-SC-SS-310 x 2

Stabilizer Mount A-03-P41688 x 4

Stabilizer Mount

M3x3 Set Screw

M3X6 Flathead Screw

Stabilizer Mount

INSTALL REAR STABILIZER

INSTALL FRONT STABILIZER

3mm

MAKE TWO

M3x3 Set Screw

M3x10 Set Screw

Composite Ball Link S Composite Ball Link S

Other VBC Racing Motorized Toy Car manuals

VBC Racing

VBC Racing LightningF User manual

VBC Racing

VBC Racing Ghost EVO User manual

VBC Racing

VBC Racing Firebolt DM2 User manual

VBC Racing

VBC Racing WILDFIRE D06 User manual

VBC Racing

VBC Racing Lighting 10 User manual

VBC Racing

VBC Racing WildFire D07 User manual

VBC Racing

VBC Racing Ghost EVO User manual

VBC Racing

VBC Racing WILDFIRE D09 User manual

VBC Racing

VBC Racing Lightning10 User manual

VBC Racing

VBC Racing Firebolt RM User manual

VBC Racing

VBC Racing Lightning FXM User manual

VBC Racing

VBC Racing LIGHTINGF User manual

VBC Racing

VBC Racing Flash-04 User manual

VBC Racing

VBC Racing Lightning 10 235 Instructions and recipes

VBC Racing

VBC Racing Firebolt DM User manual

VBC Racing

VBC Racing Lightning 10M 235 User manual

VBC Racing

VBC Racing LIGHTNING 12M User manual

Popular Motorized Toy Car manuals by other brands

Xray

Xray X12 instruction manual

Eaelec

Eaelec TT-Scale Ford F6 Cube Truck Assembly instructions

CEN Racing

CEN Racing REEPER AMERICAN FORCE instruction manual

Enabling Devices

Enabling Devices 1454 user guide

Associated Electrics

Associated Electrics RC10 B4.2 Assembly manual

Associated Electrics

Associated Electrics TEAM ASSOCIATED RC10B4 B4 instruction manual

Merax

Merax TX288703 user manual

Helion

Helion HLNA0053 owner's manual

Carisma

Carisma M4OS instruction manual

Reely

Reely GX3 operating instructions

Carrera RC

Carrera RC Ford F-150 Raptor user guide

Jamara

Jamara Lamborghini Aventador LP700 2,4GHz instructions

Monogram

Monogram 85 FORD MUSTANG SVO manual

Tameo Kits

Tameo Kits TMK071 Assembly instruction

RC4WD

RC4WD VV-JD00043 quick start guide

Carerra

Carerra Jeep Wrangler Rubicon quick start guide

Kyosho

Kyosho MINI-Z Racer MR-015 RML Type instruction sheet

Buddy Toys

Buddy Toys BEC 8211 instructions

VBC Racing Ghost 18 User manual

Popular Motorized Toy Car manuals by other brands
