Vdwall LVP605 User manual

LVP605 series
LED HD Video Processor
User Manual
SHENZHEN VDWALL CO., LTD.

www.videowall.cn
2
LVP605 Series User Manual
Content
Chapter 1 Safety precautions....................................................................03
Chapter 2 Item list......................................................................................04
Chapter 3 Hardware connection...............................................................05
3-1 Rear view..............................................................................05
3-2 Port description.....................................................................05
3-3 Connection diagram..............................................................07
Chapter 4 Front panel.................................................................................08
4-1 Front view..............................................................................08
4-2 Instructions............................................................................10
Chapter 5 Settings......................................................................................14
5-1Basic settings.........................................................................15
1. Enter settings menu..........................................................15
2. Select language................................................................16
3. Output image settings.......................................................17
4. Text overlay.......................................................................19
5. Brightness / saturation / sharpness...................................20
6. Audio configuration...........................................................20
7. Hot spare..........................................................................21
8. Test pattern.......................................................................21
9. Factory settings................................................................21
5-2 PIP / PBP settings...............................................................24
5-3 Mosaic settings....................................................................26
Chapter 6 Specifications............................................................................31
Chapter 7 Control software........................................................................34
Chapter 8 Notes about models..................................................................49
Chapter 9 Copyright information..............................................................50

www.videowall.cn
3
LVP605 Series User Manual
Chapter 1 Safety precautions
Danger
There is high voltage in the processor, to prevent any unexpected
hazard, unless you are a maintenance personnel, please do not open
the cover of the device.
Warning
1. This device shall not encounter water sprinkle or splash, please do
not place anything containing water on this device.
2. To prevent fire, keep this device far from any fire source.
3. If this device gives out any strange noise, smoke or smell, please
immediately unplug the power cord from receptacle, and contact
local dealer.
4. Signal cables are not hot swappable.
Caution
1. Please thoroughly read this manual before using this device, and
keep it safe.
2. In the event of lighting or when you are not going to use the device
for a long time, please pull the power plug out of receptacle.
3. Nobody other than professional technicians can operate the device,
unless they have been appropriately trained or under guidance of
technicians.
4. To prevent equipment damage or electric shock, please don’t fill in
anything in the vent of the device.
5. Do not place the device near any water source or anywhere damp.
6. Do not place the device near any radiator or anywhere under high
temperature.
7. To prevent rupture or damage of power cords, please handle and
keep them properly.
8. Please immediately unplug power cord and have the device
repaired, when
1) Liquid splashes to the device.
2) The device is dropped down or cabinet is damaged.
3) Obvious malpractice is found or performance degrades.

www.videowall.cn
4
LVP605 Series User Manual

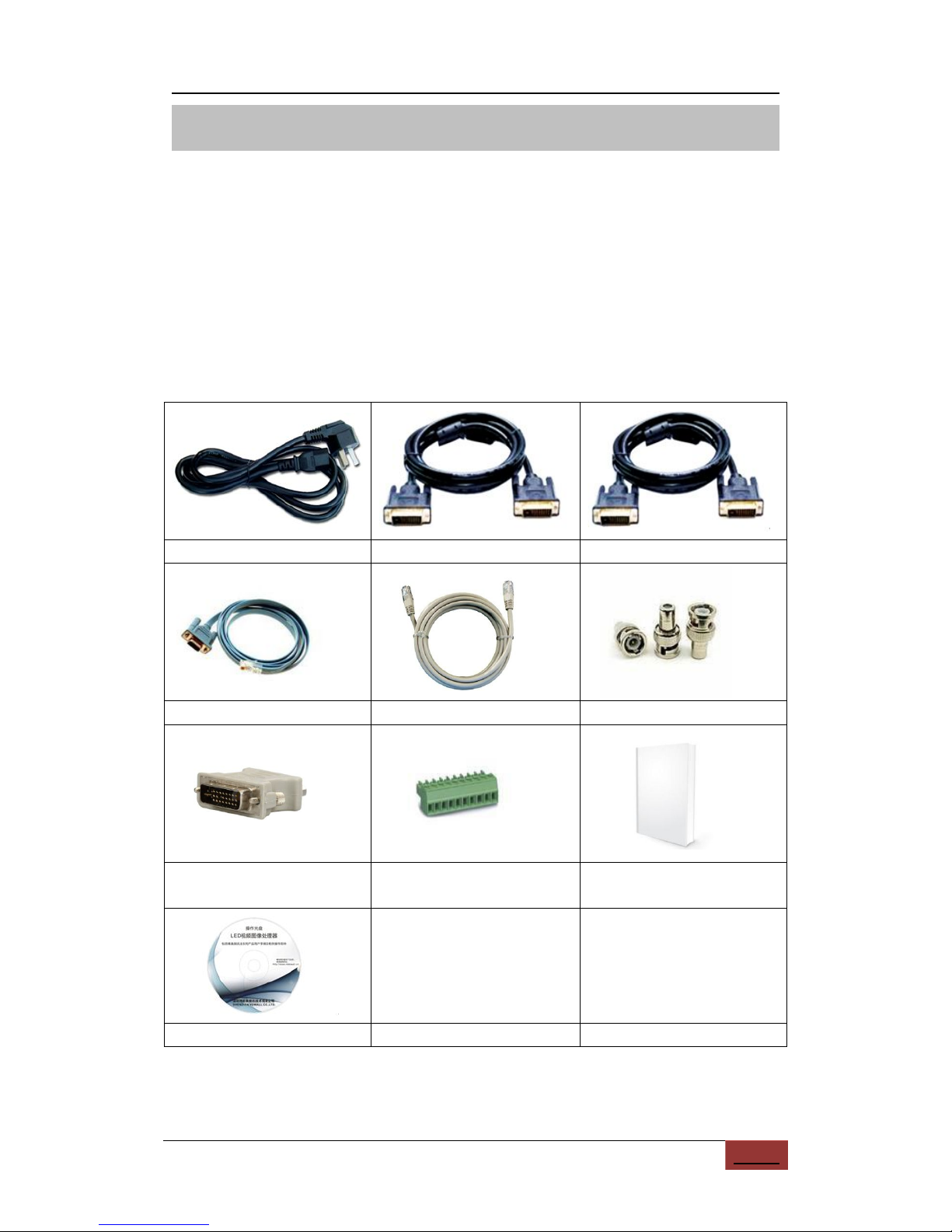

Chapter 2 Item list
Please unpack the product with care and check whether all the following items
are included in the package. If anything is found missing, please contact the
dealer.
Standard accessories
The accessories supplied with this LED Video Processor may differ from the
figures contained in the User Manual, but they are applicable for the regions
where you live.
Power cord(1.5m)
DVI cable(1.5m)
DVI cable(0.5m)
RS232-RJ45(1.5m)
Net cable (0.2m)
BNC-RCA adapter X 3
DVI-I to VGA adapter (only
for LVP605D)
PCB connector (Audio)
User manual
Disk

www.videowall.cn
5
LVP605 Series User Manual

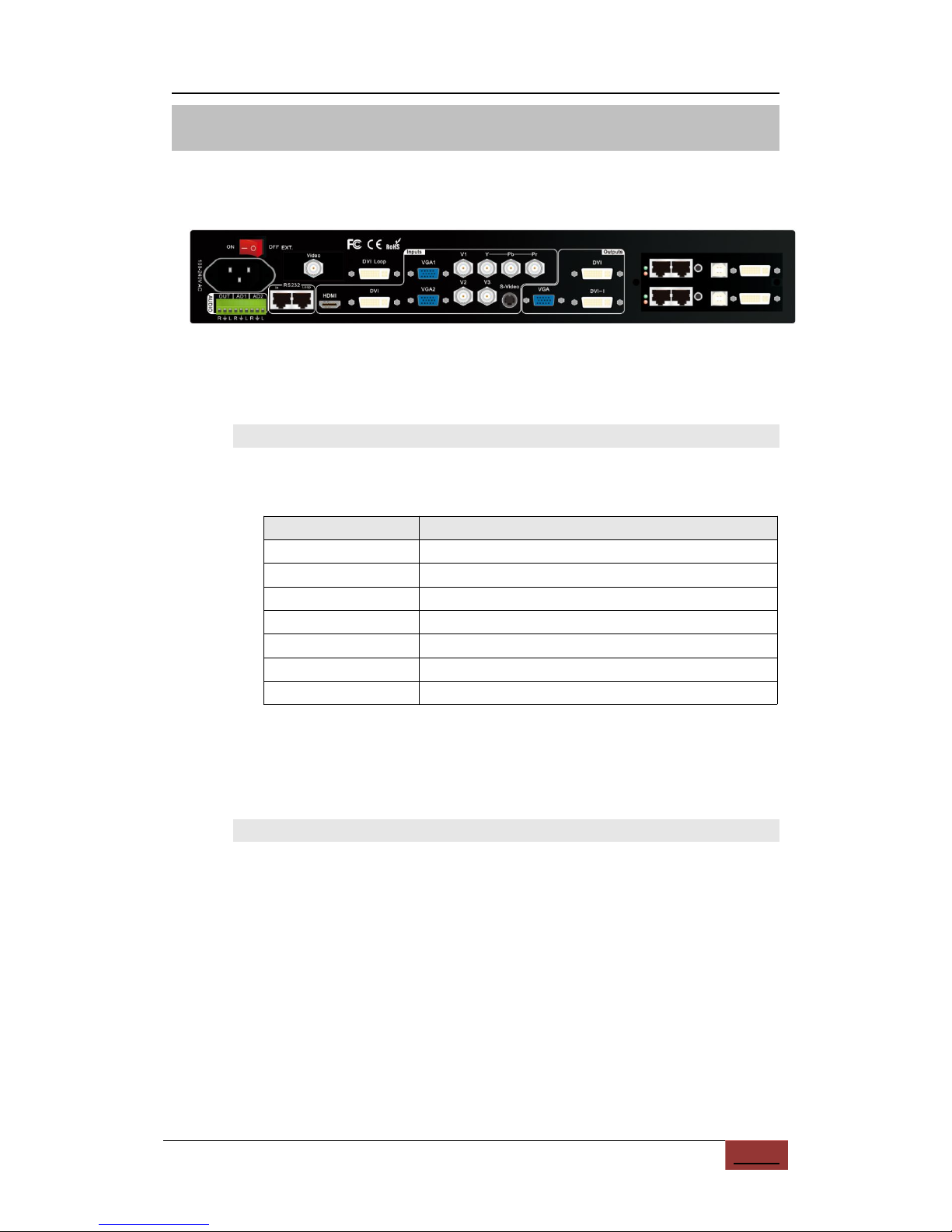

Chapter 3 Hardware connection
3-1 Rear view
Figure 3-1 Rear view
3-2 Port description
1) Video input signals (INPUT)
LVP605 supports 10 video input signals as follows:
Port
Description
V1~V3
3 X Composite Video (PAL /NTSC)
S-Video
1 X S-Video (PAL/ NTSC)
YPbPr
1 X YPbPr (HD component signal)
VGA1~VGA2
2 X VGA (PC analog signal)
DVI
1 X DVI (PC digital signal)
HDMI
1 X HDMI (HD digital signal)
EXT.
1 X Extended input port
Remark:
the extended input port (EXT.) can be Video, SDI / HD-SDI /3G-SDI
or VGA / DVI / HDMI.
2) Audio input signals (AUDIO / AD1, AD2)
LVP605 supports 5 channels of stereo audio input signals, among
which 3 channels are DVI (only when the input signal is HDMI),
HDMI and SDI and the other 2 channels (AD1 and AD2) are
external audio input signals. Audio input signals for AD1 and AD2
can be configured to match the video input signals correspondingly
and switching between AD1 and AD2 is synchronous to that
between the video inputs.

www.videowall.cn
6
LVP605 Series User Manual
3) Video output signals
Port
Description
VGA OUT
1 X VGA (analog RGB signal output, can
be connected to a monitor for monitoring;
this port is highly recommended to use
when operating or setting up LVP605)
DVI OUT1 /
DVI OUT2
2 X DVI (same content will be output from
these two digital ports, can be connected
to 2 sending cards or 2 external sending
boxes)
SDI / HD-SDI /
3G-SDI (OUT)
1 X SDI (SDI loop output, only available
when the extended input port is SDI /
HD-SDI / 3G-SDI )
DVI Loop OUT
1X DVI (DVI loop output)
4) Audio output signal (AUDIO / OUT)
This port is used to output an audio signal which corresponds to the
selected video signal.
5) Other ports
RS232 In (serial communication port): used to connect the RS232
port of PC to operate LVP605 by software control.
RS232 LOOP: used to connect other units of LVP605 via RJ45
cables so that all these units can be controlled by one PC.

www.videowall.cn
7
LVP605 Series User Manual
3-3 Connection diagram

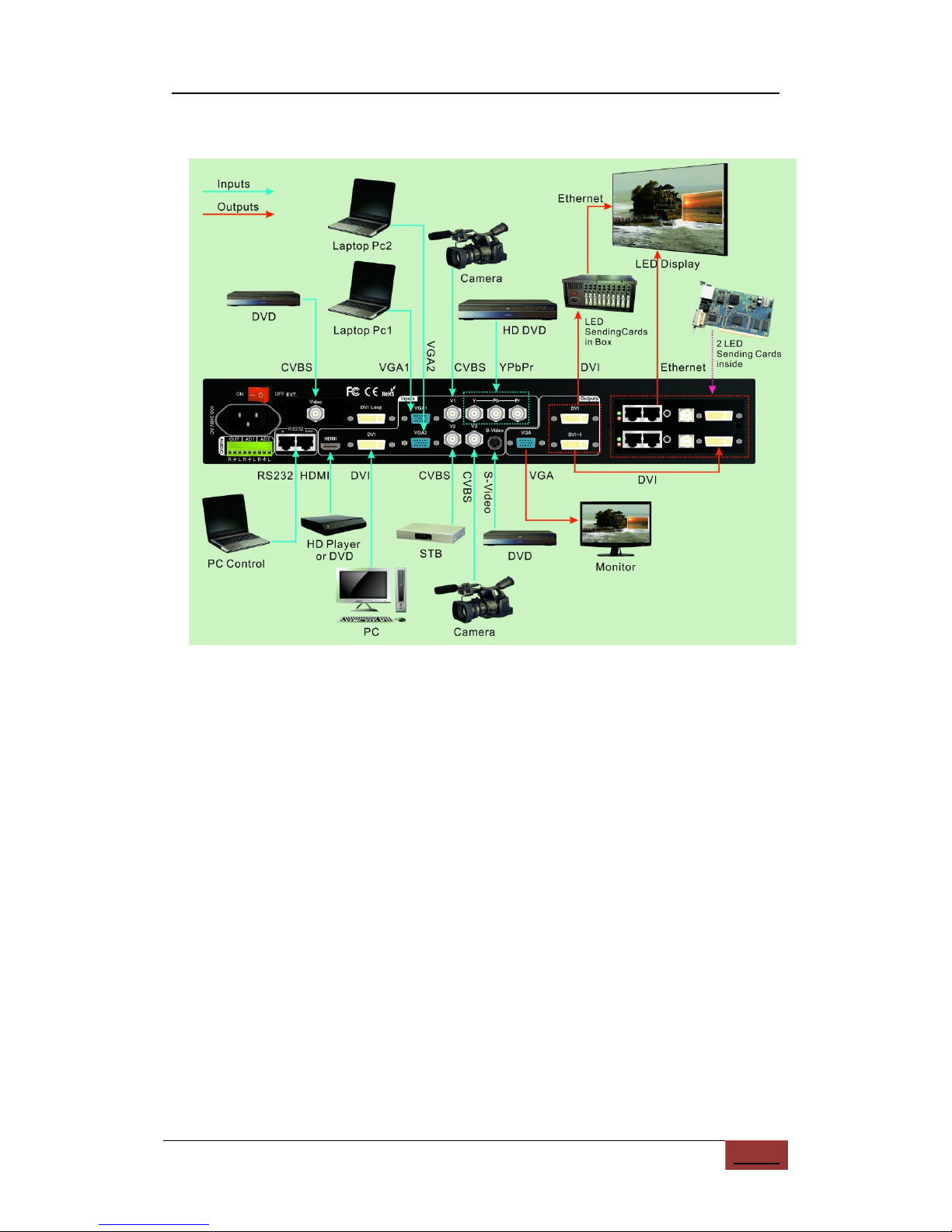

Figure 3-2 Connection diagram

www.videowall.cn
8
LVP605 Series User Manual

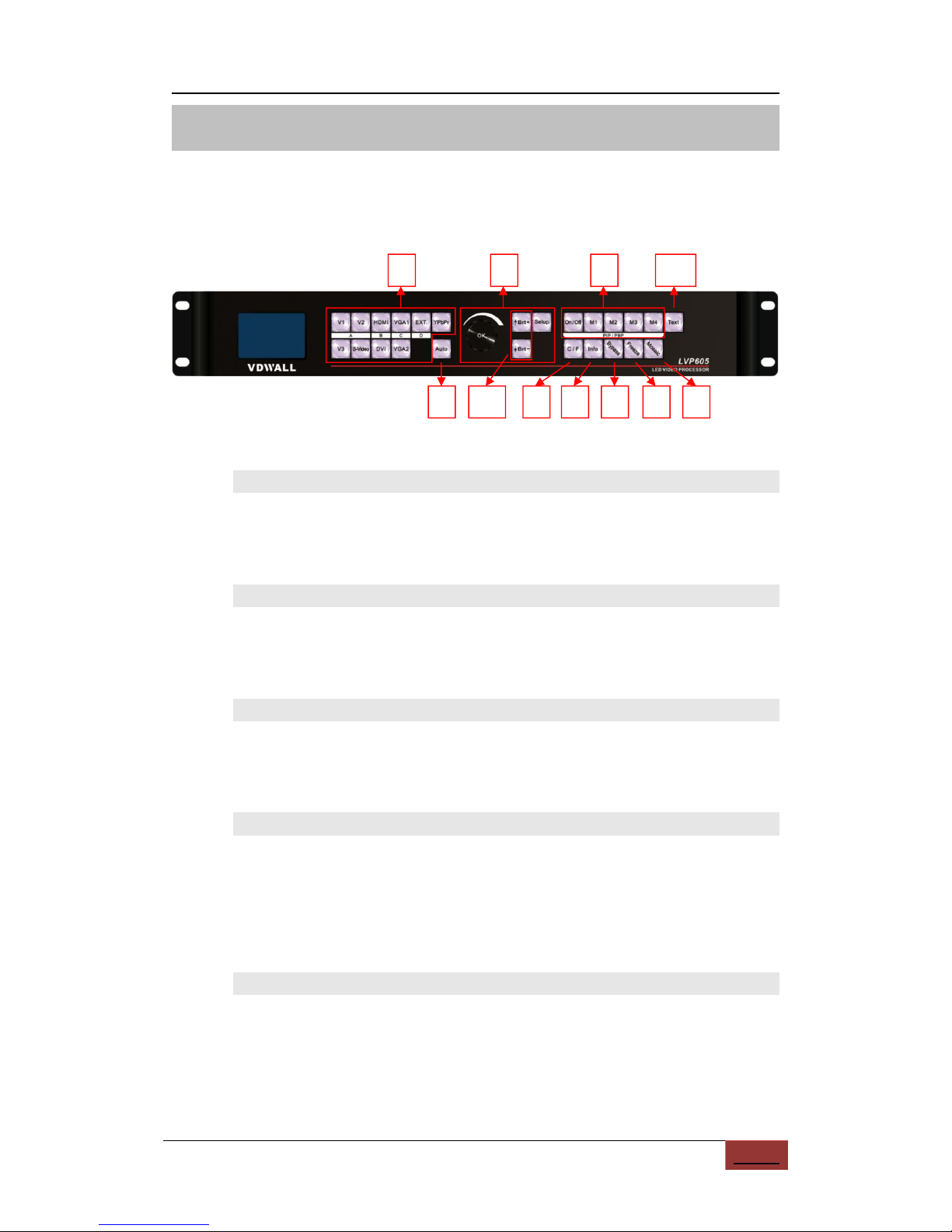

Chapter 4 Front panel
4-1 Front view
Figure 4-1 Front view
1) Input select buttons
Input select buttons (V1, V2, V3, S-Video, DVI, VGA1, VGA2,
YPbPr, EXT.): Select the input signal.
2) Setup buttons
Setup button (Setup,↑,↓, Knob): Set up output image
parameters.
3) VGA automatic adjustment button
VGA automatic adjustment button (Auto): Automatically adjust
VGA input signal.
4) Seamless switching or Fade-in / Fade-out
Seamless switching or Fade-in/Fade-out (C / F)：Select the
switching effect between two different input signals. The effects
include seamless switching (CUT), Fade-in / Fade-out (time can be
set as 0.5S, 1S or 1.5S) and blending.
5) PC signal bypass output
PC signal bypass output (Bypass)：Switch between part and full
display of PC signal. The indicator shows the current state of the
input signal.
3
1
11
2
4
6
5
9
8
7
10

www.videowall.cn
9
LVP605 Series User Manual
6) PC signal bypass output
Information display (Info): Displays current settings and related
information of LVP605.
7) PIP / PBP button
PIP / PBP button (On / Off,M1，M2，M3，M4): On / Off: press this
button to turn on/off PIP/PBP function. When the indicator is on,
press input signal buttons to select two signals (have to be in
different channels) or the same signal for PIP / PBP.
M1,M2,M3,M4: stand for 4 customizable PIP/PBP display modes.
8) Mosaic
Mosaic: Turn on / off mosaic function (multiple units of LVP605
connected in parallel).The indicator shows the current state of
mosaic.
9) Freeze
Freeze: Turn on / off freeze function.
10) Text overlay
Text overlay (Text): Overlay the current image with text, logo, flash
and etc.
11) Brightness adjustment
Brightness adjustment (Brt+，Brt-): Adjust output brightness.

www.videowall.cn
10
LVP605 Series User Manual
4-2 Button instructions
LVP605 has 25 panel buttons and 1 knob, which are in operation mode when
LVP605 starts to work. The functions of these buttons are as follows:
1) Input signal select
Buttons
Description
V1, V2, V3
Select a composite signal from 3BNC ports
S-Video
Select a S-Video signal (PAL / NTSC)
YPbPr
Select a YPbpr signal
VGA1, VGA2
Select a PC analog signal from 2 VGA ports
DVI
Select a PC digital signal
HDMI
Select a HDMI signal
EXT.
Select a signal from the extended port (for
example: SDI / HD-SDI / 3G-SDI)
To press above buttons will lead to switching of their audio signals
correspondingly, which are output from AUDIO OUT.
When selecting a input signal, its information is displayed in the
first line on the LCD screen, for example: “Input: HDMI”. The
second line displays the current state of this signal: if there is no
signal available, a message “no signal” appears, in the meantime
the indicator flickers and the screen is blank; if there is a valid
signal, it displays its format, such as “1080p_60Hz”.
Input= HDMI
1080p_60Hz
Cut
Remark:
if the extended input port (EXT.) is VGA/DVI/HDMI，the input signal
for this port needs to be confirmed by dial switch, which means
when dial switch is on “VGA”, the input signal for EXT. is VGA, and
when it is on “DVI”, the input signal is DVI / HDMI.
2) Brightness adjustment
Button
Description
BRT -
Lower output brightness until 0 minimally.
BRT +
Increase output brightness until 64 or 100 maximally.
