Vecow RCX-1500 PEG User manual

USER
Manual
USER
Manual
2.2.0 Edition 20191213
Intel®Xeon®/Core™i7/i5/i3 Dual GPU AI Computing System
Workstation-grade, NVIDIA®Tesla®/Quadro®/GeForce®Graphics
RCX-1500 PEG

ii
©Vecow RCX-1500 PEG User Manual
Version Date Page Description Remark
0.10 2019/06/14 All Preliminary Release
1.00 2019/07/01 All Ofcial Release
2.00 2019/07/24 iv, v, 1, 2, 3, 5, 7 Update
2.10 2019/10/05 Cover, iv, 1, 2, 3, 5, 7, 9,
44, 45, 49, 98, 99,
Update
2.20 2019/12/13 3, 5, 55 Update
Record of Revision

iii
©Vecow RCX-1500 PEG User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product offerings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow RCX-1500 PEG User Manual
Part Number Description
RCX-1540R PEG RCX-1540 PEG, Dual NVIDIA Graphics Card, 2 GigE LAN,
4 Front-access SSD Tray, 3 COM, 6 USB 3.1, 2 SIM, 32 Isolated DIO
RCX-1540 PEG RCX-1540 PEG, Dual NVIDIA Graphics Card, 2 GigE LAN, 3 COM,
6 USB 3.1, 2 SIM, 32 Isolated DIO
RCX-1520R PEG RCX-1520 PEG, Dual NVIDIA Graphics Card, 2 GigE LAN,
4 Front-access SSD Tray, 3 COM, 6 USB 3.1, 2 SIM, 32 Isolated DIO
RCX-1520 PEG RCX-1520 PEG, Dual NVIDIA Graphics Card, 2 GigE LAN, 3 COM,
6 USB 3.1, 2 SIM, 32 Isolated DIO
Order Information
CPU List
Series CPU Cores GHz TDP
(W) CPU Cores GHz TDP (W)
ECC
RAM
Intel®
Xeon®
E-2176G 6 4.6 80 E-2278GE 8 4.7 80
YesE-2278GEL 8 3.9 35
E-2124G 4 4.5 71 E-2226GE 6 4.6 80
Intel®
Core™
i7-8700 6 4.6 65 i7-9700E
8
4.4 65
N/A
i7-8700T 6 4 35 i7-9700TE 3.8 35
i5-8500 6 4.1 65 i5-9500E
6
4.2 65
i5-8500T 6 3.5 35 i5-9500TE 3.6 35
i3-8100 4 3.6 65 i3-9100E
4
3.7 65
Yes
i3-8100T 4 3.1 35 i3-9100TE 3.2 35

v
©Vecow RCX-1500 PEG User Manual
Part Number Description
DDR4 32G Certied DDR4 32GB 2666MHz RAM
DDR4 16G Certied DDR4 16GB 2666/2400/2133 MHz RAM
DDR4 8G Certied DDR4 8GB 2666/2400/2133 MHz RAM
DDR4 4G Certied DDR4 4GB 2666/2400/2133 MHz RAM
PWS-160WB-WT 160W, 24V, 85V AC to 264V AC Power Adaptor with 3-pin Terminal
Block (7.62mm pitch), Wide Temperature -30°C to +70°C
PWS-700W-12V 700W, 12V, 90V AC to 264V AC Power Supply
PWS-1500W-12V 1500W, 12V, 90V AC to 264V AC Power Supply
FAN Sink Fan Sink for RCX-1500 Series
TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and
DIN-Rail Mounting
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
Optional Accessories

vi
©Vecow RCX-1500 PEG User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of RCX-1500R PEG 3
1.3.2 Specications of RCX-1500 PEG 5
1.4 Supported CPU List 7

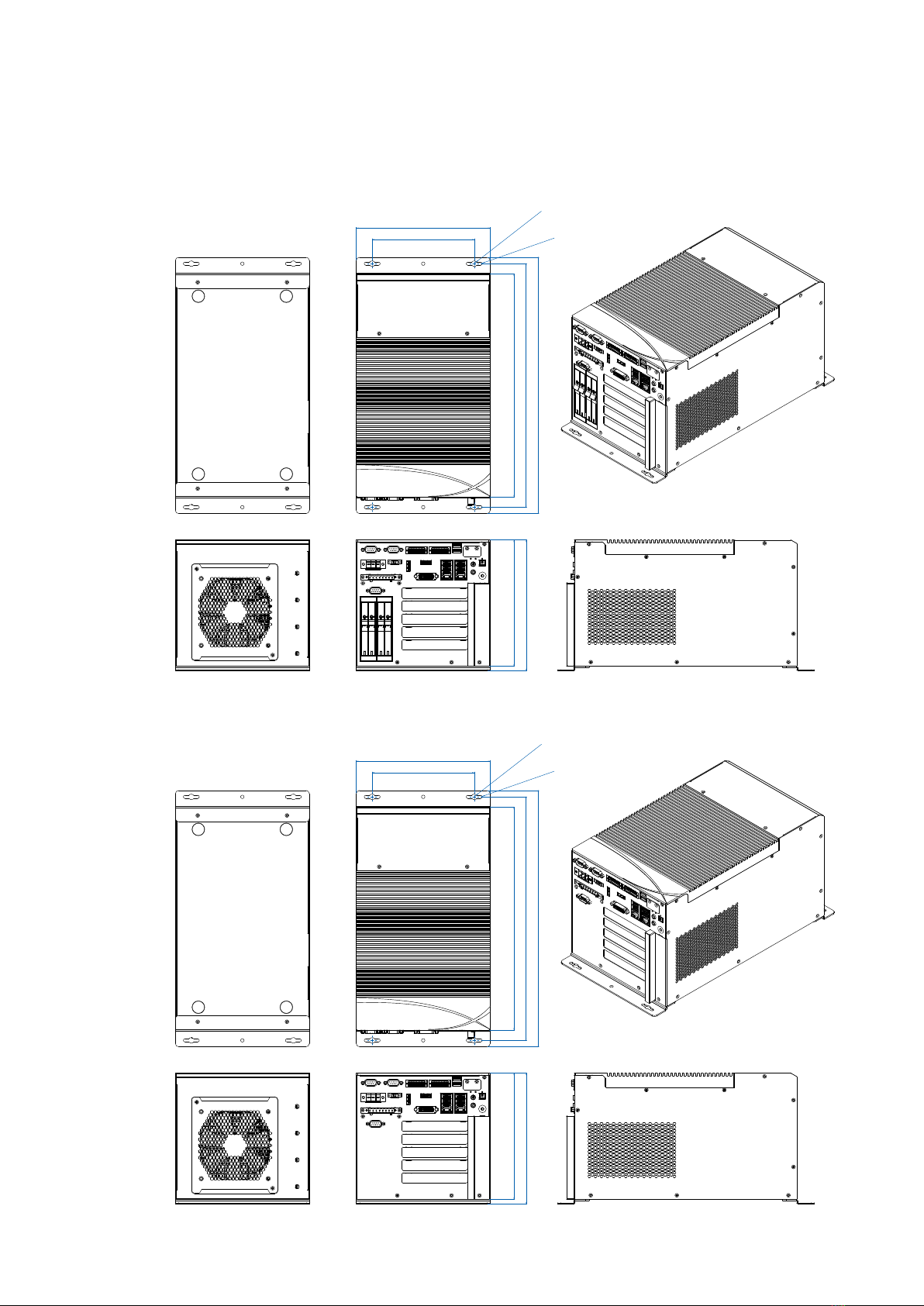

1.5 Mechanical Dimension 8
1.5.1 Dimensions of RCX-1500R PEG 8
1.5.2 Dimensions of RCX-1500 PEG 8
CHAPTER 2 GETTING TO KNOW YOUR RCX-1500 PEG 9
2.1 Packing List 9

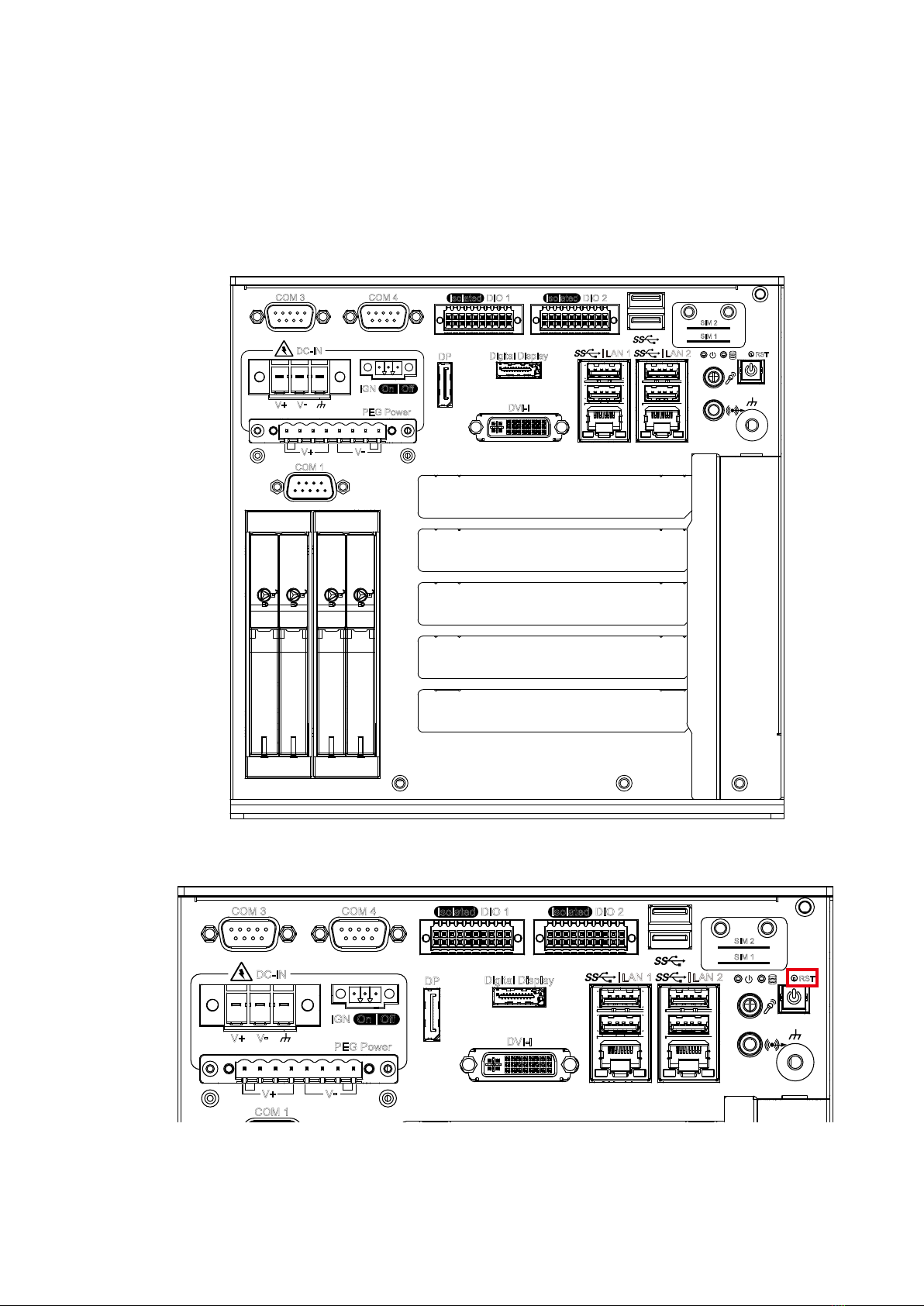

2.2 Front Panel I/O Functions 10
2.3 Main Board Expansion Connectors 22
2.4 Main Board Jumper Settings 42
2.5 Ignition Control 46
CHAPTER 3 SYSTEM SETUP 49
3.1 How to open your RCX-1500 PEG 49
3.2 Installing CPU 50
3.3 Installing DDR4 SO-DIMM Modules 51
3.4 Installing Mini PCIe Card 52
3.5 Installing M.2 (Key E/Key M) 52
3.6 Installing Antenna Cable 53

vii
©Vecow RCX-1500 PEG User Manual
3.7 Installing Sim Card 54
3.8 Installing PCI/PCIe Card 55
3.9 Installing SSD/HHD 57
3.10 Mounting Your RCX-1500 PEG 59
3.11 Installing Hold-down Kit 60
CHAPTER 4 BIOS AND DRIVER 61
4.1 Entering BIOS Setup 61
4.2 Main 62
4.3 Advanced 62
4.4 Chipset 73
4.5 Security 79
4.6 Boot 81
4.7 Save & Exit 82
APPENDIX A : Isolated DIO Guide 83
APPENDIX B : Software Functions 88
APPENDIX C : RAID Functions 91
APPENDIX D : Power Consumption 97
APPENDIX E : Supported Memory & Storage List 99
APPENDIX F : How to Install Power Supply 103

1
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
RCX-1500 PEG is a workstation-grade high-performance AI computing engine
for AIoT and Industry 4.0 applications. LGA1151 Socket supports 8-core 9th
Generation Intel®Xeon®/Core™ i7/i5/i3 processor (Coffee Lake Refresh) running
with workstation-grade Intel® C246 chipset; 4 SO-DIMM support dual channel
DDR4 2666MHz up to 128GB ECC memory; flexible supports dual NVIDIA®
Tesla®/Quadro®/GeForce® graphics card, up to 11 independent displays with
max 8K resolution, doubled CUDA cores computing and leading AI productivity
delivering more than 2X graphics performance of single independent graphics
engine; Multiple USB 3.1 Gen 2 (10Gbps), PCIe 3.0 (8GT/s), Multiple SATA III
(6Gbps), USB 3.0 (5Gbps), PoE (1Gbps) LAN and wireless connections make
seamless real-time high-speed data conveying possible.
2 GigE LAN ports support iAMT 12.0, 6 external USB 3.1 Gen 2 connections up
to 10Gbps SuperSpeed data rate, 4 front-access 2.5” SSD/HDD trays with RAID
0, 1, 5, 10 data protection, multiple WiFi/4G/3G/LTE/GPRS/UMTS for seamless
wireless data transfer, 3 COM RS-232/422/485, 2 M.2 expansions, 32 Isolated
DIO, 6V to 36V wide range power input with 80V surge protection, optimized
power budge for max dual 350W independent graphics engine operation,
configurable ignition power control, remote management functions, remote
power switch, anti-shock, anti-vibration, EN50155 and EN50121-3-2 compliant,
Vecow RCX-1500 PEG Series Dual GPU AI Computing System serves extreme
performance, system-optimized operation, versatile configurations, smart
manageability and trusted reliability for your AIoT/ Industry 4.0 applications.
Powered by workstation-grade Intel® Coffee Lake platform running with dual
NVIDIA®Tesla®/Quadro®/GeForce® graphics card, doubled CUDA cores and
AI productivity, extreme performance, system-optimized operation, versatile
configurations, smart manageability and trusted reliability, Vecow RCX-1500
PEG Series Dual GPU AI Computing System is your powerful solution for
Deep Learning, Autonomous Vehicles, Robotic Control, AI Surveillance, or any
mission-critical AI applications.
1

2
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
1.2 Features
• 8 cores 9th generation Intel®Xeon®/Core™ i7/i5/i3 processor (Coffee Lake
Refresh) with workstation-grade Intel® C246 chipset
• 4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC)
• Dual NVIDIA®Tesla®/Quadro®/GeForce® graphics card delivers leading AI
computing productivity by advanced NVIDIA® CUDA® cores
• Multiple DVI, HDMI and DisplayPort display interfaces support max 11
independent displays, up to 8K resolution
• 6 ports external USB 3.1 Gen 2 support up to 10Gbps data transfer
• 2 independent GigE LAN, iAMT 12.0 supported
• 2 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
• 4 front-access 2.5" SSD trays, RAID 0, 1, 5, 10 supported
• 32 Isolated DIO, 3 COM RS-232/422/485
• 2 M.2 sockets : 1 M.2 Key M, 1 M.2 Key E
• System-oriented power optimization, up to dual 350W independent graphics card
• 6V to 36V DC Power Input with 80V Surge Protection
• 12V Power Input for dual independent graphics card
• Configurable Ignition Power Control

3
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of RCX-1500R PEG
System
Processor 8 cores Intel®Xeon®/Core™ i7/i5/i3 Processor
(Coffee Lake Refresh)
Chipset Intel®C246 Chipset
BIOS AMI
SIO IT8786E
Memory
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
I/O Interface
Serial 3 COM RS-232/422/485 (ESD 8KV)
USB • 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Key E Socket
PCIe
• 2 PCIe x16 Slot with x8 Signal
• 1 PCIe x16 Slot with x4 signal (Optional)
• 1 PCIe x16 Slot with x1 signal (Optional)
Graphics
Graphics Processor
Intel® UHD Graphics 630
Independent Graphics 1 : By request
Independent Graphics 2 : By request
Interface
Up to 11 independent displays :
• 1 DVI-I : Up to 1920 x 1200 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• By requested Graphics Card
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device • 4 Front-access 2.5" SSD/HDD Tray
• 1 M.2 Key M Socket

4
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel® I210 Gigabit LAN
Power
Input Voltage • 6V to 36V, DC-in
• 12V, PEG Power
Power Interface DC-in : 3-pin Terminal Block : V+, V-, Frame Ground
PEG Power : 8-pin Terminal Block
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 350.0mm x 210.0mm x 198.20mm (13.78" x 8.27" x 7.80")
Weight 7.1 kg (15.62 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F), depends on graphics card
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock & Vibration
• IEC 61373 : 2010
• Railway Applications : Rolling Stock Equipment, Shock and
Vibration Test
EMC CE, FCC, EN50155, EN50121-3-2

5
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
1.3.2 Specications of RCX-1500 PEG
System
Processor 8 cores Intel®Xeon®/Core™ i7/i5/i3 Processor
(Coffee Lake Refresh)
Chipset Intel®C246 Chipset
BIOS AMI
SIO IT8786E
Memory
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 128GB
• 4 260-pin SO-DIMM Socket
I/O Interface
Serial 3 COM RS-232/422/485 (ESD 8KV)
USB • 6 USB 3.1 Gen 2 (External)
• 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD, Wireless
SIM Card 2 External SIM Card Socket
Expansion
Mini PCIe 2 Full-size for PCIe/USB/External SIM Card/mSATA
M.2 1 M.2 Key E Socket
PCIe
• 2 PCIe x16 Slot with x8 Signal
• 1 PCIe x16 Slot with x4 signal (Optional)
• 1 PCIe x16 Slot with x1 signal (Optional)
Graphics
Graphics Processor
Intel® UHD Graphics 630
Independent Graphics 1 : By request
Independent Graphics 2 : By request
Interface
Up to 11 independent displays :
• 1 DVI-I : Up to 1920 x 1200 @60Hz
• 1 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 Digital Display : Up to 4096 x 2304 @60Hz
• By requested Graphics Card
Storage
SATA 4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device • 4 2.5" SSD/HDD Bracket (Internal)
• 1 M.2 Key M Socket
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out

6
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
Ethernet
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2 Intel® I210 Gigabit LAN
Power
Input Voltage • 6V to 36V, DC-in
• 12V, PEG Power
Power Interface DC-in : 3-pin Terminal Block : V+, V-, Frame Ground
PEG Power : 8-pin Terminal Block
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension 350.0mm x 210.0mm x 198.20mm (13.78" x 8.27" x 7.80")
Weight 6.9 kg (15.19 lb)
Mounting Wallmount by mounting bracket
Environment
Operating Temperature -25°C to 45°C (-13°F to 113°F), depends on graphics card
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 45°C
Shock & Vibration
• IEC 61373 : 2010
• Railway Applications : Rolling Stock Equipment, Shock and
Vibration Test
EMC CE, FCC, EN50155, EN50121-3-2

7
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
1.4 Supported CPU List
Series CPU Cores GHz TDP
(W) CPU Cores GHz TDP (W)
ECC
RAM
Intel®
Xeon®
E-2176G 6 4.6 80 E-2278GE 8 4.7 80
YesE-2278GEL 8 3.9 35
E-2124G 4 4.5 71
E-2226GE 6 4.6 80
Intel®
Core™
i7-8700 6 4.6 65 i7-9700E
8
4.4 65
N/A
i7-8700T 6 4 35 i7-9700TE 3.8 35
i5-8500 6 4.1 65 i5-9500E
6
4.2 65
i5-8500T 6 3.5 35 i5-9500TE 3.6 35
i3-8100 4 3.6 65 i3-9100E
4
3.7 65
Yes
i3-8100T 4 3.1 35 i3-9100TE 3.2 35

8
©Vecow RCX-1500 PEG User Manual GENERAL INTRODUCTION
1.5 Mechanical Dimension
1.5.1 Dimensions of RCX-1500R PEG
210.0 (8.27”)
160.0 (6.30”)
350 (13.78”)
382 (15.04”) 402 (15.83”)
R2.5 (0.10”)
R4.5 (0.18”)
198.2 (7.80”)
205.5 (8.09”)
Unit : mm (inch)
1.5.2 Dimensions of RCX-1500 PEG
210.0 (8.27”)
160.0 (6.30”)
350 (13.78”)
382 (15.04”) 402 (15.83”)
R2.5 (0.10”)
R4.5 (0.18”)
198.2 (7.80”)
205.5 (8.09”)
Unit : mm (inch)

9
©Vecow RCX-1500 PEG User Manual GETTING TO KNOW YOUR RCX-1500 PEG
2
GETTING TO KNOW YOUR RCX-1500 PEG
2.1 Packing List
Item Description Qty
1
RCX-1500 PEG AI Computing System (According to the conguration
you order, the RCX-1500 PEG series may contain SSD/HDD and
DDR4 SO-DIMM. Please verify these items if necessary.)
1
2
RCX-1500R PEG Series Accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket
• F Head #6-32x6 screw (for wall-mounting bracket)
• PH Head M2.5x6 screw (for Mini PCIe Slot)
• PH Head M3x6 screw (for M.2 Slot)
• Terminal block plug pitch 2.54mm 2x10pin
• Terminal block 3-pin (7.62mm)
• Terminal block 8-pin (5mm)
• Removable HDD Tray Key
1
2
4
2
2
2
2
1
1
2
3
RCX-1500 PEG Series Accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket
• F Head #6-32x6 screw (for wall-mounting bracket)
• PH Head M2.5x6 screw (for Mini PCIe Slot)
• PH Head M3x6 screw (for M.2 Slot)
• Terminal block plug pitch 2.54mm 2x10pin
• Terminal block 3-pin (7.62mm)
• Terminal block 8-pin (5mm)
• F-M3x4 for SSD/HDD with bracket
1
2
4
2
2
2
2
1
1
8

10
©Vecow RCX-1500 PEG User Manual GETTING TO KNOW YOUR RCX-1500 PEG
2.2 Front Panel I/O Functions
In Vecow’s RCX-1500 PEG series family, all I/O connectors are located on the
front panel. Most of the general connections to the computer device, such as
audio, USB, DVI-I, COM Port, Isolated DIO, Display Port, and any additional
storage, are placed on the front panel.
2.2.1 Reset Tact Switch
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power
The item circled red is a hardware reset switch. Use this switch to reset the
system without powering off the RCX-1500 PEG. Press and hold the reset switch
for a few seconds, then reset will be enabled.
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power

11
©Vecow RCX-1500 PEG User Manual GETTING TO KNOW YOUR RCX-1500 PEG
2.2.2 Power Button
The power button is a non-latched switch with dual color LED indication. It
indicates power statuses: S0, S3 and S5. More details on the LED indications
are listed in the following chart:
LED Color Power Status System Status
Solid Blue S0 System working
Solid Orange S3, S5 Suspend to RAM, System off with standby power
To power on RCX-1500 PEG, press the power button which will light the blue
LED. To power off RCX-1500 PEG, you can either command shutdown by OS
operation or simply press the power button. If system error appears, press and
hold the power button for four seconds to shut down the machine directly.
Please do note that a four-second interval between each two power-on/power-
off operation is necessary in normal working status. (For example, once turning
off the system, you have to wait for four seconds to initiate another power-on
operation).
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power

12
©Vecow RCX-1500 PEG User Manual GETTING TO KNOW YOUR RCX-1500 PEG
2.2.3 PWR & HDD LED Indicator
Yellow-HDD LED : A hard disk LED. If the LED is on, it indicates that the
system's storage is functional. If it is off, it indicates that the system's storage is
not functional. If it is ashing, it indicates data access activities are in progress.
Green-Power LED : If the LED is solid green, it indicates that the system is
powered on.
LED Color Indication System Status
Yellow HDD • On/Off : Storage status, function or not.
• Twinkling : Data transferring.
Green Power System power status (on/off)
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power
2.2.4 DVI-I Connector
The DVI-I connector on the front panel supports both DVI and VGA display
modes. This connector can output DVI signals. The DVI output mode supports
up to 1920x1200 resolution. The DVI mode is automatically selected according
to the display device connected. You will need a DVI-I cable when connecting to
a display device. The VGA output mode supports up to 1920x1200 resolution. If
use VGA function will need a DVII to VGA module connecting to DVI-I device.
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power
Right is the DVII to VGA module picture

13
©Vecow RCX-1500 PEG User Manual GETTING TO KNOW YOUR RCX-1500 PEG
2.2.5 DisplayPort
Onboard Display Port support auxiliary channel dual mode, connection supports
up to 4096x2304 resolution at 60 Hz.
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power
2.2.6 USB 3.1
There are 6 USB 3.1 connections available supporting up to 10GB per second
data rate in the front side of Vecow RCX-1500 PEG series. It also compliant with
the requirements of Super Speed (SS), high speed (HS), full speed (FS) and low
speed (LS).
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power
2.2.7 SIM 1, SIM 2
Isolated DIO 1
DVI-I
DP Digital Display |LAN 1
10
COM 4COM 3
COM 1
Isolated DIO 2
DC-IN
V+ V-
SIM 2
SIM 1
RST
|LAN 2
10
10
On |Off
IGN
V+ V-
PEG Power
