Veeder-Root TLS-350R Manual instruction

Manual No: 577013-801 •Revision: A
Install, Setup, & Operation Manual
Pressure Management Control
Section 16
Pressure Management Control
16-i

Notice
Veeder-Root makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Veeder-Root shall not be liable for errors contained herein or for incidental or consequential damages in connection with the
furnishing, performance, or use of this publication.
This publication contains proprietary information which is protected by copyright. All rights reserved. No part of this publication
may be modified or translated to another language without the prior written consent of Veeder-Root.
DAMAGE CLAIMS
1. Thoroughly examine all components and units as soon as they are received. If damaged, write a complete and detailed
description of the damage on the face of the freight bill. The carrier's agent must verify the inspection and sign the description.
2. Immediately notify the delivering carrier of damage or loss. This notification may be given either in person or by telephone.
Written confirmation must be mailed within 48 hours. Railroads and motor carriers are reluctant to make adjustments for
damaged merchandise unless inspected and reported promptly.
3. Risk of loss, or damage to merchandise remains with the buyer. It is the buyer's responsibility to file a claim with the carrier
involved.
RETURN SHIPPING
For the parts return procedure, please follow the appropriate instructions in the "General Returned Goods Policy" and "Parts
Return" pages in the "Policies and Literature" section of the Veeder-Root North American Environmental Products price list.
©Veeder-Root 2007. All rights reserved.
Section 16
Pressure Management Control
16-ii

Warranty
TLS-350R, TLS-350 PLUS, TLS-350J AND TLS-300I/C, AND TLS-2 MONITORING SYSTEMS
We warrant that this product shall be free from defects in material and workmanship for a period
of one (1) year from the date of installation or twenty-four (24 months) from the date of invoice,
whichever occurs first. During the warranty period, we or our representative will repair or replace
the product, if determined by us to be defective, at the location where the product is in use and at
no charge to the purchaser. LAMPS AND FUSES ARE NOT COVERED UNDER WARRANTY.
We shall not be responsible for any expenses incurred by the user.
This warranty applies only when the product is installed in accordance with Veeder-Root’s
specifications, and a Warranty Registration and Checkout Form has been filed with Veeder-Root
by an authorized Veeder-Root Distributor. This warranty will not apply to any product which has
been subjected to misuse, negligence, accidents, systems that are misapplied or are not installed
per Veeder-Root specifications, modified or repaired by unauthorized persons, or damage related
to acts of God.
If “Warranty” is purchased as part of the Fuel Management Service, Veeder-Root will maintain the
equipment for the life of the contract in accordance with the written warranty provided with the
equipment. A Veeder-Root Fuel Management Services Contractor shall have free site access
during Customer’s regular working hours to work on the equipment. Veeder-Root has no
obligation to monitor federal, state or local laws, or modify the equipment based on developments
or changes in such laws.
ILS-350 MONITORING SYSTEMS
We warrant that this product shall be free from defects in material and workmanship for a period
of one (1) year from the date of installation or twenty-four (24) months from the date of invoice,
whichever occurs first. During the first ninety (90) days, we or our representative will repair or
replace the product, if determined by us to be defective, at the location where the product is in use
and at no charge to the purchaser. After the first ninety (90) days of the warranty period, we will
repair or replace the product if it is returned to us, transportation prepaid, within the warranty
period and is determined by us to be defective. We will not be responsible for any shipping
expenses incurred by the user. LAMPS AND FUSES ARE NOT COVERED UNDER WARRANTY.
This warranty applies only when the product is installed in accordance with Veeder-Root’s
specifications, and a Warranty Registration and Checkout Form has been filed with Veeder-Root
by an Authorized Veeder-Root Distributor. This warranty will not apply to any product which has
been subjected to misuse, negligence, accidents, systems that are misapplied or are not installed
per Veeder-Root specifications, modified or repaired by unauthorized persons, or damage related
to acts of God.
MODULES, KITS, OTHER COMPONENTS (PARTS PURCHASED SEPARATE OF A COMPLETE
CONSOLE)
We warrant that this product shall be free from defects in material and workmanship for a period
of fifteen (15) months from date of invoice. We will repair or replace the product if the product is
returned to us; transportation prepaid, within the warranty period, and is determined by us to be
defective. This warranty will not apply to any product which has been subjected to misuse,
negligence, accidents, systems that are misapplied or are not installed per Veeder-Root
specifications, modified or repaired by unauthorized persons, or damage related to acts of God.
We shall not be responsible for any expenses incurred by the user.
iii
Section 16
Pressure Management Control
16-iii

Table of Contents
iv
Introduction
Site Requirements ............................................................................................................1
Contractor Certification Requirements ..............................................................................1
Related Manuals ...............................................................................................................2
Safety Precautions ............................................................................................................2
Installation
Vapor Pressure Sensor ....................................................................................................3
Installing TLS Console Modules - General Notes .............................................................3
Circuit Directory ........................................................................................................4
Smart Sensor Interface Module ........................................................................................4
NVMEM203 Board ............................................................................................................4
Mod Bus Module ...............................................................................................................4
Setup
Introduction .......................................................................................................................5
Smart Sensor Setup .........................................................................................................5
PMC Setup .......................................................................................................................6
Operation
Alarms ...............................................................................................................................7
Overview of TLS console Interface...........................................................................7
Warning Posting .......................................................................................................8
Alarm Posting ...........................................................................................................8
PMC Alarm Summary .......................................................................................................9
PMC Status Report .........................................................................................................10
Viewing PMC Reports Via RS-232 Connection ..............................................................10
Connecting Laptop to Console ...............................................................................10
Connecting Laptop to Console ...............................................................................11
Sending Console Commands.................................................................................14
Diagnostics
Automatic Control and Runtime Fault Alarm ...................................................................19
Manual control ................................................................................................................19
PMC Diagnostic Menu ....................................................................................................19
Figures
Figure 1. TLS console Interface Module Bays...........................................................3
Figure 2. Smart Sensor Setup ................................................................................... 5
Figure 3. PMC Setup .................................................................................................6
Figure 4. TLS console alarm interface.......................................................................7
Figure 5. TLS console warning example ...................................................................8
Figure 6. TLS console alarm example.......................................................................8
Figure 7. PMC Status Report ..................................................................................10
Figure 8. Connecting laptop to TLS console for serial communication ...................11
Figure 9. Connection Description window ...............................................................12
Figure 10. Connect To window..................................................................................12
Figure 11. Console comm port settings printout example .........................................13
Figure 12. HyperTerminal main window ....................................................................14
Figure 13. Vapor Processor Status Report Details - Serial to PC Format.................16
Figure 14. Vapor Processor Runtime Diagnostic Report - Serial to PC Format........17
Figure 15. Percent Hydrocarbon Diagnostic Report - Serial to PC Format...............18
Figure 16. PMC Diagnostic Menus............................................................................19
Section 16
Pressure Management Control
16-iv

Introduction
This manual provides instructions to install, setup, and operate the components of Veeder-Root Pressure
Management Control (PMC) equipment. The PMC feature is an option for the TLS console platform, and as such,
many of the installation/setup/operation instructions for non-PMC specific tasks are covered in TLS-3XX supplied
literature. Do not use this manual when PMC is installed with ISD. Use the ISD Setup & Operation Manual,
577021-800.
Site Requirements
Below are the requirements for all PMC installations:
• V-R TLS-350R/EMC w/BIR, TLS-350 Plus/EMC Enhanced, TLS-350/EMC and ProMax consoles with ECPU2
- install as per TLS-3XX Site Prep manual, setup following instructions in TLS-3XX System Setup Manual.
• A flash memory board (NVMEM203) for PMC software storage - installed on the ECPU2 board in place of the
console’s 1/2 Meg RAM board - install as per TLS-350 Series Board and Software Replacement Manual, no
setup required.
• Smart Sensor Module and Vapor Pressure Sensor. Install and connect following instructions in the Vapor
Pressure Sensor installation Guide.
• Mod Bus module connected to a hydrocarbon sensor module installed according to processor manufacturers
specifications.
• An RS-232 Port will be available for use by contractor or government inspectors.
Contractor Certification Requirements
Veeder-Root requires the following minimum training certifications for contractors who will install and setup the
equipment discussed in this manual:
Level 1 Contractors holding valid Level 1 Certification are approved to perform wiring and
conduit routing, equipment mounting, probe and sensor installation, tank and line
preparation, and line leak detector installation.
Level 2/3 or 4 Contractors holding valid Level 2, 3 or 4 Certifications are approved to perform
installation checkout, startup, programming and operations training, troubleshooting
and servicing for all Veeder-Root Tank Monitoring Systems, including Line Leak
Detection and associated accessories.
ISD/PMC This course of training includes In-Stations Diagnostics/Pressure Management Control
(ISD/PMC) installation checkout, startup, programming, and operations training. It also
includes troubleshooting and service techniques for the Veeder-Root In-Station
Diagnostics system. A current level 2/3 or 4 certification is a prerequisite for the ISD/
PMC course. After successful completion of this course the contractor will receive a
certificate as well as a Veeder-Root ISD/PMC contractor certification card.
Warranty Registrations may only be submitted by selected Distributors.
Section 16
Pressure Management Control
16-1

Introduction Related Manuals
Related Manuals
The manuals in Table 1 below are shipped with the equipment on the V-R Tech Docs CD-ROM and will be needed
to install specific equipment.
Safety Precautions
The following symbols may be used throughout this manual to alert you to important safety hazards.
Table 1 Related Manuals
V-R Manual Part Number
TLS-3XX Site Prep Manual 576013-879
Vapor Pressure Sensor Installation Guide 577013-797
TLS-3XX Series Consoles System Setup Manual 576013-623
TLS-3XX Series Consoles Operator’s Manual 576013-610
Serial Comm Modules Installation Guide 577013-528
TLS-350 Series Board and Software Replacement Manual 576013-637
ELECTRICITY
High voltage exists in, and is sup-
plied to, the device. A potential
shock hazard exists.
TURN POWER OFF
Live power to a device creates a
potential shock hazard. Turn Off
power to the device and associ-
ated accessories when servicing
the unit.
READ ALL RELATED MANUALS
Knowledge of all related proce-
dures before you begin work is
important. Read and understand
all manuals thoroughly. If you do
not understand a procedure, ask
someone who does.
WARNING
Heed the adjacent instructions to
avoid equipment damage or per-
sonal injury.
WARNING
The console contains high voltages which can be lethal. It is also connected to
low power devices that must be kept intrinsically safe.
Turn power Off at the circuit breaker. Do not connect the console AC power
supply until all devices are installed.
Touching a live circuit can cause electrical shock that may result in serious
injury or death.
OFF
OFF
Section 16
Pressure Management Control
16-2

Installation
This section discusses the installation and wiring of the hardware required to enable the TLS console to perform
pressure management of the site’s gasoline vapor processor equipment:
• Vapor Pressure Sensor
• Smart Sensor Interface Module
• NVMEM203 board
•ModBusModule
All field wiring, its type, its length, etc., used for TLS console sensors must conform to the requirements outlined in
the Veeder-Root TLS-3XX Site Prep manual (P/N 576013-879).
Vapor Pressure Sensor
Install one Vapor Pressure Sensor in the vapor return piping of the gasoline dispenser closest to the tanks
following the instructions in the Vapor Pressure Sensor Installation guide (P/N 577013-797).
Installing TLS Console Modules - General Notes
TLS consoles have three bays in which interface modules can be installed; Comm bay, Power bay and Intrinsically-
Safe bay (ref. Figure 1). Probe Interface modules and Smart Sensor modules are installed in the Intrinsically-Safe
bay and the Mod Bus module is installed in the Comm bay.
In all cases, the position of the modules, their respective connectors and the devices wired to the
connectors must be recorded to prevent improper replacement during installation or service. A circuit
directory for Power and I.S. bay Interface Modules is adhered to the back of the right-hand door for
this purpose.
Switch off power to the TLS console before you install modules and connect sensor wiring.
Figure 1. TLS console Interface Module Bays
OFF
console\350rjmods.eps
Intrinsically
Safe Bay
Permissible
Modules
(Limit 8
per console)
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
12 34
I.S. Bay
Slot Numbers
Power Bay
Slot Numbers
Comm Bay
Slot Numbers
Comm Cage*
Section 16
Pressure Management Control
16-3

Installation Smart Sensor Interface Module
CAUTION! During programming, module positions and the devices wired to each module are identified and stored
in memory. If a connector is removed and reinstalled on a different module after programming, or if an entire
module with its connector is removed and reinstalled in a different module slot, the TLS console will not identify
correctly the data being received.
Module Position
1. Record on the circuit directory the type of module in each slot location.
2. If a system contains multiple modules of a single type (i.e., two Smart Sensor Modules), they may be swapped
between their respective slot locations, however, the connectors must remain with their original locations,
not with the original modules.
Connector Position
1. Identify all connectors according to their slot location using the self-adhesive numbering labels furnished with
each module. Accurately record on the circuit directory the location of each device wired to the connector as
you attach wires to the module.
2. Once a device has been wired to certain terminals on a connector and the system has been programmed, the
wires from that device may not be relocated to other terminals without reprogramming the system.
Grounding Probe and Sensor Shields
Connect probe and sensor cable shields to ground at the console only. Do not ground both ends of the shield.
CIRCUIT DIRECTORY
A circuit directory is adhered to the inside of the right-hand door. It should be filled out by the installer as the
module’s connectors are being wired.
The following information should be recorded for each slot:
• Module Type: record what type of module has been installed in the slot, e.g., Smart Sensor Module.
• Position Record: record the physical location and/or type of device wired to each terminal of the module
connector in the slot, e.g., VPS: FP1&2.
Smart Sensor Interface Module
Verify that a Smart Sensor Interface Module is installed in the TLS console. Connect the field wiring from the Vapor
Pressure Sensor (VPS) to the Smart Sensor Interface Module as instructed in the VPS installation manual.
NVMEM203 Board
Verify that a NVMEM203 board is installed in the TLS console (ref. Figure 2-14 in the V-R TLS-3XX Series
Consoles Troubleshooting Manual P/N 576013-818, Rev J or later). This board contains flash EEPROM and RAM
needed to run PMC software and store PMC reports. No setup is required.
Mod Bus Module
Verify that a Mod Bus Module is installed in the Comm Bay of the TLS console and is connected to the
hydrocarbon sensor module according to the processor manufacturer’s specifications. No setup is required.
Section 16
Pressure Management Control
16-4

Setup
Introduction
This section describes how to perform PMC setup using the TLS console’s front panel buttons and display. The
procedures in this manual follow standard TLS console setup programming input, i.e., keypad/display interaction. If
necessary, refer to Section 2 of the TLS-3XX System Setup manual (P/N 576013-623) to review entering data via
the front panel keypads.
All PMC-related equipment must be installed in the site and connected to the TLS console prior to beginning the
setups covered in this section. As with all TLS connections, you cannot change sensor wiring or module slots after
programming or the console may not operate properly. Reference the section entitled “Connecting Probe/Sensor
Wiring to Consoles” in the TLS-3XX Site Prep and Installation manual (P/N 576013-879) for rewiring precautions.
Smart Sensor Setup
The Smart Sensor Interface Module is installed in the Intrinsically-Safe bay of the TLS console. This module
monitors the Vapor Pressure Sensor. Figure 2 diagrams the Smart Sensor setup procedure.
Figure 2. Smart Sensor Setup
SS CONFIG - MODULE 1
SLOT X - X X X X X X X X
S
isd\pmc-5.eps
ENTER SMARTSENSOR LABEL
sX:
S1: SELECT SS CATEGORY
UNKNOWN
C
C
ESES
ES
P
F
SMARTSENSOR SETUP
PRESS <STEP> TO CONTINUE
SETUP MODE
PRESS <FUNCTION> TO CONT
M
P
C
C
C
F
P
S
T
Change
E Enter
Function
Print
M Mode
Step
Tank/Sensor
Key press
sequence
Repress until
desired message
appears in display
Key Legend
12
Select sensor category
(e.g., Vapor Pressure Sensor)
Press this button and select type.
Note: User can only change assigment
if device has not identified itself. If
actual device disagrees with assigned
type, actual type overrides assigned
type.
The first of the installed SS modules
appears in this display. If this is not the
module to which the Vapor Pressure
Sensor (VPS) is connected, press the
Tank/Sensor button to select another
SS module.
Press once and the first position blinks. If
the VPS is connected to the first position
of the SS module, press this button again
and the X changes to a 1.
Press this button and
the X changes to the
number of the VPS
connection (2-8).
Prints out a copy of the
SmartSensor Setup.
See example at right.
Press this button and enter
a label for the sensor, e.g.,
VPS: FP1&2.
T
Press this button to
change to another sensor.
If the VPS is connected to a position other
than the first, continue to press this button
until the VPS connected position blinks.
SMARTSENSOR SETUP
----------------------
S01:VP SENSOR
CATEGORY VAPOR PRESSURE
Section 16
Pressure Management Control
16-5

Setup PMC Setup
PMC Setup
Figure 3 diagrams the PMC setup programming.
Figure 3. PMC Setup
PMC SETUP
PRESS <STEP> TO CONTINUE
SETUP MODE
PRESS <FUNCTION> TO CONT
VAPOR PROCESSOR
MAX RUNTIME MINUTES: 60
Prints out a copy of the
PMC Setup entries. See
example at right.
M
P
S
S
F
TURN OFF VAPOR PROCESSOR
INCHES WC: -0.200
Range checking is enforced:
2<minutes <= 180
Default: 60 minutes
STURN ON VAPOR PROCESSOR
INCHES WC: +0.200
SHYDROCARBON SELECT
PRESS <ENTER>
Use <ENTER> key to make selection
MODBUS Sensor default enabled
SOVER PRESSURE LIMIT
INCHES WC: xx.xx
Range checking is enforced:
0 < xx.xx < 3.5
Default: 0.0
SDUTY CYCLE LIMIT
xx.xx %
Range checking is enforced:
0 < xx.xx < 100
Default: 75%
Use <CHANGE> key to enter.
Default Start time = 11:59 PM
Use <CHANGE> key to enter.
0< delay < =720
Default:= 001
NOTE: If delay minutes =0, the results will be posted as soon as
they become available, else mmm minutes after start time.
Data collected 5 minutes before the Start of Test time is omitted
from test.
SSET ANALYSIS TIME
PRESS <ENTER>
E
S
SET TEST START TIME
TIME: hh:mm
SET POST DELAY DURATION
DELAY MINUTES: mmm
isd\pmc-1.eps
C
F
P
S
T
Change
EEnter
Function
Print
MMode
Step
Tank/Sensor
Key press
sequence
Repress until
desired message
appears in display
Key Legend
12
PMC SETUP
----------------------
PMC VERSION: 01.00
VAPOR PROCESSOR TYPE
VST VAPOR PROCESSOR
MAX RUNTIME MINUTES: 90
ON: -0.200 INCHES
OFF:-0.600 INCHES
EFFLUENT EMISSIONS LIMIT
0.649 LB/1KG
OVER PRESSURE LIMIT
xx.xx PERCENT%
DUTY CYCLE LIMIT
xx.xx PRECENT%
ANALYSIS TIMES
TIME 11:59 PM
DELAY MINUTES 1
+3
0
+0.2 Turn On
vapor processor
Ullage vapor pressure
Turn Off
vapor processor
-0.2
-8
Absolute
Range
(IWC)
P/V valve opens Vapor Processor
On/Off example
Sets vapor processor Off point. Range:
-8< Off setting < On setting. For more
information see example at right.
Sets vapor processor On point. Range:
Off setting < On setting < +3. For more
information see example at right.
NOTE: This menu is not used.
Section 16
Pressure Management Control
16-6

Operation
Alarms
OVERVIEW OF TLS CONSOLE INTERFACE
The TLS console is continuously monitoring the vapor recovery system and PMC sensors for alarm conditions.
During normal operation when the TLS console and monitored PMC equipment is functioning properly and no
alarm conditions exist, the "ALL FUNCTIONS NORMAL" message will appear in the system status (bottom) line
of the console display, and the green Power light will be On (see Figure 4).

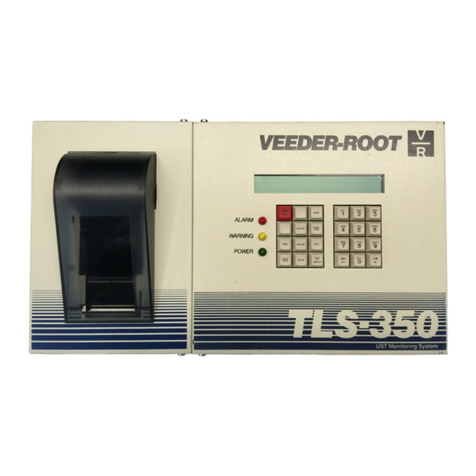

Figure 4. TLS console alarm interface
If an alarm condition occurs the system displays the condition type and its location. If more than one condition
exists, the display will continuously cycle through the appropriate alarm messages. The system automatically prints
an alarm report showing the alarm type, its location and the date and time the alarm condition occurred.
Warning and alarm posting causes the TLS console-based system to activate warning or failure indicator lights, an
audible alarm, and an automatic strip paper printout documenting the warning or alarm.
MODE
BACKUP FUNCT-
TION
PRINT CHANGE STEP
PAPER
FEED ENTER
QZ. ABC DEF
GHI JKL MNO
PRS TUV WXY
ALARM
TEST
TANK
SENSOR
,
+/-
0
789
123
456
consoles\qh\US\1.eps
ALARM
WARNING
MMM DD, YYYY HH:MM XM
ALL FUNCTIONS NORMAL
Liquid Crystal Display
(showing normal operating display)
Alarm Indicator Light
Warning Indicator Light
Power Indicator Light
Operating Keys Alphanumeric Keys
POWER
Blue (Maintenance Tracker) & White (Maintenance
Re
p
ort
)
buttons available Version 27 and later.
Section 16
Pressure Management Control
16-7

Operation Alarms
WARNING POSTING
Displayed messages alert you to the type of warning. Printed messages show the type of warning and the time the
warning was posted (see Figure 5). Warnings are logged into the Non-Priority Alarm History in the TLS.
Figure 5. TLS console warning example
ALARM POSTING
Displayed Messages alert you to the type of alarm. Printed messages show the type of alarm and the time the
alarm was posted. Alarm example in Figure 6. PMC Alarms are logged into the Priority Alarm History in the TLS.
Figure 6. TLS console alarm example
MMM DD, YYYY HH:MM XM
VP EMISSIONS WARN
---- PMC ALARM ----
VP EMISSIONSWARN
MMM DD, YYYY HH:MM XM
isd-evr\pmc\fig5.eps
TLS console
display message
TLS console
printout message
TLS console
warning light
flashes
MMM DD, YYYY HH:MM XM
VP EMISSIONS FAIL
---- PMC ALARM ----
VP EMISSIONSFAIL
MMM DD, YYYY HH:MM XM
isd-evr\pmc\fig6.eps
TLS console
display message
TLS console
printout message
TLS console
alarm light
flashes
Section 16
Pressure Management Control
16-8

Operation PMC Alarm Summary
PMC Alarm Summary
Table 2 contains a listing of the PMC generated alarms including their displayed message and cause. TLS
Console PMC alarms may be interspersed amongst non-PMC alarms, please see TLS350 Series manuals for
more information.
Table 2. TLS 350 (PMC) Alarm Troubleshooting Summary
Message
(Definition) Sever ity Level Light Indic ator Suggeste d Troublesho oting
W arn after first
30-minute runtim e Yellow
VP RUNTIME FAULT
To notify that the
Processo r has
continuously run for
longer than 30 minutes
Fail after 2
nd
consecutive
30-minute runtim e Red
• TLS-350 PMC Variable setup
Confirmation Procedure: Section 16
• O-VR-203: xhibit 8
• TP-201.3 and
EO-VR-203 : xhibit 4
• O-VR-203: xhibit 9
• VST Troubleshoo ting Ma nual 9514-003
(found at www.vsthose.com)
• VST ASC Leve l C
Warn on the first
day Yellow
VP EMISSIONS
To notify when the mass
emissions exceeds th e
defined threshold for the
system
Fail on consecutive
days Red
• TLS-350 PM Variable se tup
onfir ma tio n Pr o c edure
• EO-VR-203: Exhibit 6
• VST Troubleshoo ting Ma nual 9514-003
(found at www.vsthose.com)
• VST AS Leve l
Warn on the first
day Yellow
VP PRESSURE
To notify when 10% of the
daily pressure-data is equal
to or exceeds 1” WC.
Fail on consecutive
days Red
• TLS-350 PMC Variable setup
Co nfir ation Procedur e
• EO-VR-203: Exhibit 8
• EO-VR-203: Exhibit 9
• VST Troubleshoo ting Ma nual 9514-003
(found at www.vsthose.co )
• VST ASC Leve l C
Warn on the first
day Yellow
VP DUTY CYCLE
To notify when the duty
cycle exceeds 18 hours per
day or 75% of a day
Fail on consecutive
days Red
• TLS-350 PMC Variable setup
Co nfir ation Procedur e
• EO-VR-203: Exhibit 9
• TP-201.3 and EO-VR-203: Exhibit 4
• VST Troubleshoo ting Ma nual 9514-003
(found at www.vsthose.co )
• VST ASC Leve l C
Section 16
Pressure Management Control
16-9

Operation PMC Status Report
PMC Status Report
Figure 7. PMC Status Report
Viewing PMC Reports Via RS-232 Connection
CONNECTING LAPTOP TO CONSOLE
Connect your laptop to the TLS console’s RS-232 or Multiport module using one of the methods shown in the
examples in Figure 8 below.
VP OVER PRESSURE TEST
STATUS: 0.4'' WC PASS
PMC VERSION 01.00
PRESS <STEP> TO CONTINUE
MMM:DD, YYYY HH:MM:SS XM
ALL FUNCTIONS NORMAL
S
S
S
SEFFLUENT EMISSIONS TEST
STATUS: PASS
SVP DUTY CYCLE TEST
STATUS: PASS
pmc\fig7.eps
Prints out a copy of the
PMC Status report.
See example at right.
C
F
P
S
T
Change
EEnter
Function
Print
MMode
Step
Tank/Sensor
Key press
sequence
Repress until
desired message
appears in display
Key Legend
12
PMC STATUS
----------------------
PMC VERSION: 01.00
VP OVER PRESSURE TEST
STATUS: 0.4”WC PASS
EFFLUENT EMISSIONS TEST
0.000 LB/1KG PASS
VP DUTY CYCLE TEST
STATUS: 0.00% PASS
P
FPMC STATUS
PRESS <STEP> TO CONTINUE
Section 16
Pressure Management Control
16-10

Operation Viewing PMC Reports Via RS-232 Connection
Figure 8. Connecting laptop to TLS console for serial communication
CONNECTING LAPTOP TO CONSOLE
1. Open your laptop’s serial communication program, e.g., HyperTerminal. You can typically find HyperTerminal
under: Start/Programs/Accessories/Communications.
ALARM
WARNING
POWER
TLS Console
DB25
male
DB9
male
DB9
DB25
DB9
female
DB9 male
DB9 male
RS-232 board (DB25 female)
(Slots 1, 2, or 3)
ATEN USB to
DB9 serial adapter**
P/N 576040-170
Serial I/O
PC Card**
Plugs into
PCMCIA port
Multiport board (DB9 female)
(Slot 4)
Laptop**
TLS-350R
TLS-350R
USB male
laptop requires terminal mode software
such as Microsoft HyperTerminal.
**Customer supplied.
OR
OR
OR
OR
Connector at Connector at
PC (DTE) TLS (DTE) Null Modem
DB9 DB9 male Required
DB9 DB25 male Not required
DB25 DB9 male Not required
DB25 DB25 male Required
DB25
See table below
for cable requirements
Cable** Requirements for
Terminal Mode Connection to TLS
Section 16
Pressure Management Control
16-11

Operation Viewing PMC Reports Via RS-232 Connection
2. After opening the terminal software program, ignore (cancel) any modem/dialing related request windows since
you will be directly connecting to the console via serial communications. When the Connection Description
window appears (Figure 9), enter a connection name, e.g., TLSDIRECT, and click the OK button
.
Figure 9. Connection Description window
3. After clicking the OK button, you may see a repeat of the modem/dialing windows, in which case ignore
(cancel) them all.
4. When the Connect To window appears (Figure 10), depending on your connection method, select either
COM1 (If RS-232 port on laptop), USB-Serial Controller (if using USB port on laptop), or Serial I/O PC Card
(if using PCMCIA port on laptop) in the ‘Connect using’ drop down box, then click OK button.
.
Figure 10. Connect To window
5. Next you should see the ‘Port Settings’ window.
IMPORTANT! The settings of the laptop’s com port must match those of the console’s com port to
which you are connected.
Section 16
Pressure Management Control
16-12

Operation Viewing PMC Reports Via RS-232 Connection
a. Go to the console front panel press the MODE key until you see:
b. Press the FUNCTION key until you see the message:
c. Press the STEP key until you see the message:
d. Press the PRINT key to printout the port settings for all communication modules installed in the console.
Figure 11 shows an example port settings printout with the RS-232 module installed. Using the console
port settings in the example below, your HyperTerminal ‘Port Settings’ window entries would be Bits per
second - 2400, Data bits - 7, Parity - None, Stop Bits - 1. For the ‘Flow Control’ entry select None. Click
OK.
Figure 11. Console comm port settings printout example
In the example port settings printout above, the RS-232 Security Code is disabled. If the code was enabled you
would see a 6-digit number which you will need to enter to access the console (refer to the ‘Sending Console
Commands’ paragraph below for more information).
SETUP MODE
PRESS <FUNCTION> TO CONT
COMMUNICATIONS SETUP
PRESS <STEP> TO CONTINUE
PORT SETTINGS
PRESS <ENTER>
PORT SETTINGS
COMM BOARD: 1 (RS-232)
BAUD RATE: 2400
PARITY: ODD
STOP BIT: 1 STOP
DATA LENGTH: 1 DATA
RS-232SECURITY
CODE: DISABLED
isd\portset.eps
This number is the assigned by the console and indicates the slot
in which the RS-232 module is installed. It could be 1, 2, or 3.
However, for the RS-232 port of a Multiport module, which is installed
in slot 4, this number would be 6.
If no RS-232 Security Code has been entered, you will see disabled.
If a code has been entered, e.g., 000016, that 6-digit number would
appear here. If a code appears, you will need to enter this code with
each command you send to the console.
Section 16
Pressure Management Control
16-13

Operation Viewing PMC Reports Via RS-232 Connection
6. After entering your port settings, the program’s main window appears (Figure 12).
Figure 12. HyperTerminal main window
SENDING CONSOLE COMMANDS
Table 3 shows three important PMC console commands: IV8200, IV8000, and IV8100. The <SOH> shown in the
table means that you must press and hold the Ctrl key while you press the Akey.
For example, let’s say you want to see the Vapor Processor Status Report.
Note: If you want to see the characters of the command as you type them in, click on File menu, then select
Properties/Settings (tab)/ASCII Setup and click the check box for ‘Echo typed characters locally’, then click OK to
close the window(s) and return to the main screen.
If the RS-232 Security Code is disabled - press and hold the Ctrl key while you press the A key, then type in
IV8200. If the RS-232 Security Code is enabled (e.g., 000016) you must enter the security code before the
command - press and hold the Ctrl key while you press the A key, then type in 000016IV8200.
You will see the typed command on the screen: followed by the response (report) from the console. The
symbol indicates CrtlA and the
♥ symbol indicates the end of the response.
If the console recognizes the command the response displays as soon as the command is typed in.
If the console does not recognize the command you would see something like which
indicates the console did not recognize the command.
All responses (Reports) can be printed or saved to a file. See the terminal program’s help file for instructions.
IV8200
IV8200 9999FF1B♥
Section 16
Pressure Management Control
16-14

Operation Viewing PMC Reports Via RS-232 Connection
Table 3. Serial Commands for PMC Diagnostic Reports
Report Type Serial Command (PC to Console)*
Vapor Processor Status Report
(See example Figure 13)
<SOH>IV8200
Vapor Processor Runtime Diagnostic Report
(See example Figure 14)
<SOH>IV8000
Percent Hydrocarbon Diagnostic Report (See
example Figure 15)
<SOH>IV8100
*<SOH> = Control A. For more information on TLS console serial commands, refer to
the V-R Serial Interface Manual.
Section 16
Pressure Management Control
16-15

Operation Viewing PMC Reports Via RS-232 Connection
Figure 13. Vapor Processor Status Report Details - Serial to PC Format
<SOH>
IV8200
JUN 1, 2002 8:07 AM
(SITE NAME)
(SITE STREET)
(CITY, STATE)
(PHONE NUMBER)
VAPOR PROCESSOR STATUS REPORT
PMC VERSION: 01.00
VAPOR PROCESSOR TYPE: VST VAPOR PROCESSOR
PMC MONITORING TEST PASS/FAIL THRESHOLDS
PERIOD BELOW ABOVE
VAPOR PROCESSOR PRESSURE FAIL, 90th PERCENTILE 1DAYS ---- 1.00 INCHES
H2O
VAPOR PROCESSOR MASS EMISSION FAIL 1DAYS ---- 0.64 LBS/1KG
VAPOR PROCESSOR DUTY CYCLE FAIL 1DAYS ---- 75.00 %
VP OVER PRESSURE TEST : PASS (0.03 INCHES H2O)
EFFLUENT EMISSIONS TEST : PASS (0.32 LBS/1KG)
VP DUTY CYCLE TEST : PASS (17.54%)
VP INPUT STATUS : NOTEST
RUN TIME HOURS : 4.2
DAILY THROUGHPUT : 8421 GALS
A
VG HC PERCENT : 8.85 %
Section 16
Pressure Management Control
16-16
