Vega VEGAKON 61 User manual

Operating Instructions
VEGAKON 61
-Relay (DPDT)
Document ID:
32647
Conductive
Tel:
+44
(0)191 490 1547
Fax: [phone]
Email: [e-mail]
Website: www.heattracing.co.uk
www.thorneanderrick.co.uk

Contents
1About this document
1.1Function.................................. 3
1.2Target group .............................. 3
1.3Symbolism used............................ 3
2For your safety
2.1Authorised personnel ........................ 4
2.2Appropriate use ............................ 4
2.3Warning about misuse ....................... 4
2.4General safety instructions .................... 4
2.5Safety label on the instrument .................. 5
2.6CE conformity ............................. 5
2.7Environmental instructions..................... 5
3Product description
3.1Configuration .............................. 6
3.2Principle of operation ........................ 6
3.3Operation................................. 7
3.4Storage and transport ....................... 8
4Mounting
4.1General instructions ......................... 9
4.2Mounting instructions ........................ 9
5Connecting to power supply
5.1Preparing the connection ..................... 11
5.2Connection instructions....................... 11
5.3Connection,relay module ..................... 12
6Set up
6.1General information ......................... 14
6.2Adjustment elements ........................ 14
6.3Functional chart ............................ 14
7Maintenance and fault rectification
7.1Maintenance .............................. 16
7.2Electronics exchange ........................ 16
7.3Instrument repair ........................... 17
8Dismounting
8.1Dismounting steps .......................... 18
8.2Disposal ................................. 18
9Supplement
9.1Technical data ............................. 19
9.2Dimensions ............................... 22
9.3Industrial property rights ...................... 23
9.4Trademark ................................ 23
2VEGAKON 61 • - Relay (DPDT)
Contents
32647-EN-100219

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Exapplications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
VEGAKON 61 •-Relay (DPDT)3
1About this document
32647-EN-100219

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
The VEGAKON 61 is a sensor for level detection.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note of the
safety instructions in this operating instructions manual,the country-
specific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition.The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the required occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
4VEGAKON 61 • - Relay (DPDT)
2For your safety
32647-EN-100219

2.5Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of www.vega.com.
2.7Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
VEGAKON 61 •-Relay (DPDT)5
2For your safety
32647-EN-100219

3Product description
3.1Configuration
The scope of delivery encompasses:
lVEGAKON 61 compact level switch
lDocumentation
-this operating instructions manual
The VEGAKON 61 consist of the following components:
lHousing cover
lHousing with electronics
lProcess fitting
1
2
3
Fig.1:VEGAKON 61
1Housing cover
2Housing with electronics
3Process fitting
The type label contains the most important data for identification and
use of the instrument:
lArticle number
lSerial number
lTechnical data
lArticle numbers,documentation
With the serial number,you can access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".In addition to the type label outside,you can also find the
serial number on the inside of the instrument.
3.2Principle of operation
The conductive VEGAKON 61 compact level switches detect levels of
conductive liquids.
Scope of delivery
Constituents
Type label
Application area
6VEGAKON 61 • - Relay (DPDT)
3Product description
32647-EN-100219

When the annular electrode is covered with a conductive medium,
small alternating currents (<1mA)flow from the measuring electrode
to the reference and neutralisation electrode.
2
4
3
1
Fig.2:Annular electrode
1Reference electrode (mounting boss)
2Neutralisation electrode
3Probe
4insulation
These alternating currents are measured in respect to their amplitude
and phase position and converted into a switching command.
Interfering buildup is automatically eliminated via the neutralisation
electrode,the conductivity detected and the switching point sensitivity
derived thereof.An adjustment of the instrument is not necessary.
VEGAKON 61 can be used for reliable detection of products over a
very wide conductivity and viscosity range.
VEGAKON 61 is a compact instrument,i.e.it can be operated without
external evaluation system.The integrated electronics evaluates the
level signal and outputs a switching signal.With this switching signal,a
connected device can be operated directly (e.g.a warning system,a
PLC,a pump etc.).
The data for power supply are specified in chapter "Technical data".
3.3Operation
The VEGAKON 61 is a compact level switch with integrated
electronics module.
On the electronics module you will find the following indicating and
adjustment elements:
lControl lamp for indication of the switching status
lMode changeover for selection of the output signal
Functional principle
Voltage supply
VEGAKON 61 •-Relay (DPDT)7
3Product description
32647-EN-100219

3.4Storage and transport
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.In addition,the sensor is provided with
a protective cover of paperboard.For special versions PE foam or PE
foil is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
8VEGAKON 61 • - Relay (DPDT)
3Product description
32647-EN-100219

4Mounting
4.1General instructions
Make sure that all parts of the instrument exposed to the process,in
particular the sensor element,process seal and process fitting,are
suitable for the existing process conditions.These include above all
the process pressure,process temperature as well as the chemical
properties of the medium.
You can find the specifications in chapter "Technical data"or on the
type label.
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your VEGAKON 61 additional protection against
moisture penetration by leading the connection cable downward in
front of the cable entry.For this reason,the housing can be turned
without any tools by 270°.Rain and condensation water can thus drain
off.This applies mainly to outdoor mounting as well as installation in
areas where high humidity is expected (e.g.through cleaning
processes)or on cooled or heated vessels.
Fig.3:Measures against moisture penetration
The process fitting must be sealed if there is gauge or low pressure in
the vessel.Before use,check if the seal material is resistant against
the measured product and the process temperature.
The max.permissible pressure is specified in chapter "Technical data"
or on the type label of the sensor.
4.2Mounting instructions
Remove the supplied seal from the thread of VEGAKON 61.This seal
is not required when using the welded socket with O-ring in front.
Suitability for the pro-
cess conditions
Moisture
Pressure/Vacuum
Welded socket
VEGAKON 61 •-Relay (DPDT)9
4Mounting
32647-EN-100219

Before welding,unscrew VEGAKON 61 and remove the rubber ring
from the welded socket.
10 VEGAKON 61 • - Relay (DPDT)
4Mounting
32647-EN-100219

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
Connect the operating voltage according to the following connection
diagrams.The electronics module KONE60Ris designed in protection
class 1.To maintain this protection class,it is absolutely necessary
that the ground conductor be connected to the internal ground
terminal.Take note of the general installation regulations.
The data for power supply are specified in chapter "Technical data".
The instrument is connected with standard two-wire cable without
screen.If electromagnetic interference is expected which is above the
test values of EN 61326 for industrial areas,screened cable should be
used.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
5.2Connection instructions
Danger:
Switch offpower supply before starting connection work.
Connect mains voltage according to the connection diagrams.
Note safety instructions
Voltage supply
Connection cable
VEGAKON 61 •-Relay (DPDT)11
5Connecting to power supply
32647-EN-100219

1
2
3
4
5
6
10
9
8
7
1Housing cover
2Signal lamp (LED)
3Connection terminals
4Mode switch (A/B)
5Type plate VEGAKON 61
6Instrument housing
7Electrode
8Cable gland
9Electronics module
10 Type plate of the electronics module
5.3Connection,relay module
Is used to switch external voltage sources to relays,contactors,
magnetic valves,horns etc.
Floating relay output
12 VEGAKON 61 • - Relay (DPDT)
5Connecting to power supply
32647-EN-100219

123 4 56
+
L1
-
N
1
2
Fig.5:Electronics with relay output
1Relay output
2Voltage supply
VEGAKON 61 •-Relay (DPDT)13
5Connecting to power supply
32647-EN-100219

6Set up
6.1General information
On the electronics module you will find the following indicating and
adjustment elements:
lDIL switch for mode adjustment
lControl lamp for indication of the switching status

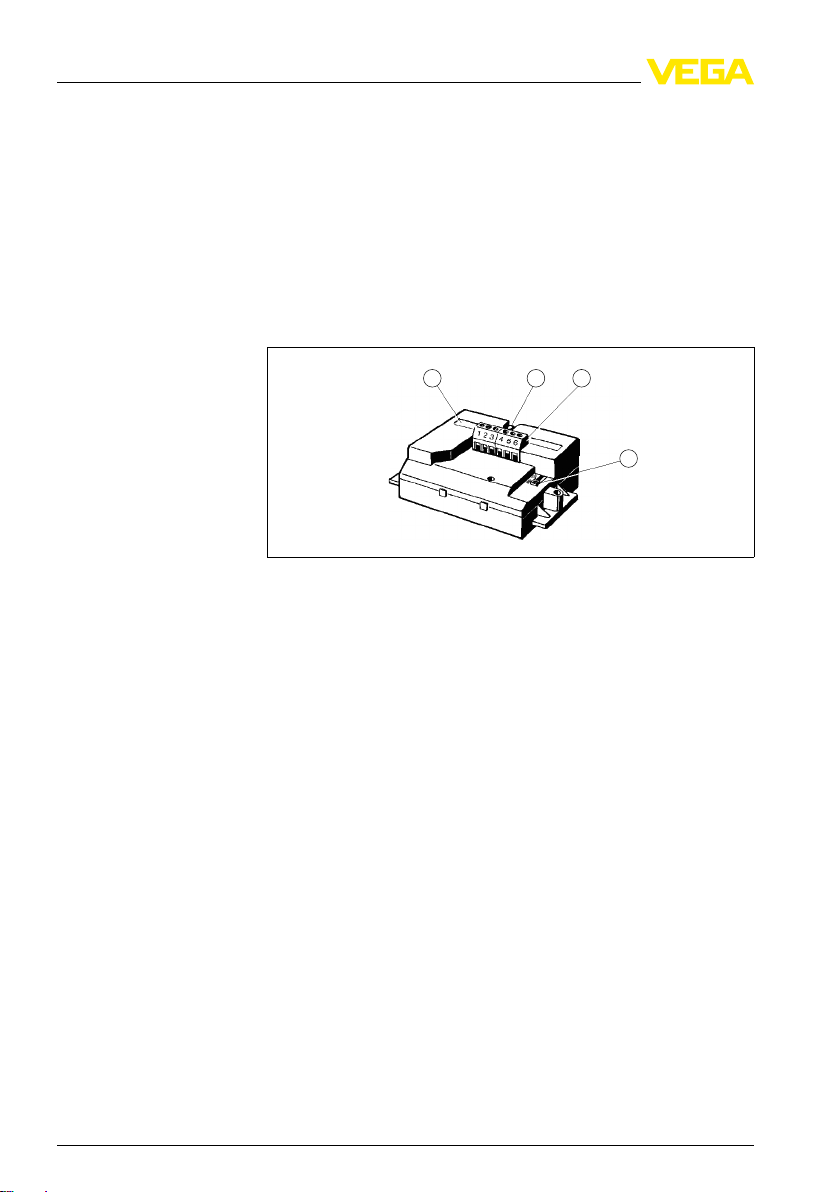

6.2Adjustment elements
1 2 3
4
1Type label
2Signal lamp (LED)
3Connection terminals
4Mode switch (A/B)
With the mode adjustment (A/B)you can change the switching
condition of the output.You can set the required mode according to
the "Function chart"(A-max.detection or overflow protection,B-min.
detection or dry run protection).
The switching condition of the signal lamp can be checked when the
housing is closed.To adjust VEGAKON 61 loosen the four screws with
a wrench on the upper side of the instrument and remove the housing
cover.
6.3Functional chart
The following chart provides an overview of the switching conditions
depending on the adjusted mode and level.
Function/Configuration
Mode adjustment (4)
Signal lamp (2)
14 VEGAKON 61 • - Relay (DPDT)
6Set up
32647-EN-100219

Level Switching status,
relay module
E60R
Control lamp
Mode A
Overflow protec-
tion
1
64 5
Relay energized does not light
Mode A
Overflow protec-
tion
2
64 5
Relay deenergized lights
Mode B
Dry run protection
3
64 5
Relay energized does not light
Mode B
Dry run protection
4
64 5
Relay deenergized lights
Failure of the sup-
ply voltage
(mode A/B)
64 5
Relay deenergized
1Max.detection -Vessel empty
2Max.detection -Vessel full
3Min.detection -Vessel full
4Min.detection -Vessel empty
VEGAKON 61 •-Relay (DPDT)15
6Set up
32647-EN-100219

7Maintenance and fault rectification
7.1Maintenance
When used as directed in normal operation,VEGAKON 61 is
completely maintenance free.
7.2Electronics exchange
In general,all electronics modules of series KONE60 can be
interchanged.If you want to use an electronics module with a different
signal output,you can download the corresponding operating
instructions manual from our homepage under Downloads.
Proceed as follows:
1Switch offpower supply
2Unscrew the housing cover
3Loosen compression fittings with a screwdriver
4Pull the connection cables out of the terminals
5Loosen the two screws with a screw driver (Phillips recessed
head)
6Pull out the old electronics module
7Compare the new electronics module with the old one.The type
label of the electronics module must correspond to that of the old
electronics module.
8Note settings of all adjustment elements of the old electronics
module.
Set the adjustment elements of the new electronics module to the
same settings of the old one.
9Screw in and tighten the two holding screws with a screwdriver
(Phillips)
10 Insert the wire ends into the open terminals according to the wiring
plan
11 Tighten the screw terminals
12 Check the hold of the wires in the terminals by lightly pulling on
them
13 Check cable gland on tightness.The seal ring must completely
encircle the cable.
14 Screw the housing cover on
The electronics exchange is now finished.
As soon as you insert the electronics module,VEGAKON 61 is ready
for operation.
16 VEGAKON 61 • - Relay (DPDT)
7Maintenance and fault rectification
32647-EN-100219

7.3Instrument repair
If a repair is necessary,please proceed as follows:
You can download a return form (23 KB)from our Internet homepage
www.vega.com under:"Downloads -Forms and certificates -Repair
form".
By doing this you help us carry out the repair quickly and without
having to call back for needed information.
lPrint and fill out one form per instrument
lClean the instrument and pack it damage-proof
lAttach the completed form and,if need be,also a safety data
sheet outside on the packaging
lPlease ask the agency serving you for the address of your return
shipment.You can find the respective agency on our website
www.vega.com under:"Company -VEGA worldwide"
VEGAKON 61 •-Relay (DPDT)17
7Maintenance and fault rectification
32647-EN-100219

8Dismounting
8.1Dismounting steps
Warning:
Before dismounting,be aware of dangerous process conditions such
as e.g.pressure in the vessel,high temperatures,corrosive or toxic
products etc.
Take note of chapters "Mounting"and "Connecting to power supply"
and carry out the listed steps in reverse order.
8.2Disposal
The instrument consists of materials which can be recycled by
specialised recycling companies.We use recyclable materials and
have designed the electronics to be easily separable.
WEEE directive 2002/96/EG
This instrument is not subject to the WEEE directive 2002/96/EG and
the respective national laws.Pass the instrument directly on to a
specialised recycling company and do not use the municipal collecting
points.These may be used only for privately used products according
to the WEEE directive.
Correct disposal avoids negative effects to persons and environment
and ensures recycling of useful raw materials.
Materials:see chapter "Technical data"
If you have no possibility to dispose of the old instrument
professionally,please contact us concerning return and disposal.
18 VEGAKON 61 • - Relay (DPDT)
8Dismounting
32647-EN-100219

9Supplement
9.1Technical data
General data
Material 316Lcorresponds to 1.4404 or 1.4435
Materials,wetted parts
-Process fitting -thread 316Ti
-Process fitting -Cone 316Ti
-Electrode 316Ti
-Insulation ring PTFE
-Process seal Klingersil C-4400
Materials,non-wetted parts
-Housing plastic PBT (Polyester)
-Temperature adapter 316Ti
-Seal between housing and housing
cover
Silicone
-Ground terminal 316L
Weights
-with plastic housing 600 g(21 oz)
-Temperature adapter 150 g(5.3oz)
Process fittings
-Thread (DIN 3852-A)G1A(PN 25)
-Cone Cone DN 25 (PN 25)
-Tuchenhagen
Measurement voltage approx.1V
ss
,5kHz
Measurement current <1mA
Output variable
Output Relay output (DPDT), 1floating spdt
Turn-on voltage
-min.10 mV
-max.253 V AC,253 V DC
Switching current
-min.10 µA
-max.3A AC,1A DC
Breaking capacity
-min.50 mW
-max.750 VA AC,54 W DC
If inductive loads or stronger currents are switched
through,the gold plating on the relay contact
VEGAKON 61 •-Relay (DPDT)19
9Supplement
32647-EN-100219

surface will be permanently damaged.The contact
is then no longer suitable for switching low-level
signal circuits.
Contact material (relay contacts)AgNi or AgSnOand Au plated
Modes (adjustable)
-A Max.detection or overflow protection
-B Min.detection or dry run protection
Switching delay
-When immersed 0.5s
-When laid bare 0.5s
Ambient conditions
Ambient temperature on the housing -40 …+70 °C(-40 …+158 °F)
Ambient temperature with operating voltage
>60 V DC
-40 …+50 °C(-40 …+122 °F)
Storage and transport temperature -40 …+80 °C(-40 …+176 °F)
Process conditions
Permissible process temperature
-Without temperature adapter -40 …+100 °C(-40 …+212 °F)
-with temperature adapter -40 …+150 °C(-40 …+302 °F)
1
2
110°C
(230°F)
120°C
(248°F)
100°C
(212°F)
130°C
(266°F)
140°C
(284°F)
150°C
(302°F)
50°C
(122°F)
60°C
(140°F)
70°C
(158°F)
Fig.21:Ambient temperature -Process temperature
1Process temperature in °C
2Ambient temperature in °C
Process pressure -1…25 bar/-100 …2500 kPa(-14.5…362 psig)
Conductive of the medium min.7.5µS/cm
20 VEGAKON 61 • - Relay (DPDT)
9Supplement
32647-EN-100219
