Vega CN-02MU User manual

1/ 24
VEGA TECHNOLOGIES INC.
INSTRUCTION MANUAL
Compressor nebulizer (with
disposable accessories)
Model No: CN-02MU
File Number:CN-02MU-SPC001
Version/Revision No: 1.0
Date: November 01, 2022

2/ 24
（Read this instruction manual carefully before use）
Contents
1. Introduction................................................................................................................................. 3
2. Safety precaution ....................................................................................................................... 5
3. Information for operation........................................................................................................ 8
4. Cleaning and maintenance.................................................................................................... 10
5. Troubleshooting information................................................................................................ 11
6. Service information.................................................................................................................. 12
7. Technical specifications.......................................................................................................... 14
8. Symbols....................................................................................................................................... 16
9. Disposal....................................................................................................................................... 17
10. Information about Electromagnetic Compatibility......................................................... 18
11. Contact information ................................................................................................................ 24

3/ 24
1. Introduction
Thank you for purchasing the compressor nebulizer. It is a compact medical device
designed to efficiently deliver physician prescribed medication to the bronchial
lung passages. With proper care and use, it will provide you with many years of
reliable treatment.
This product is developed for the successful treatment of asthma, allergies and
other respiratory disorders. It creates a stream of air that travels through clear tube
to the nebulizer. When air enters the nebulizer, it will convert the prescribed
medication into aerosol mist for easy inhalation.
Your compressor nebulizer should be used under the supervision of a licensed
physician and/or a respiratory therapist. We encourage you to thoroughly read this
guidebook to learn about the features of this product. Any use of this product other
than its intended use should always be avoided.
1.1 Intended use \ Intended purpose
The compressor nebulizer is intended to aerosolize physician-prescribed solutions
for inhalation that are approved for nebulization. The device may be used for child
and adult patients at home and in the hospital, they are not intended for life
support nor do they provide any patient monitoring capabilities.
Medical
Purpose
The compressor nebulizer is intended to aerosolize
physician-prescribed solutions for inhalation that are
approved for nebulization.
Intended User
1) Legally certified medical experts, such as doctor,
nurse and therapist, or healthcare personnel.
2) The user or patient should also be capable of
understanding general machine operation and the
content of instruction manual.
Intended
patients
This product should not be used on patients, who are
unconscious or are not breathing spontaneously.

4/ 24
Intended
Environment
This product is intended for use in a medical facility, such
as hospital, clinic and doctor office, and in a room of
general household.
Precautions for
use
Warnings and cautions described in the instruction
manual should be observed

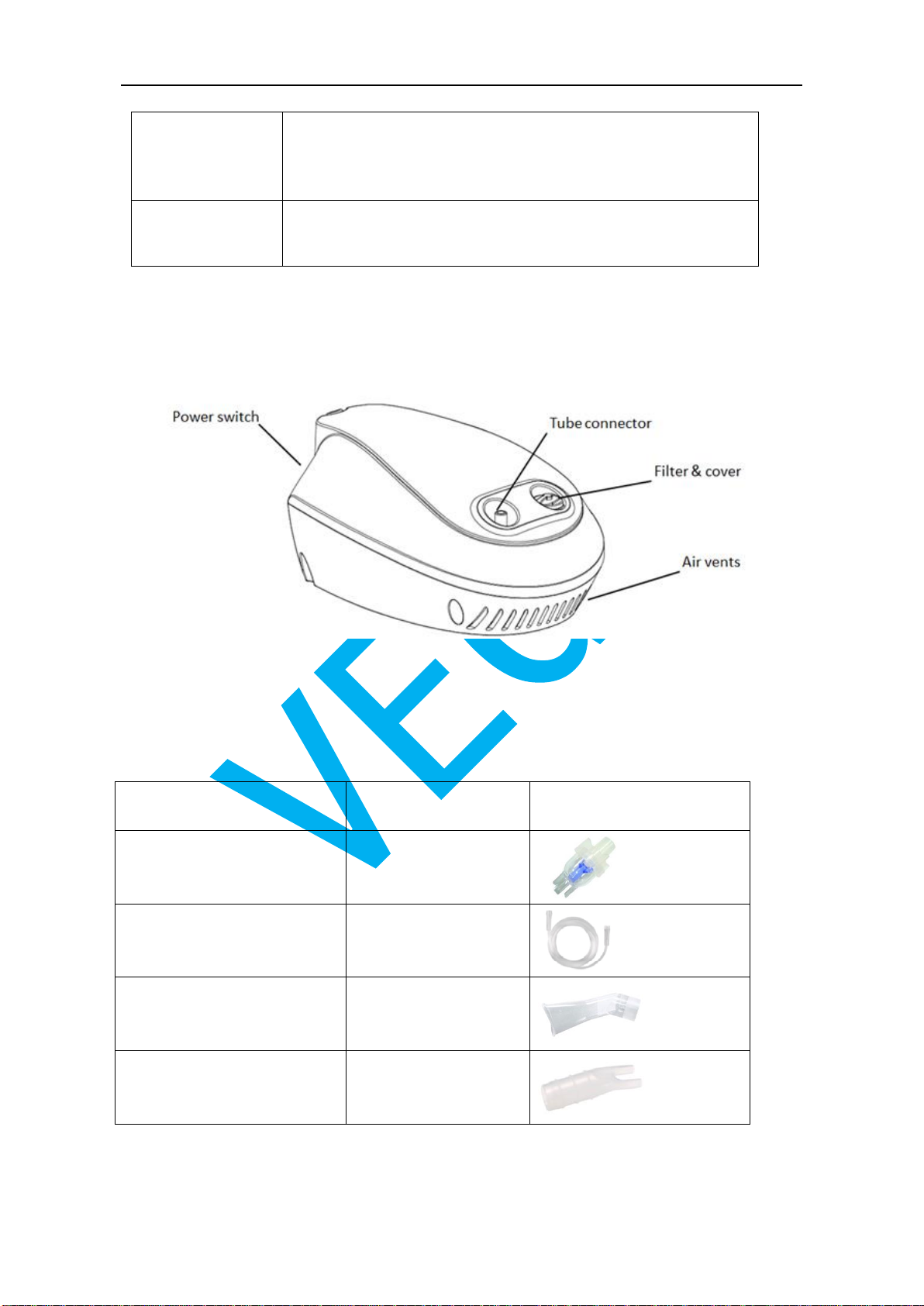

1.2 Product identification
1.3 Disposable accessories list
Disposable accessories
Quantity
Nebulizer Bottle
1pc
Air Tube
1pc
Mouthpiece
1pc
Nosepiece
1pc

5/ 24
Air Filters
5pcs
Adult Mask
1pc
Child Mask
1pc
Infant Mask
1pc
Connector
1pc
2. Safety precaution
Read all the information in the instruction manual and any other literature included
in the box before using the device.
When using an electrical product, especially when children are present, basic safety
precautions should always be followed including the following:
Warning:
Indicates a potentially hazardous situation which, if not avoided, could result in
serious injury.
(Usage)
1) For type, dose, and regime of medication, follow the instructions of your doctor
or respiratory therapist.
2) Precautions should be taken in the event of changes in the performance of the
product or the system.
3) Avoid or minimize potential electromagnetic or other interference between the
product and other devices.

6/ 24
4) The long air tube of this product may cause strangulation of the user if use in
wrong way.
5) Do not use disposable accessories, detachable parts and materials not
described in the instructions for use.
6) Do not use in an oxygen rich environment.
7) Do not interconnect this equipment with other equipment not described in the
instructions for use.
8) Warning against servicing and maintenance while the ME EQUIPMENT is in use.
9) No modification of this equipment is allowed.
10) If you feel anything unusual during use stop using the device immediately and
consult your doctor.
11) Do not use only water in the nebulizer for inhaling purposes.
12) Do not use this product to treat accidents or in complicated site of accidents, it
may cause the secondary accidents or faults.
13) Keep the device out of the reach of unsupervised infants and children. The
device may contain small pieces that can be swallowed.
14) Do not use the device while sleeping or sleepy.
15) Do not use in anesthetic or ventilator breathing circuits.
16) Store the device and disposable accessories in a clean location.
17) Do not store the air tube while there is moisture or medication remaining inside
it.
18) Do not use the device where it may be exposed to flammable gas.
19) Do not place the device on a soft surface or cover the device with a blanket or
towel etc. during use.
20) Make sure that the disposable accessories is clean before use.
21) Always dispose of any remaining medication after use and only use fresh
medication each time.
22) Store the parts in a clean location for avoiding infection.
(Risk of electrical shock)
1) Do not use the compressor while they are wet or connect them to a power
outlet or other devices with wet hands.
2) Do not spill water, or other liquids on the device. If liquid does spill on these
parts, immediately unplug the power cord and wipe off the liquid with soft
cloth or other absorbent material.
3) Do not immerse the compressor in water or other liquid.

7/ 24
4) Do not use or store the device in humid locations, such as in a bathroom.
5) Do not operate the device with a damaged power cord or plug.
6) Keep the power cord away from heated surfaces.
Caution:
Indicates a potentially hazardous situation which if not avoided, may result in minor or
moderate injury, or physical damage.
(Usage)
1) Make sure that the air filter is correctly attached.
2) Make sure that the air filter is clean.
3) Do not spill liquid or medication on the compressor.
4) Do not use or store the device while the air tube is creased.
5) Do not leave the device unattended with infants or person who cannot express
their consent.
6) When using the device, the main unit may become hot.
7) Do not touch the main unit for other than necessary operation such as turning
off the power while nebulizing.
8) Do not reuse the disposable accessories of compressor nebulizer.
(Risk of electrical shock)
1) Always unplug the device from the power outlet to isolate its circuits electrically
from the SUPPLY MAINS on all poles simultaneously after use and before
cleaning.
2) Plug the device into the appropriate voltage outlet. Do not overload power
outlets or use extension cords.
3) Do not wind the cord of the device around the device.
4) Do not pull the power cord of the device strongly.
General safety precautions:
1) Inspect the device and parts before using them each time, and check that there
are not problems. Inparticular, be sure to check the following:
—That the nebulizer bottle and air tube are not damaged.

8/ 24
—That the compressor operates normally.
2) When using this device, there will be some noise and vibration caused by the
pump in the compressor. There will also be some noise caused by the emission
of compressed air from the nebulizer kit. This is normal and does not indicate a
malfunction.
3) Operate the device only as intended. Do not use the device for any other
purpose.
4) Make sure that the air tube is securely attached to the compressor and
nebulizer bottle, and does not come loose. Twist the air tube plug slightly when
inserting it into the air tube connectors to avoid the air tube disconnecting
during use.
5) To completely isolate the device from the power source, unplug the plug from
the power source.
Save these instructions for future reference.
3. Information for operation
3.1 Functional description
The nebulizer is mainly used for the treatment of various respiratory diseases, such
as colds, fever, cough, asthma, sore throat, pharyngitis, rhinitis, bronchitis,
pneumoconiosis and other diseases occurring in the trachea, bronchi, alveoli and
chest cavity.
Atomizing inhalation is an important and effective treatment method for the
treatment of respiratory diseases. The drug solution is atomized into small particles
by means of atomizing inhaler, and the drug enters the respiratory tract and lung
deposition by means of breathing inhalation, so as to achieve the objective of
painless, rapid and effective the treatment. Compared to traditional injections, this
treatment gives small doses and effectively reduces side effects.
Note: Drug is normal saline or which has been verified.

9/ 24
3.2 Installation and operation procedure
Note: Prior to every operation, the nebulizer should be thoroughly cleaned.
1) Place your Compressor Nebulizer on a flat and stable surface. Be sure that you
can easily reach the controls when you are seated.
2) Open the top cover.
Important: Prior to initial operation, the nebulizer should be thoroughly
cleaned referring to the “Cleaning and Maintenance” in the manual.
3) Gently twist the top cover of the Nebulizer Bottle counter-clockwise to
disassemble the Nebulizer Bottle.(Fig.1)
4) Fill the cup base of the Nebulizer Bottle with the medication prescribed by your
physician.(Fig.2)
5) Gently twist the top cover clockwise to re-assemble the Nebulizer Bottle. Be
sure the two sections fit well.(Fig.3)
6) Attach one end of Air Tube to the cup base of the Nebulizer Bottle.(Fig.4)
7) Attach the other end of Air Tube to the tube connector located on the front of
the Compressor Nebulizer.
8) Attach one of inhalation device per your choice to the top cover of Nebulizer
Bottle, but Infant Mask need to add Connector between mask and Nebulizer
Bottle.
Remark: Inhalation device is Mouthpiece, Nosepiece, Adult Mask, Child Mask,
Infant Mask.
9) Plug the power cord into an appropriate electrical outlet. Make sure at this
stage, the power switch is at “OFF” status.
10) Press power switch to begin your prescribed treatment.

10 / 24
Important:
The compressor motor has a thermal protector which will shut off the unit
before the unit is overheated. When the thermal protector shuts the unit off,
please:
a. Switch off the unit.
b. Unplug the unit from the electrical outlet.
c. Wait 30 minutes for the motor to cool down before another treatment.
Make sure the air vents are not obstructed.
11) When treatment is finished, shut off the unit and unplug it from the electrical
outlet.
4. Cleaning and maintenance
Warning:
Please make sure the power cord is not plugged into the power outlet when clean
and disinfect the product.
Cleaning:
It is recommended to clean the Compressor Nebulizer after each use unless there
are other instructions by your doctor.
Disinfection:
It is recommended to disinfect the Compressor Nebulizer unless there are other
instructions by your doctor.
1) Wipe or spray Compressor Nebulizer with 75% medical alcohol after using and
cleaning the product.
Cleaning the device:
1) Wet the soft cloth with purified water and wring it out, then clean the surface of
the device with the damp cloth.

11 / 24
2) Do not use any powder cleaners or acidic solvents, which may damage the
product.
3) The device shall be cleaned at least once a month.
Filter change:
1) Do not use cotton or any other materials. Do not wash or clean the filter. Only
use filters supplied by your distributor. And do not operate without a filter.
2) Change the filter before every use due to the Air Filters is disposable.
3) Changing procedure:
A. Remove the filter cover.
B. Replace the used filter with a new one.
C. Put back the filter cover.
5. Troubleshooting information
Check the following if your unit should fail during operation. You can also refer to
the pages of this manual for complete instructions.
Problem
Cause
Remedy
When switching
it on, it does not
work
1) Incorrectly plugged.
2) Electrical energy
missing.
1) Check if the unit is properly
connected.
2) Verify if there is electrical energy.
The mist does
not come out
from the jet,
nebulizer/aerosol
output
reduced(low).
1) Not enough
medication in the
nebulizer bottle.
2) Too much
medication.
3) Tubing
disconnected.
4) The nebulizer bottle
is not creating mist.
1) Add medication.
2) Remove excess medication.
3) Connect the tubing.
4) Replace the nebulizer bottle.

12 / 24
5) The air filter is
clogged.
5) Replace the air filter.
Note: If the suggested remedy does not solve the problem, do not try to repair the
device-no parts of the unit are user serviceable. Please contact an authorized
distributor.
6. Service information
Under this warranty, VEGA’s obligation shall be limited to any such units which
prove, by VEGA’s inspection, to be defective within two years from the original
purchase date. This warranty does not extend to non-durable components which
are subject to normal wear and need periodic replacement.
Any abuse, operation other than the intended use of this product as outlined in the
manual, negligence, accident, or repairs by someone other than a VEGA’s
Authorized Service Professional, shall immediately void this warranty.
ME EQUIPMENT that is intended for use by a LAY OPERATOR shall indicate that the
LAY OPERATOR or LAY RESPONSIBLE ORGANIZATION should contact the
MANUFACTURER or the MANUFACTURER'S representative:
–for assistance, if needed, in setting up, using or maintaining the ME EQUIPMENT
or ME SYSTEM; or
–to report unexpected operation or events.
VEGA will not accept damages or charges for labor, parts, or expenses incurred in
making field repairs.
The foregoing warranty is exclusive and in lieu of all other expressed warranties.
Implied warranties, if any, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose, shall not extend beyond the
duration of the express warranty provided herein. In no event shall VEGA or its
subsidiaries by liable for loss of use or profit or other collateral, special or
consequential damages.

13 / 24

14 / 24
7. Technical specifications
7.1 Specifications table
7.2 Specification table of disposable accessories
Product name
Compressor Nebulizer
Model
CN-02MU
Applied part
Type BF
Mouthpiece
Adult/child mask
Power (main unit)
230V/50Hz
Mode of operation
Non-continuous (30 Min. on / 30 Min. off)
The typical operation time
30 min.
Power consumption
180 VA Max
Type of nebulizer
Compressor nebulizer
Recommended fill volume
2 to 5ml(Max. 6ml)
Air flow
5.0 to 8.0 Lpm
Nebulization rate
≧0.20 ml/min. (0.9% salt water solution)
Operating pressure
8.0 to 13.0 Psi (0.06 to 0.09Mpa)
Maximum pressure
≧25 Psi (≧0.17 Mpa)
MMAD
5 μm
Noise level
Less than 60 dB （1m away）
Dimension (L X W X H)
188 x 145 x 88 mm
Weight
1.2 kgs
IP degree
IP21
Life time
≧2 years for homecare usage ( or 1,000 hours)
Disposable accessories shelf-life
1 year
Operating environment
Temperature: 5 to 40˚C (41˚F to 104˚F)
Humidity: 15% to 90% RH
Atmospheric pressure: 700 to 1,060hPa
Storage environment
Temperature: -25˚C to 70˚C (-13˚F to 158˚F)
Humidity: 0% to 90 % RH
Atmospheric pressure: 700 to 1,060hPa

15 / 24
No.
Item
Specification
Model
1.
Nebulizer Bottle
PP
CNK-M03
2.
Mouthpiece
PP
CNK-M06
3.
Air Filter
PU
CNK-S03
4.
Nosepiece
PP, translucent
CUK-M04
5.
Child Mask
PVC, transparent, with
mask strap
CUK-M02
6.
Adult Mask
PVC, transparent, with
mask strap
CUK-M01
7.
Air Tube
PVC, 150cm
CNK-S01
8.
Connector
PP
CUK-S01
9.
Infant Mask
PVC, blue, PMS284C,
with mask strap
CNK-M14

16 / 24
7.3 The particle size distribution curve
8. Symbols
8.1. Symbols and description
Refer to instruction
manual/booklet
Manufacturer
Batch code
Date of manufacture
Serial number
Caution

17 / 24
Type BF applied part
Temperature limitation
Keep away from sunlight
Protection class II
Humidity limitation
IP21
Ingress protection
Direct current
Keep away from rain
"ON"/"OFF" (push-push)
Alternating current
0123
This device complies
with the requirements of
Regulation (EU)
745/2017
QTY
Quantity
This way up
Authorized
representative
Fragile; handle with care
Atmospheric pressure
limitation
The symbol indicating
separate collection for
EEE
Medical Device
9.Disposal
Danger of infection!
The device and disposable accessories may come into contact with infectious
material and be contaminated during their lifetime. For this reason, the device and
its disposable accessories should be decontaminated before disposal or
transportation.
Dispose of the device properly at the end of its service life. According to the
European Directives 2012/19/EU (WEEE) and 2011/65/EU (RoHS) the device may

18 / 24
not be disposed of with unsorted domestic waste. Look for a careful separation of
materials. Consider the country-specific laws and regulations that apply to the
disposal of the device. The proper disposal of the device prevents environmental
and human damage.
Outside the EU, the appropriate national regulations for disposal must be observed.
10. Information about Electromagnetic
Compatibility
Medical Electrical Equipment needs special precautions regarding Electromagnetic
Compatibility (EMC). The device needs to be installed and put into service according to
the EMC information provided in this chapter.
Portable and Mobile RF Communications Equipment can affect Medical Electrical
Equipment. You can help prevent electromagnetic interference by maintaining a
minimum distance between portable and mobile RF Communications Equipment
(transmitters) and the device as recommended below.
Warning:
The device should not be used adjacent to or stacked with other equipment and that if
adjacent or stacked use is necessary, the device should be observed to verify normal
operation in the configuration in which it will be used.
Table 1
Guidance and manufacturer’s declaration –electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below. The
customer or the user of the device should assure that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment -
guidance
RF emissions
CISPR 11
Group 1
The device uses RF energy only for its
internal function. Therefore, its RF
emissions are very low and are not likely
to cause any interference in nearby

19 / 24
electronic equipment.
RF emissions CISPR 11
Class B
The device is suitable for use in all
establishments other than domestic
and those directly connected to the
public low-voltage power supply
network that supplies buildings used for
domestic purposes.
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage fluctuations /
flicker emissions
IEC 61000-3-3
Not applicable
Table 2
Guidance and manufacturer’s declaration – electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The
customer or the user of the device should assure that it is used in such an environment.
Immunity test
IEC 60601 test
level
Compliance
level
Electromagnetic environment –
guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
contact
± 6 kV contact
± 8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be at
least 30 %.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for
power
supply lines
±1 kV for
input/output
lines
Not applicable
Mains power quality should be
that of a typical commercial or
hospital environment.

20 / 24
Surge
IEC 61000-4-5
± 1 kV line(s)
to
line(s)
± 2 kV line(s)
to earth
Not applicable
Mains power quality should be
that of a typical commercial or
hospital environment.
Voltage dips,
short
interruptions
and
voltage
variations
on power
supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in
UT)
for 0.5 cycle
40 % UT
(60 % dip in
UT)
for 5 cycles
70 % UT
(30 % dip in
UT)
for 25 cycles
<5 % UT
(>95 % dip in
UT)
for 5 s
Not applicable
Mains power quality should be
that of a typical commercial or
hospital environment. If the user
of the device requires continued
operation during power mains
interruptions, it is recommended
that the device be powered from
a continuous power supply or a
battery.
Power
frequency
3 A/m
3 A/m
Power frequency magnetic fields
should be at levels characteristic
of a typical location in a typical
commercial or hospital
