Veinlite PEDI User manual

DIRECTIONS FOR USE
Description
The TransLite Veinlite PEDI is a hand-held
battery powered transillumination device for
visualizing veins and supercial blood vessels
in neonates (0-24 mo). It utilizes the patented*
transillumination technique known
as side-transillumination, which enables the
Veinlite PEDI to uniformly illuminate a small
region of skin and subcutaneous tissue,
anywhere on the body, without any areas of
shadow. The shadow-free side-transillumination
technique allows better visualization of veins
than any other transillumination method.
Copyright 2016 © TransLite, LLC. All rights reserved. These instructions
or any part thereof may not be reproduced by any means, without prior
permission of TransLite, LLC.
Manufacturer, TransLite LLC
Tel: [phone]
Fax: [phone]
Veinlite PEDI®
FM 633388
www.veinlite.com
[email protected]
BATERRY INSTRUCTIONS
Installing or Replacing Batteries
To install or replace the battery, press rmly on
the battery cap [3] and slide it o. Remove the
used battery. Install a new CR2 battery, oriented
as indicated by the markings inside the battery
compartment then slide the battery cover back
into place.
Attaching a Lanyard
A lanyard can be attached to the Veinlite PEDI,
via the hole at the bottom of the unit [4]. Use a
thin cord for this purpose.
Figure 1. Veinlite PEDI
[1] Clear Window
[2] On/O Button
[3] Battery Cap
[4] Lanyard Hole
[1]
[2]
[3]
[4]
Warranty Information
The Veinlite PEDI has a one year parts and labor
warranty. Please provide the serial number located
under the battery or the outside of the box when
you contact Translite LLC for any warranty issues.
The warranty is valid only if the Veinlite PEDI is
used according to the manufacturer’s instructions.
Before returning the Veinlite PEDI to TransLite for
repair, you must call or e-mail TransLite to obtain a
return authorization code and shipping information
before sending your device. No refunds will be
given for unauthorized shipping.
SYMBOL EXPLANATION
REF Model Number
SN Serial Number
Manufacturer
EC Representative (EU Only)
Do not dispose as unsorted
municipal waste.
Explanation of Symbols
EC REP
Healthcare & Education Centre
The Church, Portland Street
Southport, PR81HU, UK
This product is covered by Patents. Patent Numbers:
7,874,698; 7,841,751; 8,032,205; 8,177,808
VPEDI DFU Rev 6 1116
EC REP
Tel: [phone]
Fax: [phone]
VEINLITE PEDI
Intended Use/Indications
• Examining the skin
surface, nding
veins and assisting
in vein access
in neonates and
newborns
• Easier visualization of veins in dark
skinned patients
Contraindications
• When used for internal examination
• When used without the disposable
plastic cover

OPERATION
• Place the Veinlite PEDI against the patient’s skin
with the LED side in direct contact with the skin
perpendicular to vein direction. Apply gentle
pressure to maintain optimal skin contact.
• To turn on the LEDs, press the orange and/or the
red button located on the left and right side of the
device. Press the selected button(s) a second time
to turn the LEDs o.
• Press the orange button if you are examining small
supercial veins on fair skin.
• Press the red button to add the red color for
examining deeper veins or if the patient’s skin is darkly
pigmented.
USING THE DISPOSABLE
PLASTIC COVER
The single-use disposable plastic covers (Product
#VPED-DPC) for the Veinlite PEDI MUST be used
when the devise is placed in contact with a
patient’s skin.
CAUTION: These plastic covers are not sterile. They
should be wiped with a germicidal wipe prior to use.
• Before using Veinlite PEDI, place it inside the
disposable cover with the ap on the same side
as the LEDs.
• Pull the ap over the device to the other side.
• Wipe the LED side of the Veinlite PEDI and any
part of it coming in contact with the patient,
with a medically approved germicidal wipe.
Precautions
• Avoid using alcohol on the clear plastic window
as this may cause fogging.
• Do not immerse the device in liquid.
• Do not autoclave the device.
Scan Direction
WARNING
DO NOT SHINE THE LED LIGHTS
IN THE PATIENT’S EYES.

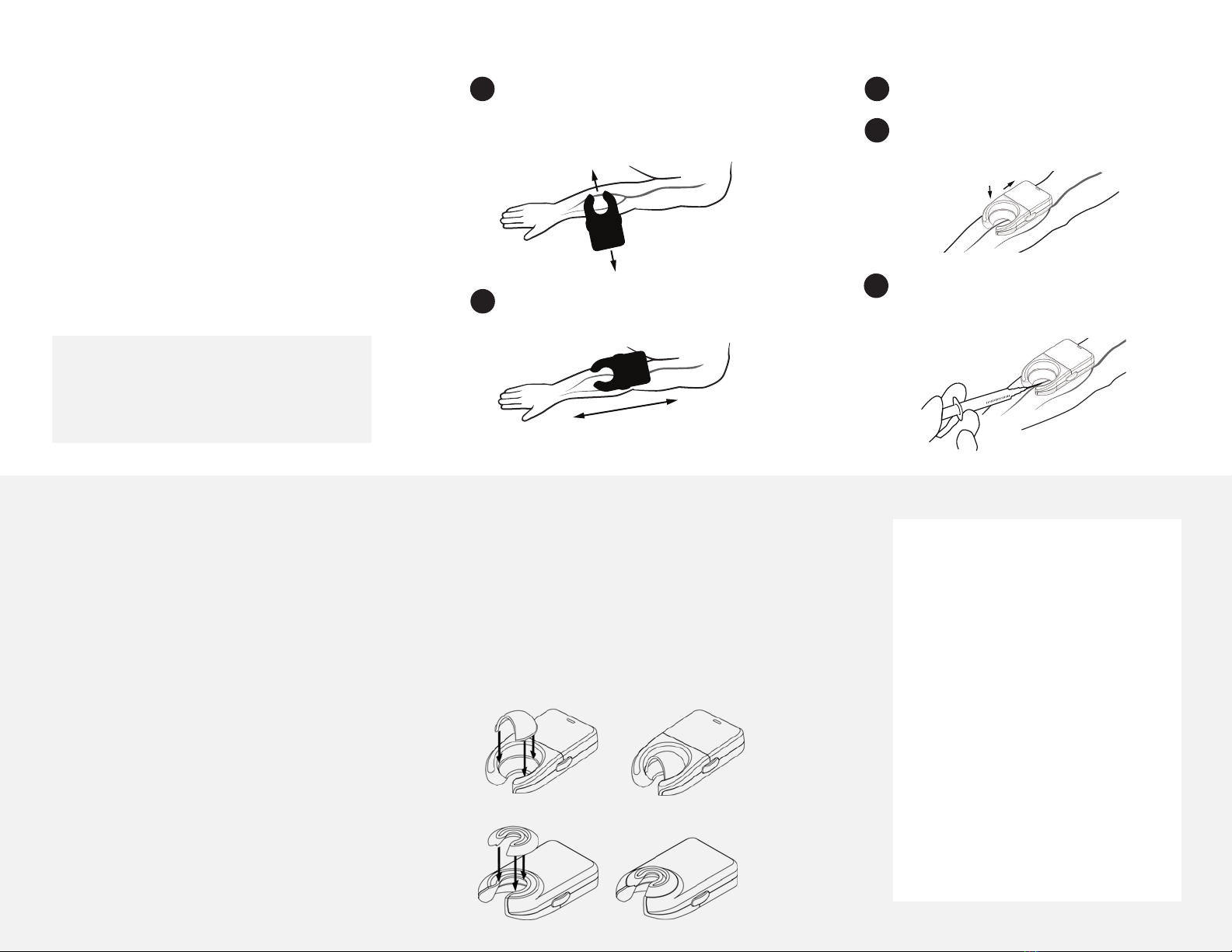

1To scan for veins, place device against skin
perpendicular to vein direction. Scan it
forward and backward. Veins will be visible
as dark lines due to transillumination.
Access Vein
2Once a suitable vein has been identied,
rotate device 90˚, parallel to vein.
4Insert the needle into the vein, through the
opening of the device. NOTE: Discard the
single-use disposable plastic cover after
each patient.
a
b
3a
3b
Apply gentle pressure on the Veinlite
PEDI to secure the vein.
Push back slightly on the Veinlite PEDI
to stretch the skin and provide traction.
A. Veinlite PEDI Light Shield
ATTACHMENTS
Two patented*** attachments are included with the
Veinlite PEDI:
A. A snap-on light shield to reduce interference from
bright overhead lighting.
B. A snap-on neonate adapter to reduce the size of
the viewing area for use with infants.
The diagrams below indicate how to attach the light
shield and neonatal adapter.
B. Veinlite PEDI Neonate Adapter
WARNING
Veinlite PEDI is designed for external
examination only.
To avoid contamination of the device,
Veinlite PEDI must be used with the
disposable plastic cover.
To avoid the spread of infection,
always change the disposable plastic
cover between patients and wipe the
new cover with a germicidal wipe.
These devices are intended for use
only by clinicians trained in performing
vascular access, or under the
supervision of a clinician.
Do not look directly into the LEDs
while on.
