1.0. INTRODUCTION
DEAR CUSTOMER
Congratulations on your new VELA chair! We are sure
this chair will give you daily pleasure. This user manual
provides useful information on adjusting, operating
and maintaining your chair.
Important
Please read this user manual carefully and keep it safe
for when you need to refer to it. This manual is also
available on VELA’s website: www.vela.eu, where you
can also find other relevant information.
If you have any questions, please contact your
supplier.
We reserve the right to make changes.
VELA
Gøteborgvej 8-12
DK-9200 Aalborg SV
Denmark
www.vela.eu

4
1.1. WARNINGS
Use In case of an allergic reaction, stop using the chair and consult a doctor
Use Only use original spare parts from VELA
Use Only use the supplied charger for charging the chair
Use Do not make any changes to the accessories that come with the chair
Use Only use the chair for the intended purpose
Use Only adjust the seat angle while the user’s feet are on the floor
Use Always have the chair brake on when you sit down or get up
Use Never use the chair on surfaces with level dierences as the chair may become unstable
Use Maintenance other than cleaning should always be performed by a professional
Use Never service the chair while it is in use
Use Always follow the recommended maintenance and cleaning instructions
Use The chair's functions are intended for the user. Only the user or trained professionals
should adjust the chair while the user is sitting in it
Use Never use the electric height adjustment for more than two minutes at a time
Use In the event of an electrical error or unintentional height adjustment, push both of the
buttons for height adjustment simultaneously for 10 seconds
Use Risk of shearing or squeezing fingers in moving parts. Therefore, never use the chair if
someone is touching underneath the seat
Choking hazard Choking hazard on small parts. Never allow children to play with the chair, as small parts
are removable
Choking hazard If the chair is equipped with electric height adjustment, cables will be present. Never let
children play with these
Electric noise Using cables other than the standard ones may increase electrical emission or de-crease
electrical immunity
Electric noise Avoid placing the chair close to appliances that emit electrical noise
Electric noise The chair may only be used with accessories mentioned in this user manual, as elec-tro-
magnetic interference may otherwise occur
Electric noise If the chair moves unintentionally or does not work as expected, find another location
for the chair

5
1.2. TROUBLESHOOTING
Mistake Possible cause and solution
Electric height adjustment does not work There is no power on the chair’s battery. Charge the
battery with the supplied charger
Manual height adjustment does not work There is too much load or uneven load on the chair.
Try to adjust the height without sitting in the chair. If
this does not work, the gas cartridge is defective and
should be replaced. Contact your VELA supplier
The brake function does not work The brake is not activated. See section 2.0.9.
The armrest seems loose One of the hand screws might be loose. Tighten the
hand screw
The chair rolls badly Wheels are blocked. Clean the wheels for wire residue
and the like.
If the above does not solve your problem, you should contact your VELA
supplier.

6
1.3. VELA TANGO WITH ELECTRIC HEIGHT ADJUSTMENT

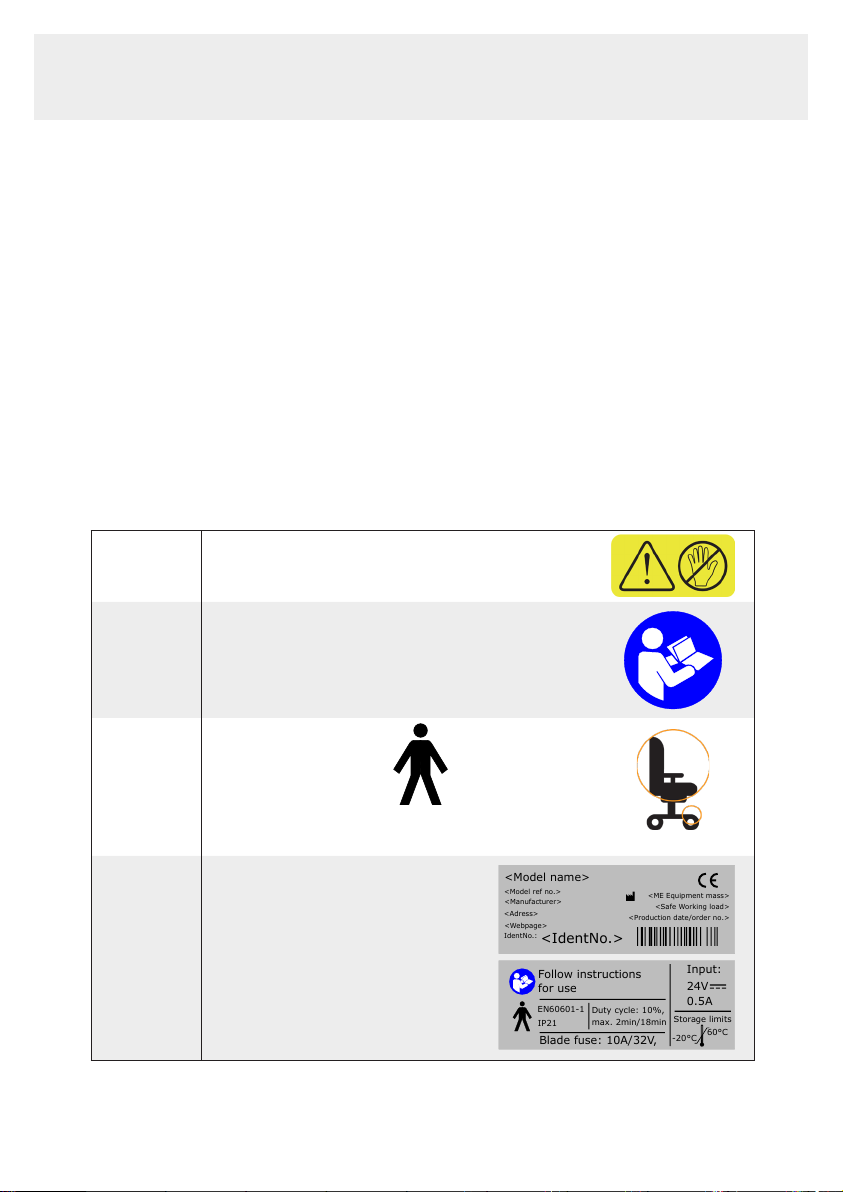

1.4. LABELS USED ON THE CHAIR
Warning Risk of shear and squeeze:
Keep hands and fingers away from moving parts
Icon
Read ”Instruction For Use” before use
Icon
Part used:
Type B cf. IEC60601-1
covering the following areas of the chair:
Labels 60 x 22,5 mm
This label only applies to chairs
with electrical functions:
The chair is IP21 approved,
which corresponds to protection against
water droplets, as well as against
touching dangerous parts with a finger.
Labels on the chair should be read at a distance of approx. 40 cm under normal
daylight conditions.
For labels related to the operation of the chair, please refer to section 2.0.
IdentNo.:
<Model name>
<Model ref no.>
<Manufacturer>
<Adress>
<Webpage>
<IdentNo.>
<Safe Working load>
<Production date/order no.>
<ME Equipment mass>
Follow instructions
for use
IP21
EN60601-1
Blade fuse: 10A/32V,
0.5A
Input:
24V
Duty cycle: 10%,
max. 2min/18min Storage limits
-20°C 60°C
1.3.1. POWER INPUT
Voltage: 24Vdc
Current: 0.5A
Power: 12VA
1.3.2. EMISSION
A VELA chair with electrical functions has been tested and complies with
current requirements regarding electromagnetic radiation (EMC requirements).
The chair is tested to the following specifications:
:: Emission class CISPR 11, Group 1, Class B
See more details at www.vela.eu

7
1.5. SAFETY
This chair is CE marked and com-
plies with applicable EU regulations.
The chair is manufactured by:
VELA, Gøteborgvej 8-12,
9200 Aalborg SV, Denmark.
The VELA Tango 300/310 with
electrical functions meets all safe-
ty requirements according to IEC
60601-1, including requirements for
EMC according to IEC60601-1-2.
1.5.1. APPLICATION
This chair is an indoor chair
intended for sitting and private use.
:: The chair is not built to stand on
:: The wheel brake must always be
activated when sitting down or
standing up
All standard variants of VELA Tango
300* are tested and approved for a
maximum load of 200 kg.
*VELA Tango 300 with gasspring is tested and
approved for a maximum load of 175 kg.
All variants of VELA Tango 310 are
tested and approved for a maximum
load of 300 kg.
1.5.2. TRANSPORT
When transporting the chair by
car, airplane or any other means of
transport, always use the chair brake.
The chair is not approved for use as
a passenger seat in any means of
transportation and may not be used
as such.
The chair is designed to be
transported under the following
environmental conditions:
Temperature: - 20°C to + 60°C
Humidity: 15-95%
Allow the chair to stand for 24 hours
before use if it has been stored
below - 10°C.
IN GENERAL
*VELA Tango 300 mit Gasfeder wurden für eine maximale Last von 175 kg.

8
1.6. WARRANTY
VELA grants a right of claim under
applicable law in the country where
the chair is acquired. The right of
complaint applies only when using
original spare parts and accessories,
as well as customisations made by
professionals.
Note: if an exclusive contractual
agreement has been made directly
with VELA, this applies!
VELA assumes no liability for da-
mages to the product or the user
caused by:
:: Transportation
:: Misuse
:: Normal wear and tear
:: Wrong use
:: Use of spare parts and acces-
sories that are not original VELA
products
:: Adjustments made by unauthori-
sed service technicians
1.7. UNPACKING THE CHAIR
The chair comes in environmentally
friendly and recyclable packaging.
In case of defects or transport
damage to the chair, please contact
your VELA supplier right away. In
such cases, do not attempt to use
the chair or to fix it yourself.
On delivery you have received:
:: VELA Chair
:: Instructions for use
:: Charger (only for chairs with elec-
trical functions)
1.8. MAINTENANCE
We recommend an annual inspecti-
on of the chair to identify any¬ de-
fective or worn parts. All removable
parts should be tightened regularly.
You can find various guides on
www.vela.eu.
1.8.1. WHEELS
We recommended you regularly¬
check the wheels and remove any
residual threads, etc.
1.8.2. FRAME
Clean with lukewarm water and if
necessary, add some pH-neutral
detergent.
1.8.3. PADDING
Fabric: Clean by chemical cleaning,
with furniture cleaner or with water
using a hard-wrung cloth.
Synthetic fabric or leather: Clean
with water or mild soap using a
hard-wrung cloth.
Leather: Clean by vacuuming with a
soft brush. Avoid using detergent.
Note: On www.vela.eu you can find
cleaning instructions for all our stan-
dard upholstery types.

9
1.8.4. RECYCLING GUIDE
Your VELA chair can be reused by
another person when you no longer
need it as long as the chair is ser-
viced by a technician beforehand.
The life expectancy of the chair is
five years for regular and proper use
as long as VELA, your VELA supplier
or a trained professional perform an
annual inspection with replacement
of worn parts.
1.9. RECYCLING AND DISPOSAL
This product contains recyclable
materials. Therefore, the product
must be disposed of in accordan-
ce with local regulations and not
together with ordinary household
waste. Proper disposal and recycling
will help prevent negative eects on
the environment and people.
Note: Electrical and electronic
equipment and accompanying
batteries contain materials, com-
ponents and substances that can
be harmful to human health and
the environment if the waste is not
handled properly.
Electrical and electronic equipment
and batteries are marked with the
icon shown below. This symbolises
that electrical and electronic equip-
ment and batteries must not be
disposed of together with unsorted
household waste but must be col-
lected separately.
It is important that you return your
used batteries to the established
schemes. In this way, you help
ensure that batteries are recycled in
accordance with current legislation
and do not cause unnecessary harm
to the environment.

VELA
TANGO
VELA
TANGO
EL
VELA
TANGO
EL
10
2.0.2. HEIGHT ADJUSTMENT (MANUAL)*
Adjusted by pulling up the front handle on the right-hand side.
Note: VELA Tango 300 is available with fixed height. It is not
possible to adjust the seat height of this chair.
2.0.3. HANDHELD CONTROL*
The handheld control is used to adjust the height of the chair
via push buttons on the front.
2.0.1. HEIGHT ADJUSTMENT (EL)*
Can be operated by pressing on the switch that is located on
the side of the right or left armrest.
Note: VELA Tango El is also available with height adjustment via
handheld control (see item 2.0.3.).

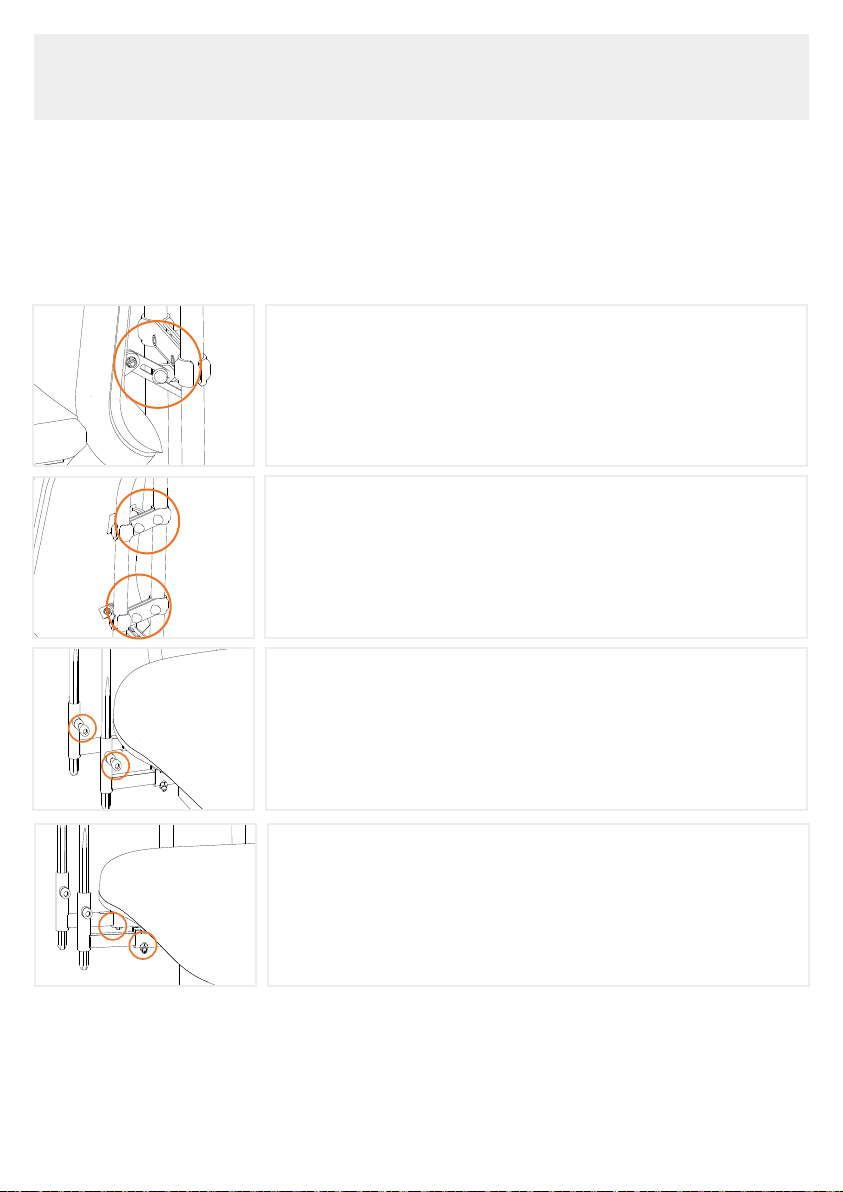

2.0.4. ADJUSTMENT OF SEAT DEPTH
The seat depth is adjusted by loosening the 2 Unbrako bolts
under the seat (next to the backrest arm), after which you will
be able to push the backrest back and forth. Remember to
tighten the Unbrako bolts securely again after adjusting the
seat depth.
2.0. USER MANUAL
The gas spring and the electric lifting mechanism
should only be replaced by a VELA technician or a
person trained in this field.

11
2.0.6. SETTING THE BACK HEIGHT
The back height is adjusted by loosening the 4 Unbrako bolts
that are placed behind the backrest arm. Once they are loose,
the height of the back can be adjusted. Remember to tighten
the Unbrako bolts securely again.
2.0.7. ADJUSTING THE ARMREST HEIGHT
Adjust by loosening both screws under the armrest bar and
adjusting the height of the armrest. Remember to tighten the
screws securely again.
2.0.8. ADJUSTING THE ARMREST WIDTH
Adjust by loosening both screws under the seat. Remember to
tighten the screws securely again.
Note: The armrests may only be adjusted up until the red ’stop’
mark.
2.0.5. ADJUSTING THE BACKREST ANGLE
The backrest is angled by loosening the small screw on the
back bolt, after which the backrest can be adjusted to the
desired angle. Remember to tighten the bolt securely once the
correct angle has been achieved.
* Depending on model

VELA
TANGO
EL
2.0.11. STROLLING BRACKET*
Strolling bracket for transporting a person in the chair. The
strolling bracket is fitted to the top back clamp.
2.0.10. CHARGING (EL)*
Daily charging is recommended. The chair is charged by
plugging the charger into the switch placed behind the chair
under the seat on the right side. An LED will light yellow when
the chair is charging and green when the chair is fully charged.
If the chair is in critical need of charging, a high-pitched noise
will sound. The chair must be charged as soon as possible.
Note: The chair should not be used during charging.
2.0.9. BRAKE
The brake on the VELA Tango is activated by moving the handle
on the side of the chair forward. Unlock the chair by moving the
handle back into the upright position.
Note: Available with the brake mounted on the right or left side.
701.6021 © Vermund Larsen A/S
VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: Tel: [phone] :: [email protected] vela.eu
* Depending on model
