Velleman-Kit High-Q K6200 User manual

0 TO 60 HOUR START / STOP TIMER
K6200
ILLUSTRATED ASSEMBLY MANUAL H6200IP-1
Total solder points: 96 + 43
Difficulty level: beginner 1 2 3 4 5 advanced
Broadrangemainsoperated
start/stoptimer.

VELLEMAN NV
Legen Heirweg 33
9890 Gavere
Belgium Europe
www.velleman.be
www.velleman-kit.com

3
If you want to have a device switched off after a given time, then this timer is the device you are looking for.
Thanks to its big range this timer can be installed just about everywhere, for switching off your TV and HI-FI,
the lights in the stairwell, as a security timer for your automatic coffee-maker, as a dark room timer, for mak-
ing a short chime signal... etc. For the latter application you can control the start/stop timer from a switching
clock such as the K6000 for example.
The rough setting (from a couple of seconds up to about 20 hours) is done using dip switches, while the fine
tuning is achieved by turning a trimming potentiometer.
The timer has push buttons for starting and untimely stopping and it further allows to control the circuit by
relay or open collector (e.g. our 15 channel remote controlled receiver K8050).
The circuit can be fed directly from the mains and is so compact that it fits in a standard adapter housing.
Features:
 Relay output: 5A at 220V
 LED indication
 Setting range: from +/- 3 secs to +/- 60 hours
 Starts promptly when the start push button is pressed
 Can be operated from an external push button or relay
 Can be operated from an open collector output (*)
 Power supply: 24VAC/50mA, 220VAC.
 Fits in an adapter housing (ex. Ordernr. B6713 or G4)
(*) only in case the circuit is fed from a 24V transformer.
Features & Specifications

4
Assembly hints
1. Assembly (Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.
1.1 Make sure you have the right tools:
• A good quality soldering iron (25-40W) with a small tip.
• Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and will
protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.
• Thin raisin-core solder. Do not use any flux or grease.
• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they
cannot fly towards the eyes.
• Needle nose pliers, for bending leads, or to hold components in place.
• Small blade and Phillips screwdrivers. A basic range is fine.
For some projects, a basic multi-meter is required, or might be handy
1.2 Assembly Hints :
⇒Make sure the skill level matches your experience, to avoid disappointments.
⇒Follow the instructions carefully. Read and understand the entire step before you perform each operation.
⇒Perform the assembly in the correct order as stated in this manual
⇒Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.
⇒Values on the circuit diagram are subject to changes.
⇒Values in this assembly guide are correct*
⇒Use the check-boxes to mark your progress.
⇒Please read the included information on safety and customer service
* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaflet.
0
.0
0
0

5
Assembly hints
1.3 Soldering Hints :
1- Mount the component against the PCB surface and carefully solder the leads
2- Make sure the solder joints are cone-shaped and shiny
3- Trim excess leads as close as possible to the solder joint
REMOVE THEM FROM THE TAPE ONE AT A TIME !
DO NOT BLINDLY FOLLOW THE ORDER OF THE
COMPONENTS ONTO THE TAPE. ALWAYS CHECK
THEIR VALUE ON THE PARTS LIST!

6
Construction

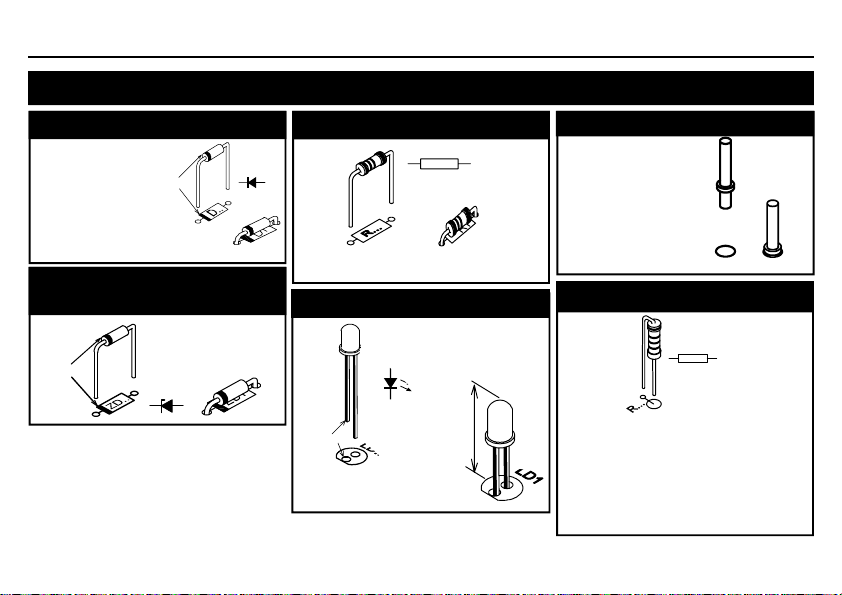

 D1 : 1N4148
 D2 : 1N4007
 D3 : 1N4007
 D4 : 1N4007
 D5 : 1N4007
1. Diodes. Watch the polarity !
D...
CAT HODE
 ZD1 : 15V0
 ZD3 : 24V0
 R18: 1K (1 - 0 - 2 - B)
3. Resistor
R...
ASSEMBLY OF THE RELAY MODULE P6200R
CATHODE
ZD...
 LD1 : 5mm RED
4. LED. Watch the polarity!
COLOR= 2...5
LD...
CATHODE
Min. 30mm
 Mains (2x)
 NO
 COM
 NC
5. PCB tabs
 R19 : 220 (2 - 2 - 1 - B - 9)
 R20 : 100K (1 - 0 - 4 - B)
 Pay attention : R19 is a metal
film resistor and R20 is a 1W
resistor.
6. Vertical resistor
R...
2. Zenerdiodes. Watch the
polarity !

7
Construction & connection

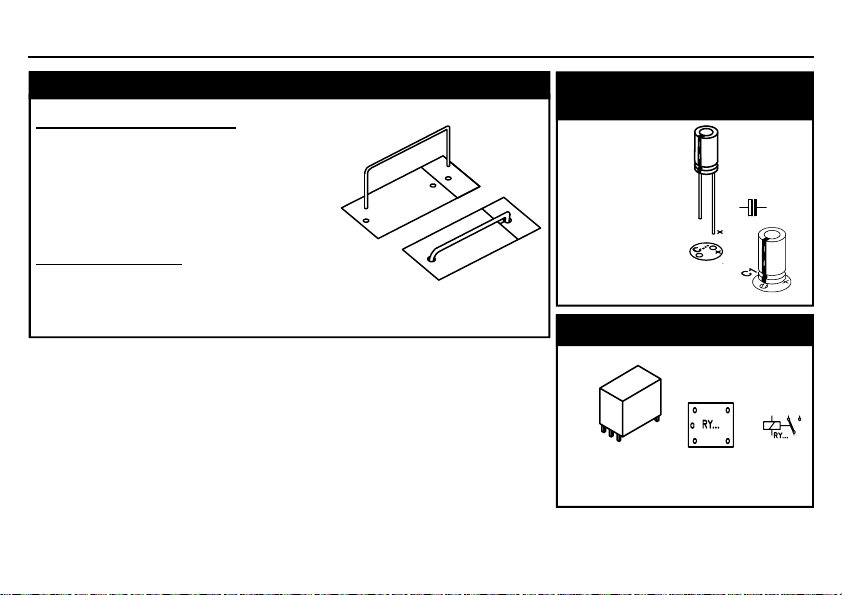

For a 24VAC transformer :
 C7 : Jumper wire (see fig 1.0)
 Required if you are going to control starting
and stopping via an open collector output,
e.g. the 15 channel IR receiver K8050
For 220 - 240VAC :
 C7 : 470nF/400V
7. Choose your operating voltage
C7
C7
Fig. 1.0
 C5 : 100µF
8. Electrolytic Capacitor.
Watch the polarity !
C...
 RY1 : VR15M241C
9. Relay

8
Suppressor network
 C6 : 0,1µF / 400V
Fit capacitor C6 vertically, with only one lead soldered.
In case you want to suppress the NO contact :
Fit R21 (220 ohm 1/2W) also vertically and with only one lead soldered, where after you connect the free
ends of the resistor and the capacitor together (see fig. 2.0).
In case you want to suppress the NC contact :
DON'T fit R21, but R22 (220 ohm 1/2W), in the same way.
 REMARK: with small loads it may be necessary to fit a lower value for C6 (e.g. 22nF/400V), because
otherwise the voltage across the load may not drop to zero when the relay is switched off.
10. Assembly of the suppressor network :
Fig. 2.0

9
Tips
In case the relays are used to switch alternate current, it may be necessary to suppress them.
 Suppress resistive loads (bulb, resistor, ...) :
 Suppress inductive loads (transformer, motor, ...)
 In case all the preceding solutions fail :
11. Tips in the case of noise caused by relays:
Fig. 3.1
Fig. 3.2
Fig. 3.3

10
 C2 : 100nF (104)
 C3 : 100nF (104)
4. Capacitors.
C...  T1 : BC557B
 T2 : BC557B
 T3 : BC557B
7. Transistors.
 R16 : 10K (1 - 0 - 4 - B)
3. Resistor
R...
 R1 : 1K (1 - 0 - 2 - B)
 R2 : 1K (1 - 0 - 2 - B)
 R3 : 1K (1 - 0 - 2 - B)
 R4 : 10K (1 - 0 - 3 - B)
 R5 : 10K (1 - 0 - 3 - B)
 R6 : 10K (1 - 0 - 3 - B)
 R7 : 10K (1 - 0 - 3 - B)
8. Vertical resistors
R...
Construction
ASSEMBLY OF THE BASIC MODULE P6200B
 ZD2 : 15V0
CATHODE
ZD...
1. Zenerdiode. Watch the
polarity !
 IC1 : 16P
2. IC socket, watch the
position of the notch !
 SW3
5. DIP switch
1
SW ...
 C1 : 22nF (223)
6. Capacitor.

11

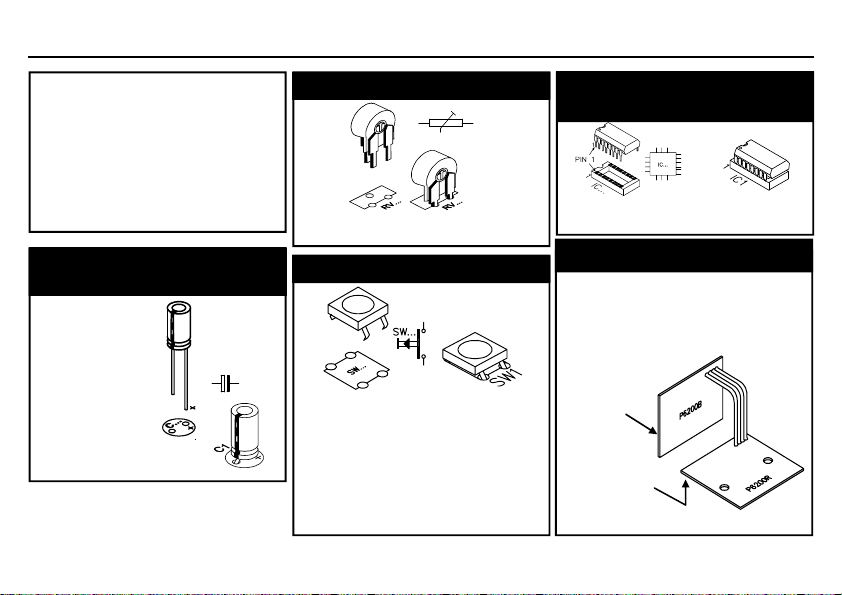

 C4 : 10µF
9. Electrolytic Capacitor.
Watch the polarity !
C...
 IC1 : CD4536
 R8 : 1K (1 - 0 - 2 - B)
 R9 : 10K (1 - 0 - 3 - B)
 R10 : 10K (1 - 0 - 3 - B)
 R11 : 10K (1 - 0 - 3 - B)
 R12 : 10K (1 - 0 - 3 - B)
 R13 : 10K (1 - 0 - 3 - B)
 R14 : 1K (1 - 0 - 2 - B)
 R15 : 10K (1 - 0 - 3 - B)
 R17 : 180K (1 - 8 - 4 - B)
 RV1 : 220K
10. Trimmer
RV...
 SW1
 SW2
 Mount them on the solder
side and carefully solder their
connections.
11. Push button
Construction
12. IC, Check the position of
the notch!
 Connect the points RY, - , V
and + of both PCB’s to each
other.
13. Assembly of the 2 PCB’s
Solder side !
Solder side !

12
 Turn RV1 to its centre position
 Check that all the switches of the DIP switch are in the OFF state
 In case the timer was built for connection to the mains, connect the mains voltage to the points marked MAINS,
otherwise a transformer must be connected to these points, which can supply 24 to 28VAC at 50mA.
 BEWARE: when using mains power, certain points in the circuit will carry this voltage.
Be careful what you touch!
 Press the start button. Now the relay must be activated (also the LED must come up), and released after a
couple of seconds.
 Press the start button and immediately press the stop button. Now the relay must be released immediately.
14. Test
Test

13
Connecting separate push buttons (fig. 6.0):
 Connect two push buttons with a normal open contact to the points “+” and “-”, marked SW1 and SW2
respectively. SW2 allows to start the timer while SW1 allows to stop it.
Driving through open collector outputs, e.g. the 15 channel IR receiver K6711 (fig. 7.0):
 Use a 24 to 28VAC 50mA transformer to feed the timer (attention: C7 must be short-circuited).
 Connect the “-” of one of the two push buttons to the “-” of the driving circuit.
 Connect the open collector outputs of the driving circuits to the “+” of SW1 and the “+” of SW2.
16. Other connections
Other connections

14

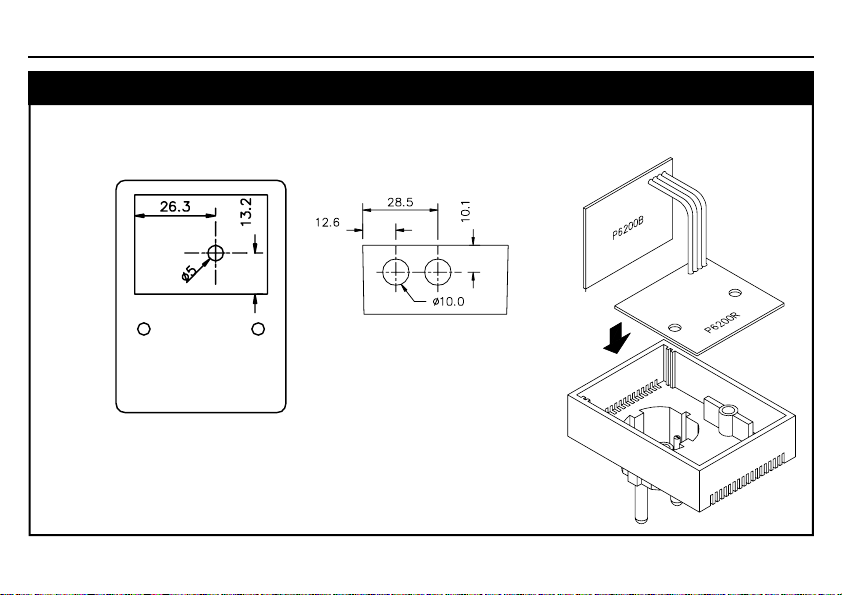

 After the test has been performed successfully you can possibly fit the modules into an adapter housing.
 First make the holes in the cover as shown in figure 4.0
 Connect the mains plug to the MAINS connections
 Mount the modules into the housing as shown in figure 5.0
 After having fitted the cover, check that the LED and the push buttons
are in the right positions.
15. Assembly
Assembly
Fig. 4.0
Fig. 5.0

15
STOP START
-+
SW1
-
SW2
+
MAINS
MAINS
P6200R
P6200B
P6200B
P6200R
MAINS
+
SW2
-
SW1
+
-
18...24VAC
50mA
C7
Other connections
Fig. 6.0 Fig. 7.0

16
See the table for setting the desired time.
Example: with all switches OFF the range is 2 to 8 seconds, and the right time must be adjusted by turning
trimmer RV1.
With every next setting of the switches the adjusted time is doubled. If, for example the time has been ad-
justed to 4 seconds, then, with the next setting (1 off, 2 off, 3 off and 4 on) the time will be set to 8 seconds.
The higher you select the start time to be adjusted, the more accurate the time finally set will be.
17. Setting the desired time
SW3 settings
Time range
SW3 settings
1 2 3 4 1 2 3 4
OFF OFF OFF OFF 2 - 8 sec ON OFF OFF OFF 13 - 30 min
OFF OFF OFF ON 5 - 15 sec ON OFF OFF ON 25 - 60 min
OFF OFF ON OFF 10 - 30 sec ON OFF ON OFF 50 - 120 min
OFF OFF ON ON 25 - 60 sec ON OFF ON ON 100 - 240 min
OFF ON OFF OFF 50 - 110 sec ON ON OFF OFF 3,5 - 8 hrs
OFF ON OFF ON 1,5 - 3,5 min ON ON OFF ON 7 - 16 hrs
OFF ON ON OFF 3 - 7,5 min ON ON ON OFF 14 - 32 hrs
OFF ON ON ON 6,5 - 15 min ON ON ON ON 24 - 64 hrs
Time range
Settings

17
18. PCB layout (RELAY MODULE P6200R)
PCB

18
PCB layout (BASIC MODULE P6200B)
PCB

19
19. Diagram
Diagram
R10
R3
C3
+V1
ZD2
R18
ZD1
C4
LD1
MAINS
STOP
IC1
16 3
5
4
13
14
12
11
10
9
D
C
B
A
76815
2
1
NC
NO
COM
C6
R22R21
R12
+V
R7 R6 R5R4
SW3
D1
RY1
+V1
T1
R15
R16
R2
C1
RV1R17
R11
+V
C2
R1
+V
SW1
+V
ZD3
C5
D3
D5D2
D4
C7
R19R20
T3
R13
R14
+V
R8
R9
SW2
START
T2
1234
