Velleman CAMIP15 User manual

CAMIP15
REAL PLUG AND PLAY IP COLOUR CAMERA – WIFI
REAL PLUG-AND-PLAY IP-KLEURENCAMERA – WIFI
CAMÉRA IP COULEUR – REAL PLUG-AND-PLAY ET
WIFI
CÁMARA IP A COLOR REAL PLUG AND PLAY – WIFI
REAL PLUG AND PLAY IP-FARBKAMERA – WIFI
CÂMARA A CORES DE FÁCIL INSTALAÇÃO - WIFI
USER MANUAL
14
GEBRUIKERSHANDLEIDING 22
MODE D'EMPLOI 30
MANUAL DEL USUARIO 39
BEDIENUNGSANLEITUNG 48
MANUAL DO UTILIZADOR 57

CAMIP15
V. 02 14/05/2014 2 ©Velleman nv
1
2

CAMIP15
V. 02 14/05/2014 3 ©Velleman nv
4
iPhone Android

CAMIP15
V. 02 14/05/2014 4 ©Velleman nv
5
iPhone Android
6
iPhone
Android

CAMIP15
V. 02 14/05/2014 5
©Velleman nv
7
iPhone Android
8
iPhone Android
©Velleman nv

CAMIP15
V. 02 14/05/2014 6
©Velleman nv
9
iPhone Android
10
iPhone Android
©Velleman nv

CAMIP15
V. 02 14/05/2014 7
©Velleman nv
11
iPhone Android
12
iPhone Android
©Velleman nv

CAMIP15
V. 02 14/05/2014 8
©Velleman nv
1
iPhone Android
14
©Velleman nv

CAMIP15
V. 02 14/05/2014 9 ©Velleman nv
15
iPhone
Android
Set the Wi-Fi setup switch on the back of the
camera to OFF.
16

CAMIP15
V. 02 14/05/2014 10 ©Velleman nv
16
17
18

CAMIP15
V. 02 14/05/2014 11
©Velleman nv
19
20
21
©Velleman nv

CAMIP15
V. 02 14/05/2014 12 ©Velleman nv
22
2

CAMIP15
V. 02 14/05/2014 13 ©Velleman nv
24

CAMIP15
V. 02 14/05/2014 14
©Velleman nv
USER MANUAL
Introduction
To all residents of the European Union
Important environmental information about this
product
This symbol on the device or the package indicates
that disposal of the device after its lifecycle could
harm the environment. Do not dispose of the unit
(or batteries) as unsorted municipal waste; it
should be taken to a specialized company for
recycling. This device should be returned to your
distributor or to a local recycling service. Respect the local
environmental rules.
If in doubt, contact your local waste disposal
authorities.
Thank you for choosing Vel
leman! Please read the manual
thoroughly before bringing this device into service. If the
device was damaged in transit, don't install or use it and
contact your dealer.
Safety Instructions
Keep the device away from children and
unauthorised users.
Indoor use only. Keep this device away from
rain, moisture, splashing and dripping liquids.
Never put objects filled with liquids on top of or
close to the device.
Risk of electroshock when opening the cover.
Touching live wires can cause life-threatening
electroshocks. Do not open the housing yourself.
Have the device repaired by qualified personnel.
©Velleman nv
This symbol on the device or the package indicates
that disposal of the device after its lifecycle could
harm the environment. Do not dispose of the unit
recycling. This device should be returned to your
distributor or to a local recycling service. Respect the local
leman! Please read the manual

CAMIP15
V. 02 14/05/2014 15
©Velleman nv
DO NOT
disassemble or open the cover. There are
no user-serviceable parts inside th
e device. Refer
to an authorized dealer for service and/or spare
parts.
General Guidelines
Refer to the Velleman® Service and Quality Warranty
on the last pages of this manual.
•Keep this device away from dust and extreme heat.
•Protect this device from shocks and abuse. Avoid brute
force when operating the device.
•Familiarise yourself with the functions of the device
before actually using it.
•All modifications of the device are forbidden for safety
reasons.
•Only use the device for its intended purpose. Using the
device in an unauthorised way will void the warranty.
•
Damage caused by disregard of certain guidelines in this
manual is not covered by the warranty and the dealer will
not accept responsibility for any ensuing defects or
problems.
•DO NOT use this product to violate privacy laws or
perform other illegal activities.
Installation
(See fig. 1)
1.
Unscrew the base of the camera and remove the metal
plate.
2. Fasten the mounting bracket to the wall with the
included screws and anchors.
. Reattach the base cover
and screw the stand back onto
the mounting bracket.
4. Adjust the viewing angle of the camera.
Caution: Do not aim the camera at the sun or other
extremely bright objects.
©Velleman nv
disassemble or open the cover. There are
e device. Refer
Damage caused by disregard of certain guidelines in this
manual is not covered by the warranty and the dealer will
Unscrew the base of the camera and remove the metal
and screw the stand back onto

CAMIP15
V. 02 14/05/2014 16 ©Velleman nv
Configuration
1. There’s an App for That
To get started, download the iSecurity+ app from Apple’s
App Store (iPhone, iPad) or the Google Play market
(Android).
2. Connect the Camera
(See fig. 2)
Plug the included power adapter into the camera and
connect it to a power socket.
. Wi-Fi Setup Mode
(See fig. 3)
1. Make sure that the Wi-Fi setup switch on the back of the
camera is set to ON.
2. Wait until the Wi-Fi setup LED glows green,
indicating that the camera is ready for setup. This may
take up to 2 minutes when the camera is switched on
for the first time.
4. Connect the Mobile Device to the Camera
On your mobile device, go to Settings > Wi-Fi, and
connect to the IPCAM wireless network.
(See fig. 4)

CAMIP15
V. 02 14/05/2014 17 ©Velleman nv
Note: The network name begins with “+CAM” and ends
with the last 4 digits of the MAC id, which can be found on
the back of the camera.
5. Launch the iSecurity+ App
1. Once your mobile device establishes the connection to
the IPCAM (this takes about 30 seconds), launch the
iSecurity+ app. (See fig. 5)
2. The iSecurity+ app automatically detects your camera.
When prompted, click Yes to set up your camera.
6. Setup Wizard
Follow the instructions in the Camera Setup wizard to
complete the installation. (See fig. 6)
7. Camera Preview
If the connection to your mobile device is successful, you
will see the camera images on your mobile device. Proceed
with the next step. (See fig. 7)
8. Connect to Internet
1. Choose your Wi-Fi network to connect to internet. (See
fig. 8)
2. Enter your Wi-Fi network password and press Continue
to access internet. (See fig. 9)
. Wait until your mobile device establishes the internet
connection. (See fig. 10)
9. Connect to iSecurity+
1. Create a new iSecurity+ account or use an existing
account to connect with the iSecurity+ app. (See
fig. 11)
2. Enter your iSecurity+ username and password and press
Sign in. (See fig. 12)
10. Set up Camera Info
1. Create the camera name (mandatory) and its
description (optional). Press Continue. (See fig. 13)
2. Wait until the camera is registered on the iSecurity+
server. (See fig. 14)

CAMIP15
V. 02 14/05/2014 18
©Velleman nv
11. Complete Setup
When setup is complete, an information screen appears.
(See fig. 15)
1. Set the Wi-
Fi setup switch on the back of
the camera to OFF.
2.
Reconnect your mobile device to internet through 3G or
via the Wi-Fi router. You can now use your mobile
device to see the camera images anywhere in
the world.
iSecurity+ Features
(See fig. 16 for iPhone. Features for Android are similar;
press and hold the camera name to configure the camera.
)
1
Camera status
2
Configure camera
Friend’s cameras
4
Recorded events
5
App settings
6
Share/Unshare
: choose to share your camera images
with your friends. Note: you have to add your friends in
the Seedonk internet application first.
7
Rotation: Select Normal or Flipped vertically.
8
IR (Infrared Lights)
: switch IR LEDs on, off, or select
Auto (automatic)
9
Audio-only mode
10
Take a snapshot
11
Record a video
12
Mute on/off
Accessing the Camera via
the Seedonk
Internet Application
1. Open your internet browser (IE, Firefox, Google
Chrome…) and type
http://www.seedonk.com/login.html
in the address bar. (See fig. 17)
©Velleman nv
Reconnect your mobile device to internet through 3G or
the world.
)
: choose to share your camera images
with your friends. Note: you have to add your friends in
: switch IR LEDs on, off, or select
the Seedonk
http://www.seedonk.com/login.html

CAMIP15
V. 02 14/05/2014 19 ©Velleman nv
2. Enter your Seedonk username and password to view the
camera images on your pc. Create a new account if
necessary. (See fig. 18)
Seedonk iSecurity+
In the camera settings, you can access a trial version of
extra iSecurity+ software: it supports push notification and
Cloud video recording. (See fig. 19)
1. Press Yes to start the trial.
2. Define the motion sensitivity and switch on the motion
detection function.
For more details, visit www.seedonk.com
Attention
To prevent hacking or other interferences, if someone logs
into your account, a message appears on your mobile
device. (See fig. 20)
Troubleshooting
LED status indicators
Wi-Fi setup
green setup mode on
orange setup mode initialising
off setup mode off
Network
green connected to iSecurity+
orange connected to local network
flashing
orange
not connected to any
network
Power green power on
Reset Button
To reset the camera:
1. Set the Wi-Fi setup switch on the back of the camera
to OFF.
2. Use a thin pin to press and hold the reset button for
about 10 seconds to reset the camera. (See fig. 21)

CAMIP15
V. 02 14/05/2014 20 ©Velleman nv
FAQ
Q1. I have more than one camera. Can I use the same
Seedonk user account to connect the other cameras too?
A: You can add an unlimited number of cameras to your
Seedonk account as long as you give each of them a
different name. (See fig. 22)

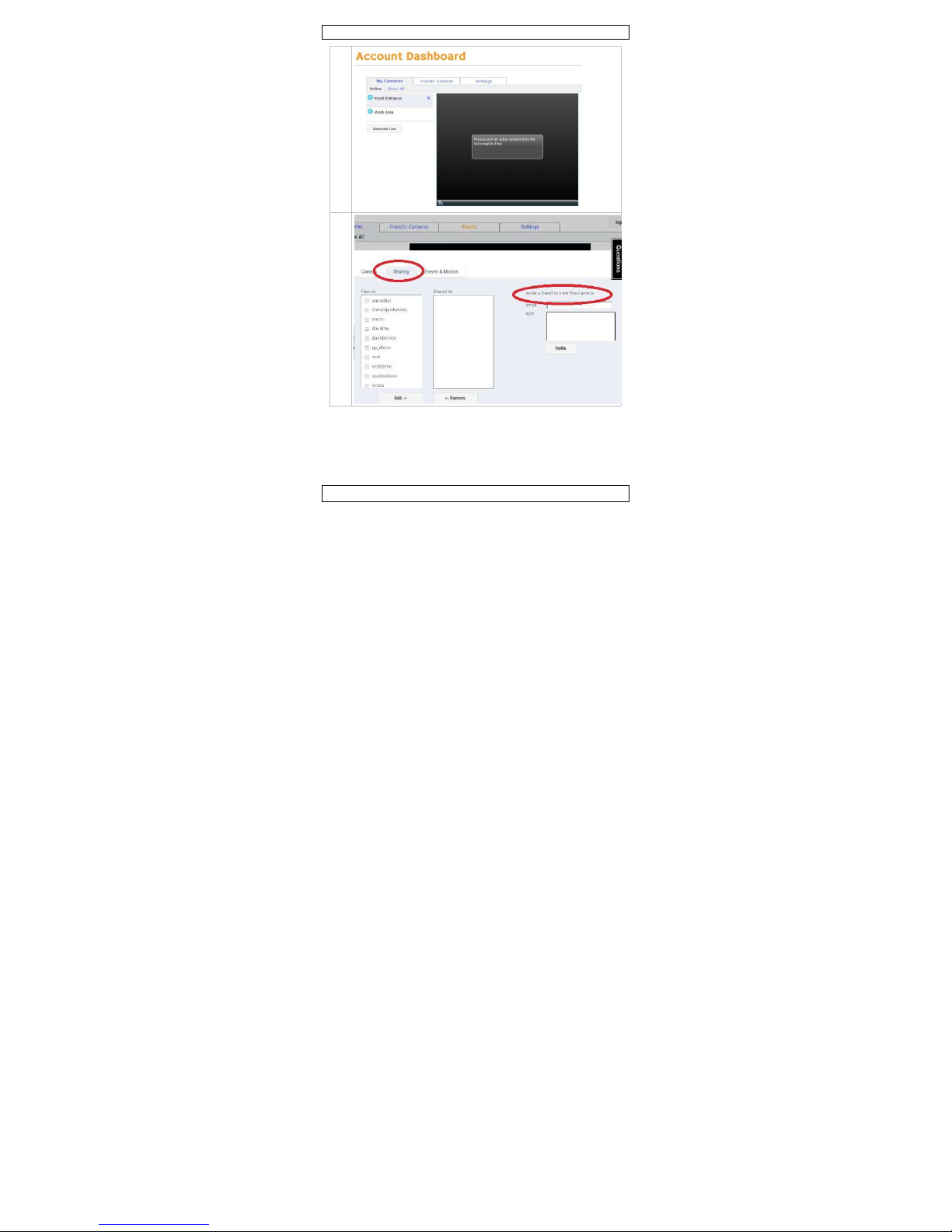

Q2. How can I share the camera images with my friends?
A: Log in to your Seedonk account. On the Sharing tab,
type your friend’s e-mail address to invite them to see your
camera images. (See fig. 23)
Q3. Can I change my username?
A: Your username identifies your account, and once set it
cannot be changed. If you want a different username, you
have to create a new account. Please note that any
subscription services (if applicable) cannot be transferred to
the new account.
Q4. I have forgotten or lost my password.
A: On the login screen, click the Forgot your password?
button. On the web page that appears, type in your
username and e-mail address, then click the Reset button
to set up a new password.
Q5. How can I upgrade the firmware?
A: Log in to your Seedonk account. On the camera
configuration page, a screen will indicate that new firmware
is available. (See fig. 24) Click Update Now! to install the
new firmware. This may take 5-10 minutes.
For More Information
To get software updates or to learn more about Seedonk
and its apps, please visit www.seedonk.com.
