Velleman K8095 User manual

Usermanual for MP3 player K8095.
Version 1.0

Page 2 of 9
Table of contents:
OVERVIEW PUSH BUTTON CONTROL..................................................................................................................................... 3
LED INDICATIONS .................................................................................................................................................................. 4
STEREO / MONO USE............................................................................................................................................................. 4
LEARNING A REMOTE ............................................................................................................................................................ 5
1. LEARNING A RF REMOTE (VM118R / K8058 / VM160DT / VM160T)............................................................................ 5
2. LEARNING A IR REMOTE (K8049)................................................................................................................................. 5
KEYBOARD LAYOUT FOR OPTIONAL REMOTES ...................................................................................................................... 6
SOUND & PLAY MODES ......................................................................................................................................................... 7
1. SOUND MODES:.......................................................................................................................................................... 7
2. PLAY MODE: ............................................................................................................................................................... 7
3. RANDOM MODE: ........................................................................................................................................................ 7
All folders:....................................................................................................................................................................................... 7
Selected folder:............................................................................................................................................................................... 8
PRESET PUSH BUTTONS “A” – “B” – “C” – “D” – “E”............................................................................................................... 9
The manual describes the use of the MP3 player if a LCD-display is mounted.
Some functions are not accessible or cannot be used if no LCD is mounted. !

Page 3 of 9

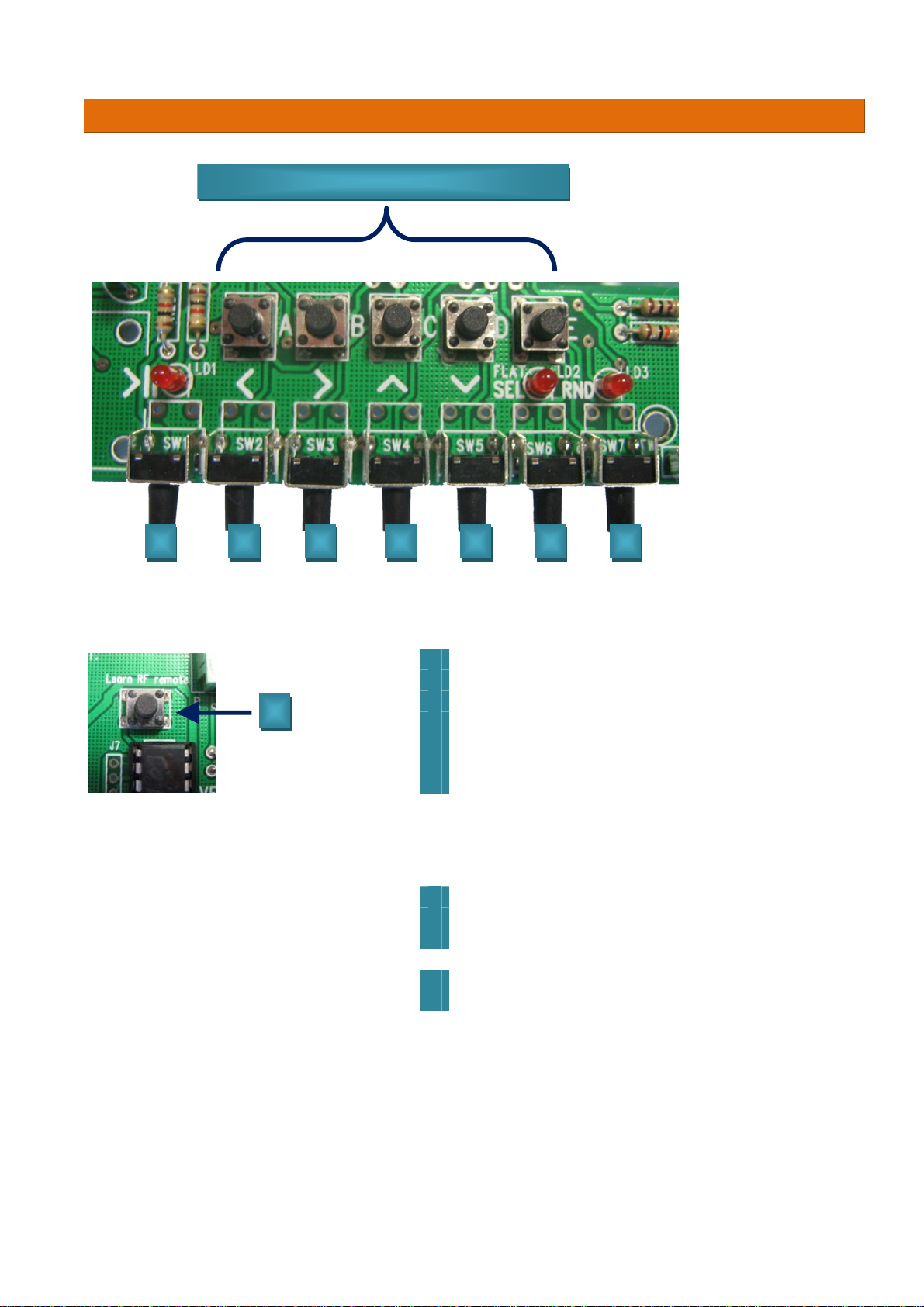

Overview push button control
Short Press:
Long Press:
*
These preset buttons will be assigned to folders A to E by default if these folders are present onto the SD card.
**
This function isonly available if an LCDdisplay is mounted (see info sheet ‘how tomount an LCDdisplay?’ on the
product website).
1
Play / Pause
2
Back
3
Forward
4
Volume up
5
Volume down
6
Sound mode
7
Rando
m
1
Sleep mode
2
Fast backward
3
Fast forward
6
Folder select / play mode**
8
Learning a RF remote
8
Preset buttons : Play or learn a folder/music *
1 2 3 4 5 6 7

Page 4 of 9

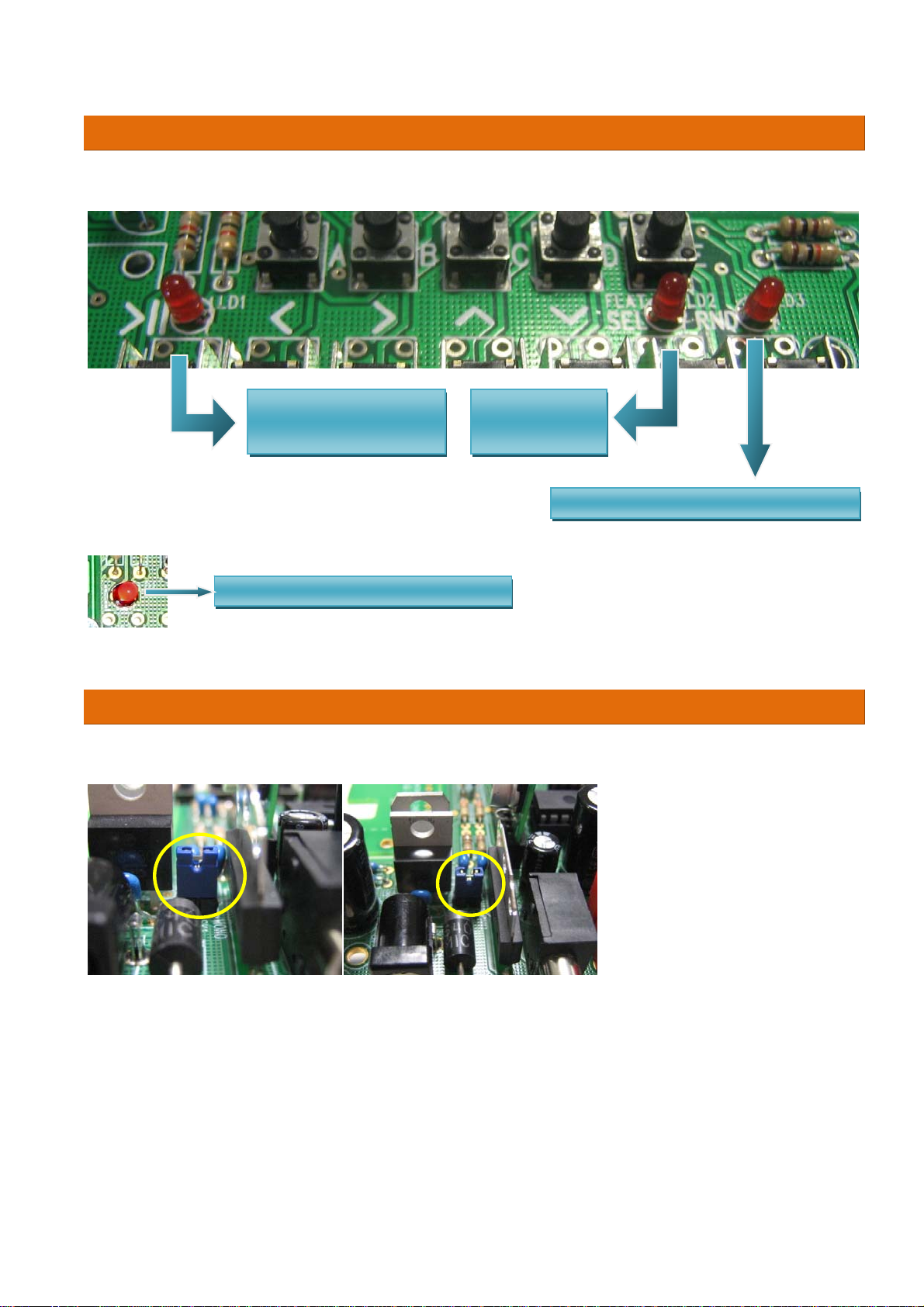

LED indications
Stereo / Mono use
For mono output, mount a shunt on SK1.
LD1 LD2 LD3
Continu : random mode is activated
Flat sound mode
ON : pla
y
Blinking : pause
OFF : sleep mode
LD4 Power indication, lights during operation

Page 5 of 9
Learning a remote

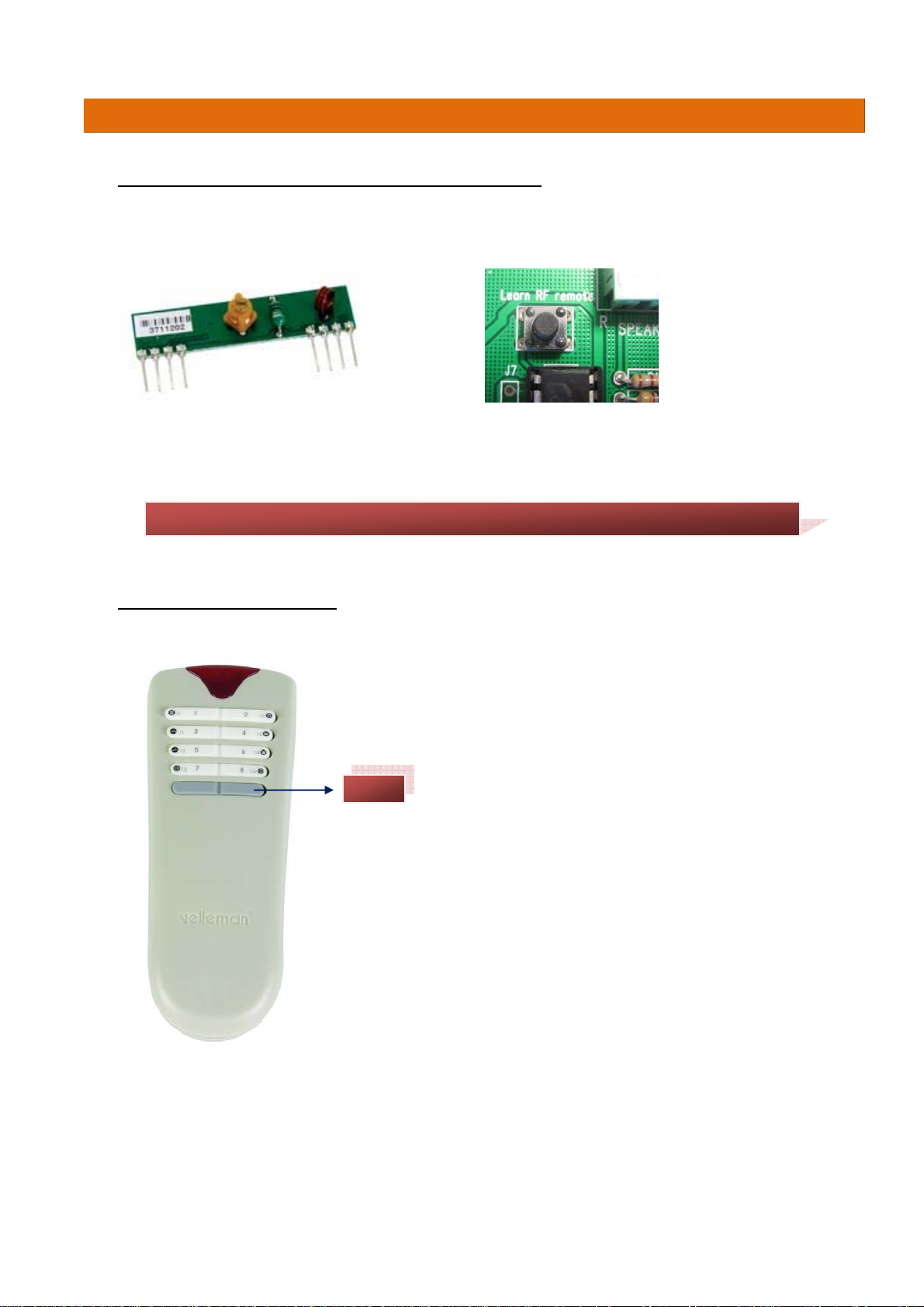

1. Learning a RF remote (VM118R / K8058 / VM160DT / VM160T)
Learning a RF remote is only possible when the RF-receiver is mounted. Art. RX433N
Keep push button SW13 pressed while transmitting with the remote. The LCD display will blink twice
to confirm that the remote is learnt (if no display is mounted LED LD4 will blink twice).
2. Learning a IR remote (K8049)
•See section “mode selection” in the manual of K8049 for setting the
remote on “MODE 4”.
•The remote is now ready to be used.
•
SHIFT
)Attention: Learning a remote erase the previous saved remote.

Page 6 of 9

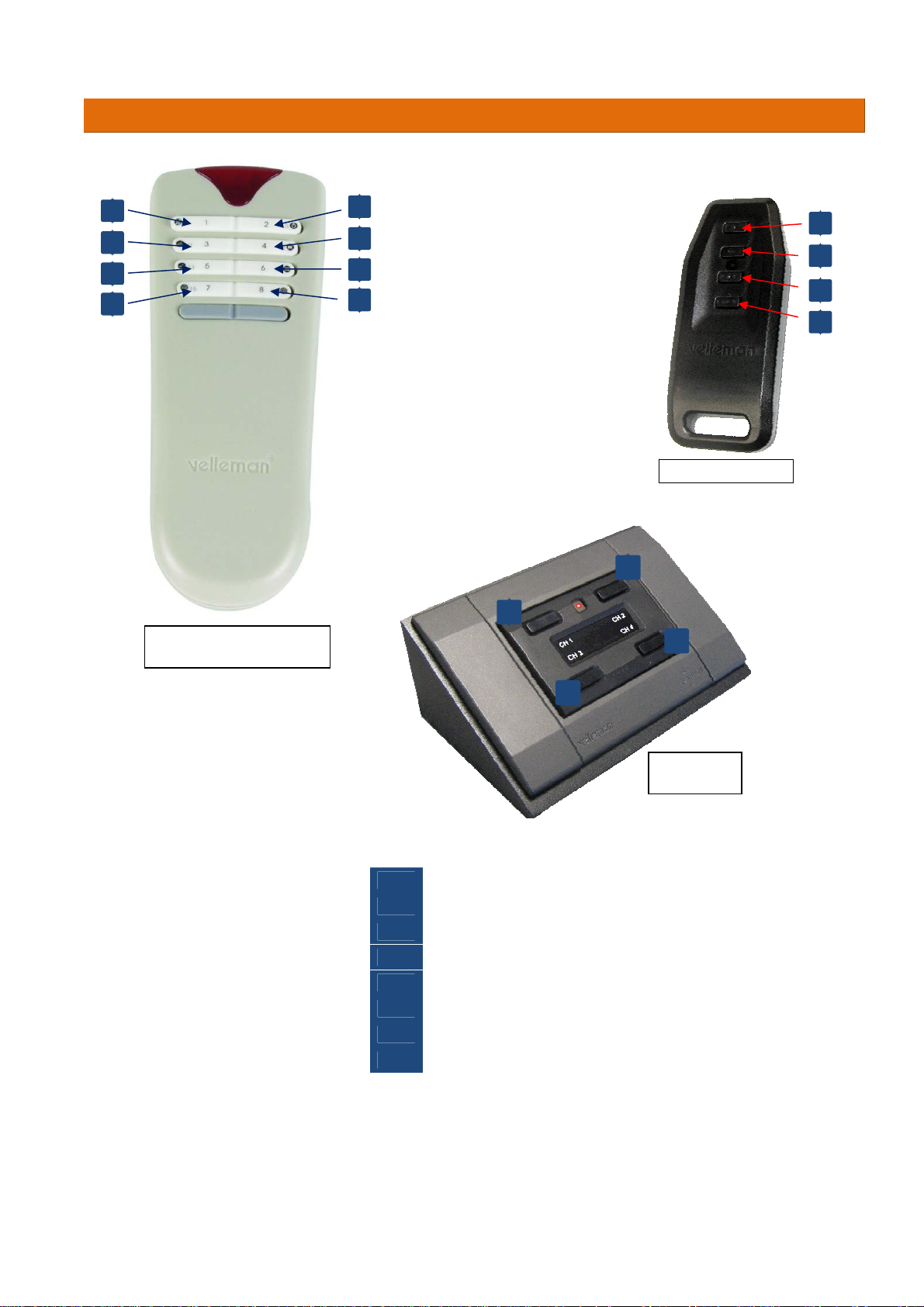

Keyboard Layout for optional remotes
1 Play / Pause
2 Volume Up
3 Volume down
4 Random
5 Power off
6 Next
7 Previous
8 Browse presets
1
3
2
4
5
7
6
8
2
3
6
7
2
3
6
7
RF-remotes: K8058 / VM118R
IR-remote : K8049
RF-remote: VM160T
RF-remote:
VM160DT

Page 7 of 9
Live - Hall -
Flat-
Loudness -
Heavy - Clear -
Soft and Disco
Play all - Play
folder - Repeat
folder - Repeat
all - Shuffle -
startup play on
- startu
p
p
la
y
Sound & Play modes
The MP3 player features several possible play modes and preset sound modes. The “play mode” is only available
when a LCD-display is mounted!
1. Sound modes:
2. Play mode:
•Play all: play all folders
•Play folder: play only the selected folder
•Repeat folder: repeat the selected folder after the last played song
•Repeat all: repeat all folders after the last played folder
•Shuffle: play in random mode all songs of all folders. In this mode a song can
be played several times.
•Startup play on: When the MP3 unit is powered off it will start automatically to
play when powered on.
•Startup play off: When the MP3 unit is powered off it doesn’t start
automatically to play when powered on.
To select a play mode keep push button SW2 long pressed so that you come into the setup mode, press once
shortly to go to the “playmode” folder. With the push buttons SW4 “volume up” en SW5 “volume down” you
can choose the mode and confirm with SW2.
If you want this mode for next times after switching off the power you must place the MP3 shortly in sleep
mode to save your settings
.
3. Random mode:
All songs or the songs of the selected folder will randomly played once.
All folders:
• press long SW6 “select” to open the setup menu.
• Press short “SW6” for the play mode.
• choose the mode “play all” with push buttons SW4 (up) / SW5 (down)
• Confirm with a short press on SW6
• Press push button SW7 for random play

Page 8 of 9
Selected folder:
•Select mode
opress long SW6 “select” to open the setup menu.
oPress short “SW6” for the play mode.
ochoose the mode “play folder” with push buttons
SW4 (up) / SW5 (down)
oConfirm with a short press on SW6
•Select folder
opress long push button SW6 “select” to open the setup menu.
oSelect the folder with push buttons SW4 (up) /SW5 (down)
oConfirm with a short press on SW6
•Press push button SW7 for random play
Only possible
if a LCD is
mounted

Page 9 of 9
Preset push buttons “A” – “B” – “C” – “D” – “E”
All preset push buttons will automatically be linked to a folder on the SD-card.
To do this it’s necessary that the folders on the SD-card have the folder name: A, B,C, D and E, each folder have
it’s own music files.
By pressing on a preset push buttons you’ll play the music files that are saved in the folder.
It’s possible to re-assigned other folders to these preset push buttons.To change the pre-assigned push buttons
it’s advisable that the LCD is mounted.
Procedure to re-assign a preset push button
First select a folder
•Press long push button SW6 “select” to open the setup menu.
•Select the folder with push buttons SW4 (up) / SW5 (down)
•Confirm with a short press on SW6
Assign now the folder
•Play a song of the selected folder.
•Press push button SW1 to pause the MP3 player
•Press long on the preset button where you wantto assigned the folder on it.
•The name of the presetbutton and the song of that folder appears on the LCD-display
•Led LD4 will blink fast to confirm if no LCD is mounted, if LCD display is mounted a message appear on the
screen (see. Fig.)
