VenMill Elite 60 User manual

Elite 60TM User Manual
Covers getting to know your machine,
repairing an optical disc, maintenance,
menus, displays and warranty coverage.

This unit is intended to clean/repair the
following discs: CD-ROMs, Music CDs, Data
CDs, DVDs, HD-DVDs, Computer Discs,
Game Discs, Books on disc, all recordable
CDs and DVDs, double-sided discs, & 3 Inch
Discs (only with adapter).
SAVE ALL PACKING MATERIALS. FAILURE
TO USE PACKAGING DESIGNED FOR THIS
UNIT MAY CAUSE DAMAGE TO THE UNIT
AND WILL VOID WARRANTY. FOR MORE
INFO CONTACT [email protected]
THANK YOU
For purchasing the Elite 60TM
© 2009 VenMill Industries, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in
whole or in part, without the written consent of VenMill.
Every eort has been made to ensure that the information in this manual is accurate. VenMill is not responsible
for printing or clerical errors.
VenMill, Skip-Away, Elite 60 & OptoClear names and designs are trademarks of VenMill Industries, Inc. Artwork
and Design © 2008 VenMill Industries, Inc. All Rights Reserved.
The maximum amount of repairs per cartridge may vary based on cleaning cycle usage. At this time Blu-ray discs
can only be maintained, not repaired, due to the nature of the disc. A disc adapter (included) will be needed for
3 inch disc repair or cleaning. See www.venmill.com for more information.
CAUTION: Units and consumables are designed for use in specic regions. Your warranty will be voided if you
purchase the equipment and/or consumables outside of your designated region. Purchase only through Authorized
Distributors found on our website at www.venmill.com. If uncertain, please contact [email protected].
Note: Discs can be repaired an unlimited amount of times. However, never run a disc two times consecutively
without letting the disc cool to room temperature after each repair cycle.
VenMill Industries, Inc
36 Town Forest Rd
Oxford, MA
USA 800-928-0090
No. Am. 866-864-0210
Intl. 508-363-0410
Fax [phone]
www.venmill.com

READ BEFORE OPERATING EQUIPMENT
SECTION 1
Unpacking and Repacking............................................................................................1
SECTION 2
Getting to Know Your Unit............................................................................................2
SECTION 3
Quick Start ..........................................................................................................................3
SECTION 4
Onscreen Displays............................................................................................................5
SECTION 5
Operation............................................................................................................................6
Operation Modes.....................................................................................................6
Using your 3 Inch Adapter....................................................................................7
SECTION 6
Menu Screen ......................................................................................................................8
SECTION 7
Standard Maintenance...................................................................................................9

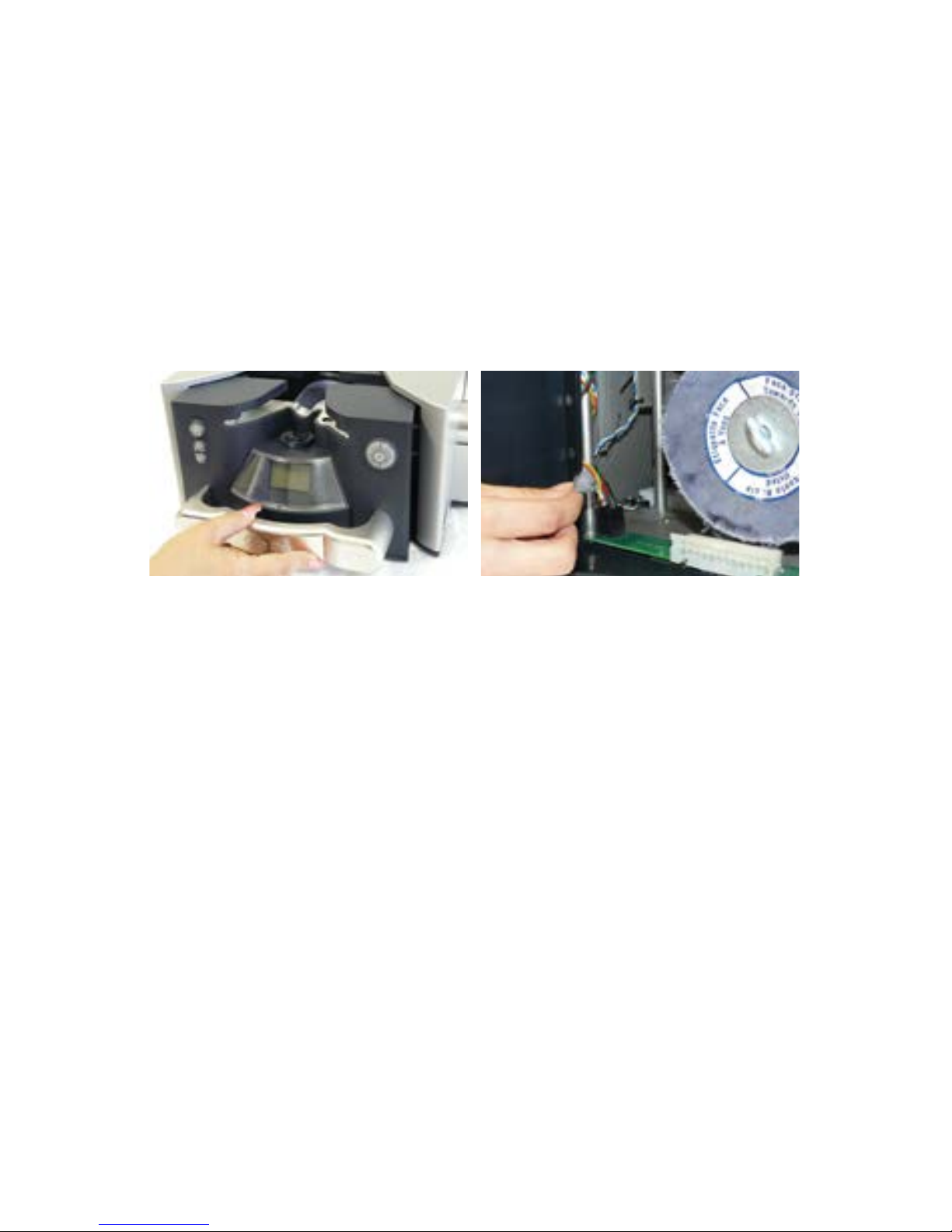

Replacing the OptoClearTM Cartridge...............................................................9

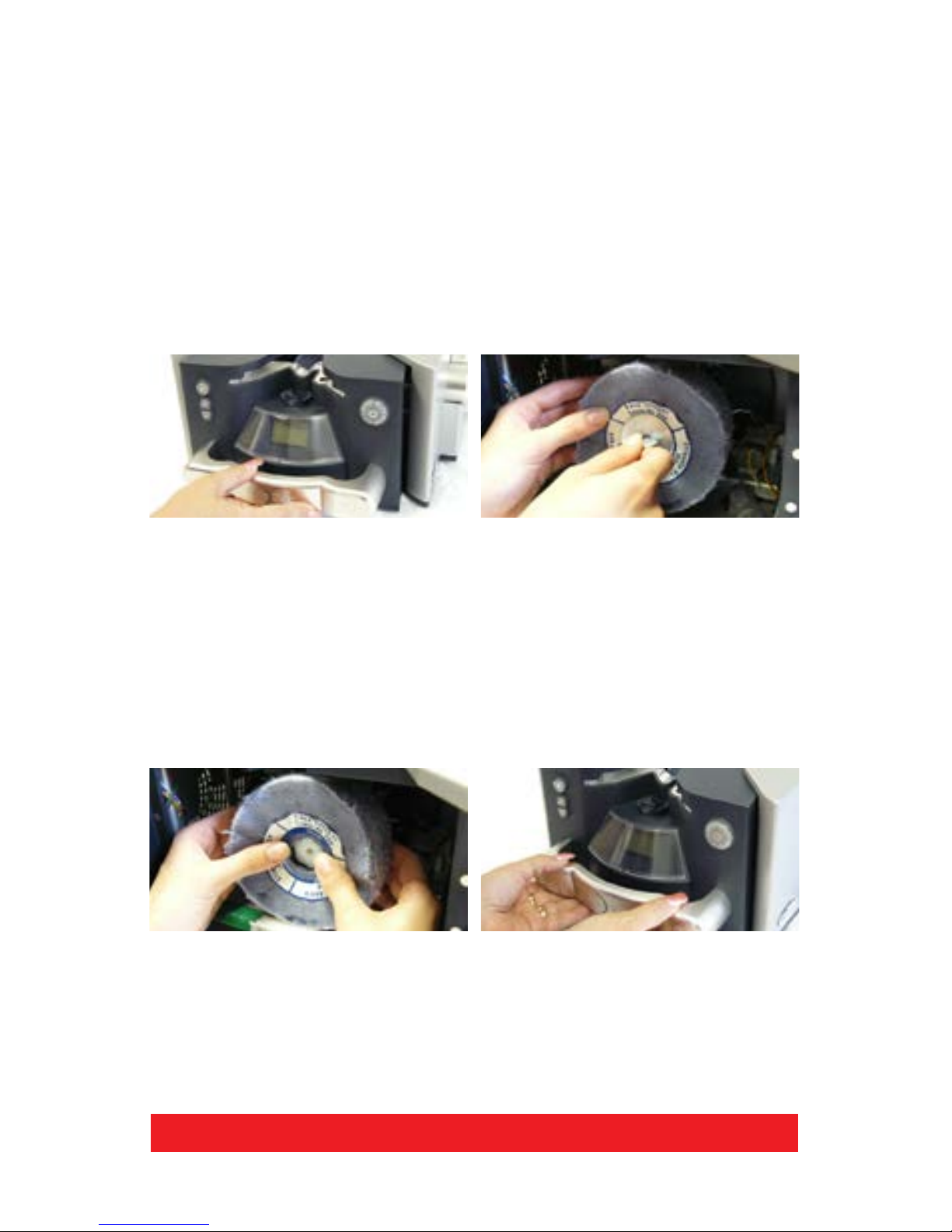

Replacing the Bung Wheels.......................................................................... 10
Cleaning the Bung Wheels............................................................................ 11
Cleaning the Cleaner Disc ................................................................................. 11
Cleaning the Elite 60TM ........................................................................................ 12
Cleaning the Drive Wheel.................................................................................. 12
Error Codes.............................................................................................................. 12
SECTION 8
Elite 60TM FAQs ................................................................................................................ 13
SECTION 9
Elite 60TM 1 Year Limited Warranty........................................................................... 16

SECTION 1 Unpacking and Repacking
1
UNPACKING YOUR UNIT
Please use these instructions if you need to
repackage your unit for shipment. Reverse
the unpacking instructions for repacking the
unit back up.
SAVE ALL PACKING MATERIALS. FAILURE
TO USE PACKAGING DESIGNED FOR THIS
UNIT MAY CAUSE DAMAGE TO THE UNIT
AND WILL VOID WARRANTY.
1. Open the brown outer shipper box.
2. Remove Elite 60 retail box from outer
shipper. Carefully open up the box.
3. Pull out the KorrVu plastic.You may nd
that some tightness will occur.
4. Remove all supporting documents and
accessories including the power cord
and power adapter in the box.
5. Gently remove the Elite 60. You may
also use the handle on top of the unit
to remove it out of the box.
6. For space saving both KorrVu’s can
collapse to at pieces along with the
retail and outer ship box.
If you have any questions or difficulties
please feel free to call VenMill Industries
CustomerSupport toll freeat 866-864-0210

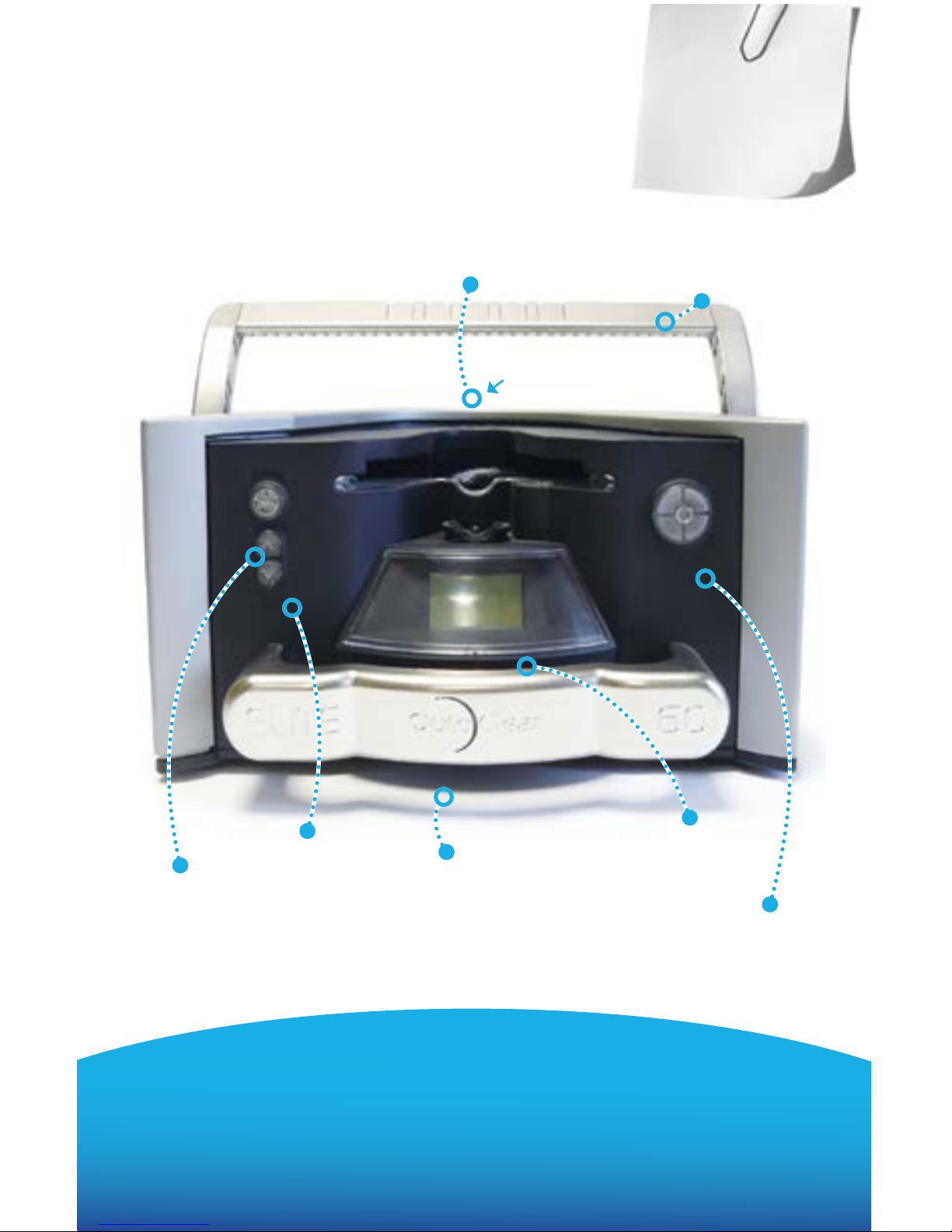

3 Inch Adapter
Holder
Repair Button
Blue = repair mode
Green = clean mode
Red Flashing = Error
Drawer Handle
Display
Menu Scroll
located in back of unit
Power Button
Green = power
Orange = standby
Carrying Handle
SECTION 2
Getting to
Know Your Unit
2

2Press the power button.
Pic three
Pic one
Warning!

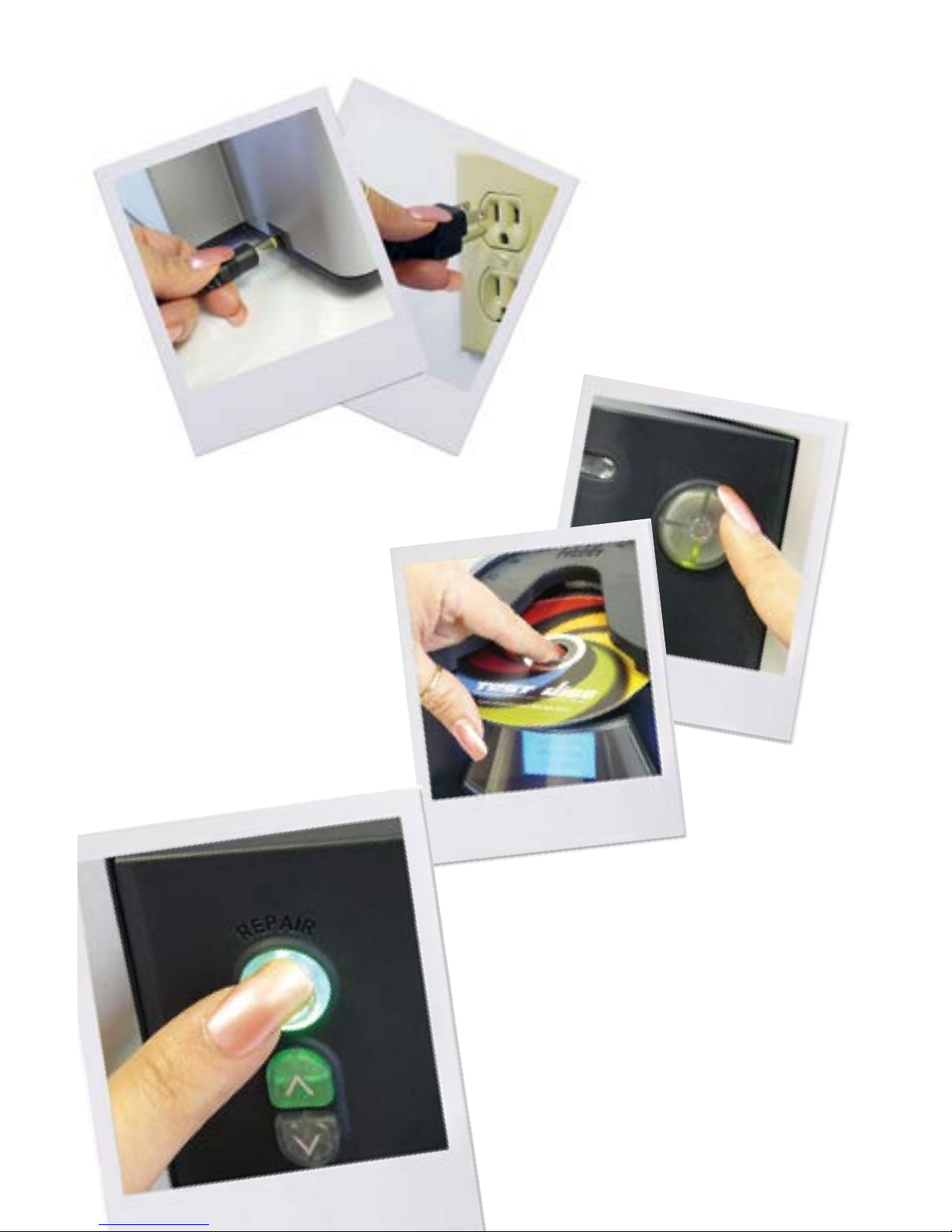

1Plug in the Elite 60TM
power cord.
WARNING!: Plug directly
into outlet. Do not use
Extension Cords.
SECTION 3 QUICK START
3Remove the Disc
installed during shipping.
(1st time use only)
aManually pull the
disc straight out of
the machine.

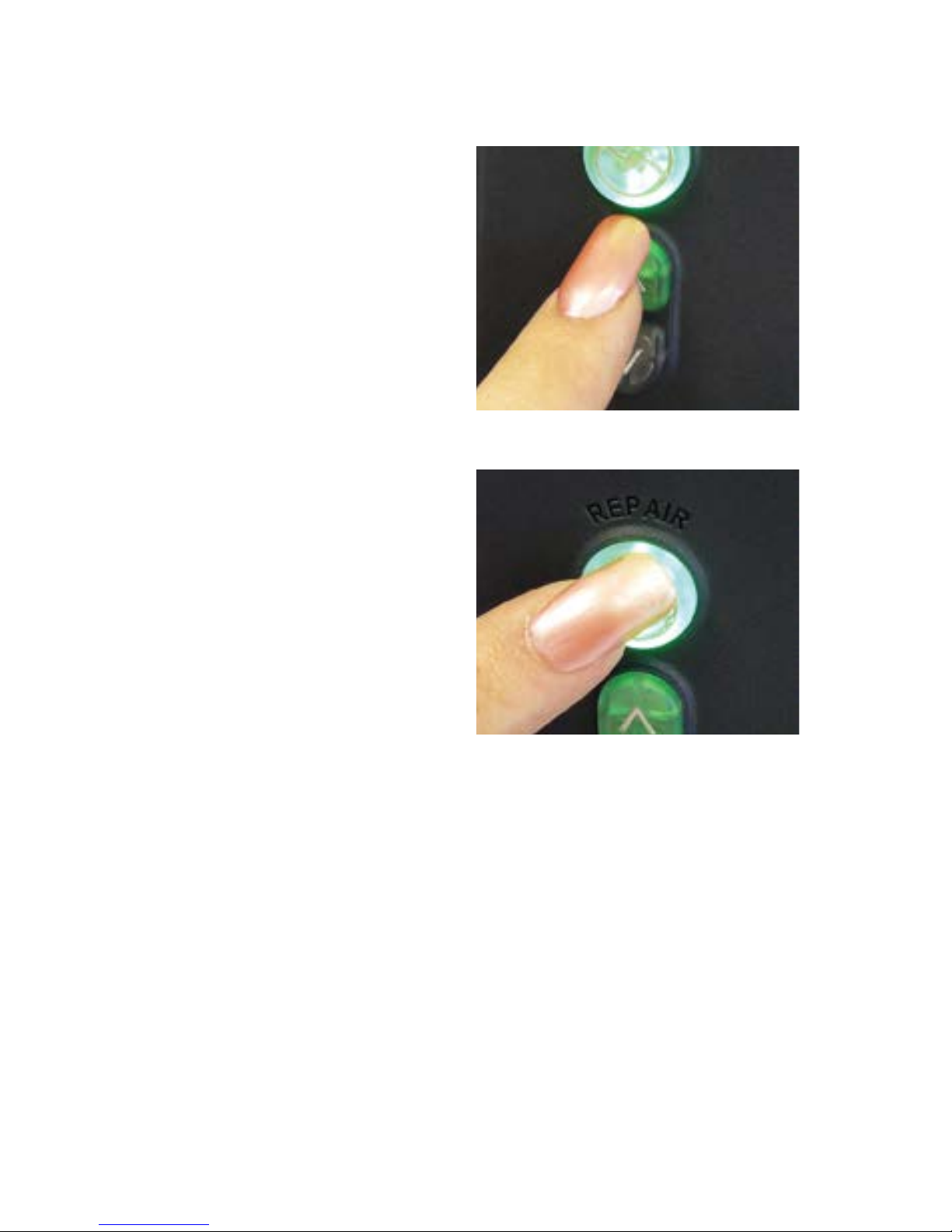

4Press the Repair Button.
aBy default, the Elite 60TM when it
is rst powered ON is in “Quick
Clean Mode”. Repair button will
be green. Inserting a disc will
result in a 15 second cleaning
cycle being performed.
For Repair Cycle see section 5.
bWhen the repair button is pressed,
the button will be blue, indicating
a 90 second repair is selected.
Pic four
3
Pic two

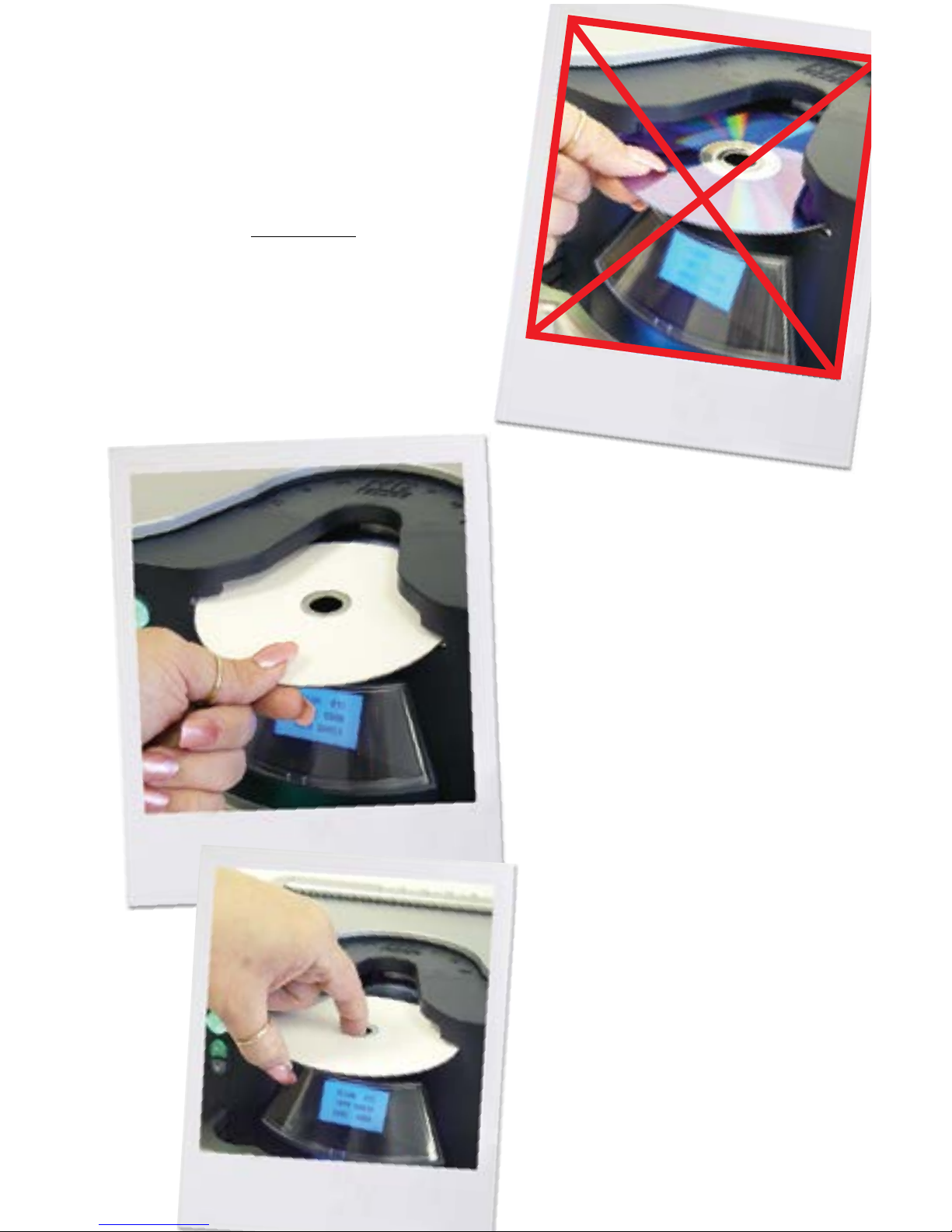

5Insert the Disc.
aThe Disc should be inserted straight
in, with label side up. It should be
fully inserted into the machine.
Note: 3 inch discs can only be
repaired using a 3 inch adapter.
(see section 5)
bAfter the disc is inserted, the
unit will start the repair.
cPressing the power button at
any time will end the cycle.
Note: Discs can be repaired an
unlimitedamountoftimes. However,
never run a disc two times
consecutively without letting the
disc cool to room temperature
after each repair cycle.
6Remove the cleaned Disc.
aHandle the disc only by the
edges or center ring.
QUICK START SECTION 3
Pic five
Pic six
4
This is Wrong!

SECTION 4 Onscreen Display
Onscreen Display

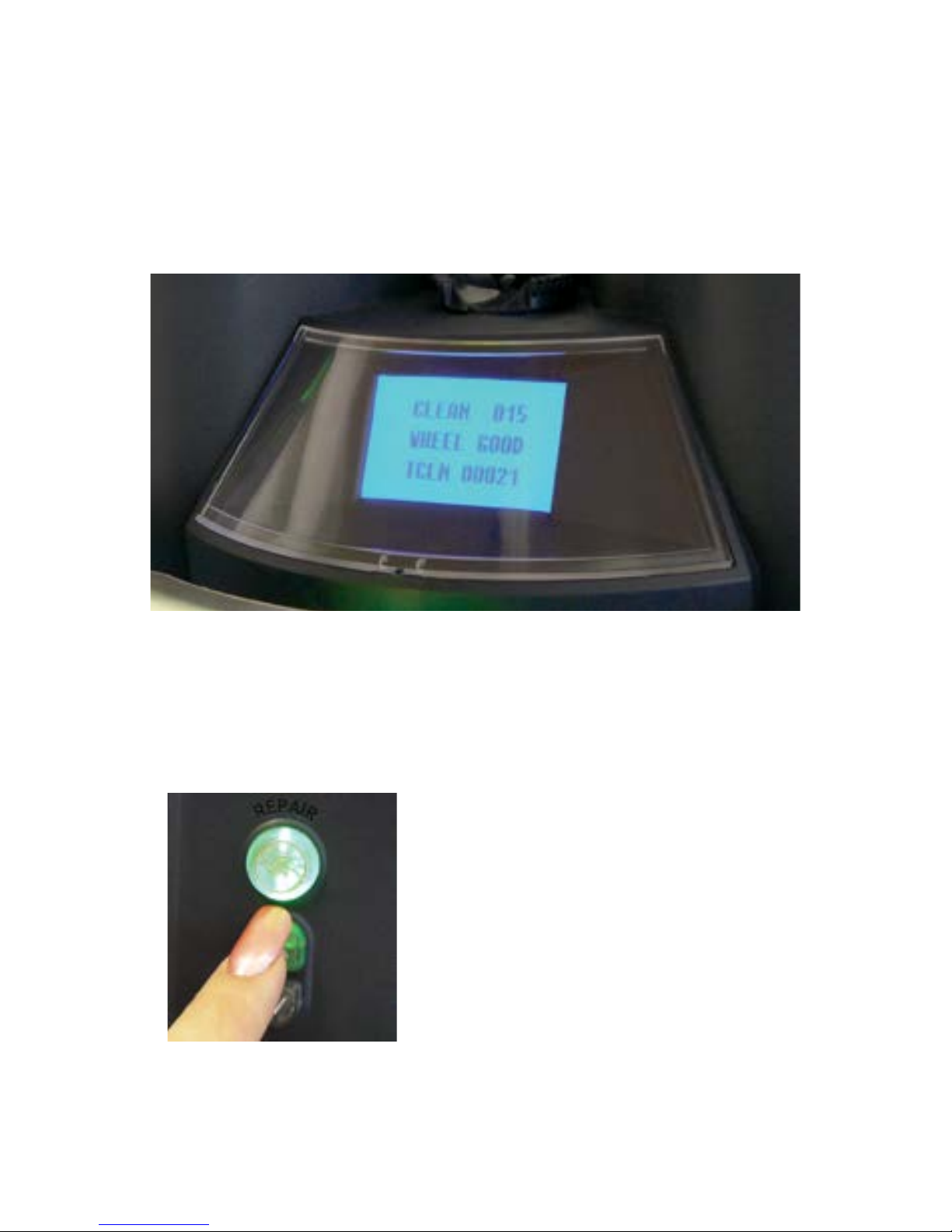

1The top line displays the machine’s status (Ready or Error Code) and cycle
type (Repair or Clean).
2You can scroll through machine
information by using the scroll
buttons:
Total Repairs, Total Cleans, Cartridge
Low Notication, Bung Wheel Low
Notication, and the Menu Select.
3To get to the menu screen, use
the up or down scroll button. The
Middle line is the active line, when
the word “MENU” is displayed
(see section 5), pressing the repair
button will select the menu screen.
5

Operation Modes
If 15 repair cycles are performed within a 30 minute period the machine could
commence a 10 minute cool-down. This will be indicated by a countdown timer on
the display. Please do not unplug the power cord during this cool-down period.
NOTE: Discs can be repaired an unlimited amount of times. However you should
never run a disc two times consecutively without letting the disc cool to room
temperature after each repair cycle.
Quick Clean Mode
By default, the Elite 60TM when it is rst powered on is in “Quick Clean Mode”.
Inserting a disc will result in a 15 second cleaning cycle being performed. (Repair
button will be illuminated green)
Repair Mode
1. Inserting a disc will result in a 90 second repair.
2. During the repair cycle, pressing the up scroll button will increase the repair
time. Press once for 180 seconds and twice for 270 seconds. Pressing the
down scroll button will reduce the repair time. Pressing the repair button will
end the cycle.
3. As long as the repair button is illuminated, the last selected cycle is in memory.
NOTE: Once you have chosen a repair cycle the unit will remain in that cycle
until you choose dierently.
Standby Mode (hibernation)
When the machine is in Standby (hibernation) mode you can insert a disc at
anytime into the machine. There is no need to press the power button, the
machine will automatically start up with the last selected mode choice.
Operations SECTION 5
6

SECTION 5 Operations
Using your 3 Inch Adapter
(included with purchase)
Match the label side of your 3 inch disc with
theopen side of your 3 inch adapter. Slide
the disc into the 3 inner grooves making
sure that the disc is rmly clipped in place.
The optical side should be facing you.
Now insert your disc with adapter into your
unit, disc optical side down. After disc is
inserted make sure that your hands do not
obstruct the shutter from closing.
Shutter will open when cycle has nished
and your 3 inch disc with adapter will
need to be removed. Handle the disc only
by the edges or center ring of disc.
WARNING:
Do not insert
the disc optical
side up. Damage
could incur.
