Vents iFan Wi-Fi User manual

AXIAL INTELLIGENT FAN
USER’S MANUAL
iFan Wi-Fi

2www.ventilation-system.com
iFan Wi-Fi
CONTENTS
Delivery set........................................................................................................................................................................................ 7
Operation guidelines .................................................................................................................................................................. 7
Installation and set-up................................................................................................................................................................ 10
Connection to power mains .................................................................................................................................................. 12
Fan control......................................................................................................................................................................................... 13
Special «setup mode/reset».................................................................................................................................................... 13
Battery replacement.................................................................................................................................................................... 14
Technical maintenance.............................................................................................................................................................. 14
Troubleshooting............................................................................................................................................................................. 15
Storage and transportation regulations.......................................................................................................................... 16
Manufacturer’s warranty........................................................................................................................................................... 17
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the iFan Wi-Fi unit and
all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.

3
www.ventilation-system.com
iFan Wi-Fi
READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS.
COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG SERVICE LIFE OF THE
UNIT.
KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO
REREAD THE INFORMATION ON THE PRODUCT SERVICING.
This unit is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the unit.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Cleaning and user maintenance shall not be made by children without supervision.
Children shall not play with the appliance.

4www.ventilation-system.com
iFan Wi-Fi
Do not attach the product to the support using glue or adhesives. Use only the fastening
method specified in the «User’s manual».
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
Connection to the mains must be made through a disconnecting device, which is integrated
into the fixed wiring system in accordance with the wiring rules for design of electrical units,
and has a contact separation in all poles that allows for full disconnection under overvoltage
category III conditions.
All operations described in this manual must be performed by qualified personnel only,
properly trained and qualified to install, make electrical connections and maintain ventilation
units.
Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
This is unsafe and impossible without special knowledge.
Disconnect the power supply prior to any operations with the unit.
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing

5
www.ventilation-system.com
iFan Wi-Fi
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance,
and repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation. The present user’s manual should be carefully read before
beginning works.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may
result in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.

6www.ventilation-system.com
iFan Wi-Fi
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS.
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE

7
www.ventilation-system.com
iFan Wi-Fi
DELIVERY SET
Fan 1 pc.
Logo 1 pc.
Spigot Ø 100 mm 1 pc.
Spigot Ø 125 mm 1 pc.
Screws and dowels 4 pcs.
User’s manual 1 pc.
Packing box 1 pc.
OPERATION GUIDELINES
The fan is designed for connection to single-phase AC power mains 100-240 V, 50/60 Hz.
Ingress protection rating against access to hazardous parts and water ingress is IP44.
The fan is rated for operation at the ambient temperature ranging from +1 °C up to +40 °C.
The unit is rated as a Class II electrical appliance.

8www.ventilation-system.com
iFan Wi-Fi
Fan modications
Model
Functions
Humidity
control
24
hours
Turn-on
delay timer
Turn-o
delay timer
Speed
control
Interval
ventilation
External
switch
Motion
sensor
iFan Wi-Fi + + + + + + +
iFan Wi-Fi
Move + + + + + + + +
Overall dimensions
28
209
155 28
D

9
www.ventilation-system.com
iFan Wi-Fi
Wi-Fi technical data
Standard IEFE 802,11, b/g/n
Frequency band [GHz] 2.4
Transmission power [mW] (dBm) 100(+20)
Network DHCP
WLAN safety WPA, WPA2
Fan operation modes
Standby mode – the fan motor does not rotate, the rotation is activated when the 24 hours mode is activated by a mobile application
or by a signal from a temperature/humidity/motion and external switch.
24 hours - fan operation at low speed to ensure minimum round-the-clock ventilation.
When the motion, temperature or humidity sensor/external switch is triggered, the fan switches to Silent or Max modes.
Silent – silent operation mode of the fan. This mode is activated by a motion sensor.
Max – high-speed fan operation mode, which is activated when a humidity or temperature sensor is triggered or Boost Mode is
activated via the mobile application.

10 www.ventilation-system.com
iFan Wi-Fi

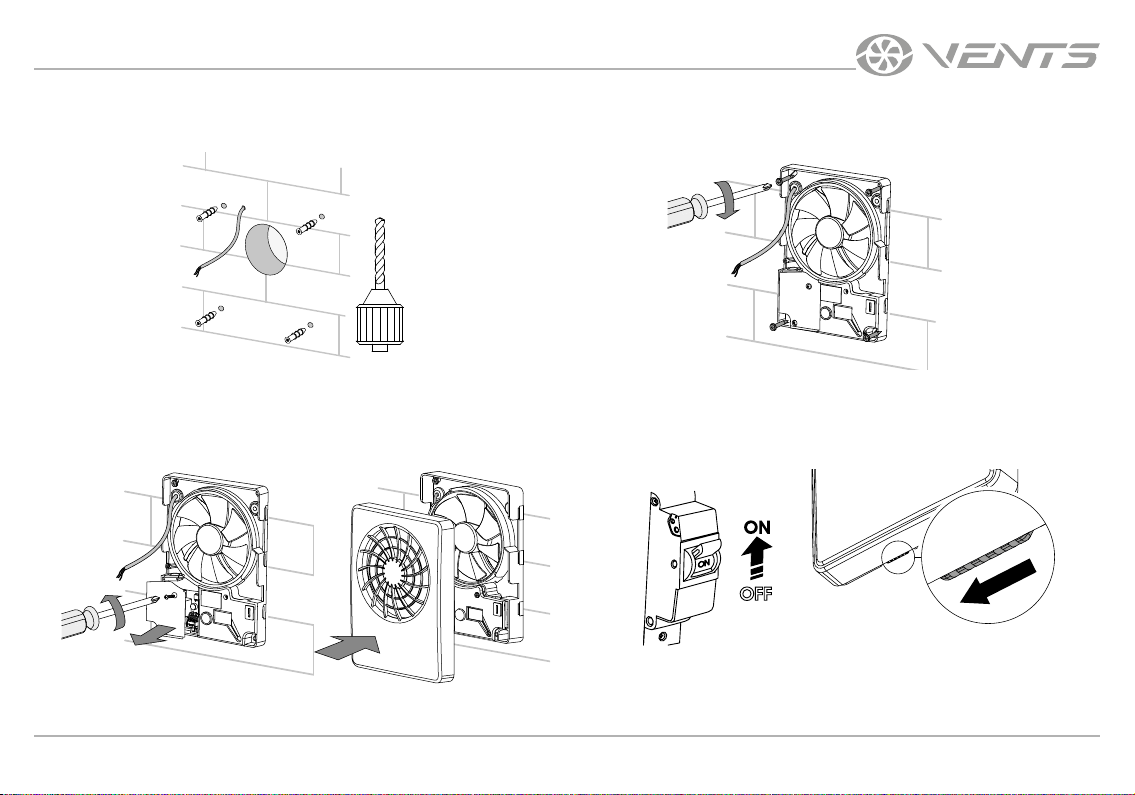

INSTALLATION AND SET-UP
1. In case of vertical mounting, the fan must be protected against
water and condensation collecting inside the fan.
Fan installation with direct air discharge upwards is not allowed.
2. Before starting the installation, make sure all electricity has
been turned off!
QF
L N
3. Remove the front panel of the fan. 4. Mark the holes for fixing the fan and the power cable.

11
www.ventilation-system.com
iFan Wi-Fi
5. Lead the power cable to the ventilation hole, drill the mounting
holes and install the dowels.
6. Fix the fan with the screws.
7. Remove the cover to access the terminal block and connect
the fan to power mains according to the wiring diagram.
Assemble the fan in the reverse order.
8. Supply power to the fan.
ON

12 www.ventilation-system.com
iFan Wi-Fi

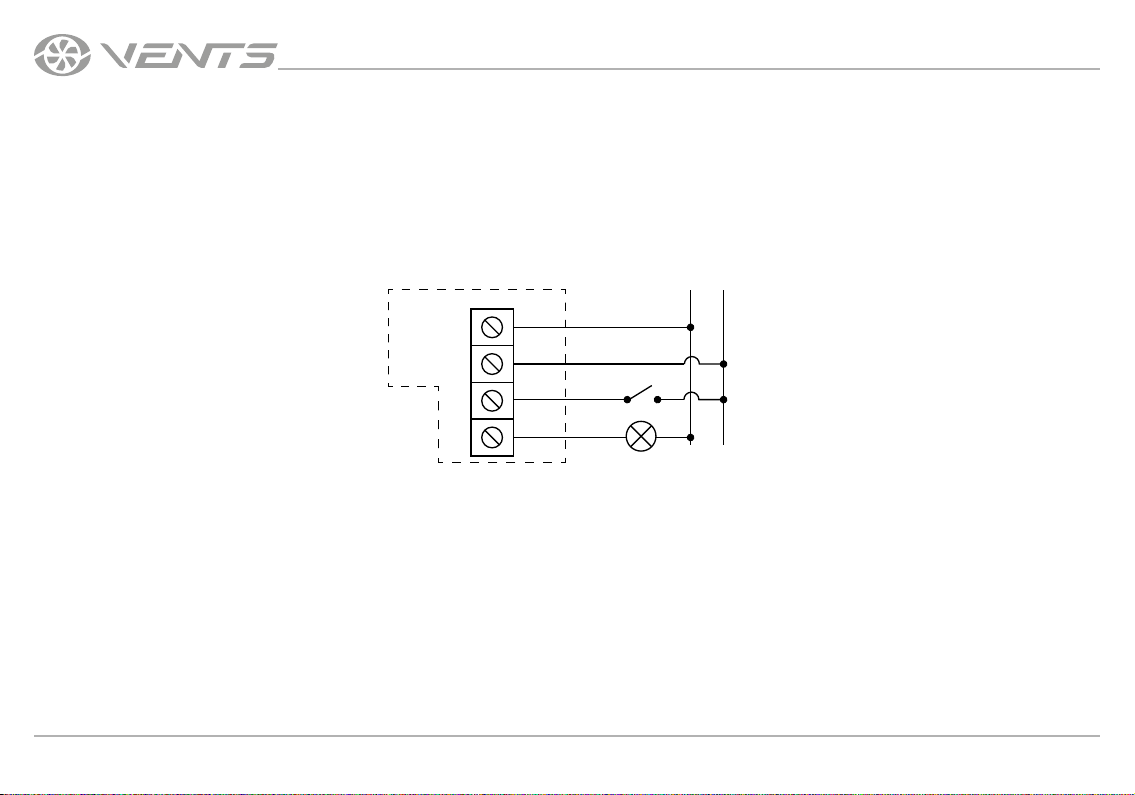

CONNECTION TO POWER MAINS
The fan is rated for connection to single-phase AC power mains 100-240 V/50 (60) Hz.
Terminal designations on wiring diagrams:
L – phase
N– 0
LT – fan speed control circuit
LI – output for external load connection
SK – external switch for switching the fan to Silent speed.
LT
L
N
LI
SK
NL

13
www.ventilation-system.com
iFan Wi-Fi
Button
LED
The LED has the following states:
• Switched o. Normal operation mode of the device.
• Glowing blue. Warning of switching the device to the Setup
Mode.
• Blinking blue. The device is in Setup Mode.
• Glowing red. Warning of return to factory settings or exit from
the Setup Mode.
• Blinking red. All the fan parameters are successfully reset to
factory settings.

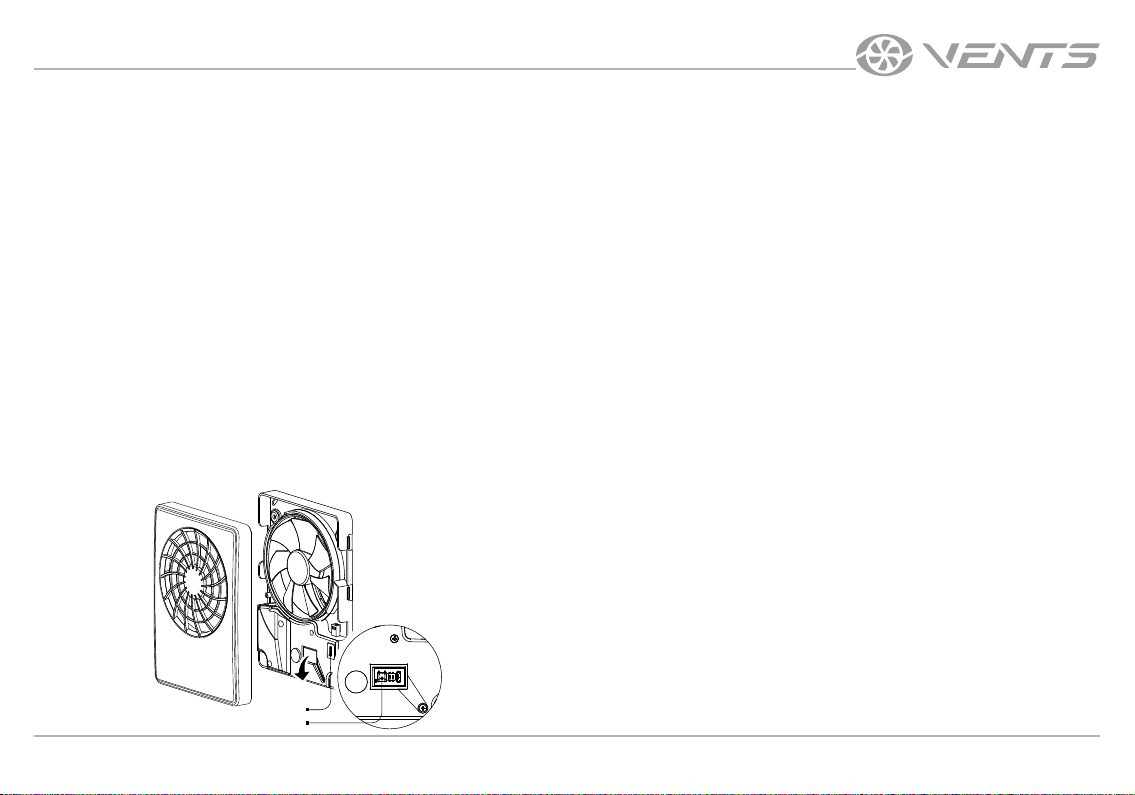

Access to the Setup Mode button
FAN CONTROL
To start operating the fan, it is necessary to connect to it as a Wi-Fi access point with the name (FAN: + 16 characters of the ID number)
indicated on the control board and on the fan casing. Wi-Fi access point password: 11111111.
In the application, you can configure the fan to connect via a home Wi-Fi network and via a cloud server.
SPECIAL «SETUP MODE/RESET»
To restore the Wi-Fi password or connect to the fan in order to change the settings, Setup Mode is provided .
To enter the Setup Mode, press and hold the button below the front panel of the ventilator for 5 seconds until the LED starts blinking
blue. The unit will continue in this mode for 3 minutes and then will automatically revert to the previous settings.
To immediately exit the setup mode, press and hold the button again for 4 seconds until the LED stops blinking blue and starts glowing
red. In Setup Mode, connect to the fan using a mobile device:
Wi-Fi name: Setup mode.
Wi-Fi password: 11111111.
To reset factory settings, press and hold the button for 14 seconds until the LED starts blinking red and a beep is produced.

14 www.ventilation-system.com
iFan Wi-Fi
BATTERY REPLACEMENT
If the battery is low or dead, the corresponding warning
indicator appears on the home page in the application (see
page 16).
If such an indicator appears on the home page, replace the
battery.
To do this, power off the fan, remove the front panel and the
cover protecting the control circuit board.
Replace the battery (battery type – CR1220) located on the
control board.
Reassemble the fan in reverse order, then apply power to the
fan.
TECHNICAL MAINTENANCE
1. Turn the lock button on the fan to the lock position.
Fan operation will be locked.
WARNING! The locking does not remove the voltage from
the fan power terminals!
2. Remove the front panel.
Clean the fan blades with a soft dry cloth or brush.
OFF

15
www.ventilation-system.com
iFan Wi-Fi

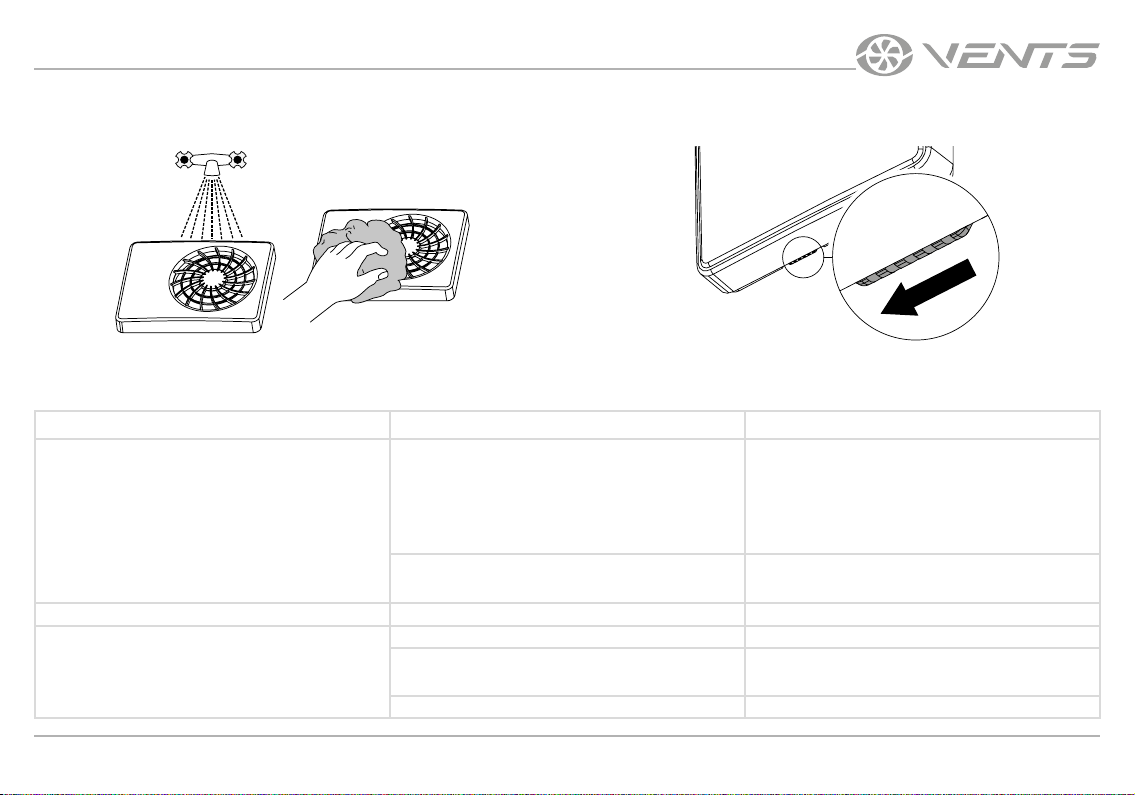

3. Wash the front panel under running water.
Wipe the front panel surface dry.
4. Set the lock button to the working position.
Then activate the fan from the mobile application.
ON
TROUBLESHOOTING
Malfunction Probable reasons Method of elimination
When connected to the network, the
fan does not rotate, does not respond to
controls.
The power supply network is not
connected.
Make sure the power supply is connected
correctly, otherwise, fix the connection
error.
Internal connection failure. Switch off the unit. Contact the service
center.
Low air consumption. Clogged ventilation system. Clean the ventilation system.
Increased noise, vibration.
Clogged impeller. Clean the impeller.
The fan is not secured or mounted
incorrectly. Fix the installation error.
Clogged ventilation system. Clean the ventilation system.

16 www.ventilation-system.com
iFan Wi-Fi
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 °C to + 40 °C and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at
least 3-4 hours.

17
www.ventilation-system.com
iFan Wi-Fi
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of
faults in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated
by means of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase.The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused

18 www.ventilation-system.com
iFan Wi-Fi
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE UNIT, THE PAYMENT
DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE-FREE OPERATION OF THE
UNIT.

19
www.ventilation-system.com
iFan Wi-Fi

20 www.ventilation-system.com
iFan Wi-Fi
