Vents VCN 100 User manual

VCN 100
VCN 100 K
VCN 100 EC
VCN 125
VCN 125 K
VCN 125 EC
VCN 100
VCN 150 K
VCN 150 EC
VCN 160
VCN 160 K
VCN 160 EC
VCN 200
VCN 200 K
VCN 200 EC
VCN 200 EC S
Centrifugal fan
USER’S MANUAL

2
VCN/VCN EC
www.ventilation-system.com
CONTENTS
SAFETY REQUIREMENTS
• Please read the user’s manual carefully prior to installing and operating the unit.
• All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and
technical norms and standards must be observed when installing and operating the unit.
• The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.
• Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.
• After a careful reading of the manual, keep it for the entire service life of the unit.
• While transferring the unit control, the user’s manual must be turned over to the receiving operator.
This user’s manual is the primary operating document intended for technical, maintenance and operations staff.
The user’s manual contains information regarding the field of application, delivery package, operating principle, and design of the
VCN/VCN EC fan and all its modifications.
Technical and maintenance staff must have proper theoretical knowledge and practical training specific to ventilation systems as well as
the necessary skills to carry out the work in accordance with labour safety and construction regulations and standards applicable in the
respective territory.
The information provided in the present document is true as at the document preparation.
Due to the continuous product development the company reserves the right to update the technical specifications, design or delivery
package of its products.
No part of the present publication may be reproduced, uploaded or saved in reference-providing information systems or translated into
other languages in any form whatsoever without the company’s prior written consent.
UNIT INSTALLATION AND OPERATION SAFETY PRECAUTIONS
• Disconnect the unit from power mains
prior to any installation operations. • Unpack the unit with care.
• The unit must be grounded!
• While installing the unit, follow the
safety regulations specific to the use of
electric tools.
Safety requirements..................................................................................................................................................................... 2
Purpose................................................................................................................................................................................................ 4
Delivery set........................................................................................................................................................................................ 4
Designation key.............................................................................................................................................................................. 4
Technical data.................................................................................................................................................................................. 5
Mounting and set-up.................................................................................................................................................................. 6
Connection to power mains .................................................................................................................................................. 7
Technical maintenance.............................................................................................................................................................. 9
Storage and transportation regulations.......................................................................................................................... 9
Manufacturer’s warranty........................................................................................................................................................... 10
Certificate of acceptance.......................................................................................................................................................... 11
Seller information.......................................................................................................................................................................... 11
Installation certificate.................................................................................................................................................................. 11
Warranty card................................................................................................................................................................................... 11

3
www.ventilation-system.com

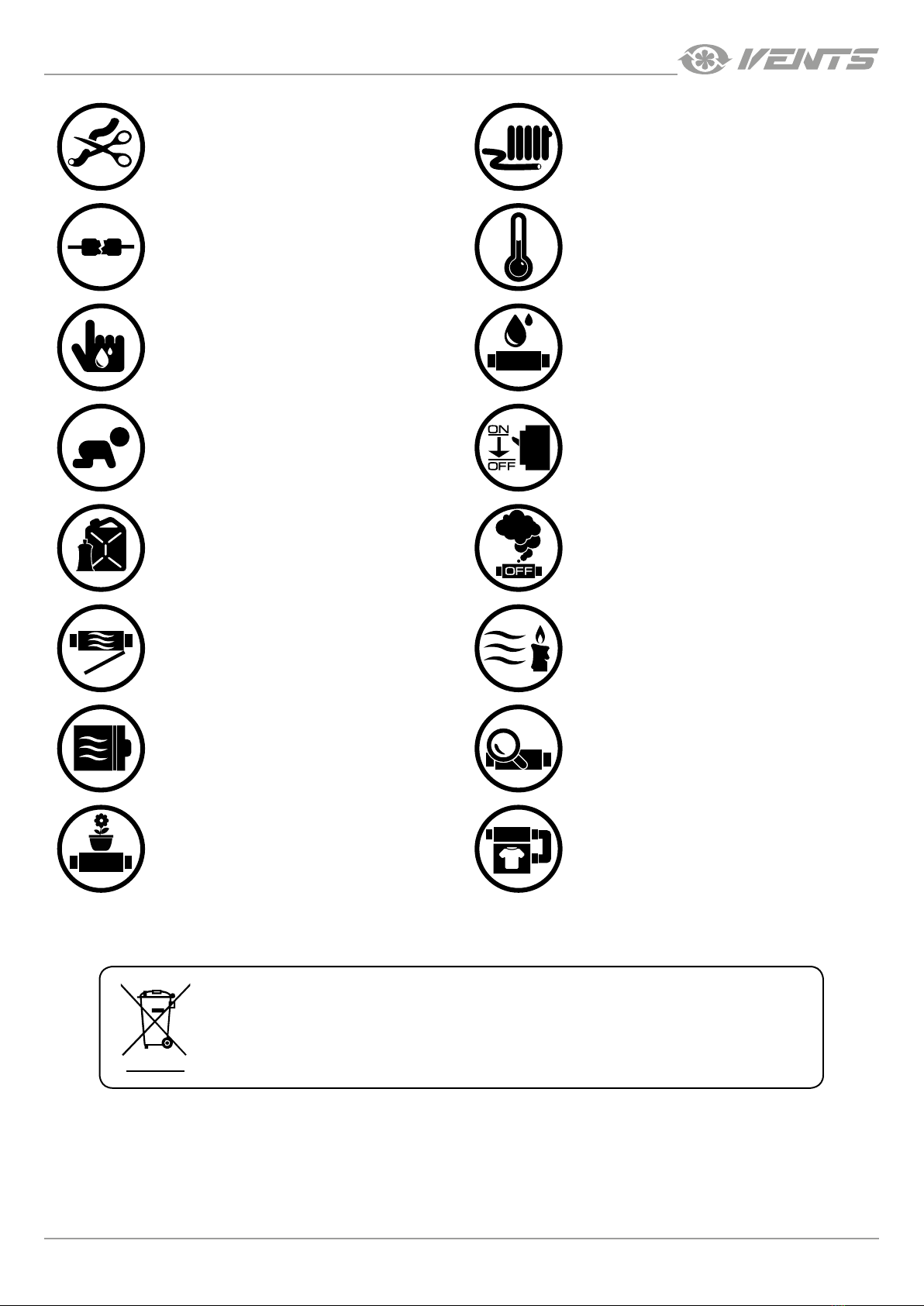

• Do not change the power cable length
at your own discretion. Do not bend
the power cable. Avoid damaging the
power cable. Do not put any foreign
objects on the power cable.
• Do not lay the power cable of the unit in
close proximity to heating equipment.
• Do not use damaged equipment or
cables when connecting the unit to
power mains.
• Do not operate the unit outside the
temperature range stated in the user’s
manual. Do not operate the unit in
aggressive or explosive environments.
• Do not touch the unit controls with wet
hands. Do not carry out the installation
and maintenance operations with wet
hands.
• Do not wash the unit with water. Protect
the electric parts of the unit against
ingress of water.
• Do not allow children to operate the
unit.
• Disconnect the unit from power mains
prior to any technical maintenance.
• Do not store any explosive or highly
flammable substances in close proximity
to the unit.
• When the unit generates unusual
sounds, odour, or emits smoke,
disconnect it from power supply and
contact the Seller.
• Do not open the unit during operation.
• Do not direct the air flow produced by
the unit towards open flame or ignition
sources.
• Do not block the air duct when the unit
is switched on.
• In case of continuous operation of the
unit, periodically check the security of
mounting.
• Do not sit on the unit and avoid placing
foreign objects on it.
• Use the unit only for its intended
purpose.
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED MUNICIPAL WASTE.

4
VCN/VCN EC
www.ventilation-system.com
PURPOSE
The VCN/VCN EC centrifugal fans are designed for exhaust ventilation of living spaces, offices, shops, garages, kitchens, bathrooms and
other residential and public premises.
The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens, and other spaces with
high humidity.
The fans are designed for vertical mounting at ventilation shaft outlets and are rated for continuous operation.
The unit is rated as a class I electric appliance.
Ingress protection rating against access to hazardous parts and water ingress – IPX4.
The minimum operating temperature of the transported air is -25 ° С, for a short time - up to -30 ° С, the maximum permissible temperature
is up to +50 ° С.
Transported air must not contain dust and other solid impurities, sticky substances and fibrous materials.
The fan design is constantly being improved, thus some models may be slightly different from those described in this manual.
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING. THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY
QUALIFIED PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED
ACCESS BY UNATTENDED CHILDREN.
THE UNIT MUST NOT BE OPERATED IN KITCHEN PREMISES.
DELIVERY SET
Name Number
Fan 1 pc.
Dowel with a screw 4 pcs.
User's manual 1 pc.
Packing box 1 pc.
DESIGNATION KEY
VCN XXX EC K S
High-powered motor
Equipped with a backdraft damper
Motor type
_ – asynchronous
EC – electronically commutated
Outlet spigot diameter [mm]
Fan series

5
www.ventilation-system.com
TECHNICAL DATA

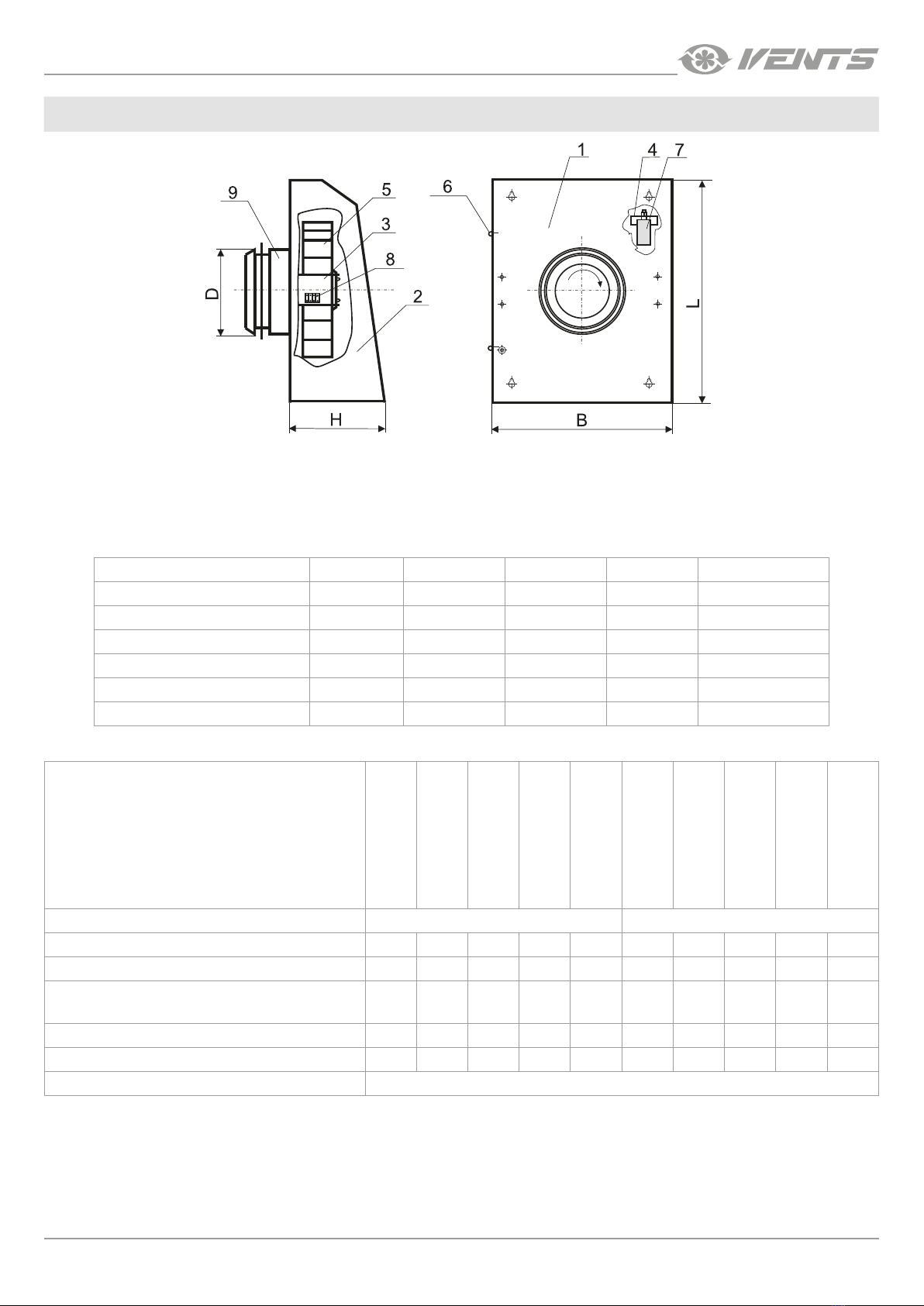

Fan design
The fan consists of a casing 1 with a cover 2 that is attached by screws 6. The right-hand turbine 5 is installed inside the casing on brackets
3, 4 (not available in VCN EC modifications), a condenser 7 (not available in VCN EC modifications) and a terminal block 8 for connection
to single-phase power mains. The casing is equipped with an intake spigot 9 (VCN K modification is equipped with a backdraft damper)
for connection to an air duct.
Overall and connecting dimensions
D L B H Weight [kg]
VCN 100/VCN 100 EC 100 355 260 140 3.60
VCN 125/VCN 125 EC 125 355 260 140 3.60
VCN 150/VCN 150 EC 150 400 300 140 4.70
VCN 160/VCN 160 EC 160 400 300 140 4.70
VCN 200/VCN 200 EC 200 400 300 140 4.70
VCN 200 EC C 200 400 326 182 5.3
Technical data
VCN 100/VCN 100 K VCN 125/VCN 125 K VCN 150/VCN 150 K VCN 160/VCN 160 K VCN 200/VCN 200 K VCN 100/VCN 100 K VCN 125/VCN 125 K VCN 150/VCN 150 K VCN 160/VCN 160 K VCN 200/VCN 200 K
Voltage [V] 1~230 (50 Hz) 1~230 (60 Hz)
Power [W] 71 75 96 95 96 92 98 100 96 97
Current [A] 0.31 0.33 0.42 0.41 0.42 0.40 0.43 0.44 0.42 0.42
Air flow [m3/h] 325
(295*)
485
(450*)
630
(565*)
650
(590*)
700
(640*)
350
(320*)
500
(465*)
650
(595*)
685
(625*)
710
(650*)
RPM [min-1] 2530 2475 2400 2440 2515 2625 2570 2270 2400 2555
Sound pressure level at 3 m distance [dBA] 54 54 58 60 62 54 54 58 60 62
Transported air temperature [°С] -25...+40
*For VCN XXX K models

6
VCN/VCN EC
www.ventilation-system.com
MOUNTING AND SETUP
The fans must be mounted vertically. While installing the unit ensure convenient access for subsequent maintenance and repair. The fan
must be mounted on a plane wall.
CAUTION! When installing outdoors, it is necessary to install a canopy above the fan to protect it against atmospheric influences.
Set the circuit breaker to OFF. Unscrew self-tapping screws and remove the cover.
READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT
VCN 100 EC VCN 125 EC VCN 150 EC VCN 160 EC VCN 200 EC VCN 200 EC C
Unit voltage [V (50 (60) Hz)] 1~230
Power [W] 89 103 92 92 79 102
Current [A] 0,53 0,83 0,75 0,75 0,67 0,86
Air flow [m3/h] 313 480 550 585 535 755
RPM [min-1] 3460 3600 2840 2840 2680 2800
Sound pressure level at 3 m distance [dBA] 55 57 56 55 55 58
Transported air temperature [°С] -25...+40

7
www.ventilation-system.com

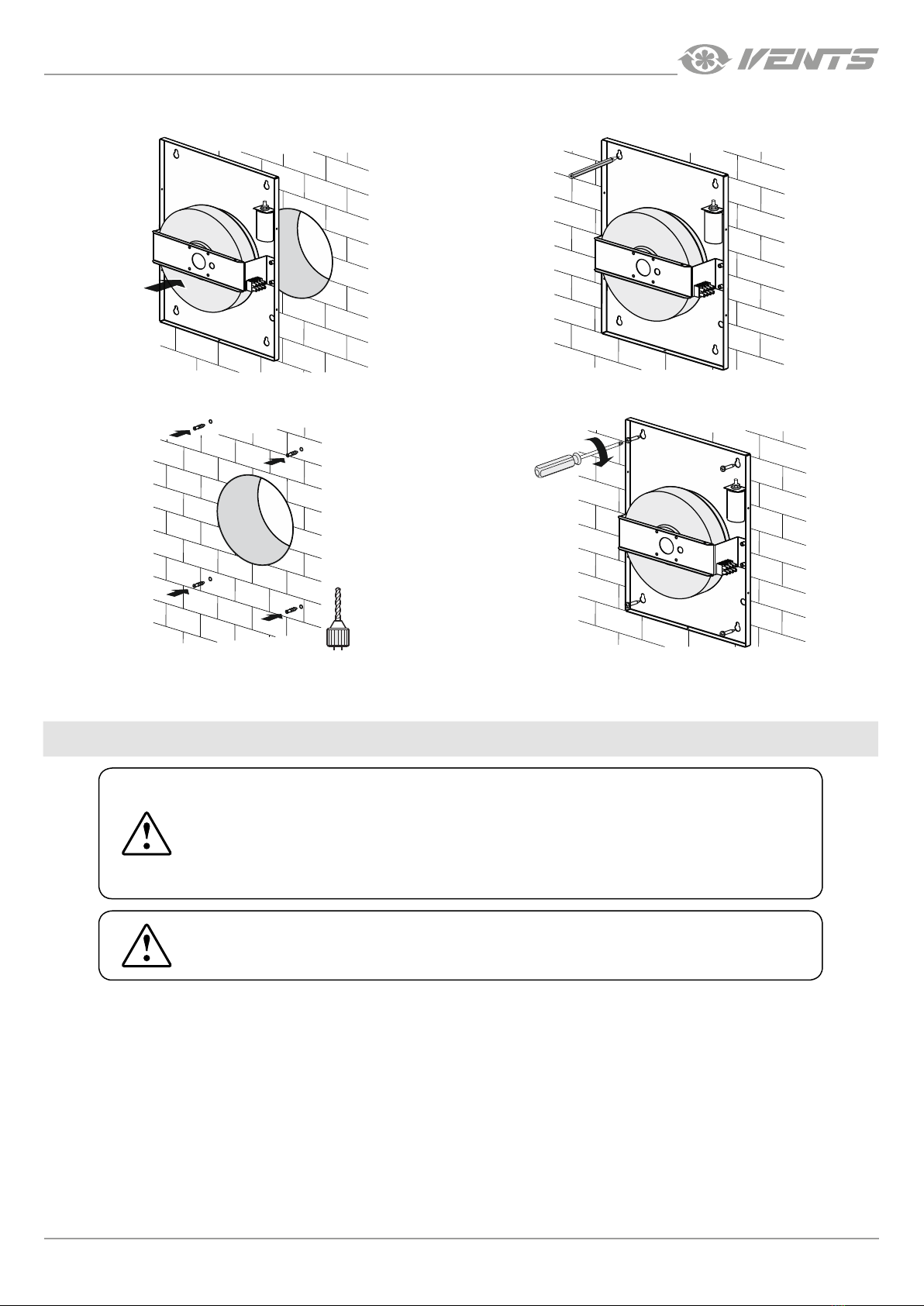

Attach the fan to the installation site. Mark the mounting holes.
Drill the holes and insert the dowels. Secure the fan by routing the power cable through the cable
gland.
CONNECTION TO POWER MAINS
DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS.
THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN
ON THE RATING PLATE.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED
AND WILL VOID THE WARRANTY.
The fan is rated for connection to single-phase AC 220-230 V/50 (60) Hz power mains. For electric installations use insulated durable heat-
resistant wires with the minimum wire cross section 1 mm2.
The actual conductor cross-section selection must be based on its type, the maximum permissible heating, insulation, length and
installation method. The external power input must be equipped with an automatic circuit breaker built into the stationary wiring to
open the circuit in the event of overload or short-circuit.
The circuit breaker location must ensure free access for quick shutdown of the fan.
Connect the fan to the terminals located inside the fan casing in compliance with the fan wiring diagram and the terminal designation.
The terminal designations are shown on the sticker inside the fan casing.

8
VCN/VCN EC
www.ventilation-system.com
Disconnect the fan from power supply. Connect the power cable to the terminal block according to the
diagram.
Put on the cover and tighten the screws.
Wiring diagram of the fan with an asynchronous motor
N
L
L
X
QF
~
N
PE
Wiring diagram of the fan with an EC motor
N
+10V
CTR
GND
L
L
X1
QF
~
N
PE
For the operation of the EC motor, it is necessary to install a speed
controller (not included in the delivery set) or to short-circuit the
contacts + 10V and CTR (the fan will run at maximum speed).

9
www.ventilation-system.com
TECHNICAL MAINTENANCE
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE
ANY MAINTENANCE OPERATIONS!
Maintenance means regular cleaning of the fan surfaces from dust and dirt. Use a soft dry brush or a vacuum cleaner to remove dust.
The blades require thorough cleaning once in 6 months.
The filter prevents the fan soiling and reduces the cleaning periodicity. To clean the fan undo the self-tapping screws and remove the
fan cover. Clean the impeller blades with a cloth wetted in water and mild detergent solution. Avoid liquid dripping on the motor! After
cleaning the impeller, install the cover back and tighten the screws.
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
+5 ˚...+40 ˚С and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapours and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures allow the unit to warm up at room temperature for at least
3-4 hours.

10
VCN/VCN EC
www.ventilation-system.com
MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/
EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with
missing component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components
caused by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.

11
www.ventilation-system.com
CERTIFICATE OF ACCEPTANCE
SELLER INFORMATION
INSTALLATION CERTIFICATE
WARRANTY CARD
Unit Type Centrifugal fan
Model VCN_____________
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
The VCN_____________ unit has been connected to power mains pursuant to the requirements
stated in the present user’s manual.
Installation Company Stamp
Seller
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
Unit Type Centrifugal fan
Seller’s Stamp
Model VCN_____________
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

V06EN-04
