Vents VENTS VK User manual

2013
www.ventilation-system.com
model VENTS VK
EN

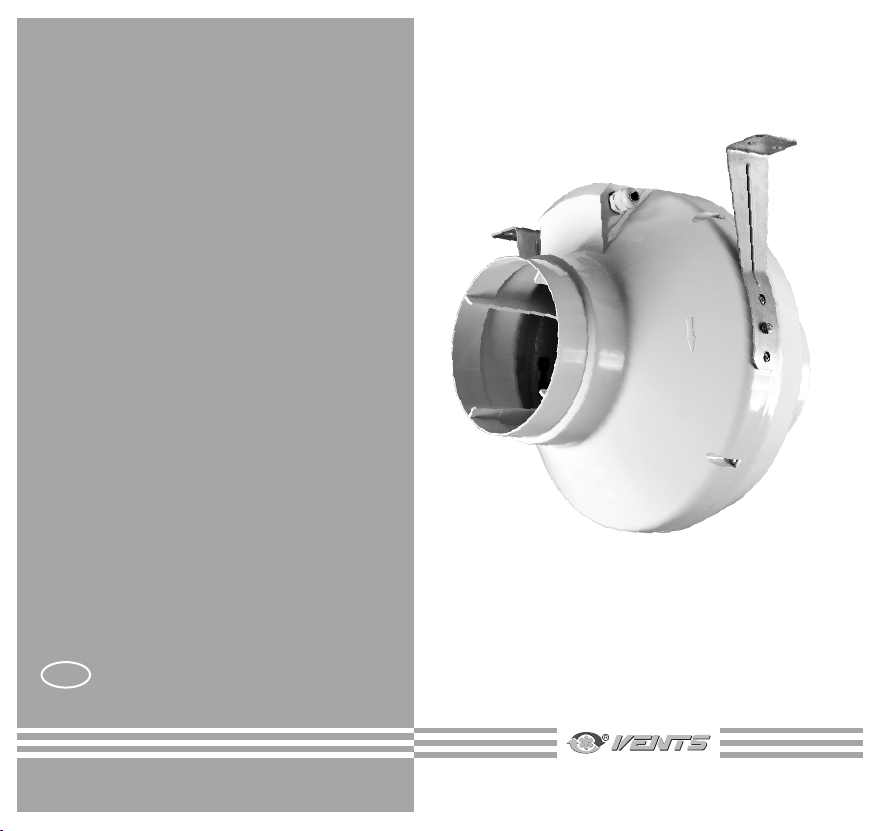

CENTRIFUGAL FANS
user's manual

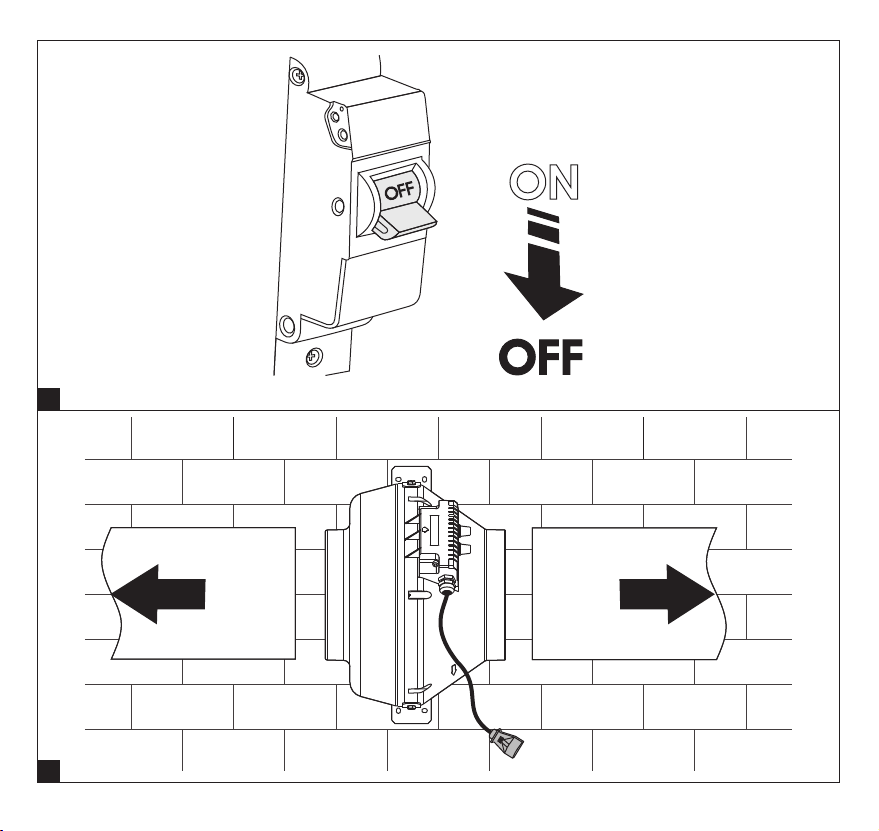

Disconnect the fan from power mains prior to any connection, servicing and repair operations. Mounting and
maintenance are allowed for duly qualified electricians with valid electrical work permit for electric operations
at the units up to 1000 V after careful study of the user's manual.
The single-phase power mains must comply with the acting local electrical norms and standards.
The fixed electrical wiring must be equipped with an automatic circuit breaker. The fan must be connected to
power mains through an automatic circuit breaker QF integrated into the fixed wiring system with the gap
between the breaker contacts on all poles not less than 3 mm.
Check the fan for any visible damages of the impeller and the casing before starting installation. The casing
must be free of any foreign objects that could damage the impeller blades. Misuse of the device or any
unauthorized modifications are not allowed.
The fan is not to be used by children and persons with reduced physical, mental or sensory capacities, without
proper practical experience or expertise, unless they are controlled or instructed on the product operation by
the person(s) responsible for their safety. Do not leave children unattended and do not let them play with the
product.
Take steps to prevent ingress of smoke, carbon monoxide and other combustion products into the room
through open chimney flues or other fire-protection devices. Sufficient air supply must be provided for proper
combustion and exhaust of gases through the chimney of fuel burning equipment to prevent back drafting.
Transported medium must not contain any dust or other solid impurities, sticky substances or fibrous materials.
Do not use the fan in the environment containing hazardous or explosive materials and vapours, i.e. spirits,
gasoline, insecticides, etc. Do not close or block the fan intake or extract vents in order to ensure the most
effective air passage.
Do not sit on the fan and do not put objects on it.
Fulfil the requirements stated in the user's manual to ensure long service life of the product.
Recycle at the end of the service life.
Do not dispose the product with unsorted municipal trash.
!!
WARNING!
2
EN

DELIVERY SET
The delivery set includes:
1. Fan - 1 item;
2. Screws and dowels - 4 items;
3. Fixing bracket - 2 items;
4. User's manual;
5. Packing box.
BRIEF DESCRIPTION
The product described herein is a centrifugal fan for supply and exhaust ventilation of premises heated in
cold season.
The fan is designed for connection to 100, 125, 150, 200, 250 and 315 mm air ducts.
The model with O150 mm spigot is compatible both with O150 mm and O160 mm air ducts.
- VENTS VK XXX - basic model.
- VENTS VKS XXX - fan with a high-powered motor.
- VENTS VK XXX Q - fan with a low-powered and low-noise motor with low energy demand.
- VENTS VK XXX R - fan with a power cable, fig. 10.
- VENTS VK XXX U (U1) - fan with a speed controller and electronic thermostat, equipped with a built-in
temperature sensor and a power cable with adapter, fig. 11.
- VENTS VK XXX Un (U1n) - fan with a speed controller and electronic thermostat, equipped with an
external temperature sensor fixed on 4 m cable, a power cable with adapter, fig. 11.
- VENTS VK XXX P - fan with a speed controller and a power cable with adapter, fig. 12.
XXX - spigot diameter.
Due to constant improvements the design of some models may slightly differ from those ones described
in this manual.
Read the present user's manual carefully before proceeding with installation works.
Compliance with the manual requirements ensures reliable operation and long
service life of the product. Keep the user's manual available as long as you use
the product as it contains information on the product servicing.
!!
WARNING!
3
EN

OPERATION GUIDELINES
The fan is designed for connection to AC single-phase 220...240 V, 50/60 Hz power mains. The fans
models VK 315 / VKS 315 are designed for connection to 220...240 V, 50 Hz power mains.
The fan is designed for continuous operation always connected to power mains.
The fan is rated for operation at the ambient temperature ranging from +1 °C up to +45 °C.
Air flow direction in the system must match the pointer direction on the fan casing.
Ingress protection rating against access to hazardous parts and water ingress- IP X4.
Transported air temperature:
- VK 100/ VK 100 Q/ VK 125/ VK 125 Q/ VK 150: from -25 °C up to +55 °C;
- VK 200/ VK 250/ VK 250 Q/ VK 315: from -25 °C up to +50 °C;
- VKS 200/ VKS 315: from -25°C up to +45 °C.
The fan requires no grounding.
ELECTRONICS OPERATING LOGIC
The VK U (U1) model, fig. 11 is equipped with an electronic speed controller with electronic thermostat
TSC for automatic speed control (air flow regulation) depending on air temperature.
-temperature-based control logic (VK U): to maintain air temperature with accuracy to within 2 °C. The fan
changes its speed rarely. As air temperature rises up to the set thermostat point, the fan switches to high
speed. As air temperature drops down 2 °C below the set thermostat point or if the initial air temperature is
The terminal compartment incorporates 2 control knobs:
- for setting the motor speed;
- for setting the electronic thermostat set point.
The thermostat operation light indicator is located on the fan cover.
To set the thermostat threshold rotate the thermostat control knob clockwise to increase or counter-
clockwise to decrease the temperature set point.
To set the fan speed (air capacity) rotate the speed control knob in the same way.
The fan has a temperature-based and timer-based control logic.
4
EN

- timer-based control logic (VK U1): to maintain air temperature with high accuracy. The fan changes its
speed more often as compared to the previous control logic, but the minimum operating time at one speed
is not less than 5 minutes. As air temperature rises up to the set point, the fan switches to maximum speed.
Synchronously, the speed switch delay timer is activated for 5 minutes. As air temperature drops down
below the set point, but only after 5 minutes countdown after switching to high speed, the fan switches to
lower set speed.
If the initial temperature is below the set temperature point, the fan operates at low set speed from the start.
The fan VK P (fig. 12) is equipped with a speed controller that enables switching the fan on/off, smooth
speed (air flow) control from minimum to maximum value.
MOUNTING
The fan is designed for both horizontal and top installation and may be mounted on the floor or attached to
the wall or to the ceiling, fig. 2. While mounting the fan provide extra protection against water ingress.
The protection examples are shown in fig. 2:
1. For the top mounting position: install a protecting hood above.
2. For any mounting position: connect a straight air duct section at least 1 m long on both sides of the fan.

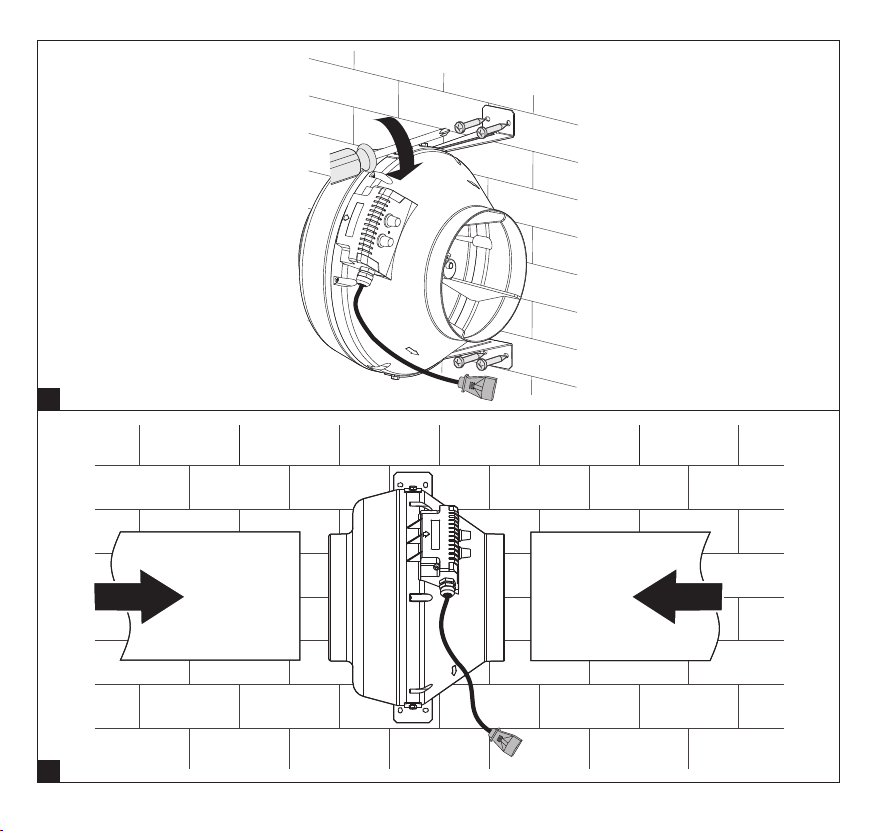

The fan mounting sequence is shown in fig. 3-8.
The fan wiring diagrams are shown in fig. 9.
Wiring diagram designations:
L - minimum speed terminal;
QF - automatic circuit breaker;
S - external switch , i.e., light switch;
X - input terminal.
1
QF
Automatic circuit
breaker designation
Automatic
circuit breaker
External switch
designation
External
switch
S
5
EN

MAINTENANCE

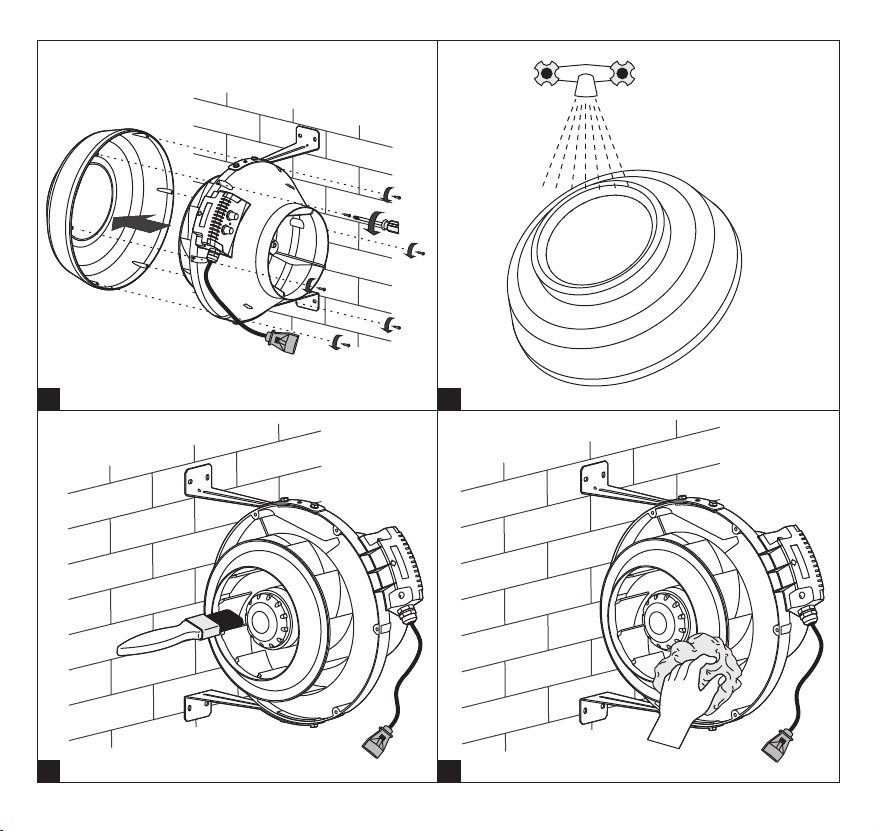

Clean the fan surfaces regularly (once in 6 months) of dust and dirt (fig. 13-20). Disconnect the fan from
power mains prior to any maintenance operations. Clean the fan with a soft cloth or a brush wetted in mild
water detergent solution. Avoid liquid dripping on the electric components, fig. 41. Wipe the surfaces dry
after cleaning.
MANUFACTURER'S WARRANTY
The fan is manufactured at the factory of “Ventilation systems” PrJSC (hereinafter referred to as the
Manufacturer).
By purchasing this product the customer confirms to have read and agreed to the terms, rules and
requirements related to operation, storage, transportation, mounting, adjustment, connection, maintenance
and repair as well as warranty obligations with respect to this product as set forth in the manufacturer's
accompanying documentation to the product.
The manufacturing company sets forth the warranty period (service life) of the product as 24 months
following the sale date via retail network subject to the customer's ensuring compliance with the rules of
transportation, storage, mounting and operation of the product.
In case of any malfunction of the product through the fault of the Manufacturing company within the
warranty period (service life), the customer shall have the right to elimination of the manufacturing defects
by means of warranty servicing performed free of charge.
The warranty servicing implies performance of activities related to elimination of defects in the product
aimed to provide intended use of the product by the customer. The defects are eliminated either by
STORAGE AND TRANSPORTATION RULES
Transportation is allowed with any vehicle provided that the fan is protected against mechanical or weather
damage. Store the delivered fan in the manufacturer's original packing box in a dry ventilated premise with
the temperature range from +5ºC up to +40ºC and relative humidity less than 80%. The storage environment
must not contain dust, acid or alkali vapours that may cause corrosion of the product parts.
6
EN

NOTE! With the purpose of performing warranty servicing please submit the user's manual or other
relevant substituting document and the payment document as an evidence of the purchase with indication
of the sale date. The product model shall comply with that one specified in the user's manual or other
relevant substituting document. With the purpose of performing warranty servicing please contact your
Seller. If warranty servicing on the spot proves impossible, you will be provided with the necessary
information regarding rendering of this service.
Manufacturer's warranty shall not apply in the following cases:
- in case the customer fails to provide the product in complete according to the package contents specified
in the user's manual or other relevant substituting document, including any components disassembled by
the customer;
- in case of incompliance of the model or marking of the product with data specified on the product
packaging and in the user's manual or other relevant substituting document;
- in case of non-timely technical maintenance of the product by the customer (dust, mud, oil condensate,
foreign particles);
- in case of causing external damage to the product by the customer ('damage' shall not apply to external
changes of the product required for the product mounting);
- in case of altering the product design or further reworking of the product;
- in case of replacing and using parts, units and components of the product not prescribed by the
manufacturing company;
- in case of other use of the product other than intended use;
- in case of the customer's violating product operation rules;
- in case of connecting the product to electric mains of voltage exceeding voltage value specified in the
user's manual;
- in case of step voltage that resulted in the product failure;
- in case of the customer's performing unauthorised repair of the product;
- in case of performing repair of the product by third persons unauthorized by the manufacturing company;
- in case of warranty period (service life) expiry;
- in case of the customer's violating transportation rules assuring prevention of damaging and/or
destruction of the product;
- in case of the customer's violating product storage rules;
7
EN

- in case of performing unlawful actions by third persons with respect to the product;
- in case of force majeure (fire, flood, earthquake, war, hostilities of any kind, blockade);
- no seals, provided such seals are prescribed by the user's manual or other relevant substituting
document;
- in case of unavailable warranty card;
- in case of unavailable payment document to confirm the purchase with indication of the sale date.
The manufacturing company shall be responsible for defects arising through its fault prior to the moment
of transferring the product to the ownership of the customer.
The manufacturing company shall not be responsible for defects arising after transferring the product to
the customer and caused by the customer's violating the rules of transportation, storage, assembly and
operation of the product, or by actions of third persons, an accident or force majeure circumstances.
The manufacturing company shall not be responsible for damage to health and property of the customer
caused by the customer's violating the user's manual or other relevant substituting document; other use
of the product by the customer other than its intended use, or by failure of the customer to comply with
warnings and other information on the product specified in the user's manual or other relevant
substituting document, or by the customer's violating the rules of transportation, storage, mounting,
maintenance and operation of the product.
8
EN

9
2
1m
9

5
3
6
4
MOUNTING
QFQF
10

8
7
11

9
10
11
12
VK 100/125/150/200/250/315
21
22
23
24 25 26
27
28
29
min max
~
~
~
t
C
30°C
20°C
speed control knob
temperature control
knob
min max
~
~
~
speed control knob
N
L
XQF
L
N
S
N
L
XQF
L
N
QF
VK 100/125/150/200/250/315
U / U1 / Un / U1n / P / R
12

13
14
13

14
17
15
18
16
1515

15
15
20
19

V02-VK(EN)-08
Acceptance certificate
100
125
150
200
250
315
www.ventilation-system.com
VK
The fan is duly recognized as serviceable.
VKS
Q
U
U1 nR
P
Approval mark
Sold
(Seller name and stamp)
Manufacturing date
Date of sale
