Vents VPA100-1.8-1 User manual

Ventilation supply unit
OPERATING MANUAL
V29-1_EN-03.indd 1 18.10.2016 10:38:45

2
Automated VPA
Introduction ....................................................................................................................
Designation .....................................................................................................................
Delivery set ......................................................................................................................
Protection rate ................................................................................................................
Diagram of design letters ............................................................................................
Basic parameters and dimensions .............................................................................
Safety requirements .....................................................................................................
Design and operation principle .................................................................................
Mounting .........................................................................................................................
Connection to electric network .................................................................................
External devices .............................................................................................................
VPA control ......................................................................................................................
Control panel ..................................................................................................................
Switching-on and switching-o VPA ........................................................................
Programming the modes using control panel .......................................................
Emergency situations ...................................................................................................
Storage rules ...................................................................................................................
Manufacture΄s warranty ...............................................................................................
Acceptance certicate ..................................................................................................
Commissioning certicate ..........................................................................................
Warranty card .................................................................................................................
3
3
3
4
4
4
7
8
10
11
14
17
18
19
19
26
28
28
29
30
30
V29-1_EN-03.indd 2 18.10.2016 10:38:45

3
This operating manual is joined with technical description, operation instruction and
technical certicate for Ventilation Intake Unit (hereinafter referred to as «VPA») and
contains information concerning the mounting, rules and warnings essential for proper
and safety VPA operation.
Prior to commencement of operation, carefully read this manual and observe the
instructions given in it.
VPA is designed for supplying the cleaned and heated outer air, free of ammable or
explosive substances, chemically active fumes, dust, carbon black, etc., to residential and
public buildings (individual houses, oces, hotels, conference-halls and other premises),
and for providing the required quality of the air. The unit is mounted in enclosed and dry
room with ambient temperature + 1 °C to + 40 °C.
VPA is mounted in the air-distributing system by connecting to round air ducts.
VPA is a component part and is not a subject of independent operation.
Delivery set contents:
VPA (appropriate type) - 1 pc.
remote control panel with temperature sensor - 1 pc.
duct temperature sensor - 1 pc.
operating manual - 1 pc.
transportation package: wooden box - 1 pc.
INTRODUCTION
DESIGNATION
DELIVERY SET
V29-1_EN-03.indd 3 18.10.2016 10:38:46

4
Automated VPA
According to type of protection against the access to dangerous parts and water
penetration:
the motors used in VPA are related to devices of Class IP 44 (protection against the
bodies with size more than or equal to 1,0 mm; protected against the water splashes);
— VPA installed in the pipeline is related to devices of Class IP 22 (protection against the
bodies with size more than or equal to 12.5 mm; protected against the water drops falling
down vertically when the casing is deVPAted at angle of 15 °).
Example of design letters:
Ventilation input unit VPA, diameter of connecting tubes 150 mm, heater power 6.0 kW,
phase connection: «VENTS VPA 150-6.0-3»
Basic technical parameters correspond to values shown in table 1. Overall and mounting
dimensions are shown in table 2 and in g. 1.
VPA design is improved continuously and, therefore, some models can slightly dier
from those described in this operating manual.
PROTECTION RATE
BASIC PARAMETERS AND DIMENSIONS
DESIGN LETTERS DIAGRAM
VPA  . 
Number of supply voltage phases:
1.3
Heater power, kW
1.8 2.4 3.4 3.6 5.1 6.0 9.0
Diameter of connecting tubes, mm:
100, 125, 150, 200, 250, 315
Device type:
VPA - ventilation inlet unit
V29-1_EN-03.indd 4 18.10.2016 10:38:46

5
Table 1
VPA
250-
3.6-3
VPA
250-
6.0-3
VPA
250-
9.0-3
VPA
315-6.0-
3*
VPA
315-9.0-
3*
VPA-1
315-6.0-
3*
VPA-1
315-9.0-
3*
Voltage [V / 50 Hz] 3~ 400 3~ 400
Maximum fan power [W] 194 171 296
Fan current [A] 0.85 0.77 1.34
Electric heater power [kW] 3.6 6.0 9.0 6.0 9.0 6.0 9.0
Electric heater current [A] 5.3 8.7 13.0 8.7 13.0 8.7 13.0
Number of electrical heating elements 3 3 3 3 3 3 3
Total unit power [kW] 3.794 6.194 9.194 6.171 9.171 6.296 9.296
Total unit current [A] 6.15 9.55 13.85 9.47 13.77 10.04 14.34
Air capacity [m3/h] 990 1190 1520
RPM 2790 2600 2720
Noise level at 3 m [dBA] 30 30 30
Transported air temperature [°C] -25 up to +50 -25 up to +50 -25 up to +45
Casing material aluzinc aluzinc
Insulation 25 mm mineral wool 25 mm mineral wool
Filter G4 G4
Connected air duct size [mm] 250 315
Weight [kg] 52 62
VPA
100-
1.8-1
VPA
125-
2.4-1
VPA
150-
2.4-1
VPA
150-
3.4-1
VPA
150-
5.1-3
VPA
150-
6.0-3
VPA
200-
3.4-1
VPA
200-
5.1-3
VPA
200-
6.0-3
Voltage [V / 50 Hz] 1~ 230 1~ 230 3~ 400 1~ 230 3~ 400
Maximum fan power [W] 73 75 98 193
Fan current [A] 0.32 0.33 0.43 0.84
Electric heater power [kW] 1.8 2.4 2.4 3.4 5.1 6.0 3.4 5.1 6.0
Electric heater current [A] 7.8 10.4 10.4 14.8 7.4 8.7 14.8 7.4 8.7
Number of electrical heating elements 3 3 2 2 3 3 2 3 3
Total unit power [kW] 1.873 2.475 2.498 3.498 5.198 6.098 3.593 5.293 6.193
Total unit current [A] 8.12 10.73 10.83 15.23 7.83 9.13 15.64 8.24 9.54
Air capacity [m3/h] 190 285 425 810
RPM 2830 2800 2705 2780
Noise level at 3 m [dBA] 27 28 29 30
Transported air temperature [°C] -25 up to +55 -25 up to +55 -25 up to +45
Casing material aluzinc aluzinc aluzinc
Insulation 25 mm mineral wool 25 mm mineral wool 25 mm mineral wool
Filter G4 G4 G4
Connected air duct size [mm] 100 125 150 200
Weight [kg] 50 50 52
V29-1_EN-03.indd 5 18.10.2016 10:38:46

6
Automated VPA
Type Max. dimensions, mm
D B B1 H L L1
VPA 100… 99 382 421.5 408 800 647
VPA 125… 124 382 421.5 408 800 647
VPA 150… 149 455 496.5 438 800 647
VPA 200… 199 487 526.5 513 835 684
VPA 250… 249 487 526.5 513 835 684
VPA 315… 314 527 566.5 548 900 750
Table 2

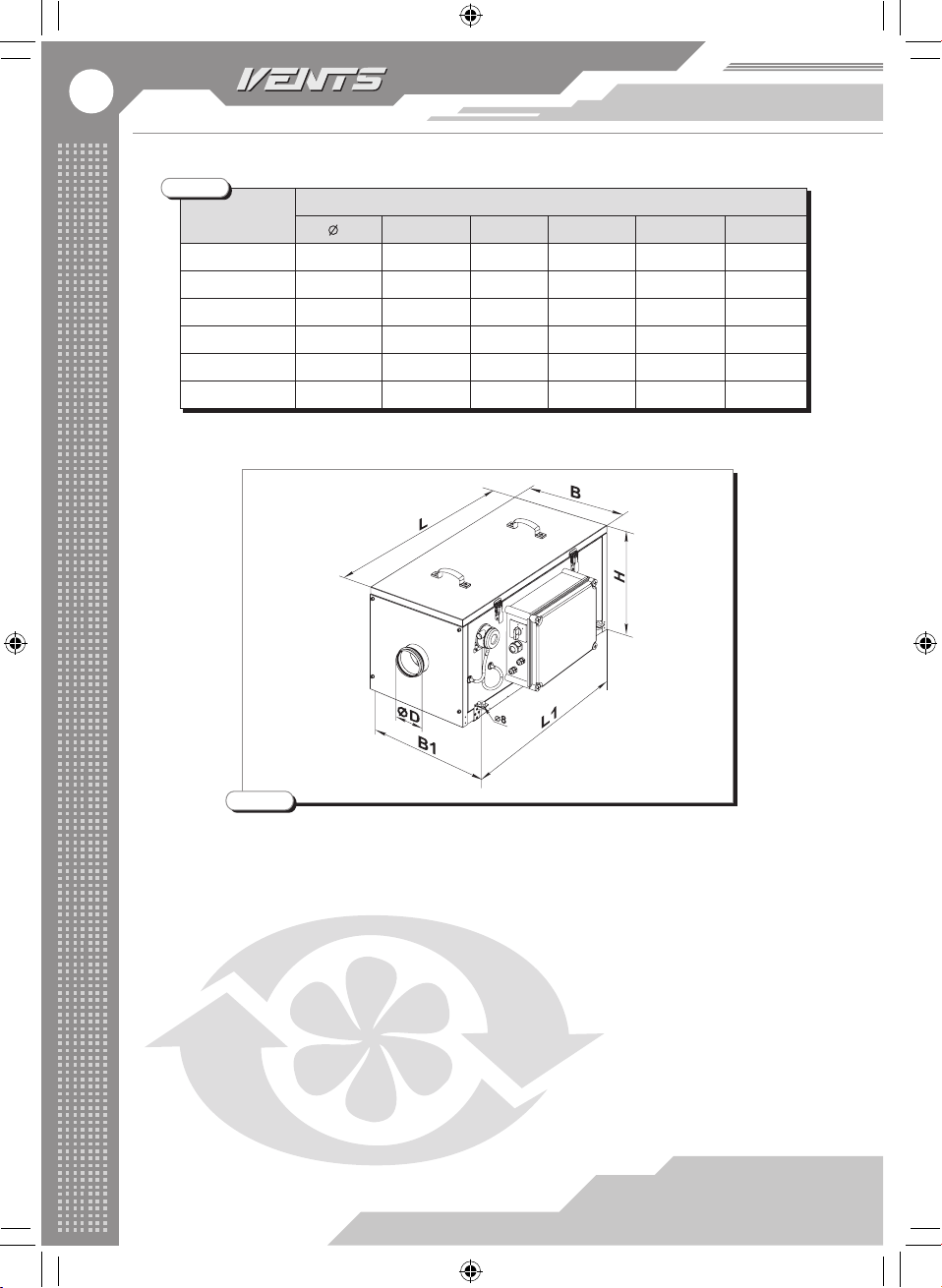

Fig. 1
V29-1_EN-03.indd 6 18.10.2016 10:38:47

7
During installation and operation of VPA, there must be fullled the requirements of
this operating manual, «Electric installations arrangement rules», «Rules of consumers»
electric installations technical operation», «Rules of consumers» electric installations safe
operation», valid construction codes, and «Rules of re safety in Ukraine» as well.
VPA relates to electric equipment and, therefore, it is necessary to observe the safety
rules concerning the electric equipment handling.
To servicing and mounting this product there are admitted the persons authorized to
independent work on electric installations up to 1000 V and carefully studied this operating
manual.
VPA must be used according to its designation only.
It is prohibited to connect control panel and sensors to control panel and to carry out the
works inside VPA if it is connected to power supply and the switch is in «I» position.(On).
Never remove the cover if VPA is energized.
Before commissioning VPA check:
correctness of mounting in ducts, correctness of connection to power supply including
grounding and external safety circuit-breakers.
SAFETY REQUIREMENTS
In case of sensor-thermal switch operation it is necessary to de-energize VPA,
identify the cause of this operation, eliminate this cause, and only then reenergize
the unit.
Do not use VPA for operation with air-dust mixture.
VPA operation without reliable grounding is prohibited.
In the event of re the VPA is extinguished by means of materials with CO2
or the powder ller.
USING THE WATER FILLER IS PROHIBITED UNDER ANY CIRCUMSTANCES
V29-1_EN-03.indd 7 18.10.2016 10:38:47

8
Automated VPA
VPA provides controlling the air ow rate, air temperature (preheating) and to lter it as
well. VPA exterior view is shown in g. 2.
Inside the case 1 there is installed the centrifugal-axial fan 2 equipped with the motor
with external rotor and integrated thermal protection. The motor is inside the operating
turbine and doesn΄t require any maintenance. The air ow rate is controlled by means of
the fan 2 speed switch with 3 speed steps. The air lter 3 of EU4 ltration class per DIN
24185 is located in the case 1 guiding rails from the fan 2 tube. For air preheating, the
electric heater 4 with circular tube is mounted from the pressure tube.
The electric heater 4 has the thermal protection against the overheating: safety device
with automatic restart of VPA and emergency shuto with manual recovery:
50° thermostat for VPA automatic switching-o and consequent switching-on after the
heater housing has cooled.
90° thermal switch with automatic restart of VPA using manual recovery
Sensors of the emergency thermal switch shuto circuits and don›t return VPA to
operating condition. To recover VPA it is necessary to push the manual restart «RESET»
button.
Standard set has the remote control panel 5 connected by the communication cable 6to
control system located inside the control unit 7. The lter contamination is monitored by
pressure drop dierential sensor 8. The lter replacement frequency is set on control panel.
the emergency alarm is generated by LED indicator 9 located on the control panel 5.
To monitor and maintain the temperature in the channel, VPA is equipped with channel
temperature sensor. To disconnect VPA from the electric network the power switch is
located on the control unit. VPA is connected to standard circular channels of the air
network.
Special function: to control the fan capacity and the heater operation and to monitor
the lter contamination.
The hinged (pos. 10) or removable cover uses the place for mounting VPA in optimal
manner.
DESIGN AND OPERATION PRINCIPLE
V29-1_EN-03.indd 8 18.10.2016 10:38:47

9

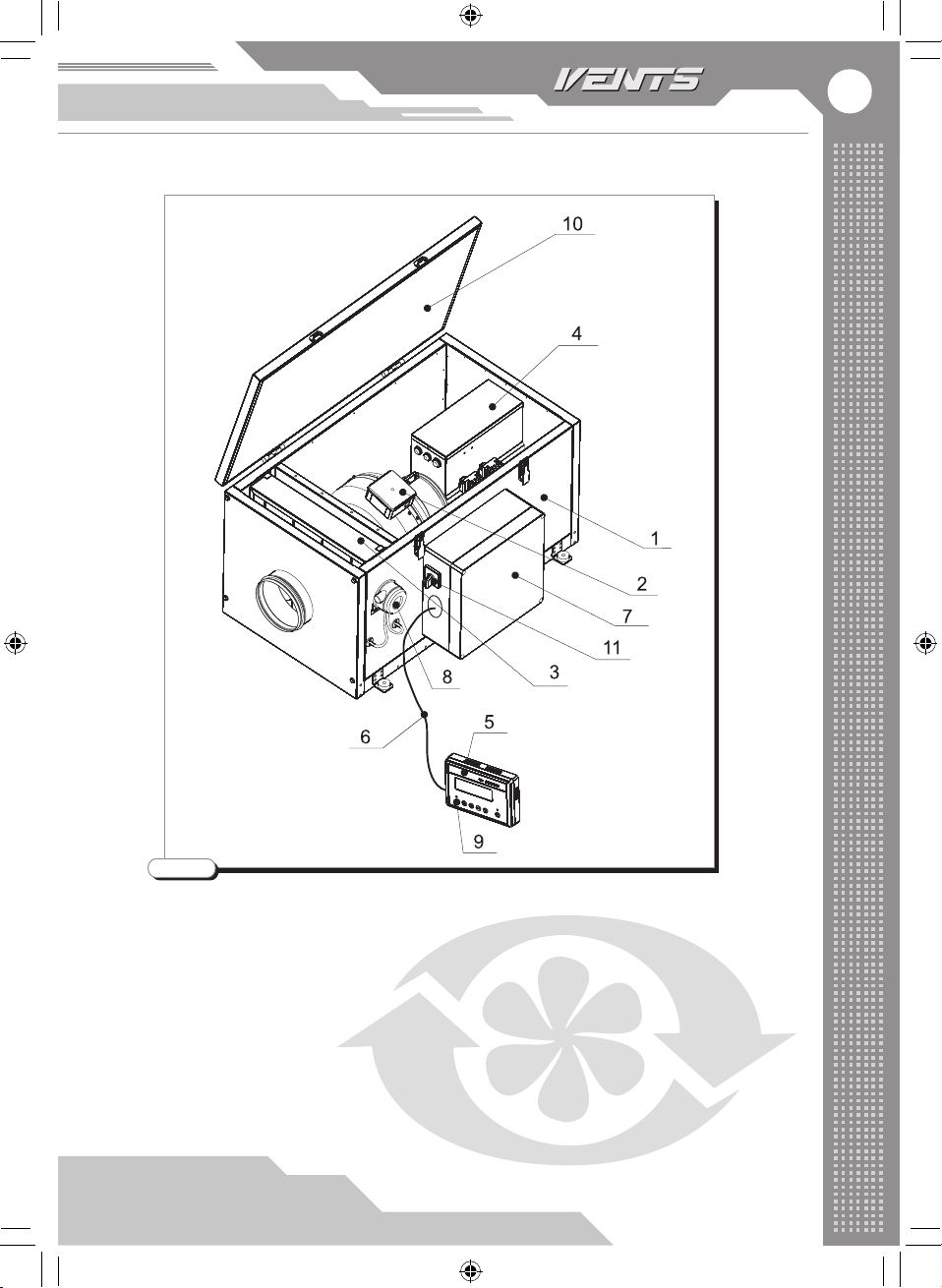

Fig. 2
V29-1_EN-03.indd 9 18.10.2016 10:38:49

10
Automated VPA
Fig. 3
VPA shall be mounted in such way that the arrow on the cover coincides with air ow
direction in the system and there is the sucient space for access for maintenance, service
or replacement.
Especially, it concerns the access to cover, which should be open completely, and control
unit located on the side part of case.
VPA can be mounted on at surface or hanged at threaded rod; the unit shall be
thoroughly secured to eliminate the risk of releasing or falling down (it is necessary to take
into consideration the VPA weight and material to which the unit is attached), using all
mounting L-holders containing the antivibration inserts and attached to unit base (g. 3)
VPA is designed for mounting in the round ducts; we recommend to attach the pipeline
VPA the exible tting to prevent the noise and random oscillation transmission;
the size of connected channel must coincide with the size of hole in VPA.
VPA distance to duct turns shall be at least by two times less than the channel connecting
diameter.
MOUNTING
VPA shall be mounted by qualied person or company properly trained
and having the required tools and materials.
V29-1_EN-03.indd 10 18.10.2016 10:38:49

11
Depending on VPA type, 230 V / 50 Hz AC or 400 V / 50 Hz AC power supply is used.
Connecting VPA to electric network is performed by the qualied electrician only.
VPA is connected to electric network by means of durable insulated and thermoresistant
wires with the appropriate cross-section area.
All wires should pass VPA the insulators on the side part of the control unit box in order
to ensure the electric protection class.
Diagram of connecting VPA to single-phase electric network is shown in g. 4, diagram
of connecting VPA to three-phase electric network is shown in g. 5.

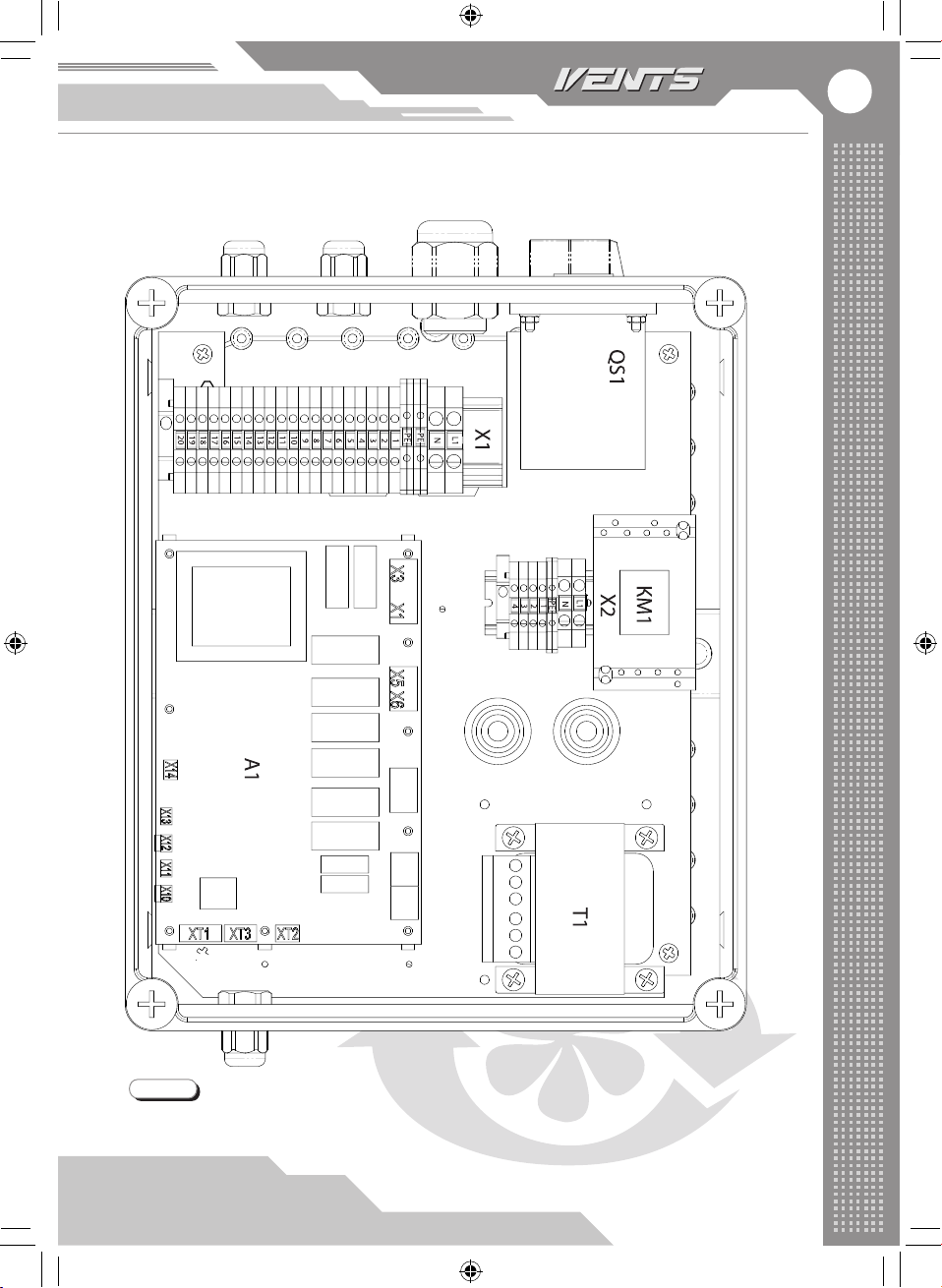

Connecting VPA is carried out using the terminal block inside the control unit according
to electric connection diagram and terminals designation (g. 4 or g. 5).
All power supply phases should be connected VPA the circuit-breaker having the gap
between the open contacts not less than 3 mm for all poles and built-in the xed wiring.
Rated values of VPA electric parameters are shown in the manufacture΄s label.
CONNECTING TO ELECTRIC NETWORK
PRIOR TO ANY WORKS IN VPA, IT MUST BE DISCONNECTED FROM THE
POWER SUPPLY AND THE POWER SWITCH SHOULD BE IN O POSITION
SWITCHEDOFF!
Any changes in internal connection are prohibited and lead to warranty
cancellation.
V29-1_EN-03.indd 11 18.10.2016 10:38:49

12
Automated VPA
Fig. 5
Unit
Fig. 4
QF — external switch with thermal-magnetic tripper (circuit-breaker),
X1 — terminal box for connecting the electric network wires and external devices:
sensors, shutter drive, control panel, etc.
Circuit-breaker QF shall be located in a manner which ensures free access to it for the
unit operative shuto.
Number wires and their cross-section area (mm2), as well as the values (recommended)
of circuit-breaker current, are specied in table 3.
Unit
V29-1_EN-03.indd 12 18.10.2016 10:38:50

13
Type Circuit-breaker Copper cable
single-phase three-phase
VPA 100-1.8-1 230 V; 10 А 3х2.5
VPA 125-2.4-1 230 V; 16 А 3х2.5
VPA 150-2.4-1 230 V; 16 А 3х2.5
VPA 150-3.4-1 230 V; 25 А 3х2.5
VPA 150-5.1-3 400 V; 10 А 5х2.5
VPA 150-6.0-13 400 V; 16 А 5х2.5
VPA 200-3.4-1 230 V; 25 А 3х2.5
VPA 200-5.1-3 400 V; 10 А 5х2.5
VPA 200-6.0-3 400 V; 16 А 5х2.5
VPA 250-3.6-3 400 V; 10 А 5х2.5
VPA 250-6.0-3 400 V; 16 А 5х2.5
VPA 250-9.0-3 400 V; 25 А 5х2.5
VPA 315-6.0-3 400 V; 16 А 5х2.5
VPA 315-9.0-3 400 V; 25 А 5х2.5
VPA-1 315-6.0-3 400 V; 16 А 5х2.5
VPA-1 315-9.0-3 400 V; 25 А 5х2.5
Cross-section area values in table 3 are guiding only!
While selecting the cross-section area, take into consideration the wire maximum
allowable heating dependent on the maximum current, the wire length and its location
(air, wall).
Table. 3
V29-1_EN-03.indd 13 18.10.2016 10:38:50

14
Automated VPA
Control panel structurally is integrated with the room temperature sensor in single case
and, therefore, while installing the control panel position it in operating zone but not
closer than at 1 m from the heating devices, doors and windows.
Control panel is mounted on a wall with the help of supplied screws. To control unit the
panel is connected by means of supplied standard four-core cable 10 m long.
Communication cable between the control panel and VPA must not be laid together
with the power wires. Minimum recommended distance between them is 150 mm.
Execute the following actions on the panel΄s side to connect the control panel:
open the control panel box pressing on its end parts;
run the cable into technological hole in the lower cover;
x the panel΄s lower cover in desired place; the screw head should tightly press the
cover to wall and under no circumstances contact with the panel electronic board
since otherwise the risk of equipment damage appears!
remove protective insulation from the cable (~ 20 mm);
remove insulation from the wires (~ 6 mm);
connect the wires to terminals located on the board according to color code and
designations shown on label:
white (black) wire .................................. (connected to contract X1:13)
brown (red) wire .................................... A (connected to contract X1:12)
green wire ................................................ В (connected to contract X1:11)
yellow wire ............................................... + (connected to contract X1:10)
secure the cable on the mounting base with the help of supplied clamp;
snap the panel covers;
on VPA side run the cable VPA the gland in the control panel case and connect the
cable wires to terminal box contacts X1:10, X1:11, X1:12, X1:13 (see above) according
to circuit designation and the wire color code (see g. 9).
Originally, the control panel is connected at the manufacture΄s factory.
EXTERNAL DEVICES
V29-1_EN-03.indd 14 18.10.2016 10:38:50

15
Channel temperature sensor
Channel temperature sensor is mounted at distance not less than 2 m from the VPA
output tube in place where the heated air intensive ow with balanced temperature
around the sensor is ensured (g. 6).
The channel sensor is connected to control unit with the help of supplied cable 4 m long.
The contacts X1:8 and X1:9 (polarity is indierent) located in the terminal block are used for
channel temperature sensor connection.
Originally, the channel temperature sensor is connected at the manufacture΄s factory.
Fig. 6
Channel temperature
sensor
V29-1_EN-03.indd 15 18.10.2016 10:38:50

16
Automated VPA
Dierential pressure sensor
Characteristic
Operating pressure range: 500 - 500 kPa
Max. operating pressure: 5.0 kPa within the entire range
Temperature range: 0 °C to + 85 °C
Electric load: max. 1.5 A (0.4 A / 250 V AC
Electric protection: IP 54 with protective cover
Dierential pressure sensor is supplied previously installed on VPA case.
To avoid the unforeseen situation, make sure that the rubber tube before the lter (in the
ow direction) is connected to sensor output P1 and the tube after the lter — to output P2.
Default setting corresponds to sensor operation at pressure drop of 200 kPa.
Control unit
Control unit is produced in several versions: for single-phase electric network 230 V/50
Hz g. 7) and three-phase electric network 400 V / 50 Hz (g. 8). In gures there are pre-
sented the tables showing all possible connections to the control unit. Not all terminals
may be used in particular version.
Connection of all circuits is executed using two terminal blocks installed on the con-
trol unit (see g. 7 and 8). Fan, heater, heater control opto-triac unit, control unit, chan-
nel temperature sensor and dierential pressure sensor are connected originally by the
manufacturer. There are envisaged the additional options of external device connections:
contact of automatic re extinguishing system and contact of humidity relay — hygrostat.
To connect the contact of automatic re extinguishing system it is necessary to remove the
jumper installed between the terminals X1:17 and X1:18 in terminal block X1; in this case
there is used normally closed «dry contact» which in the event of re opens, at central re
extinguishing board, the VPA control circuit and de-energizes it. Hygrostat is connected to
terminals X1:19 and X1:20 in terminal block X1; there is used normally open «dry contact»,
and in the event of its closing VPA is switched to maximum speed mode. Connection of
additional contacts is provided by the consumer. The external view of terminal block X1
and the contacts for external connections are shown in g. 9.
V29-1_EN-03.indd 16 18.10.2016 10:38:50

17
Fig. 7
Control unit for single phase electric network 230 V / 50 Hz
Cover is not shown
V29-1_EN-03.indd 17 18.10.2016 10:38:51

18
Automated VPA
Terminal
marking Circuit External connection
L1 L1 Network ~ 230 V
N N Network ~ 230 V
PE PE Protective earthing
PE PE Protective earthing
1 M-L Motor - phase
2 M-N Motor - zero
3 +10V Motor control circuit
4 CTR Motor control circuit
5 GND Motor control circuit
6 BP1-1 Dierential pressure sensor
7 BP1-2 Dierential pressure sensor
8 RK1-1 Temperature sensor
9 RK1-2 Temperature sensor
10 + Control panel
11 B Control panel
12 A Control panel
13 Control panel
14 Y-N Shutter drive
15 Y-LC Shutter drive
16 Y-LO Shutter drive
17 PK1 Fire ghting system NC contact
18 PK2 Fire ghting system NC contact
19 H-1 Hygrostat NO contact
20 H-2 Hygrostat NO contact
Terminal
marking Circuit External connection
L1 LК1 Opto-triac module
N N Heater
PE PE Protective earthing (heater)
1 A+ Opto-triac module (ctrl)
2A- Opto-triac module (ctrl)
3TS1 Thermal switch
4TS4 Thermal switch
Terminal block X1
Terminal block X2
V29-1_EN-03.indd 18 18.10.2016 10:38:51

19
Fig. 8
Control unit for single phase electric network 400 V / 50 Hz
Cover is not shown
V29-1_EN-03.indd 19 18.10.2016 10:38:52

20
Automated VPA
Terminal
marking Circuit External connection
L1 L1 Network ~ 400 V
L2 L2 Network ~ 400 V
L3 L3 Network ~ 400 V
N N Neutral
PE PE Protective earthing
PE PE Protective earthing
1 M-L Motor - phase
2 M-N Motor - zero
3 +10V Motor control circuit
4 CTR Motor control circuit
5 GND Motor control circuit
6 BP1-1 Dierential pressure sensor
7 BP1-2 Dierential pressure sensor
8 RK1-1 Temperature sensor
9 RK1-2 Temperature sensor
10 + Control panel
11 B Control panel
12 A Control panel
13 Control panel
14 Y-N Shutter drive
15 Y-LC Shutter drive
16 Y-LO Shutter drive
17 PK1 Fire ghting system NC contact
18 PK2 Fire ghting system NC contact
19 H-1 Hygrostat NO contact
20 H-2 Hygrostat NO contact
Terminal
marking Circuit External connection
L1 LК1 Opto-triac module
L2 LК2 Opto-triac module
L3 LК3 Heater
PE PE Protective earthing (heater)
1 A+ Opto-triac module (ctrl)
2A- Opto-triac module (ctrl)
3TS1 Thermal switch
4TS4 Thermal switch
Terminal block X1
Terminal block X2
V29-1_EN-03.indd 20 18.10.2016 10:38:52
