Dear user!
Thank you for selecting the Verbatim Hard Drive as your external data storage device.
For optimal use and performance we advise you to read this manual carefully before using
this product.
Please note: this manual is a general manual which is used for several Verbatim products.
Product pictures shown in this manual may differ from the device you bought.
Contents of the box
Please check the contents of the box. All articles included in this box are listed on the
back side of the packaging.
Need assistance? Have questions?
In case you have a question about the use of this product, need information about
other Verbatim products or need technical assistance, please contact the Verbatim
Service Center for your country. See www.verbatim-europe.com/support for
details.
Warning !
All rights reserved. The products named in this manual are only used for identification
purposes and may be trademarks or registered trademarks of the respective
companies. This device was designed for home or office use.
Warning! This device is equipment complying with EN55022 class A. This equipment
can cause radio disturbances in a residential area. If this is the case, the user has
to take appropriate measures and assume all responsibility and costs for. It may
not be used near or with any life-sustaining systems.
Verbatim cannot be made liable for any damages, loss of data or damage following
thereof -whatsoever (including, without limitation, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary loss)
arising out of the use of or inability to use this Verbatim product, even if Verbatim
has been advised of the possibility of such damages.
We reserve the right to upgrade our products in keeping with technological advances.

3
EN
Verbatim is a Mitsubishi Kagaku Media Company
Table of Contents
General Information .................................................................................page 4
Precautionary measures ...........................................................................page 5
Verbatim Hard Drive ................................................................................page 6
Chapter
Hardware Installation ...............................................................................page 7
Chapter
Driver Installation ...................................................................................page 7
Chapter
Installation of the application software .......................................................page 8
Chapter
Partitioning your Verbatim Hard Drive ........................................................page 11
Chapter
Technical Support ...................................................................................page 20
Limited Warranty Terms ...........................................................................page 21
Rights ....................................................................................................page 21
FCC Compliance ......................................................................................page 22
WEEE Notice ...........................................................................................page 22
CE Declaration ........................................................................................page 23
RoHS Compliance ....................................................................................page 23
© 2012 Verbatim

4
EN
Verbatim is a Mitsubishi Kagaku Media Company
General Information
The following hardware and software requirements must be fulfilled to ensure trouble-free
operation.
System requirements
In order to use the Verbatim Hard Drive, following components are needed:
PC:
• Intel Pentium III / AMD Duron 900 MHz or higher
• 512 MB RAM or higher
• Available USB 3.0/2.0 port* or
• Available Firewire 800- or Firewire 400- port* or
• Available eSATA- or Thunderbolt port*
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Windows XP, Windows Vista, Windows 7
Mac:
• PowerPC G5 or Intel Mac
• 256 MB RAM or higher
• Available USB 2.0/3.0 port* or
• Available Firewire 800- or Firewire 400- port* or
• Available eSATA- or Thunderbolt port*
• Internet connection for online warranty registration, software updates and downloads
• Operating system: Mac OS X v10.4.6 or higher
* Please use the interface cables that come with your device (e.g. USB, eSATA, Firewire,
Thunderbolt) for connecting the device to your PC/Mac.

5
EN
Verbatim is a Mitsubishi Kagaku Media Company
Precautionary measures
To ensure that your Verbatim Hard Drive functions properly, please take note of the
following precautions. If these are not followed, you may void your warranty and damage
the Verbatim Hard Drive.
• Safely remove the Verbatim Hard Drive via your operating system (the "unplug or
eject hardware" option in the Windows taskbar) before disconnecting the interface
cable. Failing to do so may result in data loss.
• Do not drop the Verbatim Hard Drive or expose it to other kinds of sudden mechanical
shocks as this may result in data loss and damage to the Verbatim Hard Drive.
• Do not use the Verbatim Hard Drive when the ambient temperature is below 10°C or
above 35°C.
• If the Verbatim Hard Drive is moved from a cool environment to a warmer environment,
please allow the drive to acclimatize to the ambient temperature before operating the
device. Failing to do so may lead to condensation within the drive enclosure, which
in turn may cause the drive to malfunction.
• Do not place liquids or drinks on the Verbatim Hard Drive. When liquids are spilled
and get in contact with the electronics within the drive enclosure, it will damage the
drive and will cause the drive to malfunction.
• Do not use the Verbatim Hard Drive in a dusty environment. Dust inside the enclosure
may damage the internal electronics and result in drive malfunction.
• Opening the Verbatim Hard Drive will void the warranty.
• Since USB 3.0 is backwards compatible with USB 2.0, the Verbatim Hard Drive can
be connected to all USB ports. When connected to a USB 2.0 port, however, the
performance (data transfer rate) of the Verbatim Hard Drive will be much lower than
when the drive is connected to a USB 3.0 port.
If at any point during installing and/or configuring your Verbatim Hard Drive you need
assistance or have questions, please contact the Verbatim Support Center for your
country. See www.verbatim-europe.com/support for details.

6
EN
Verbatim is a Mitsubishi Kagaku Media Company
Verbatim Hard Drive
The hi-speed data transfer through the (e.g. USB, Firewire, eSATA, Thunderbolt) interface
makes it ideally suitable for data-storage, file sharing, backup, archiving, audio playback
and all applications that need fast file access.
For your convenience, the Verbatim Hard Drive has been partitioned (1 partition) and pre-
formatted (FAT32 file system). The FAT32 format ensures maximum interchangeability
of the Verbatim Hard Drive between different computers. Should you choose to format
the Verbatim Hard Drive in another file system (e.g. NTFS), please be aware of possible
problems when connecting the Verbatim Hard Drive to another computer than the one
you used for formatting.

7
EN
Verbatim is a Mitsubishi Kagaku Media Company
Chapter: Hardware Installation

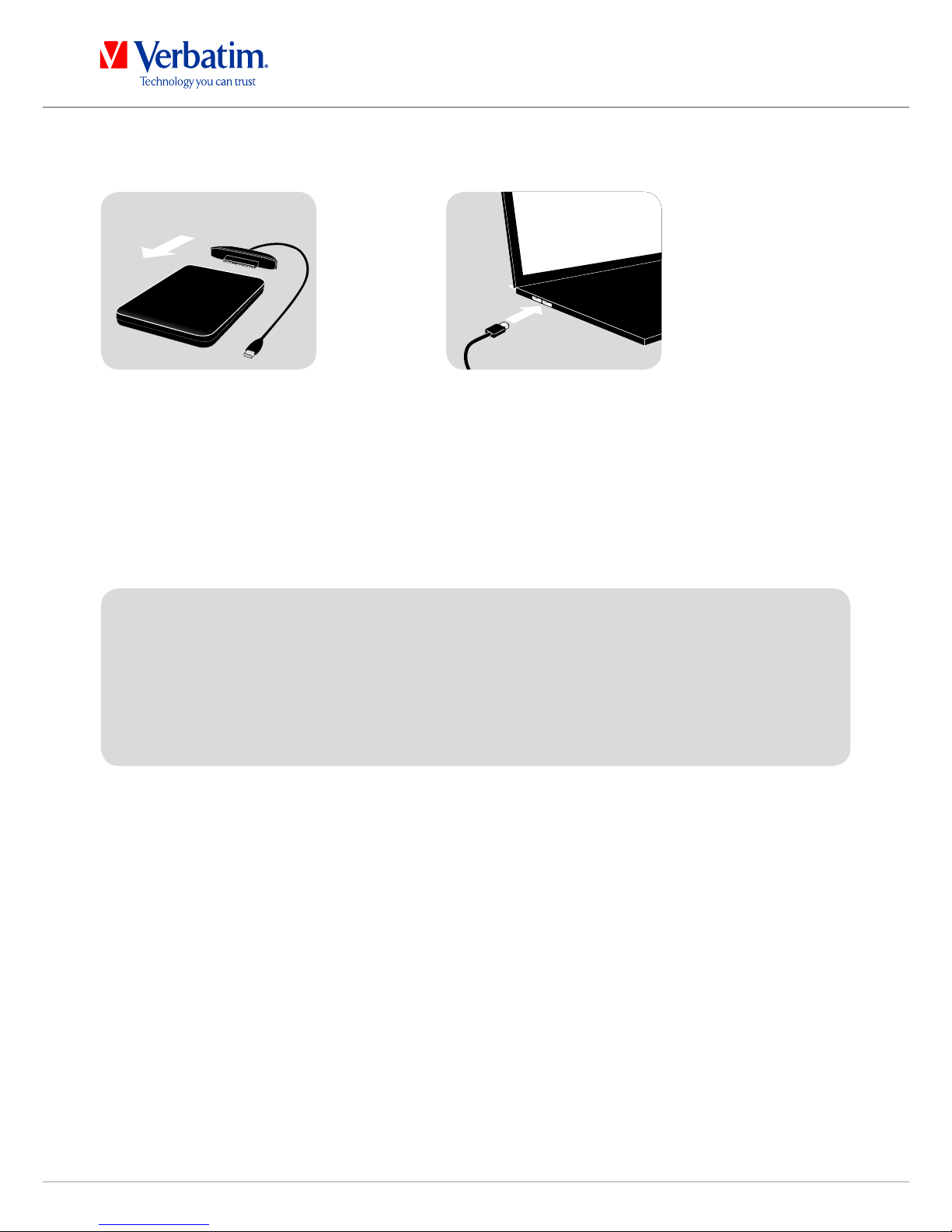

1. Connect the interface cable* to the Verbatim Hard Drive.
2. Connect the interface cable* to the interface port of your computer.
* Please use the interface cables that come with your device (e.g. USB, eSATA, Firewire, Thunderbolt)
for connecting the device to your PC/Mac.
Chapter: Driver Installation
Under Windows XP/Windows Vista/Windows 7 and Mac OS X a separate Verbatim driver
is not required. The drivers will be installed automatically by the operating system after
plugging in the Verbatim Hard Drive into the interface port of the computer.
Since USB 3.0 is backwards compatible with USB 2.0, the Verbatim Hard Drive can
be connected to all USB ports. When connected to a USB 2.0 port, however, the
performance (data transfer rate) of the Verbatim Hard Drive will be much lower than
when the drive is connected to a USB 3.0 port.
For optimum performance the Verbatim Hard Drive should always be connected to
a USB 3.0 interface.
1. 2.

8
EN
Verbatim is a Mitsubishi Kagaku Media Company
Chapter: Installation of the application software
Software installation PC

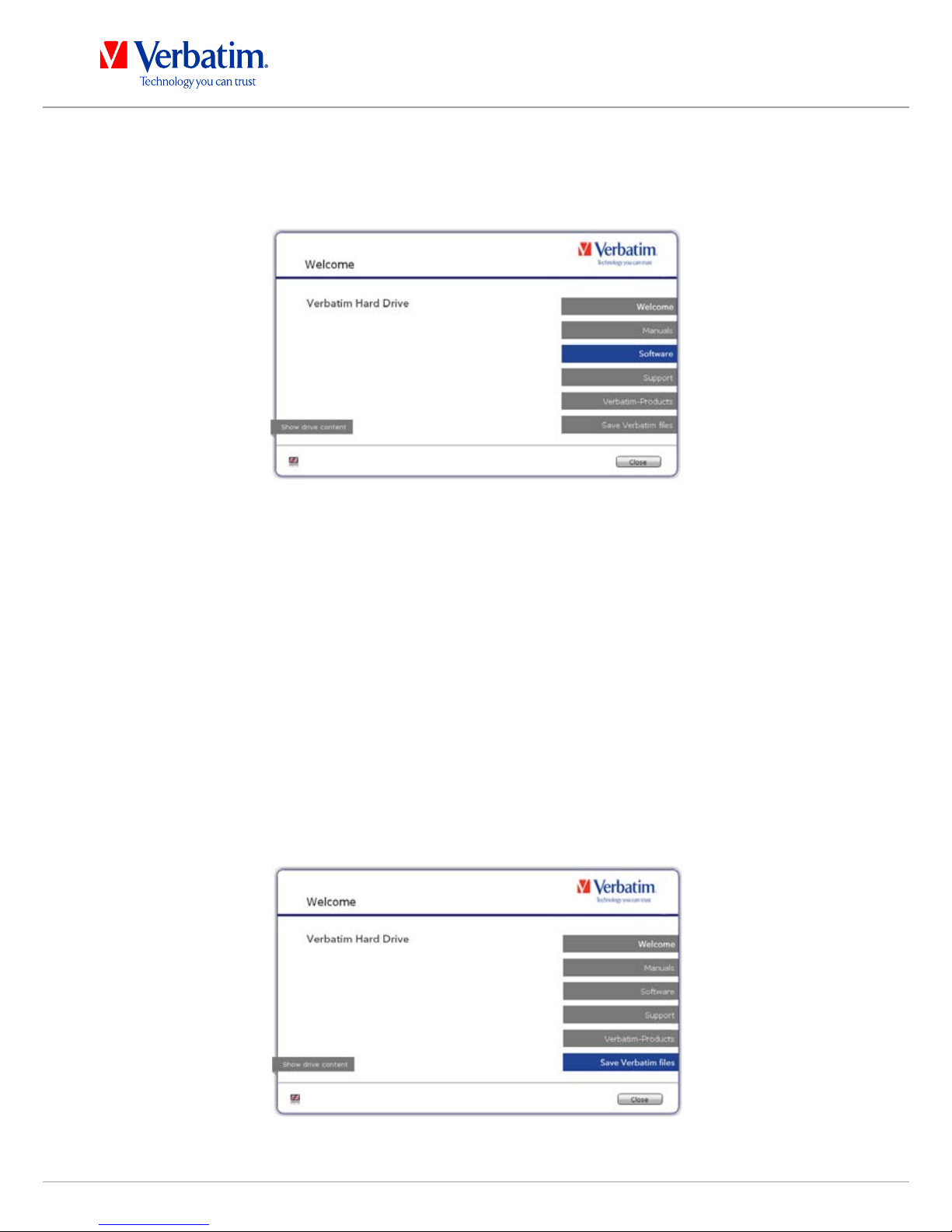

1. Click on "Start PC.exe" in the main directory of the hard drive. The Verbatim start
menu opens.
2. Click on "Software". The installation starts now. Follow the instructions on the screen,
confirm with "Next" in order to continue with the installation.
Saving Verbatim data
The user manuals and complementary software (when applicable) are pre-loaded
onto the hard drive. We recommend that you save these files to your computer ("My
Documents"/"Verbatim"), to always have a backup of these files in case you (accidentally)
reformat the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on the button "Save Verbatim files".
2. All provided data on the Verbatim hard drive will be saved to the folder "Verbatim" in
"My Documents".

9
EN
Verbatim is a Mitsubishi Kagaku Media Company
Software installation Mac
1. Click on "Start MAC" in the main directory of the hard drive. The Verbatim start menu
opens.
2. Click on "Software". The installation starts now. Follow the instructions on the screen,
confirm with "Next" in order to continue with the installation.
Saving Verbatim data
The user manuals and complementary software (when applicable) are pre-loaded onto
the hard drive. We recommend that you save these files to your computer ("Documents"/
"Verbatim"), to always have a backup of these files in case you (accidentally) reformat
the drive or delete these files from the drive.
Saving these files from the external hard drive to your computer is easy:
1. Click on "Start MAC" in the main directory of the hard drive. The Verbatim start menu
opens.
2. Click on the button "Save Verbatim files".
3. All provided data on the Verbatim hard drive will be saved to the folder "Verbatim" in
"Documents".

10
EN
Verbatim is a Mitsubishi Kagaku Media Company
Using Time Machine with your Verbatim Hard Drive
Time Machine allows you making automated backups of your complete system under Mac
OS X 10.5 and Mac OS 10.6 or higher.
1. Connect your Verbatim Hard Drive via the interface to your Mac. If you did not specify
a backup volume yet, Time Machine will ask you when connecting the Verbatim Hard
Drive for the first time if the device shall be used as backup drive.
2. After your Verbatim Hard Drive appeared on the desktop, click on “Use as Backup
Disk” to confirm that you want to use your Verbatim Hard Drive for Time Machine
backups. In the Time Machine preferences you can configure your backup settings
further.
Time Machine now automatically creates backups of your Mac. Time Machine will keep
hourly backups for the last 24 hours, daily backups for the last month and weekly backups
until your Verbatim Hard Drive is full.
The first backup can take some time, so you should set up Time Machine, for example, in
the evening, so the first backup can be created overnight.
Remark: If your Verbatim Hard Drive is formatted in NTFS or FAT 32 format, you
need to format your hard dive in Mac OS Extended (Journaled) format. Doing so
will delete ALL your data!

11
EN
Verbatim is a Mitsubishi Kagaku Media Company
Chapter: Partitioning your Verbatim Hard Drive
General information
Your Verbatim Hard Drive was partitioned and formatted to provide you with the maximum
available capacity and compatibility. FAT32 was chosen as file system to assure that you
will be able to read your files on any PC. It is recommended not to change the current
configuration of your Verbatim Hard Drive.
For some users another file system might fit better for their needs. This manual describes
current limitations of most common file systems and Instructions to enable you to adapt
the Verbatim Hard Drive to your needs.
File System features
Please refer to the tables below for an overview:
File systems supported by different operating systems
File system
Operating system
FAT FAT32 NTFS HFS+
Windows XP/Vista/7 yes yes yes no
Mac OS X yes yes yes
(only read)
yes
Maximum size of a partition
File system
Operating system
FAT FAT32 NTFS HFS+
Windows XP/Vista/7 4 GB* 32 GB 16 TB -
Mac OS X 10.1.x - 128 GB - 2 TB
Mac OS X 10.2.x - 128 GB - 8 TB
Mac OS X 10.3.x - ( -> 128 GB) - 16 TB
Mac OS X 10.4.x - ( -> 128 GB) - 16 TB
Mac OS X 10.5.x - ( -> 128 GB) - 16 TB
Mac OS X 10.6.x - ( -> 128 GB) - 16 TB

12
EN
Verbatim is a Mitsubishi Kagaku Media Company
Example for different partitions with different file systems on one
Verbatim Hard Drive
File system
Total
size of Verbatim HD
NTFS FAT32
250 GB 220 GB 30 GB
The example above is a good solution for Windows XP/Windows Vista/Windows 7 users
who sometimes exchange data with Macs.
For storing the data under Windows XP/Windows Vista/Windows 7 both partitions can be
used. As the NTFS file system can only be read by Mac data to be used on these operating
systems must be stored on the FAT32 partition.
Please follow the steps below to adapt the Verbatim Hard Drive for your needs.
Partitioning your Verbatim Hard Drive under Windows XP / Windows
Vista / Windows 7
Deleting a partition
1. Click with the right mouse button on the "My Computer" icon on your desktop.
2. Select the option "Manage".
3. Select the option "Storage" -> "Disk Management".
4. Choose your external Verbatim Hard Drive and right-click on the partition.
5. Select "Delete Partition" and confirm by clicking on "Yes". The partition will be deleted
now.
Creating a partition
The following steps will guide you through the process of creating partitions on your
Verbatim Hard Drive. After this procedure your Verbatim Hard Drive will be ready for use
and it will be allocated a drive letter.
1. Click with the right mouse button on the "My Computer" icon on your desktop.
2. Select the option "Manage".
3. Select the option "Storage" -> "Disk Management".
Note: On NTFS formatted hard drives can only be written under Windows XP /Windows
Vista / Windows 7. Under MacOSX data can only be read.

13
EN
Verbatim is a Mitsubishi Kagaku Media Company
4. Choose the hard drive, which is "unallocated". Ensure that the entire drive is "unallocated".
5. Click with the right mouse button on the "unallocated" area and select the option
"New Partition". The "New Partition Wizard" opens. Click on "Next".

14
EN
Verbatim is a Mitsubishi Kagaku Media Company
6. Select "Primary partition" and click on "Next".
7. Now you can adjust the size of your partition. Click on "Next" if only one partition is
to be created. See next chapter (Creating two or more partitions on the Verbatim
Hard Drive under Windows XP/Windows Vista/Windows 7) how to create more than
one partition.
8. Assign a drive letter to your hard drive. Normally you can use the default options.
Click on "Next".

15
EN
Verbatim is a Mitsubishi Kagaku Media Company

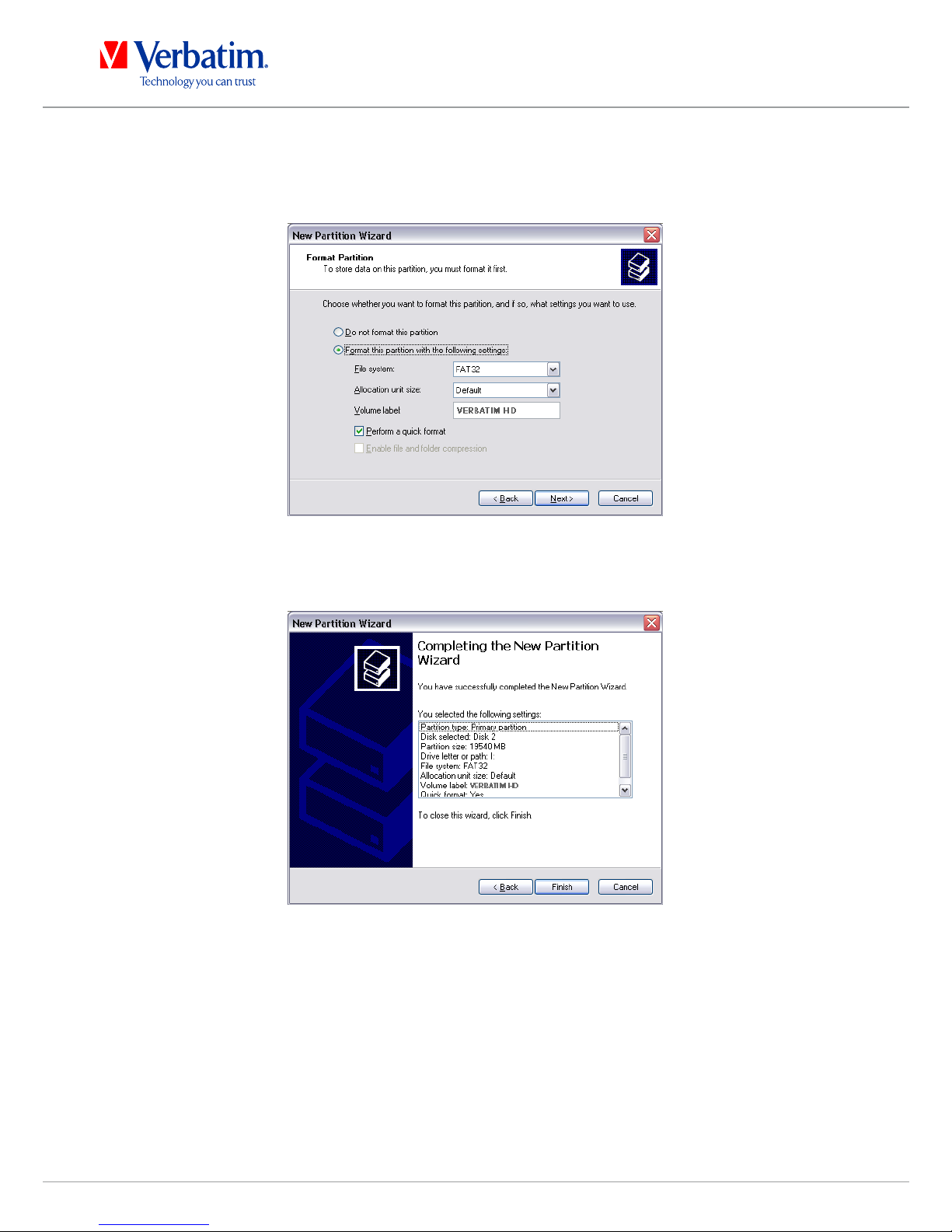

9. Select the formatting option "Format this partition with the following settings". Choose
either "FAT32" or "NTFS", the "Allocation unit size" should remain on "Default". Finally
select "Perform a quick format" and click on "Next".
10. Click on "Finish" to complete the partitioning of your Verbatim Hard Drive. Your
Verbatim Hard Drive will be formatted now and is ready-to-use afterwards.

16
EN
Verbatim is a Mitsubishi Kagaku Media Company
Creating two or more partitions on the Verbatim Hard Drive under Windows XP
/ Windows Vista / Windows 7
1. Repeat the steps from the previous chapter (Creating a partition on the Verbatim Hard
Drive under Windows XP/Windows Vista/Windows 7) for creating the first partition.
2. Click with the right mouse button on the "My Computer" icon on your desktop.
3. Select the option "Manage".
4. Select the option "Storage" -> "Disk Management".
5. Right-click on the unallocated space of your Verbatim Hard Drive and select the option
"New partition". The "New Partition Wizard" opens. Click on "Next".
6. Select "Extended partition" and click on "Next".
7. Now you can adjust the size of your partition. Enter the size and click on "Next".

17
EN
Verbatim is a Mitsubishi Kagaku Media Company
8. Click on "Finish" to create the "Extended partition". The unallocated space now changed
to "Free space".

18
EN
Verbatim is a Mitsubishi Kagaku Media Company

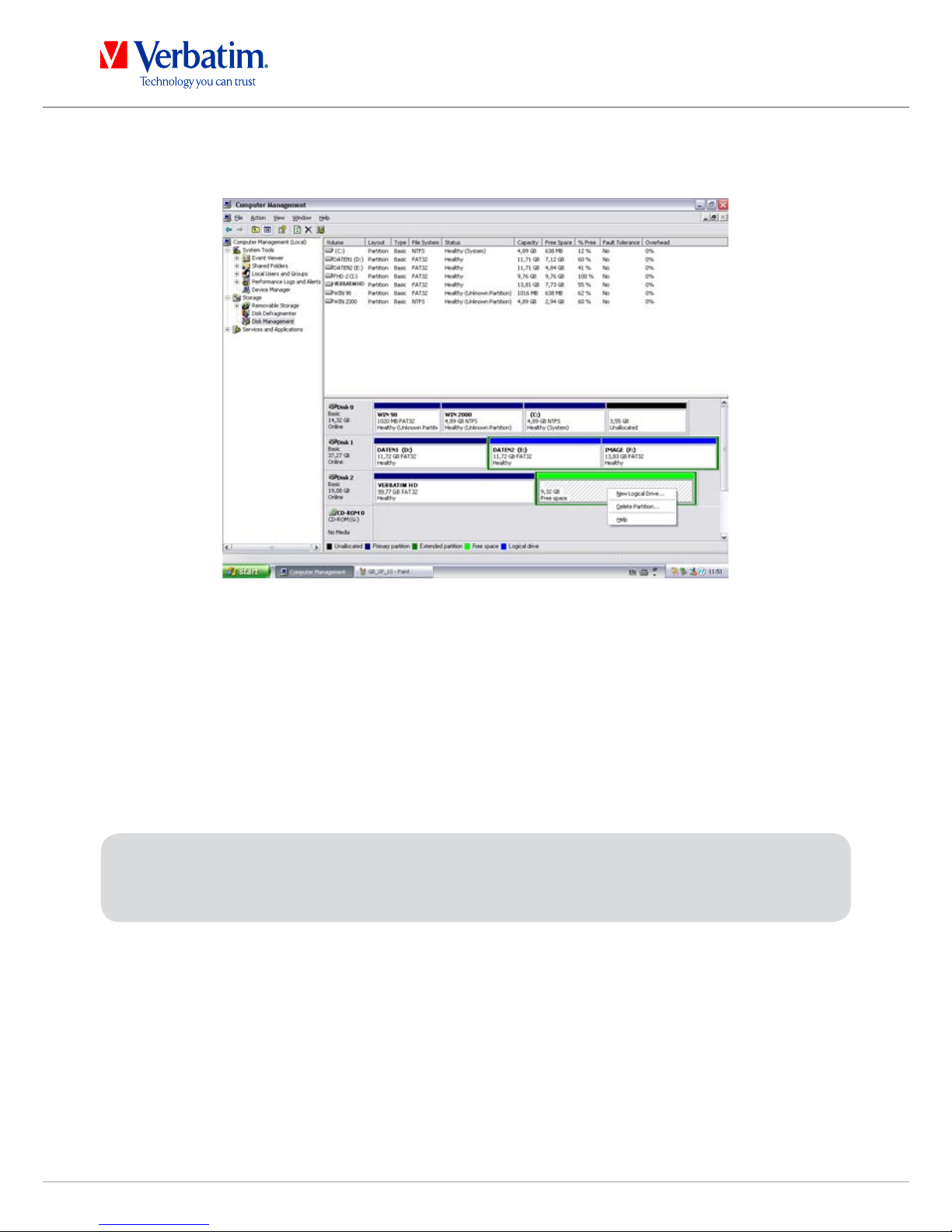

9. Right-click on "Free Space" and select "New Logical Drive". The "New Partition Wizard"
opens. Click on "Next".
10. "Logical drive" is already selected. Click on "Next".
11. Specify the partition size and click on "Next".
12. Assign a drive letter and click on "Next".
13. Select the formatting option "Format this partition with the following settings". Choose
either "FAT32" or "NTFS", the "Allocation unit size" should remain on "Default". Finally
select "Perform a quick format" and click on "Next".
14. Click on "Finish" to complete partitioning. Your partition will be formatted now and is
ready-to-use.
Note: If you select NTFS as file system, the data of your Verbatim Hard Drive can
be read only under Mac OS X. There is no possibility to write data.

19
EN
Verbatim is a Mitsubishi Kagaku Media Company
Partitioning your Verbatim Hard Drive under Mac OS X
1. Open the "Disk Utility". This can be found in "Applications" —> "Utilities".
2. Click on the tab "Partition".
Here you can setup the partition settings and partition the drive according to your settings
(e.g. Mac OS Extended). Detailed information how to use the Disk Utility can be found in
the help:

20
EN
Verbatim is a Mitsubishi Kagaku Media Company
Technical Support
If you are experiencing difficulty installing or using your Verbatim product, please visit the
main Verbatim Technical Support website at www.verbatim-europe.com/support. From
this page you can access our library of user documentation, read answers to frequently
asked questions, and download available software updates. Although most of our customers
find this content sufficient to put them back on the right track, this page also lists ways
in which you can contact the Verbatim Technical Support Team directly.
Country Email Hotline Number
United Kingdom [e-mail] 00 800 3883 2222
France [e-mail] 00 800 3883 2222
Deutschland [e-mail] 00 800 3883 2222
Italia [e-mail] 00 800 3883 2222
España [e-mail] 00 800 3883 2222
Portugal [e-mail] 00 800 3883 2222
Polska [e-mail] 00 800 3883 2222
Россия [e-mail] [phone]
Česko [e-mail] [phone]
Magyarország [e-mail] 00 800 3883 2222
Eesti [e-mail] [phone]
Latvija [e-mail] [phone]
Lietuva [e-mail] [phone]
Slovensko [e-mail] [phone]
Slovenija [e-mail] [phone]
Türkiye [e-mail] [phone]
Nederland [e-mail] 00 800 3883 2222
Ελλάδα [e-mail] [phone]
România [e-mail] [phone]
България [e-mail] [phone]
Hrvatska [e-mail] [phone]
Srbija [e-mail] [phone]
Suomi [e-mail] 00 800 3883 2222
Sverige [e-mail] 00 800 3883 2222
Danmark [e-mail] 00 800 3883 2222
Norge [e-mail] 00 800 3883 2222
ةﺪﺤﺘﻤﻟا ﺔﻴﺑﺮﻌﻟا تارﺎﻣﻹا [e-mail] [phone]
Україна [e-mail] [phone]
