Please read the entire
instruction manual before operating the
ClearWave® Soothing Skin System.
The Science of Light ............................................... 3
About your ClearWave System ....................................... 4
Warnings ........................................................ 5
Cautions ........................................................ 5
Product Overview ................................................. 6
Accessories ...................................................... 6
Controls and Status Information Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Getting Started ................................................... 8
Operating Instructions .............................................. 9
Daily Care for your Skin ............................................. 9
Care Cycle Interruption ............................................ 10
Charging Mode .................................................. 11
Cold Protection Mode ............................................. 12
Heat Protection Mode ............................................. 12
Replacing the Interchangeable Heads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
How to Replace the Battery ........................................ 14
Care, Cleaning and Storage ........................................ 14
Troubleshooting .................................................. 15
Warranty ....................................................... 16
Table Of Contents

3
The Science of Light
Scientific studies have confirmed the effectiveness of 414-430 nanometer (nm)
blue light, and 630-660nm red light in eliminating acne forming bacteria and
promoting healing and the production of collagen in the dermal layer of the skin.
A study published in the Journal of Cosmetic Dermatology in 2006 outlined red
light LED’s ability to energize the cells, producing increased levels of collagen
and elastin. This increased cellular activity provides for firmer, smoother and more
naturally toned skin, reducing the appearance of fine lines and wrinkles without
producing adverse side-effects.
A 2006 Mount Sinai scientific study stated that “combinations of blue and red
light therapy have excellent potential in the treatment of mild to moderate acne.
Additionally, the treatment appears to be both pain and side-effect free.”
These studies expanded the findings of the Imperial College of Science,
Technology and Medicine’s published study in 2000 in the British Journal of
Medicine outlining an 80% success rate with light therapy treatment of acne. The
study showed that blue light in the range of 415nm was effective at eliminating
the p-acne bacteria that is the most common cause of acne outbreaks. Red
light, in the 660nm range, was found to promote healing of lesions, activating
macrophages at the dermal layer and promoting cellular regeneration.
Jaideep Bhat, Jan Birch, Colin Whitehurst, Sean W Lanigan, “A single-blinded randomised controlled
study to determine the efficacy of Omnilux Revive facial treatment in skin rejuvenation”, Lasers in Medical
Science. Vol. 20 No. 1. July 2005
Shinichiro Takezaki, Tokuya Omi, Shigeru Sato, and Seiji Kawana “ULTRASTRUCTURAL
OBSERVATIONS OF HUMAN SKIN FOLLOWING IRRADIATION WITH VISIBLE RED LIGHT-EMITTING
DIODES (LEDs): A Preliminary In Vivo Report”, Laser Therapy. 14.4: 153-160
Robert A. Weiss, “LED Low-Level Light Therapy”, Facial Rejuvenation. Springer Berlin Heidelberg. 2007.
Mario A. Trelles, “Phototherapy in anti-aging and its photobiologic basics: a new approach to skin
rejuvenation”, Journal of Cosmetic Dermatology. VL: 5, NO: 1, PG: 87-91. 2006
Christine C. Dierickx, R. Rox Anderson, “Visible light treatment of photoaging”, Dermatologic Therapy.
VL: 18, NO: 3, PG: 191-208. 2005

4
The ClearWave Soothing Skin System provides Natural Spectrum® light for a daily
skin care regimen. The System includes two interchangeable heads that provide
600 cycles of use in each.
The Blemishes Head uses LEDs to emit blue light at 414 nanometer (nm) to
reduce the appearance of pimples and facial blemishes.
The Fine Lines and Wrinkles Head uses LEDs to emit red light at 660nm to help
soothe blemishes, reduce the appearance of fine lines and wrinkles and improve
skin texture.
About Your ClearWave® System

5
The ClearWave Soothing Skin System contains no user serviceable parts. Do not attempt
to disassemble the ClearWave Soothing Skin System. To do so would void the warranty.
Contact 1-800-454-4408 for replacement components.
Cautions
Warnings
Always use eye protection while operating the ClearWave® Soothing Skin System to avoid
potential eye damage.
Do not use the ClearWave Soothing Skin System if you are taking photosensitizing
medications or using photosensitizing topical creams. These may cause an adverse
reaction.
If you experience prolonged redness or sensitivity of the area you are caring for,
discontinue use and consult your healthcare professional as soon as possible.
Do not use the ClearWave Soothing Skin System if you are pregnant. The safety of the
ClearWave® Soothing Skin System has not been tested and the risk is unknown.
Never use the ClearWave Soothing Skin System where it can fall or be pulled into water.
Never use the ClearWave Soothing Skin System when bathing or standing in water.
Never use the ClearWave Soothing Skin System if you think the unit has been immersed in
water, may have become wet or if you have spilled any liquids on it.
Never remove the cover to the wall power supply. Doing so may expose you to dangerous
voltages or other risks.
Do not try and force the barrel of the AC Adapter into the inlet on the device. If the barrel
does not connect easily with the inlet, it may be the wrong AC Adapter.
Do not attempt to use the ClearWave Soothing Skin System with any wall power supply
other than the one provided.
Do not use the ClearWave Soothing Skin System if it is damaged in any way.
Do not use the wall power supply if it, or its cord or plug, is damaged in any way.
Always clean the ClearWave Soothing Skin System before each use. See the Care,
Cleaning and Storage section for details on how to properly clean your ClearWave
Soothing Skin System unit.
Always keep the ClearWave Soothing Skin System away from heated surfaces. High
temperatures may damage the plastic cases or the internal parts.
Do not use with power voltage other than 120V AC.

6
The ClearWave® Soothing Skin System is an over-the-counter device designed to
naturally reduce the appearance of fine lines, wrinkles and blemishes.
Product Overview

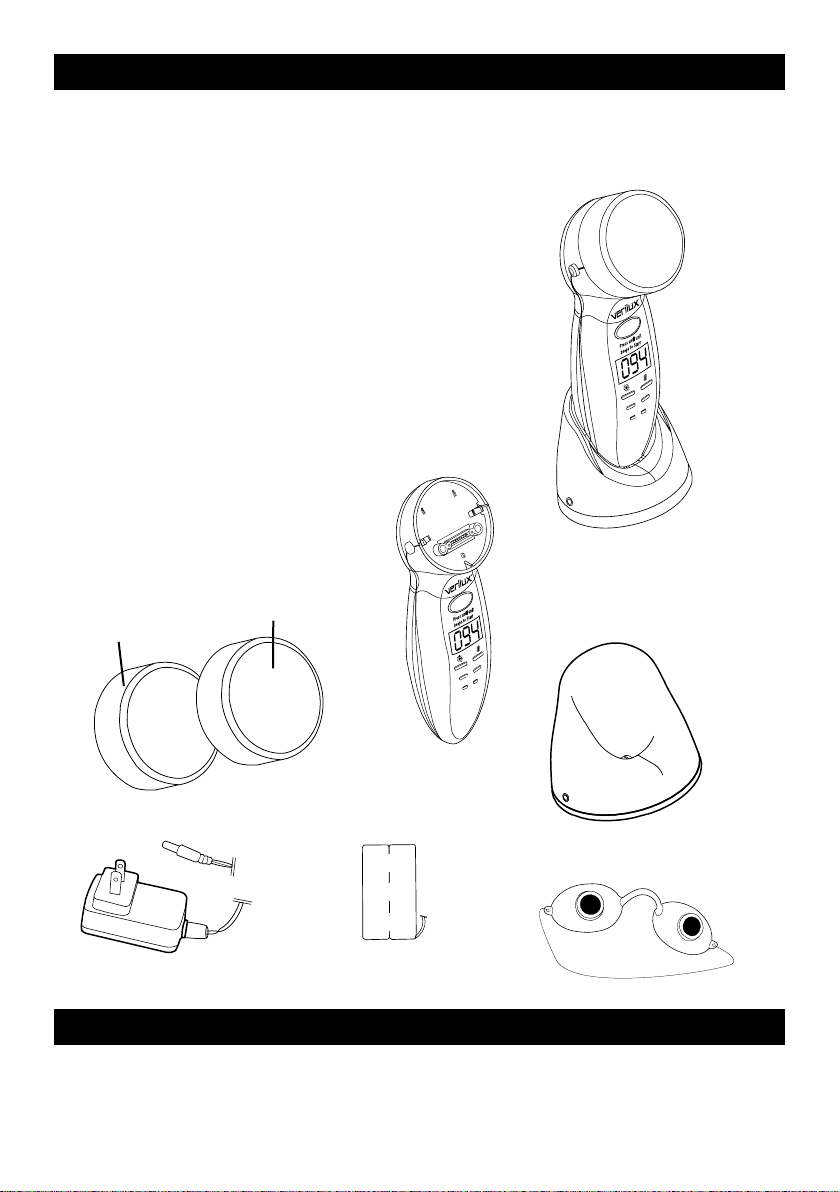

Contents Include:
a. Device Body
b. Two Replaceable Natural Spectrum®
Interchangeable Heads
c. Charging Stand
d. AC Adapter
e. Rechargeable Battery
(factory installed)
f. Protective Eyewear (goggles)
g. Instructions for Use
a.
b.
c.
d.
e. f.
Fine Lines
& Wrinkles
Blemishes
(blue light)
(red light)
• Charging Stand
• Power Supply
Accessories
• Goggles
• Instructions for Use

7

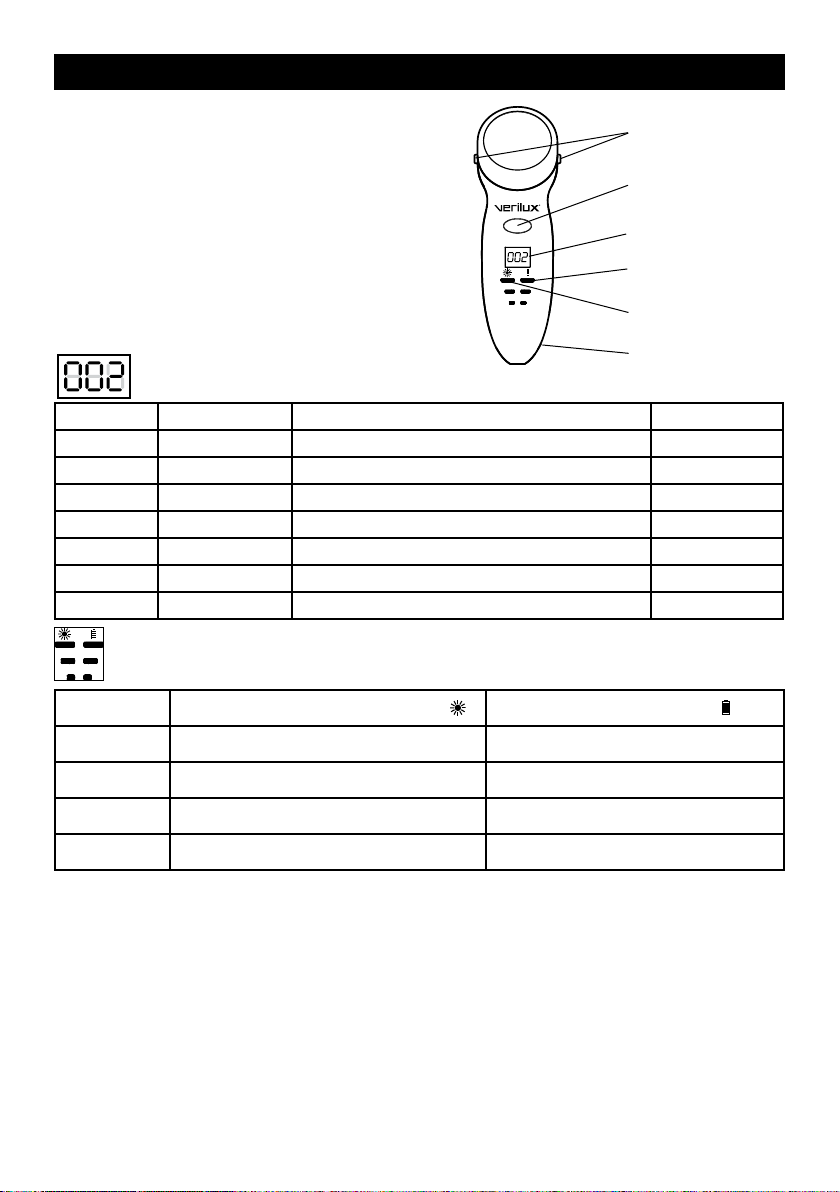

Controls and Status Information Indicators
Controls
a. Power Button
b. Head Latch Buttons
c. Adapter Input Port
Status Indicators
d. Information Display
e. Battery Life Indicator Lights
f. Interchangeable Head Life Indicator Lights
How to Check the Status of Your Device
• Pressing the Power Button on the device body when the device is not operating will
immediately place the device in Status Mode.
• The device will remain in Status Mode for half a second, then will automatically turn off.
• The Information Display will show the number of cycles remaining on the Interchangeable
Head before replacement is required.
• The Interchangeable Head Life Indicator and the Battery Life Indicator Lights will display
the respective status of the Interchangeable Head and battery charge level (see status
indications table above).
• Placing the device in the Charging Stand will also activate Status Mode.
Interchangeable Head Life Indicator and Battery Life Indicator
Information Display Indicators
b.
a.
d.
e.
f.
c.
Percentages are approximate
Display Mode Explanation Reference
Number Operating Time remaining on current care cycle Page 10
Number Idle Number of care cycles remaining on head Page 13
0 Idle Interchangeable Head is exhausted Page 13 or 15
– – – Interchangeable Head is not correctly attached Page 13 or 15
LO Battery is low Page 11 or 15
HP Device is above the optimal operating temperature Page 12 or 15
CP Device is below the optimal operating temperature Page 12 or 15
Interchangeable Head Life Indicator Light
Battery Life Indicator Light
3 lights More than 75% of head life remaining More than 75% of the battery is charged
2 lights 25% to 75% of head life is remaining 25% to 75% of the battery is charged
1 light Less than 25% of head life is remaining One more care cycle
Flashing light Head needs to be replaced Battery needs to be charged

8
Before you use the ClearWave® Soothing Skin System, you will need to fully
charge the device. It takes approximately 12 hours to fully charge the battery for
the first time. Subsequent charges will vary upon usage.
Getting Started
Step 1
Step 2
Step 3
Step 4
Step 5

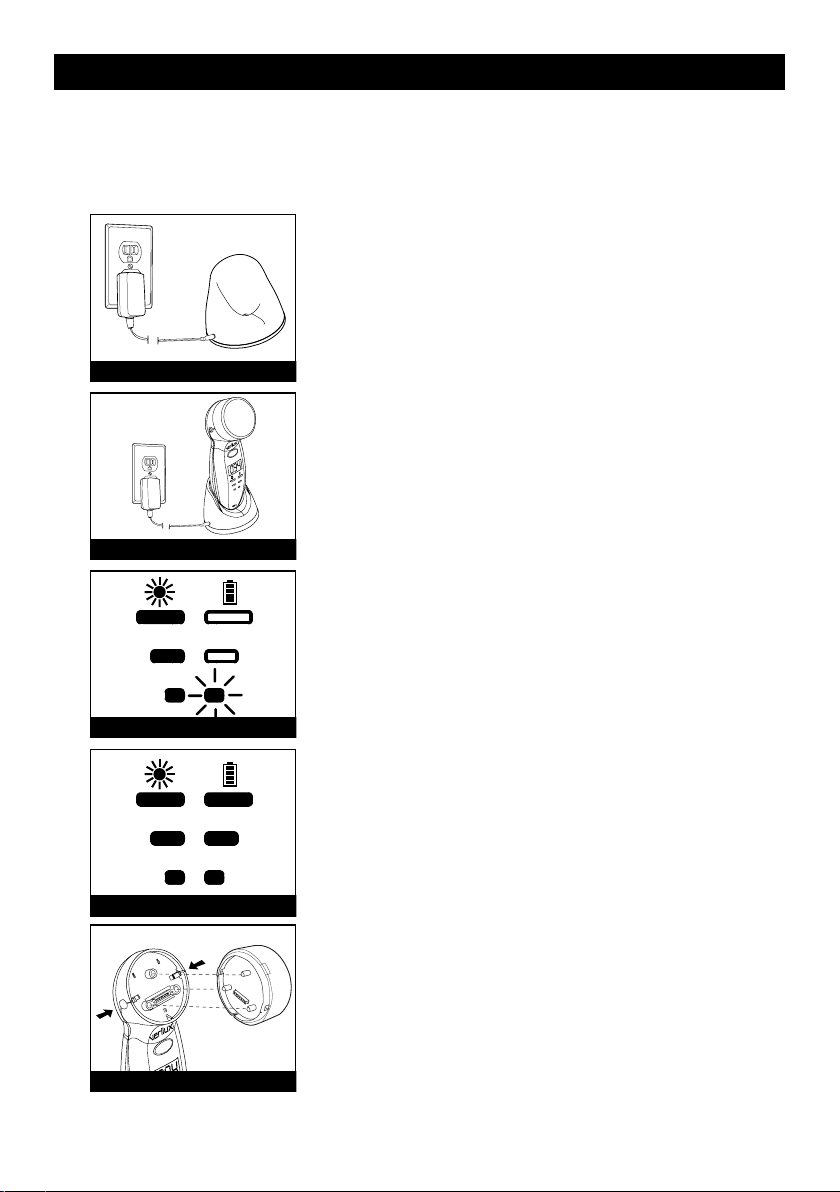

Step 1: Connect the AC Adapter to the
Charging Stand and the plug into
a 120V grounded electrical outlet.
Step 2: Place the ClearWave Soothing
Skin System on the Charging
Stand, as shown. Be sure that the
device is fully seated in the stand.
Step 3: The Battery Life Indicator Lights
will provide information to you on
the status while charging.
Step 4: When all three Battery Life Indicator
Lights are illuminated, the battery
is fully charged and the device is
ready for use. Once fully charged,
the indicator lights will illuminate for
three minutes and then turn off.
Step 5: Select and install the appropriate
interchangeable head designed for
the desired outcome you would like
to achieve (see page 13).

9
Operating Instructions
Proper Use Operations
Note:
• For best results, remove all make-up and wash your
face with a neutral pH cleanser.
• During use, hold the device in a single location until the
cycle is complete.

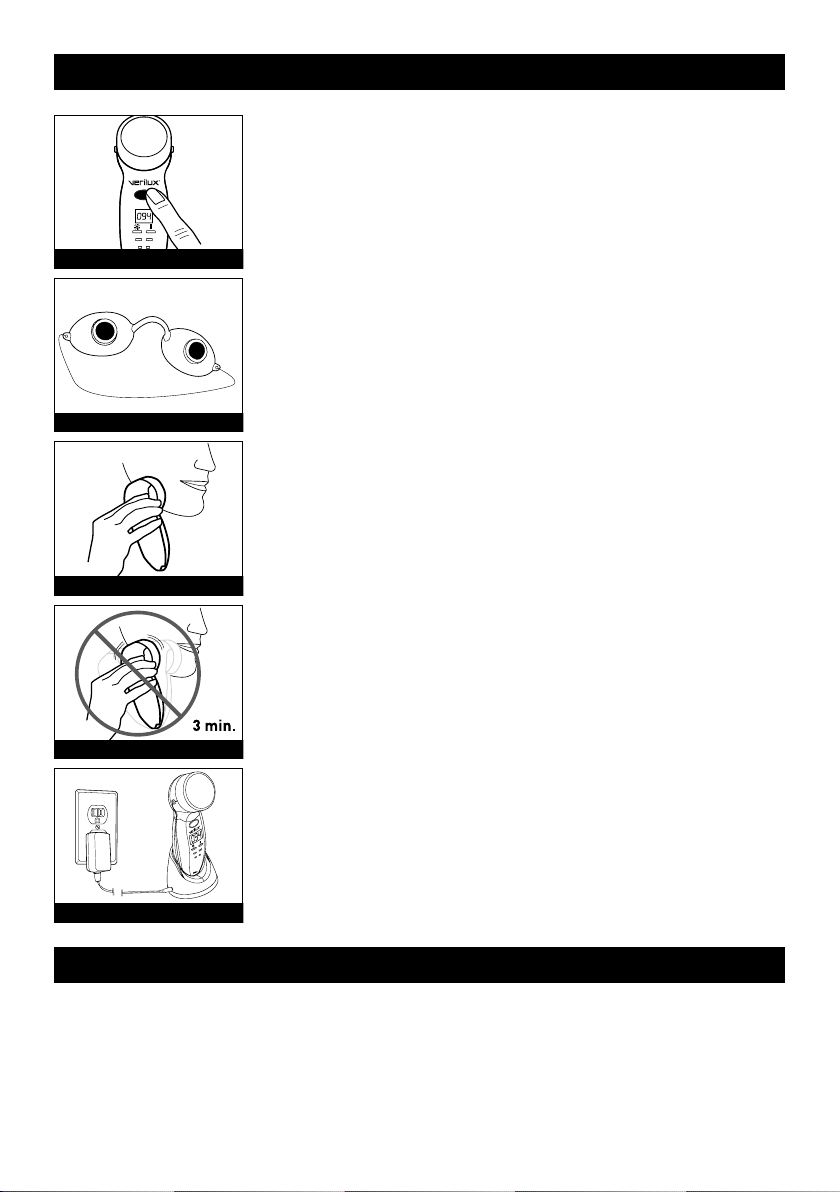

Step 1: To ACTIVATE, press the Power Button until the
device beeps once, indicating that the care
cycle is ready to begin.
Step 2: Apply protective eyewear (goggles). Place over
cotton balls for added comfort.
Step 3: To START, place the device against the desired
area of your skin to receive care. The LED lights
will turn on and the cycle will begin once the
device is in full contact with your skin.
Step 4: Hold device firmly in place until the device
beeps twice signaling that the care cycle
is complete. Do not move the position of
the device on your skin. Device will beep if
removed from skin — see page 10. If battery
runs low and shuts off unit, plug AC Adapter
directly into device and continue care cycle.
Step 5: Replace the ClearWave Soothing Skin System
to the Charging Stand to fully charge for the
next treatment.
Note: To manually turn OFF the ClearWave Soothing
Skin System prior to the end of a cycle, press and hold
the Power Button for approximately 3 seconds until the
device beeps twice.
Note: Device can be used when connected directly to
the AC Adapter. See page 11.
Step 1
Step 2
Step 3
Step 4
Step 5
The daily care regimen is the same for both interchangeable heads. When using
the ClearWave Soothing Skin System, care for each desired area of the skin for
the 3 minute cycle. You may care for a given area twice a day. For optimal results,
allow 24 hours before your next care cycle.
Daily Care for Your Skin

10
If the device is removed from the skin during a cycle:
• The Interchangeable Head will turn off.
• The Information Display will show the remaining time in the cycle.
• The Interchangeable Head Life Indicator and Battery Life Indicator Lights will
display the current status level.
• The system will beep continuously for 30 seconds as a reminder that the care
cycle has been interrupted.
To resume, return the device to the same area of your skin and complete the cycle.
If the time away from your skin exceeds 30 seconds, the system will turn OFF.
If the device beeps continuously while it is on your skin:
• Be sure to have enough skin area touching the surface of the Interchangeable
Head. To increase contact with the Interchangeable Head, you may have to
touch the edge of the head with the fingers of your free hand.
Care Cycle Interruption

11
Note:
• To receive the optimal care cycle, fully charge the ClearWave® Soothing Skin System
before use. A fully discharged device can require from 5 to 12 hours of charging time
to fully recharge battery.
• When the bottom Battery Life Indicator Light is flashing and the
Information Display is displaying “LO”, the battery has lost its
charge. The unit will beep three times, then turn off.
• Device can be used in charging mode if connected
directly to the AC adapter.
Charging Mode
To Charge Using Charging Stand:
Step 1: Connect the AC adapter to the Charging
Stand and plug into a 120V grounded
electrical outlet.
Step 2: Place the device on the Charging Stand,
as shown.
Step 3: The Battery Life Indicator Lights will
provide information to you on the status
while charging.
Step 4: When all three Battery Life Indicator Lights
are illuminated (as shown), the battery is fully
charged and the device is ready for use.
To Charge and use WITHOUT
Charging Stand:
Step 1: Connect the AC adapter to the device and
plug into a 120V grounded electrical outlet.
Step 2: The Battery Life Indicator Lights will provide
information to you on the status while
charging.
Step 3: Device may be used while in charging mode,
if desired.
Step 4: When all three Battery Life Indicator Lights
are illuminated (as shown), the battery is
fully charged.

12
Note: Consecutive uses and high ambient temperatures
can cause the Interchangeable Head surface to become
warm to the touch. The device monitors the Head surface
temperature during each care cycle to ensure that the
Head maintains an optimum temperature. If the device
exceeds the optimum temperature limit, it will enter Heat
Protection Mode and the device will limit operation until
sufficient surface cooling has been achieved.
When the Information Display is displaying “HP”, the device has reached its
optimum temperature limit and will not continue to operate until a cool down
period has been completed.
If your device enters Heat Protection Mode:
The Information Display will display “HP” and the device will beep 10 times and
immediately terminate the cycle.
Step 1: Set the device back on the Charging Stand and allow cooling.
Step 2: Once “HP” is no longer visible in the Information Display, the device
is ready for use.
Step 3: Resume normal operation as outlined on page 9 of this manual.
Heat Protection Mode
Cold Protection Mode
When the “Information Display” is displaying “CP”, the device
has been exposed to temperatures below -15° Celsius (5°F)
and will not operate properly. Set the device aside and allow it
to reach room temperature before using.

13
Note: The device monitors each care cycle to ensure that the Interchangeable Head is
delivering a complete and effective dose. Once the LEDs have passed their guaranteed 100%
output life where a complete dose cannot be guaranteed, the Interchangeable Head will expire
and the device will cease to function until the Interchangeable Head is replaced.
The amount of care cycles remaining on an Interchangeable Head
is displayed both on the device’s Information Display and on the
Interchangeable Head Life Indicator. When the bottom Interchangeable
Head Life Indicator Light is flashing and the Information Display is
displaying “0”, the head needs to be replaced.
Replacement heads can be ordered directly from Verilux® by calling 1-800-454-4408 or by
ordering online at www.verilux.com.
Replacing the Interchangeable Heads
Push and release
latch buttons
To Remove the Interchangeable Head:
Step 1: Press and hold both Head Latch Buttons
shown on each side of the Head.
Step 2: Separate the Interchangeable Head from
the Device Body.
To Install an Interchangeable Head:
Step 1: Align the three round plastic posts on the
back of the Interchangable Head with the
three post sockets on the Device Body.
This will also align the square latch holes
on the interchangeable head with the
Head Latch buttons on the Device Body.
Step 2: Press and hold both Head Latch Buttons
on each side of the Head.
Step 3: Press the Head into place against the
Device Body and release the Head Latch
Buttons.
Step 4: Press Power Button for approximately
one second to activate Status Mode (see
page 7). The Information Display should
now display the amount of
cycles remaining on the new
Interchangeable Head.
Note: If the Information Display shows three dashed lines “---“, the
Interchangeable Head is incorrectly installed. Repeat the head removal and
installation process as outlined above.
Blemish Head
• 414nm of blue light soothes inflamed pores to help restore your skin to a healthy glow.
Fine Lines and Wrinkles Head
• 660nm of red light helps to reduce the appearance of pimples and blemishes and fine
lines and wrinkles deep in the skin.

14
Using a soft cloth, apply a small amount of rubbing alcohol and clean the surface
of the device. Pay particular attention to the clear lens of the Interchangeable Head.
Do not submerge the device in water. Use of other cleaning agents, including soap
and water, may damage the device electronics.
Store the device in a cool dry place between care cycles. Keep away from
children, heat, direct sunlight and liquids.
Care, Cleaning and Storage

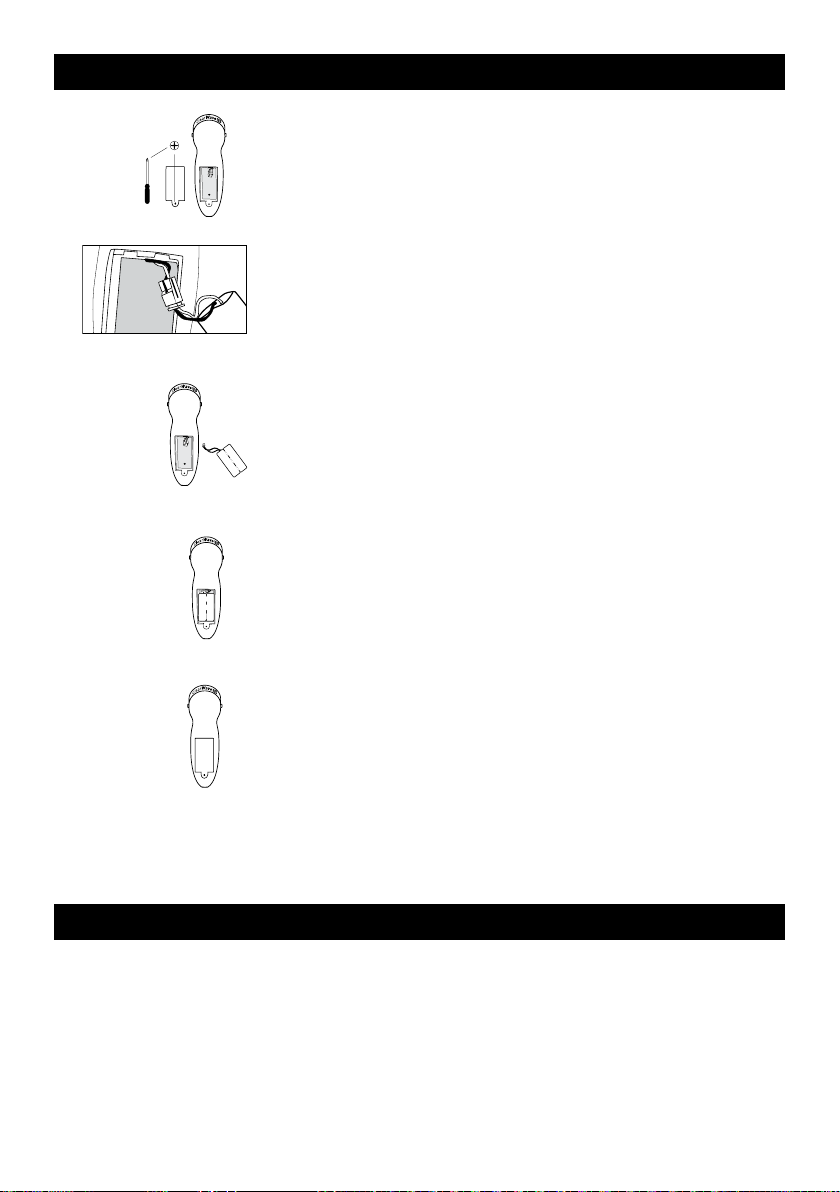

How to Replace the Battery
Step 1: With the charger unplugged, loosen the
screw to the battery compartment using
a Philips head screwdriver.
Step 2: Unplug the battery cable attached to the
battery.
Step 3: Remove the battery and dispose in
accordance with local environmental
regulations.
Step 4: Insert new battery and plug in cable.
Step 5: Replace the compartment cover and tighten
the screw.
The ClearWave® Soothing Skin System battery is made specifically for the
ClearWave by Verilux®. It is comprised of NiMH (Nickel metal-hydride) cells. Do
not attempt to replace with other brands.

15
If problems occur with the device, which are not outlined in this Instruction
Manual, contact Verilux® Customer Service at 1-800-786-6850. Any damage
caused by an attempt to disassemble the ClearWave® Soothing Skin System will
void the warranty.
Troubleshooting
The Issue
The treatment
cycle will not start
The audio signals: 5 fast beeps
The Information Display signals:
The Information Display signals:
The audio signals: 3 beeps
Interchangeable Head Indicator Light displays:
The Information Display signals:
The audio signals: 3 fast beeps
Interchangeable Head Indicator Light displays:
Call 1-800-454-4408
to order a
replacement head.
Recharge the battery.
See page 11 for
instructions.
Head has no remaining
care cycles.
The battery is low.
The device needs
to cool down.
Set the device aside
and let it cool down.
The Problem The Solution
The audio signals: 10 beeps
The Information Display signals:
Device shuts off
in cycle
Battery will not hold a charge
There are only 6 or 7 uses for each charged session
Device will not turn on
Call 1-800-454-4408 to
order a replacement battery.
Charge battery.
The battery needs to
be replaced.
There is no problem.
There are an average of
6 uses per charge.
To continue using device,
plug AC adapter directly
into device.
The device needs
to cool down.
Set the device aside
and let it cool down.
The battery is dead.
The audio signals: 10 beeps
The Information Display signals:
Treatment head may
not be attached, or the
head is defective.
Properly and fully attach
head. See page 13
for instructions.
Call 1-800-454-4408
if you need further help
Set the device aside until it
reaches room temperature.
The audio signals: 5 fast beeps
The Treatment Head Indicator Light displays: The device is too
cold to operate

CWST2RB-MAN-Rev12
Printed in China for Verilux, Inc.
© Copyright 2010 Verilux, Inc. All rights reserved.
This product is covered by US Patent(s) and foreign equivalents. Other patent(s) pending.
Net Weight: 0.75 lbs
Please visit our web site at www.verilux.com or call our Customer Service Department at
1-800-786-6850
Representatives are available Monday — Friday, 9am — 5pm EST
340 Mad River Park, Waitsfield, VT 05673
One Year Limited Warranty
ATTENTION! ONCE OPENED, PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
WHERE IT WAS PURCHASED FOR REPAIR OR REPLACEMENT!
Many questions may be answered by visiting www.verilux.com, or you may call our Customer
Service Department at 800-786-6850 during normal business hours.
This limited warranty is provided by: Verilux, Inc., 340 Mad River Park, Waitsfield, VT 05673
Verilux warrants this product to be free from defects in material and workmanship for a period
of one year from the date of the original retail purchase from Verilux or an authorized Verilux
distributor. Proof of purchase is required for all warranty claims. During the limited warranty
period, Verilux, Inc. will, at its option, repair or replace defective parts of this product, at no
charge to the customer, subject to the following limitations: This limited warranty does not
include any postage, freight, handling, insurance or delivery fees. This warranty does not cover
damage, defect or failure caused by or resulting from accident, external destruction, alteration,
modification, abuse, misuse or misapplication of this product.
This warranty does not cover damage to the product resulting from return shipping or handling.
The use of shipping insurance is recommended to help protect your product.
Return Authorization is required for all returns. To obtain a Return Authorization, please
contact the Verilux Customer Service Department at 800-786-6850.
If, during the first year of ownership, this product fails to operate properly, it should be returned
as specified at www.verilux.com/warrantyreplacement or as instructed by a Verilux customer
service representative at 800-786-6850.
Note: Verilux recommends using a quality surge suppressor on all electronics equipment.
Voltage variations and spikes can damage electronic components in any system. A quality
suppressor can eliminate the vast majority of failures attributed to surges and may be
purchased at electronics stores.
Due to ongoing improvements, actual product may have slight variations from the product described in this manual.
