VESDA LaserCOMPACT User manual

LaserCOMPACT
Product Guide
August 8, 2007
Document Number: 10280_04
Part Number: 18938
FlameStop is a Distributor for VESDA ASD Products
www.flamestop.co.nz

LaserCOMPACT Product Guide VESDA®
2

VESDA® LaserCOMPACT Product Guide
i
Intellectual Property and Copyright
This document includes registered and unregistered trademarks. All trademarks displayed are the trademarks of their respective owners.
Your use of this document does not constitute or create a licence or any other right to use the name and/or trademark and/or label.
This document is subject to copyright owned by Xtralis AG (“Xtralis”). You agree not to copy, communicate to the public, adapt, distribute,
transfer, sell, modify or publish any contents of this document without the express prior written consent of Xtralis.
Disclaimer
The contents of this document is provided on an “as is” basis. No representation or warranty (either express or implied) is made as to the
completeness, accuracy or reliability of the contents of this document. The manufacturer reserves the right to change designs or
specifications without obligation and without further notice. Except as otherwise provided, all warranties, express or implied, including
without limitation any implied warranties of merchantability and fitness for a particular purpose are expressly excluded.
General Warning
This product must only be installed, configured and used strictly in accordance with the General Terms and Conditions, User Manual and
product documents available from Xtralis. All proper health and safety precautions must be taken during the installation, commissioning
and maintenance of the product. The system should not be connected to a power source until all the components have been installed.
Proper safety precautions must be taken during tests and maintenanceof theproducts when these are still connected to the power source.
Failure to do so or tampering with the electronics inside the products can result in an electric shock causing injury or death and may cause
equipment damage. Xtralis is not responsible and cannot be held accountable for any liability that may arise due to improper use of the
equipment and/or failure to take proper precautions. Only persons trained through an Xtralis accredited training course can install, test and
maintain the system.
Liability
You agree to install, configure and use the products strictly in accordance with the User Manual and product documents available from
Xtralis.
Xtralis is not liable to you or any other person for incidental, indirect, or consequential loss, expense or damages of any kind including
without limitation, loss of business, loss of profits or loss of data arising out of your use of the products. Without limiting this general
disclaimer the following specific warnings and disclaimers also apply:
Fitness for Purpose
You agree that you have been provided with a reasonable opportunity to appraise the products and have made your own independent
assessment of the fitness or suitability of the products for your purpose. You acknowledge that you have not relied on any oral or written
information, representation or advice given by or on behalf of Xtralis or its representatives.
Total Liability
To the fullest extent permitted by law that any limitation or exclusion cannot apply, the total liability of Xtralis in relation to the products is
limited to:
(i) in the case of services, the cost of having the services supplied again; or
(ii) in the case of goods, the lowest cost of replacing the goods, acquiring equivalent goods or having the goods repaired.
Indemnification
You agree to fully indemnify and hold Xtralis harmless for any claim, cost, demand or damage (including legal costs on a full indemnity
basis) incurred or which may be incurred arising from your use of the products.
Miscellaneous
If any provision outlined above is found to be invalid or unenforceable by a court of law, such invalidity or unenforceability will not affect the
remainder which will continue in full force and effect. All rights not expressly granted are reserved.
Document Conventions
The following typographic conventions are used in this document.
The following icons are used in this document
Convention Description
Bold Used to denote: emphasis
Used for names of menus, menu options, toolbar buttons
Italics Used to denote: references to other parts of this document or
other documents. Used for the result of an action.
Convention Description
Caution: This icon is used to indicate that there is a danger to
equipment. The danger could be loss of data, physical damage,
or permanent corruption of configuration details.
Warning: This icon is used to indicate that there is a danger of
electric shock. This may lead to death or permanent injury.

LaserCOMPACT Product Guide VESDA®
ii
Contact Us
Codes and Standards Information for Air Sampling Smoke Detection
We strongly recommend that this document is read in conjunction with the appropriate local codes and standards for smoke detection and
electrical connections. This document contains generic product information and some sections may not comply with all local codes and
standards. In these cases, the local codes and standards must take precedence. The information below was correct at time of printing but
may now be out of date, check with your local codes, standards and listings for the current restrictions.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by
one or more of the following measures; re-orientate or relocate the receiving antenna, increase the separation between the equipment and
receiver, connect the equipment to a power outlet which is on a different power circuit to the receiver or consult the dealer or an
experienced radio/television technician for help.
FDA
This VESDA product incorporates a laser device and is classified as a Class 1 laser product that complies with FDA regulations 21 CFR
1040.10. The laser is housed in a sealed detector chamber and contains no serviceable parts. The laser emits invisible light and can be
hazardous if viewed with the naked eye. Under no circumstances should the detector chamber be opened.
FM
3611 Hazardous Approval Warning: Exposure to some chemicals may degrade the sealing of relays used on the detector. Relays used on
the detector are marked “TX2-5V”, “G6S-2-5V” or “EC2-5NU”.
VESDA detectors must not be connected or disconnected to a PC while the equipment is powered in an FM Division 2 hazardous
(classified) location (defined by FM 3611).
FM Approved Applications
The product must be powered from VPS-100US-120, VPS-100US-220 or VPS-220 only.
ONORM F3014
ONORM F3014, transport times for all tubes (including capillaries) must not exceed 60 seconds from any hole. This means that the pre-
designed pipe networks that include capillaries cannot be used.
AS1603.8
The performance of this product is dependent upon the configuration of the pipe network. Any extensions or modifications to the pipe
network may cause the product to stop working correctly. You must check that ASPIRE2 approves alterations before making any changes.
ASPIRE2 is available from your VESDA ASD distributor.
AS1851.1 2005
Maintenance Standards. Wherever this document and the AS1851.1 differ, AS1851.1 should be followed in preference to this document.
European Installations
The product must use a power supply conforming to EN54: Part 4.
Approvals and Standards
The product complies with the following standards.
AS1603.8-1996
GEI 1-048:Jan 1997
UL268 UL 268A
FM 3230-3250 FM3820
21 CFR 1010.2 21 CFR 1010.3
AS2211
AS/NZS 3548
Warning: This icon is used to indicate that there is a danger of
inhaling dangerous substances. This may lead to death or
permanent injury.
The Americas [phone]
Asia [phone]
Australia and New Zealand [phone]
Continental Europe [phone]
UK and the Middle East [phone]
www.xtralis.com

VESDA® LaserCOMPACT Product Guide
iii
FCC Class B
EN 61000-6-3 EN 50130-4
Document: 10280_04

LaserCOMPACT Product Guide VESDA®
iv

VESDA® LaserCOMPACT Product Guide
v
Contents
Scope ............................................................................................................................................... 1
Introduction to LaserCOMPACT .................................................................................................... 1
LaserCOMPACT configurations ............................................................................................. 1
Features of the LaserCOMPACT ........................................................................................... 2
Operation of the LaserCOMPACT ................................................................................................. 2
LaserCOMPACT display ........................................................................................................ 3
LED and Reset/Isolate button ............................................................................................. 4
Compact (VN) Remote Display Module .............................................................................. 5
LaserCOMPACT Remote Display Module ............................................................................. 6
LCD Programmer ................................................................................................................... 8
Product Configuration ............................................................................................................. 9
Product Information ..................................................................................................................... 10
Product Specification ............................................................................................................ 10
Product Dimensions .............................................................................................................12
Default Settings .................................................................................................................... 14
Relay settings and conditions to change states ................................................................... 15
Auxiliary / GPI Terminals ......................................................................................................15
Mounting the Detector .................................................................................................................. 16
Securing the mounting bracket ............................................................................................. 17
Installing the Detector ....................................................................................................... 17
Recess mounting kit ......................................................................................................... 18
These kits are used to house a detector inside a wall cavity. ........................................... 18
Connecting the VCL to the Pipe Network ................................................................................... 18
Inlet Pipes ............................................................................................................................. 18
Air Exhaust Pipe ................................................................................................................... 19
Wiring Connections ...................................................................................................................... 19
Termination Card .................................................................................................................. 19
VESDAnet Terminals (VN Model only): ............................................................................ 21
Relay terminals ................................................................................................................. 21
Programming socket ......................................................................................................... 22
Auxiliary / GPI Terminals: ................................................................................................. 22
For further information see Auxiliary / GPI Terminals on page 15 .................................... 23
Typical Wiring To Fire Alarm Control Panel (FACP) ........................................................ 23
Wiring To an Address Loop Module. ................................................................................ 24
Power source ................................................................................................................................ 24
Battery Back Up ............................................................................................................................ 25
Backup battery size calculation sheet .............................................................................. 25
Starting Up .................................................................................................................................... 25
Installation Checklist ............................................................................................................. 27
Preliminary Systems Check ......................................................................................................... 28
Maintaining and Servicing the Detector ..................................................................................... 28
Opening and Closing the detector ........................................................................................ 29
Opening the detector ........................................................................................................ 29
Closing the detector .......................................................................................................... 29

LaserCOMPACT Product Guide VESDA®
vi
Replacing the aspirator ........................................................................................................30
Assembly ..........................................................................................................................30
Internal wiring for LaserCOMPACT ......................................................................................31
Spare Parts ....................................................................................................................................31

VESDA® LaserCOMPACT Product Guide
1
1.1 Scope
The LaserCOMPACT Product Guide is written to provide you with comprehensive knowledge of
the detector.
This guide introduces you to the LaserCOMPACT its features, technical specifications and gives
an understanding of its components and their function. You will also find instructions on installing,
cabling and powering up the detector.
This guide is for anyone involved with the design, maintenance and purchasing of a VESDA
system. It is assumed that anyone using this guide has knowledge and the appropriate
certification from the local fire and electrical authorities.
1.2 Introduction to LaserCOMPACT
The LaserCOMPACT is an aspirating smoke detector providing very early warning of fire
conditions by drawing air samples through an air sampling pipe network. The detector chamber
can detect presence of smoke at very low concentrations. The embedded and PC software
complimenting the LaserCOMPACT provides a wide range of user defined parameters and
reporting capabilities. The detector easily interfaces with fire warning and fire suppression
release systems, and can be easily integrated into a building management system.
LaserCOMPACT configurations
The LaserCOMPACT is available as:
• Relays Only (RO) model (VLC-500) - for stand alone LaserCOMPACT
• VESDAnet (VN) model (VLC-505) - for networked LaserCOMPACT
Figure 1 - VLC-505 LaserCOMPACT detector

LaserCOMPACT Product Guide VESDA®
2
Features of the LaserCOMPACT
The LaserCOMPACT features make it an ideal smoke detection apparatus for protecting small
environments and individual objects:
• Reduced size compared to LaserPLUS and LaserSCANNER detectors
• Wide sensitivity range
•Each detector can cover an area of up to 800 m2(8000 sq. ft.)
• Up to three programmable alarm thresholds
• Programmable relays
• AutoLearn feature
• One pipe inlet that can be split into two pipes
• Dual stage air filter cartridge
•Option for inverted mounting
• High efficiency aspirator
• Airflow monitoring
• Optional remote display and relay capability
• Active fault monitoring
• Easy cable termination
• Event log to 12000 events
• RO Version: Relay Only version for stand alone LaserCOMPACT
• VN Version: VESDAnet (VN) version for networked LaserCOMPACT
• Remote modules available (VN version only) to meet site specific requirements
• Three programmable general purpose input functions
• PC capable programming and monitoring
1.3 Operation of the LaserCOMPACT
An air sampling pipe network collects air samples from a protected area. The VESDA integrated
aspirator draws air into the sampling pipes through a pipe inlet manifold. For further information
on air sampling pipe networks please see the Pipe Network Design and Installation Manuals.
Some of this air flows to the dual stage filter. The first stage air filter removes dust and dirt from
the sampled air and flows to the laser detector chamber to detect the presence of smoke.

VESDA® LaserCOMPACT Product Guide
3
Any smoke detected in the laser detection chamber is signaled to the main processor card. If the
presence of detected smoke is higher than the set thresholds it is reported as a Pre-Alarm or an
Alarm depending upon the alarm thresholds. The second stage filter further filters the air to
produce ultra clean air. The ultra clean air is used to clean the optical surfaces in the laser
detection chamber.
Figure 2 - Operation and internal air flow of LaserCOMPACT Detector
LaserCOMPACT display
The LaserCOMPACT has five LEDs to indicate Alarms, Faults, OK (normal working of the
detector) and Reset/Isolate status. The LaserCOMPACT VN offers the option for a remotely
mounted Display Module, see VRT-J00 Display Module mounted into a remote unit on page 5 for
details.

LaserCOMPACT Product Guide VESDA®
4
LED and Reset/Isolate button
The LED indicators and the Reset/Isolate button on the front cover of the LaserCOMPACT
detector display alarms and faults.
Table 1 - LED Indicators and the Reset/Isolate button
Fire This (RED) LED is lit when the Fire alarm threshold is reached.
Pre-Alarm The (RED) Pre-Alarm LED is lit when the Pre-Alarm threshold is reached.
This LED flashes when the Alert alarm threshold is reached and Alert
Overlay in set to ON.
Fault This (YELLOW) LED is lit when a fault is detected.
It is also lit during airflow normalization.
OK
The OK LED (Green) stays lit during normal operation indicating the unit is
functionally normally.
This LED flashes twice repeatedly during air flow normalization operation
and three times repeatedly when AutoLearn is activated.
Reset/Isolate The Reset/Isolate LED (Yellow) is lit when LaserCOMPACT is isolated.
While it remains isolated the Pre-Alarm and Fire relays will not work.
(The Fault relay will continue to work).
Reset /
Isolate Push
Button Switch
• To Reset the unit, press this button once.
• To Isolate the unit, press and hold the button for 2 seconds.
• To De-isolate the unit, press and hold the button for 2 seconds.
• While the detector is Isolated, any faults may be cleared by pressing this
button once.
The button will not operate:
• if a remote Reset switch has been fitted to the Reset (GPI) terminals and
is set to the Isolate position
OR
• if the Reset/Isolate button has been locked out in the programming.

VESDA® LaserCOMPACT Product Guide
5
Compact (VN) Remote Display Module
The LaserCOMPACT (VN) model has the option of being connected to a Remote Display Module
mounted into a Mounting Unit or a 19” Subrack. Unlike the LaserPLUS and the LaserSCANNER
detectors, the display module cannot be mounted into the LaserCOMPACT.
Figure 3 - VRT-J00 Display Module mounted into a remote unit
B
A
C
D
E
F
Legend
A Threshold Indicators
B Bar graph
C Numerical Display
D Alarm Level LEDs
E Fault LEDs
F Push Button Keys

LaserCOMPACT Product Guide VESDA®
6

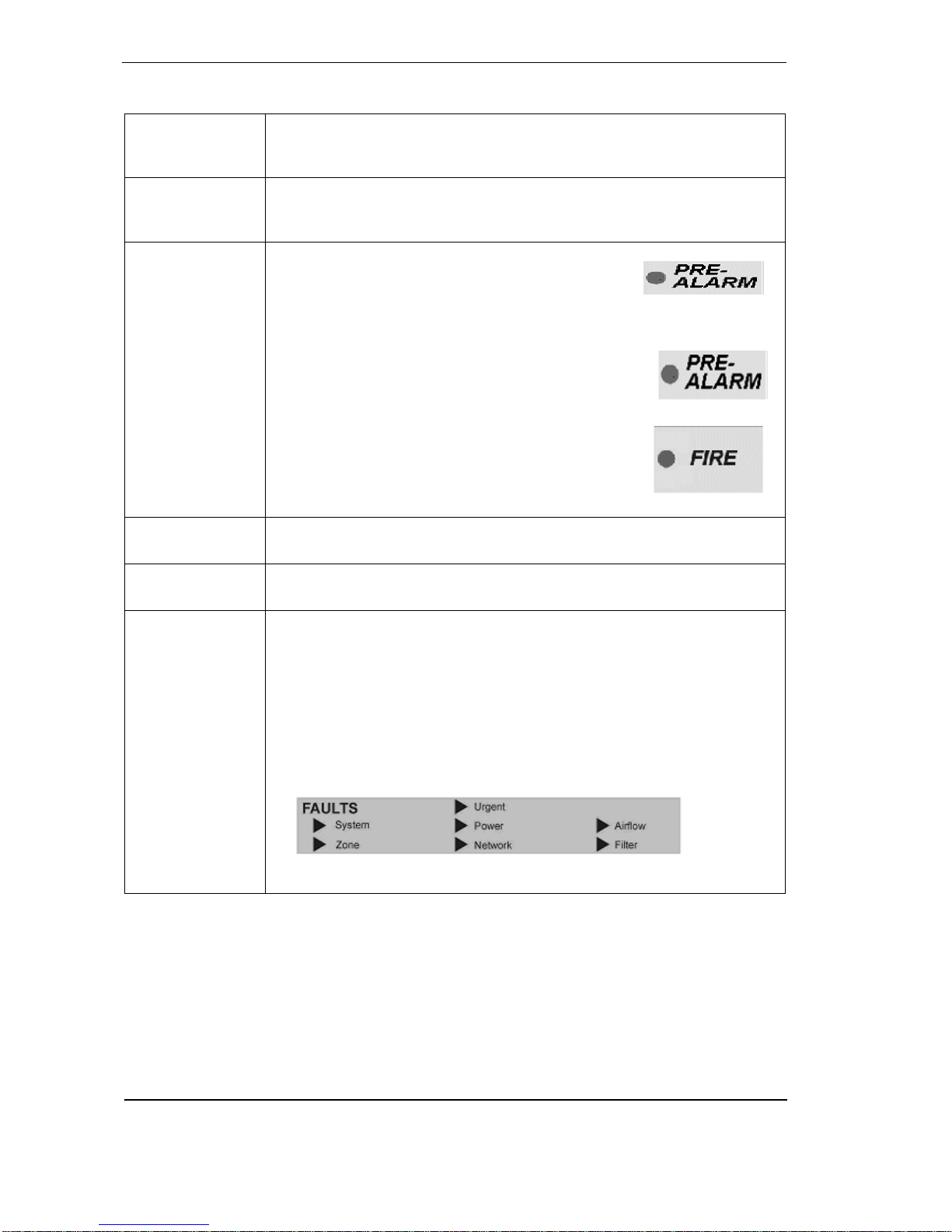

LaserCOMPACT Remote Display Module
OK LED The OK LED stays lit during normal operation indicating the unit is functioning normally. When this LED is off a warning beep will sound indicating a Fault
condition is active.
Isolate LED This LED is lit when the detector is Isolated and relay are de-activated disabling alarm outputs of the detector. A warning sounder will beep every 60
seconds if the display has been programmed to do so.
Alarm Levels
ALERT: When illuminated this LED indicates that the
smoke level is above the alert threshold. This indicates
the detector has identified very early stages of a fire
condition and/or that the smoke level in the area is
above normal.
PRE-ALARM: When lit this indicates that the detected
smoke level has passed the threshold value fixed for
Pre-Alarm, but is not intended to initiate a general fire
alarm response procedure
FIRE: When lit this indicates that there is enough
smoke to initiate a general fire alarm response
procedure. This indicates a firemay be imminent or is in
progress. When interfaced with a Fire Alarm Control
Panel (FACP) it can generate an automatic fire alarm
Bar graph The Bar graph is a 20 step indicator where each indicator represents an
increase in the detected level of smoke, relative to the preset fire alarm level.
Threshold
Indicators The illuminated LEDs represent visual settings for ALERT, PRE-ALARM, and FIRE alarm levels.
Fault LEDs
Urgent - Indicates a serious fault requiring immediate attention
System - Indicates a fault in the network
Zone -Indicates a fault in the VESDA Zone monitored by the Display Module
Power - Indicates a fault in the power supply (If the GPI Function is used)
Network - Indicates a communications fault on VESDAnet
Airflow - Indicates abnormal air flow through the inlet pipe
Filter - This LED illuminates when the air filter requires changing
Illuminated lights showing faults.

VESDA® LaserCOMPACT Product Guide
7
Push Button
Keys
These buttons enable various systems functions but can not be used to
configure the system. The Buttons can be disabled by the Systems
Administrator.
Mode/Test (Dual Function): Selects toggles between the sensitivity, smoke
level and zone number modes. When depressed for more than two seconds it
performs a light test function.
Silence: This button silences any alarm or fault warnings. It also stops the
LEDs from flashing to acknowledge a fault or alarm condition.
Reset: Resets any latched alarms and faults on the detector. Any active
alarms or faults are reported again after the time delays have elapsed.
Isolate: Isolates the detector from any external devices or systems (an isolate
alarm will normally be raised at the Fire Alarm Control Panel (FACP)).
Note: It is normal practise to signal the Isolate condition to the Fire Control
Panel using the Isolate relay
Numerical
Display
Sensitivity: Shows the level of smoke that must be measured to illuminate the
entire bar graph and always corresponds with the fire alarm level.
Smoke Level: Indicates the current level of smoke in the relevant VESDA
address and is represented as % obs/m or % obs/ft.
Zone Number: This is the VESDA Zone number assigned to the Display
Module.
Note: The Mode Button is used to select the parameters represented by the
Numeric Display (sensitivity, smoke level, zone number). The values dis-
played in the numerical display represent the current readings for that mode.

LaserCOMPACT Product Guide VESDA®
8
LCD Programmer
The VESDA LCD Programmer allows configuring, commissioning and maintenance of the
VESDA system. For further information please see the LCD Programmer Product Guide. A
hand-held programmer can be connected to the LaserCOMPACT VN Models (VLC-505). The
VESDAnet socket and VESDAnet terminals can be found on the termination card and can be
accessed by removing the front cover of the detector. A LCD Programmer mounted into a remote
Unit or a 19” Sub-Rack may also be used (for VLC500 models see ‘Programming socket” on
page 22).
Figure 4 - LCD programmer
Legend
A Display
BKeys

VESDA® LaserCOMPACT Product Guide
9
Product Configuration
Figure 5 - Front view of the LaserCOMPACT detector
Figure 6 - View of components in the enclosures box
Legend
A Reset/Isolate Button
B LED indicators
A
B
A
B
C
D
EF
G
H
I
J
KL
Legend
A Programming socket
15 Pin for VN model
9 Pin for RO model
B Termination card
C VESDAnet number
D Air filter cartridge
EFilterscrew
F Air exhaust port
G Aspirator
H 1.6 Amp fuse
I Anti tamper screw
J Cable entry ports
K Air inlet port
L Wire terminal strips

LaserCOMPACT Product Guide VESDA®
10
1.4 Product Information
Product Specification
Supply Voltage 18 to 30 VDC
Power Consumption 5.4 W during normal operation, 5.9 W with alarm on
Current Consumption 225 mA at 24 VDC normal operation, 245 mA with alarm on
Fuse Rating 1.6A
Dimensions (WHD) 225 mm x 22 5 mm x 85 mm (8 7/8 in x 8 7/8 in x 3 3/8 in)
Weight 1.9kg (4.2 lbs)
Operating Temperature
(To operate the
LaserCOMPACT detector
outside these parameters
please contact your
nearest VESDA Office)
Detector Ambient:
UL tested: 0° to 39° C (32° F to 103° F)
Sampled Air: -20° to 60° C (-4° to 140° F)
Humidity: 10-95% RH, non-condensing
Storage Temperatures
(Non-operational) Up to 2 years (battery life). 0° to 85° C
Dry (<95% humidity),
0° to 85° C,
Must not exposed to sunlight or other radiation sources
Sampling Pipe Network Maximum area of coverage: 800 m2(8000 sq. ft.)
Maximum Single Pipe Length: 80 m (max. 20 holes)
Maximum branched (2) Pipe Lengths: 50 m each (max. 20 holes)
Computer Design Tool: ASPIRE™
Pipe Size ID: 15-21 mm (0.874 in)
OD: 25 mm (1.050 in.)
Relays 3 relays, contacts rated 2A @ 30 VDC
Programmable to latched or non-latched states
Relays Default
Configuration Fire
Pre-Alarm
Alert/Fault (Maintenance and Isolate)
Programmable 0 - 60 sec. time delay for each relay
IP Rating IP30
Cable Access 4 x 25 mm (1 in) cable entries
Cable Termination Screw terminal blocks (0.2-2.5 sq mm, 30-12 AWG)
Detector Resolution 0.005 to 20.00% obs/m
(0.0015 to 6.25% obs/ft.)

VESDA® LaserCOMPACT Product Guide
11
Table 2 - LaserCOMPACT detector specifications
ThresholdSettingRange Alert: 0.005 - 1.990% obs/m
(0.0015 - 0.6218% obs/ft.)
Pre-Alarm: 0.010 -1.995% obs/m
(0.0031 - 0.6234% obs/ft.)
Fire: 0.015 - 20% obs/m
(0.0046 - 6.25% obs/ft.) **
**Factory Default = UL268 = Fire set to 12% obs/m (4% obs/ft.) to
comply with UL268). If the factory default is off the fire threshold can
be set up to 20% obs/m (6.25% /ft.)
Key Software Features Event log: Up to 12000 events stored on FIFO basis.
(Volatile Event Log) Smoke level, alarms and faults with time and
date stamp
AutoLearn: Minimum 15 minutes, maximum 15 days.
(Recommended minimum period 14 days).
During AutoLearn thresholds are NOT changed from pre-set values.

LaserCOMPACT Product Guide VESDA®
12
Product Dimensions
Figure 7 - Dimensions in mm. (inches) for LaserCOMPACT
