VESDA LaserSCANNER VLS-200 User manual

V
VE ES SD DA A®
®LaserSCANNER™
INSTALLATION MANUAL
VLS Models VLS-200
VLS-204
VLS-214
VLS-300
VLS-304
VLS-314
VLS-600
VLS-700
October 2005
Version 1.3

Publication history
Release 1.3 October, 2005
Copyright Information
This document may not be reproduced, in whole or in part, by any means without the prior express
written permission of the copyright owner. Copyright ©2005 Vision Fire & Security Pty Ltd
A.C.N. 008 009 514
Disclaimer
The manufacturer reserves the right to change designs or specifications without obligation and without
further notice. VESDA, LaserTEKNIC, LaserPLUS, LaserSCANNER, LaserCOMPACT, VESDAnet,
VESDAlink, ASPIRE, AutoLearn, VSM, VConfig, InfoWORKS, PROACTIV and PRECISION are
trademarks used under licence by the distributor.
Codes and Standards Information
Vision Products strongly recommends that this guide is read in conjunction with the appropriate local
codes and standards for smoke detection systems and electrical connections. This guide contains
generic information and some sections may not comply fully with all local codes and standards. In
these cases, the local codes and standards must take precedence.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorientate or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to a power outlet which is on a different power circuit from which the
receiver is connected
• Consult the dealer or an experienced radio/television technician for help
FM 3611 Hazardous Approval Warning
Exposure of some chemicals may degrade the sealing of relays used on the detector. Relays used on
the detector are marked "TX2-5V" or "G6S-2-5V" or "EC2-5NU".
Approvals and Standards
The product complies with the following standards.
AS 1603.8 FCC Class B
AS/NZS 3548 AS2211
EN50081-1 21 CFR 1010.2
EN50130-4 21 CFR 1010.3
EN 60950
Safety Label
The LaserSCANNER incorporates a Laser device and is classified as a Class 1 Laser product that
complies with FDA Regulations 21 CFR 1040.10 and 1040.11. The laser is housed in a sealed
Detector chamber and contains no serviceable parts. This laser emits invisible light and can be
hazardous if viewed with the naked eye. Under no circumstances should the Detector Chamber
be opened. There is a safety label on the Detector Chamber as shown below.
Figure 1 The Laser Warning Label

Contents
1. Introduction..................................................................................................................2
2. Cabling Requirements.................................................................................................3
2.1Power Cables......................................................................................................................3
2.2Power Consumption............................................................................................................3
2.3Data Cables ........................................................................................................................3
3. LaserSCANNER Specifications...................................................................................4
4. LaserSCANNER Dimensions.......................................................................................5
5. Battery Backup Calculations.......................................................................................7
6. Installation....................................................................................................................8
6.1Check Procedure Before Installation...................................................................................8
6.2Removal of Front Cover......................................................................................................9

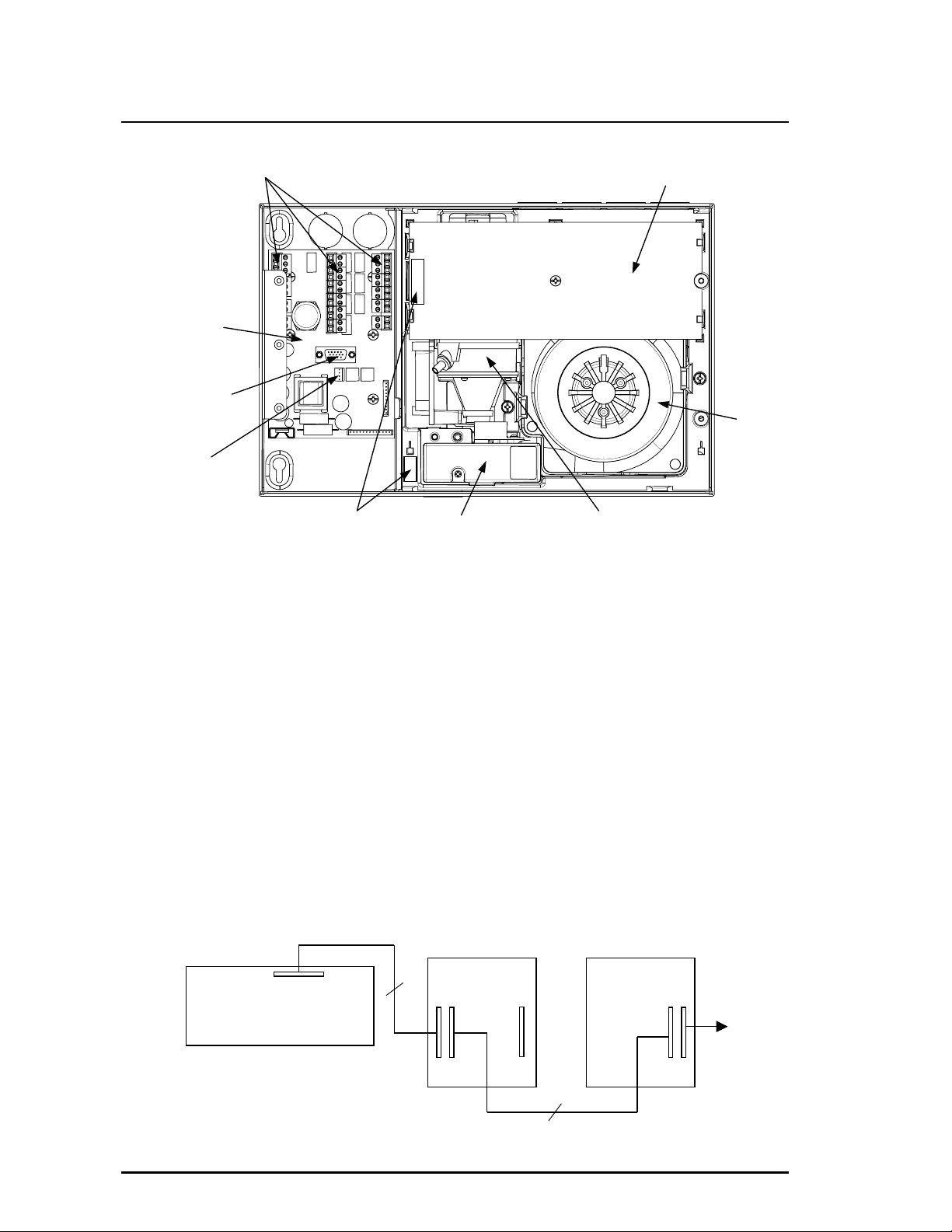

Component Location inside Detector Enclosure.....................................................................10
6.4Display and Programmer Module Orientation....................................................................10
6.5Removal of Metal Knockout Holes for Cable Entry............................................................11
6.6Exhaust Port Options ........................................................................................................11
6.7Securing the Mounting Bracket .........................................................................................12
6.8Attaching the Detector onto the Bracket............................................................................12
6.9Connecting the Air Sampling Pipe.....................................................................................13
6.10 Cabling Using Glands and Conduits.............................................................................13
6.10.1 Using Glands........................................................................................................13
6.10.2 Using Conduits.....................................................................................................13
6.11 Termination Card Details..............................................................................................14
6.12 Procedure to Terminate Wires to the Termination Card...............................................14

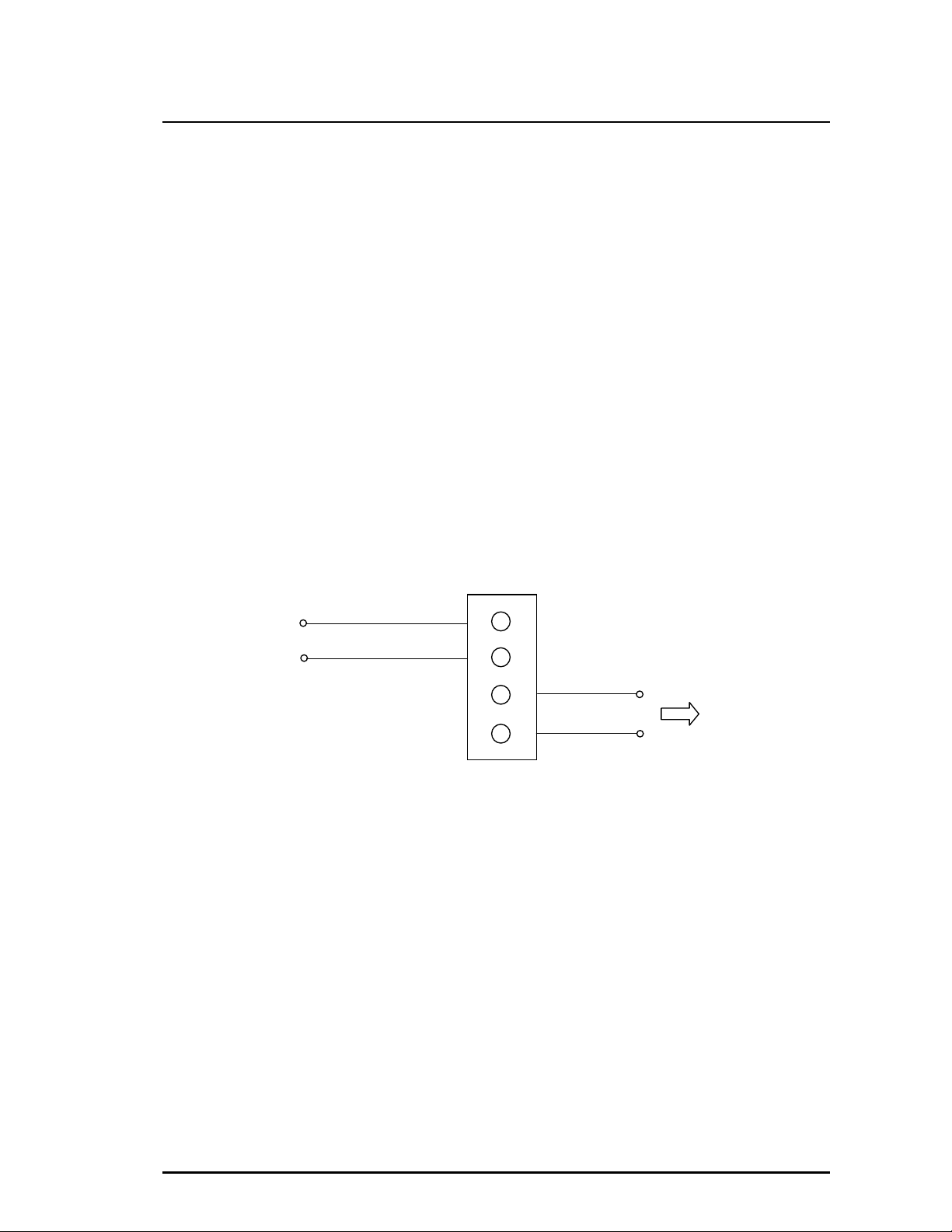

6.13 Terminating the Power Wires to the Termination Card.................................................15

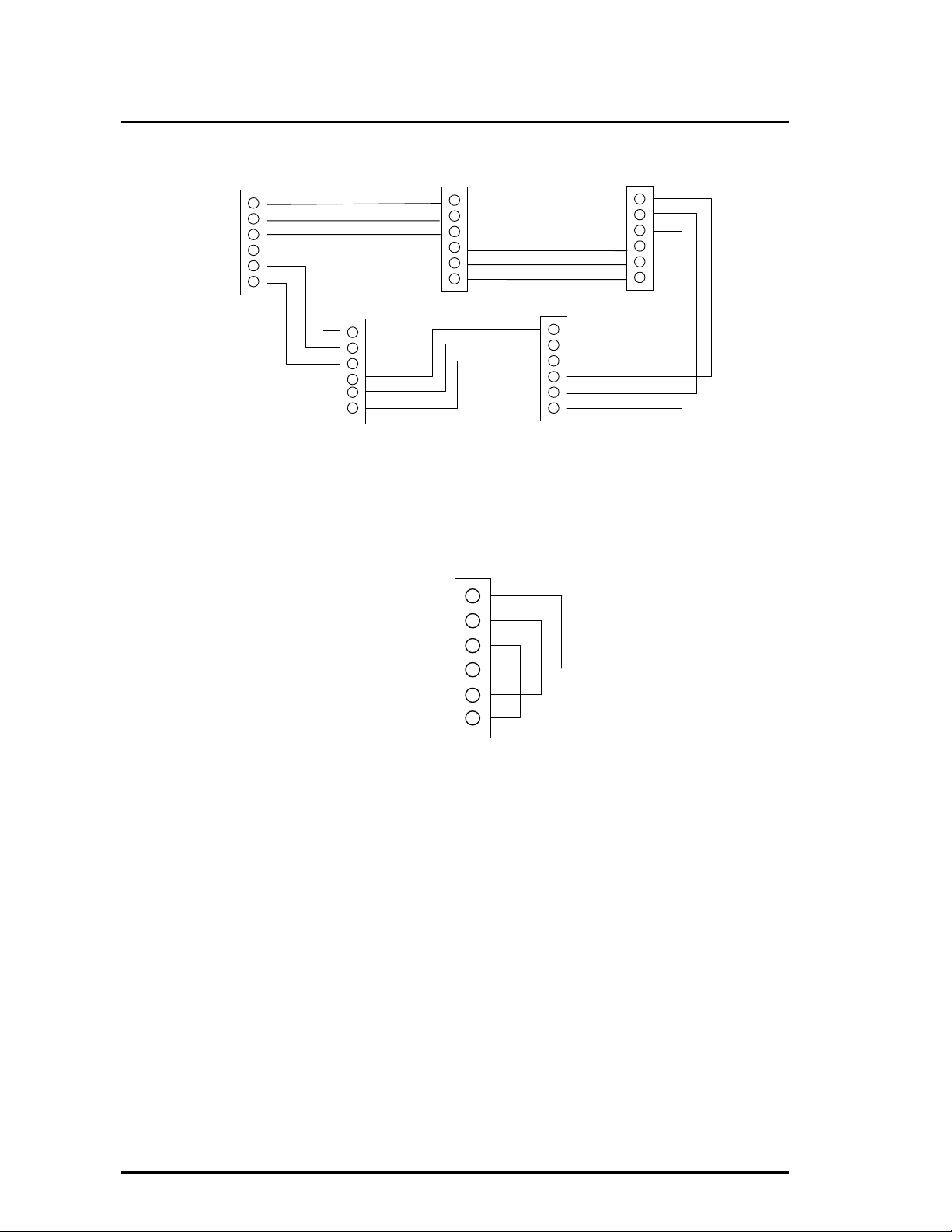

6.14 Connecting the VESDAnet Wires to the Termination Card (If required) .......................15
6.15 Terminating the Relay Wires to the Termination Card..................................................16
6.16 Closing Up the LaserSCANNER ..................................................................................18
6.17 Pipe Bonding Check.....................................................................................................18
7. Power Up ....................................................................................................................19
7.1Power Up the System........................................................................................................19
8. Preliminary System Checks......................................................................................20
8.1Logging On to the System.................................................................................................20
8.2VESDAnet Communication Check ....................................................................................20
8.3Normalise the Air Flow and Clearing Air Flow Faults.........................................................21
8.4Basic Pass/Fail Smoke Test..............................................................................................22
9. Installation Checklist .................................................................................................23
10. VESDA Product Warranty Conditions......................................................................24

LaserSCANNER Installation Manual VESDA®
2 Version 1.3
1. Introduction
Scope of this Manual
This manual is intended for installation technicians to be able to install, perform basic power and
preliminary device checks for the LaserSCANNER detector. It does not cover information for
commissioning. All VESDA equipment is to be commissioned by personnel who have attended
a VESDA accreditation course.
Use the checklist in Section 9 to verify that the installation has been correctly completed. Fill out
the details in the checklist sheet for the site and submit it to the appropriate personnel.
CAUTION
• The Detector must only be installed by VESDA accredited personnel.
• The performance of the system depends on the pipe network designed for the site.
Any alteration to the pipe network may alter the performance of the system. The
ASPIRE™ design tool is to be used to verify the suitability of any pipe network design
and subsequent alterations. ASPIRE™ is available from your distributor or local
Vision office.
• The IP rating for the LaserSCANNER is IP 30. This rating indicates the device is not to
be installed where there is the possibility of any water or liquid falling onto the
device.
WARNING
• It is strongly recommended that the mounting bracket be used during installation.
• The chassis assembly and Central Processor Card should NOT TO BE REMOVED or
disassembled during installation.
• Follow the installation procedure outlined in this manual.

VESDA®LaserSCANNER Installation Manual
Version 1.3 3
2. Cabling Requirements
The terminals on the termination card in the LaserSCANNER will accept wire sizes up to 2.5sq
mm (12 AWG).
2.1 Power Cables
Use the power ratings for the detector and the modules to determine the required wire sizes.
Refer to the table below for power ratings.
2.2 Power Consumption
The power requirements for the detector to operate are as follows:-
Operating voltage: 18VDC to 30VDC
Power Consumption (W)
@ 24VDC Current Consumption (mA) @ 24VDC
Quiescent With Alarm Quiescent With Alarm
LaserSCANNER with
Blank Plates @ 3000rpm 5.76 7.44 240 310
LaserSCANNER with
Blank Plates @ 3500rpm 6.96 8.64 290 360
LaserSCANNER with
Blank Plates @ 4000rpm 7.68 9.12 320 380
LaserSCANNER with
Blank Plates @ 4200rpm 8.16 9.6 340 400
Programmer Module 1.08
(Backlight Off) 1.44 (Backlight On) 45 (Backlight Off) 60 (Backlight On)
Display Module Only 1.44 2.64 60 110
Table 1 Power and Current Consumption for LaserSCANNER Detector and Modules
2.3 Data Cables
The recommended RS 485 data cable for interconnecting to other detector units on the
VESDAnet loop is Belden 9841 (or equivalent). The cable characteristics are as follows:-
• 24 AWG, Twisted pair, Shielded, 120 ohms impedance
The maximum specified length for the RS485 cable between any two devices on VESDAnet is
1300m (4000ft).

LaserSCANNER Installation Manual VESDA®
4 Version 1.3
3. LaserSCANNER Specifications
Supply Voltage 18 to 30VDC
Power Consumption See table 1, page 2
Dimensions (WHD) 350mm x 225mm x 125mm (13.8in x 8.9in x 4.9in)
Weight 4.0kg (9lbs) including Display and Programmer module
Operating Temperature
Tested to:-10°to 55°C (14°F to 131°F)
Detector Ambient: 0°to 39°C (32°F to 103°F) (Recommended)
Sampled Air: -20°to 60°C (-4°to 140°F)
Humidity: 10-95% RH, non-condensing
Sampling Pipe Network
Aggregate pipe length: 200m (650ft)
Pipe Modeling Design Tool: ASPIRE™
Pipe Size
Internal Diameter: 15-21mm (9/16 – 7/8in)
External Diameter: 25mm (1in)
(25mm to 1inch adaptor supplied for USA market)
Relays
7 or 12 Relays option. Contacts rated 2A @ 30VDC.
Programmable to energised or de-energised states.
Scan Sector Delay Min 8 seconds, max 15 seconds
Scan Threshold Delay Min 0 seconds, max 10 seconds
Relays Default
Configuration
7 Relays:
12 Relays:
Alert, Action, Fire 1, Fire 2, Maintenance, Urgent
Fault and Isolate. (7 x NO/NC contacts)
Alert, Action, Fire 1, Fire 2, Maintenance, Urgent
Fault and Isolate, First Alarm Sector 1 to 4 and
Scan. (10 x NO, 2 x NO/NC contacts)
IP Rating IP30
Cable Access 8 x 25mm (1in) knockouts in various positions.
Cable Termination Screw terminal blocks (0.2-2.5sq mm, 30-12 AWG)
Sensitivity Range
0.005 to 20.00% obs/m
(0.0015 to 6.25% obs/ft)
Threshold Setting Range Alert: 0.005 – 1.990% obs/m
(0.0015 - 0.6218% obs/ft)
Action: 0.010 – 1.995% obs/m
(0.0031 - 0.6234% obs/ft)
Fire 1: 0.015 – 2.00% obs/m
(0.0046 – 0.625% obs/ft)
Fire 2: 0.020 – 20% obs/m
(0.0062 – 6.25% obs/ft)**
** Limited to 12% obs/m (4% obs/ft) in UL mode
Key Software Features
Event log: Up to 18,000 events stored on FIFO basis.
AutoLearn: Minimum 15 minutes.
Maximum 15 days, 23hrs, 59 minutes.
Recommended minimum period 14 days.
During AutoLearn thresholds are NOT changed from
pre-set values.
Referencing: Compensation for external ambient conditions.
Four Alarm Levels per Sector: Alert, Action, Fire 1 and Fire 2.
Two Fault Warning Levels: Maintenance and Urgent fault.
Maintenance Aids: Filter and flow monitoring.
Event reporting via VESDAnet or event log.
Auto Scan and Thresholds Setting: Detector selects the
appropriate scan threshold automatically.

VESDA®LaserSCANNER Installation Manual
Version 1.3 5
4. LaserSCANNER Dimensions
CE = Cable Entry Ports (25.4mm, 1.0in ∅)
EP = Exhaust Air Port
Figure 1 Dimensions in mm (in) of LaserSCANNER with Mounting Bracket
(Rear View, Normal Orientation)
Note: Remove the centre pages of this manual for installation template. We strongly
recommend the use of this mounting bracket.
51.0
(2.0)
35.0
(1.37)
21.0
(0.83)
CE
350 (13.8)
209 (8.24)
EP
77.5
(3.05)
12.0
(0.47)
207 (8.15)
28.5
(1.12)
Mounting
Bracket
Bridge and
Lance
225
(8.9)
200
(7.87)
319
(12.56)

LaserSCANNER Installation Manual VESDA®
6 Version 1.3
CE = Cable Entry Port (25.4mm, 1.0in ∅)
CP = Exhaust Pipe Outlet Option or Cable Entry Port
Figure 2 Dimensions in mm (in) for the LaserSCANNER
26.0(1.02)
34
(1.33)
26.0
(1.02)
350(13.8)
35
(1.37) 45.0
(1.77) 34
(1.33)
34
(1.33) 34.0 (1.33)
Inlet Air Ports
CE
TOP VIEW
RIGHT HAND
SIDE VIEW
LEFT HAND
SIDE VIEW FRONT VIEW
28.5
(1.12)
CP
CE
225
(8.9)
26.0
(1.02)
25.4
(
1.0
)
125 (4.9)
BOTTOM VIEW
141.4 (5.58)
26.0
(1.02)
CE
Exhaust Air
Port
35
(
1.37
)
45.0
(1.77)
20.2
(0.88)

VESDA®LaserSCANNER Installation Manual
Version 1.3 7
5. Battery Backup Calculations
The nominal supply voltage is 24 VDC. Use Table 2 to calculate and to determine the battery
backup requirements for your VESDA system. Refer to Table 1, page 3 for power consumption
details.
NORMAL LOAD @ 24 V DC FULL ALARM LOAD @ 24 VDC
EQUIPMENT LOAD
(mA) QTY TOTAL (ma) LOAD (mA) QTY TOTAL (ma)
LaserSCANNER
(No display &
programmer)
Display Module
Programmer Module
Remote Display
Other 24V loads
TOTAL (mA)
TOTAL (mA)
X
X
STANDBY HOURS ALARM HOURS
=
X 1.06
STANDBY CAPACITY
(mAHr)
ALARM CAPACITY
(mAHr)
TOTAL CAPACITY =
STANDBY + ALARM
(mAHr)
DIVIDE BY 1000
MULTIPLY BY BATTERY
FACTOR 1.25 AHr
Table 2 Calculations to Determine the Battery Backup Requirements

LaserSCANNER Installation Manual VESDA®
8 Version 1.3
6. Installation
6.1 Check Procedure Before Installation
(a) Do not install your LaserSCANNER if there are any signs of shipping damage to the
product. Inform your distributor if there is any damage.
(b) Check the model of the LaserSCANNER is correct as per the design specifications for the
site. Refer to the model number located on the product and approvals label attached at the
bottom of the detector.
(c) Identify the location where the detector is to be mounted. The LaserSCANNER can be
mounted on a wall or a suitable secure surface. There are two allowable mounting positions
for the LaserSCANNER as shown in Figure 3.
• Normal Orientation: Mounting the detector with the inlet air ports on the top right
hand side of the box and the exhaust air port at the bottom.
• Inverted Orientation: Mounting the detector with the inlet air ports at the bottom
left hand side of the box and the exhaust air port on the top.
(d) Verify that the selected mounting location is suitable to fit the detector by test fitting the
LaserSCANNER onto the actual mounting position or use the drilling template supplied with
this manual. Ensure there is 150mm of clear space around the air inlet, exhaust and cable
entry ports to allow for pipe and cable entry.
(e) Verify that the cable entry points and the sampling air pipes are at its correct locations.

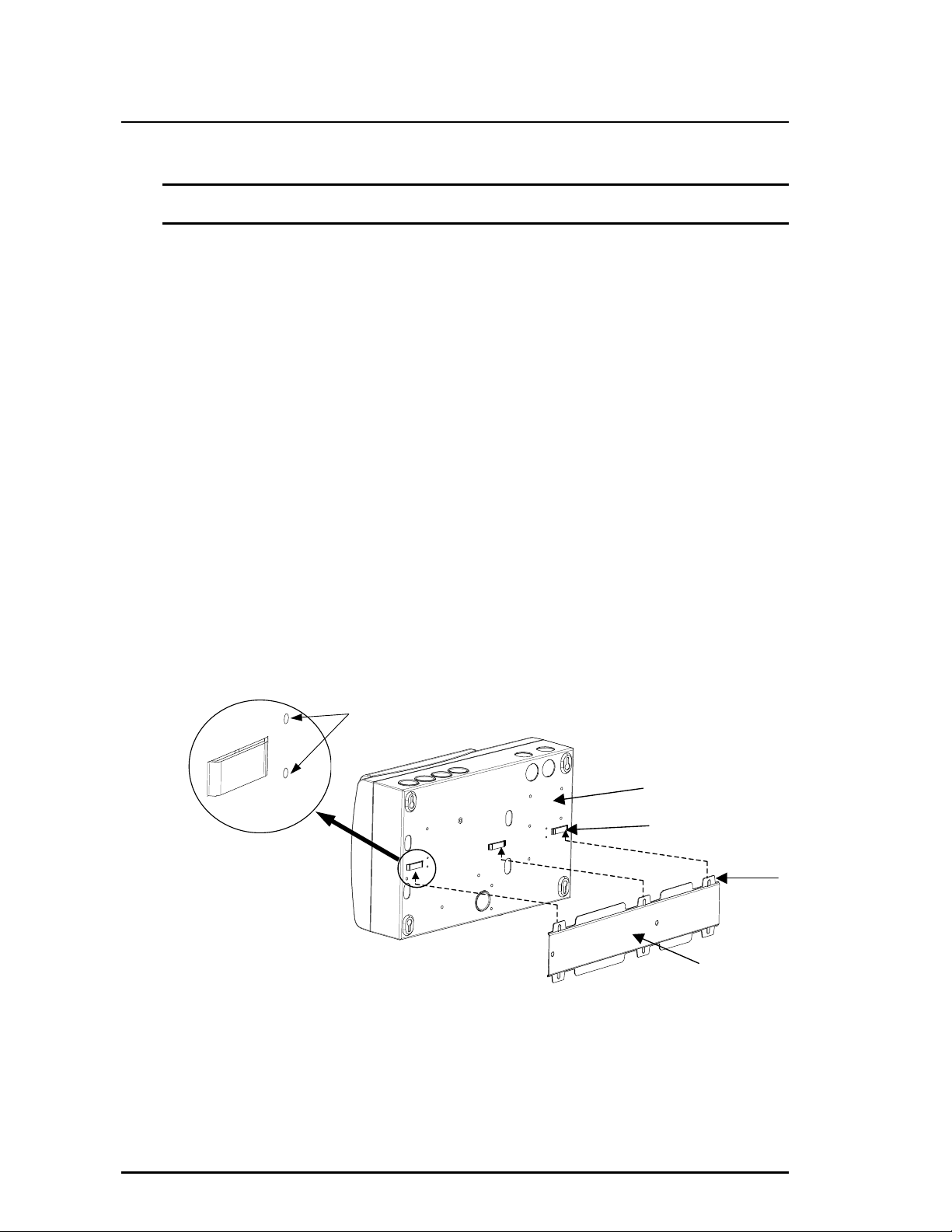

(f) Determine the type of fasteners required for attaching the mounting bracket onto the
mounting surface. The size of the mounting holes on the mounting bracket is 6mm
(15/64in).
Note: For LaserSCANNER detectors mounted in the Inverted Orientation position, the
display and/or programmer modules have to be rotated 180°. Refer to Section 6.4
for procedure to rotate the modules. The position of the Programmer and Display
modules can be interchanged.
Figure 3 LaserSCANNER Orientation, Normal (left), Inverted (right)
Inlet Air Ports
Cable Entry
Ports
Cable
Entry
Ports
A
spirator
B D P
B
PD
Exhaust Air
Ports Cable Entry
Ports
Cable Entry
Ports
B=Blank Plate
P=Programmer Module**
D=Display Module**
**The location of the Programmer and Display
modules depends on the model of your VLS
Detector.
