Vessel STAT CLEAN G2-E User manual

Instruction Manual
Thank you for purchasing our Stat Clean No.G2-E.
Read this instruction manual before use. Keep it in a safe handy place for future reference.
Table of Contents
■For Your Safety ·························P.2
■Product Features·······················P.3
■Product Specifications···············P.4
■External View····························P.5
■Performance·····························P.5
■Installation ·······························P.6
■Operation·································P.8
■Maintenance·····························P.9
■Troubleshooting························P.11
■Storage····································P.11
■Warranty ··································P.12

2
■For Your Safety
Safety Precautions
●Carefully read these Safety Precautions before use. Observe the precautions indicated herein to
ensure safety.
●Safety precautions in this instructionmanual arecategorized intotwo types by the degree of danger
associated with each on the followings. Based on danger analyses performed by Vessel, all
precautions in this instruction manual are of the CAUTION level.
●If the equipment is used in a manner not specified by the manufacturer, the protection provided by
the equipment may be impaired.
WARNING
Indicates that improper handling can lead to serious injury or even death.
CAUTION
Indicates that improper handling can lead to minor injury and property damage.
This symbol indicates a WARNING or CAUTION.
This symbol indicates a prohibited action.
This symbol indicates a mandatory required action
CAUTIONS
PROHIBITED
Do not use the G2-E in environments that require explosion-proofing. The
G2-E is not of explosion-proof construction, therefore explosion or fire may
occur.
PROHIBITED
Do not use the G2-E in flammable atmospheres. The corona discharge
can act as an ignition source and cause an explosion or fire.
PROHIBITED
Do not use the G2-E in environments subjected to sharp temperature
fluctuations or dewing. This kind of environment can lead to breakdown.
DO NOT WET
Do not use the G2-E in highly damp places or anywhere it may be wet by
water, oil, solvent or other liquid. Contact with moisture can result in
electric shock or breakdown.
PROHIBITED
Do not use the G2-E for anything other than removal of static electricity or
dust.
PROHIBITED
Do not use the G2-E with power supplies of ratings not specified in the
specifications. Inappropriate power supplies can result in fire and electric
shock.
PROHIBITED
Do not install, use or service the G2-E until having understood the
information in this instruction manual.
REMEMBER
Keep this instruction manual in a safe handy place for future reference.
CAUTION
Vessel assumes no responsibility whatsoever for consequences arising
from the use of this product.

3
■Product Features
Special Features
* Corona Discharge AC type
AC Corona discharge method has an advantage of stable ion balance, not much influenced by
contamination on the electrode needle.
High Frequency Voltage Transformer produces ions in its high performance with less production loss due
to the ion recombination.
* Changeable wiring direction upward or downward
The wiring direction of the hose and the AC cable can be changed upward or downward according to the
on-site layout. It can be upward by letting the hose and the cable into the dedicated groove on the grip.
This makes it easy to use the G2-E by hanging it from the top of a cell production table (e.g. when using
a tool balancer).
* Comfortable soft grip
Body is made of polycarbonate which is light and chip-proof. The molded surface is made of elastomer,
which is non-slip and easy-to-grip soft handle.
* LED Indication
You can confirm the operational status at one view, because an operation lamp is placed on the top side
of the product.
- Operation ON indication: Pulling the trigger operates the product, and the lamp lights up in blue.
- High voltage alarm: When the built-in transformer detects the abnormal high voltage and shuts down
the output, the lamp lights in red to show the abnormality.
* Compact and Light-Weight
Wiring with a high Voltage power supply cable is not necessary. High Frequency Voltage Transformer is built in
for safety. Small and light-weight for easy handling.
The power source is 24VDC to supply the power with the AC adaptor (accessory).
* Maintenance
Electrode needle can be easily replaced with a dedicated screwdriver (option).
* Environmentally Friendly
Compliant with RoHS standards.
* CE Compliance
The G2-E has been tested and approved under CE directive, EN61000-6-4, 6-2.and CE-compliant.
Applications
Blow away dust or dirt caused by the electrostatic charge; static electricity removal to avoid dust adhesion
on a product, and so on.

4
■Product Specifications
ION/BEAM GUN
Model
：No. G2-E
Ion generation method
：High voltage AC corona discharge
Impressed voltage
：4.5kVAC(P-P) approx.
Input voltage
：24VDC±5%
Power consumption
：100mA (TYP．)
Dimensions
：L148 x H157 x W44(mm)
Weight
：260g
Air consumption
：0.1~0.6MPa
Ozone generation
：0.05ppm or less (Measured at 50mm)
Warning output
：High voltage alarm output stop (Red LED)
Protective function
：Current fuse (0.5 A on the board)
Working ambient
temperature / humidity
Storage temperature/humidity
：5~40˚C35~65%RH (No dew condensation or freezing)
：0~60˚C 35~85%RH (No dew condensation or freezing)
Distance from target object
：50~300mm (Installation:Indoor, non-hazardous area)
Static electricity removal time
：Refer to the table on the page 5.
Ion balance
：Within±10V (At 0.3MPa and 150mm from the target)
Material
：Casing：Fire retardant polycarbonate and elastomer
：Hook：SUS
：Electrode Needle：Tungsten
Accessories
：Instruction Manual, AC Adapter
AC Adapter No.AD24-ITC
Rated input voltage
：100-240VAC(50/60Hz) 0.4A（TYP.）
Rated output voltage
：24VDC 0.75A
Working ambient
temperature / humidity
：0~40˚C5~95%RH（No dew condensation or freezing）
Cable length
：DC output cable:2.5m approx. AC input cable:1.8m approx.
Weight
：about 170g
*The measurement values were obtained on the VESSEL measurement environment and conditions,
so error could be induced depending on the operation environment.
Replaceable Parts : Electrode Needle GN-H
Options : Tube-Fitting Nozzle G-7THN / AC Adapter AD24-ITC /
Speed Controller G-7SC G-7DR / Electrode Needle Replacement Screwdriver G-7DR

5

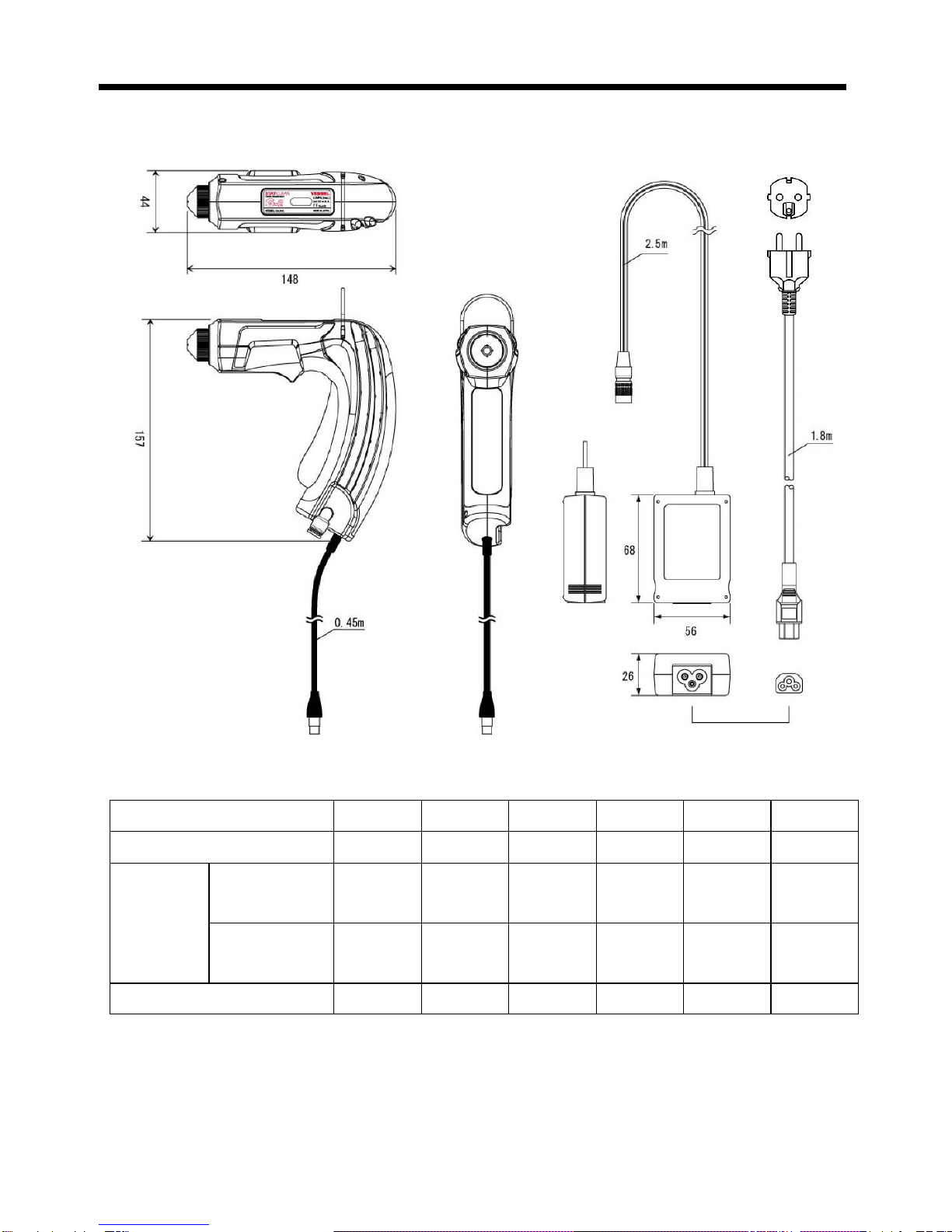

External View / Performance
No.G2-E
Static Elimination Performance
Air Pressure (MPa)
0.1
0.2
0.3
0.4
0.5
0.6
Air Volume (L/min)
66
111
153
193
233
279
Decay
time
+1000V ↓
+100V (min)
1.2
0.7
0.6
0.5
0.5
0.4
-1000V ↓
-100V (min)
1.2
0.8
0.6
0.5
0.4
0.4
Ion Balance (V)
-0.6
1.2
1.6
2.3
3.7
4.1
※Measured at 150mm from the target object.

6
Installation
Installation place
Select a location that is suitable for work and near to an air source and 100-240V AC supply.
Hose
Use an air hose (ODφ6 mm x IDφ4 mm) of sufficient withstanding pressure performance.
Air Remove all impurities with a mist separator (0.3μm). Remove all moisture with an air dryer.
(Dew-point temperature: -15˚C or less)
Supply air at a temperature of 0~40˚C.
*Be sure to supply clean air only because oil-mixed air may cause the discharge stop.

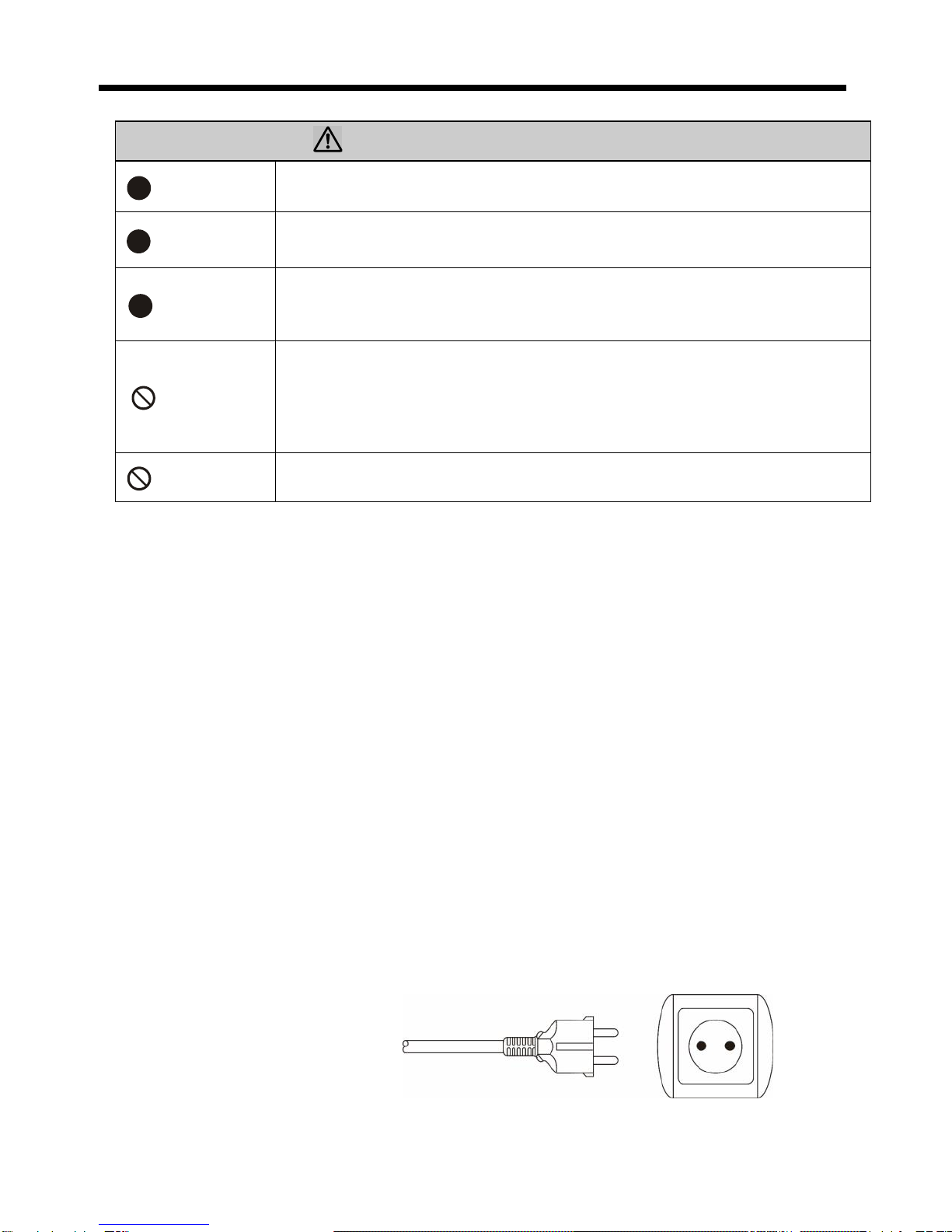

Grounding
Connect to theAC power source with a ground.
CAUTIONS IN INSTALLATION
REMEMBER
Use only the included power supply adapter. Use of other adapters may results
in fire, electric shock and static electricity removal failure.
REMEMBER
Use an air hose of sufficient withstanding pressure performance.
Air hoses of insufficient withstanding pressure may rupture and leak air.
REMEMBER
Install the G2-E in the following environment.
Adverse environments cause product deterioration and breakdown.
Humidity: 35~65%RH (No dew condensation or freezing) Temperature: 5~45˚C
PROHIBITED
Do not use the G2-E in the following environments. Adverse environments
cause product deterioration and breakdown, as well as personal accidents.
Where explosion-proofing is required; where in flammable atmospheres, high
temperature and high humidity, or sharp temperature fluctuations; where
dewing occurs; where possibly wet by water, oil or solvent.
PROHIBITED
Do not pull excessively the hose and cable. Abusive handling can damage the
gun and internally disconnect the power cable and air hose.

7
Installation
Points to be checked before use
1. Before use, check the G2-E, tube and power adapter for trouble.
2. Make sure that there is no damage, loose screws, disconnected hosing, loose connectors,
or other defects.
3. Do not pull strongly the air hose or power cable when using.
4. Tighteningstrongly thetrigger lever with a clamp, etc.may causedamage. Use this product within
your grip strength.

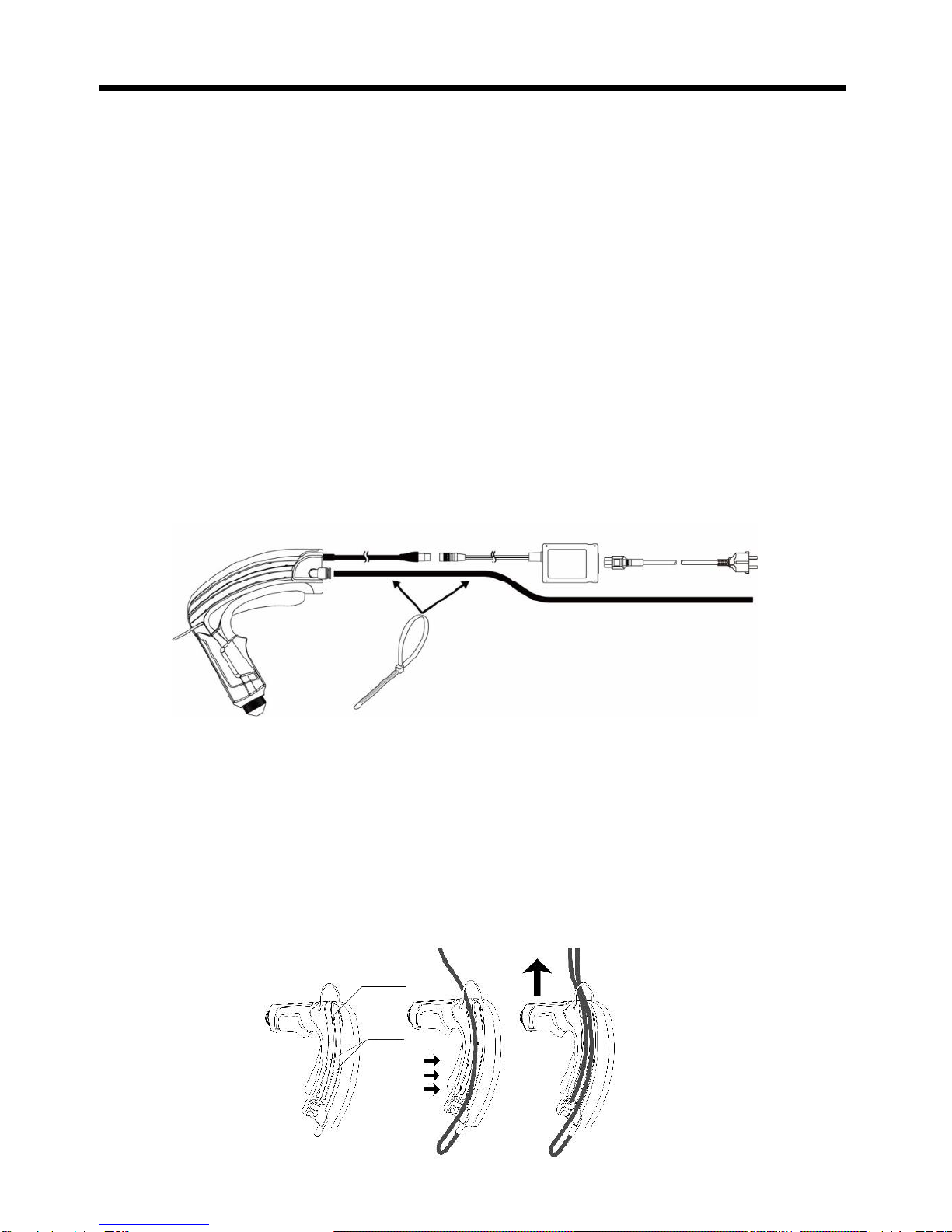

Connector connection/Air hose connection
Connect the power cable from the body to the power supply connector of the provided AC adapter.
Also confirm pin positions, insert and lock.
Insert the air hose into the joint at the bottom of the body.
* Banding the hose and cord together with banding bands (locally purchased item) makes it easy
to work because the wires are bundled.
When wiring air hose and power cord from upside
It is possible to set the air hose and the power cable upward so as to hang the G2-E from above (e.g.
balancer).
Procedures: 1) Insert the air hose through the hook from the above and the power cable (already
connected to the casing) through the hook from below.
2) Let the hose and the cable into the dedicated groove on the casing completely as illustrated below.
3) Please note that there is a stopper on the upper side of the groove for the power cable. Place the
cable assuredly below this stopper by pulling it back with fingers.
Banding Bands（available on the market）
Groove
AC Cable
AC Adapter
Power Supply Connector
Air Hose（available on the market）
Stopper

8
Operation
1.Nozzle
Air Blow Point Part which ejects air. According to the application,
you can install the Tube-Fitting Nozzle (option) instead.
2.Trigger
Pull the trigger for air blow and static electricity removal.
3.LED for operation and
high voltage alarm
LED lights during static electricity removal after pulling the trigger.
H.V. ALARM LED lights at the time of high voltage abnormality.
4.Hook
To hang on this gun while not in use.
5.Air Tube Inlet
Air Tube connecting (Outer dia. 6mm x Inner dia. 4mm).
6.Power Supply Connector
Power inlet fitting for attached power supply adapter (AD24-ITC-E).
Stopper

9
Operation
CAUTIONS IN OPERATION
PROHIBITED
Do not use the G2-E for anything other than removal of static electricity or dust.
REMEMBER
If noticing anything strange, stop using the G2-E immediately.
REMEMBER
Supply clean dry air.
REMEMBER
Mount the nozzle after cleaning the electrode needle for maintenance. If the
G2-E is used without the nozzle, the electrode needle may fly off because of
the air pressure.
PROHIBITED
Do not remodel or disassemble the G2-E. The G2-E contains high voltage parts.
PROHIBITED
Do not drop the G2-E or make high impacts on the G2-E.
PROHIBITED
Do not pull excessively the tube. Abusive handling can damage the gun and
internally disconnect the power cable and air hose.
PROHIBITED
Do not damage the hose or cable.
Keep the hose and cable away from sources of heat.
REMEMBER
Before leaving the workplace, return the G2-E to the specified place.
REMEMBER
Do not use the G2-E if it has a defect.
OPERATION
1. Make sure that the air tube is correctly connected;
2. Plug the power adapter into a 100-240V AC electrical outlet;
3. Make sure that the power supply connectors are rightly connected;
4. Regulate the air pressure by an air regulator in the range of 0.1 to 0.6MPa;
5. Make sure of the emission of ion air through the Nozzle by pulling the trigger; blow ion air towards
the statically charged workpiece or dust-covered workpiece;
6. Release the trigger when static electricity and dust are removed.
Maintenance
CAUTIONS IN MAINTENANCE AND CHECKS
DO NOT
DISASSEMBLE
Do not perform any maintenance on the G2-E except for the electrode
needle.
REMEMBER
Before cleaning the electrode needle, shut OFF power and unplug the
adapter from its electrical outlet. Shut off air supply at the source and
disconnect the air hose.
PROHIBITED
Do not wipe the G2-E with detergent or solvent. Substances of the sort
can cause cracking and result in electric shock or breakdown.
DO NOT WET
Do not wet the G2-E. Contact with moisture can result in electric shock or
breakdown.

10
Maintenance
1. How to Clean the Gun Casing
Wipe off the dirt on the gun with soft and dried cloth.
Use the vacuum cleaner to remove the dust stained around body.
Do not use solvent such as alcohol or thinner, or detergent on the casing.
2. How to Clean the Electrode Needle
When performing a cleaning of electrode needle, be sure to pull the power supply adaptor off
electric outlet.
Cleaning order:
1 .Remove the Nozzle.
2 .Clean the tip of the needle with cotton swab.
I f it is heavily contaminated or dirty, use wet cloth with a few drops of alcohol.
3 .How to mount the Nozzle back.
Be sure that the Nozzle is fixed firmly.
If it is too tightly fastened, it may damage or break itself. If it is not firmly fixed, the Nozzle
may be popped out due to it is air blow power.
3. How to Replace the Electrode Needle
When replacing the electrode needle, use the screwdriver G-7DR (optional).
Pull off Power SupplyAdapter first before the cleaning of electrode needle.
Replacement Order:
1 .Remove the Nozzle.
2 .Release the electrode needle by loosening the threads with the screwdriver G-7DR.
3 .Change it with new needle (G-NH) and fasten firmly with the same screwdriver.
4 .Place the Nozzle back.
Mount the Nozzle firmly. If it is too tightly fastened, it may damage or break itself.
If it is not firmly fixed, the Nozzle may be popped out due to it is air blow power.

11
Troubleshooting
CAUTIONS IN TROUBLESHOOTING
PROHIBITED
Do not use the G2-E in the following situations. They can result in fire or
electric shock.
*When the power cable is damaged or hot
*When the G2-E has been damaged because of dropping or shock.
*When the plug ofAC adaptor does not fit the electric outlet.
UNPLUG
POWER CABLE
Unplug power cable if the G2-E has a defect.
DO NOT
DISASSEMBLE
Do not disassemble the G2-E.
Using the G2-E in anything but proper working condition, can cause product damage or personal
accident.
Therefore, promptly request servicing if trouble occurs. For servicing, contact the place of purchase.
Storage
CAUTIONS IN STORAGE
PROHIBITED
Do not store the G2-E in the following places.
Adverse environments can cause product breakdown;
●Where exposed to marked vibrations or shock;
●Where temperature and humidity are outside specified ranges;
●Where dewing occurs;
●Where temperature fluctuates sharply;
● Where there is the possibility of ignition or explosion of flammable solvents, dust, etc;
●Where there is heavy dirt, dust, or smoke;
●Where possibly wet by water, oil , chemicals, etc;
●Where strong electric or magnetic fields are generated.
In the following cases, contact the place of purchase for servicing.
Do not service the G2-E yourself as this can be dangerous.
* When the power lamp does not light when the trigger is pulled;
* When air leaks from another place than the Nozzle;
* When the power cable is excessively hot;
* When the power supply adapter is excessively hot;
* When the G2-E emits strange noises or vibrates during use;
* When sparks are seen coming from electrode needle tip (In normal operation, sparks are not seen).

12
LIMITED WARRANTY:
VESSEL expressly warrants that for a period of one (1) year from the date of purchase, VESSEL static erasers
will be free of defects in material (parts) and workmanship (labour). Within the warranty period, Defects
occurring will be repaired or products will be replaced at VESSEL's option and expense, if VESSEL receives
notice during the warranty period. Defective products must be returned to VESSEL Osaka Japan with proof of
purchase date. And if your unit is out of warranty, VESSEL will quote repair charges necessary to ship your
unit freight prepaid to where you have originally purchased.
WARRANTY EXCLUSIONS:
THE FOREGOING EXPRESS WARRANTY IS MADE IN LIEU OF ALL OTHER PRODUCT WARRANTIES,
EXPRESSED AND IMPLIED, INCLUDING FITNESS AND MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE WHICH ARE SPECIFICALLY DISCLAIMED.
The express warranty will not apply to defects or damage due to accidents, neglect, misuse, alterations,
operator error, or failure to properly maintain, clean, or repair products.
LIMIT OF LIABILITY:
This electronic static eraser use high voltage corona discharge and should not be used in or near
flammable or explosive environments. In no event will VESSEL or any seller is responsible or liable for
any injury, loss or damage, direct or consequential, whether based in tort or contract arising out of the
use of or the inability to usethe product. Fulfillment of VESSEL's warranty obligations will be Customer's
exclusive remedy and VESSEL's and Seller's limit of liability for any breach of warranty or otherwise.
Before using this unit, users shall determine the suitability of the product for their intended use, and
users assume all risk and liability whatsoever in connection therewith.
Model
G2-E
Warranty
(1) year from the date of purchase
Customer
Name
Address
Tel. No.
Dealer
Name/Address/Tel. No.
Manufactured by:
17-25, Fukae-Kita 2-chome,
Higashinari-ku, Osaka 537-0001 Japan
Tel : [phone] Fax : [phone]
E-mail : ex[email protected]
URL : http://www.vessel.jp
Product of Japan
15082000.00000

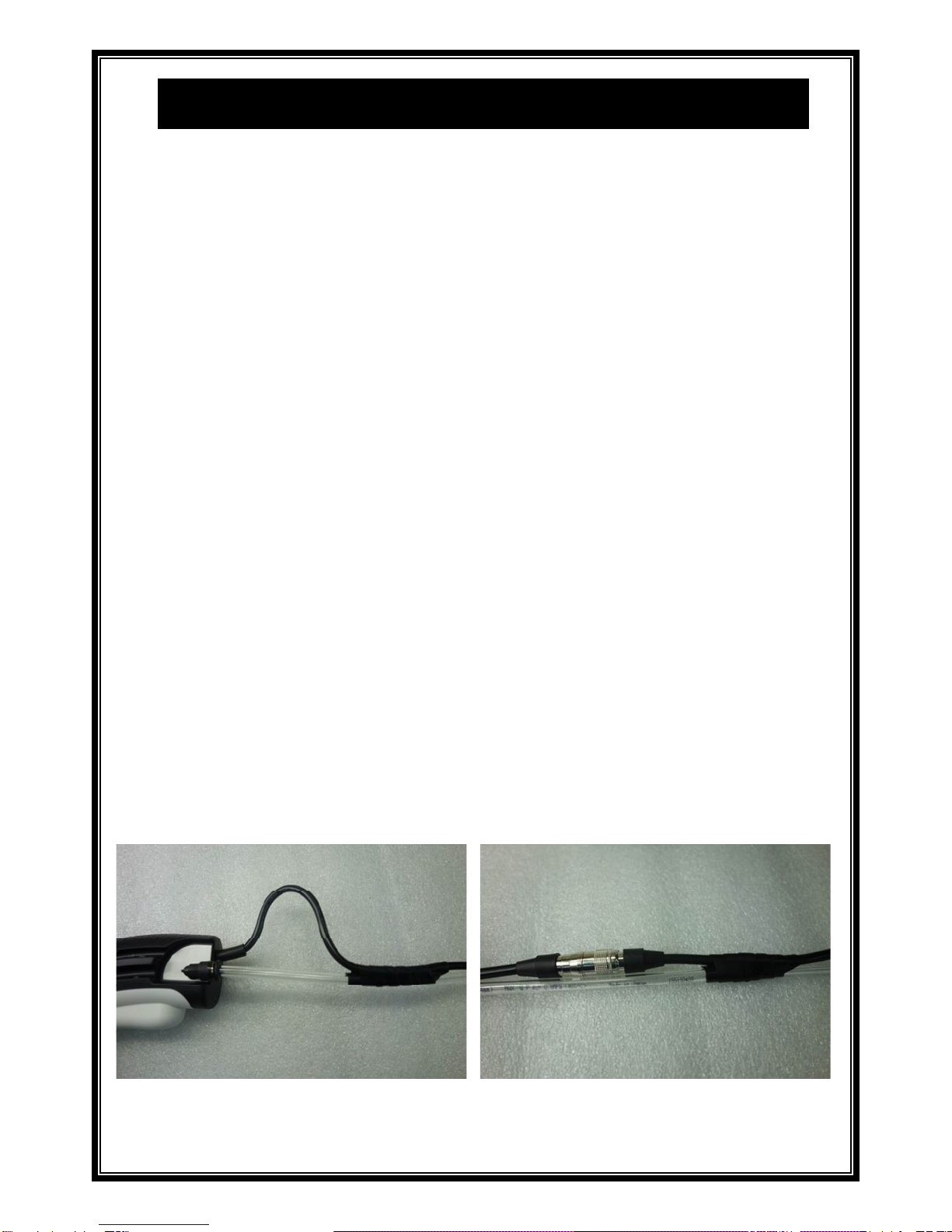

Advice to use the G2-E for a long time
In the case of using the G2-E with the hose and the cable dropping down
,
please band them with the provided “self-fusion butyl rubber tape”, by
bowing the power cable as shown in the photograph below.
It can prevent the air hose and the power cable from scattering, and it can
also improve durability of the power cable.
Making an extra space by bowing the power cable reduces the load
on the
connector and the connecting area with the main unit.
Also it is recommended, for the same result, to band the hose and the
cable somewhere on the opposite side of the intermediate connector.
3 sheets of tape are enclosed. You may band another area of these cables
with the remaining 1 piece, taking into consideration the actual work
and/or wiring.
 The tape should be prepared by the user if additionally needed. The
provided sheet is made by cutting the following tape to 105 mm in
length each.
<Recommended article>
Self-fusion butyl rubber tape No.15 made by NITTO
[Size: thickness x width x length] 0.5 mm x 19 mm x 10 m
