VESTEL NF COMBI 566 ELECTRONIC IMD User manual

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Display and control panel
1. This is cooler set value screen.
2. This is super cooling indicator.
3. This is freezer set value screen.
4. This is super freeze indicator.
5. This is alarm symbol.
6. This is economy mode symbol.
7. This is holiday mode symbol.
8. This is child-lock symbol.
9. This enables the cooler value settings to be modified and super cool mode to be activated, if
desired. The cooler maybe set to 8, 6, 5, 4, 2 °C super cool.
10. This enables the freezer setting values to be modified and super freeze mode to be activated, if
desired. The freezer may be set to -16, -18, -20, -22, -24°C super freeze.
11. This enables the modes (economy, holiday…) to be activated, if desired.

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
How would it be used?
Press the freezer set button until the Super freeze symbol is seen on the
screen. The buzzer will beep twice . The mode will be set.
In this mode:
• Cooler and super cool mode temperatures may be adjusted. In this case
super freeze mode will
continue.
• Economy and Holiday mode cannot be selected.
• Super freeze mode can be cancelled using the same selection operation.
Super Freeze Mode
Super Cool Mode
How would it be used?
Press the cooler set button until the Super cool symbol is seen on the screen.
The buzzer will beep twice. The mode will be set.
In this mode:
• The freeze and Super freeze temperature mode may be adjusted. Super cool
mode will continue in this case.
• Economy and Holiday mode cannot be selected.
• Super cool mode can be cancelled using the same selection operation.
Display and control panel

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
How would it be used?

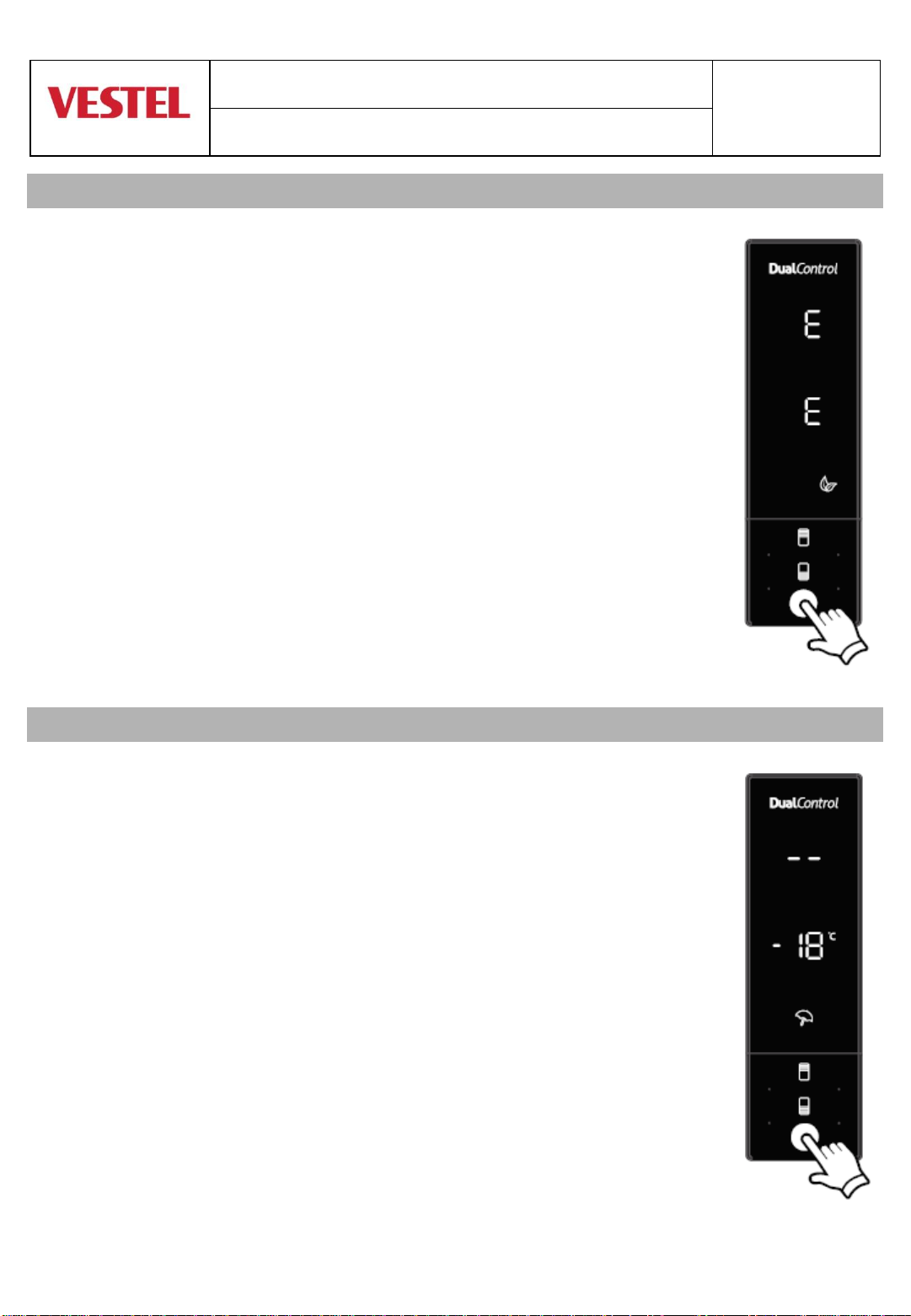

• Push "mode button" until the eco symbol appears.
• If no button is pressed for 1 second. The mode will be set. The eco symbol will
blink 3 times.
When the mode is set, the buzzer will beep twice.
• The freezer and refrigerator temperature segments will display "E".
• The economy symbol and E will light till mode finishes.
In this mode:
• The freezer may be adjusted. When economy mode is cancelled, the selected
setting values will commence.
• Cooler may be adjusted. When economy mode is cancelled, the selected setting
values will commence.
• Super cool and super freeze modes can be selected. Economy mode is
automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the
selected mode is activated.
• To cancel, you will just need to press the mode button.
Holiday Mode
How would it be used?
• Push the "mode button" until the holiday symbol appears
• If no button is pressed for 1 second. Mode will be set. The holiday symbol will
blink 3 times. When the mode is set, the buzzer will beep twice.
• Cooler temperature segment will display "--".
• Holiday symbol and "--" will light till mode finishes.
In this mode:
• The freezer may be adjusted. When holiday mode is cancelled, the selected
setting values will commence.
• Cooler may be adjusted. When holiday mode is cancelled, the selected setting
values will commence.
• Super cool and super freeze modes can be selected. Holiday mode is
automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the
selected mode is activated.
• To cancel, you will just need to press the mode button.
Economy Mode
Display and control panel

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Drink Cool Mode
When would it be used?
This mode is used to cool the drinks within an adjustable time.
How would it be used?
• Press the freezer button for 3 seconds.
• Special animation will begin on the set freezer value screen and 05 will blink on set
cooler value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).
• When you select the time, the numbers will blink 3 times on screen and beep twice.
• If no button is pressed within 2 seconds, the time will be set.
• The countdown begins from the adjusted time minute by minute.
• The remaining time will blink on the screen.
• To cancel this mode press the freezer set button for 3 seconds.
Screen Saver Mode
Instructions for use
• This mode will be activated when you press the mode button for 5 seconds.
• If no button is pressed within 5 seconds when the mode is active, the lights of the
control panel will go off.
• If you press any button when the control panel lights are off, the current settings
will appear on the screen, and then you can make the adjustment as needed. If you
do not cancel the screen saver mode or do not press any button within 5 seconds,
the control panel will go off again.
• To cancel screen saver mode press the on mode button for 5 seconds again.
• When screen saver mode is active you can also activate the child lock.
• If no button is pressed within 5 seconds after child lock is activated, the lights of
the control panel will switch off. You can see latest settings or modes status after
you press any button. You can cancel child lock as described in the instruction of
this mode while the control panel light is on .
Display and control panel

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Child lock function
When would it be used?
To prevent children from playing with the buttons and changing the settings you
have made, child lock is available in this appliance.
Activating Child Lock
Press the Freezer and Cooler buttons simultaneously for 5 seconds.
Deactivating Child Lock
Press the Freezer and Cooler buttons simultaneously for 5 seconds.
Note: Child lock will also be deactivated if the electricity is interrupted or the
fridge is unplugged
Light Cancelling Mode
When would it be used?
• If you want to cancel lights of cooler, you can select this mode.
• While pushing on freezer, cooler, mode buttons, open and close one of the
doors for 3 times. The mode will be selected in this way. From now on, the lights
will not come on when the function is not cancelled by the same way.
• If you want to cancel this mode, repeat the same process or the mode will
automatically cancel itself after 24 hours.
Demo Mode
Display and control panel
Entering Demo mode:
•Firstly the power is on , secondly within 1 minute user will push mode & freezer button at the same
time , Then appliance will go on “demo function” and Demo Symbol will light during the mode.
•All functions can be adjusted to show how they are adjusted to the customer.
•During the demo mode to show the alarm symbol , at the 3th. pushing of the mode button SR alarm
symbol and the “SR word” on the 7-segment will be active.
Canceling Demo mode:
For cancelling; Same operation will be used. If user will push mode & freezer button at the same time,
demo function will be cancelled.
When appliance is Demo mode; if plug is removed or there is an electricity breakdown; demo mode will
continue with current settings after user plug into or electricity breakdown finish.

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Cooler Temperature Settings
• Initial temperature value for the Cooler Setting Indicator is +4 °C.
• Press the cooler button once.
• When you first push this button, the last value will appear on the cooler setting
indicator.
• Whenever you press this button, a lower temperature will be set. (+8°C, +6°C,
+5°C, +4°C, +2°C, Super cool)
• When you push the cooler set button until the Super cool symbol appears, and
if you do not push any button within 1 second, Super Cool will flash.
• If you continue to press the button, it will restart from +8°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode,
Super Cool Mode or Economy Mode is activated and will remain the same when
the mode is over or cancelled. The appliance continues to operate with this
temperature value.
Freezer Temperature Settings
• The initial temperature value for the Freezer Setting Indicator is -18°C.
• Press the set freezer button once.
• When you first push this button, the last set value will blink on the screen.
• Whenever you press this button, a lower temperature will be set (-16°C, -
18°C, -20°C, -22°C, -24°C Super freeze).
• When you push the set freezer button until the Super freeze symbol appears,
and if you do not push any other button within 1 second, Super Freeze will
flash.
• If you continue to press it, it will restart from -16°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode,
Super Cool Mode or Economy Mode is activated and will remain the same
when the mode is over or cancelled. The appliance continues to operate with
this temperature value..
Display and control panel

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Warnings about Temperature Adjustments
• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its
efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the
quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without
interruption after being plugged in to be completely cooled. Do not open doors of your fridge
frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when
you take the plug off and then plug it on again to operate it or when an energy breakdown occurs.
Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards,
according to the climate class stated in the information label. We do not recommend operating your
fridge out of stated temperatures value limits in terms of cooling effectiveness.
Climate Class Ambient (°C)
T16 to 43
ST 16 to 38
N16 to 32
SN 10 to 32
Note: If the temperature of the environment is higher than 38°C, the freezer partition temperature
cannot be adjusted to -22°C and -24°C. It can only be adjusted to the values of -16°C, -18°C, -20°C.

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Cold Air
Returning warm air

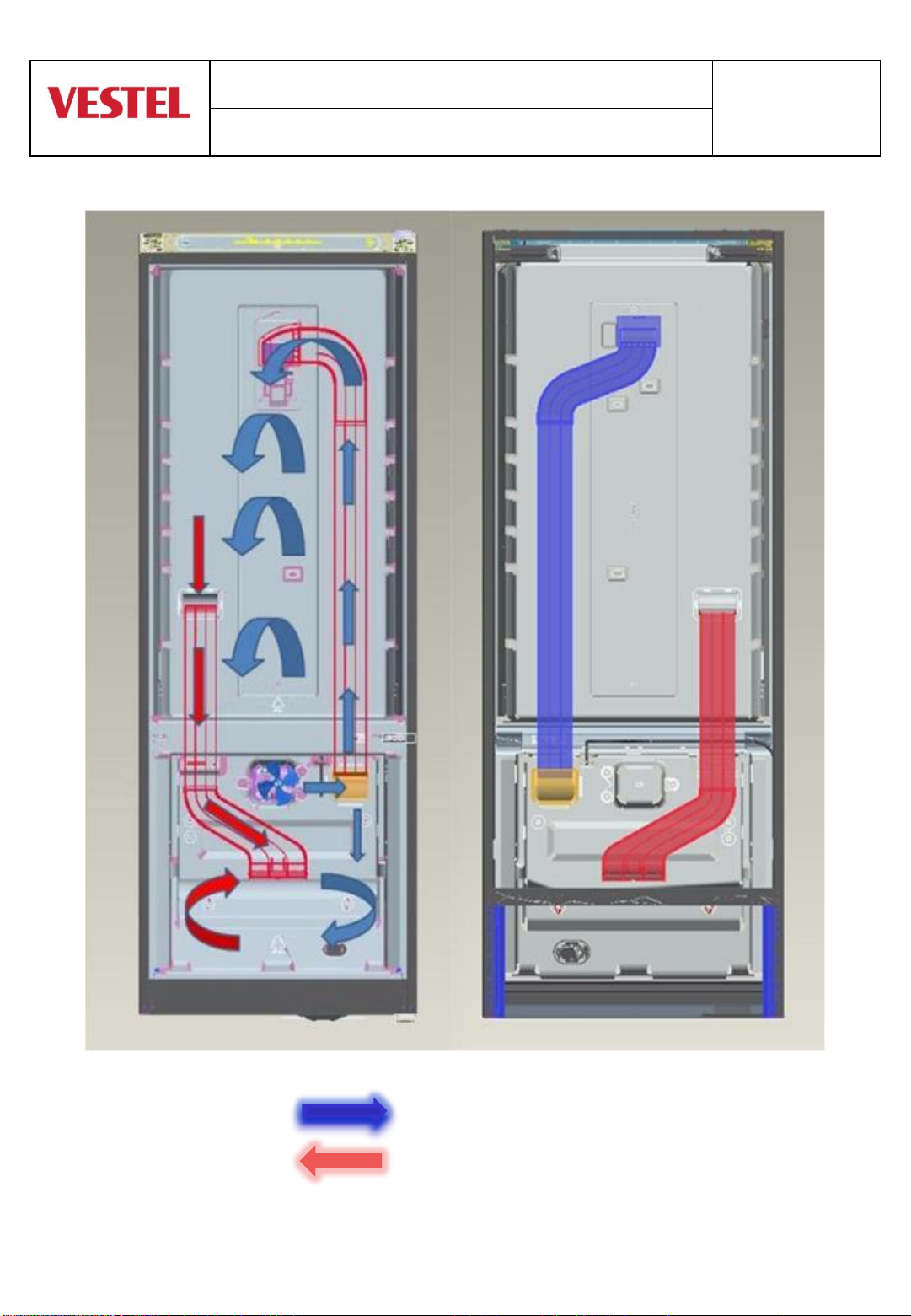

Air Flow Diagram

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
9
Refrigerant Cycle Diagram
COMPRESSOR
CONDANSER
HOT PIPE
DRAYER
CAPILLARY TUBE
EVAPORATOR
EXCHANGER

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Special Programs
When you first start the appliance
If the freezer and defrost sensors are warmer than –5ºC, then the automatic test starts. The below
listed components will be tested respectively with 5 second intervals.
• Middle sheet resistance for 5 seconds
• Defrost heaters for 5 seconds (Fin evaporator resistance, defrost pipe resistance and insulation
mullion heater)
• Evaporator fan motor for 5 seconds
• Compressor for 5 seconds
After 5 seconds, the appliance will start to run.
Defrost algorithm
Defrosting activates after 48 hours of total running time of refrigerator or 18 hours of total compressor
running time. Up to below mentioned reasons running times might decrease to 12 hours for refrigerator
or 14 hours for compressor.
• Amount of ice formed,
• Number of times the door is opened and closed,
• Duration the door remained opened,
• Sudden usage change ,
• Sudden Cooler Compartment temperature increase,
• Sudden Freeze Compartment temperature increase,
Defrosting time
Under normal conditions, defrosting period ends when the defrost sensor measures 8ºC. But if the
defrosting period exceeds 37 minutes, then the defrosting mode completion temperature will be rised
to 12ºC.
Delay of the compressor run
Compressor will be started after 5 minutes of defrost mode.
Delay of fan motor run
Fan motor starts after 3 minutes of compressor run.
Low Voltage Program
In case of supply voltage lower than 170 V for more than 5 seconds, the low voltage program will
stop the compressor, evaporator fan motor, condenser fan motor and also the super freezing super
cooling functions. If this situation happens during the defrost mode, then the appliance will stop
during defrosting.
When the supply voltage reaches a value greater than 180V, the appliance will start again from the
defrost mode.
If the appliance was not stopped during the defrost mode, then will be stopped for minutes more for
compressor secure start-up and will be started from the last setted program.
When the electricity is off
• All the parameters and functions will be kept in the memory (except the child lock function)
• When the electricity is on if the defrost sensor measures <5ºC then the compressor will be started
after 5 minutes. If the defrost sensor measures >5ºC, then the compressor will be started immediately.
• The appliance will be started with the last program setted.

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Service Model
Entering service mode :
Push freezer temperature button continuously. During this time, open and close the cooler door for
least 3 times. The appliance will enter service mode 3 sec. late.
• If there is a faulty situation, error code will be observed on screen. Otherwise nothing will be on the
screen.
• Buzzer will sound beep for 0.1 sec. each 5 sec. during service mode.
• Child lock icon will blink
• Service function could be activated by pushing «Mode»button
SERVICE FUNCTION0
While display is on
servıce mode, it could be changed among service functions by touching mode icon
TOUCHING M
(MODE)
BUTTON ONE
TİME.
STARTING MODE
Eco icon blinks
The number of components which is controlled is shown at freezer segments of display
Eco ıcon
goes off when the starting test finishes and then display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON TWO
TİMES.
MANUAL DEFROST
Holıday icon blinks
Defrost might be finished manually
or automatically.
Defrost might
be finished manually by using the cooling set button. Holiday icon goes off and display returns to initial
service mode.
Automatic defrost operates
according to the standard defrost time.
Holiday icon goes
off when he when the manual defrost ends and display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON THREE
TİMES.
DAMPER MOTOR CONTROL MODE (this is a general function for other models which have damper)
SC icons
blink.
There
is no function due to not having damper component in the product
Unless
touch anything on the screen for 5 minutes , this function will be finished.
SC icons goes off and
display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON FOUR
TİMES.
CURRENT TEMPERATURE VALUES INDICATOR
Sf icons blink.
Current temp. Value of freezer set
sensor is shown on cooler set segment. Freezer set segment shows "1"
After touching freezer set icon one time , current temp. Value of
cooler sensor is shown on cooler set segment. Freezer set
segment shows
«2"
After touching freezer set icon one more time , current temp. Value of defrost
sensor is shown on cooler set segment.
Freezer set
segment shows «3"
After touching freezer set icon one more time ,
Constant
value is shown on cooler set segment due to not being an ambient
sensor in the appliance .
Freezer set segment shows «4" (this is a general function for other models which have ambient
sensor)
After touching freezer set icon one more time , current temp. Value of cooler serpentine
sensor is shown on cooler set
segment.
Freezer set segment shows «5"
Unless
touch freezer set icon for 5 minutes , function will be finished automatically.
Touching
cooler set icon, function will be finished manually.
Sf icon
goes off and display returns to initial service mode.
TOUCHING M
(MODE)
BUTTON FİVE
TİMES.
DOOR SWITCH CONTROL
No icons
at display
Cooler
set segment gıves ınformatıon about cooler door
Mode just could
be deactıvated by cooler set button.

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
User and Service Mode Error Message
SENSOR TEMPERATURE
USER
MODE
REACTION
SERVICE MODE
REACTION
(1) Freezer
> +50 0C or <-50 0C
(sensor is short or open)
Display SR
(blinks) in
Freezer
number
segment
&
SR Symbol
blinks
&
Buzzer ‘beep’
Display FE 01
(2) Refrigerator Display FE 02
(3) Defrost Display FE 03
(5) Serpentine sensor Display FE 04
Breakdown of (1) and (2) Display FF 12
Breakdown of (1) and (3) Display FF 13
Breakdown of (1) and (5) Display FF 15
Breakdown of (2) and (3) Display FF 23
Breakdown of (2) and (5) Display FF 25
Breakdown of (3) and (5) Display FF 35
Breakdown of (2) and (3) and (5) Display FH 06
Breakdown of (1) and (3) and (5) Display FH 02
Breakdown of (1) and (2) and (5) Display FH 05
Breakdown of (1) and (2) and (3) Display FH 04
Breakdown of all sensors Display FU 00
Component defect on display
DEFECT TYPE DETAILS USER MODE
REACTION
SERVICE MODE
REACTION
Compressor Defect
Defrost sensor temp > -100C
(D sensor temp.unchanges for
10 min.continuous compressor
run)
Display SR
(blinks) in Freezer
number segment
&
SR Symbol blinks
&
Buzzer ‘beep’
Display FO 05
Defrost Heater
Defect Defrost sensor < 00C Display FO 06

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
User and Service Mode Error Message
Low voltage error on display
DEFECT TYPE DETAILS USER MODE REACTION SERVICE MODE REACTION
Low voltage Power supply < 170
Freezer and refrigerator
number segment shows
‘_’
&
Buzzer ‘beep’
Freezer and refrigerator
number segment shows ‘_’
Cooling error on display
Note: To prevent the wrong alarms, this alarm status is disabled on following conditions:
•During the first 6 hours after the product was firstly connected.
•During the defrost period
•During the first two hours after a defrost
•During the first 2 hours that one of the doors was open.
DEFECT TYPE DETAILS
USER MODE
REACTION
SERVICE MODE
REACTION
Freezer sensor > -100C Freezer compartment
is not cool enough
Freezer number
segment and alarm
icon blink
Display CO 01
Ref. sensor > +100C and if
Holiday mode is not active
Refrigerator
compartment is warm
Refrigerator number
segment and alarm
icon blink
Display CO 02
Ref. sensor < -50C
Refrigerator
compartment is so
cool
Refrigerator number
segment and alarm
icon blink
Display CO 03
F sensor > -10°C
and
R sensor >15°C and if
Holiday mode is not active
Freezer and
Refrigerator
compartment both are
not cool enough
Freezer and
Refrigerator number
segment and alarm
icon blink
Display CO 04

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
Changing The Door Swing Direction to Right Hand

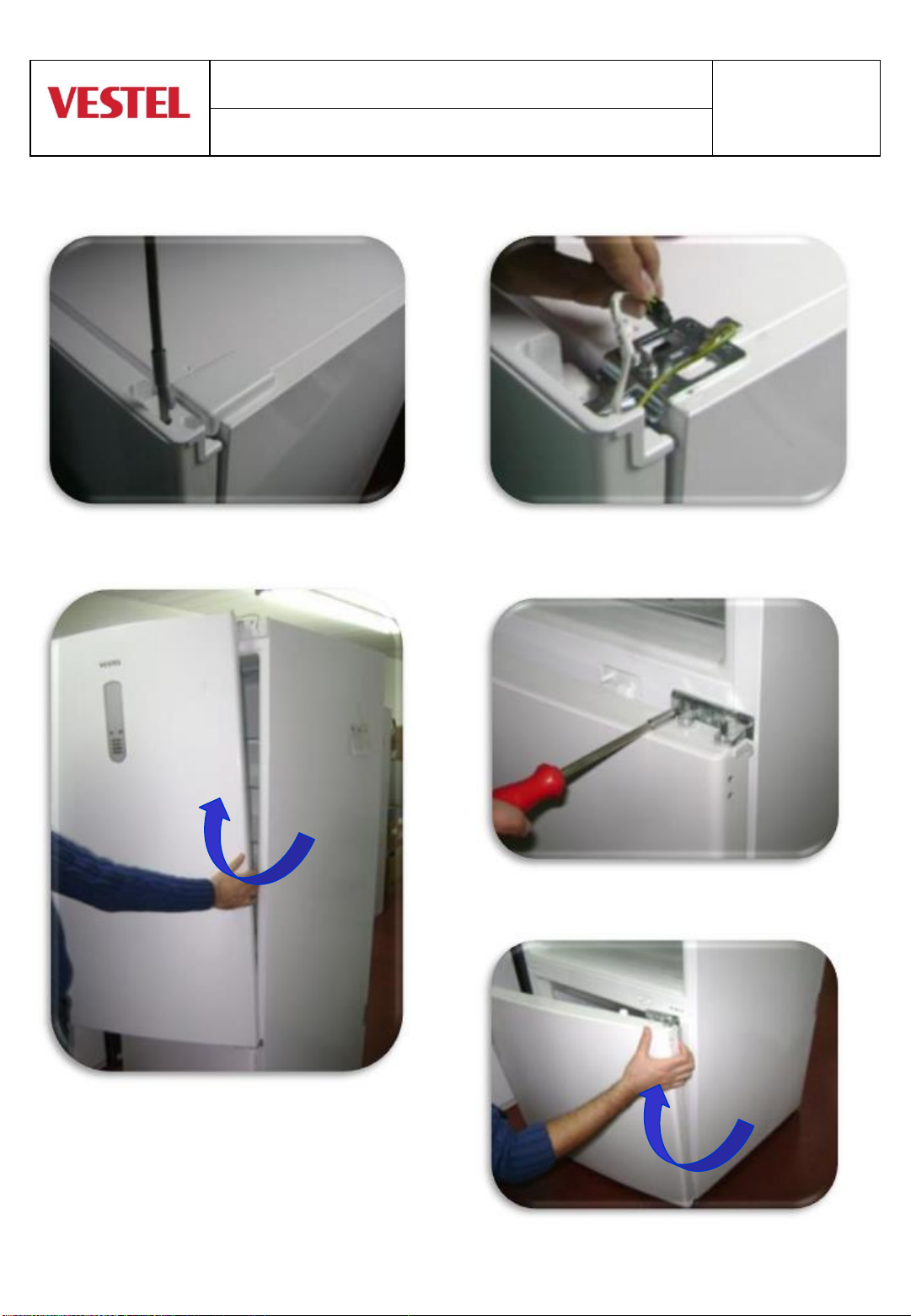

1. Unscrew the screw fixing the top hinge cover
and remove it. (Fig-1)
2. Disconnect the display connector. Unscrew the
two screws fixing the top hinge and remove it. (Fig-2)
4. Unscrew the two screws which are fixing
the middle hinge. (Fig-4)
Figure-3
3. Remove the refrigerator door. (Fig-3)
Figure-4
Figure-5
5. Remove the freezer door. (Fig-5)
Figure-1 Figure-2

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016

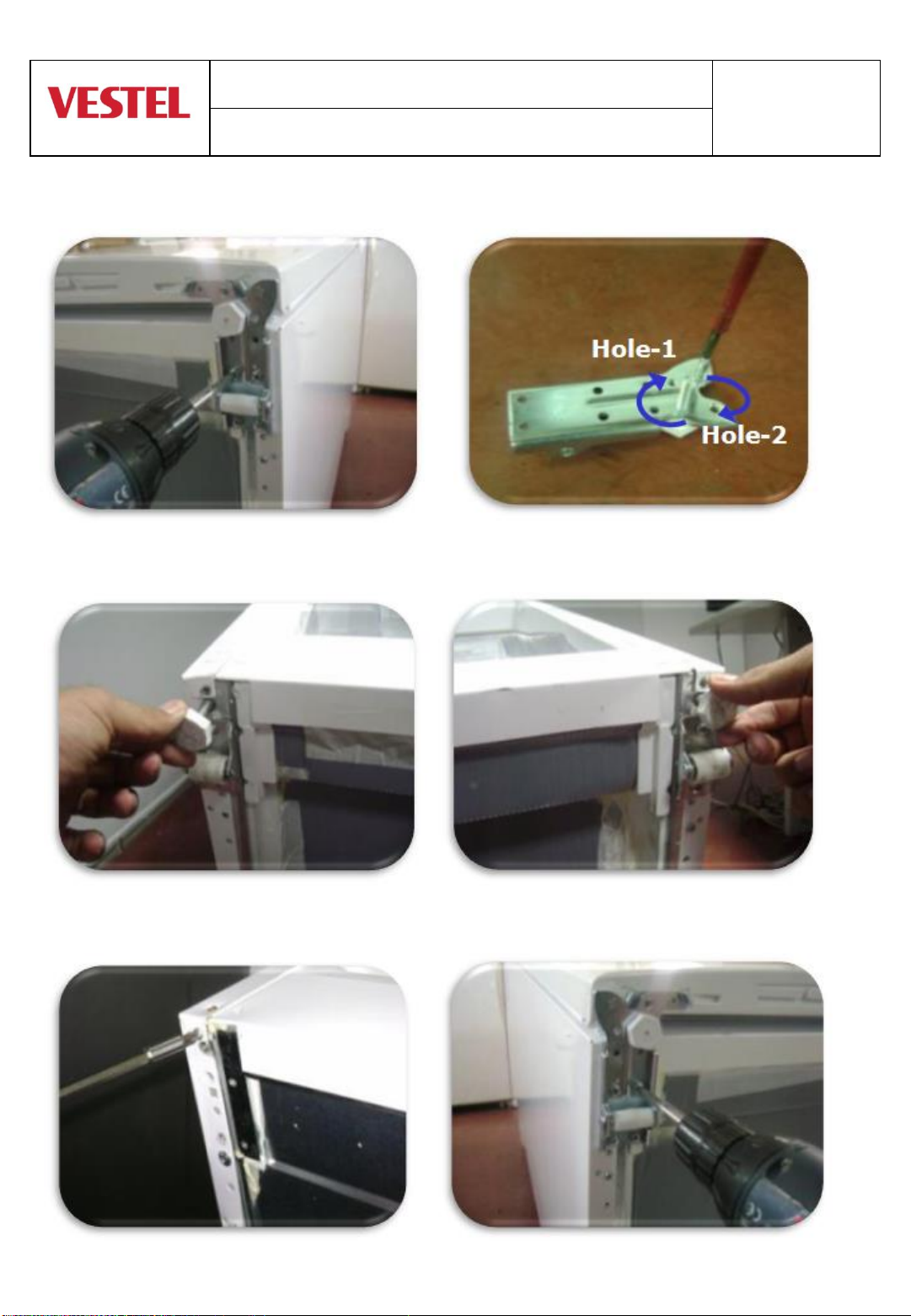

6. Unscrew the bottom hinge fixing screws and
remove it. (Fig-6)
8. Unscrew the stationary foot and front wheel (Fig-8.1) and screw to the right side. (Fig-8.2)
Figure-8.1
Figure-9.2
7. Unscrew the stationary foot of bottom hinge and
screw to Hole-1. Unscrew the hinge pin and screw
to Hole-2.(Fig-7)
Figure-8.2
9. Unscrew the side panel support screw (Fig-9.1) and screw the bottom hinge to the left side . (Fig-9.2)
Figure-9.1
Figure-6 Figure-7
Changing The Door Swing Direction to Right Hand

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
10. Remove the middle hinge cover on the left. (Fig-10.1) and insert the middle hinge cover to the
right side. (Fig-10.2)
11. Replace the freezer door top bushing (Fig-11.1) and top bushing cap. (Fig-11.2)
Figure-11.1 Figure-11.2
12. Remove the freezer door bottom bushing and
bottom stopper and then insert them the left side.
(Fig-12)
Figure-12
Figure-10.1 Figure-10.2
Changing The Door Swing Direction to Right Hand

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
14. Remove the socket cover-left of the freezer door (Fig-14.1) and assemble the socket cover-right to
the right. (Fig-14.2) (You can find the right socket cover in the user manual bag)

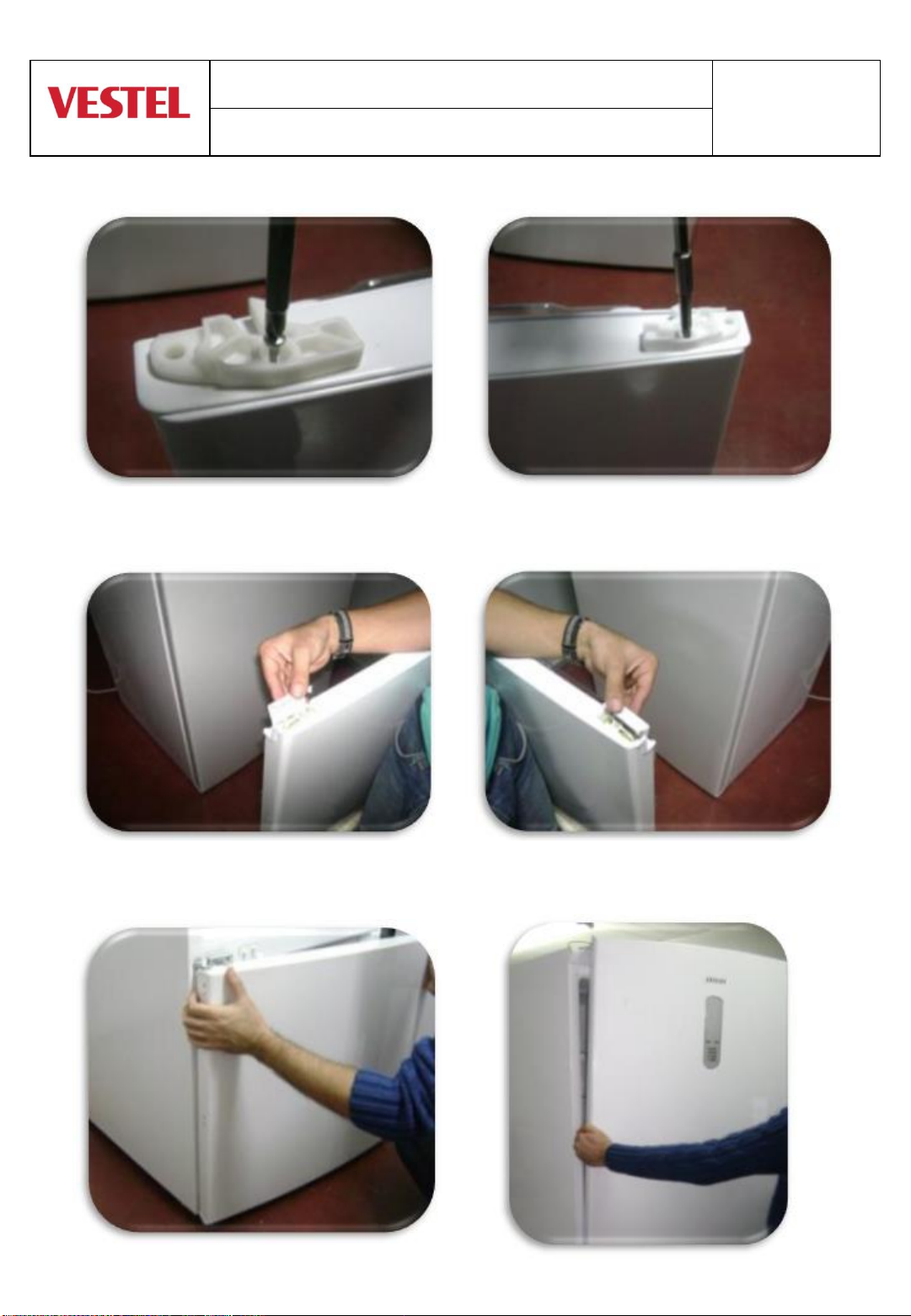

13. Remove the freezer door right catcher (Fig-13.1) and assemble the left catcher to the left. (Fig-13.2)
(You can find the left door catcher in the user manual bag)
Figure-13.1 Figure-13.2
15. Assemble the freezer door. Turn the middle hinge by 180º. Fix the middle hinge by tighting
the screws. (Fig-15.1) Assemble the refrigerator door. (Fig-15.2)
Figure-15.1
Figure-14.1 Figure-14.2
Figure-15.2
Changing The Door Swing Direction to Right Hand

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016

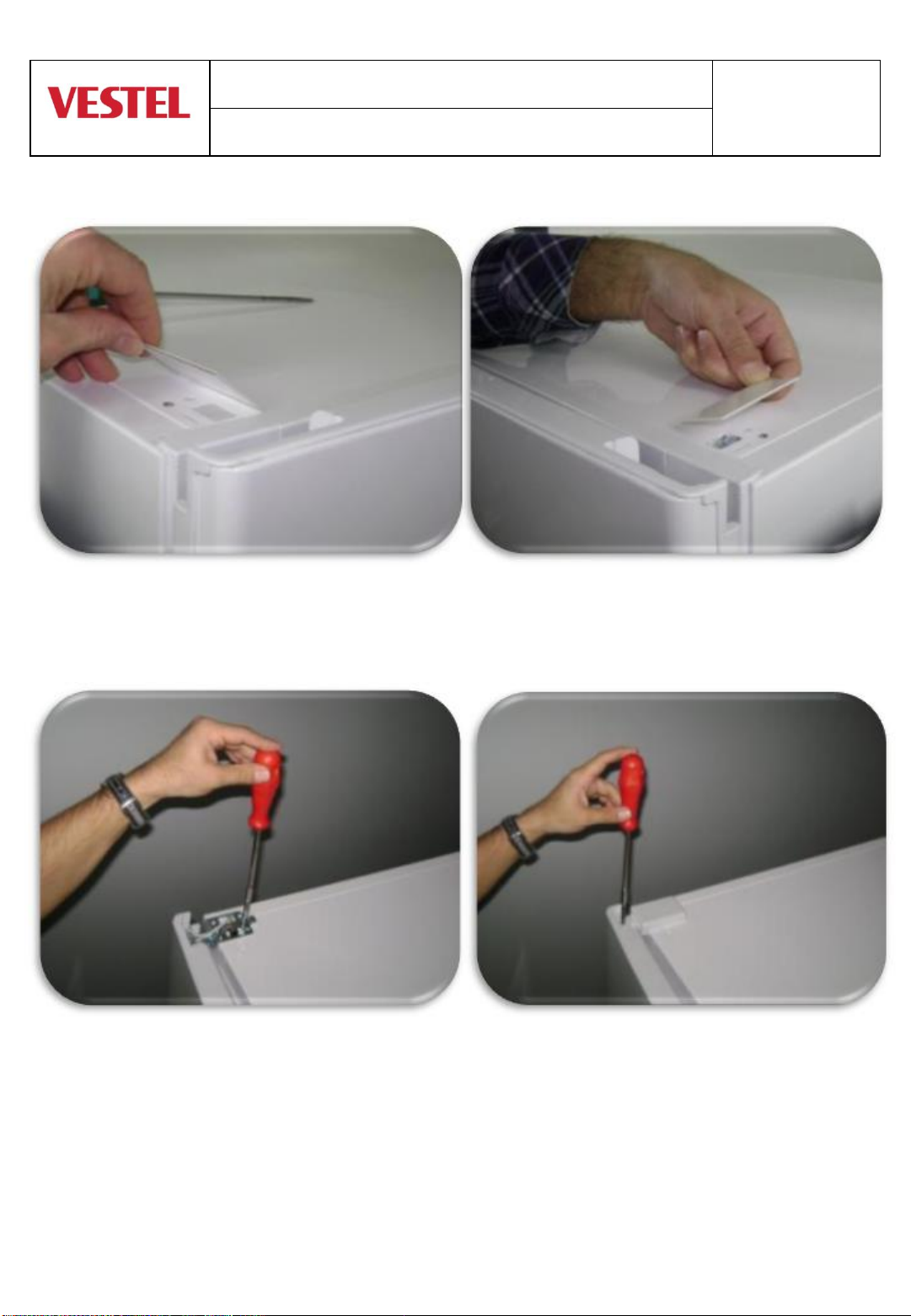

16. Remove the socket tape (Fig-16.1)and stick it on the right side. (Fig-16.2)
17- Screw the left top hinge. (Fig-17.1) and screw the hinge cover. (Fig-17.2)
Figure-17.1 Figure-17.1
Figure-16.1 Figure-16.1
Changing The Door Swing Direction to Right Hand

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016
4. Take out the display cable socket.
(Pic-3)
Removing/Assembling Display
CAUTION: The plug must be pulled out before the display is removed.
1. Display can be removed with the disassembly tool. Do not use any sharp objects
to remove the display.
2. Disassembly tool code is 42152193 (Pic-1)
3. Place and fix the disassembly tool on
to display and pull to take out the
display. (Pic-2)
Picture-1
Picture-2 Picture-3

WHITE GOODS
NF COMBI –566 ELECTRONIC - IMD CUSTOMER
SUPPORT
JUNE 2016

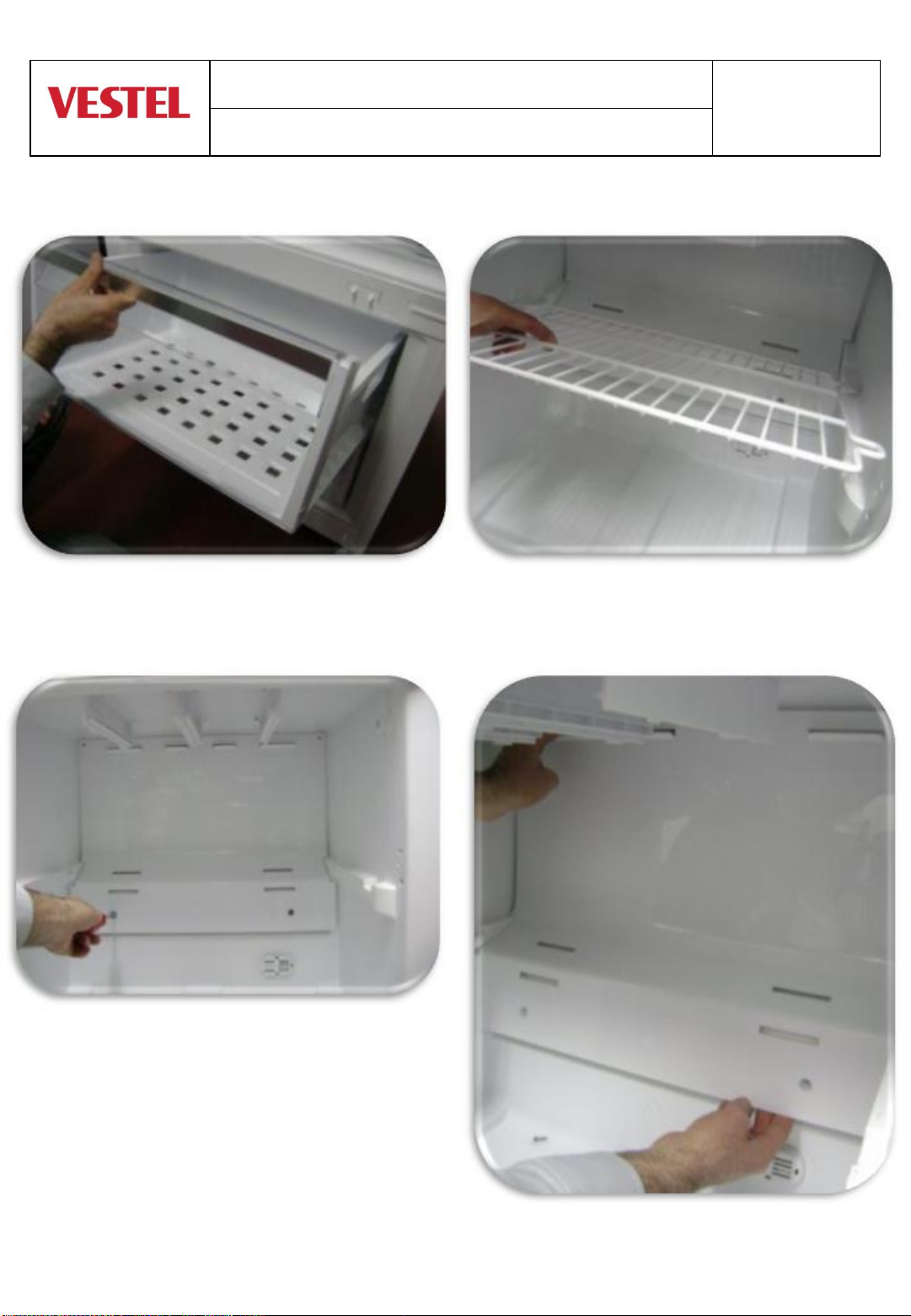

Replacement of Freezer Multiflow Cover
3. Remove caps and unscrew the 4 screws
shown at the picture. (Fig-3) 4. Remove the multiflow cover by pulling forward.
(Fig-4)
1. Remove the freezer basket. (Fig-1)
Figure-1 Figure-2
Figure-3
Figure-4
2. Remove the freezer shelf. (Fig-2)
