Important Safety-Related Information
•Pleasereadtheinstructionsinthismanualcarefullytoknowyourdevicequicklyandmakeuseofallthe
functionsofyourdevice.
•Alwayskeepthisusermanualcloselytoyourappliance.Givethisusermanualalongwithyourappliance
whenyoulendit.
•WARNING:Readthisusermanualcarefullybeforestartingtouseyourappliancetobeabletoprevent
risksofdangeroussituations,fire,electricshockandpersonalinjury.Followtheinstructionsatalltimes.
•AssemblyoftheappliancemustbeperformedbyVestelAuthorizedService.
•Appliancemustbegrounded.
RISK OF ELECTRIC SHOCK: Dangerousvoltage.
CAUTION: Riskofinjuryordamagetoproperties.
WARNING: Riskofseriousinjuryordeath.
Dear Customer,
Firstofall,wecongratulateyouforpreferringanatureandtechnologyfriendlyVESTELproduct.Thisuser
manualisintendedtoguideyouinusingyourequipment,andyouwillacknowledgethatyourequipment
hasthemostadvancedtechnologicalsolutionsandthatitisquitetouseit.Ifyoushowduecareand
performnecessarymaintenance,yourequipmentwillserveyouforlongyears.Wewishyougetpleasure
whileusingyourequipment.
3
1Pre-AssemblySafetyRules.............................................4
2TechnicalSpecifications................................................6
3GeneralAppearance...................................................7
4AssemblyofAppliance.................................................8
5Operation.......................................................... 11
6CleaningandMaintenance .............................................12
7ReplacementOfLamps...............................................12
8Troubleshooting.....................................................13
Table of Contents
4
1 Pre-Assembly Safety Rules
•Follow the instructions in this manual. Vestel
cannot be held liable for accidents, damages or
firethatmight occurasa resultoffailuretofollow
the instructions in this manual. User manual is an
integralpartoftheapplianceandmustbekept.
•Cookerhoodsareintendedfordomesticuseonly,
and thus will not demonstrate full performance for
otherpurposesofuse.
WARNING:Use of your appliance beyond
its intended purpose might cause damages or
hazardoussituations,andleadstovoidofwarranty.
Suchdamagesaremetbythecustomeronly.
•AppliancemustonlybeusedoverElectricandGas
cookers.
•Cooker hood must be mounted at a minimum of
65 cm distance to the cooking surface of electric
cookers, and 70 cm to the cooking surface of
multifunctionalcookers.Iftheassemblyinstructions
ofgascookersrequirealongerdistance,itshouldbe
takenintoconsideration.
•Do not mount this appliance on the wall using
plasterorsilicon.Mountonlyonthesurface.
•Since maintenance might be required on the air
outletflue,donotsecuretheapplianceonfurniture
orshelvesthatdonotalloweasydisassembly.
•Flue outlet of the cooker hood shouldn't be
connectedtoflueswhichhavewarmgasconnections
suchaswaterheater,stove,naturalgas.
•Riskoffireishigherwithoilthatisusedfrequently.
Food that is cooked in the deep fryer and with oil
mustbecookedundersupervision.
•Avoidflamycookingsincefaultsmayoccurinthe
applianceduetofirehazardandthehighheatthat
willbegenerated.
•Aluminium oil filter must be on during operation,
andthesefiltersmustbecleanedatcertainintervals.
Otherwise, oil deposit on the filter might lead to
deflagration.
•Assembly and electric connection must be
performedbyauthorizedpeople.
•Call the nearest Authorized Service in case of
faults.
•Energyinletcordshouldn'tbesubjecttoheating,
jammingorcrushingduringassembly.
•Whileperforminglampreplacementandcleaning
processes on the appliance, the cord must be
disconnectedorthefusemustbeturnedoff.
•Problemsthatcouldpreventthealuminiumflapat
theflueoutlettobeturnedoffwhenthemotorisnot
operativemustbeeliminated.
•This appliance is not intended to be used by
peoplewithphysical,sensoryandmentaldisabilities
(includingchildren)orthosewhohavenotadequate
experience and knowledge regarding its use,
unlessthey areunder the supervisionof aperson
responsibleforthesafetyoftheappliance.
•This appliance can be used by children of 8
years and older, people with physical, sensory or
mental capability deficiency or people with lack
of experience or knowledge; as long as they are
providedsupervisionorinstructionsforthesafeuse
oftheapplianceandtheycomprehendthedangers.
•Operatingvoltageof yourapplianceis 220-240
Volt~50.Groundedplughasbeenmountedonthe
mainscableofyourappliance.Thatcablemustbe
connectedtoagroundedsocket.
•Incaseofanydeflagration,de-energizethecooker
hoodandcookingappliances,andcover
theflame.Neverusewatertoextinguishthefire.
•Whilethe electriccooker hood andother electric
appliancesoperatesimultaneously,
negativepressureintheroomshouldn'texceed4Pa
(4X10bar).
•Sincethepackingmaterialscould bedangerous,
keepthemawayfromchildren.
5
Safety Information to Be Considered
During Cleaning and Maintenance
•Thecableoftheappliancemustbedisconnected
orthefuse mustbeturned offpriortoall cleaning
andmaintenanceprocesses.
•Appliance shouldn't be cleaned with steam
cleaningdevices.
•Thefireriskgetshigherduetooildepositifcleaning
andmaintenancearenotperformed.Therefore,get
yourappliancecleanedandmaintainedregularly.
•Repairing should be done by technical service
personnel.
Efficient Ventilation
Inordertoallowforventilationproperly,windowsthat
openoutwardsinthekitchenmustbekeptclosed.In
ordertocreateairflow,operatethecookerhoodand
cookerspontaneously.Suctionpowerwillbeaffected
inapositiveway.Aftercompletionofcooking,leave
theapplianceinanoperativemoodforawhiletolet
itsucktheremainingodourandvapour.
IMPROTANT NOTE
You must be careful when using the appliance
simultaneously with other appliances (e.g. gas,
diesel fuels, coal, wood, etc. burning heaters,
shower heaters), which use the same air in the
environment.andfuel.Becausecookerhoodmight
affectthefireadversely sinceit discharges theair
in the environment. This warning doesn't apply to
fluelessuse.
6
2 Technical Specifications
•Specificationsofthedeviceandthismanualmay
bemodifiedwithoutpriornotification.
•ComplieswiththeAEEERegulation.
Thisproduct complies withthe 2014/30/
EU (Regulation on Electromagnetic
Compliance)and2014/35/EU(Regulation
onLowVoltageDevices(LVD))Directives.
This device complies with the Directive
on the Control of Waste Electrical and
ElectronicEquipment.
Consumer Services
Safety Information to Be Observed
During Transport and Shipping
Your device must be kept in its original package
to protect from damage to its accessories during
transportandshipping.
Keeptheproductinnormalpositionduringtransport.
Donotdropthedeviceduringtransportandprotect
itagainstimpacts.
Damagesandfaultsthatoccurduringtransportafter
thedeliveryoftheappliancetothecustomerarenot
includedinthewarrantycover.
Liability Limitation
All technical information, instructions of use,
informationontheoperationandmaintenanceofthe
device provided in this manual includes the latest
information regarding your product. Manufacturing
company does not assume any responsibility
for damages and injuries that might be caused
due to not observing the instructions in this user
manual,usingthedevice outsideitsintendeduse,
unauthorizedrepairs,unauthorizedmodificationson
thedevice andusing spare partsnot approvedby
themanufacturer.
General Information
Thiscookerhoodisdesignedforuseoveracooker.
Make sure that your wall can stand the weight of
your cooker hood. Processes such as breaking,
cutting, etc. to be performed on the wall or closet
during assembly must be borne by the user. Your
cookerhoodissuitable forusewithaflue system,
or flueless use (by using a carbon filter). Before
startingtheassembly,payattentiontotheproblems
you may encounter during assembly. Assembly
of the appliance must be performed by authorized
service.Assemblymustbecarriedoutbyatrained,
specializedandauthorizedperson.
The lifetime of your appliance stated by the
DepartmentoftheIndustry(theperiodforretaining
parts required for the proper functioning of the
appliance)is10(Ten)years.
Model
ADB-6307COOKERHOOD
ADB-9307COOKERHOOD
ADW-6307COOKERHOOD
ADV-6307COOKERHOOD
SupplyVoltage 220-240V50Hz
LampPower(W) 2x3W
MotorPower(W) 210W
FlowRate(m/h) 585
InsulationClass I
7

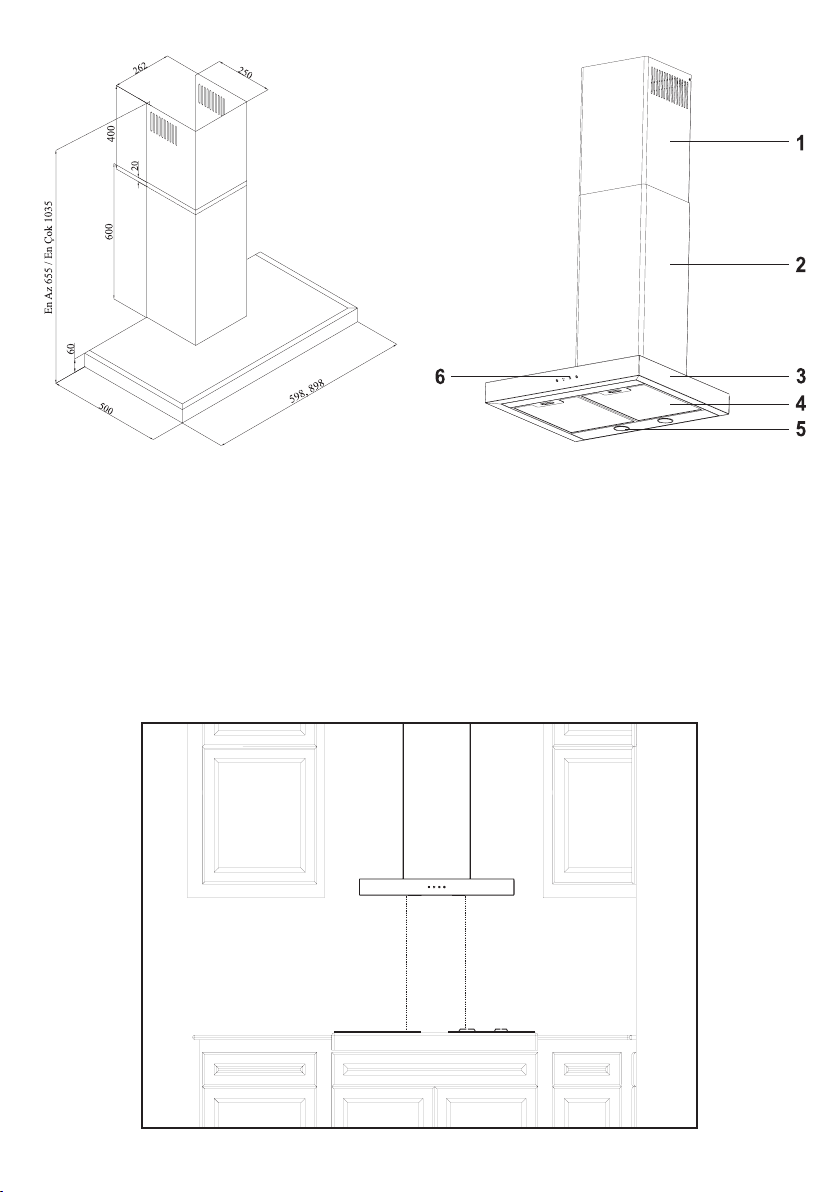

3 General Appearance
Dimensionsgivenintechnicaldrawingsareinmm.
Thepurposeof this image is to informyou about
the parts of your appliance. The parts may vary
dependingonthemodeloftheappliance.Images
aresymbolic.
1. InnerFlue
2. OuterFlue
3. FrontPanel
4. AluminiumFilter
5. CookerLighting
6. ControlPanel
Distancebetweenthecookerandthecookerhoodmustbeconsideredpriortoassembly.Thisdistancemust
be65cmforelectriccookersand70cmforgascookers.
-Distancemustbemeasuredfromthesurfaceofgrateforgascookers,
-fromsurfaceofglassforelectriccookers.
Position of Cooker Hood
Electric
Cooker
65 cm
Gas
Cooker
70 cm
Figure 1 Figure 2
Figure 3
8

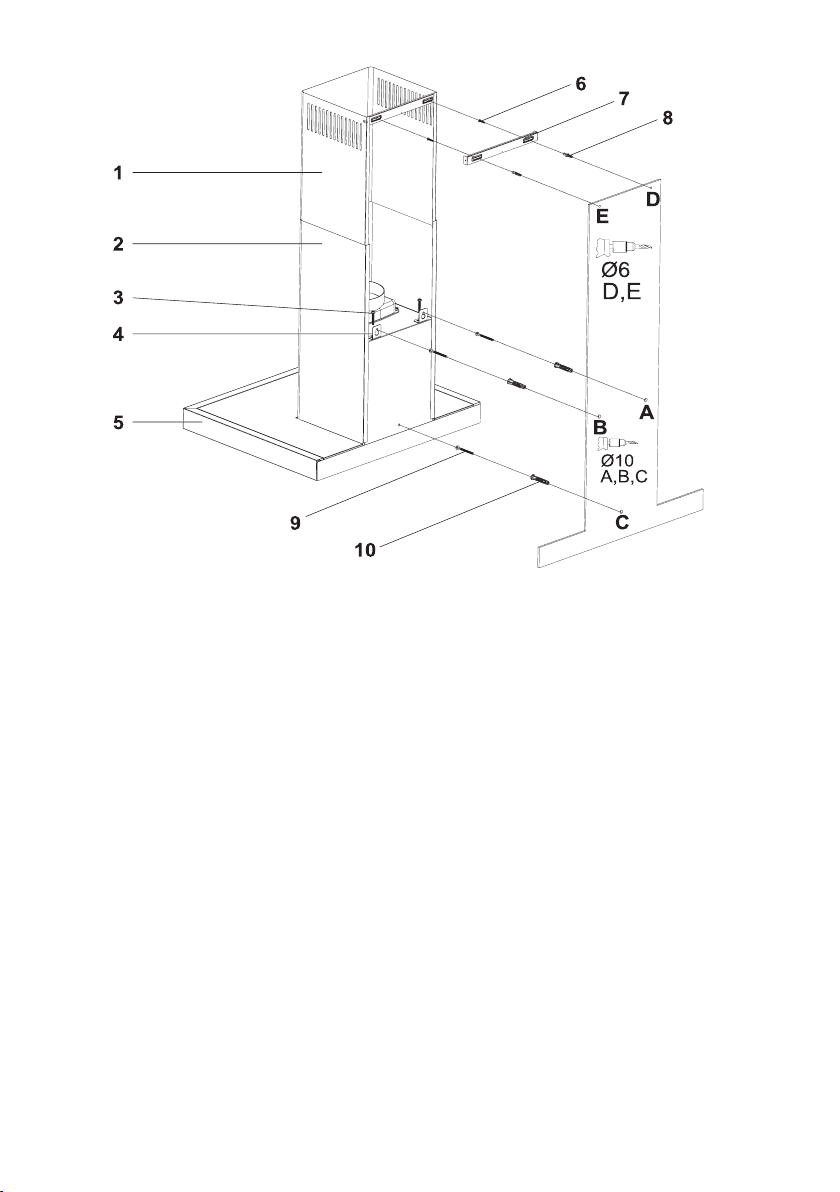

4 Assembly of Appliance
1. Inner Flue
2. Outer Flue
3. 2x M5x35 Screw
4. Product Hanging Plate
5. Front Panel
Figure 4 :InstallationDiagramandComponents
6. 2x 3.9x22 Screw
7. Flue Connection Plate
8. 2x Ø6mm Plastic Dowel
9. 3x 5.5x60 Wall Mount Screw
10.3x Ø10mm Plastic Dowel
•Affix the assembly pattern on the wall,
at the specified height (See the minimum
and maximum distances intended for the
worktop, in the assembly pattern). Perforate
points A, B and C (Figure 4).
•Insert Ø10mm dowels into the holes
drilled as A, B, C, and screw down the
screws at the points A + B so that 5mm
space remains between the screw head
and the wall (Figure 4).
•Affix the hanging plate of the cooker hood
on the body of the cooker hood with 3 x
M5x35 screws (Figure 4 / 4).
•Hang it on the wall with the hanging plate
of the cooker hood. If the cooker hood is not
parallel, loosen or tighten M5x35 screws to
make the cooker hood parallel.
•Tighten A + B (5) fixing screw on the wall,
and completely secure the product from its
point C.
9
Assembly of Air Discharge Outlet
1.Ø150/120 mm Flue Adapter (Option)
2.2x 3.5x9.5 Screw
3.Ø120/150 mm Plastic Flue
4.Body
•Attach the plastic flue (3) to the product's
body (Figure 5).
•Connect the flue adapter (1) to the plastic
flue when required.
•Fit the air pipe of the product to the
chimney 1 or 3 (Figure 5).
Figure 5
10

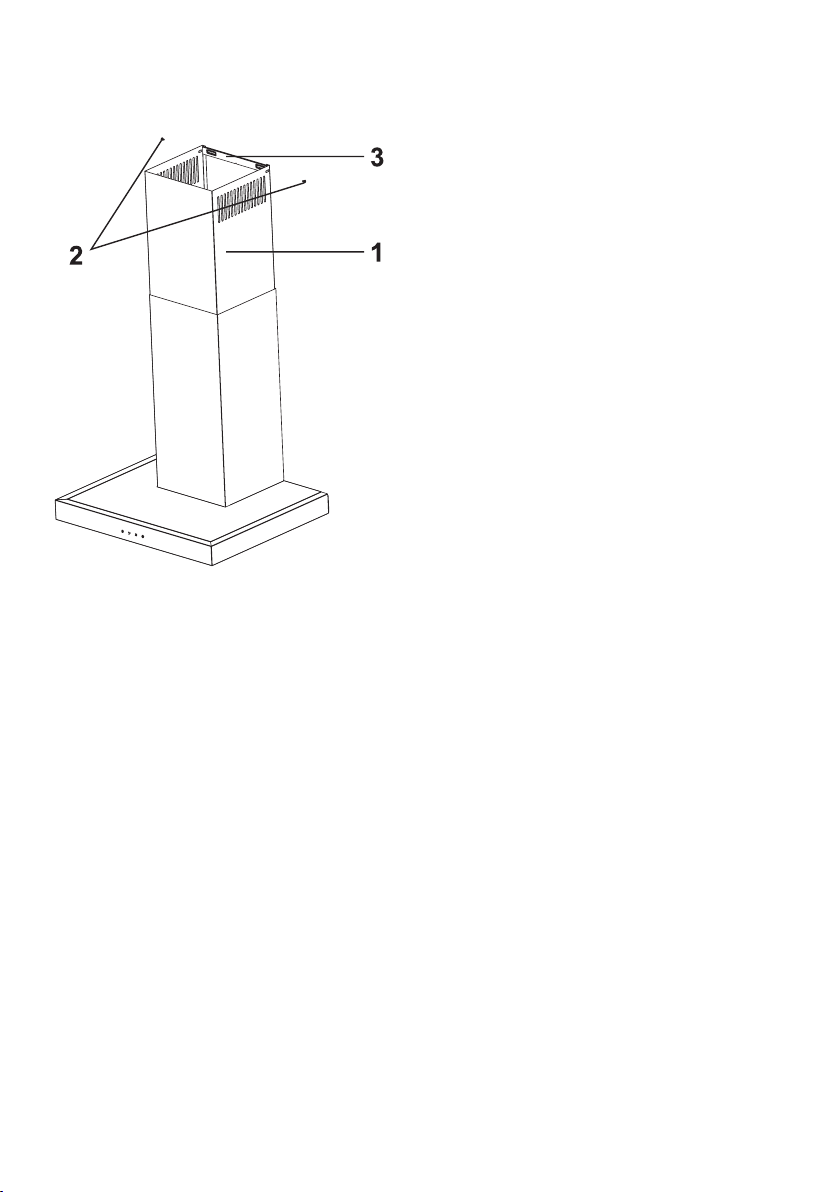

Assembly of Flues
1.InnerFlue
2.FlueFixingScrews
3.FlueConnectionPlate
Figure 6 : Installation of the Sheet
Metal Flue
•Theouterandinnersheetmetalflues(Figure4)are
encasedonewithintheother.
Forthispurpose;
•Thecookerhoodissetinthemidst,andthenthe
flueconnectingplate(8)isdirectlyaffixedtothewall,
underthecoverorpointsDandEaremarkedafter
performingameasurement(Figure4).
•Drill points D and E with Ø6mm drill bit, and
insertØ6mmandplasticdowels(9).Inserttheflue
connectionplatewith3.9x22screws(7)(Figure4).
•InstalltheExternalFluetothecookerhood.Secure
theinnerflue(1)totheflueconnectionplate(3)with
ascrew(Figure6).
11
5 Operation
1.Pressthisbuttontoturnonoroffthe
lamp.
2.Whenthisbuttonispressed,productwill
operateatspeedlevel1.
3.Whenthisbuttonispressed,productwill
operateatspeedlevel2.
4.Whenthisbuttonispressed,productwill
operateatspeedlevel3.
NOTE:Toactivate timer function, press and
hold any of buttons 1,2 and 3 for 3 seconds.
Then,15minutetimerfunctionwillbeactivated
andtheproductwillturnoffautomaticallyafter
15minutes.
Allactivefunctionsoperatedpriortoactivation
of timer function will be deactivated after 15
minutes.Allactivefunctionsoperatedafteracti-
vationoftimerfunctionwillbereactivatedafter
15minutes.
12
WARNING:Disconnecttheelectricalsupplyofthe
cookerhood.
Leave the lamps to cool down first because they
couldburnyourhandswhentheyarehot.
7 Replacement Of Lamps
Replacement of Lamp
Removethealuminiumcartridgefilter.
Removethedefectivebulbandreplacewithanew
onewiththesamerating(Figure7).
Figure 7
6 Cleaning and Maintenance
WARNING: Ensure that the appliance is
unpluggedor fuse isturned offbefore allcleaning
andmaintenanceoperations.
A) Cleaning and Maintenance Time
Hood must be cleaned and maintained at regular
intervalstoensureitsusagelifeandperformance.
Depositofoilanddirtinaluminiumfiltersofthehood
mayaffectitsnormaloperation.
Unnecessary oil residue on the inner parts of the
device and its flue increases the risk of fire. The
Carbon Filter(s) inside the inner part, which are
requiredforfluelessuse,maybeusedforaspecific
duration. They cannot be cleaned and washed.
Thus,CarbonFilter(s)must bereplacedin regular
intervals.Youcanprocurethecarbonfilterssuitable
foryourappliancefromauthorizedservices.
•Aluminium filters must be cleaned every 2 - 3
weeks.
Thiscleaningandmaintenanceshouldbeperformed
regularlytopreventformationofoilresiduesonyour
kitchenfurnitureandwalls.
B) Cleaning the Appliance
•Cut the power to your hood by unplugging it or
turningoffitsfuse.
•Do not clean the appliance with vapour or a
cleaningappliancethatusesvapour.
•Do not clean the hood surface with unsuitable
cleaningmaterials.Otherwise,colourchangesmay
occurontheproduct.
•The outer surface of the appliance must be
cleanedusingInoxsurfacecleanerandasoftcloth.
Devicemustbedriedaftercleaning.Theglassparts
ofdeviceswithglassshallbecleanedwithaglass
cleanermaterial.
C) Opening the side suction glass
Toremovethesidesuctionglass,holdfromthe
rightandleftfrontpointsandpulltowardsyourself.
D) Disassembly of Aluminium Filter
Pressthelockinglatchofthealuminiumfilters
backwardsandpullbelowtheappliancetoremove.
E) Cleaning Operation
Submergethealuminiumfilterinhotwaterwithdish
detergent and wait for some time; then clean with
a soft brush. Rinse with hot water after cleaning.
Repeatthisoperationifnecessary.Youcanwashthe
aluminium filter in dishwasher on normal program
with55degrees.
WARNING: Take care not to cause damage on
thegrid
whilecleaningthealuminiumfilters.Colourchanges
maybeobservedonthefilterswhenhardcleaning
materials are used. This won't affect the device
negativelyandisnot acauseofmalfunction.After
cleaning, fit the dried filter back into the device
appropriately.
13
8 Troubleshooting
Whenyouobserveanabnormalconditioninyourappliance,youmighttrytosolvetheprobleminlinewith
the explanations in the table. If your appliance still doesn't operate, contact Vestel Customer Contact or
thenearestVestelAuthorizedService.Donottrytorepairyourapplianceyourself.Youcanfindauthorized
serviceslistandcontactinformationfromthewebsite.
Recommendations for Energy Saving
Ifyouuseyourappliancewithcarbonfilters,replace
themregularly.
Regularly clean your aluminium filters. Since dirty
filterswouldblocktheairpassage,youmighthave
to use the appliance at a higher speed. Use your
product according to its normal speeds. Use at
higherspeedwouldcauseanincreaseintheenergy
consumption.
Package information
Product package is made of recyclable materials.
Donotdisposeofthepackagingwastetogetherwith
thehouseholdwasteorotherwastes,disposeitto
the packaging collection areas specified by local
municipality.
Disposing of your appliance in an environment-friendly way
Thissign, presenton your productor itsinformation label,tells that thisdevice mustnot be
disposedofalongwithotherdomesticwasteattheendofitsphysicallife.Inordertoprevent
theuncontrolledwastedisposalfromdamagingtheenvironmentorhumanhealth,pleaseset
thisdeviceapartfromotherwastetypesandensuretheirresponsiblerecyclingtosupportthe
sustainablereuseofmaterialresources.Pleasecontacttheretaileryoupurchasedtheproduct
from or other local establishments to receive information on where and how to take this appliance for
environmentallysaferecycling.Thisproductmustnotbemixedwithothertradewasteforrecycling.
PROBLEM CAUSE SOLUTION
Appliancedoesn'toperate.
Itisnotpluggedproperly. Plugittightly.
There'snopowerinthesocket. Checkthefuseandthesocket.
PowerOn/Offswitchisn'tpressed. PressPowerOn/Offswitch.
Lightingisnotfunctioning.
Appliancemightnotbeplugged. Makesurethepowercordispluggedin.
Appliancekeymaynotbefunctioning. Checkthebutton.
Dirtyairentersthroughtheue. Checktheplasticapattheueoutlet.
Flapshouldcovertheairoutletwhentheapplianceis
notrunning.Removetheobstaclesthatpreventthis
closing.
Performance of the appliance is not
adequateortheappliance makestoo
muchnoiseduringoperation.
Diameter of the ue may not be sufcient (Minimum
Ø120mm).
Make sure that the diameter of the ue is at least
Ø120mm.
Ifyouusethecookerhoodwithoutue,makesurethat
thecarbonltersarenotolderthan6months. Replacethecarbonlters.
Beattentivetoventilateyourkitchenadequately,inor-
dertoprovideanairow.
Let the environment be ventilated by opening the
windows.
14
Optional Rights of Customer
Consumermayexerciseanyofhis/heroptionalrightsbelowwithintwoyearsofexpiryperiodstartingwiththe
dateofdeliveryofthegoodtotheconsumerifthegoodisfoundtobedefectiveaspertheprovisionsofLaw
ontheProtectionofConsumersno.6502,evenifthedefectisfoundlater;
1)Toterminatethecontractbystatingthatheisreadytoreturnthesoldgood,
2)Torequestadiscountonthesalepriceproportionaltothedefectandkeepthedefectivegood,againstthe
Seller;
3)Torequestthesoldgoodtoberepairedattheseller’sexpensebybringingallrepaircoststothesellerif
suchcostsarenotexcessive,
4)Ifpossible,torequestthepurchasedgoodtobeexchangedforanon-defectivegood,againsttheSeller,
manufacturerorimporter.
Consumermayexerciseeitherofitsrightstoterminatethecontractordiscountfromthepriceinproportionto
thedefectiffreerepairorreplacementofthegoodwithanon-defectivefungiblewillbringaboutdisproportional
challenges.
ConsumermayapplytoConsumerCourtsandArbitrationCommitteesfortheircomplaintsandconcerns.
ManufacturingPlace:Turkey
.ManufacturingCompany:VestelTicaretA.Ş
Levent199BüyükdereCad.No:19934394
Şişli/ISTANBUL-TURKEY
Tel:08502224123
E-mail:[email protected]
www.vestel.com.tr/destek
15
This manual suits for next models
3
Table of contents
Other VESTEL Ventilation Hood manuals
VESTEL
VESTEL VHDA55CS User manual
VESTEL
VESTEL 3261 User manual
VESTEL
VESTEL VHK60BX User manual
VESTEL
VESTEL VHD60BS User manual
VESTEL
VESTEL VHI90AX User manual
VESTEL
VESTEL VHIA90AX User manual
VESTEL
VESTEL VHS60CX User manual
VESTEL
VESTEL VHUE60DX User manual
VESTEL
VESTEL VAD 470 AG AVRP KNT User manual
Popular Ventilation Hood manuals by other brands
GE
GE Monogram ZV30R installation instructions
Westin
Westin MASTERCHEF Installation operation & maintenance
ELICA
ELICA EHL640WH manual
BORETTI
BORETTI CUBO 90 user manual
Cadco
Cadco BAKERLUX SHOP.Pro XAKHT-HCHS Installation, use and maintenance manual
AIRFORCE
AIRFORCE F37 90X60 S4 Instruction on mounting and use
