N-BIOTEK NB-T101S User manual

Operations Manual
Touch Panel
Mini Shaker
And Mini Remote Shaker
(NB-T101S & NB-T101SRC)

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 2/16
Table of Contents
CONTENTS
PAGE
1
General Information and Precautions
3-4
2
Feature and Specification
5-6
2.1
Feature
5
2.2
Specification
5
2.3
Configuration of Remote Shaker
6
2.4
Configuration of Mini Shaker
6
3
Installation of Remote Shaker
7-8
3.1
Installation
7
3.2
Strap Installation
8
4
Operation
9-14
4.1
Basic View Screen
9
4.2
Advanced View Screen
10
4.3
Shaker Step Setting
13
5
Accessory Description
15
Warranty
16

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 3/16

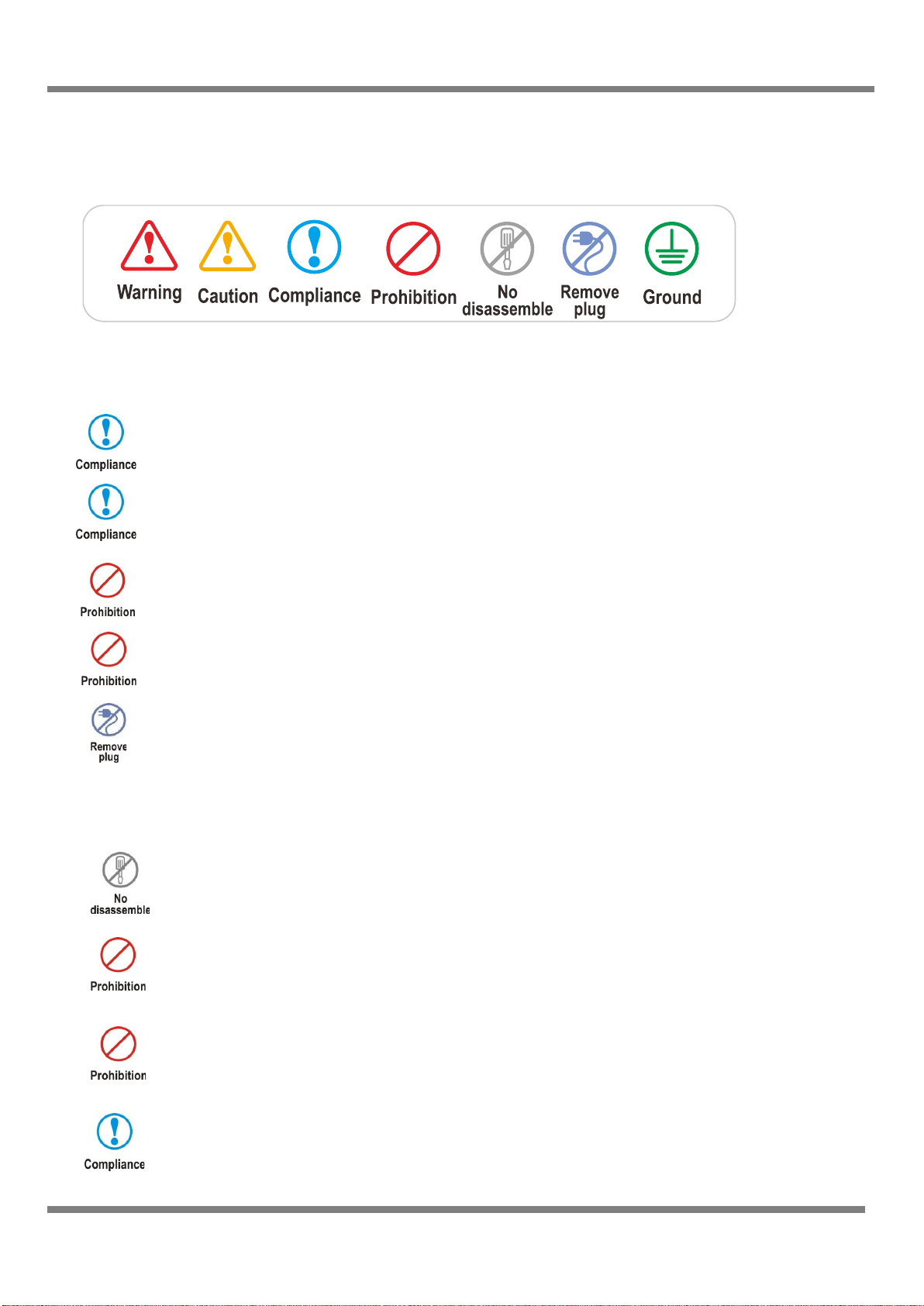

1. General Information and Precautions
Safety Symbols:
1.1. Precautions related to the power cable
Always allow at least 3cm between the power cable and the back wall to prevent the back wall from
causing pressure on the power cable.
Always use the electrical plug that was supplied with this instrument.
Never touch the power cord with wet hands. (This can result in electric shock.)
Never use a damaged power cord or power outlet.
In the event of smoke or a burning smell, immediately remove the power cord from the outlet.
1.2. Precaution for use
Do not attempt to disassemble this instrument. If service is required, please contact your local
representative.
Never operate a flammable spray near this instrument. (This can result in a fire hazard.)
Always use caution when using flammable substances such as benzene, alcohol
and LP gas. (Failure to do so can result in a fire hazard.)
Prevent foreign substances from contacting the door seal. (The inflow of outside air can negatively
impact the temperature in chamber.)

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 4/16
Permissible ambient temperature range for transport: -10℃to 60℃.
ALWAYS ensure that the instrument is connected to an outlet with specifciations that
match those of the serial number label.
(Over-voltage or under-voltage can damage the product and result in poor performance.)
When installing the instrument, always allow a distance of at least 30cm from the back wall.
Install the unit in the way that the power plug is easily accessible
and can be easily pulled in case of danger.
Install the instrument on a flat and stable surface, free from vibration and in a well-ventilated
location. (If the surface is not level, it can cause an excessive vibration of the product.)

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 5/16
2. FEATURE & SPECIFICATION
2.1 Feature
●Magnetic induction drive & Brush less DC motor provides less vibration and maintenance.
●No interference with uniformity for cell culture by BLDC motor
●User friendly, intuitive LCD touch panel
●Moisture resistant structure by Epoxy –coated
●Wire remote control box
●No access port needed by flat cable between shaker and control box
●Selectable control box position (Attach or Hang)
●Non-volatile memory for operation.
2.2 Specification
ITEMS
UNIT
NB-T101S
NB-T101SRC
Motion
Orbital
Orbital
Speed Range
rpm
30 to 300
Accuracy
rpm
±1
Increment
rpm
1
Time Range
Up to 99h 59min 59sec or continuous operation
Accuracy
%
±1
Increment
min
1
Control
Microprocessor digital (PID)
Operating Panel
Touch Control Display (3.2")
Motor
Plate type BLDC Motor
Orbit diameter
mm
22
Platform size
300(W)x330(D) with Rubber pad
Load capacity
ml/ea
100/16, 250/9, 500/5, 1000/4, 2000/1
Dimensions
mm
300(W)x345(D)x75(H)
300(W)x345(D)x75(H)
Power
V/Hz
100-120V or 210-230V / 50 or 60Hz
Weight
Kg
8
9.5
Cable
-
Flat type

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 6/16
2.3 Configuration of Remote Shaker (NB-T101SRC)
2.4 Configuration of Mini Shaker (NB-T101S)

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 7/16

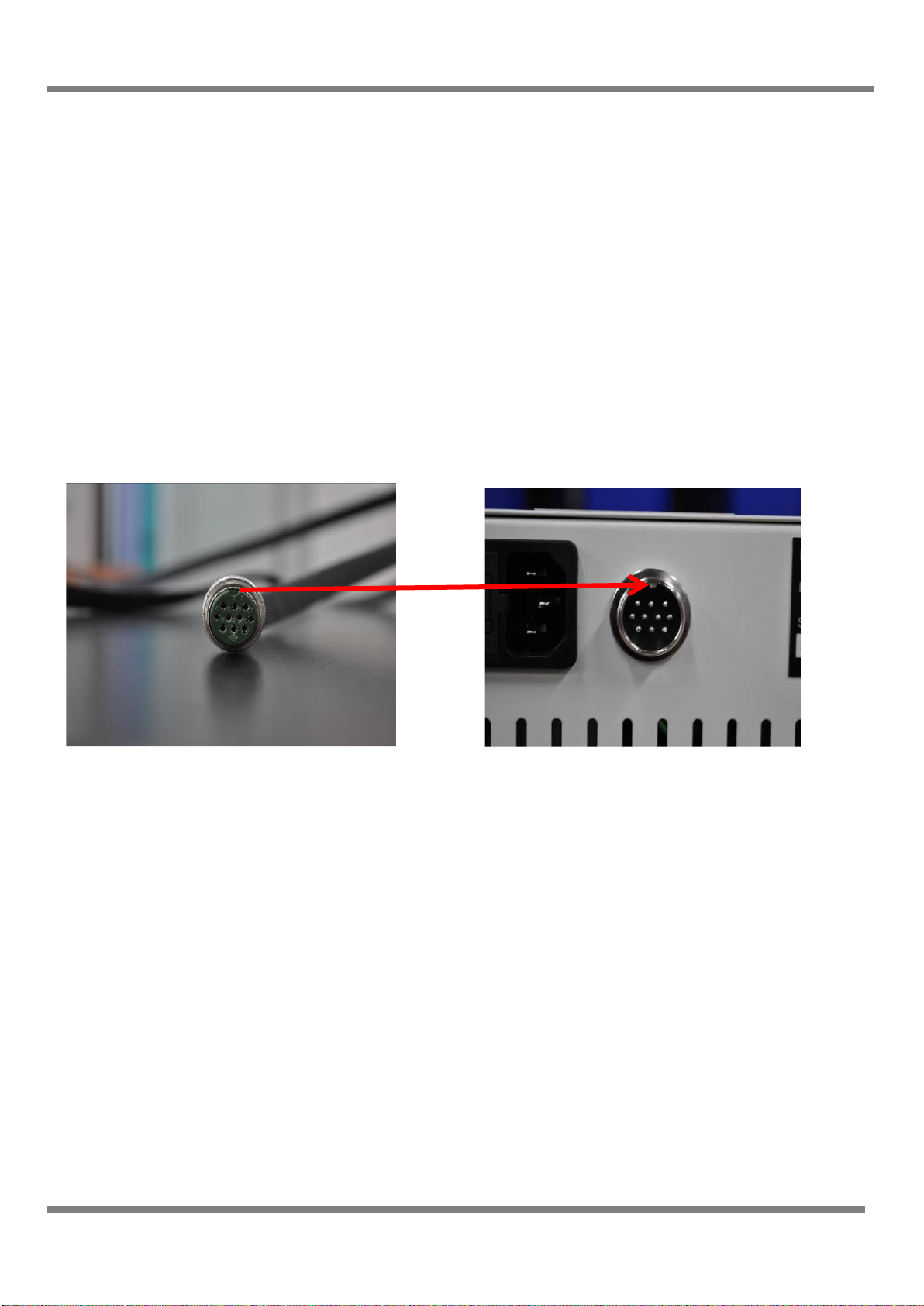

3. INSTALLATION OF REMOTE SHAKER
3.1 Installation
- Choose a location that is free from rapidly changing temperature conditions
(it must be away from a heating or cooling vent).
- To assure proper ventilation, allow a minimum of 5 Cm of the clearance between the rear and side of the
unit and the adjacent wall.
- Always ensure that the machine is installed on a level surface.
- In case of cable connection on remote control box, please find hollow from both cables as below.
Both hollows should be connected otherwise both connectors are not well fit to each other.
- Do not connect or disconnect when remote box power is on.

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 8/16

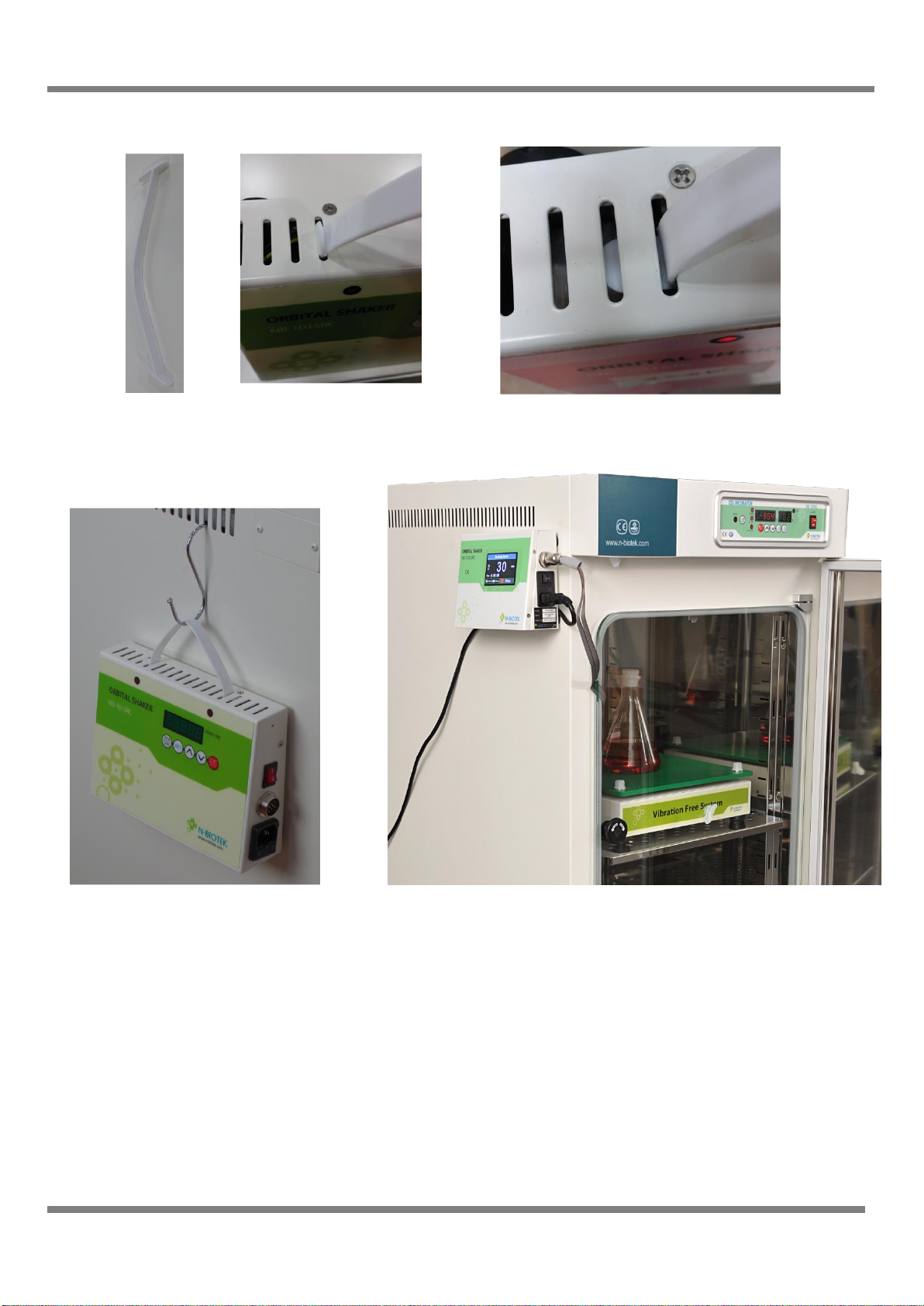

3.2 Strap installation
* Insert the both edge of plastic strap into vent hole of remote control box.
<Hanging with Hook> <Attachment with magnetics>
*Hook is not a standard component.

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 9/16
4. OPERATION

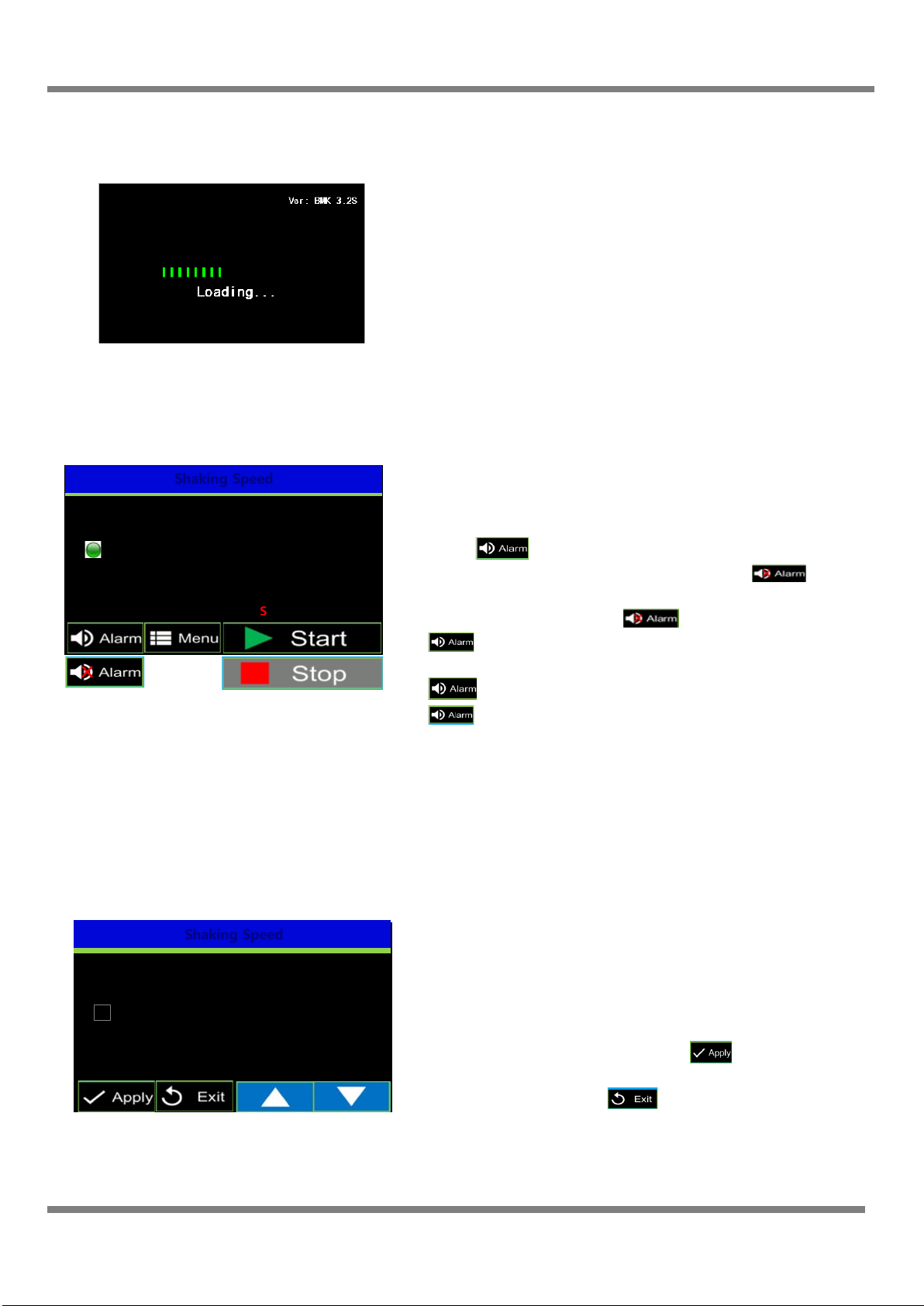

▶Booting
Press the power switch into the ON position, the display
illuminates and the booting screen is displayed for 2
seconds before showing the “Basic View”screen.
NOTE: If the shaker has been powered off before the
completion of a run, the unit will automatically power on to
the previous settings.
And if shaker stop running and turn off, no matter any
mode shaker will turn on as Basic View.
4.1 Basic View Screen
▶Basic View Screen
ⓐRUN LED: indicates if the shaker is running.
ⓑTime setting: Indicates the set or remaining time.
(To adjust, TOUCH the time value)
ⓒRPM setting: Displays the set or current RPM
(To set the desired shaking speed, TOUCH the RPM value)
ⓓAlarm Mute : The audible alarm can temporarily deactivated by TOUCHING
the key when the audible alarm is active (beeping). This silences/mutes
the alarm for 10 minutes and the icon is displayed as . Following the
10-minute mute, if alarm event continues, audible alarm is unmuted.
To unmute the alarm, TOUCH the key to toggle to the unmuted setting,
.
Alarm Disabled : The alarm can be disabled by TOUCHING and holding the
key for 3~5 seconds. To reactivate the alarm setting, TOUCH the
once.
ⓔMenu: TOUCH to activate the main menu
ⓕShaker Start/Stop Button
TOUCH to start or to stop the shaker.
ⓖShaker end: Indicates that the setting time has expired and the
shaker stops running.
OFF
30
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m s
SHAKER END
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
ⓕ
ⓖ
30
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m s
SETMODE
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
▷RPM setting change
ⓐTOUCH the RPM value, The numbers become red
ⓑ“SET MODE”is displayed (flashes)
ⓒInput the desired value by pressing UP(▲)/DOWN(▼) buttons
NOTE: Press and hold the buttons to increase or decrease the
value quickly.
ⓓApply: To store the newly set value TOUCH
(Or wait 5 seconds for the value to store automatically)
ⓔExit: If you press after changing any values, the
values are not saved and the screen returns to the previous
screen

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 10/16

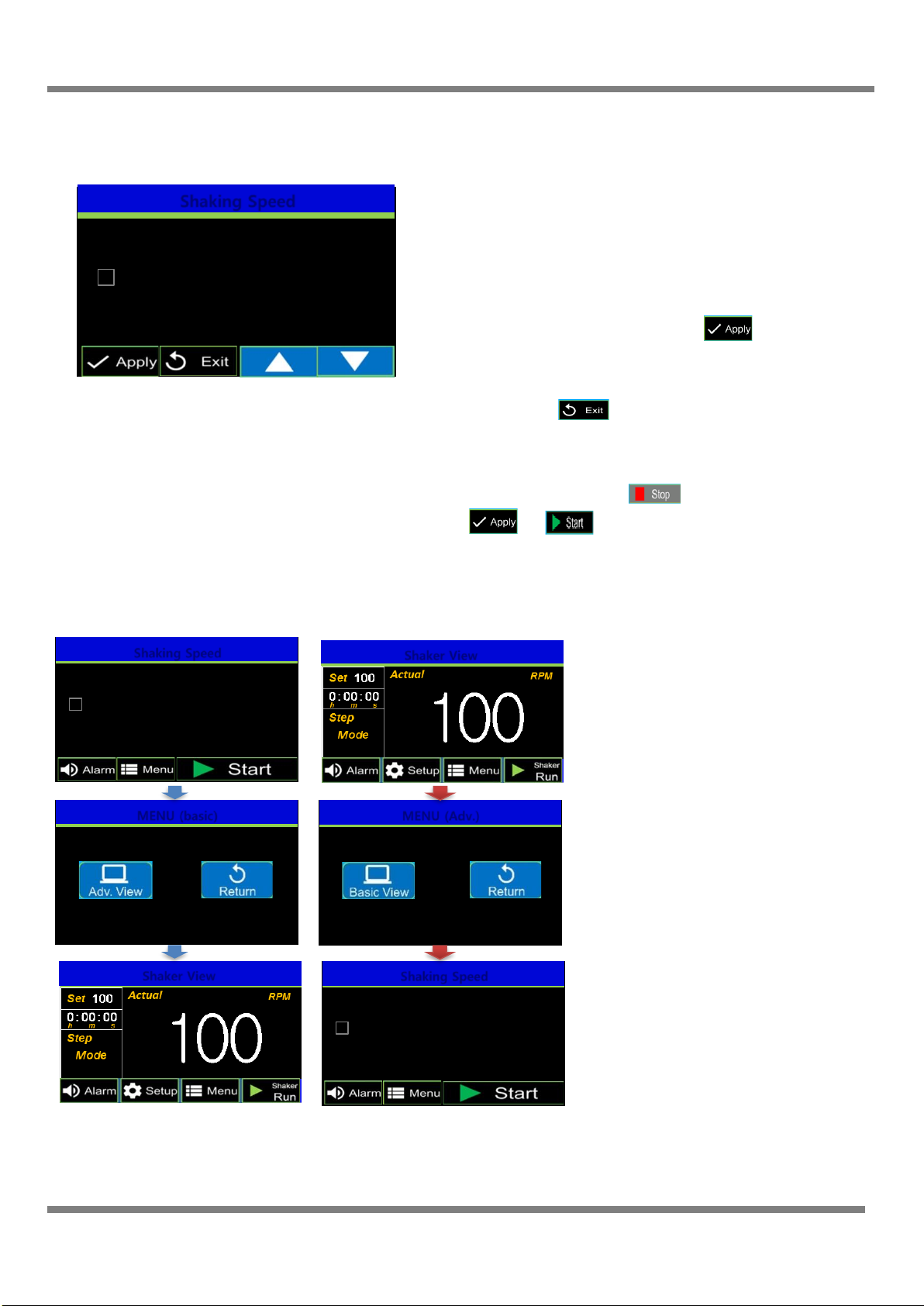

4.2 Advanced View Screen
▶Advanced Mode
To switch from the standard BASIC view to
the ADVANCED view, the shaker must be off.
TOUCH “MENU”and choose ADVANCED View.
NOTE: To return to the BASIC View, TOUCH
“MENU”and choose the BASIC View.
The ADVANCED View provides the user with access to the
STEP mode for linking consecutive mixing cycles.
▷Time setting change
ⓐTOUCH the time value, The numbers become red
ⓑ“SET MODE”is displayed (flashes)
ⓒInput the desired value by pressing UP(▲)/DOWN(▼) buttons
NOTE: Press and hold the buttons to increase or decrease the value
quickly.
ⓓApply: To store the newly set value TOUCH
(Or wait 5 seconds for the value to store automatically)
ⓔExit: If you press after changing any values, the values are
not saved and the screen returns to the previous screen
NOTE: The time cannot be adjusted during a run. To change the time
during a run, you must TOUCH . Change the time value and
press and
30
Shaking Speed
RPM
Run
Time
0: 00 : 00
h m s
SETMODE
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
MENU (Adv.)
30
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m
s
Shaker View
30
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m
s
Shaker View
MENU (basic)
ADVANCED to BASIC
BASIC to ADVANCED

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 11/16
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
ⓕ

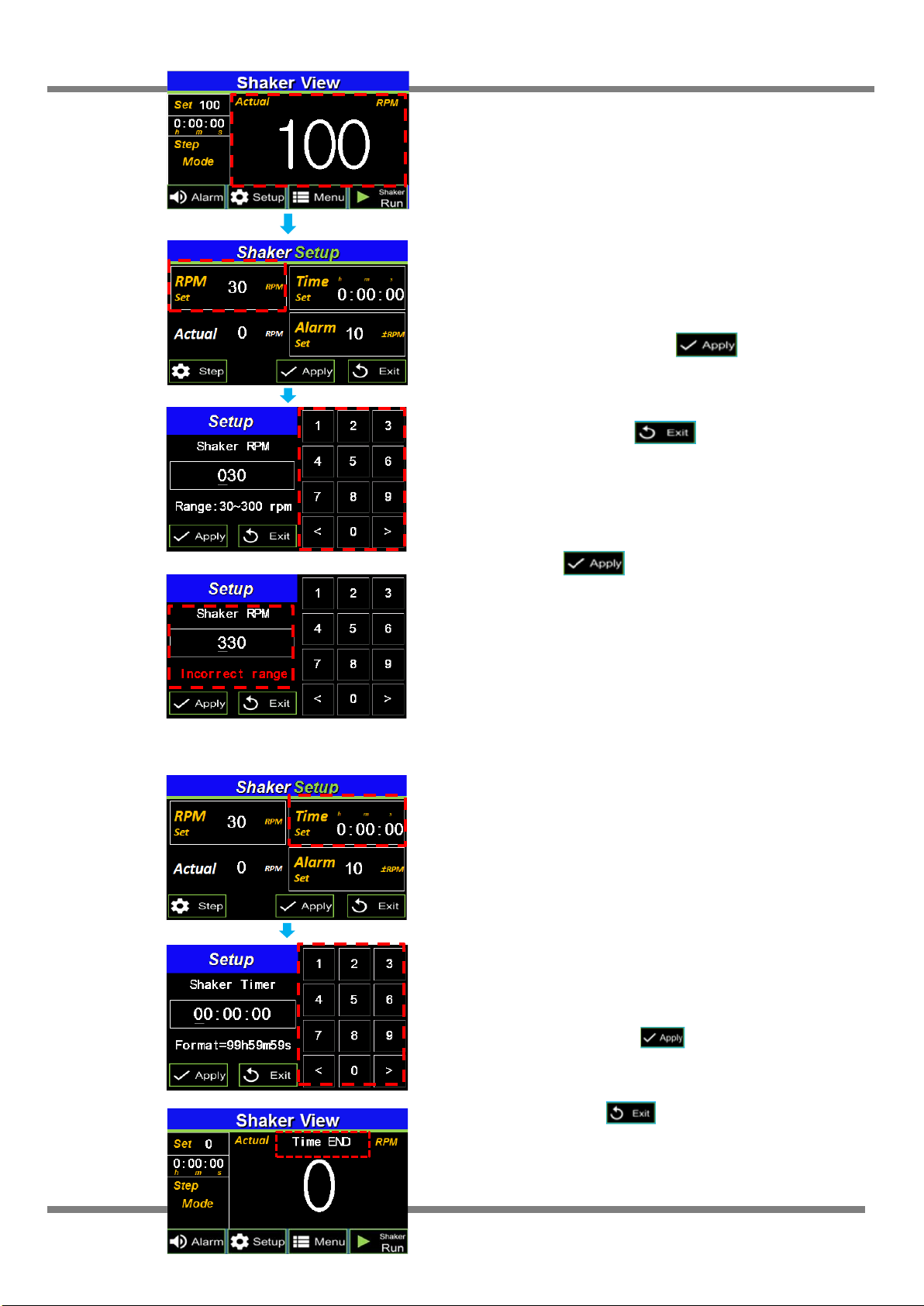

▶Shaker setting (Advanced)
▷RPM setting change
ⓐTOUCH the RPM Shaker value, the screen turns to the
Shaker setting screen
ⓑTOUCH the “RPM Set”Value to adjust the set speed.
ⓒInput the desired value by using the key pads in
the setup screen
ⓓApply: When you press , the changed
setting values are saved and the screen turns to
the previous screen
ⓔExit: If you press button, the changed
setting values are not saved and the screen turns to the
previous screen
ⓕThe RPM setting range is 30~300rpm
When entering a value out of this range and
Pressing , the message
“Incorrect range”is displayed.
▶
Shaker setting (Advanced)
Adjusting the Shaking Time
ⓑTOUCH the “Time Set”Value to adjust the set shaking
time.
ⓒInput the desired value by using the key pads in the
setup screen
ⓓApply: When you press , the changed
setting values are saved and the screen turns to the
previous screen
ⓔExit: If you press button, the changed
setting values are not saved and the screen turns to the
previous screen.
ⓑ
ⓒ
ⓓ
ⓔ

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 12/16

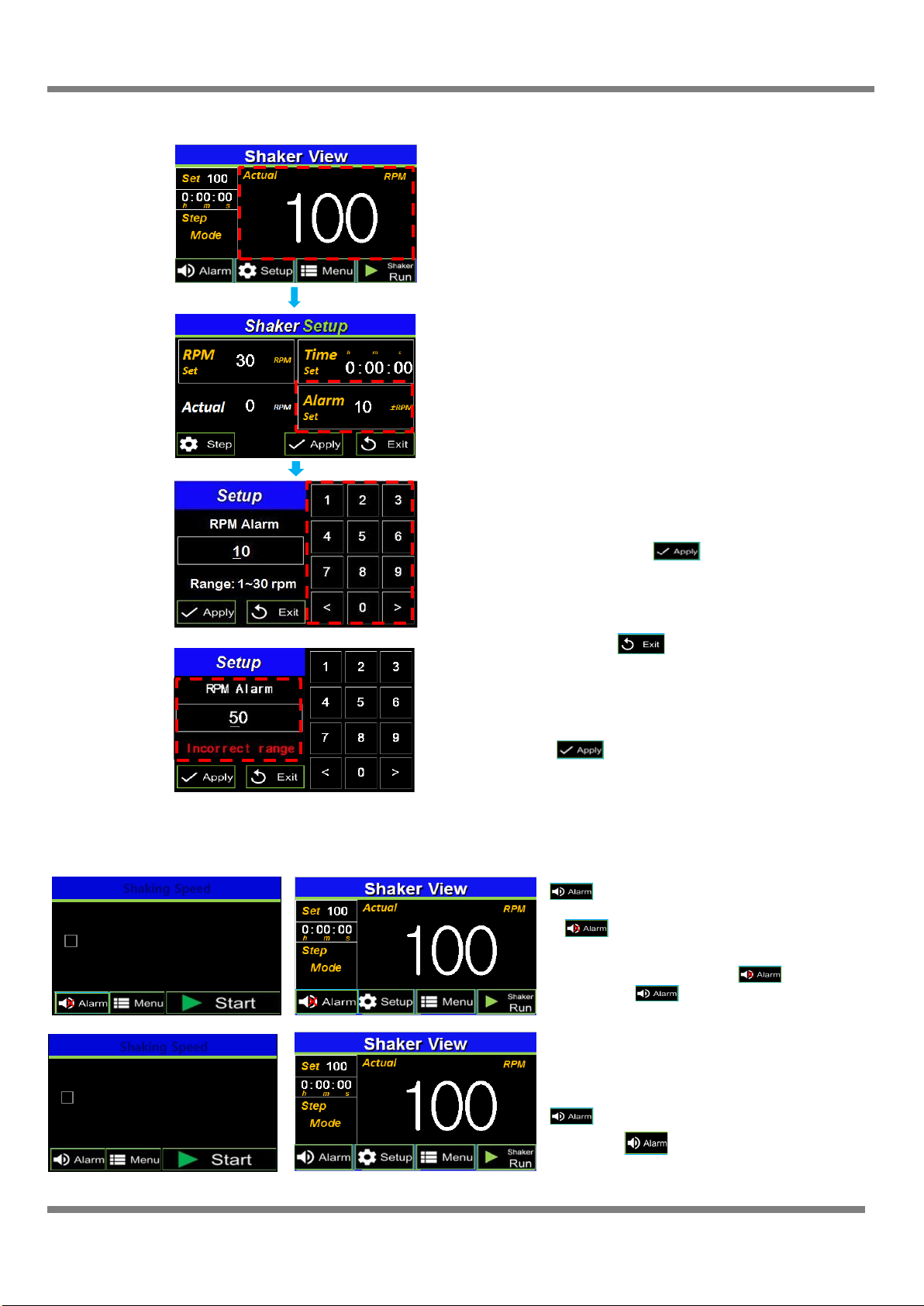

▷Alarm Mute
The audible alarm can temporarily deactivate by TOUCHING the key
when the audible alarm is active (beeping). This
silences/mutes the alarm for 10 minutes. and the icon is displayed
as . Following the 10-minute mute, if alarm event continues,
audible alarm is unmuted.
To unmute the alarm, TOUCH the key to toggle to the
unmuted setting, .
▷Alarm Disabled
The alarm can be disabled by TOUCHING and holding the
key for 3~5 seconds. To reactivate the alarm setting,
TOUCH the once.
OFF
▶Shaker setting (Advanced ONLY)
▷Alarm setting change
The alarm value is the difference between
the set speed and the measured (displayed)
speed. If the difference exceeds this value
(once the temperature has been reached) the
alarm will trigger.
ⓐTOUCH the RPM Shaker value, the screen turns
to the Shaker setting screen
ⓑTOUCH the “Alarm Set”Value to set the timer
ⓒInput the desired value by using the key pads
in the setup screen
ⓓApply: When you press , the changed
setting values are saved and the screen turns to
the previous screen
ⓔExit: If you press button, the changed setting
values are not saved and the screen turns to the previous screen
ⓕThe RPM setting range is 1~30rpm
When selecting the value out of this range and
pressing , the message “Incorrect range”is displayed.
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
ⓕ
30
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m
s
30
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m
s
OFF
OFF
BASIC View
ADVANCED View

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 13/16

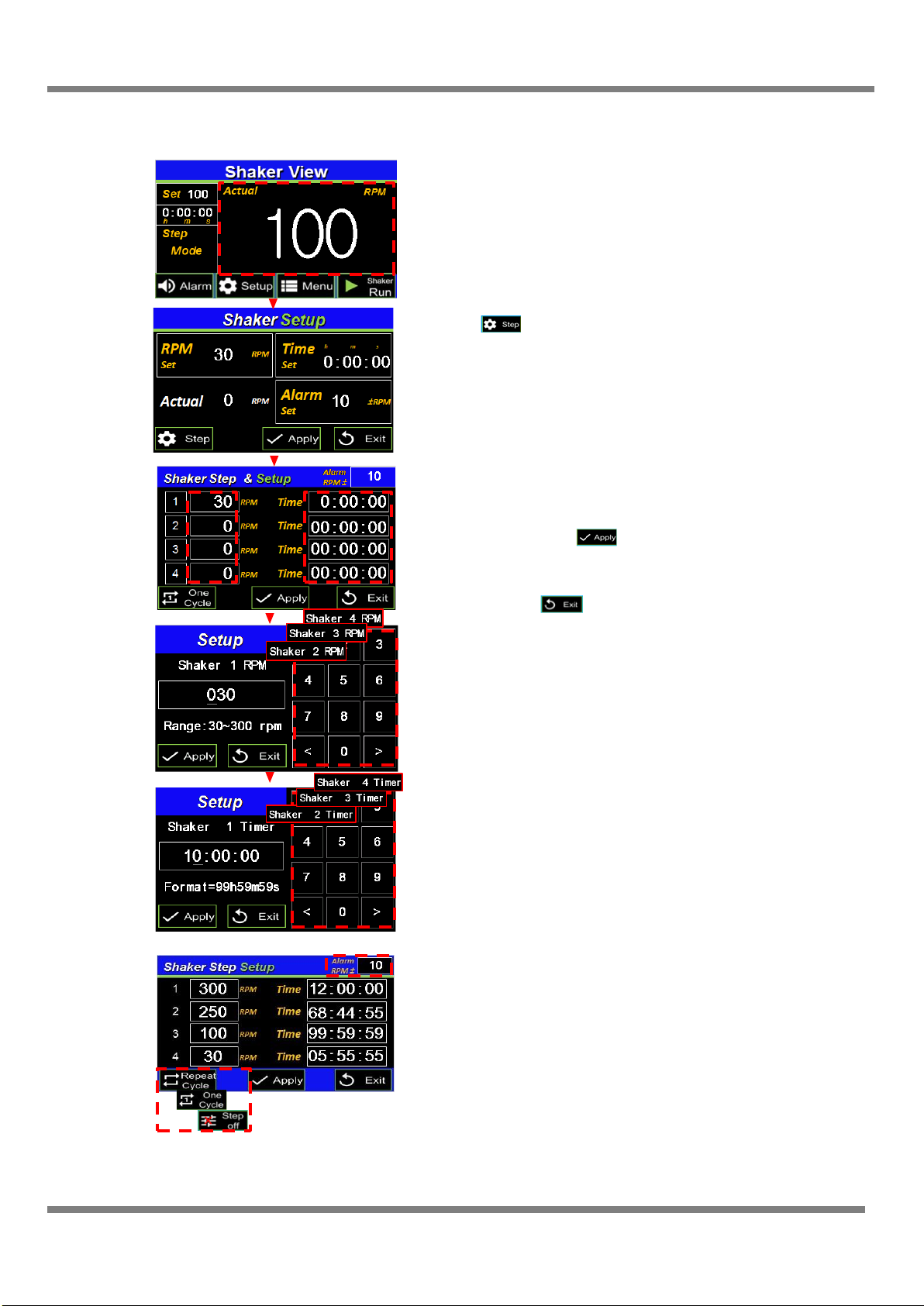

4.3 Shaker Step Setting
▷RPM, time setting
ⓐTOUCH the RPM Shaker value to enter the shaker setup screen.
ⓑSelect , the screen moves to the shaker step & setup screen
ⓒYou can select/link up to 4 desired shaking speeds.
Choose each of the 4 desired speeds by pressing on the speed value.
(If less than 4 linked speeds are desires,
leave the time and speed values as “0”to skip.)
ⓓOnce a RPM step is selected, use the keypad in the setup screen
to select the desired RPM value
ⓔApply: When you press , the changed setting values are saved
and the screen turns to the previous screen
ⓕExit: If you press button, the changed setting values are not saved
and the screen turns to the previous screen
ⓖOnce the desired RPM speeds have been chosen,
adjust the time values by following the same steps.
ⓗThere are 3 modes available for Step Operation :
“One cycle”, “Repeat Cycle”, “Step off”
NOTE: Repeat cycle will result in continue repeating of all programmed steps
until the stop button is pressed.
ⓐ
ⓑ
ⓒ
ⓖ
ⓓ
ⓔ
ⓕ
ⓗ

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 14/16
▶Maintenance:
The platform of the MINI SHAKER AND REMOTE SHAKER WITH TOUCH PANEL<CE> should be cleaned
regularly with a soft cloth dampened with water or alcohol.
(Always ensure that the machine has been powered down prior to cleaning)
In the event of a spillage: Power down the unit, remove the platform and dry the internal chamber with a soft cloth.
DO NOT attempt to operate the unit until the spillage had been properly dried.
▶Service and Contact
Service on the MINI SHAKER AND REMOTE SHAKER WITH TOUCH PANEL<CE> should only be performed by
qualified service personnel.
To request service or technical support, please contact your local N-BIOTEK representative.
▶Step Cycle Ending Screen
ⓐWhen the time for each step has expired, the “Shaker End”message
is displayed
ⓑ“Set”displays the setting value of 1st step
(Default value is displayed when Step Off)
Time is displayed as 0
ⓒis displayed as the instrument can be restarted at any
time.
ⓐ
0
Shaker end
4
One cycl
ⓑ
ⓒ
▶Shaker Alarm
The message “low’or “high”is displayed on the display when the
measured value is deviating from the set value.
The message is only displayed when the difference exceeds the user
programed value for the alarm
NOTE: The message is cleared when the equipment maintains the
values for 1 minute following the activation of the alarm.
low
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m
s
high
Shaking Speed
RPM
Run
Time
00 : 00 : 00
h m
s
BASIC View
ADVANCED View

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 15/16
5. Accessory Description
101S-2S
2 Stairs
(4 Supporters with 101S-PL)
101S-PL
Universal platform
101S-SR
Spring rack
101S-H10
100ml Flask Holder x 16ea
101S-H25
250ml Flask Holder x 9ea
101S-H50
500ml Flask Holder x 5ea
101S-H100
1000ml Flask Holder x 4ea
101S-MP
Microplate Rack<6ea>
Tube rack
*ACCESSORIES FOR SHAKER SERIES*

www.n-biotek.com N-BIOTEK
NB-T101S / T101SRC (Ver.2018.12) 16/16
W A R R A N T Y
N-BIOTEK provides a warranty on all parts and factory workmanship. The warranty includes areas
of defective material and workmanship, provided such defect results from normal and proper use of
the equipment.
1. The free warranty service will be provided once the unit is proved to be defective by wrong
workmanship after N-BIOTEK or reliable distributor’s examination.
2. The warranty period is 1 year from date of installation or 18 Months from the date of
shipment from N-BIOTEK, whichever is sooner as indicated in above table. This period is
proved by serial no.
3. N-BIOTEK will not be responsible of free warranty service for the faulty caused by user’s
improper operation, excessive use, use of incorrect voltage & frequency, storage in wrong
environment mentioned in Manual.
4. Complete the above table after installation and keep this card. Then, present it to a dealer or
N-BIOTEK when warranty repair is needed.
Phone number : [phone] Fax: [phone]
E-mail : [e-mail] Web : www.N-BIOTEK.com
402-803 Techno-Park, YakDae-Dong, WonMi-Gu, BuCheon-Si,
GyeongGi-Do, Korea Rep.
ITEM
NB-T101S / SRC
MODEL
NB-T101S / SRC
DATE OF
INSTALLATION
mm-dd-year
SUPPLIER
SERIAL NO.
PERIOD
One Year
Thank you for purchasing N-BIOTEK product.
This operation manual describes practical information such as performance, usage, cautions and
notices for use of the product. Prior to using the product, please read it carefully all the safety
instructions described in this manual and keep this manual near equipment.
